2010 MITSUBISHI LANCER SPORTBACK Owners Manual

3-194 Features and controls
3
3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to display “LANGUAGE” (lan-
guage setting).
4. Lightly press the multi-information meter switch to
change in sequence from JAPANESE → ENGLISH →
GERMAN→ FRENCH → SPANISH → ITALIAN → ---
(do not display warning message) → RETURN → JAPA-
NESE.5. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change the setting to the
selected language.
NOTE

If the battery is disconnected, the memory of the language
setting is erased and is automatically set to ENGLISH.


If “---” is selected in the language setting, a warning mes-
sage is not displayed when there is a warning display or
interrupt display.
Changing the language on Mitsubishi Multi-Communi-
cation System or the Hands-free Bluetooth
® system to
match the multi-information display
(if so equipped)
N00529800116
The language used in the Mitsubishi Multi-Communication
System (if so equipped) or the Hands-free Bluetooth
® cellular
phone interface system with voice recognition (if so equipped)
can be changed automatically to the same language as that
shown in the multi-information display.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-187.
Ty p e 1
Ty p e 2BK0103001US.book 194 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-195
3
2. Lightly press the multi-information meter switch to select
“ ” (language cooperative control).
3. Every time the multi-information meter switch is pressed
for a long time, the setting will change as follows: A (lan-
guage cooperation: enabled) → M (language cooperation:
disabled) → A (language cooperation: enabled). The set-
ting is changed to the selected condition.
NOTE

If the battery is disconnected, the memory of the language
cooperative control is erased and is automatically set to
“A” (language cooperation: enabled).


The language display modified with the language setting
can be switched in the following manner.
 When “A” (language cooperation: enabled) has been
selected with the language cooperative control, the lan-
guage for the Mitsubishi Multi-Communication System
(if so equipped) or the Hands-free Bluetooth
® cellular
phone interface system with voice recognition (if so
equipped) is automatically changed to the language
selected for the multi-information display.
 When “M” (language cooperation: disabled) has been
selected with the language cooperative control, the lan-
guage for the Mitsubishi Multi-Communication System
(if so equipped) or the Hands-free Bluetooth® cellular
phone interface system with voice recognition (if so
equipped) is not automatically changed to the language
selected for the multi-information display.
Ty p e 1
Ty p e 2
BK0103001US.book 195 ページ ２００９年８月２０日　木曜日　午前１０時４５分

3-196 Features and controls
3
Operation sound setting
N00557400074
You can turn off the operation sounds of the multi-information
meter switch and rheostat meter illumination button.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-187.2. Lightly press the multi-information meter switch to select
“ ” (operation sound setting).
Ty p e 1
Ty p e 2
BK0103001US.book 196 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-197
3
3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch in sequence from ON
(operation sound on) → OFF (operation sound off) → ON
(operation sound on).
The setting is changed to the selected condition.NOTE

If the battery is disconnected, the memory of the operation
sound setting is erased and is automatically set to “ON”
(operation sound on).


The operation sound setting only deactivates the operation
sound of the multi-information meter switch and rheostat
meter illumination button. The warning display and other
sounds cannot be deactivated.
Changing the amount of time until “REST
REMINDER” is displayed
N00557500088
The amount of time until the display appears can be changed.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-187.
2. Lightly press the multi-information meter switch to select
“ALARM” (rest time setting).Ty p e 1
Ty p e 2
BK0103001US.book 197 ページ ２００９年８月２０日　木曜日　午前１０時４５分

3-198 Features and controls
3
3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to display “ALARM” (rest time
setting).
4. Lightly press the multi-information meter switch to select
the amount of time until the display appears.
5. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change the setting to the
selected time.NOTE

If the battery is disconnected, the memory of the unit set-
ting is erased and is automatically set to the “OFF”.


The drive time is reset when the ignition switch is in the
“OFF” position.
Changing the turn-signal sound (Type2)
N00563500012
It is possible to change the turn-signal sound.
1. Press and hold the multi-information meter switch for
about 2 seconds or more to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-187.
2. Lightly press the multi-information meter switch to select
. (changing the turn-signal sound)
3. Press and hold the multi-information meter switch for
about 2 seconds or more to switch in sequence from 1
(turn-signal sound 1) → 2 (turn-signal sound 2) → 1
(turn-signal sound 1).
The setting changes to the selected turn-signal sound.
Type 1 Type 2
BK0103001US.book 198 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-199
3
Changing the momentary fuel consumption display
(Type 2)
N00563600013
It is possible to change the bar graph setting of the momentary
fuel consumption display.
1. Press and hold the multi-information meter switch for
about 2 seconds or more to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-187.
2. Lightly press the multi-information meter switch to select
. (changing the momentary fuel consumption display)3. Press and hold the multi-information meter switch for
about 2 seconds or more to switch in sequence from ON
(with the green bar graph) → OFF (without the green bar
graph) → ON (with the green bar graph).
The setting changes to the selected bar graph setting.
BK0103001US.book 199 ページ ２００９年８月２０日　木曜日　午前１０時４５分

3-200 Features and controls
3
Returning to the factory settings
N00557600106
All of the function settings can be returned to their factory set-
tings.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-187.
2. Lightly press the multi-information meter switch to select
“RESET” (return to the factory settings).3. Press and hold the multi-information meter switch (for
about 5 seconds or more), the buzzer sounds and all of the
function settings are returned to the factory settings.
NOTE

The factory settings are as follows.
 Average fuel consumption and average speed reset
mode: A (Auto reset)
 Fuel consumption display unit: mpg (US) or L/100 km
 Temperature unit: °F (Fahrenheit) or °C (Celsius)
 Display language: ENGLISH
 Cooperative language setting: A
 Operation sounds: ON (Operation sound on)
 “REST REMINDER” display: OFF
 Turn-signal sound: Turn-signal sound 1
 Momentary fuel consumption with the green bar graph:
ON
Ty p e 1
Ty p e 2BK0103001US.book 200 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-201

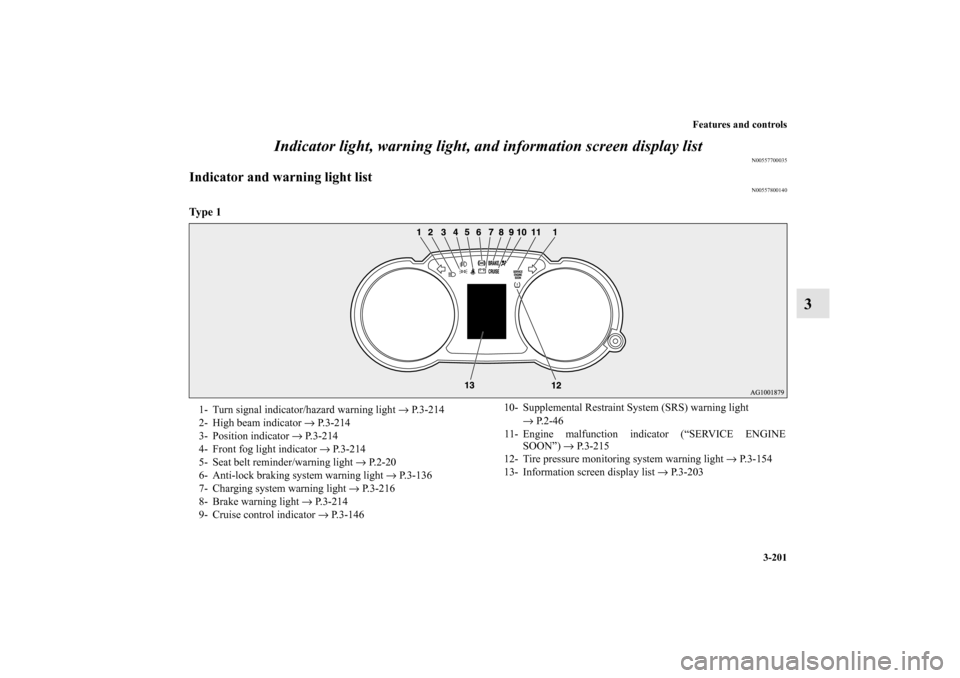

3 Indicator light, warning light, and information screen display list
N00557700035
Indicator and warning light list
N00557800140
Ty p e 1
1- Turn signal indicator/hazard warning light → P.3-214
2- High beam indicator → P.3-214
3- Position indicator → P.3-214
4- Front fog light indicator → P.3-214
5- Seat belt reminder/warning light → P.2-20
6- Anti-lock braking system warning light → P.3-136
7- Charging system warning light → P.3-216
8- Brake warning light → P.3-214
9- Cruise control indicator → P.3-14610- Supplemental Restraint System (SRS) warning light
→ P. 2 - 4 6
11- Engine malfunction indicator (“SERVICE ENGINE
SOON”) → P. 3 - 2 1 5
12- Tire pressure monitoring system warning light → P.3-154
13- Information screen display list → P.3-203
