MITSUBISHI LANCER SPORTBACK 2010 8.G Owners Manual 7-70 Vehicle care and maintenance
7
3. Turn the socket (C) counterclockwise to remove it. 4. Pull the bulb out of the socket.
5. To install the bulb, perform the removal steps in reverse.*- Front of t

Page 602 of 658

MITSUBISHI LANCER SPORTBACK 2010 8.G Owners Manual Vehicle care and maintenance
7-71
7

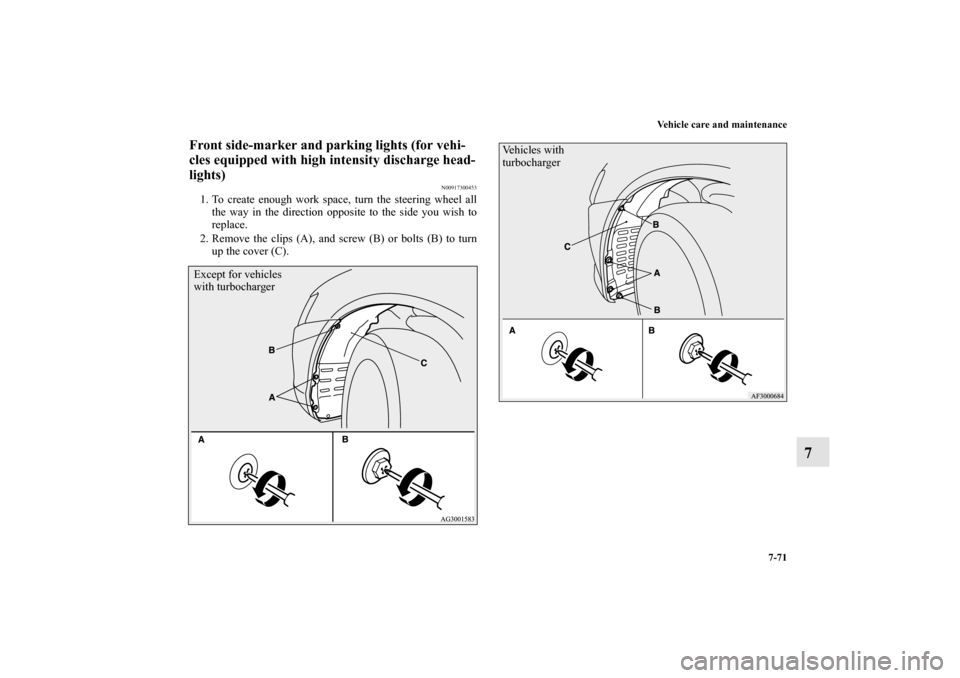

Front side-marker and parking lights (for vehi-
cles equipped with high intensity discharge head-
lights)
N00917300453
1. To create enough work space, turn the stee

Page 603 of 658

MITSUBISHI LANCER SPORTBACK 2010 8.G Owners Manual 7-72 Vehicle care and maintenance
7
3. Turn the socket (D) counterclockwise to remove it.
4. Pull the bulb out of the socket.5. To install the bulb, perform the removal steps in reverse.
BK0103001US.b

Page 604 of 658

MITSUBISHI LANCER SPORTBACK 2010 8.G Owners Manual Vehicle care and maintenance
7-73
7

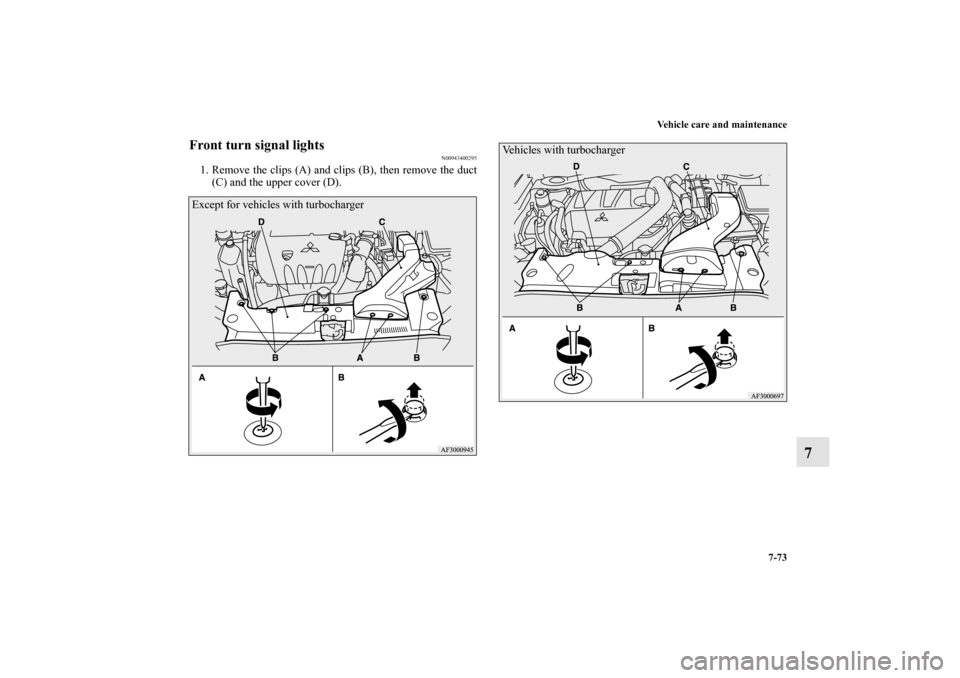

Front turn signal lights
N00943400295
1. Remove the clips (A) and clips (B), then remove the duct
(C) and the upper cover (D).Except for vehicles with turbocharger

Page 605 of 658

MITSUBISHI LANCER SPORTBACK 2010 8.G Owners Manual 7-74 Vehicle care and maintenance
7
2. Remove the entire socket and bulb assembly (E) by turn-
ing it counterclockwise.3. Remove the bulb by pulling it out.
4. To install the bulb, perform the removal

Page 606 of 658

MITSUBISHI LANCER SPORTBACK 2010 8.G Owners Manual Vehicle care and maintenance
7-75
7

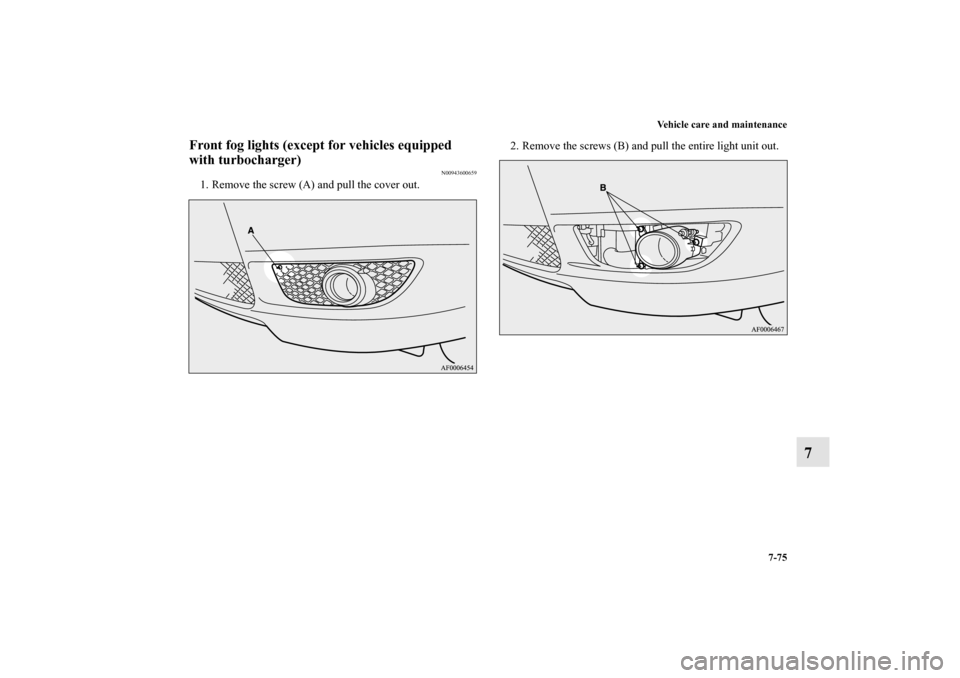

Front fog lights (except for vehicles equipped
with turbocharger)
N00943600659
1. Remove the screw (A) and pull the cover out.2. Remove the screws (B) and pull the

Page 607 of 658

MITSUBISHI LANCER SPORTBACK 2010 8.G Owners Manual 7-76 Vehicle care and maintenance
7

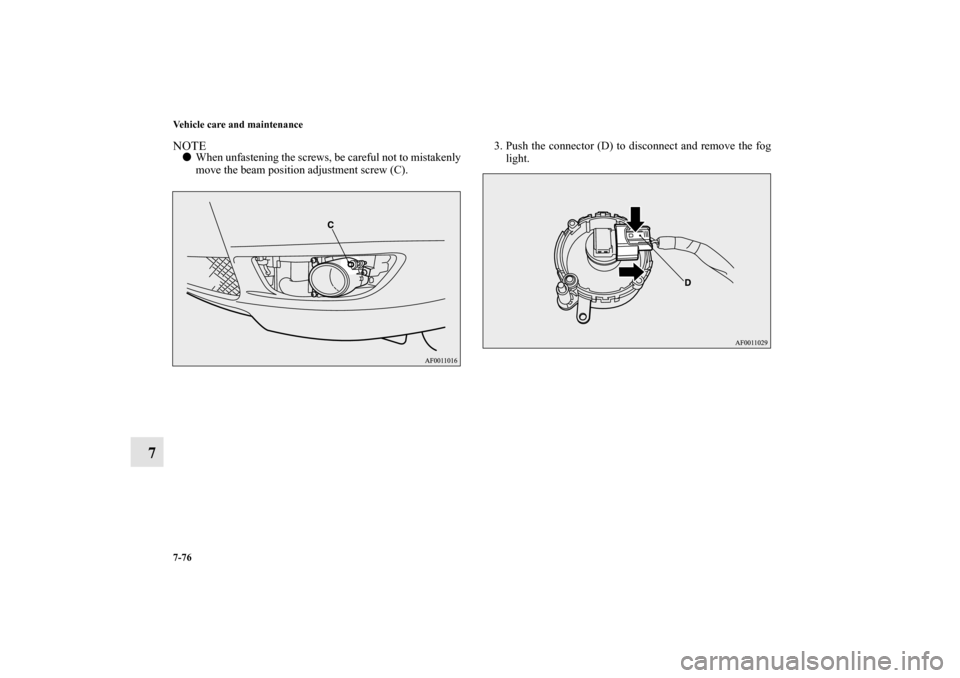

NOTE
When unfastening the screws, be careful not to mistakenly
move the beam position adjustment screw (C).3. Push the connector (D) to disconnect and remove the f

Page 608 of 658

MITSUBISHI LANCER SPORTBACK 2010 8.G Owners Manual Vehicle care and maintenance
7-77
7
4. Remove the bulb assembly (E) by turning it counterclock-
wise.
5. To install the bulb, perform the removal steps in reverse.
NOTE
When mounting the cover, align
