2010 MITSUBISHI LANCER SPORTBACK Owners Manual

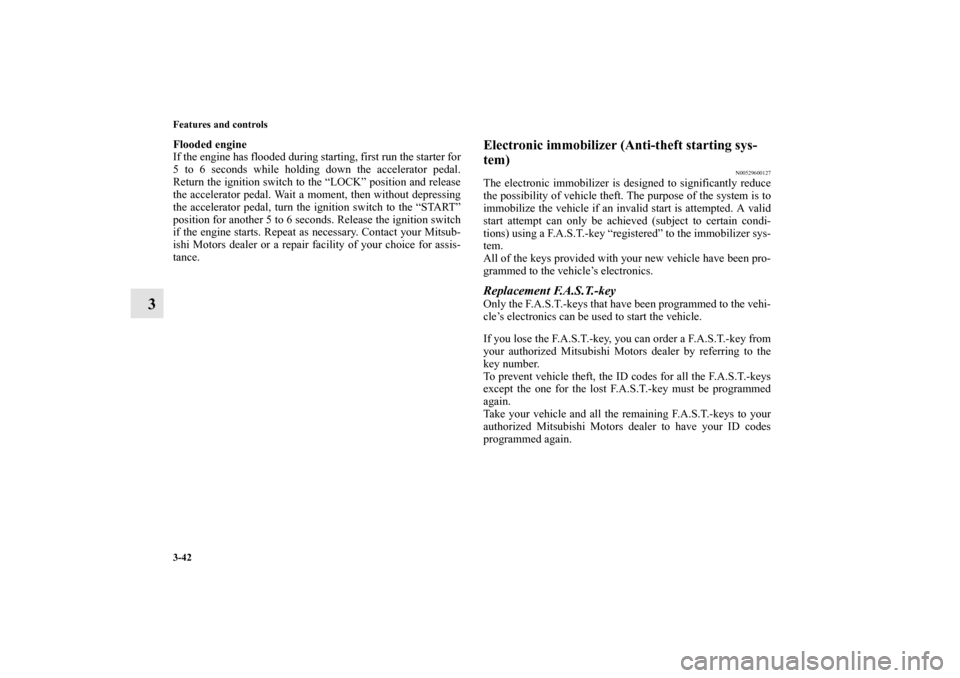

3-42 Features and controls
3
Flooded engine
If the engine has flooded during starting, first run the starter for
5 to 6 seconds while holding down the accelerator pedal.
Return the ignition switch to the “LOCK” position and release
the accelerator pedal. Wait a moment, then without depressing
the accelerator pedal, turn the ignition switch to the “START”
position for another 5 to 6 seconds. Release the ignition switch
if the engine starts. Repeat as necessary. Contact your Mitsub-
ishi Motors dealer or a repair facility of your choice for assis-
tance.
Electronic immobilizer (Anti-theft starting sys-
tem)
N00529600127
The electronic immobilizer is designed to significantly reduce
the possibility of vehicle theft. The purpose of the system is to
immobilize the vehicle if an invalid start is attempted. A valid
start attempt can only be achieved (subject to certain condi-
tions) using a F.A.S.T.-key “registered” to the immobilizer sys-
tem.
All of the keys provided with your new vehicle have been pro-
grammed to the vehicle’s electronics.Replacement F.A.S.T.-keyOnly the F.A.S.T.-keys that have been programmed to the vehi-
cle’s electronics can be used to start the vehicle.
If you lose the F.A.S.T.-key, you can order a F.A.S.T.-key from
your authorized Mitsubishi Motors dealer by referring to the
key number.
To prevent vehicle theft, the ID codes for all the F.A.S.T.-keys
except the one for the lost F.A.S.T.-key must be programmed
again.
Take your vehicle and all the remaining F.A.S.T.-keys to your
authorized Mitsubishi Motors dealer to have your ID codes
programmed again.
BK0103001US.book 42 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-43
3
Additional F.A.S.T.-keyTo add a F.A.S.T.-key, you must already have two registered
F.A.S.T.-keys. You need to register the ID code to the vehicle.
Registering the ID code can be done by your authorized Mit-
subishi Motors dealer. Or it can be done by yourself (except for
vehicles sold in Canada).
For you to register the ID code yourself, follow the “Customer
F.A.S.T.-key programming” procedure below.
If you choose to have your authorized Mitsubishi Motors
dealer register the ID code, take your vehicle and all remaining
F.A.S.T.-keys to your authorized Mitsubishi Motors dealer.NOTE

You are provided with two F.A.S.T.-keys, but you may
register up to four F.A.S.T.-keys.
You can obtain blank F.A.S.T.-keys specially cut for your
vehicle from your Mitsubishi Motors dealer.
Customer F.A.S.T.-key programming (Except for vehi-
cles sold in Canada)
N00561200103
You can program new F.A.S.T.-keys to the system if you have
two valid (already registered) F.A.S.T.-keys, blank (not regis-
tered) F.A.S.T.-key and emergency key (specially cut for your
vehicle at your Mitsubishi Motors dealer).
To use the new F.A.S.T.-key, it is necessary to register the key
with both the electronic immobilizer and keyless entry system.
Also refer to “Keyless entry system: Customer F.A.S.T.-key
programming” on page 3-49.
For F.A.S.T.-key programming, follow the procedures below.
1. Remove the emergency key from the F.A.S.T.-key. Refer
to “Emergency key” on page 3-34.
2. While pushing the lock release buttons (A), remove the
cover of the ignition switch.
BK0103001US.book 43 ページ ２００９年８月２０日　木曜日　午前１０時４５分

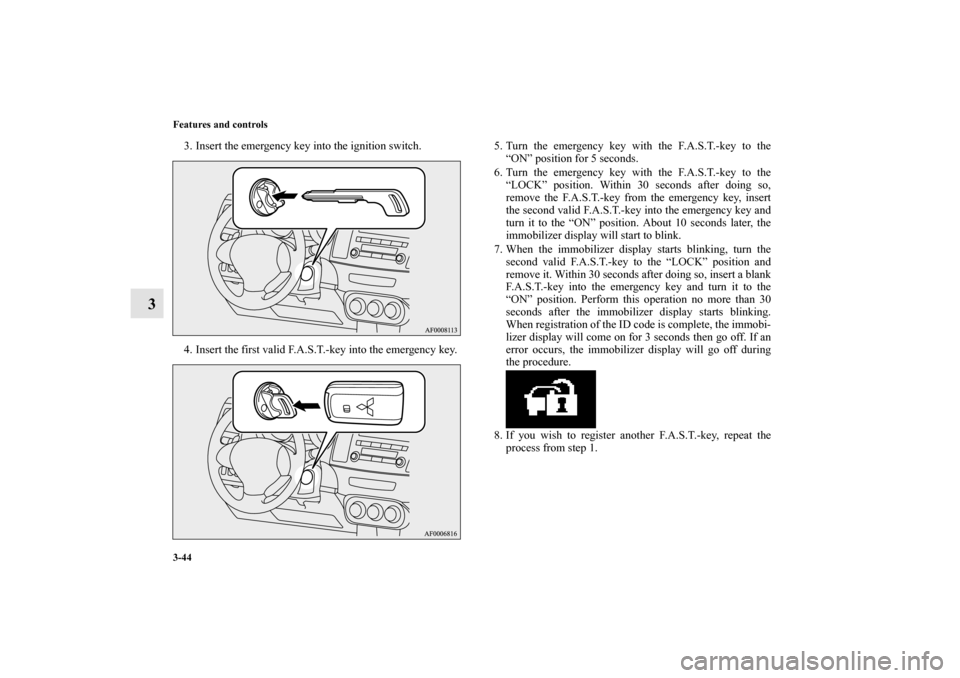

3-44 Features and controls
3
3. Insert the emergency key into the ignition switch.
4. Insert the first valid F.A.S.T.-key into the emergency key.5. Turn the emergency key with the F.A.S.T.-key to the
“ON” position for 5 seconds.
6. Turn the emergency key with the F.A.S.T.-key to the
“LOCK” position. Within 30 seconds after doing so,
remove the F.A.S.T.-key from the emergency key, insert
the second valid F.A.S.T.-key into the emergency key and
turn it to the “ON” position. About 10 seconds later, the
immobilizer display will start to blink.
7. When the immobilizer display starts blinking, turn the
second valid F.A.S.T.-key to the “LOCK” position and
remove it. Within 30 seconds after doing so, insert a blank
F.A.S.T.-key into the emergency key and turn it to the
“ON” position. Perform this operation no more than 30
seconds after the immobilizer display starts blinking.
When registration of the ID code is complete, the immobi-
lizer display will come on for 3 seconds then go off. If an
error occurs, the immobilizer display will go off during
the procedure.
8. If you wish to register another F.A.S.T.-key, repeat the
process from step 1.
BK0103001US.book 44 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-45
3
NOTE

Perform the operation when the interrupt display screen is
not showing. The interrupt display screen may prevent
you from seeing the immobilizer display.


It is not possible to register a F.A.S.T.-key if:
 the immobilizer display goes off during the procedure
 the immobilizer display does not come on within 30 sec-
onds after turning the ignition switch to the “ON” posi-
tion with a blank F.A.S.T.-key


The procedure will be terminated automatically if:
 a period of 30 seconds or longer elapses from the
moment when the first F.A.S.T.-key is turned to the
“LOCK” position to the moment when the second
F.A.S.T.-key is turned to the “ON” position
 a period of 30 seconds or longer elapses from the
moment when the second F.A.S.T.-key is turned to the
“LOCK” position to the moment when the blank
F.A.S.T.-key is turned to the “ON” position


To use the new remote control transmitters, it is necessary
to register the key with both the electronic immobilizer
and keyless entry system.
Also refer to “Keyless entry system: Customer F.A.S.T.-
key programming” on page 3-49.
Keyless entry system
N00515500138
Press the remote control transmitter buttons to lock or unlock
the doors and the rear hatch.
It can also help you signal for attention by setting off the panic
alarm.1-
LOCK ( ) button
2-
UNLOCK ( ) button
3-
PANIC ( ) button
4- Operation indicator light
BK0103001US.book 45 ページ ２００９年８月２０日　木曜日　午前１０時４５分

3-46 Features and controls
3
To l o c k
N00544200049
Press the LOCK button (1) to lock all the doors and the rear
hatch.
The turn signal lights will also blink once.NOTE

If you press the LOCK button (1) twice quickly, the horn
will sound once.
To unlock
N00544300066
Press the UNLOCK button (2) to unlock the driver’s door only.
Within about 2 seconds, press the UNLOCK button one more
time to unlock all the doors and the rear hatch.
The dome light will turn on for 30 seconds. The turn signal
lights will also blink twice.
For vehicles equipped with the color multi-information display,
the front side-marker and parking lights will also turn on for
about 30 seconds. Refer to “Welcome light” on page 3-225.NOTE

On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to a separate operation manual.


The door unlock function can be set so that all doors and
the rear hatch unlock when the UNLOCK button (2) is
pressed once. Refer to “Setting of door or rear hatch
unlock function” on page 3-48.
Answerback function
N00544500055
Setting of the horn, turn signal lights and buzzer of the keyless
entry system answerback function can be changed as required.
This is done with the key removed from the ignition switch.NOTE

The answerback function does not operate when the key is
in the ignition switch or any door or rear hatch is opened.
Horn deactivation/reactivation
The horn answerback function can be set to the following three
conditions.
Each time the horn answerback function is set, a chime will
sound to tell you the condition of the answerback function.
1. Turn the ignition switch to the “LOCK” position. If you
started the engine with the key, remove the key from the
ignition switch.
2. Open the driver’s door and turn the combination head-
lights and dimmer switch to the “OFF” position.
3. Press the LOCK button (1) for 4 to 10 seconds and press
the UNLOCK button (2) during this time.
Number of
chimes
Condition
One chime The horn will not sound.
Two chimes The horn will sound.
Four chimesThe horn will sound if the LOCK button (1) is
pressed twice quickly.
BK0103001US.book 46 ページ ２００９年８月２０日　木曜日　午前１０時４５分

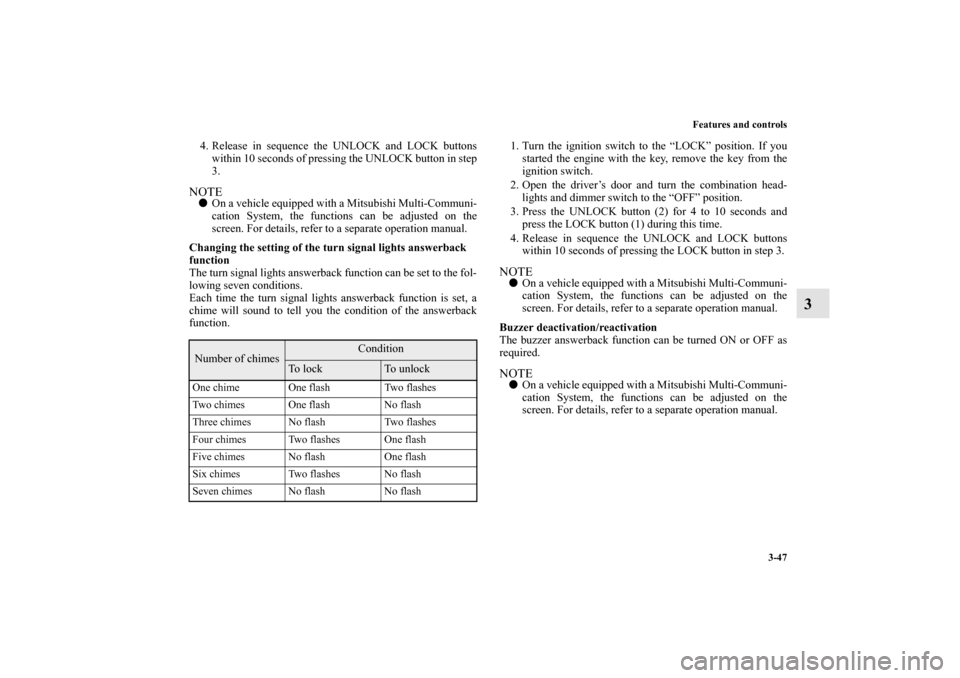

Features and controls
3-47
3
4. Release in sequence the UNLOCK and LOCK buttons
within 10 seconds of pressing the UNLOCK button in step
3.NOTE

On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to a separate operation manual.
Changing the setting of the turn signal lights answerback
function
The turn signal lights answerback function can be set to the fol-
lowing seven conditions.
Each time the turn signal lights answerback function is set, a
chime will sound to tell you the condition of the answerback
function.1. Turn the ignition switch to the “LOCK” position. If you
started the engine with the key, remove the key from the
ignition switch.
2. Open the driver’s door and turn the combination head-
lights and dimmer switch to the “OFF” position.
3. Press the UNLOCK button (2) for 4 to 10 seconds and
press the LOCK button (1) during this time.
4. Release in sequence the UNLOCK and LOCK buttons
within 10 seconds of pressing the LOCK button in step 3.
NOTE

On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to a separate operation manual.
Buzzer deactivation/reactivation
The buzzer answerback function can be turned ON or OFF as
required.
NOTE

On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to a separate operation manual.
Number of chimes
Condition
To l o c k
To u n l o c k
One chime One flash Two flashes
Two chimes One flash No flash
Three chimes No flash Two flashes
Four chimes Two flashes One flash
Five chimes No flash One flash
Six chimes Two flashes No flash
Seven chimes No flash No flash
BK0103001US.book 47 ページ ２００９年８月２０日　木曜日　午前１０時４５分

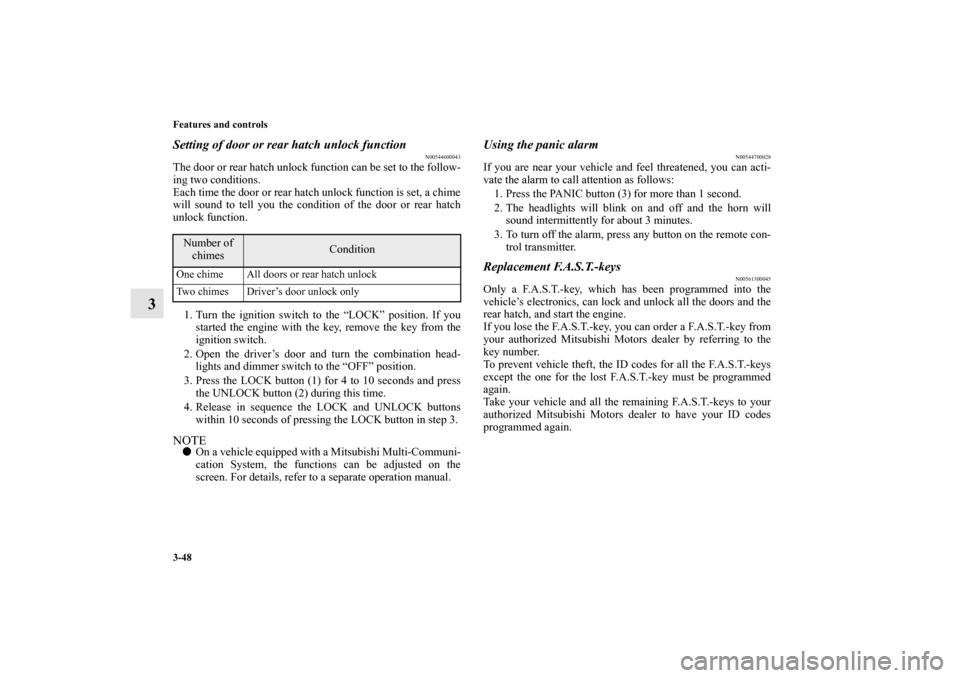

3-48 Features and controls
3
Setting of door or rear hatch unlock function
N00544600043
The door or rear hatch unlock function can be set to the follow-
ing two conditions.
Each time the door or rear hatch unlock function is set, a chime
will sound to tell you the condition of the door or rear hatch
unlock function.
1. Turn the ignition switch to the “LOCK” position. If you
started the engine with the key, remove the key from the
ignition switch.
2. Open the driver’s door and turn the combination head-
lights and dimmer switch to the “OFF” position.
3. Press the LOCK button (1) for 4 to 10 seconds and press
the UNLOCK button (2) during this time.
4. Release in sequence the LOCK and UNLOCK buttons
within 10 seconds of pressing the LOCK button in step 3.NOTE

On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to a separate operation manual.
Using the panic alarm
N00544700028
If you are near your vehicle and feel threatened, you can acti-
vate the alarm to call attention as follows:
1. Press the PANIC button (3) for more than 1 second.
2. The headlights will blink on and off and the horn will
sound intermittently for about 3 minutes.
3. To turn off the alarm, press any button on the remote con-
trol transmitter.Replacement F.A.S.T.-keys
N00561300045
Only a F.A.S.T.-key, which has been programmed into the
vehicle’s electronics, can lock and unlock all the doors and the
rear hatch, and start the engine.
If you lose the F.A.S.T.-key, you can order a F.A.S.T.-key from
your authorized Mitsubishi Motors dealer by referring to the
key number.
To prevent vehicle theft, the ID codes for all the F.A.S.T.-keys
except the one for the lost F.A.S.T.-key must be programmed
again.
Take your vehicle and all the remaining F.A.S.T.-keys to your
authorized Mitsubishi Motors dealer to have your ID codes
programmed again.
Number of
chimes
Condition
One chime All doors or rear hatch unlock
Two chimes Driver’s door unlock onlyBK0103001US.book 48 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-49
3
Additional F.A.S.T.-keys
N00561400046
To add a F.A.S.T.-key, you must already have two registered
F. A . S . T. - k e y s .
Registering the ID code can be done by your authorized Mit-
subishi Motors dealer. Or it can be done by yourself (except for
vehicles sold in Canada). For you to register the ID code your-
self, follow the “Customer F.A.S.T.-key programming” proce-
dure below.
If you choose to have your authorized Mitsubishi Motors
dealer register the ID code, take your vehicle and all remaining
F.A.S.T.-keys to your authorized Mitsubishi Motors dealer.NOTE

You are provided with two F.A.S.T.-keys, but you may
register up to four F.A.S.T.-keys.
Customer F.A.S.T.-key programming (Except for vehi-
cles sold in Canada)
N00561500106
You can program new F.A.S.T.-keys to the system if you have
two valid (already registered) F.A.S.T.-keys, blank (not regis-
tered) F.A.S.T.-key and emergency key (specially cut for your
vehicle at your Mitsubishi Motors dealer).
To use the new F.A.S.T.-key, it is necessary to register the key
with both the electronic immobilizer and keyless entry system.
Also refer to “Electronic immobilizer: Customer F.A.S.T.-key
programming” on page 3-43.
For F.A.S.T.-key programming, follow the procedures below.
1. Remove the emergency key from the F.A.S.T.-key. Refer
to “Emergency key” on page 3-34.
2. While pushing the lock release buttons (A), remove the
cover of the ignition switch.
BK0103001US.book 49 ページ ２００９年８月２０日　木曜日　午前１０時４５分
