Front fog lights (for vehicles equipped with tur-
bocharger)
N00943600662
1. Remove the screw (A).
CAUTION
!

Handle halogen light bulbs with care. The gas inside
a halogen light bulb is highly pressurized, so drop-
ping, knocking, or scratching a halogen light bulb
can cause it to shatter.


Never hold the halogen lights bulb with a bare hand,
dirty glove, etc.
The oil from your hand could cause the bulb to
break the next time the fog lights are used.
If the glass surface is dirty, clean it with alcohol and
let it dry completely before installing the bulb.
BK0103001US.book 78 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Vehicle care and maintenance
7-79
7

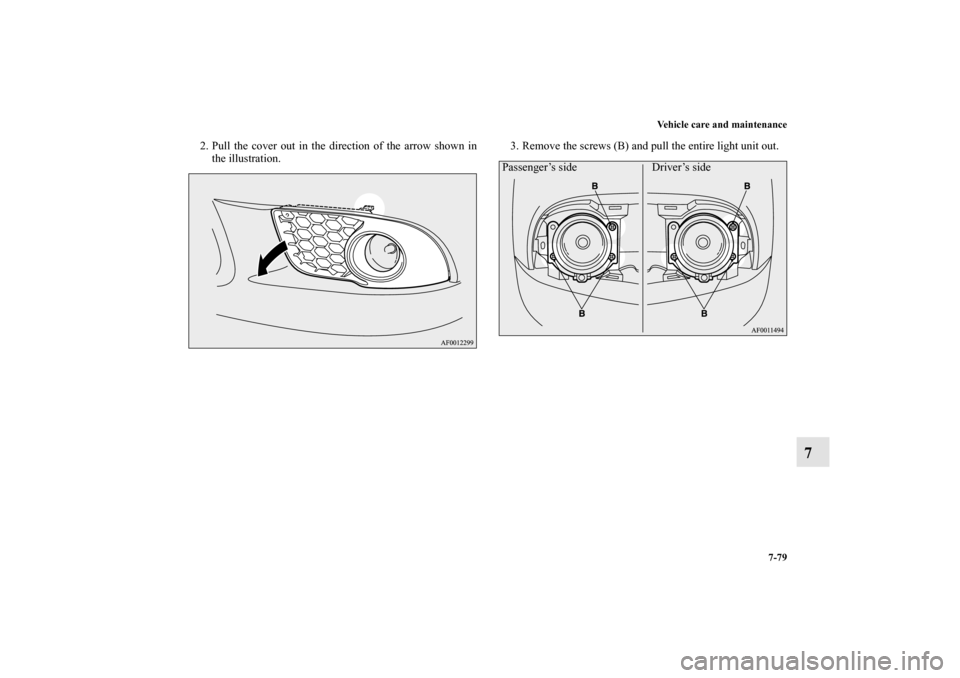

2. Pull the cover out in the direction of the arrow shown in
the illustration.3. Remove the screws (B) and pull the entire light unit out.
Passenger’s side Driver’s side
BK0103001US.book 79 ページ ２００９年８月２０日　木曜日　午前１０時４５分

7-80 Vehicle care and maintenance
7

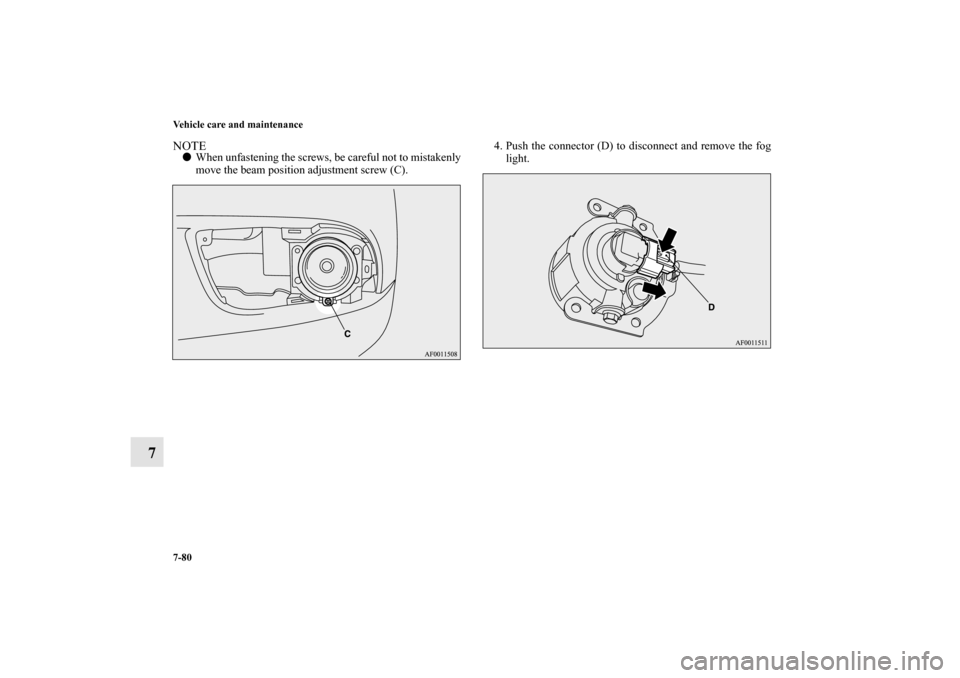

NOTE

When unfastening the screws, be careful not to mistakenly
move the beam position adjustment screw (C).4. Push the connector (D) to disconnect and remove the fog
light.
BK0103001US.book 80 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Vehicle care and maintenance
7-81
7
5. Remove the bulb assembly (E) by turning it counterclock-
wise.6. To install the bulb, perform the removal steps in reverse.
NOTE

When mounting the cover, align the hook (F) on the cover
with the hole in the body.
BK0103001US.book 81 ページ ２００９年８月２０日　木曜日　午前１０時４５分

7-82 Vehicle care and maintenance
7
Rear combination lights
N00943700429
Tail and stop lights, rear turn signal lights and rear
side-marker lights1. Insert a screwdriver at the edge of the cover and pry gen-
tly to remove the cover. NOTE

Wrap a cloth around the tip of the screwdriver to keep
from scratching the cover.
CAUTION
!

Handle halogen light bulbs with care. The gas inside
a halogen light bulb is highly pressurized, so drop-
ping, knocking, or scratching a halogen light bulb
can cause it to shatter.


Never hold the halogen lights bulb with a bare hand,
dirty glove, etc.
The oil from your hand could cause the bulb to
break the next time the fog lights are used.
If the glass surface is dirty, clean it with alcohol and
let it dry completely before installing the bulb.
BK0103001US.book 82 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Vehicle care and maintenance
7-83
7
2. Remove the socket and bulb assemblies by turning them
counterclockwise.3. Remove the bulb by pulling it out.
4. To install the bulb, perform the removal steps in reverse.A- Rear side-marker light
B- Rear turn signal light
C- Tail and stop light
Tail and stop light and
Rear turn signal lightRear side-marker light
BK0103001US.book 83 ページ ２００９年８月２０日　木曜日　午前１０時４５分

7-84 Vehicle care and maintenance
7

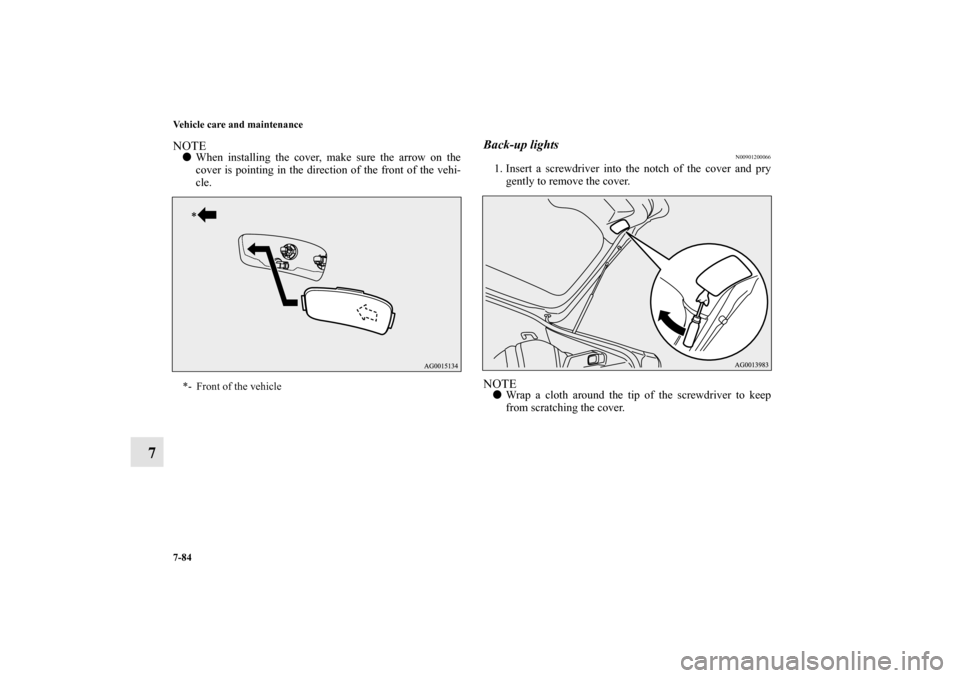

NOTE

When installing the cover, make sure the arrow on the
cover is pointing in the direction of the front of the vehi-
cle.
Back-up lights
N00901200066
1. Insert a screwdriver into the notch of the cover and pry
gently to remove the cover.NOTE

Wrap a cloth around the tip of the screwdriver to keep
from scratching the cover.
*- Front of the vehicle
BK0103001US.book 84 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Vehicle care and maintenance
7-85
7
2. Remove the socket and bulb assembly by turning it coun-
terclockwise.3. Remove the bulb by pulling it out.
4. To install the bulb, perform the removal steps in reverse.
