2010 MITSUBISHI LANCER SPORTBACK Owners Manual

3-170 Features and controls
3

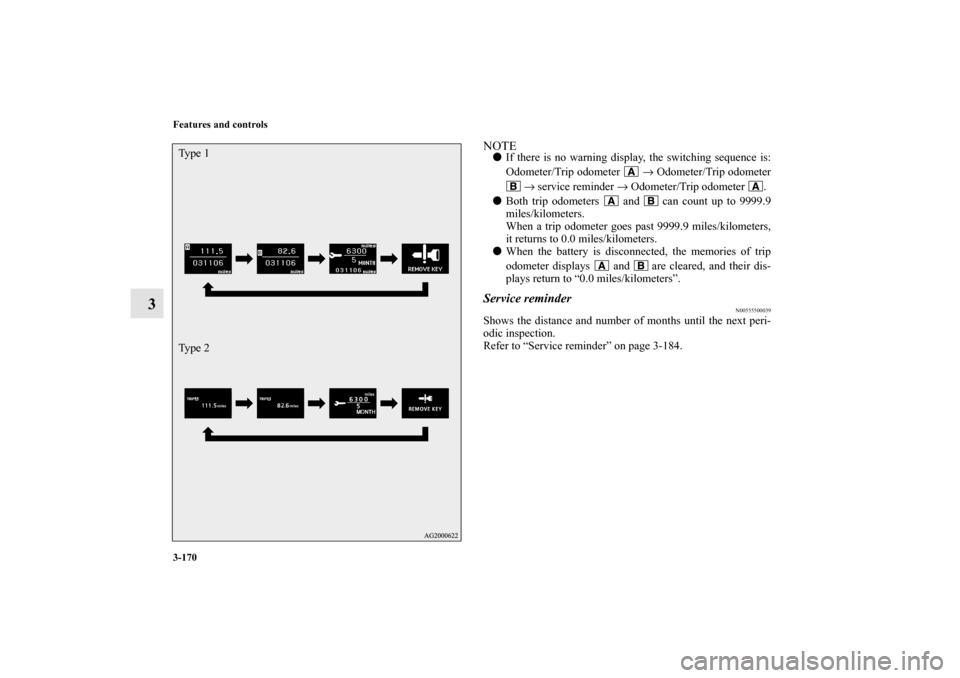

NOTE

If there is no warning display, the switching sequence is:
Odometer/Trip odometer → Odometer/Trip odometer
→ service reminder → Odometer/Trip odometer .


Both trip odometers and can count up to 9999.9
miles/kilometers.
When a trip odometer goes past 9999.9 miles/kilometers,
it returns to 0.0 miles/kilometers.


When the battery is disconnected, the memories of trip
odometer displays and are cleared, and their dis-
plays return to “0.0 miles/kilometers”.
Service reminder
N00555500039
Shows the distance and number of months until the next peri-
odic inspection.
Refer to “Service reminder” on page 3-184.
Ty p e 1
Ty p e 2BK0103001US.book 170 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-171
3
Interrupt display screen (With ignition switch in
the “OFF” position)
N00559600126
When there is information to be announced, such as a key
reminder, the buzzer sounds and switches to the warning dis-
play screen. Refer to the appropriate page and take the neces-
sary measures.
When the cause of the warning display is eliminated, the warn-
ing display goes out automatically.
Refer to “Warning display list (With ignition switch in the
“OFF” position)” on page 3-204.
Returning to the display screen from before the warn-
ing displayEven if the cause of the warning display is not eliminated, you
can return to the screen that was displayed before the warning
display.
If you press the multi-information meter switch, the display
screen switches to the screen display from before the warning
and the warning (A) is displayed.
1- Information generated
2- Cause eliminatedTy p e 1
Ty p e 2
Except for vehicles with Twin Clutch SST
Ty p e 1
Ty p e 2
BK0103001US.book 171 ページ ２００９年８月２０日　木曜日　午前１０時４５分

3-172 Features and controls
3

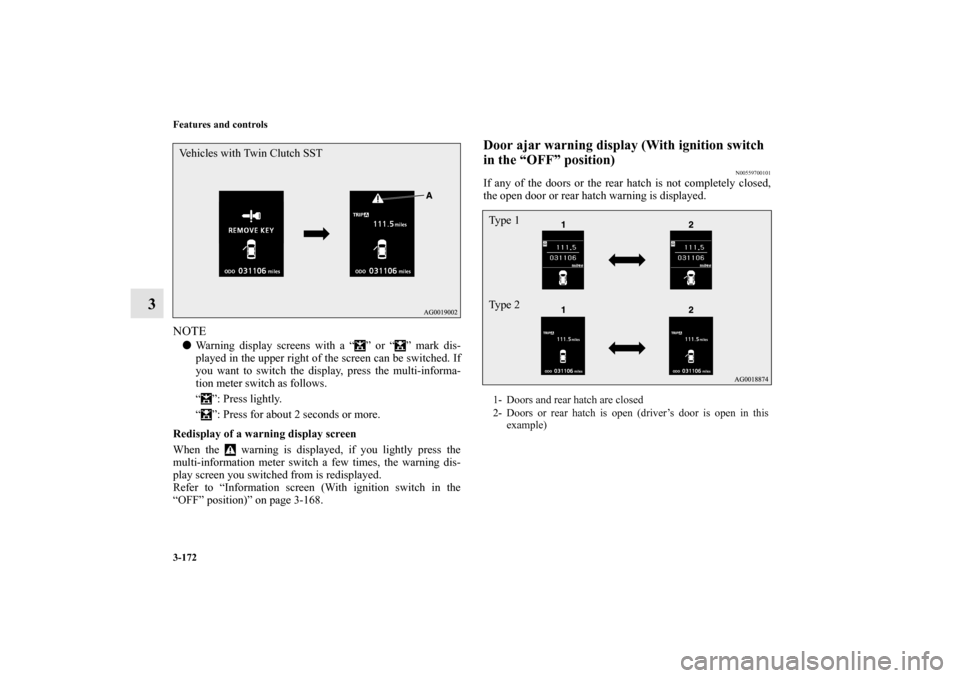

NOTE

Warning display screens with a “ ” or “ ” mark dis-
played in the upper right of the screen can be switched. If
you want to switch the display, press the multi-informa-
tion meter switch as follows.
“ ”: Press lightly.
“ ”: Press for about 2 seconds or more.
Redisplay of a warning display screen
When the warning is displayed, if you lightly press the
multi-information meter switch a few times, the warning dis-
play screen you switched from is redisplayed.
Refer to “Information screen (With ignition switch in the
“OFF” position)” on page 3-168.
Door ajar warning display (With ignition switch
in the “OFF” position)
N00559700101
If any of the doors or the rear hatch is not completely closed,
the open door or rear hatch warning is displayed.
Vehicles with Twin Clutch SST
1- Doors and rear hatch are closed
2- Doors or rear hatch is open (driver’s door is open in this
example)Ty p e 1
Ty p e 2
BK0103001US.book 172 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-173
3

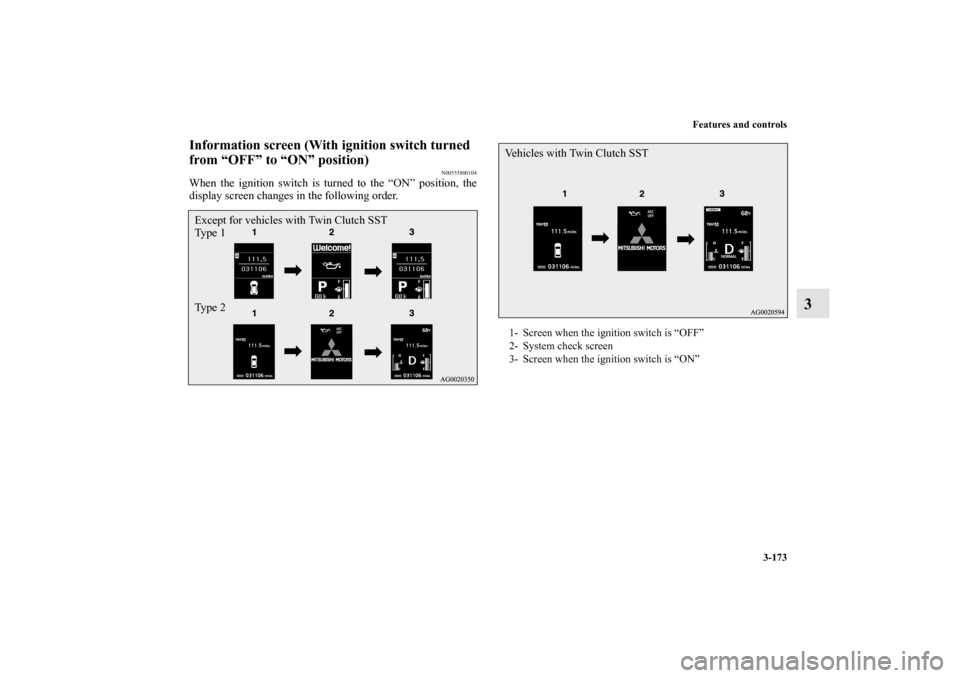

Information screen (With ignition switch turned
from “OFF” to “ON” position)
N00555800104
When the ignition switch is turned to the “ON” position, the
display screen changes in the following order.Except for vehicles with Twin Clutch SST
Ty p e 1
Ty p e 2
1- Screen when the ignition switch is “OFF”
2- System check screen
3- Screen when the ignition switch is “ON”Vehicles with Twin Clutch SST
BK0103001US.book 173 ページ ２００９年８月２０日　木曜日　午前１０時４５分

3-174 Features and controls
3
System check screenWhen the ignition switch is turned to the “ON” position, the
system check screen is displayed for about 4 seconds. If there
is no fault, information screen (when the ignition switch is
“ON”) is displayed.
If there is a fault, the screen changes to warning display. Refer
to “Warning display list (when the ignition switch is “ON”)” on
page 3-207.NOTE

The system check screen display varies depending on
your equipment.
Service reminderWhen the time for periodic inspection arrives, the warning dis-
play is displayed for a few seconds after the screen that is ini-
tially displayed when the ignition switch is turned “ON”. Refer
to “Service reminder” on page 3-184.
Ty p e 1
Ty p e 2ACD control mode display screen
(if so equipped)
N00545900056
The operation status of the ACD control mode is displayed.
Refer to “ACD control mode” on page 3-128.
Ty p e 1 Ty p e 2BK0103001US.book 174 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-175
3

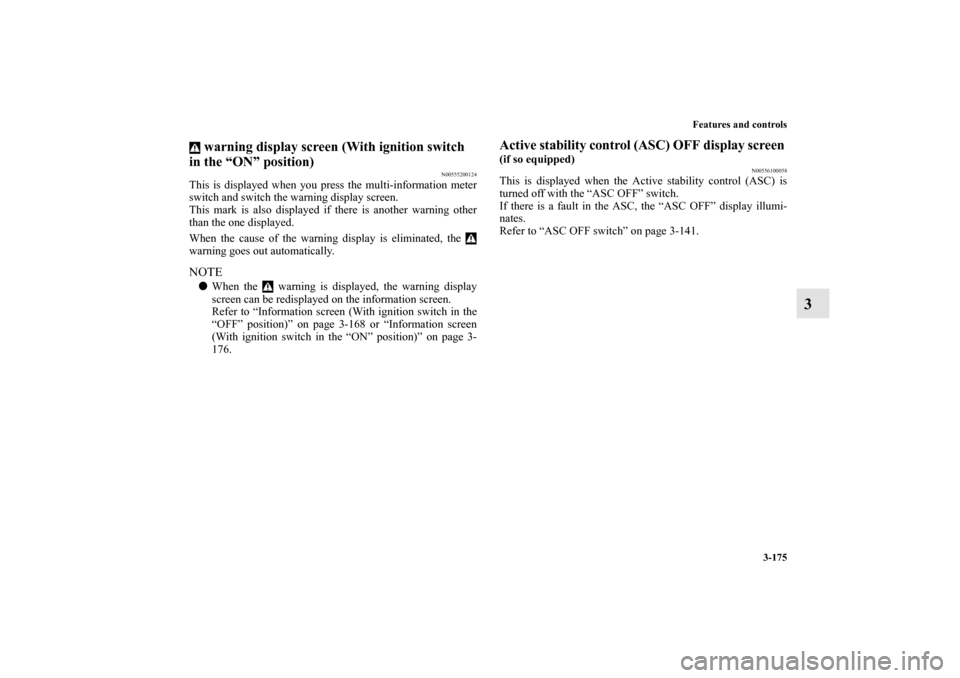

warning display screen (With ignition switch
in the “ON” position)
N00555200124
This is displayed when you press the multi-information meter
switch and switch the warning display screen.
This mark is also displayed if there is another warning other
than the one displayed.
When the cause of the warning display is eliminated, the
warning goes out automatically.NOTE

When the warning is displayed, the warning display
screen can be redisplayed on the information screen.
Refer to “Information screen (With ignition switch in the
“OFF” position)” on page 3-168 or “Information screen
(With ignition switch in the “ON” position)” on page 3-
176.
Active stability control (ASC) OFF display screen

(if so equipped)
N00556100058
This is displayed when the Active stability control (ASC) is
turned off with the “ASC OFF” switch.
If there is a fault in the ASC, the “ASC OFF” display illumi-
nates.
Refer to “ASC OFF switch” on page 3-141.
BK0103001US.book 175 ページ ２００９年８月２０日　木曜日　午前１０時４５分

3-176 Features and controls
3
Information screen (With ignition switch in the
“ON” position)
N00556200134
Each time you lightly press the multi-information meter
switch, the display screen changes in the following order.
When there is no warning display
When there is a
warning display
When there is no warning display
When there is a
warning display Ty p e 1
Ty p e 2
BK0103001US.book 176 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-177
3
NOTE

While driving, the function setting screen is not displayed
even if you operate the multi-information meter switch.
Always park the vehicle in a safe place before operating.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-187.


When there is information to be announced, such as a sys-
tem fault, the tone sounds and the screen display is
changed.
Refer to “Interrupt display screen (With ignition switch in
the “ON” position)” on page 3-180.
Odometer/Trip odometerThe operation method is the same as when the ignition switch
is in the “OFF” position.
For further details, refer to “Odometer/Trip odometer” on page
3-169.Service reminderShows the distance and number of months until the next peri-
odic inspection.
Refer to “Service reminder” on page 3-184.Engine coolant temperature displayShows the engine coolant temperature.
If the coolant becomes hot, “ ” will blink.
Pay careful attention to the engine coolant temperature display
while you are driving.
1-
Odometer/Trip odometer
2-
Odometer/Trip odometer
3- Service reminder
4- Engine coolant temperature display (Type 1)
5- Driving range display (Type 1)
6- Average speed display, average fuel consumption display,
momentary fuel consumption display (Type 1)
7- Driving range display, momentary fuel consumption display
(Type 2)
8- Average fuel consumption display, momentary fuel con-
sumption display (Type 2)
9- Average speed display, momentary fuel consumption display
(Type 2)
10- Function setting screen
11- Redisplay of a warning display screen
CAUTION
!

If the engine is overheating, “ ” will blink. In this
case, the bar graph is on the red zone. Immediately
park the vehicle in a safe place and take the required
measures. Refer to “Engine overheating” on page 6-
5.
BK0103001US.book 177 ページ ２００９年８月２０日　木曜日　午前１０時４５分
