2010 MITSUBISHI LANCER SPORTBACK Owners Manual

3-162 Features and controls
3
Tachometer
N00519200247
The tachometer shows engine revolutions per minute. This
allows the driver to determine the most efficient shift position
(manual transaxle), selector position {continuously variable
transmission (CVT)} or shift position (Twin Clutch SST) and
engine speed combinations.
This gauge also assists in evaluating engine performance.
Rheostat meter illumination button
N00554900108
Each time you press this button, there is a sound and the bright-
ness of the instruments changes.
CAUTION
!

The red zone indicates an engine speed beyond the
range of safe operation.


Select the correct shift position (manual transaxle),
selector position (CVT) or gearshift position (Twin
Clutch SST) to control the engine speed so that the
tachometer indicator does not enter the red zone.
1- Brightness display
2- Rheostat illumination button
BK0103001US.book 162 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-163
3

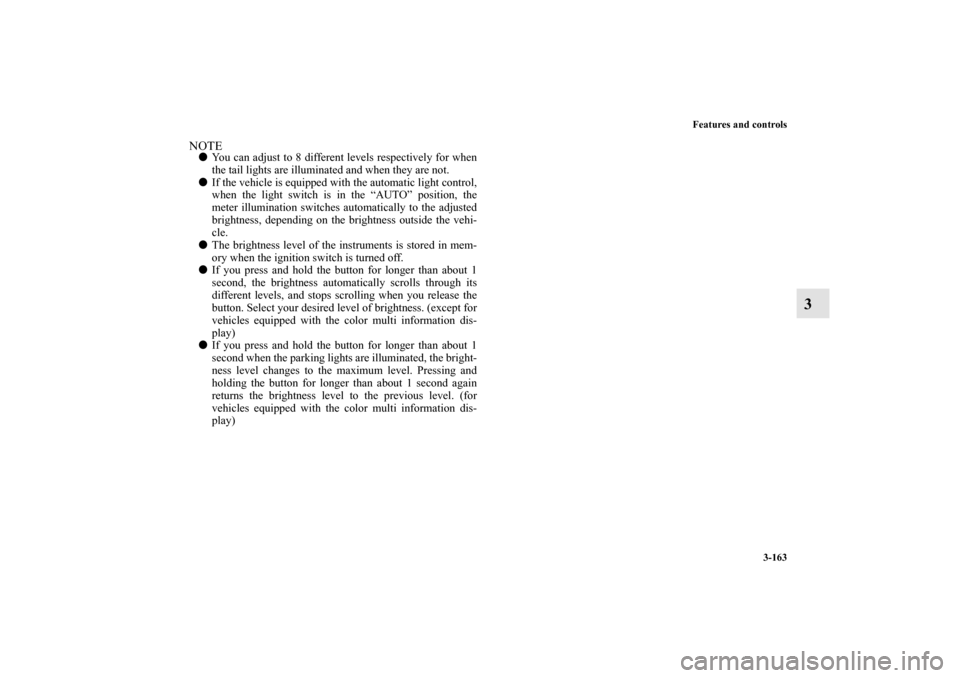

NOTE

You can adjust to 8 different levels respectively for when
the tail lights are illuminated and when they are not.


If the vehicle is equipped with the automatic light control,
when the light switch is in the “AUTO” position, the
meter illumination switches automatically to the adjusted
brightness, depending on the brightness outside the vehi-
cle.


The brightness level of the instruments is stored in mem-
ory when the ignition switch is turned off.


If you press and hold the button for longer than about 1
second, the brightness automatically scrolls through its
different levels, and stops scrolling when you release the
button. Select your desired level of brightness. (except for
vehicles equipped with the color multi information dis-
play)


If you press and hold the button for longer than about 1
second when the parking lights are illuminated, the bright-
ness level changes to the maximum level. Pressing and
holding the button for longer than about 1 second again
returns the brightness level to the previous level. (for
vehicles equipped with the color multi information dis-
play)
BK0103001US.book 163 ページ ２００９年８月２０日　木曜日　午前１０時４５分

3-164 Features and controls
3Multi-information display
N00555000148
[Except for vehicles equipped with Twin Clutch SST]Always stop the vehicle in a safe place before operating.
The multi-information display displays warnings, the odometer/trip odometer, service reminder, engine coolant temperature, fuel
remaining, outside temperature, selector lever position, average and momentary fuel consumption, driving range, average speed,
instrument brightness, etc.
It is also possible to change elements such as the language and units used on the multi-information display.
With ignition switch is
“OFF” positionWith ignition switch is “ON” position
{Continuously variable transmission (CVT)}With ignition switch is “ON”
position (Manual transaxle)
Type 1 Type 2 Type 1 Type 1Type 2 Type 2
1-
warning display screen (With ignition switch in the
“OFF” position) → P.3-168
2- Information screen (With ignition switch in the “OFF” posi-
tion) → P.3-168
Interrupt display screen (With ignition switch in the “OFF”
position) → P.3-171
3- Door ajar warning display screen (With ignition switch in the
“OFF” position) → P. 3 - 1 7 2
4-
warning display screen (With ignition switch in the “ON”
position) → P.3-175
5- Active stability control (ASC) OFF display screen (if so
equipped) → P.3-175
BK0103001US.book 164 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-165
3
6- Information screen (With ignition switch in the “ON” posi-
tion) → P.3-176
Interrupt display screen (With ignition switch in the “ON”
position) → P.3-180

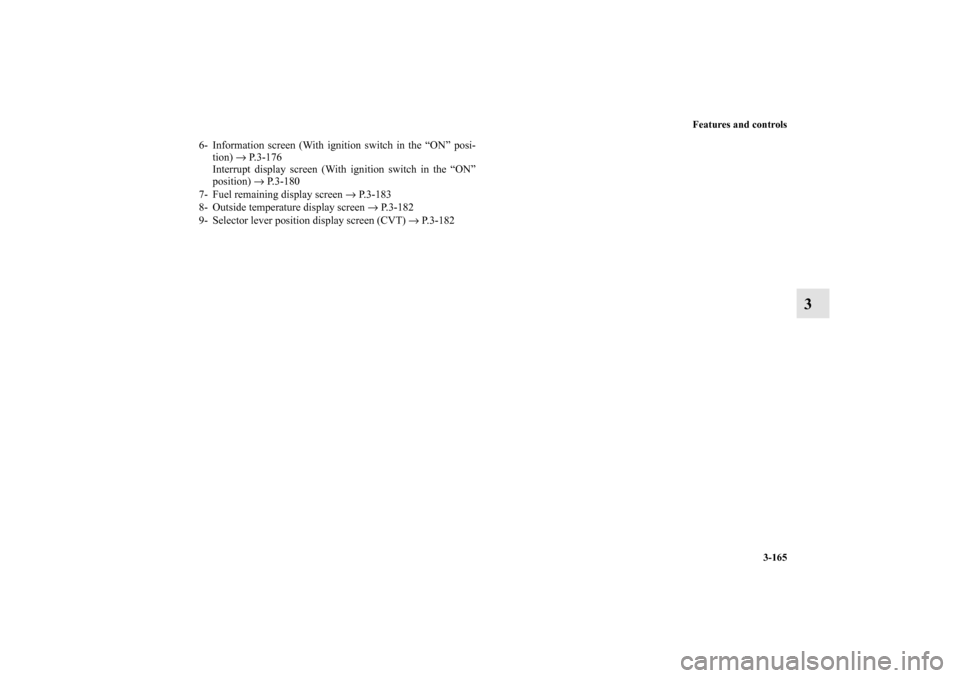

7- Fuel remaining display screen → P.3-183
8- Outside temperature display screen → P.3-182
9- Selector lever position display screen (CVT) → P.3-182
BK0103001US.book 165 ページ ２００９年８月２０日　木曜日　午前１０時４５分

3-166 Features and controls
3
[For vehicles equipped with Twin Clutch SST]Always stop the vehicle in a safe place before operating.
The multi-information display displays warnings, the odometer/trip odometer, service reminder, engine coolant temperature, fuel
remaining, outside temperature, Twin Clutch SST control mode, ACD control mode, gearshift lever position, average and momen-
tary fuel consumption, driving range, average speed, instrument brightness, etc.
It is also possible to change elements such as the language and units used on the multi-information display.
With ignition switch in the
“OFF” positionWith ignition switch in the “ON”
position
1-
warning display screen (With ignition switch in the
“OFF” position) → P.3-168
2- Information screen (With ignition switch in the “OFF” posi-
tion) → P.3-168
Interrupt display screen (With ignition switch in the “OFF”
position) → P.3-171
3- Door ajar warning display screen (With ignition switch in the
“OFF” position) → P.3-172
4- ACD control mode display screen → P.3-174
5- Outside temperature display screen → P.3-182
6-
warning display screen (With ignition switch in the “ON”
position) → P.3-175
7- Information screen (With ignition switch in the “ON” posi-
tion) → P. 3 - 1 7 6
Interrupt display screen (With ignition switch in the “ON”
position) → P.3-180
8- Fuel remaining display screen → P.3-183
9- Twin Clutch SST control mode display screen → P.3-182
10- Gearshift lever position display screen → P.3-182
BK0103001US.book 166 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-167
3
NOTE

The fuel units, temperature units, display language, and
other settings can be changed.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-187.


The display screen is different depending on whether the
ignition switch in the “OFF” or “ON” position.
Refer to “Information screen (With ignition switch in the
“OFF” position)” on page 3-168.
Refer to “Warning display list (With ignition switch in the
“OFF” position)” on page 3-204.
Refer to “Information screen (With ignition switch turned
from “OFF” to “ON” position)” on page 3-173.
Refer to “Information screen (With ignition switch in the
“ON” position)” on page 3-176.
Refer to “Warning display list (With ignition switch in the
“ON” position)” on page 3-207.
11- Active Stability Control (ASC) OFF display screen → P. 3 -
174
BK0103001US.book 167 ページ ２００９年８月２０日　木曜日　午前１０時４５分

3-168 Features and controls
3
Multi-information meter switch
N00555100107
The multi-information meter switch is a button marked
“INFO” on the left side of the dash.
Each time the multi-information meter switch is operated, a
sound is emitted and the multi-information display changes
between information such as warnings, service reminder, aver-
age and momentary fuel consumption, driving range, average
speed and ACD control mode display (if so equipped).
It is also possible to change elements such as the language and
units used on the multi-information display by operating the
multi-information meter switch.
warning display screen (With ignition switch
in the “OFF” position)
N00555200111
If you press the multi-information meter switch and return
from the warning display screen to the previous screen, the
warning is displayed.
Refer to “Returning to the display screen from before the warn-
ing display” on page 3-171.
This mark is also displayed if there is another warning other
than the one displayed. When the cause of the warning display
is eliminated, the warning goes out automatically.NOTE

When the warning is displayed, the warning display
screen can be redisplayed on the information screen.
Refer to “Information screen (With ignition switch in the
“OFF” position)” on page 3-168.
Refer to “Information screen (With ignition switch in the
“ON” position)” on page 3-176.
Information screen (With ignition switch in the
“OFF” position)
N00555300082
Each time you lightly press the multi-information meter
switch, the display screen changes in the following order.
BK0103001US.book 168 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-169
3
Odometer/Trip odometer
N00555400070
Each time you lightly press the multi-information meter
switch, the display screen changes as follows:
Odometer/Trip odometer → Odometer/Trip odometer
→ Service reminder → Redisplay of a warning display screen
→ Odometer/Trip odometer .
Odometer
Shows the total distance traveled.
Trip odometer
Shows the distance traveled between two points.
When there is no
warning display
When there is a
warning display Ty p e 1
When there is no
warning display
When there is a
warning display Ty p e 2
1-
Odometer/Trip odometer
2-
Odometer/Trip odometer
3- Service reminder
4- Redisplay of a warning display screen
Usage examples for trip odometer , trip odometer :
It is possible to measure two currently traveled distances,
from home using trip odometer and from a particular
point on the way using trip odometer .
To reset the trip odometer:
To return the display to 0, hold down the multi-information
meter switch for about 2 seconds or more. Only the currently
displayed value will be reset.
Example:
If trip odometer is displayed, only trip odometer
will be reset.
