2-56 Seat and restraint systems
2

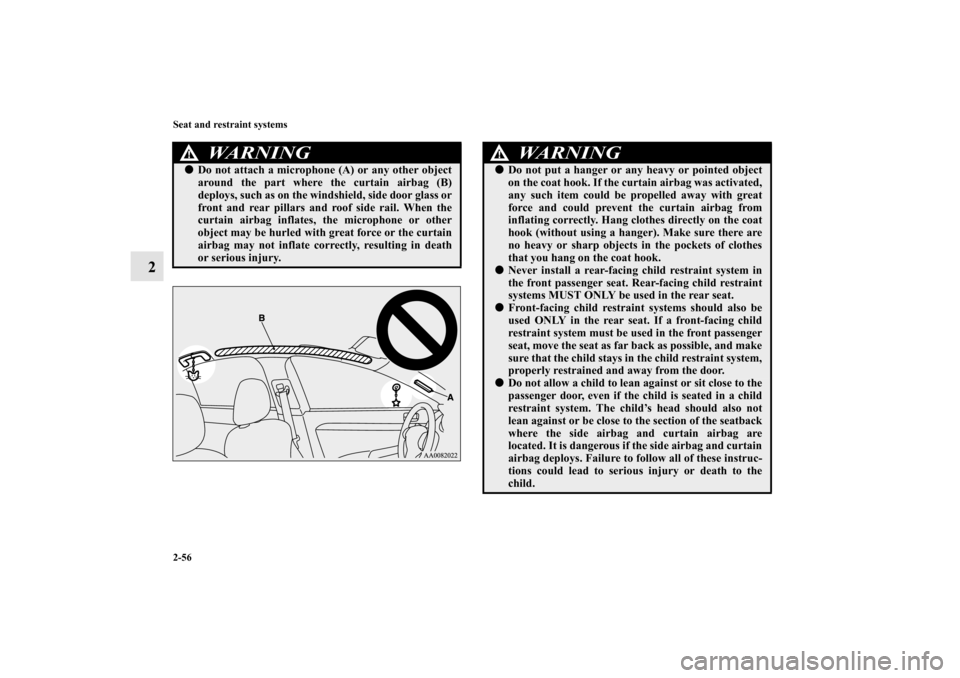

WA R N I N G
!

Do not attach a microphone (A) or any other object
around the part where the curtain airbag (B)
deploys, such as on the windshield, side door glass or
front and rear pillars and roof side rail. When the
curtain airbag inflates, the microphone or other
object may be hurled with great force or the curtain
airbag may not inflate correctly, resulting in death
or serious injury.
WA R N I N G
!

Do not put a hanger or any heavy or pointed object
on the coat hook. If the curtain airbag was activated,
any such item could be propelled away with great
force and could prevent the curtain airbag from
inflating correctly. Hang clothes directly on the coat
hook (without using a hanger). Make sure there are
no heavy or sharp objects in the pockets of clothes
that you hang on the coat hook.


Never install a rear-facing child restraint system in
the front passenger seat. Rear-facing child restraint
systems MUST ONLY be used in the rear seat.


Front-facing child restraint systems should also be
used ONLY in the rear seat. If a front-facing child
restraint system must be used in the front passenger
seat, move the seat as far back as possible, and make
sure that the child stays in the child restraint system,
properly restrained and away from the door.


Do not allow a child to lean against or sit close to the
passenger door, even if the child is seated in a child
restraint system. The child’s head should also not
lean against or be close to the section of the seatback
where the side airbag and curtain airbag are
located. It is dangerous if the side airbag and curtain
airbag deploys. Failure to follow all of these instruc-
tions could lead to serious injury or death to the
child.
BK0103001US.book 56 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Seat and restraint systems
2-57
2

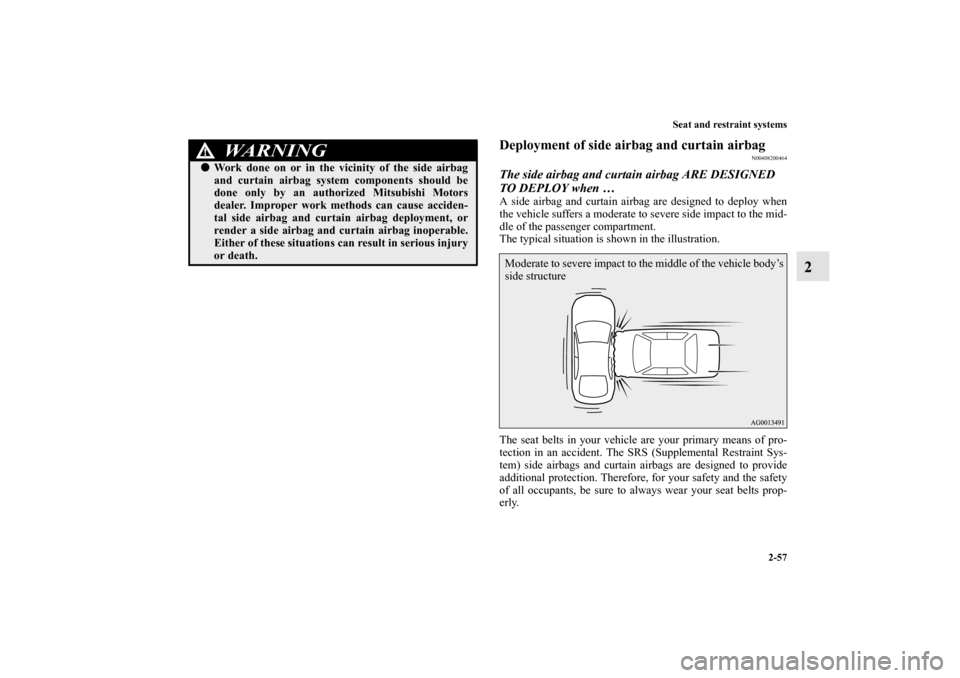

Deployment of side airbag and curtain airbag
N00408200464
The side airbag and curtain airbag ARE DESIGNED
TO DEPLOY when … A side airbag and curtain airbag are designed to deploy when
the vehicle suffers a moderate to severe side impact to the mid-
dle of the passenger compartment.
The typical situation is shown in the illustration.
The seat belts in your vehicle are your primary means of pro-
tection in an accident. The SRS (Supplemental Restraint Sys-
tem) side airbags and curtain airbags are designed to provide
additional protection. Therefore, for your safety and the safety
of all occupants, be sure to always wear your seat belts prop-
erly.


Work done on or in the vicinity of the side airbag
and curtain airbag system components should be
done only by an authorized Mitsubishi Motors
dealer. Improper work methods can cause acciden-
tal side airbag and curtain airbag deployment, or
render a side airbag and curtain airbag inoperable.
Either of these situations can result in serious injury
or death.WA R N I N G
!
Moderate to severe impact to the middle of the vehicle body’s
side structure
BK0103001US.book 57 ページ ２００９年８月２０日　木曜日　午前１０時４５分

2-58 Seat and restraint systems
2

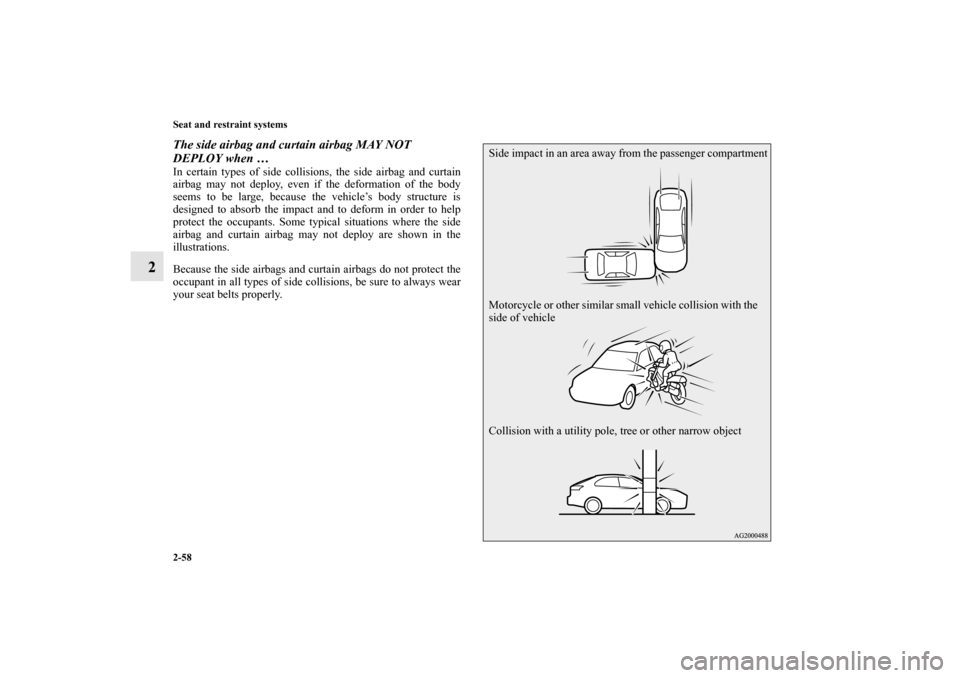

The side airbag and curtain airbag MAY NOT
DEPLOY when … In certain types of side collisions, the side airbag and curtain
airbag may not deploy, even if the deformation of the body
seems to be large, because the vehicle’s body structure is
designed to absorb the impact and to deform in order to help
protect the occupants. Some typical situations where the side
airbag and curtain airbag may not deploy are shown in the
illustrations.
Because the side airbags and curtain airbags do not protect the
occupant in all types of side collisions, be sure to always wear
your seat belts properly.
Side impact in an area away from the passenger compartment
Motorcycle or other similar small vehicle collision with the
side of vehicle
Collision with a utility pole, tree or other narrow object
BK0103001US.book 58 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Seat and restraint systems
2-59
2

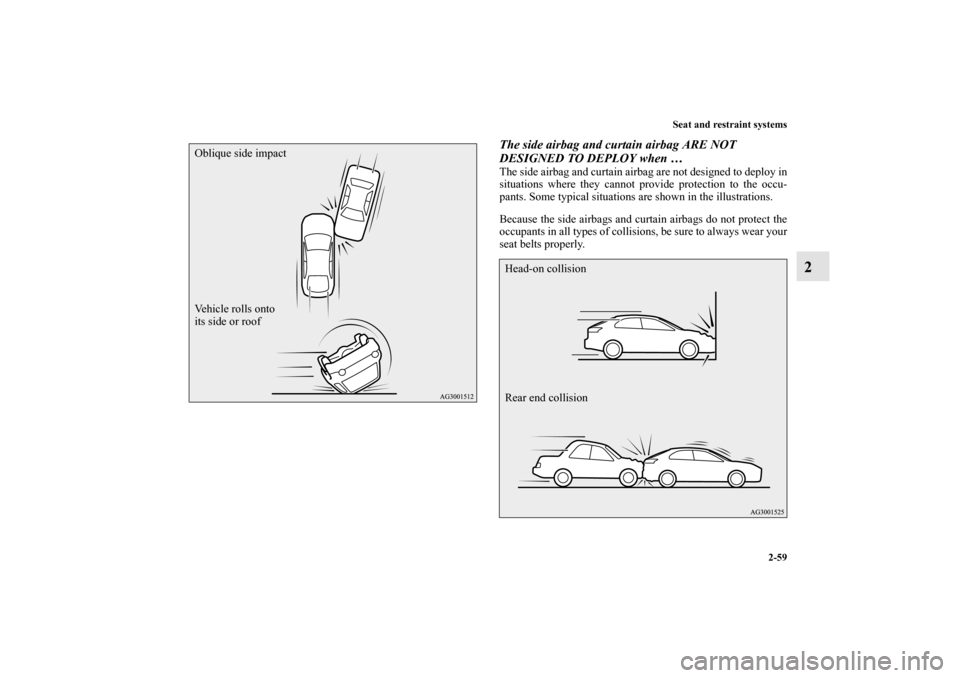

The side airbag and curtain airbag ARE NOT
DESIGNED TO DEPLOY when …The side airbag and curtain airbag are not designed to deploy in
situations where they cannot provide protection to the occu-
pants. Some typical situations are shown in the illustrations.
Because the side airbags and curtain airbags do not protect the
occupants in all types of collisions, be sure to always wear your
seat belts properly.
Oblique side impact
Vehicle rolls onto
its side or roof
Head-on collision
Rear end collision
BK0103001US.book 59 ページ ２００９年８月２０日　木曜日　午前１０時４５分

2-60 Seat and restraint systems
2

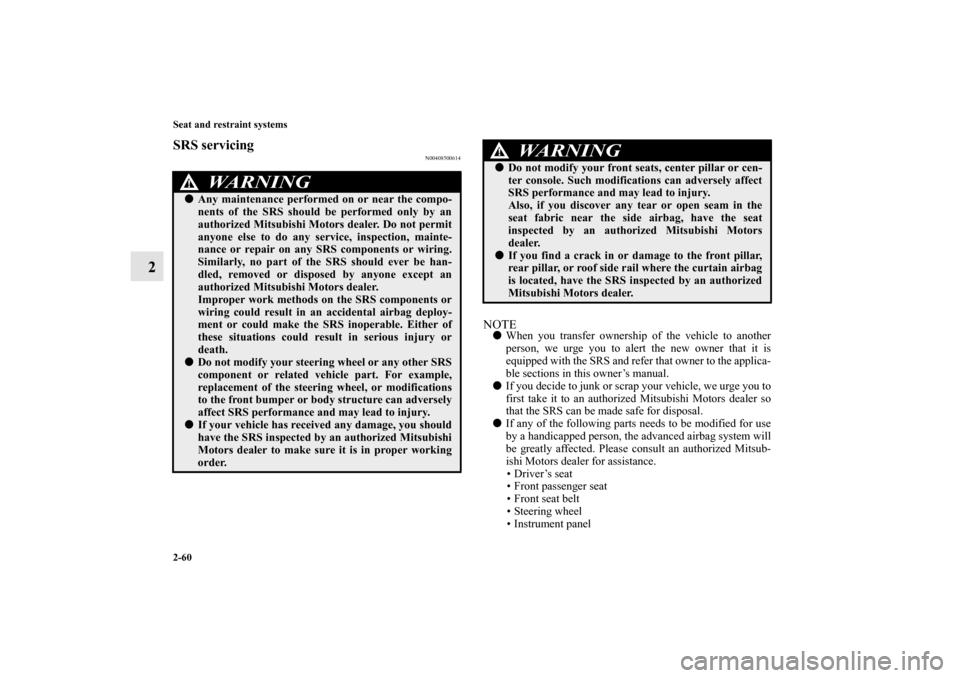

SRS servicing
N00408500614
NOTE

When you transfer ownership of the vehicle to another
person, we urge you to alert the new owner that it is
equipped with the SRS and refer that owner to the applica-
ble sections in this owner’s manual.


If you decide to junk or scrap your vehicle, we urge you to
first take it to an authorized Mitsubishi Motors dealer so
that the SRS can be made safe for disposal.


If any of the following parts needs to be modified for use
by a handicapped person, the advanced airbag system will
be greatly affected. Please consult an authorized Mitsub-
ishi Motors dealer for assistance.
 Driver’s seat
 Front passenger seat
 Front seat belt
 Steering wheel
 Instrument panel
WA R N I N G
!

Any maintenance performed on or near the compo-
nents of the SRS should be performed only by an
authorized Mitsubishi Motors dealer. Do not permit
anyone else to do any service, inspection, mainte-
nance or repair on any SRS components or wiring.
Similarly, no part of the SRS should ever be han-
dled, removed or disposed by anyone except an
authorized Mitsubishi Motors dealer.
Improper work methods on the SRS components or
wiring could result in an accidental airbag deploy-
ment or could make the SRS inoperable. Either of
these situations could result in serious injury or
death.


Do not modify your steering wheel or any other SRS
component or related vehicle part. For example,
replacement of the steering wheel, or modifications
to the front bumper or body structure can adversely
affect SRS performance and may lead to injury.


If your vehicle has received any damage, you should
have the SRS inspected by an authorized Mitsubishi
Motors dealer to make sure it is in proper working
order.


Do not modify your front seats, center pillar or cen-
ter console. Such modifications can adversely affect
SRS performance and may lead to injury.
Also, if you discover any tear or open seam in the
seat fabric near the side airbag, have the seat
inspected by an authorized Mitsubishi Motors
dealer.


If you find a crack in or damage to the front pillar,
rear pillar, or roof side rail where the curtain airbag
is located, have the SRS inspected by an authorized
Mitsubishi Motors dealer.WA R N I N G
!
BK0103001US.book 60 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Seat and restraint systems
2-61
2

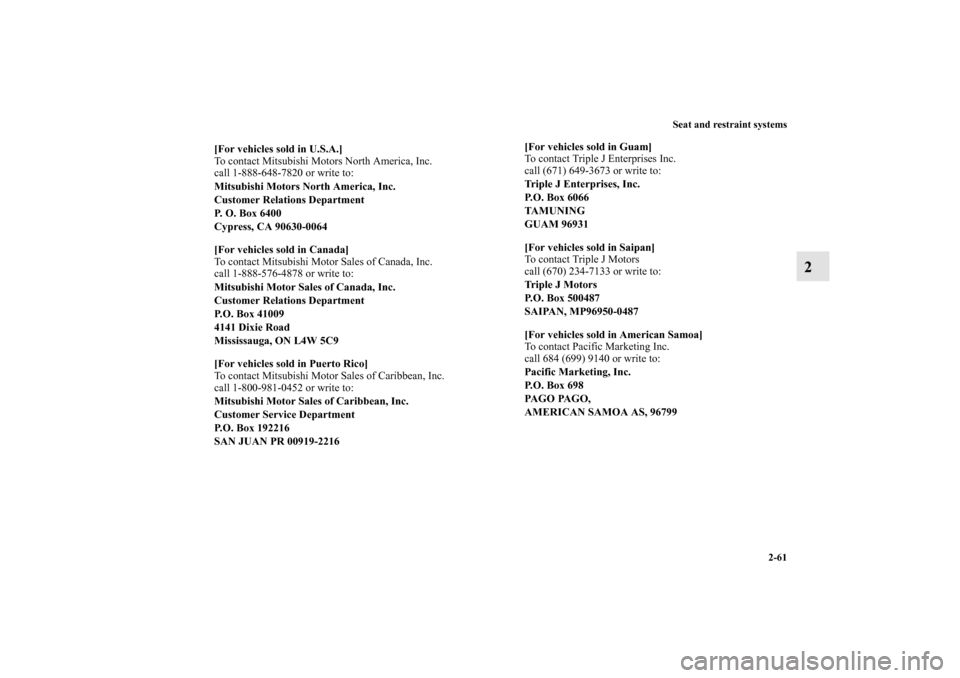

[For vehicles sold in U.S.A.]
To contact Mitsubishi Motors North America, Inc.
call 1-888-648-7820 or write to:
Mitsubishi Motors North America, Inc.
Customer Relations Department
P. O. Box 6400
Cypress, CA 90630-0064
[For vehicles sold in Canada]
To contact Mitsubishi Motor Sales of Canada, Inc.
call 1-888-576-4878 or write to:
Mitsubishi Motor Sales of Canada, Inc.
Customer Relations Department
P.O. Box 41009
4141 Dixie Road
Mississauga, ON L4W 5C9
[For vehicles sold in Puerto Rico]
To contact Mitsubishi Motor Sales of Caribbean, Inc.
call 1-800-981-0452 or write to:
Mitsubishi Motor Sales of Caribbean, Inc.
Customer Service Department
P.O. Box 192216
SAN JUAN PR 00919-2216[For vehicles sold in Guam]
To contact Triple J Enterprises Inc.
call (671) 649-3673 or write to:
Triple J Enterprises, Inc.
P.O. Box 6066
TAMUNING
GUAM 96931
[For vehicles sold in Saipan]
To contact Triple J Motors
call (670) 234-7133 or write to:
Triple J Motors
P.O. Box 500487
SAIPAN, MP96950-0487
[For vehicles sold in American Samoa]
To contact Pacific Marketing Inc.
call 684 (699) 9140 or write to:
Pacific Marketing, Inc.
P. O . B o x 6 9 8
PA G O PA G O ,
AMERICAN SAMOA AS, 96799
BK0103001US.book 61 ページ ２００９年８月２０日　木曜日　午前１０時４５分

2-62 Seat and restraint systems
2

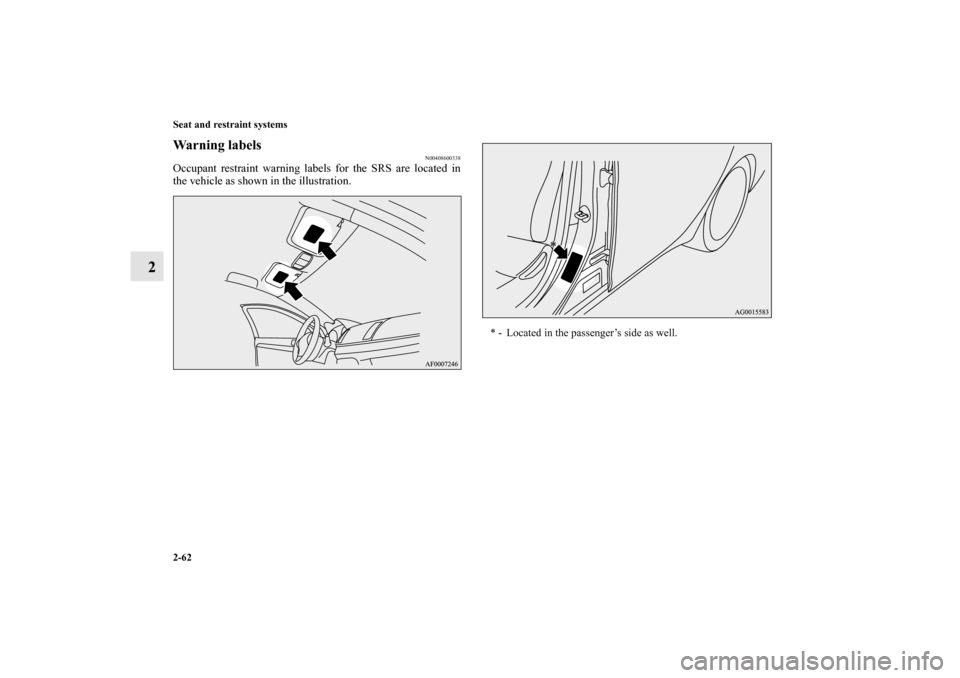

Warning labels
N00408600338
Occupant restraint warning labels for the SRS are located in
the vehicle as shown in the illustration.
* - Located in the passenger’s side as well.
BK0103001US.book 62 ページ ２００９年８月２０日　木曜日　午前１０時４５分

3
Features and controls
Break-in recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 2
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 2
Electronic immobilizer (Anti-theft starting system) . . . . . . . . . . . . .3- 4
Keyless entry system (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . .3- 8
Free-hand Advanced Security Transmitter (F.A.S.T.-key)
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 16
Door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 53
Power door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 56
“Child safety locks” for rear door . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 58
Rear hatch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 59
Inside rear hatch release . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 61
Theft-alarm system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 63
Power windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 66
Sunroof (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 71
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 74
Steering wheel tilt lock lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 76
Inside day/night rearview mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 77
Outside rearview mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 79
Ignition switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 81
Steering wheel lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 84
Starting and stopping the engine . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 85
Turbocharger operation (if so equipped) . . . . . . . . . . . . . . . . . . . . . .3- 89
Manual transaxle (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 90
Continuously variable transmission (CVT) (if so equipped). . . . . . . 3- 93
Twin Clutch SST (Sportronic Shift Transmission)
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 104
All-wheel drive system (if so equipped) . . . . . . . . . . . . . . . . . . . . . .3- 125
Cautions on handling of all-wheel drive vehicles . . . . . . . . . . . . . . . 3- 125
ACD (Active center differential system) (if so equipped). . . . . . . . .3- 127
Limited-slip differential (if so equipped) . . . . . . . . . . . . . . . . . . . . .3- 130
Service brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 131
Hill start assist (for vehicles equipped with Twin Clutch SST) . . . .3- 132
Anti-lock braking system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 135Power steering system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 139
Active stability control (ASC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 139
Cruise control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 144
Tire pressure monitoring system . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 153
Instrument cluster. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 160
Multi-information display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 164
Indicator light, warning light,
and information screen display list . . . . . . . . . . . . . . . . . . . . . . . 3- 201
Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 214
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 214
Information screen display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 217
Combination headlights and dimmer switch . . . . . . . . . . . . . . . . . . 3- 220
Headlight leveling switch (if so equipped) . . . . . . . . . . . . . . . . . . . 3- 227
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 228
Hazard warning flasher switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 229
Front fog light switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 230
Wiper and washer switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 231
Electric rear window defogger switch . . . . . . . . . . . . . . . . . . . . . . . 3- 240
Horn switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 241
Hands-free Bluetooth® cellular phone interface system
with voice recognition (if so equipped). . . . . . . . . . . . . . . . . . . . 3- 242
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 273
Ashtray (if so equipped). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 275
Cigarette lighter (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 276
12 V power outlet (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . 3- 277
Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 279
Storage spaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 284
Cup holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 288
Bottle holder. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 289
Rear shelf panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 290
Dual height adjustable cargo floor board (if so equipped). . . . . . . . 3- 291
Assist grip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 292
Coat hook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 293
BK0103001US.book 1 ページ ２００９年８月２０日　木曜日　午前１０時４５分
