2010 MITSUBISHI LANCER SPORTBACK Owners Manual

3-242 Features and controls
3Hands-free Bluetooth
® cellular phone
interface system with voice recognition
(if so
equipped)N00506400085
The Hands-free Bluetooth
® cellular phone interface system
with voice recognition uses a wireless communication technol-
ogy known as Bluetooth
® to allow you to make hands-free
calls in your vehicle using your Bluetooth
® compatible cellular
phone with Hands-free profile.
The system is equipped with a voice recognition function,
which lets you make hands-free calls by simple switch opera-
tions and voice command operations using a defined voice tree.
The Hands-free Bluetooth
® cellular phone interface system
with voice recognition can be used when the ignition switch is
in the “ON” or “ACC” position.
To use the Hands-free Bluetooth
® cellular phone interface sys-
tem with voice recognition, you should first connect your Blue-
tooth
® compatible cellular phone to the Hands-free Bluetooth
®
cellular phone interface system with voice recognition. Refer
to “Pairing a cellular phone” on page 3-251.
Bluetooth
® is a registered trademark of BLUETOOTH SIG,
INC.
NOTE

If the ignition switch is left in the “ACC” position, the
accessory power will automatically turn off after a certain
period of time and you will no longer be able to use the
Hands-free Bluetooth
® cellular phone interface system
with voice recognition. The accessory power comes on
again if the ignition switch is turned from the “ACC”
position. Refer to “ACC power auto-cutout function” on
page 3-82.


You cannot use the Hands-free Bluetooth
® cellular phone
interface system with voice recognition if your cellular
phone has a dead battery or is turned off.


Hands-free calls will not be possible in areas outside your
cellular phone service area or locations where a signal
cannot reach your phone.
WA R N I N G
!

Although the Hands-free Bluetooth
® cellular phone
interface system with voice recognition allows you to
make hands-free calls, if you choose to use the cellu-
lar phone while driving, you must not allow that
usage to distract you in the safe operation of your
vehicle. Anything, including cellular phone usage,
that distracts you from the safe operation of your
vehicle increases your risk of an accident. Refer to
and follow all state and local laws in your area
regarding cellular phone usage while driving.
BK0103001US.book 242 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-243
3

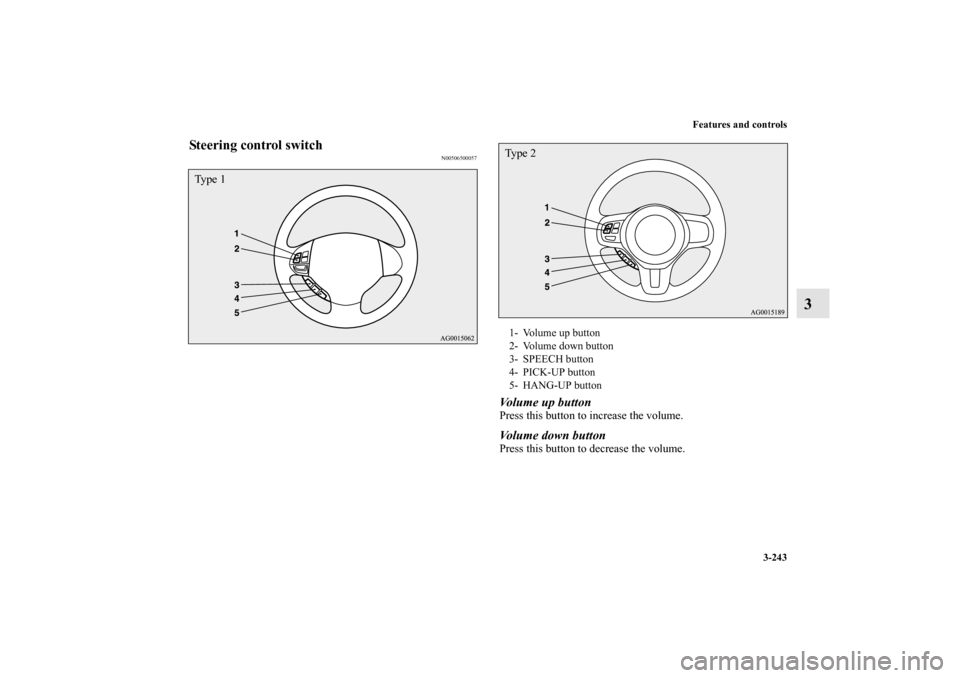

Steering control switch
N00506500057
Volume up buttonPress this button to increase the volume. Volume down buttonPress this button to decrease the volume.
Ty p e 1
1- Volume up button
2- Volume down button
3- SPEECH button
4- PICK-UP button
5- HANG-UP buttonTy p e 2
BK0103001US.book 243 ページ ２００９年８月２０日　木曜日　午前１０時４５分

3-244 Features and controls
3
SPEECH button

Press this button to change to voice recognition mode.
While the system is in voice recognition mode, “Listen-
ing” will appear on the audio display.


If you press the button briefly while in voice recognition
mode, it will interrupt prompting and allow voice com-
mand input.
Pressing the button longer will deactivate the voice recog-
nition mode.


Pressing this button briefly during a call will enable voice
recognition and allow voice command input.
PICK-UP button

Press this button when an incoming call is received to
answer the telephone.


When another call is received during a call, press this but-
ton to put the first caller on hold and talk to the new caller.
 In such circumstances, you can press the button briefly
to switch between callers. You will switch to the first
caller and the other caller will be put on hold.
 To establish a three-way call in such situations, press the
SPEECH button to enter voice recognition mode and
then say “Join call.”
HANG-UP button

Press this button when an incoming call is received to
refuse the call.


Press this button during a call to end the current call.
When another call is on hold or there is an incoming call,
you will switch to that call.
NOTE

When you press the SPEECH button to enter voice recog-
nition mode with a cellular phone paired to the system,
current information on the cellular phone, such as
“remaining battery life,” “signal strength” or “roaming,”
will be displayed on the audio display.* (Refer to “Pairing
a cellular phone” on page 3-251.)
*: Some cellular phones will not send this information to
the Hands-free Bluetooth
® cellular phone interface sys-
tem with voice recognition.


Call waiting and three-way calls can be used by the
Hands-free Bluetooth
® cellular phone interface system
with voice recognition, only when those services can be
used with your cellular phone.
BK0103001US.book 244 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-245
3
Voice recognition function
N00506600117
The Hands-free Bluetooth
® cellular phone interface system
with voice recognition is equipped with a voice recognition
function. Your voice will be recognized by a microphone in the
dome light (front), allowing you to make hands-free calls with
voice commands.
Voice recognition is possible in US English, North American
Spanish and Canadian French. The factory setting is US
English.
Some of the voice commands indicated below have a number
of alternative commands. For a table showing the voice com-
mands in each language and the corresponding alternative
commands, refer to “Commands and Alternatives” on page 3-
265.
NOTE

If the voice command that you say differs from the pre-
defined command or cannot be recognized due to ambient
noise or some other reason, the Hands-free Bluetooth
®
cellular phone interface system with voice recognition
will ask you for the voice command again up to 3 times.


For best performance and further reduction of ambient
noise, the vehicle windows should be closed while engag-
ing the voice recognition function.
Selecting the LanguageThere are two ways to change the language. NOTE

The more entries that are registered in the phonebook, the
longer it will take to change the language.Change the language using the “Language” command
1. Press the SPEECH button.
2. Say “Setup.”
3. Say “Language.”
4. The voice guide will say “Select a language: English,
Spanish or French.” Say the desired language. (Example:
Say “English.”)
5. The voice guide will say “English (Spanish or French)
selected. Is this correct?” Say “Yes” to start the language
change process. Say “No” to return to Step 4.
6. When the voice guide says “English (Spanish or French)
selected,” the language change process will be completed
and the system will return to the main menu.
System recognizes the command that you said and changes
the language
From the main menu, say ( or ) and
the Hands-free Bluetooth
® cellular phone interface system
with voice recognition will recognize the 1 word spoken com-
mand in the native language, and ask you if you want to change
to that language.
1. The voice guide will say “Would you like to change the
language to English (Spanish or French)?”
2. If you say “Yes,” the voice guide will say “Please Wait,
Switching to English (Spanish or French) Phonebook”
and it will start the language change process.
If you do not want to change the language, say “No.”
3. When the voice guide says “English (Spanish or French)
selected,” the language change process will be completed
and the system will return to the main menu.
BK0103001US.book 245 ページ ２００９年８月２０日　木曜日　午前１０時４５分

3-246 Features and controls
3
Speaker enrollment function
N00528900093
The Hands-free Bluetooth
® cellular phone interface system
with voice recognition can use the speaker enrollment function
to create a voice model for one person per language.
Your voice characteristics and pronunciations are registered in
this voice model. This makes it easier for the Hands-free Blue-
tooth
® cellular phone interface system with voice recognition
to recognize voice commands said by you.
You can turn a voice model registered with the speaker enroll-
ment function on and off whenever you want.
NOTE

Phone calls received during the speaker enrollment pro-
cess cannot be answered and operations initiated by the
steering wheel control switch or voice recognition will not
work.
Speaker enrollmentIt takes about 10 to 15 minutes to complete the speaker enrol-
ment process.
To ensure the best results, run through the process while in the
driver’s seat, in an environment that is as quiet as possible
(when there is no rain or strong winds and the vehicle windows
are closed).
Use the following procedure for speaker enrollment.
1. Stop your vehicle in a safe area, put the gearshift lever
(manual transaxle) in the “N” (Neutral) position, or the
selector lever {continuously variable transmission
(CVT)} or gearshift lever (Twin Clutch SST) in the “P”
(PARK) position, and then pull the parking brake lever.NOTE

Speaker enrollment is not possible unless the vehicle is
parked. Make sure you park the vehicle in a safe area
before attempting speaker enrollment.


Please turn off your phone while in speaker enrollment to
prevent interruption of the process.
2. Press the SPEECH button.
3. Say “Voice training.”
4. The voice guide will say “This operation must be per-
formed in a quiet environment while the vehicle is
stopped. See the owner’s manual for the list of required
training phrases. Press and release the SPEECH button
when you are ready to start. Press and hold the HANG-UP
button to cancel at any time.” Press the SPEECH button to
start the speaker enrollment process.
BK0103001US.book 246 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-247
3
NOTE

If you do not start the speaker enrollment process within 3
minutes of pressing the SPEECH button, the speaker
enrollment function will time out.
The voice guide will say “Speaker Enrollment has timed
out.” The system will then beep and the voice recognition
mode will be deactivated.


Phone calls received during the speaker enrollment pro-
cess cannot be answered.
5. The voice guide will prompt for phrase 1. Repeat the cor-
responding phrase listed in table “Enrollment Commands”
on page 3-271.
The system will register your voice and then move on to
the registration of the next command. Continue the pro-
cess until all phrases have been registered.
NOTE

If you press the HANG-UP button within 5 seconds of the
reading of an enrollment phase number by the voice
guide, the registration of the same phase number will be
repeated. Continue the process until all phrases have been
registered.


If you press and hold down the HANG-UP button within 5
seconds of the reading of an enrollment phase number by
the voice guide, the system will beep and stop the speaker
enrollment process.6. When all enrollment commands have been read out, the
voice guide will say “Speaker Enrollment is complete.”
The system will then end the speaker enrollment process
and return to the main menu.
NOTE

Completing the speaker enrollment process will turn on
the voice model automatically.


The commands “Help” and “Cancel” will not work in this
mode.
Enabling and disabling the voice model and retraining
N00529100034
You can turn a voice model registered with the speaker enroll-
ment function on and off whenever you want.
You can also retrain the system.
Use the following procedure to perform these actions.
1. Press the SPEECH button.
2. Say “Voice training.”
3. If you have completed a speaker enrollment process once
already, the voice guide will say either “Enrollment is
enabled. Would you like to disable or retrain?” or “Enroll-
ment is disabled. Would you like to enable or retrain?”
BK0103001US.book 247 ページ ２００９年８月２０日　木曜日　午前１０時４５分

3-248 Features and controls
3
4. When enrollment is “enabled”, the voice model is on;
when enrollment is “disabled”, the voice model is off. Say
the command that fits your needs.
Say “Retrain” to start the speaker enrollment process and
recreate a new voice model. (Refer to “Speaker enroll-
ment” on page 3-246.)NOTE

If you say “Retrain”, you will proceed to Step 4 under
“Speaker enrollment”.
However, before saying “Retrain”, you must stop your
vehicle in a safe area, place the gearshift lever (manual
transaxle) in the “N” (Neutral) position, or the selector
lever {continuously variable transmission (CVT)} or
gearshift lever (Twin Clutch SST) in the “P” (PARK)
position, and engaged the parking brake lever.
Otherwise, the voice guide will say “This operation must
be performed in a quiet environment while the vehicle is
stopped” and the system will return to the main menu.
Help function
N00506700020
The Hands-free Bluetooth
® cellular phone interface system
with voice recognition is equipped with a Help function.
If you say “Help” when the system is waiting for a voice com-
mand input, the system will tell you a list of the commands that
can be used under the circumstances.
Canceling
N00506800047
There are two cancel functions.
If you are at the main menu, say “Cancel” to exit from the
Hands-free Bluetooth
® cellular phone interface system with
voice recognition. If you are anywhere else within the system,
say “Cancel” to return to the main menu.
MUTE function
N00506900022
At any time during a call, you can mute the vehicle micro-
phone.
Pressing the SPEECH button and then saying “Mute” during a
call will turn on the MUTE function and mute the microphone.
Saying “Mute off” in the same way will turn off the MUTE
function and cancel the mute on the microphone.
BK0103001US.book 248 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-249
3

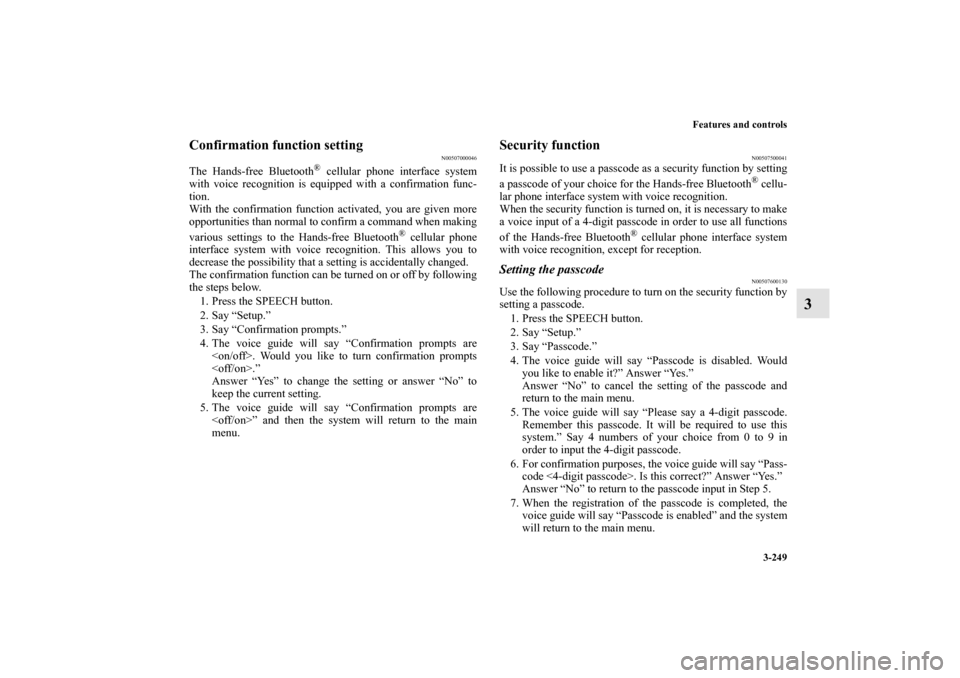

Confirmation function setting
N00507000046
The Hands-free Bluetooth
® cellular phone interface system
with voice recognition is equipped with a confirmation func-
tion.
With the confirmation function activated, you are given more
opportunities than normal to confirm a command when making
various settings to the Hands-free Bluetooth
® cellular phone
interface system with voice recognition. This allows you to
decrease the possibility that a setting is accidentally changed.
The confirmation function can be turned on or off by following
the steps below.
1. Press the SPEECH button.
2. Say “Setup.”
3. Say “Confirmation prompts.”
4. The voice guide will say “Confirmation prompts are
. Would you like to turn confirmation prompts
.”
Answer “Yes” to change the setting or answer “No” to
keep the current setting.
5. The voice guide will say “Confirmation prompts are
” and then the system will return to the main
menu.
Security function
N00507500041
It is possible to use a passcode as a security function by setting
a passcode of your choice for the Hands-free Bluetooth
® cellu-
lar phone interface system with voice recognition.
When the security function is turned on, it is necessary to make
a voice input of a 4-digit passcode in order to use all functions
of the Hands-free Bluetooth
® cellular phone interface system
with voice recognition, except for reception.
Setting the passcode
N00507600130
Use the following procedure to turn on the security function by
setting a passcode.
1. Press the SPEECH button.
2. Say “Setup.”
3. Say “Passcode.”
4. The voice guide will say “Passcode is disabled. Would
you like to enable it?” Answer “Yes.”
Answer “No” to cancel the setting of the passcode and
return to the main menu.
5. The voice guide will say “Please say a 4-digit passcode.
Remember this passcode. It will be required to use this
system.” Say 4 numbers of your choice from 0 to 9 in
order to input the 4-digit passcode.
6. For confirmation purposes, the voice guide will say “Pass-
code <4-digit passcode>. Is this correct?” Answer “Yes.”
Answer “No” to return to the passcode input in Step 5.
7. When the registration of the passcode is completed, the
voice guide will say “Passcode is enabled” and the system
will return to the main menu.
BK0103001US.book 249 ページ ２００９年８月２０日　木曜日　午前１０時４５分
