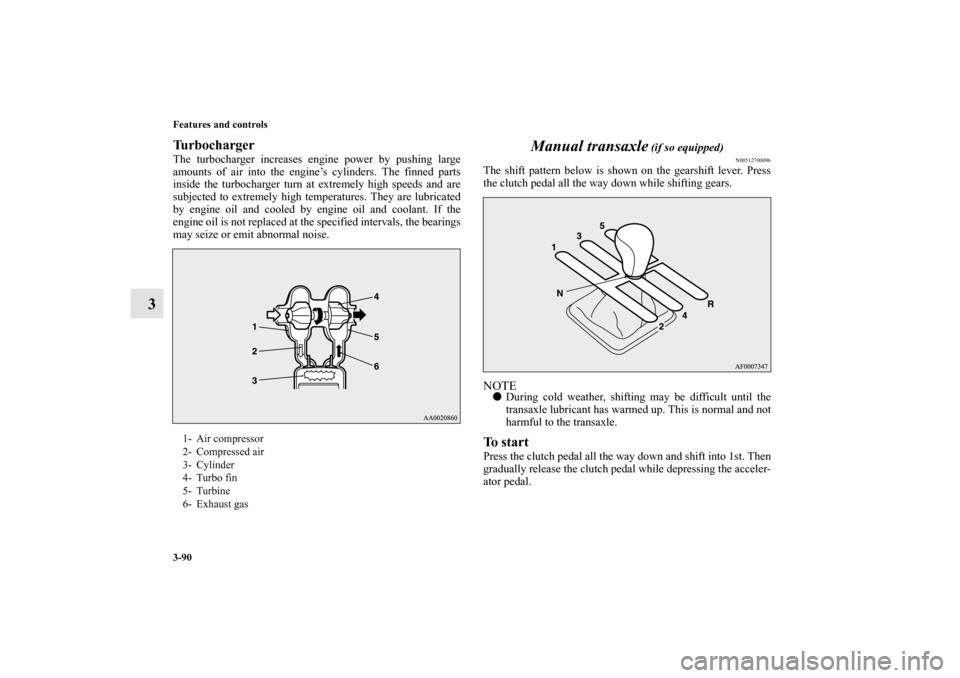

TurbochargerThe turbocharger increases engine power by pushing large
amounts of air into the engine’s cylinders. The finned parts
inside the turbocharger turn at extremely high speeds and are
subjected to extremely high temperatures. They are lubricated
by engine oil and cooled by engine oil and coolant. If the
engine oil is not replaced at the specified intervals, the bearings
may seize or emit abnormal noise.
Manual transaxle
(if so equipped)
N00512700096
The shift pattern below is shown on the gearshift lever. Press
the clutch pedal all the way down while shifting gears.NOTE

During cold weather, shifting may be difficult until the
transaxle lubricant has warmed up. This is normal and not
harmful to the transaxle.
To startPress the clutch pedal all the way down and shift into 1st. Then
gradually release the clutch pedal while depressing the acceler-
ator pedal.
1- Air compressor
2- Compressed air
3- Cylinder
4- Turbo fin
5- Turbine
6- Exhaust gas
BK0103001US.book 90 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-91
3
NOTE

If it is hard to shift into 1st, depress the clutch pedal a sec-
ond time; the shift will then be easier.
Proper shift points
N00537400049
Always use care to change the gear with the vehicle speed
matched to the engine speed. Proper shifting will improve fuel
economy and prolong engine life.
CAUTION
!

Do not rest your foot on the clutch pedal because
this will cause premature clutch wear or damage.


Do not coast in the “N” (Neutral) position (illegal in
many states).


Do not use the gearshift lever as a handrest, because
this can result in premature wear of the transaxle
shift forks.
CAUTION
!

Avoid downshifting that may cause the tachometer
pointer to enter the red zone.
This puts the engine at risk of being damaged.
BK0103001US.book 91 ページ ２００９年８月２０日　木曜日　午前１０時４５分

3-92 Features and controls
3

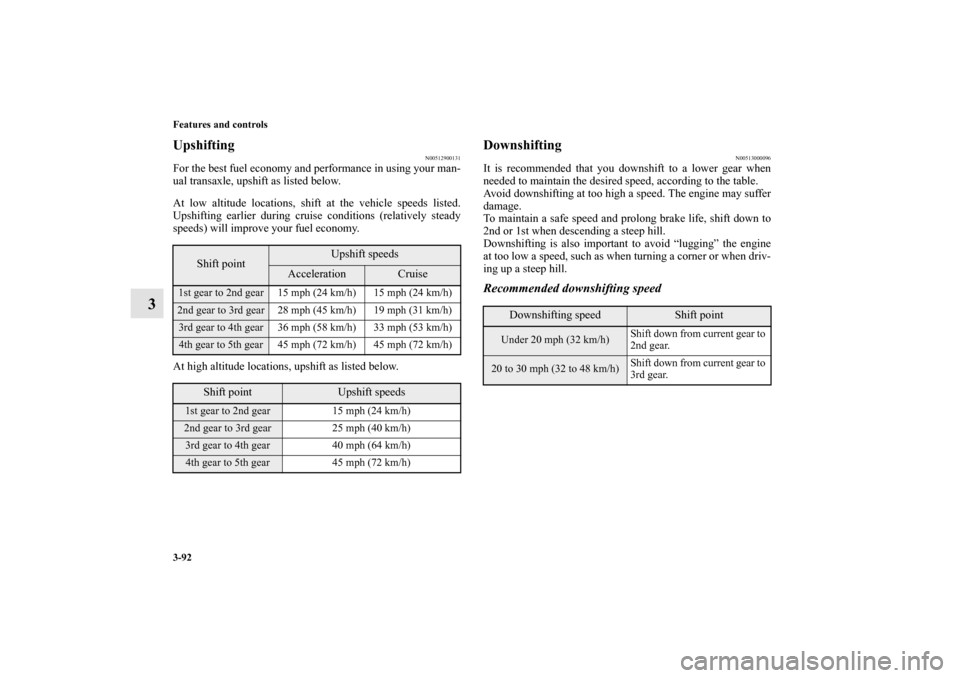

Upshifting
N00512900131
For the best fuel economy and performance in using your man-
ual transaxle, upshift as listed below.
At low altitude locations, shift at the vehicle speeds listed.
Upshifting earlier during cruise conditions (relatively steady
speeds) will improve your fuel economy.
At high altitude locations, upshift as listed below.
Downshifting
N00513000096
It is recommended that you downshift to a lower gear when
needed to maintain the desired speed, according to the table.
Avoid downshifting at too high a speed. The engine may suffer
damage.
To maintain a safe speed and prolong brake life, shift down to
2nd or 1st when descending a steep hill.
Downshifting is also important to avoid “lugging” the engine
at too low a speed, such as when turning a corner or when driv-
ing up a steep hill.Recommended downshifting speed
Shift point
Upshift speeds
Acceleration
Cruise
1st gear to 2nd gear 15 mph (24 km/h) 15 mph (24 km/h)2nd gear to 3rd gear 28 mph (45 km/h) 19 mph (31 km/h)3rd gear to 4th gear 36 mph (58 km/h) 33 mph (53 km/h)4th gear to 5th gear 45 mph (72 km/h) 45 mph (72 km/h)
Shift point
Upshift speeds
1st gear to 2nd gear 15 mph (24 km/h)2nd gear to 3rd gear 25 mph (40 km/h)3rd gear to 4th gear 40 mph (64 km/h)4th gear to 5th gear 45 mph (72 km/h)
Downshifting speed
Shift point
Under 20 mph (32 km/h)Shift down from current gear to
2nd gear.20 to 30 mph (32 to 48 km/h)Shift down from current gear to
3rd gear.
BK0103001US.book 92 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-93
3
Driving precautions
N00513100185


Do not use the gearshift lever as a handrest. This can
result in premature wear of the transaxle shift forks.
Maximum possible driving speed

The table above shows the maximum recommended driv-
ing speed for in each gear. Do not drive near or at these
speeds for prolonged periods of time.
Continuously variable transmission (CVT)

(if so equipped)
N00513200199
The continuously variable transmission (CVT) is capable of
changing the engine speed to vehicle speed ratio automatically
and steplessly to suit driving conditions in all phases of vehicle
operation. It therefore realizes smooth, shock-free operation
and excellent fuel efficiency.DRIVING UPHILLThe transmission may not shift to a higher ratio if the computer
determines your current speed would be affected.
For smoother operation, the transmission may not shift if you
release the throttle while climbing a steep hill. This is normal
because the computer controls the shifting. After reaching the
top of the hill, your normal shift function will resume.DRIVING DOWNHILLWhen traveling down steep grades and using the brakes, the
computer may automatically shift to a lower ratio. This helps
engine braking efforts, reducing your need to use the brakes.
Shift
points
Maximum possible driving speed
1st gear 31 mph (50 km/h)2nd gear 59 mph (95 km/h)3rd gear 84 mph (135 km/h)4th gear 115 mph (185 km/h)
CAUTION
!

Automatic downshifts may not take place if the con-
tinuously variable transmission (CVT) fluid is still
cool immediately after you start driving. To cause a
downshift, depress the brake pedal or shift down
manually.
Always drive safely in accordance with road condi-
tions.
BK0103001US.book 93 ページ ２００９年８月２０日　木曜日　午前１０時４５分

3-94 Features and controls
3
Selector lever operation
N00513800339
As an additional safety precaution, models equipped with a
CVT have a shift-lock device that holds the selector lever in
the “P” (PARK) position. To move the selector lever from the
“P” (PARK) position to another position, follow the steps
below.
1. Press and hold the brake pedal down.
2. Move the selector lever to the desired position.NOTE

The selector lever cannot be moved from “P” (PARK) to
another position if the ignition switch is at the “LOCK” or
“ACC” position, or the key has been removed, or if the
brake pedal is not pressed and held down.The CVT selects an optimum ratio automatically when the
selector lever is in the “D” (DRIVE) position, depending on the
speed of the vehicle and the position of the accelerator pedal.
The selector lever (A) has 2 gates; the main gate (B) and the
manual gate (C).
NOTE

In the main gate, the selector lever has 4 positions.


For information on manual gate operation, please refer to
“Sports mode” on page 3-100.
BK0103001US.book 94 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-95
3

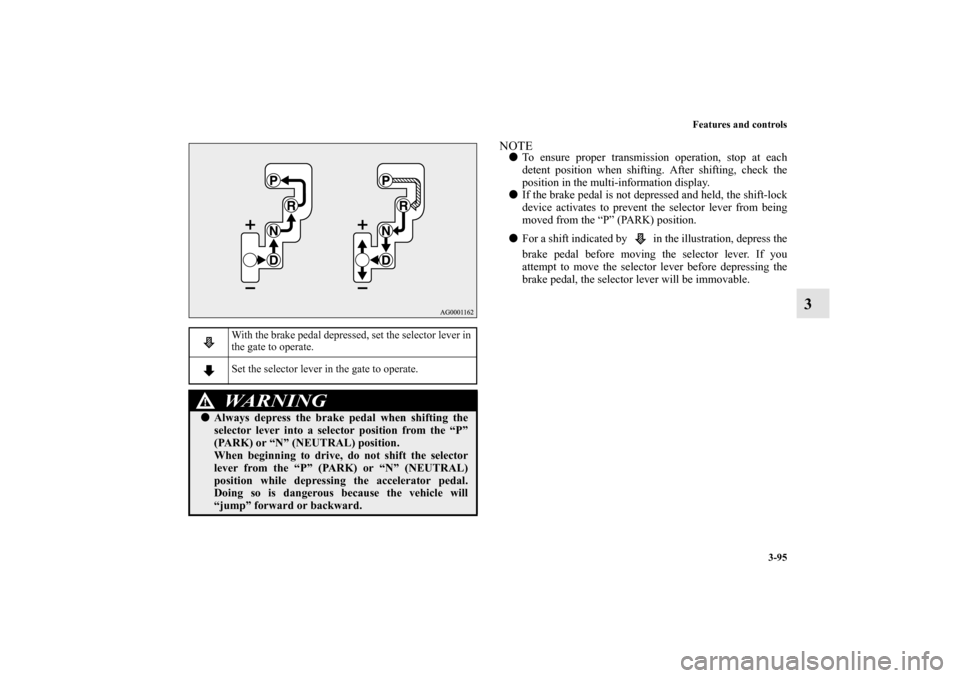

NOTE

To ensure proper transmission operation, stop at each
detent position when shifting. After shifting, check the
position in the multi-information display.


If the brake pedal is not depressed and held, the shift-lock
device activates to prevent the selector lever from being
moved from the “P” (PARK) position.


For a shift indicated by in the illustration, depress the
brake pedal before moving the selector lever. If you
attempt to move the selector lever before depressing the
brake pedal, the selector lever will be immovable.
With the brake pedal depressed, set the selector lever in
the gate to operate.
Set the selector lever in the gate to operate.WA R N I N G
!

Always depress the brake pedal when shifting the
selector lever into a selector position from the “P”
(PARK) or “N” (NEUTRAL) position.
When beginning to drive, do not shift the selector
lever from the “P” (PARK) or “N” (NEUTRAL)
position while depressing the accelerator pedal.
Doing so is dangerous because the vehicle will
“jump” forward or backward.
BK0103001US.book 95 ページ ２００９年８月２０日　木曜日　午前１０時４５分

3-96 Features and controls
3
When the selector lever cannot be shifted from the “P”
(PARK) position
N00563100021
When the selector lever cannot be shifted from the “P” (PARK)
position to another position while the brake pedal is pressed
and held down with the ignition switch at the “ON” position,
the battery may be flat or the shift-lock mechanism may be
malfunctioning.
Immediately have your vehicle checked by an authorized Mit-
subishi Motors dealer or a repair facility of your choice.
If you need to move the vehicle, shift the selector lever as fol-
lows.
1. Make sure the parking brake is fully applied.
2. Stop the engine if it is running.
3. Insert a screwdriver with a cloth over its tip into the notch
(A) of the cover. Pry gently as shown to remove the cover.4. Depress the brake pedal with the right foot.
5. Turn the ignition switch to the “ACC” position.
NOTE

For vehicles with the Free-hand Advanced Security
Transmitter (F.A.S.T.-key), turn the ignition switch to the
“ACC” position with the emergency key if the vehicle
battery is flat.
6. Insert a screwdriver in the shift-lock release hole (B).
Shift the selector lever to the “N” (NEUTRAL) position
while pressing the screwdriver down.
BK0103001US.book 96 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-97
3

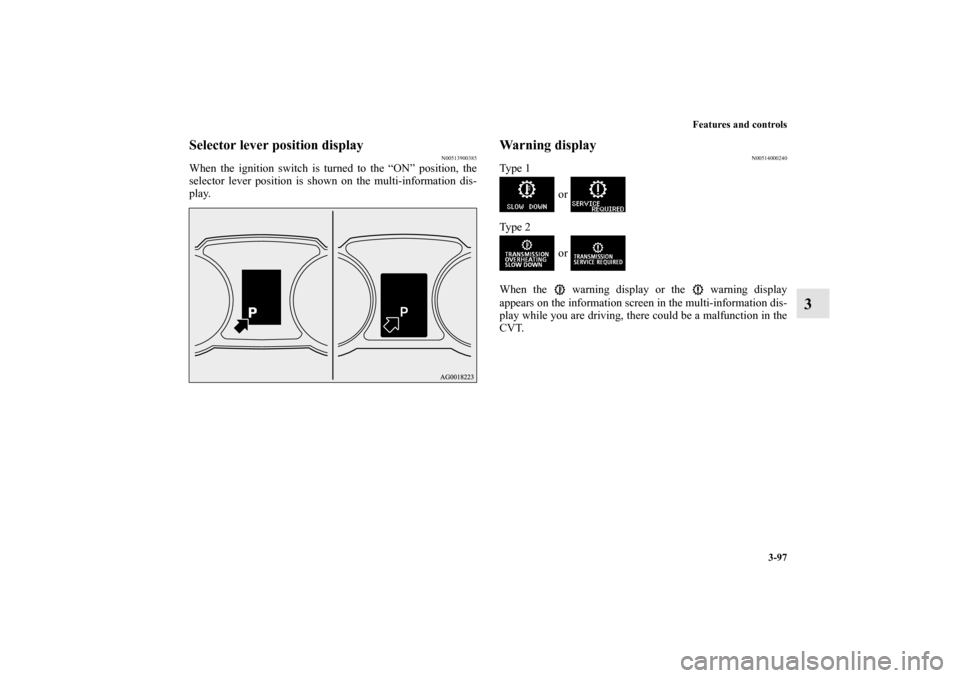

Selector lever position display
N00513900385
When the ignition switch is turned to the “ON” position, the
selector lever position is shown on the multi-information dis-
play.
Warning display
N00514000240
Ty p e 1
or
Ty p e 2
or
When the warning display or the warning display
appears on the information screen in the multi-information dis-
play while you are driving, there could be a malfunction in the
