2010 MITSUBISHI LANCER SPORTBACK Owners Manual

3-82 Features and controls
3
ACC power auto-cutout function
N00539600061
After about 30 minutes has elapsed with the ignition switch in
the “ACC” position, the function automatically cuts out the
power for the audio system and other electric devices that can
be operated with that position.
When the ignition switch is turned from the “ACC” position,
the power is supplied again to those devices.NOTE

It is possible to modify functions as follows:
 The time until the power cuts out can be changed to
about 60 minutes.
 The ACC power auto-cutout function can be deacti-
vated.
For details, consult a Mitsubishi Motors dealer.
On vehicles equipped with Mitsubishi Multi-Communica-
tion System, screen operations can be used to make the
adjustment.
Refer to the separate owner’s manual for details.
To remove the key
N00550900168
For vehicles equipped with a manual transaxle, when removing
the key, push the key in at the “ACC” position and keep it
depressed until it is turned to the “LOCK” position, and
remove.Manual transaxle
BK0103001US.book 82 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-83
3
For vehicles equipped with a continuously variable transmis-
sion (CVT) or Twin Clutch SST, when removing the key, first
set the selector lever (CVT) or the gearshift lever (Twin Clutch
SST) to the “P” (PARK) position, and then turn the key to the
“LOCK” position, and remove.NOTE

For vehicles equipped with a CVT or Twin Clutch SST,
the key cannot be removed unless the selector lever
(CVT) or the gearshift lever (Twin Clutch SST) is set to
the “P” (PARK) position, which allows the ignition switch
to turn to the “LOCK” position.
CVT or Twin Clutch SST
CAUTION
!

Do not remove the ignition key from the ignition
switch while driving. The steering wheel will lock,
causing loss of control.


If the engine is turned off while driving, the power
brake booster will stop functioning and braking effi-
ciency will be reduced. Also, the power steering sys-
tem will not function and it will require greater
effort to manually steer the vehicle.


Do not leave the key in the “ON” position for a long
time when the engine is not running. This will cause
the battery to run down.


Do not turn the key to the “START” position when
the engine is running. It will damage the starter
motor.
BK0103001US.book 83 ページ ２００９年８月２０日　木曜日　午前１０時４５分

3-84 Features and controls
3Steering wheel lock
N00512500179
[For vehicles equipped with the F.A.S.T.-key]
For information on operations for vehicles equipped with the
F.A.S.T.-key, refer to “F.A.S.T.-key: Steering wheel lock” on
page 3-30.
[Except for vehicles equipped with the F.A.S.T.-key]To l o c kRemove the key at the “LOCK” position.
Turn the steering wheel until it is locked.To unlockTurn the key to the “ACC” position while moving the steering
wheel slightly.
NOTE

If the front wheels are turned, the anti-theft lock may
sometimes make it difficult to turn the key from “LOCK”
position to “ACC” position. Firmly turn the steering
wheel to the left or to the right as you turn the key.
CAUTION
!

Remove the key when leaving the vehicle.
BK0103001US.book 84 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-85

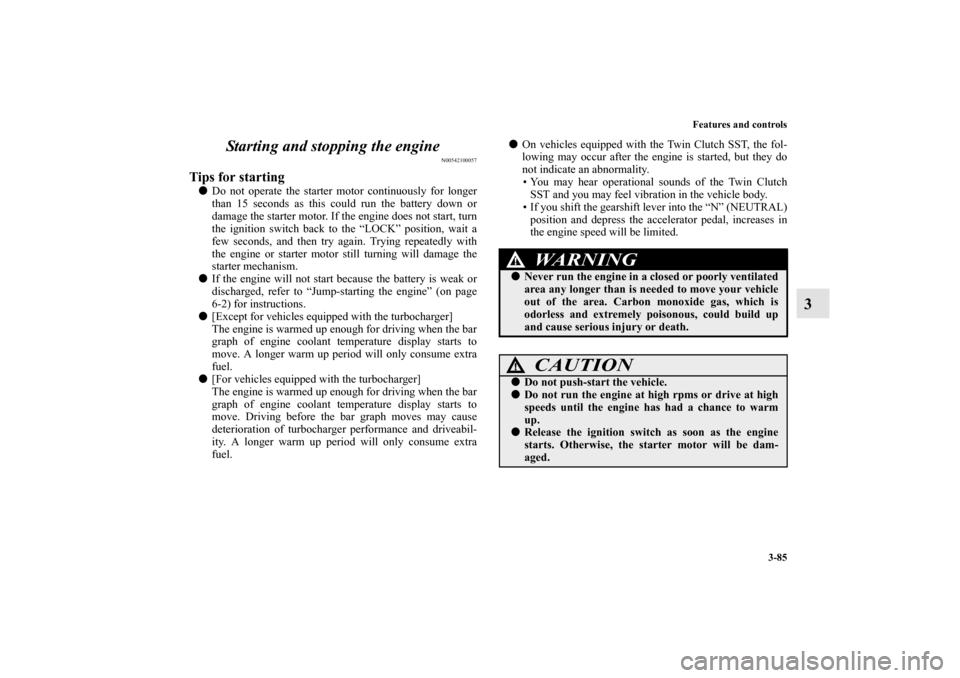

3 Starting and stopping the engine
N00542100057
Tips for starting

Do not operate the starter motor continuously for longer
than 15 seconds as this could run the battery down or
damage the starter motor. If the engine does not start, turn
the ignition switch back to the “LOCK” position, wait a
few seconds, and then try again. Trying repeatedly with
the engine or starter motor still turning will damage the
starter mechanism.


If the engine will not start because the battery is weak or
discharged, refer to “Jump-starting the engine” (on page
6-2) for instructions.


[Except for vehicles equipped with the turbocharger]
The engine is warmed up enough for driving when the bar
graph of engine coolant temperature display starts to
move. A longer warm up period will only consume extra
fuel.


[For vehicles equipped with the turbocharger]
The engine is warmed up enough for driving when the bar
graph of engine coolant temperature display starts to
move. Driving before the bar graph moves may cause
deterioration of turbocharger performance and driveabil-
ity. A longer warm up period will only consume extra
fuel.


On vehicles equipped with the Twin Clutch SST, the fol-
lowing may occur after the engine is started, but they do
not indicate an abnormality.
 You may hear operational sounds of the Twin Clutch
SST and you may feel vibration in the vehicle body.
 If you shift the gearshift lever into the “N” (NEUTRAL)
position and depress the accelerator pedal, increases in
the engine speed will be limited.
WA R N I N G
!

Never run the engine in a closed or poorly ventilated
area any longer than is needed to move your vehicle
out of the area. Carbon monoxide gas, which is
odorless and extremely poisonous, could build up
and cause serious injury or death.CAUTION
!

Do not push-start the vehicle.


Do not run the engine at high rpms or drive at high
speeds until the engine has had a chance to warm
up.


Release the ignition switch as soon as the engine
starts. Otherwise, the starter motor will be dam-
aged.
BK0103001US.book 85 ページ ２００９年８月２０日　木曜日　午前１０時４５分

3-86 Features and controls
3
Starting the engine
N00542200045
[For vehicles equipped with the F.A.S.T.-key]
For information on operations for vehicles equipped with the
F.A.S.T.-key, refer to “F.A.S.T.-key: Starting the engine” on
page 3-30.
[Except for vehicles equipped with the F.A.S.T.-key]
Your vehicle is equipped with an electronically controlled fuel
injection system, which automatically controls the release of
fuel. There is usually no need to depress the accelerator pedal
when starting the engine.
The starter should not be run for more than 15 seconds at a
time.
To prevent battery drain, wait a few seconds between attempts
to restart the engine. Normal conditionTo start your vehicle:
Make sure all occupants are properly seated with seat belts fas-
tened.
1. Insert the ignition key.
2. Make sure the parking brake is applied.
3. Press and hold the brake pedal down with your right foot.
4. Press and hold the clutch pedal all the way down (manual
transaxle).NOTE

For models equipped with a manual transaxle, the starter
will not operate unless the clutch pedal is fully depressed
(Clutch interlock). This is a safety feature.5. On vehicles equipped with manual transaxle, place the
gearshift lever in the “N” (Neutral) position.
On vehicles equipped with continuously variable trans-
mission (CVT) or Twin Clutch SST, make sure the selec-
tor lever (CVT) or the gearshift lever (Twin Clutch SST)
is in the “P” (PARK) position.
NOTE

On vehicles equipped with CVT, the starter will not oper-
ate unless the selector lever is in the “P” (PARK) or “N”
(NEUTRAL) position.
On vehicles equipped with Twin Clutch SST, the starter
will not operate unless the gearshift lever is in the “P”
(PARK) position or the gearshift lever is in the “N”
(NEUTRAL) position with the brake pedal depressed.
For safety reasons, start the engine in the “P” (PARK)
position so that the wheels are locked.
6. Turn the ignition switch to the “ON” position and make
certain that all warning lights are functioning properly
before starting the engine.
7. Turn the ignition switch to the “START” position without
pressing the accelerator pedal. Release the key when the
engine starts.
NOTE

Minor noises may be heard on engine start-up. These will
disappear as the engine warms up.
BK0103001US.book 86 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-87
3
At extremely cold ambient temperatureIf the engine won’t start, press the accelerator pedal all the way
down while cranking the engine. Release the accelerator pedal
when the engine starts.
Startability of continuously variable transmission
(CVT) vehicles or Twin Clutch SST vehicles at
extremely cold ambient temperatureWhen the ambient temperature is -4 °F (-20 °C) or lower on
vehicles equipped with CVT, -22 °F (-30 °C) or lower on vehi-
cles equipped with Twin Clutch SST, it may not be possible to
start from a stand-still even with the selector lever (CVT) or
the gearshift lever (Twin Clutch SST) in the “D” (DRIVE)
position.
This phenomenon occurs because the transaxle has not warmed
up sufficiently; it does not indicate a problem. If it occurs,
place the selector lever (CVT) or the gearshift lever (Twin
Clutch SST) in the “P” (PARK) position and let the engine idle
for at least 10 minutes.
The transaxle will warm up, and you will be able to start nor-
mally.
Do not leave the vehicle during warm-up operation.Flooded engineIf the engine has flooded during starting, first run the starter for
5 to 6 seconds while holding down the accelerator pedal.
Release the ignition switch to the “LOCK” position and the
accelerator pedal. Wait a moment, then without depressing the
accelerator pedal, turn the ignition switch to the “START”
position for another 5 to 6 seconds. Release the ignition key if
the engine starts. Repeat as necessary if the engine fails to start,
or contact your local Mitsubishi Motors dealer or a repair facil-
ity of your choice for assistance.
CAUTION
!

When starting the engine, make sure that you hold
the brake pedal down. If you start the engine with
your foot on the accelerator pedal, switch to the
brake pedal as soon as the engine has started.
BK0103001US.book 87 ページ ２００９年８月２０日　木曜日　午前１０時４５分

3-88 Features and controls
3

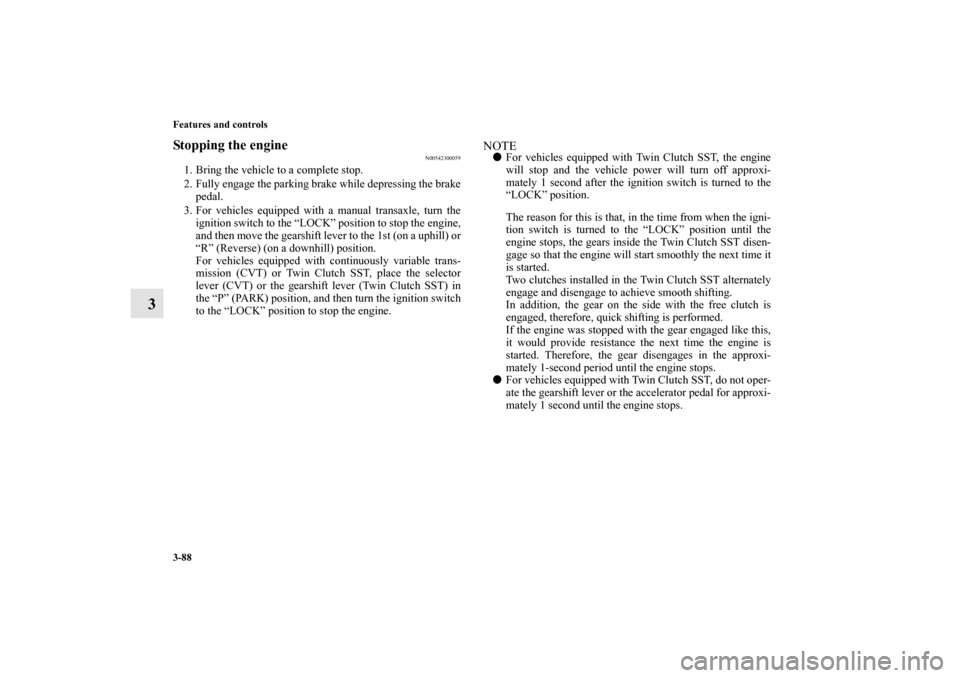

Stopping the engine
N00542300059
1. Bring the vehicle to a complete stop.
2. Fully engage the parking brake while depressing the brake
pedal.
3. For vehicles equipped with a manual transaxle, turn the
ignition switch to the “LOCK” position to stop the engine,
and then move the gearshift lever to the 1st (on a uphill) or
“R” (Reverse) (on a downhill) position.
For vehicles equipped with continuously variable trans-
mission (CVT) or Twin Clutch SST, place the selector
lever (CVT) or the gearshift lever (Twin Clutch SST) in
the “P” (PARK) position, and then turn the ignition switch
to the “LOCK” position to stop the engine.
NOTE

For vehicles equipped with Twin Clutch SST, the engine
will stop and the vehicle power will turn off approxi-
mately 1 second after the ignition switch is turned to the
“LOCK” position.
The reason for this is that, in the time from when the igni-
tion switch is turned to the “LOCK” position until the
engine stops, the gears inside the Twin Clutch SST disen-
gage so that the engine will start smoothly the next time it
is started.
Two clutches installed in the Twin Clutch SST alternately
engage and disengage to achieve smooth shifting.
In addition, the gear on the side with the free clutch is
engaged, therefore, quick shifting is performed.
If the engine was stopped with the gear engaged like this,
it would provide resistance the next time the engine is
started. Therefore, the gear disengages in the approxi-
mately 1-second period until the engine stops.


For vehicles equipped with Twin Clutch SST, do not oper-
ate the gearshift lever or the accelerator pedal for approxi-
mately 1 second until the engine stops.
BK0103001US.book 88 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-89
3

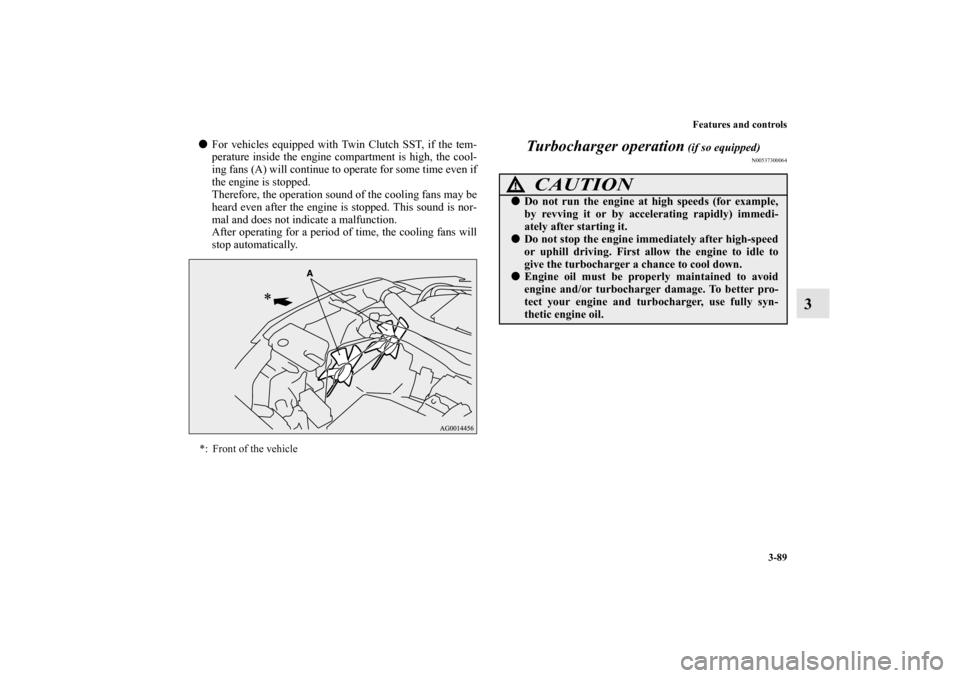

For vehicles equipped with Twin Clutch SST, if the tem-
perature inside the engine compartment is high, the cool-
ing fans (A) will continue to operate for some time even if
the engine is stopped.
Therefore, the operation sound of the cooling fans may be
heard even after the engine is stopped. This sound is nor-
mal and does not indicate a malfunction.
After operating for a period of time, the cooling fans will
stop automatically.
Turbocharger operation
(if so equipped)
N00537300064
*: Front of the vehicle
CAUTION
!

Do not run the engine at high speeds (for example,
by revving it or by accelerating rapidly) immedi-
ately after starting it.


Do not stop the engine immediately after high-speed
or uphill driving. First allow the engine to idle to
give the turbocharger a chance to cool down.


Engine oil must be properly maintained to avoid
engine and/or turbocharger damage. To better pro-
tect your engine and turbocharger, use fully syn-
thetic engine oil.
BK0103001US.book 89 ページ ２００９年８月２０日　木曜日　午前１０時４５分
