2010 MITSUBISHI LANCER SPORTBACK Owners Manual

7-86 Vehicle care and maintenance
7

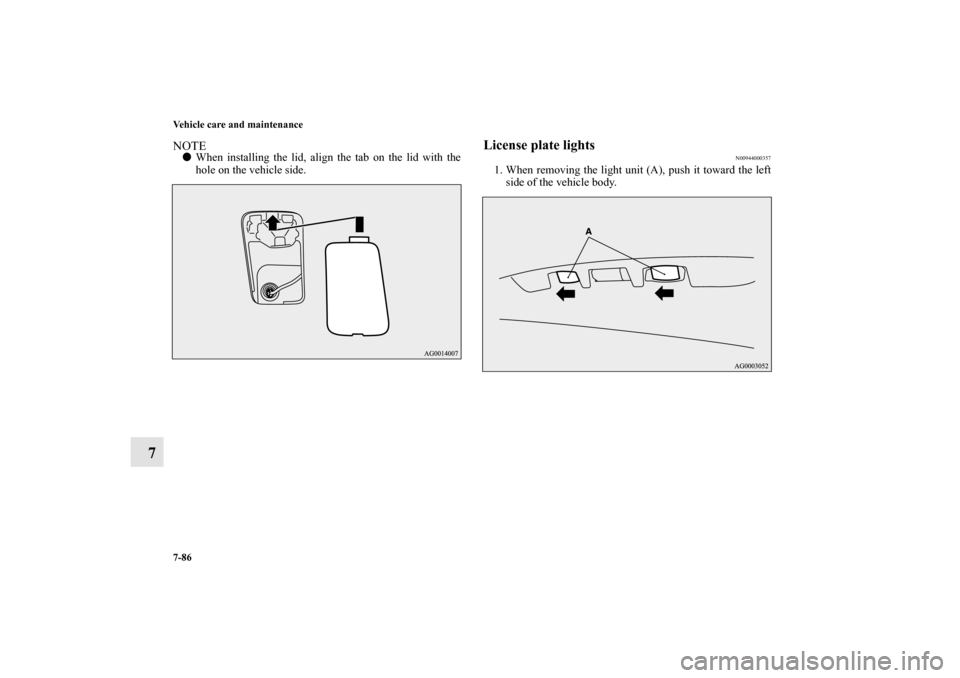

NOTE

When installing the lid, align the tab on the lid with the
hole on the vehicle side.
License plate lights
N00944000357
1. When removing the light unit (A), push it toward the left
side of the vehicle body.
BK0103001US.book 86 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Vehicle care and maintenance
7-87
7

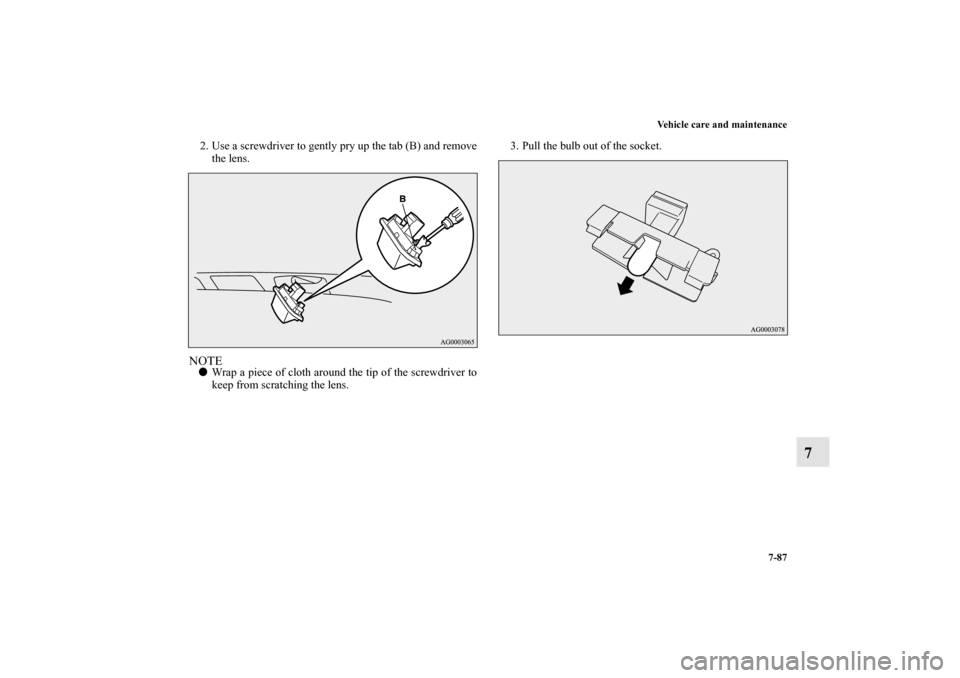

2. Use a screwdriver to gently pry up the tab (B) and remove
the lens.NOTE

Wrap a piece of cloth around the tip of the screwdriver to
keep from scratching the lens.3. Pull the bulb out of the socket.
BK0103001US.book 87 ページ ２００９年８月２０日　木曜日　午前１０時４５分

7-88 Vehicle care and maintenance
7

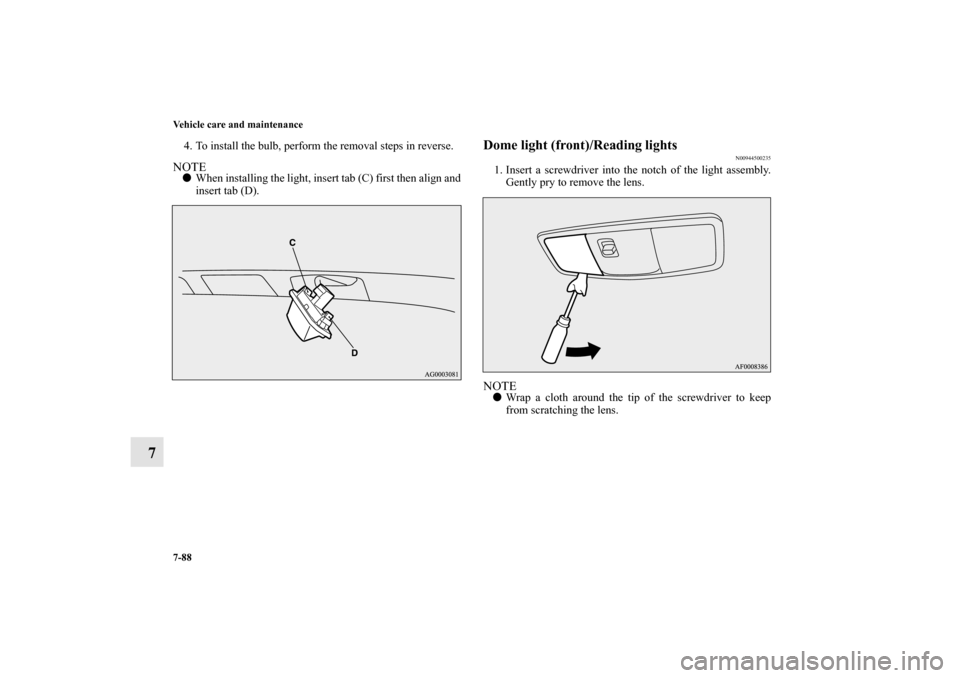

4. To install the bulb, perform the removal steps in reverse.NOTE

When installing the light, insert tab (C) first then align and
insert tab (D).
Dome light (front)/Reading lights
N00944500235
1. Insert a screwdriver into the notch of the light assembly.
Gently pry to remove the lens.NOTE

Wrap a cloth around the tip of the screwdriver to keep
from scratching the lens.
BK0103001US.book 88 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Vehicle care and maintenance
7-89
7

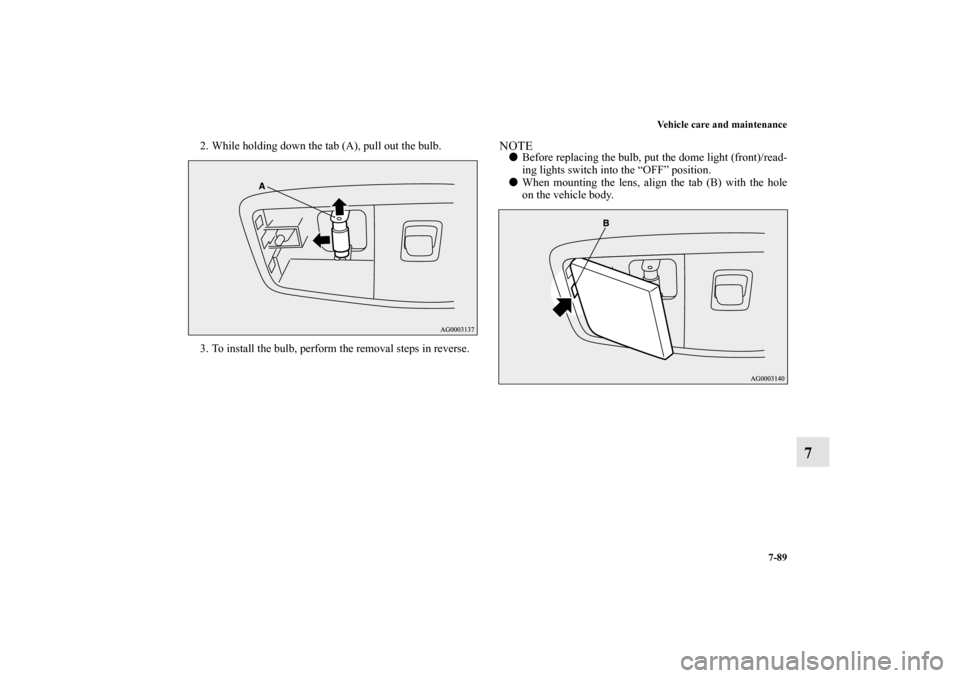

2. While holding down the tab (A), pull out the bulb.
3. To install the bulb, perform the removal steps in reverse.
NOTE

Before replacing the bulb, put the dome light (front)/read-
ing lights switch into the “OFF” position.


When mounting the lens, align the tab (B) with the hole
on the vehicle body.
BK0103001US.book 89 ページ ２００９年８月２０日　木曜日　午前１０時４５分

7-90 Vehicle care and maintenance
7

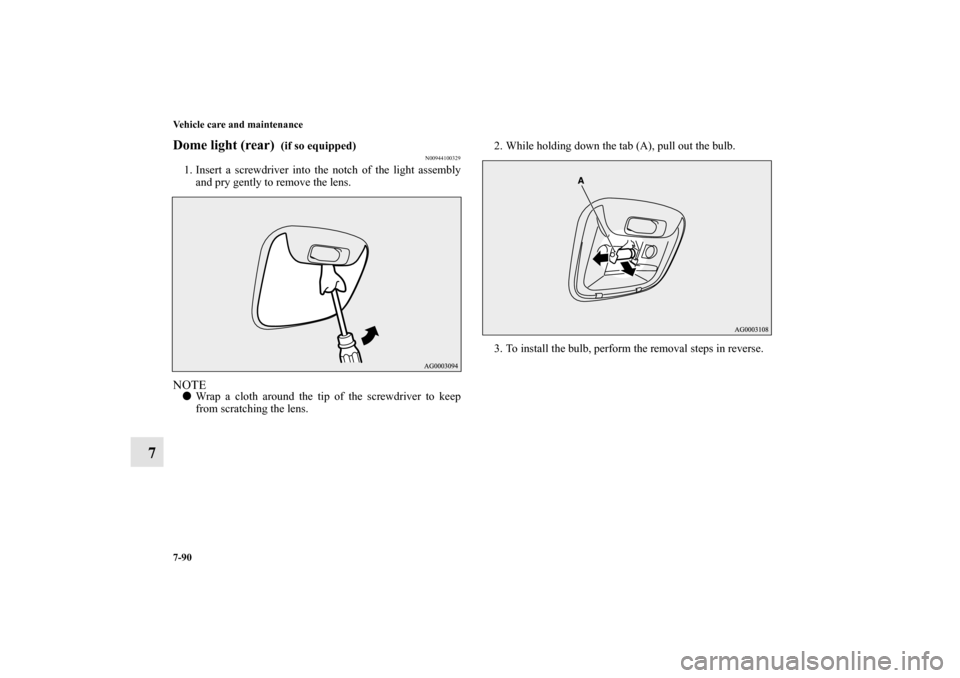

Dome light (rear)
(if so equipped)
N00944100329
1. Insert a screwdriver into the notch of the light assembly
and pry gently to remove the lens.NOTE

Wrap a cloth around the tip of the screwdriver to keep
from scratching the lens.2. While holding down the tab (A), pull out the bulb.
3. To install the bulb, perform the removal steps in reverse.
BK0103001US.book 90 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Vehicle care and maintenance
7-91
7

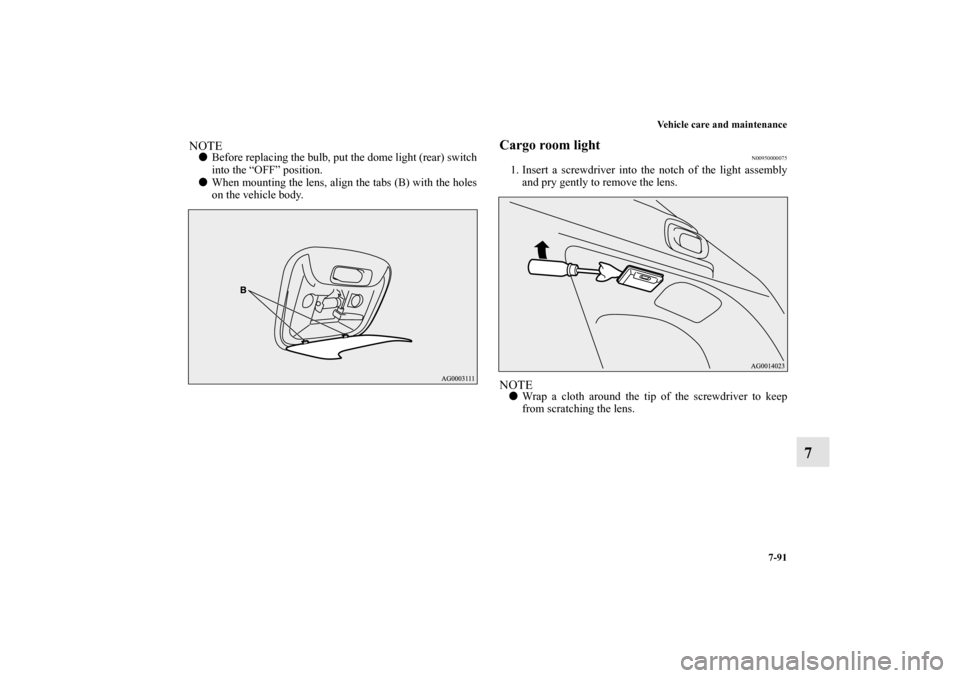

NOTE

Before replacing the bulb, put the dome light (rear) switch
into the “OFF” position.


When mounting the lens, align the tabs (B) with the holes
on the vehicle body.
Cargo room light
N00950000075
1. Insert a screwdriver into the notch of the light assembly
and pry gently to remove the lens.NOTE

Wrap a cloth around the tip of the screwdriver to keep
from scratching the lens.
BK0103001US.book 91 ページ ２００９年８月２０日　木曜日　午前１０時４５分

7-92 Vehicle care and maintenance
7
2. Remove the bulb by pulling it out.
3. To install the bulb, perform the removal steps in reverse.NOTE

Before replacing the bulb, put the cargo room light switch
into the “OFF” position.
Vehicle care precautions
N00945100179
In order to maintain the value of your vehicle, perform regular
maintenance using the proper materials and procedures. Be
sure to use only those materials and procedures that meet your
local environmental pollution control regulations. Choose the
materials you will use carefully, to be sure that they do not con-
tain corrosives. If you are not sure, contact an authorized Mit-
subishi Motors dealer for help in choosing these materials.
These can all be dangerous, and they all can damage your vehi-
cle.
CAUTION
!

Cleaning products can be dangerous. Some are poi-
sonous. Others are highly flammable. Some are dan-
gerous if you breathe their fumes in a closed space.
When you use anything in a container to clean your
vehicle, be sure to follow the instructions. Always
open your vehicle doors or windows when you’re
cleaning the inside. Never use the following chemi-
cals to clean your vehicle: Gasoline
 Carbon Tetrachloride
 Benzine
 Kerosene
 Naphtha
 Acetone
 Turpentine
 Paint Thinner
 Lacquer Thinner
 Nail Polish Remover
BK0103001US.book 92 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Vehicle care and maintenance
7-93

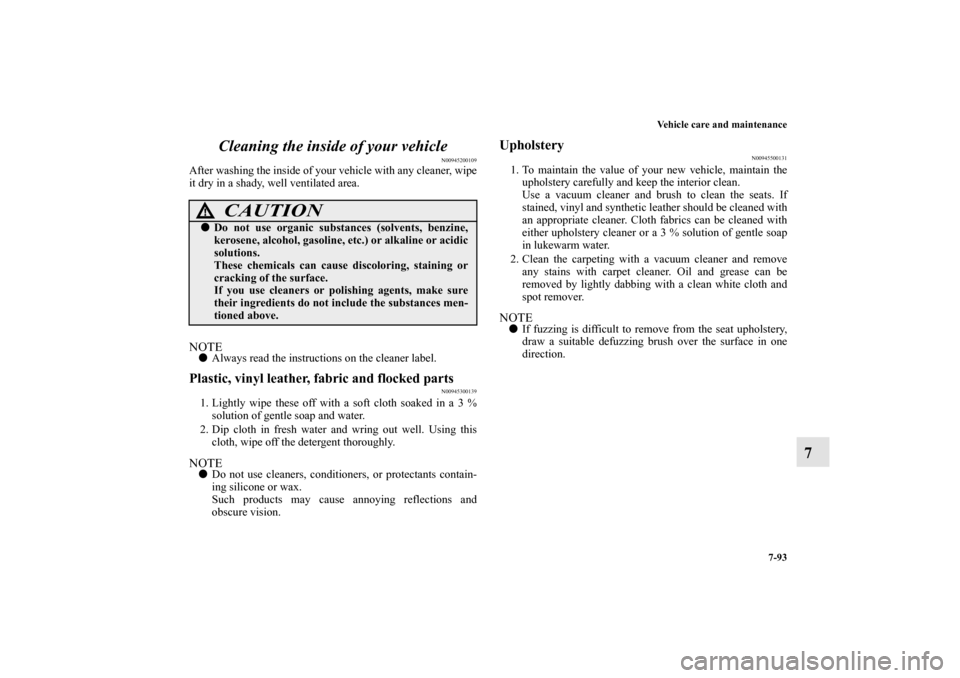

7 Cleaning the inside of your vehicle
N00945200109
After washing the inside of your vehicle with any cleaner, wipe
it dry in a shady, well ventilated area. NOTE

Always read the instructions on the cleaner label.
Plastic, vinyl leather, fabric and flocked parts
N00945300139
1. Lightly wipe these off with a soft cloth soaked in a 3 %
solution of gentle soap and water.
2. Dip cloth in fresh water and wring out well. Using this
cloth, wipe off the detergent thoroughly.NOTE

Do not use cleaners, conditioners, or protectants contain-
ing silicone or wax.
Such products may cause annoying reflections and
obscure vision.
Upholstery
N00945500131
1. To maintain the value of your new vehicle, maintain the
upholstery carefully and keep the interior clean.
Use a vacuum cleaner and brush to clean the seats. If
stained, vinyl and synthetic leather should be cleaned with
an appropriate cleaner. Cloth fabrics can be cleaned with
either upholstery cleaner or a 3 % solution of gentle soap
in lukewarm water.
2. Clean the carpeting with a vacuum cleaner and remove
any stains with carpet cleaner. Oil and grease can be
removed by lightly dabbing with a clean white cloth and
spot remover. NOTE

If fuzzing is difficult to remove from the seat upholstery,
draw a suitable defuzzing brush over the surface in one
direction.
CAUTION
!

Do not use organic substances (solvents, benzine,
kerosene, alcohol, gasoline, etc.) or alkaline or acidic
solutions.
These chemicals can cause discoloring, staining or
cracking of the surface.
If you use cleaners or polishing agents, make sure
their ingredients do not include the substances men-
tioned above.
BK0103001US.book 93 ページ ２００９年８月２０日　木曜日　午前１０時４５分
