3-186 Features and controls
3

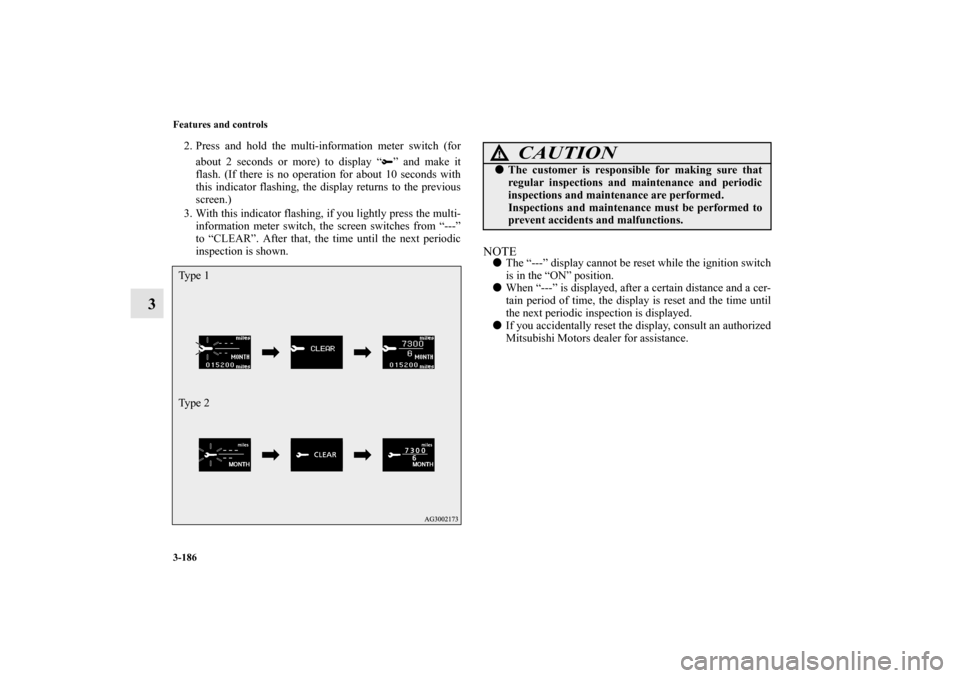

2. Press and hold the multi-information meter switch (for
about 2 seconds or more) to display “ ” and make it
flash. (If there is no operation for about 10 seconds with
this indicator flashing, the display returns to the previous
screen.)
3. With this indicator flashing, if you lightly press the multi-
information meter switch, the screen switches from “---”
to “CLEAR”. After that, the time until the next periodic
inspection is shown.
NOTE

The “---” display cannot be reset while the ignition switch
is in the “ON” position.


When “---” is displayed, after a certain distance and a cer-
tain period of time, the display is reset and the time until
the next periodic inspection is displayed.


If you accidentally reset the display, consult an authorized
Mitsubishi Motors dealer for assistance.
Ty p e 1
Ty p e 2
CAUTION
!

The customer is responsible for making sure that
regular inspections and maintenance and periodic
inspections and maintenance are performed.
Inspections and maintenance must be performed to
prevent accidents and malfunctions.
BK0103001US.book 186 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-187
3
Door ajar warning display (With ignition switch
in the “ON” position)
N00555700103
Ty p e 1
Ty p e 2
If any of the doors or the rear hatch is not completely closed,
this displays the open door or rear hatch.
If the speed increases to about 5 mph (8 km/h) or higher with a
door or rear hatch ajar, a buzzer will sound 4 times to inform
you that a door or rear hatch is ajar.
Changing the function settings (With ignition
switch in the “ON” position)
N00556800039
1. Park your vehicle in a safe place.
Fully apply the parking brake and move the gearshift lever
(manual transaxle) into the “N” (Neutral) position, the
selector lever {continuously variable transmission
(CVT)} or the gearshift lever (Twin Clutch SST) into the
“P” (PARK) position.
2. When you lightly press the multi-information meter
switch, the information screen changes to the function set-
ting screen.
Refer to “Information screen (With ignition switch in the
“ON” position)” on page 3-176.
CAUTION
!

Always make sure that the warning display goes out
before beginning to drive.
Type 1 Type 2
BK0103001US.book 187 ページ ２００９年８月２０日　木曜日　午前１０時４５分

3-188 Features and controls
3
3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch from the setting mode
screen to the menu screen.
NOTE

To return the menu screen to the function setting screen,
press and hold the multi-information meter switch (for
about 2 seconds or more).


If no operations are made within about 15 seconds of the
menu screen being displayed, the display returns to the
function setting screen.
4. Select the item to change on the menu screen and change
to the desired setting. For further details on the operation
methods, refer to the following sections.
Refer to “Changing the reset mode for average fuel con-
sumption and average speed” on page 3-189.
Refer to “Changing the fuel consumption display unit” on
page 3-190.
Refer to “Changing the temperature unit” on page 3-192.
Refer to “Changing the display language” on page 3-193.
Refer to “Changing the language on Mitsubishi Multi-
Communication System or the Hands-free Bluetooth
®
system to match the multi-information display (if so
equipped)” on page 3-194.
Refer to “Operation sound setting” on page 3-196.
Refer to “Changing the amount of time until “REST
REMINDER” is displayed” on page 3-197.
Refer to “Changing the turn-signal sound” on page 3-198.
Refer to “Changing the momentary fuel consumption dis-
play” on page 3-199.
Refer to “Returning to the factory settings” on page 3-
200.
CAUTION
!

For safety, stop the vehicle before operating.
While driving, even if you operate the multi-infor-
mation meter switch, the function setting screen is
not displayed.
Ty p e 1
Ty p e 2BK0103001US.book 188 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-189
3
Changing the reset mode for average fuel consumption
and average speed
N00557000083
You can change the mode condition for the average fuel con-
sumption and average speed display to “Auto reset” or “Man-
ual reset”.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-187.
2. Lightly press the multi-information meter switch to select
“AVG” (average fuel consumption and average speed set-
ting).
3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch in sequence from A
(Auto reset mode) → M (Manual reset mode) → A (Auto
reset mode).
The setting will change to the selected mode condition.
Ty p e 1
Ty p e 2
BK0103001US.book 189 ページ ２００９年８月２０日　木曜日　午前１０時４５分

3-190 Features and controls
3
Manual reset mode

If you press and hold the multi-information meter switch
when the average fuel consumption and average speed are
displayed, these calculations will be reset to zero.


When the ignition switch is turned to the “ON” position
from the “ACC” or “LOCK” position, the mode setting
changes automatically from manual to auto.
Switching to auto occurs automatically. If switching to
manual mode is done, however, the data from the last
reset is displayed.
Auto reset mode


When the average fuel consumption and average speed
are being displayed, if you hold down the multi-informa-
tion meter switch, these calculations will be reset to zero.


When the ignition switch has been set to the “ACC” or
“LOCK” position for about 4 hours or more, the average
fuel consumption display and the average speed display
will automatically reset.
NOTE

The average speed display and average fuel consumption
display can be reset separately in both auto reset mode and
manual reset mode.


The average speed display memories and average fuel
consumption memories for auto reset mode and manual
reset mode are erased if the battery is disconnected.


The initial (default) setting is “Auto reset mode”.
Changing the fuel consumption display unit
N00557100097
The fuel consumption display unit can be changed. The dis-
tance, speed, and amount units are also changed to match the
selected fuel consumption unit.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-187.
BK0103001US.book 190 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-191
3

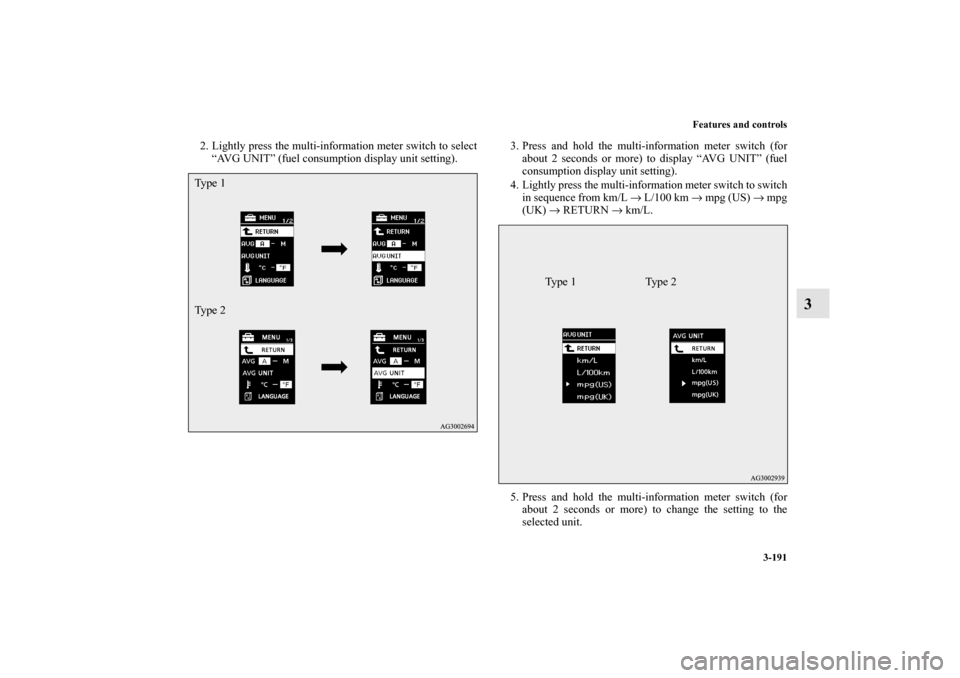

2. Lightly press the multi-information meter switch to select
“AVG UNIT” (fuel consumption display unit setting).3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to display “AVG UNIT” (fuel
consumption display unit setting).
4. Lightly press the multi-information meter switch to switch
in sequence from km/L → L/100 km → mpg (US) → mpg
(UK) → RETURN → km/L.
5. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change the setting to the
selected unit.Ty p e 1
Ty p e 2
Type 1 Type 2
BK0103001US.book 191 ページ ２００９年８月２０日　木曜日　午前１０時４５分

3-192 Features and controls
3
NOTE

The display units for the driving range, the average fuel
consumption, the average speed and the momentary fuel
consumption are changed, but the units for the indicating
needle (speedometer), the odometer and the trip odometer
will remain unchanged.


If the battery is disconnected, the memory of the unit set-
ting is erased and is automatically set to {mpg (US) or
L/100 km}.
The distance and speed units are also changed in the following
combinations to match the selected fuel consumption unit.
Changing the temperature unit
N00557200072
The temperature display unit can be changed.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-187.
2. Lightly press the multi-information meter switch to select
“ ” (temperature unit setting).
Fuel economy
Distance (driving
range)
Speed (average
speed)
mpg (US) mile(s) mph
mpg (UK) mile(s) mph
km/L km km/h
L/100 km km km/h
Ty p e 1
Ty p e 2
BK0103001US.book 192 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-193
3
3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change in sequence from °F
→ °C → °F.
The setting is changed to the selected temperature unit.NOTE

If the battery is disconnected, the memory of the unit set-
ting is erased and is automatically set to °F (°C).
Changing the display language
N00557300073
The language of the multi-information display can be changed.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-187.
2. Lightly press the multi-information meter switch to select
“LANGUAGE” (language setting).Ty p e 1
Ty p e 2
BK0103001US.book 193 ページ ２００９年８月２０日　木曜日　午前１０時４５分
