Overview
Instruments and controls (Driver’s area)
N00100201169
Combination headlights and
dimmer switch P.3-220
Turn signal lever P.3-228
Front fog light switch P.3-230
Supplemental restraint system
- airbag (for driver’s seat)
P. 2 - 3 6
Horn switch P.3-241 Instrument cluster P.3-160
Cruise control switches
P. 3 - 1 4 4 Wiper and washer switch
P. 3 - 2 3 1
Rear window wiper and
washer switch P.3-238
Fuses P.7-48
Engine hood release lever
P. 7 - 4Sportronic steering wheel paddle
shifter (if so equipped) P.3-100
Ignition switch
P.3-24, 3-35, 3-81
Steering wheel tilt lock
lever P.3-76
Supplemental restraint system - driver’s
knee airbag P.2-47
Hands-free Bluetooth
®cellular phone interface system
with voice recognition switches (if so equipped) P.3-242 Headlight leveling switch
(if so equipped) P.3-227Multi-information meter switch P.3-168
Active stability control
(ASC) OFF switch P.3-141 Steering wheel audio remote
control switches P.5-87Except for RALLIART
BK0103001US.book 1 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Overview
Combination headlights and
dimmer switch P.3-220
Turn signal lever P.3-228
Front fog light switch P.3-230
Supplemental restraint system
- airbag (for driver’s seat)
P. 2 - 3 6
Horn switch P.3-241 Instrument cluster P.3-160
Cruise control switches
P. 3 - 1 4 4
Fuses P.7-48
Engine hood release lever
P. 7 - 4Sportronic steering wheel paddle
shifter P.3-118
Ignition switch
P.3-24, 3-35, 3-81
Steering wheel tilt lock
lever P.3-76
Supplemental restraint system - driver’s
knee airbag P.2-47
Hands-free Bluetooth
®cellular phone interface system
with voice recognition switches (if so equipped) P.3-242 Headlight leveling switch
(if so equipped) P.3-227Multi-information meter switch P.3-168
Wiper and washer switch
P. 3 - 2 3 1
Rear window wiper and
washer switch P.3-238
Active stability control
(ASC) OFF switch P.3-141 Steering wheel audio remote
control switches P.5-87 RALLIART
BK0103001US.book 2 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Overview
Center panel
N00100700112
Audio (if so equipped) P.5-27, 5-55
Digital clock (if so equipped) P.5-99
Mitsubishi Multi-Communication System (if so equipped)
Refer to the separate “Mitsubishi Multi-Communication System owner’s manual”
Hazard warning flasher
switch P.3-229Front passenger seat belt
warning light P.2-21
Cigarette lighter (if so equipped) P.3-276
12 V power outlet (if so equipped) P.3-277Electric rear window defogger
switch P.3-240
Air conditioning
P.5-6, 5-16 Passenger’s airbag off
indicator P.2-45
Auxiliary Audio connector (RCA)
(if so equipped) P.5-85
Auxiliary Video connector (RCA)
(if so equipped) P.5-85
Ashtray P.3-275
BK0103001US.book 5 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Overview
Audio (if so equipped) P.5-27, 5-55
Digital clock (if so equipped) P.5-99
Mitsubishi Multi-Communication System (if so equipped)
Refer to the separate “Mitsubishi Multi-Communication System owner’s manual”
Hazard warning flasher
switch P.3-229Front passenger seat belt
warning light P.2-21
12 V power outlet
P. 3 - 2 7 7Electric rear window defogger switch
P. 3 - 2 4 0
Air conditioning
P.5-6, 5-16 Passenger’s airbag off
indicator P.2-45
Front console box (Upper box)
P. 3 - 2 8 6
Front console box (Lower box)
P.3-286Auxiliary Audio connector (RCA)
(if so equipped) P.5-85
Auxiliary Video connector (RCA)
(if so equipped) P.5-85
BK0103001US.book 6 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Overview
Interior
N00100300929
Adjustable seat belt shoulder anchor
(for front seats) P.2-21
Seat belts P.2-15
Supplemental restraint system - side airbag
(for front seats) P.2-53Front seats P.2-3Sun visors P.3-273
Vanity mirror P.3-273
Card holder P.3-273 Inside rearview mirror P.3-77
Head restraints (except for RECARO seat) P.2-9 Window lock switch
P. 3 - 7 0
Power window
switches P.3-66Power door lock
switch P.3-56 Electric remote-
controlled outside
mirror switch
P.3-79Dome light (Front)/Reading lights
P.3-279, 7-61, 7-88Sunroof switch
(if so equipped)
P. 3 - 7 1
Hands-free Bluetooth
® cellular phone interface system
with voice recognition microphone (if so equipped)
P.3-242
Bottle holder (for front seats)
P.3-289 Rear shelf panel
P. 3 - 2 9 0
BK0103001US.book 7 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Overview
Outside (Rear)
N00100601017
Antenna P.5-97
Tire inflation pressure P.7-33
Changing tires P.6-8
Tire rotation P.7-36
Tire chains P.7-38
Tire pressure monitoring system
P. 3 - 1 5 3
Rear side-marker lights
P.3-220, 7-58, 7-82
Tail and stop lights P.3-220, 7-58, 7-82 Back-up lights P.7-58, 7-84 License plate lights P.3-220, 7-58, 7-86 Rear hatch P.3-59 High-mounted stop light
P. 7 - 5 8Rear window wiper P.3-238
Rear turn signal lights
P.3-228, 7-58, 7-82
BK0103001US.book 12 ページ ２００９年８月２０日　木曜日　午前１０時４５分

4 Quick indexCannot shift the selector lever
(CVT) or the gearshift lever
(Twin Clutch SST) from the
“P” (PARK) position.
(for vehicles equipped with
CVT or Twin Clutch SST)Shift the selector lever (CVT) or the gearshift lever (Twin Clutch SST) while pressing the
brake pedal.
Check that the ignition key or ignition switch is in the “ON” position.P.3-94, 3-104
The windows are fogged up.
1. Set the mode selection dial to the “ ” or “ ” position.
2. Turn on the blower.P.5-14, 5-24
The engine does not start.
The lights do not come on.
The lights are dim.
The horn does not honk.
The horn sound is weak.Have the battery checked. Recharge or replace as needed.P. 6 - 2 ,
7-23
Problem
Do this
Ref. Page
BK0103001US.book 4 ページ ２００９年８月２０日　木曜日　午前１０時４５分

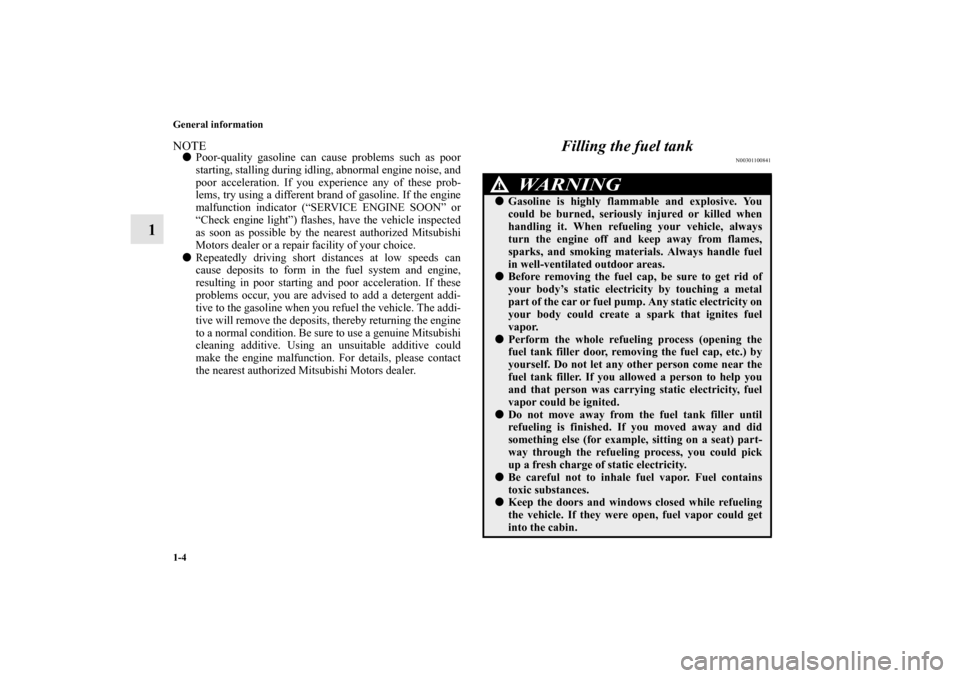

1-4 General information
1
NOTE

Poor-quality gasoline can cause problems such as poor
starting, stalling during idling, abnormal engine noise, and
poor acceleration. If you experience any of these prob-
lems, try using a different brand of gasoline. If the engine
malfunction indicator (“SERVICE ENGINE SOON” or
“Check engine light”) flashes, have the vehicle inspected
as soon as possible by the nearest authorized Mitsubishi
Motors dealer or a repair facility of your choice.


Repeatedly driving short distances at low speeds can
cause deposits to form in the fuel system and engine,
resulting in poor starting and poor acceleration. If these
problems occur, you are advised to add a detergent addi-
tive to the gasoline when you refuel the vehicle. The addi-
tive will remove the deposits, thereby returning the engine
to a normal condition. Be sure to use a genuine Mitsubishi
cleaning additive. Using an unsuitable additive could
make the engine malfunction. For details, please contact
the nearest authorized Mitsubishi Motors dealer.
Filling the fuel tank
N00301100841
WA R N I N G
!

Gasoline is highly flammable and explosive. You
could be burned, seriously injured or killed when
handling it. When refueling your vehicle, always
turn the engine off and keep away from flames,
sparks, and smoking materials. Always handle fuel
in well-ventilated outdoor areas.


Before removing the fuel cap, be sure to get rid of
your body’s static electricity by touching a metal
part of the car or fuel pump. Any static electricity on
your body could create a spark that ignites fuel
vapor.


Perform the whole refueling process (opening the
fuel tank filler door, removing the fuel cap, etc.) by
yourself. Do not let any other person come near the
fuel tank filler. If you allowed a person to help you
and that person was carrying static electricity, fuel
vapor could be ignited.


Do not move away from the fuel tank filler until
refueling is finished. If you moved away and did
something else (for example, sitting on a seat) part-
way through the refueling process, you could pick
up a fresh charge of static electricity.


Be careful not to inhale fuel vapor. Fuel contains
toxic substances.


Keep the doors and windows closed while refueling
the vehicle. If they were open, fuel vapor could get
into the cabin.
BK0103001US.book 4 ページ ２００９年８月２０日　木曜日　午前１０時４５分
