3-240 Features and controls

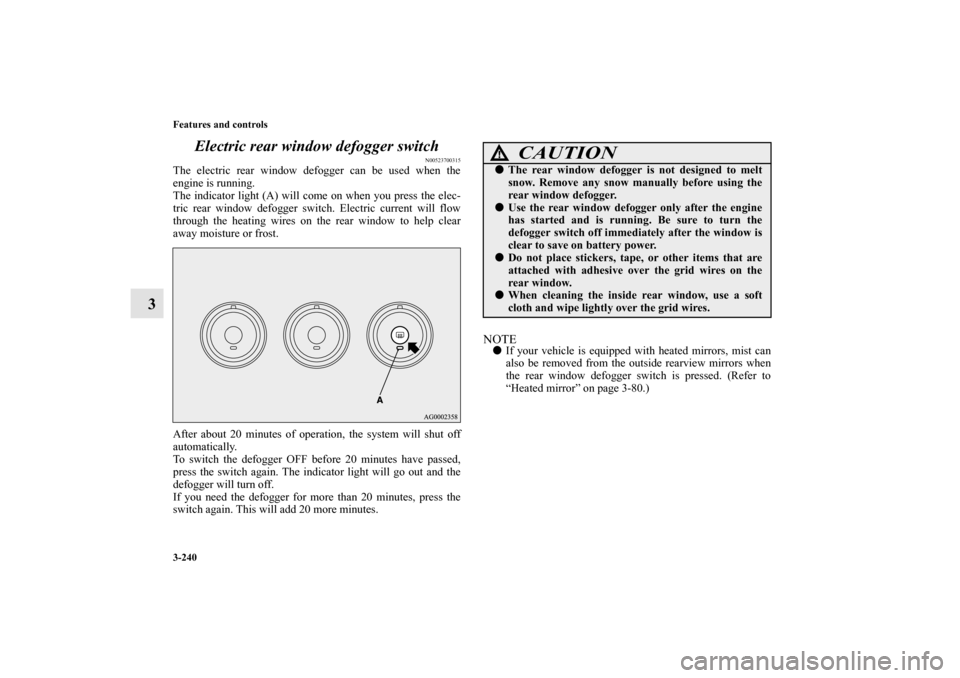

3Electric rear window defogger switch
N00523700315
The electric rear window defogger can be used when the
engine is running.
The indicator light (A) will come on when you press the elec-
tric rear window defogger switch. Electric current will flow
through the heating wires on the rear window to help clear
away moisture or frost.
After about 20 minutes of operation, the system will shut off
automatically.
To switch the defogger OFF before 20 minutes have passed,
press the switch again. The indicator light will go out and the
defogger will turn off.
If you need the defogger for more than 20 minutes, press the
switch again. This will add 20 more minutes.
NOTE

If your vehicle is equipped with heated mirrors, mist can
also be removed from the outside rearview mirrors when
the rear window defogger switch is pressed. (Refer to
“Heated mirror” on page 3-80.)
CAUTION
!

The rear window defogger is not designed to melt
snow. Remove any snow manually before using the
rear window defogger.


Use the rear window defogger only after the engine
has started and is running. Be sure to turn the
defogger switch off immediately after the window is
clear to save on battery power.


Do not place stickers, tape, or other items that are
attached with adhesive over the grid wires on the
rear window.


When cleaning the inside rear window, use a soft
cloth and wipe lightly over the grid wires.
BK0103001US.book 240 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-245
3
Voice recognition function
N00506600117
The Hands-free Bluetooth
® cellular phone interface system
with voice recognition is equipped with a voice recognition
function. Your voice will be recognized by a microphone in the
dome light (front), allowing you to make hands-free calls with
voice commands.
Voice recognition is possible in US English, North American
Spanish and Canadian French. The factory setting is US
English.
Some of the voice commands indicated below have a number
of alternative commands. For a table showing the voice com-
mands in each language and the corresponding alternative
commands, refer to “Commands and Alternatives” on page 3-
265.
NOTE

If the voice command that you say differs from the pre-
defined command or cannot be recognized due to ambient
noise or some other reason, the Hands-free Bluetooth
®
cellular phone interface system with voice recognition
will ask you for the voice command again up to 3 times.


For best performance and further reduction of ambient
noise, the vehicle windows should be closed while engag-
ing the voice recognition function.
Selecting the LanguageThere are two ways to change the language. NOTE

The more entries that are registered in the phonebook, the
longer it will take to change the language.Change the language using the “Language” command
1. Press the SPEECH button.
2. Say “Setup.”
3. Say “Language.”
4. The voice guide will say “Select a language: English,
Spanish or French.” Say the desired language. (Example:
Say “English.”)
5. The voice guide will say “English (Spanish or French)
selected. Is this correct?” Say “Yes” to start the language
change process. Say “No” to return to Step 4.
6. When the voice guide says “English (Spanish or French)
selected,” the language change process will be completed
and the system will return to the main menu.
System recognizes the command that you said and changes
the language
From the main menu, say ( or ) and
the Hands-free Bluetooth
® cellular phone interface system
with voice recognition will recognize the 1 word spoken com-
mand in the native language, and ask you if you want to change
to that language.
1. The voice guide will say “Would you like to change the
language to English (Spanish or French)?”
2. If you say “Yes,” the voice guide will say “Please Wait,
Switching to English (Spanish or French) Phonebook”
and it will start the language change process.
If you do not want to change the language, say “No.”
3. When the voice guide says “English (Spanish or French)
selected,” the language change process will be completed
and the system will return to the main menu.
BK0103001US.book 245 ページ ２００９年８月２０日　木曜日　午前１０時４５分

3-246 Features and controls
3
Speaker enrollment function
N00528900093
The Hands-free Bluetooth
® cellular phone interface system
with voice recognition can use the speaker enrollment function
to create a voice model for one person per language.
Your voice characteristics and pronunciations are registered in
this voice model. This makes it easier for the Hands-free Blue-
tooth
® cellular phone interface system with voice recognition
to recognize voice commands said by you.
You can turn a voice model registered with the speaker enroll-
ment function on and off whenever you want.
NOTE

Phone calls received during the speaker enrollment pro-
cess cannot be answered and operations initiated by the
steering wheel control switch or voice recognition will not
work.
Speaker enrollmentIt takes about 10 to 15 minutes to complete the speaker enrol-
ment process.
To ensure the best results, run through the process while in the
driver’s seat, in an environment that is as quiet as possible
(when there is no rain or strong winds and the vehicle windows
are closed).
Use the following procedure for speaker enrollment.
1. Stop your vehicle in a safe area, put the gearshift lever
(manual transaxle) in the “N” (Neutral) position, or the
selector lever {continuously variable transmission
(CVT)} or gearshift lever (Twin Clutch SST) in the “P”
(PARK) position, and then pull the parking brake lever.NOTE

Speaker enrollment is not possible unless the vehicle is
parked. Make sure you park the vehicle in a safe area
before attempting speaker enrollment.


Please turn off your phone while in speaker enrollment to
prevent interruption of the process.
2. Press the SPEECH button.
3. Say “Voice training.”
4. The voice guide will say “This operation must be per-
formed in a quiet environment while the vehicle is
stopped. See the owner’s manual for the list of required
training phrases. Press and release the SPEECH button
when you are ready to start. Press and hold the HANG-UP
button to cancel at any time.” Press the SPEECH button to
start the speaker enrollment process.
BK0103001US.book 246 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Comfort controls
5-5
5

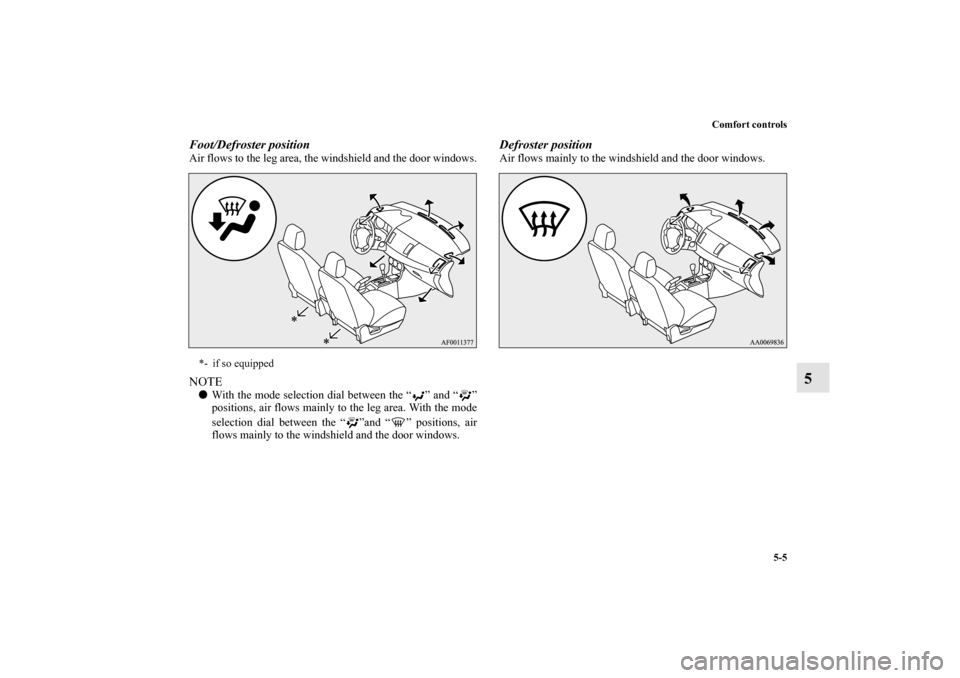

Foot/Defroster positionAir flows to the leg area, the windshield and the door windows.NOTE

With the mode selection dial between the “ ” and “ ”
positions, air flows mainly to the leg area. With the mode
selection dial between the “ ”and “ ” positions, air
flows mainly to the windshield and the door windows.
Defroster positionAir flows mainly to the windshield and the door windows.
*- if so equipped
BK0103001US.book 5 ページ ２００９年８月２０日　木曜日　午前１０時４５分

5-6 Comfort controls

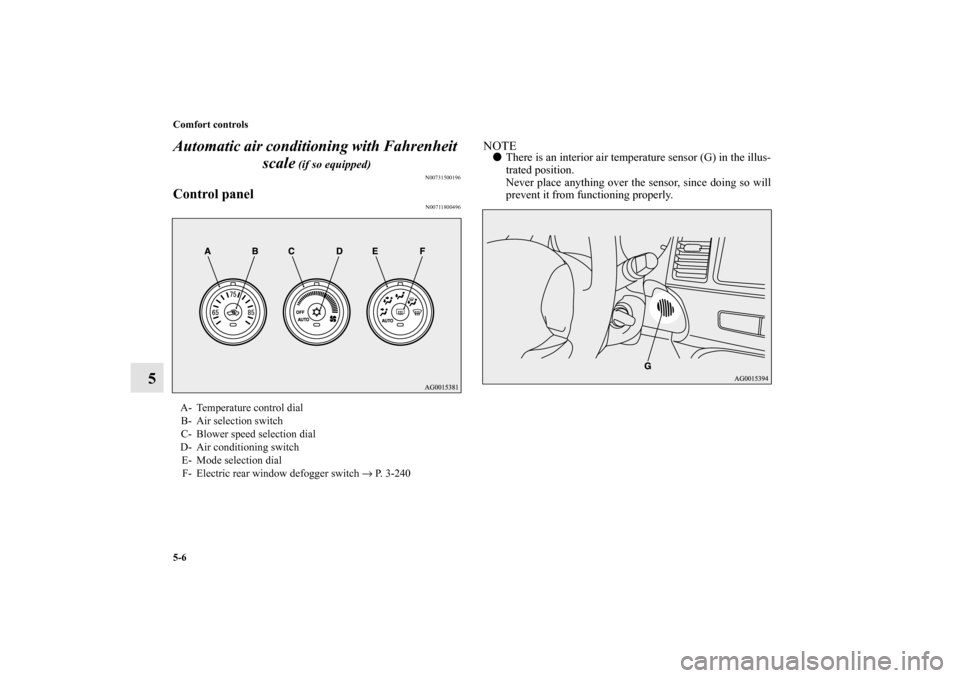

5Automatic air conditioning with Fahrenheit
scale
(if so equipped)
N00731500196
Control panel
N00711800496
NOTE

There is an interior air temperature sensor (G) in the illus-
trated position.
Never place anything over the sensor, since doing so will
prevent it from functioning properly.
A- Temperature control dial
B- Air selection switch
C- Blower speed selection dial
D- Air conditioning switch
E- Mode selection dial
F- Electric rear window defogger switch → P. 3 - 2 4 0
BK0103001US.book 6 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Comfort controls
5-9
5
Air selection switch
N00737200238
Normally, use the outside air position to keep the windshield
and side windows clear and to quickly remove fog or frost
from the windshield.
To change the air selection, simply press the air selection
switch. A sound will be made every time you press the switch.

Outside air {Indicator light (A) OFF}
Outside air is introduced into the passenger compartment.


Recirculated air {Indicator light (A) ON}
Air is recirculated inside the passenger compartment.When the air conditioning turns on, the air selection is con-
trolled automatically. When the air conditioning turns off, the
air selection automatically goes back to the outside air position.
If high cooling performance is desired, or if the outside air is
dusty or contaminated in some way, use the recirculation posi-
tion. Switch to the outside air position every now and then to
keep the windows from fogging up.
NOTE

If the mode selection dial is set between “ ” and “ ”,
you cannot turn the air conditioning off or select the recir-
culation position.
This prevents the windows from fogging up.


When the mode selection dial or the blower speed selec-
tion dial is set to the “AUTO” position again after manual
operation, the air selection switch will also be automati-
cally controlled.
CAUTION
!

Using recirculated air for a long time may cause the
windows to fog up.
BK0103001US.book 9 ページ ２００９年８月２０日　木曜日　午前１０時４５分

5-12 Comfort controls
5
Personalizing the air conditioning switch (Changing
the function setting)
N00759800074
You can change the following functions to match your prefer-
ence.

Enable automatic air conditioning control:
When the mode selection dial or blower speed selection
dial has been set to the “AUTO” position or when the tem-
perature control dial has been set to the minimum temper-
ature, the air conditioning switch is automatically
controlled.


Disable automatic air conditioning control:
The air conditioning switch is not automatically con-
trolled, unless the air conditioning switch is used.


Changing the settings:
Press the air conditioning switch for about 10 seconds or
longer.
When the setting has changed, the system will beep and
the indicator light will flash.
 When the setting has changed from enabled to disabled,
the system will beep three times and the indicator will
flash three times.
 When the setting has changed from disabled to enabled,
the system will beep two times and the indicator light
will flash three times.
NOTE

The factory setting is “Enable automatic air conditioning
control”.


While the mode selection dial is set between “ ” and
“ ” position, the air conditioning will run automatically,
even if the system is set to “Disable automatic air condi-
tioning control”, in order to prevent windows from fog-
ging up.
BK0103001US.book 12 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Comfort controls
5-13
5

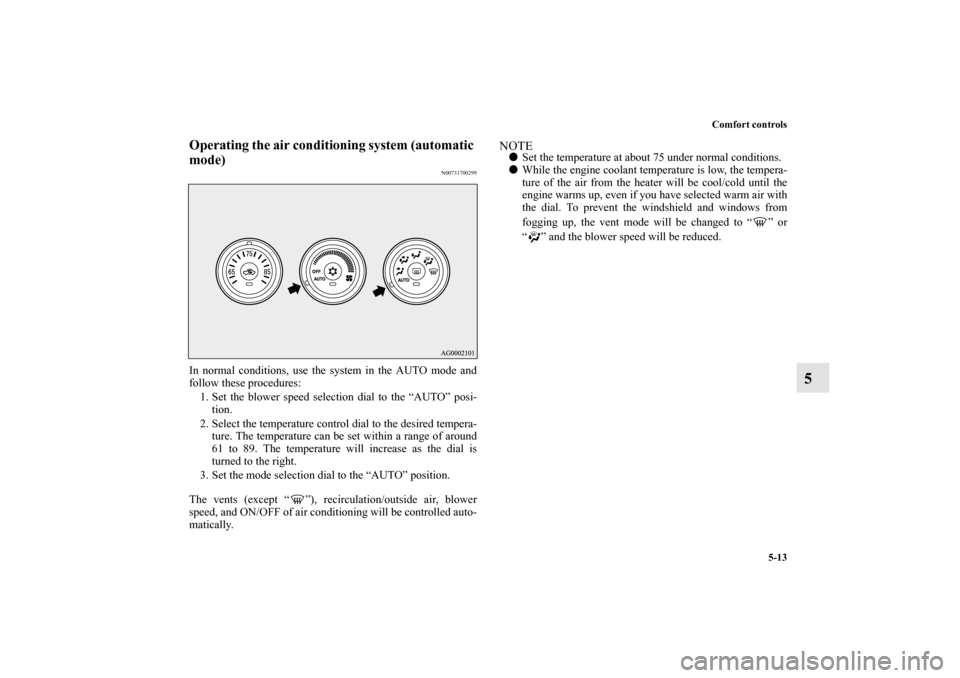

Operating the air conditioning system (automatic
mode)
N00731700299
In normal conditions, use the system in the AUTO mode and
follow these procedures:
1. Set the blower speed selection dial to the “AUTO” posi-
tion.
2. Select the temperature control dial to the desired tempera-
ture. The temperature can be set within a range of around
61 to 89. The temperature will increase as the dial is
turned to the right.
3. Set the mode selection dial to the “AUTO” position.
The vents (except “ ”), recirculation/outside air, blower
speed, and ON/OFF of air conditioning will be controlled auto-
matically.
NOTE

Set the temperature at about 75 under normal conditions.


While the engine coolant temperature is low, the tempera-
ture of the air from the heater will be cool/cold until the
engine warms up, even if you have selected warm air with
the dial. To prevent the windshield and windows from
fogging up, the vent mode will be changed to “ ” or
“ ” and the blower speed will be reduced.
BK0103001US.book 13 ページ ２００９年８月２０日　木曜日　午前１０時４５分
