7 Wiper blades
N00940700170
Check the wiper blades occasionally. Clean them regularly to
remove deposits of salt and road film. Use a sponge or cloth
and a mild detergent or non-abrasive cleaner to clean the blades
and glass areas.
Replace the blades if they continue to streak or smear.NOTE

Do not run the wipers on dry glass for a long time. This
wears out the rubber and can scratch the glass.
During cold weatherIf the blades are frozen to the windshield or rear window, do
not operate the wipers until the ice has melted and the blades
are freed, otherwise the wiper motor may be damaged.
Emission-control system maintenance
N00940800201
Your vehicle is equipped with an emission-control system that
meets all the requirements of the U.S. Environmental Protec-
tion Agency and Environment Canada. The emission-control
system is made of:

a positive crankcase ventilation system


an evaporative emission-control system


an exhaust emission-control system
The maintenance services listed in the “WARRANTY AND
MAINTENANCE MANUAL” must be performed at the times
or mileages listed to keep the emission-control system working
properly. These, and all the other “general” maintenance ser-
vices listed in this manual, need to be performed to keep your
vehicle running properly and reliably.
You may need more frequent maintenance if you drive your
vehicle in harsh conditions such as dusty areas or do a lot of
start-and-stop driving.
To be sure the emission-control system works properly, have
your vehicle inspected and maintained by an authorized Mit-
subishi Motors dealer or a repair facility of your choice follow-
ing the schedule in the “WARRANTY AND MAINTENANCE
MANUAL”.
You should also have an inspection and service any time you
suspect a malfunction.
BK0103001US.book 41 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Vehicle care and maintenance
7-47

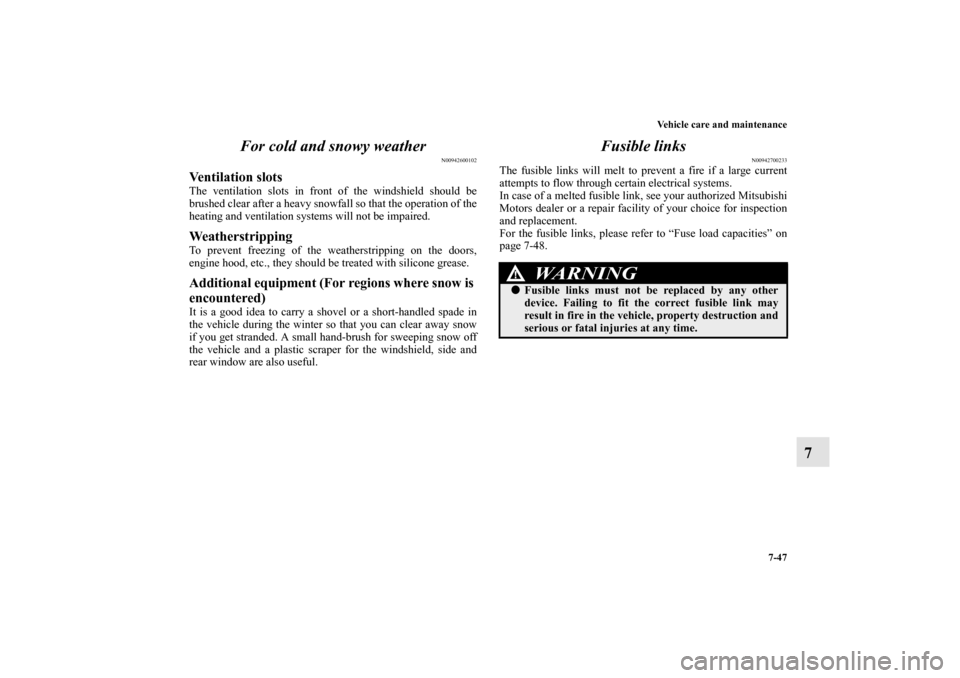

7 For cold and snowy weather
N00942600102
Ventilation slotsThe ventilation slots in front of the windshield should be
brushed clear after a heavy snowfall so that the operation of the
heating and ventilation systems will not be impaired.WeatherstrippingTo prevent freezing of the weatherstripping on the doors,
engine hood, etc., they should be treated with silicone grease.Additional equipment (For regions where snow is
encountered)It is a good idea to carry a shovel or a short-handled spade in
the vehicle during the winter so that you can clear away snow
if you get stranded. A small hand-brush for sweeping snow off
the vehicle and a plastic scraper for the windshield, side and
rear window are also useful.
Fusible links
N00942700233
The fusible links will melt to prevent a fire if a large current
attempts to flow through certain electrical systems.
In case of a melted fusible link, see your authorized Mitsubishi
Motors dealer or a repair facility of your choice for inspection
and replacement.
For the fusible links, please refer to “Fuse load capacities” on
page 7-48.
WA R N I N G
!

Fusible links must not be replaced by any other
device. Failing to fit the correct fusible link may
result in fire in the vehicle, property destruction and
serious or fatal injuries at any time.
BK0103001US.book 47 ページ ２００９年８月２０日　木曜日　午前１０時４５分

7-52 Vehicle care and maintenance
7
*- Fusible link

Some fuses may not be installed on your vehicle, depend-
ing on the vehicle model or specifications.


The table above shows the main equipment corresponding
to each fuse.

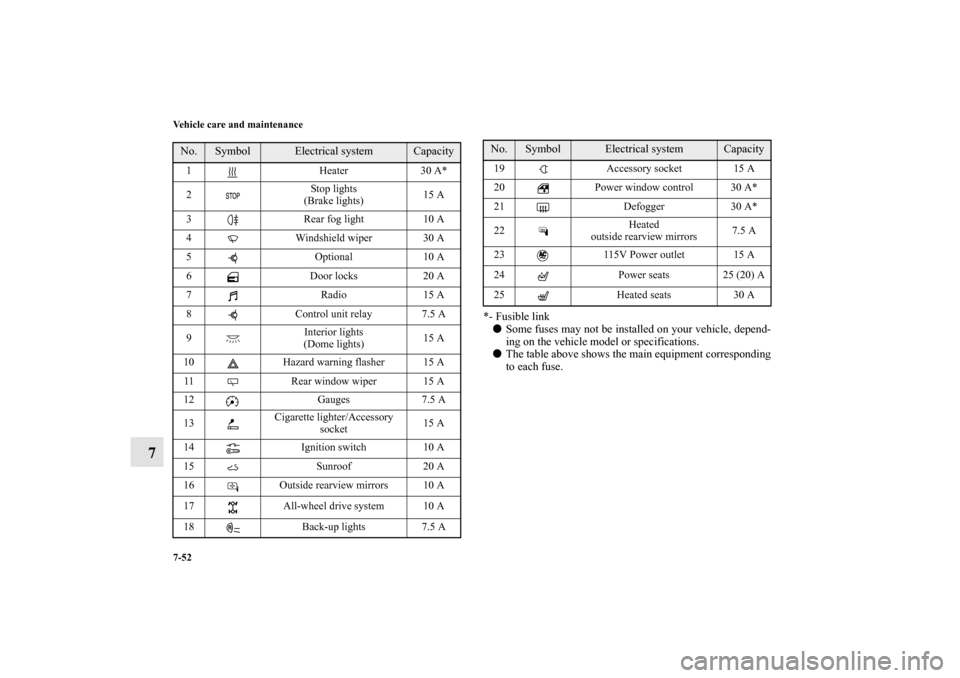

No.
Symbol
Electrical system
Capacity
1 Heater 30 A*
2Stop lights
(Brake lights)15 A
3 Rear fog light 10 A
4 Windshield wiper 30 A
5 Optional 10 A
6 Door locks 20 A
7Radio15 A
8 Control unit relay 7.5 A
9Interior lights
(Dome lights)15 A
10 Hazard warning flasher 15 A
11 Rear window wiper 15 A
12 Gauges 7.5 A
13Cigarette lighter/Accessory
socket15 A
14 Ignition switch 10 A
15 Sunroof 20 A
16 Outside rearview mirrors 10 A
17 All-wheel drive system 10 A
18 Back-up lights 7.5 A
19 Accessory socket 15 A
20 Power window control 30 A*
21 Defogger 30 A*
22Heated
outside rearview mirrors7.5 A
23 115V Power outlet 15 A
24 Power seats 25 (20) A
25 Heated seats 30 ANo.
Symbol
Electrical system
Capacity
BK0103001US.book 52 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Vehicle care and maintenance
7-57
7
5. Insert a new fuse of the same capacity securely into the
appropriate slot.
Replacement of light bulbs
N00942900219
Before replacing a bulb, be sure the light is off. Do not touch
the glass part of the new bulb with your bare fingers; the oil
from your skin will stay on the glass and dim or destroy the
bulb when it gets hot.NOTE

If you are unsure of how to carry out the work as required,
it is recommended that these procedures be carried out by
an authorized Mitsubishi Motors dealer or a repair facility
of your choice.


Be careful not to scratch the vehicle body when removing
a light and lens.


When it rains, or when the vehicle has been washed, the
inside of the lens sometimes becomes temporarily foggy.
This is the same phenomenon as when window glass mists
up on a humid day, and does not indicate a functional
problem.
When the light is switched on, the heat will remove the
fog. However, if water gathers inside the light, please
have it checked by an authorized Mitsubishi Motors
dealer or a repair facility of your choice.
CAUTION
!

Never use a fuse with a capacity greater than the one
listed or any substitute, such as wire, foil etc. This
would cause the circuit wiring to heat up and could
cause a fire.


If the replacement fuse blows again after a short
time, have the electrical system checked by an
authorized Mitsubishi Motors dealer or a repair
facility of your choice to find and correct the cause.
CAUTION
!

Bulbs are extremely hot immediately after being
turned off.
When replacing a bulb, wait for it to cool sufficiently
before touching it. You could otherwise be burned.
BK0103001US.book 57 ページ ２００９年８月２０日　木曜日　午前１０時４５分

7-92 Vehicle care and maintenance
7

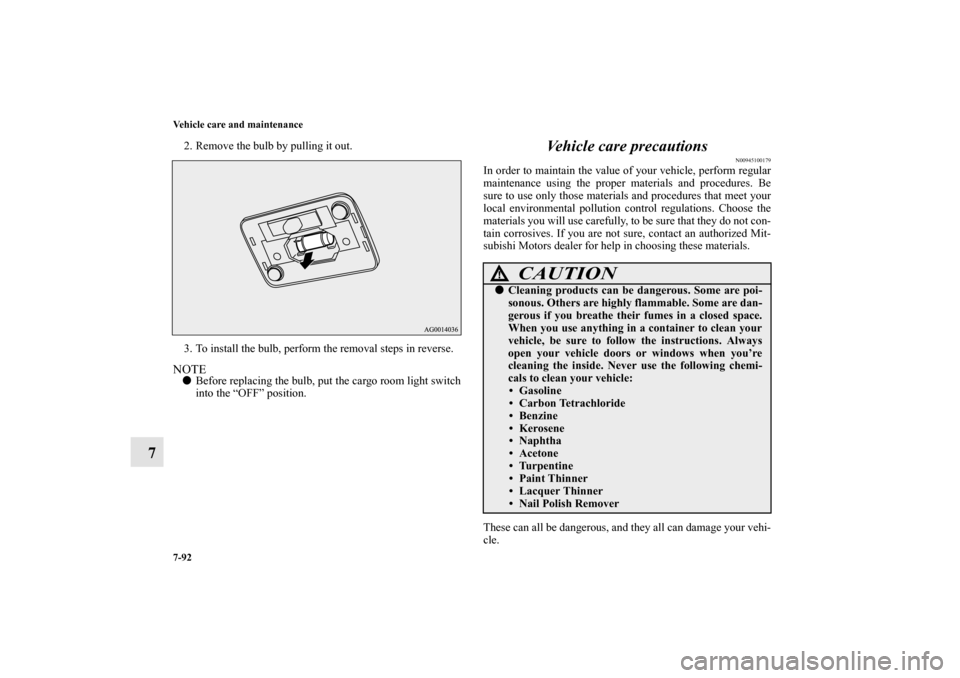

2. Remove the bulb by pulling it out.
3. To install the bulb, perform the removal steps in reverse.NOTE

Before replacing the bulb, put the cargo room light switch
into the “OFF” position.
Vehicle care precautions
N00945100179
In order to maintain the value of your vehicle, perform regular
maintenance using the proper materials and procedures. Be
sure to use only those materials and procedures that meet your
local environmental pollution control regulations. Choose the
materials you will use carefully, to be sure that they do not con-
tain corrosives. If you are not sure, contact an authorized Mit-
subishi Motors dealer for help in choosing these materials.
These can all be dangerous, and they all can damage your vehi-
cle.
CAUTION
!

Cleaning products can be dangerous. Some are poi-
sonous. Others are highly flammable. Some are dan-
gerous if you breathe their fumes in a closed space.
When you use anything in a container to clean your
vehicle, be sure to follow the instructions. Always
open your vehicle doors or windows when you’re
cleaning the inside. Never use the following chemi-
cals to clean your vehicle: Gasoline
 Carbon Tetrachloride
 Benzine
 Kerosene
 Naphtha
 Acetone
 Turpentine
 Paint Thinner
 Lacquer Thinner
 Nail Polish Remover
BK0103001US.book 92 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Vehicle care and maintenance
7-97
7
Cleaning plastic parts
N00946300178
Use a sponge or chamois to clean these parts.
If a vehicle wax sticks to a gray or black rough surface of the
bumper, molding or lights, the surface may appear white in
color. In this case, wipe it off using lukewarm water and a soft
cloth or chamois. Chrome parts
N00946400065
To prevent spots and corrosion of chrome parts, wash with
water, dry thoroughly, and apply a nonabrasive automotive
wax. If the chrome is severely damaged or pitted, use a com-
mercially available chrome polish.
Aluminum wheels
N00946500200
1. Remove dirt using a wet sponge.
2. Use a mild detergent on any dirt that cannot be removed
easily with water.
Rinse off the detergent after washing the wheel.
3. Dry the wheel thoroughly using a chamois leather or a soft
cloth.Window glass
N00946600067
The window glass can usually be cleaned using only a sponge
and water. Glass cleaner can be used to remove wax, oil,
grease, dead insects, etc. After washing the glass, wipe it dry
with a clean, dry, soft cloth.
CAUTION
!

Do not use a scrubbing brush or other rough scrub-
ber as these may damage the plastic surface.


Do not use wax containing compounds (polishing
powder) which may damage the plastic surface.


Do not let the plastic parts get soiled with gasoline,
oil, brake fluids, engine oils, greases, paint thinner,
and sulfuric acid (battery electrolyte). These fluids,
etc., may crack, stain or discolor the plastic parts.
If any of these get on the plastic parts, wipe them up
with a soft cloth or chamois and a mild solution of
soap and water. Then rinse them immediately with
water.
CAUTION
!

Do not use a brush or other hard implement on the
wheels.
Doing so could scratch the wheels.


Do not use any cleaner that contains an abrasive
substance or is acidic or alkaline. Doing so could
cause the coating on the wheels to peel or become
discolored or stained.


Do not directly apply hot water using a steam
cleaner or by any other means.


Contact with seawater or road salt used for de-icing
can cause corrosion. Rinse off such substances as
soon as possible.
BK0103001US.book 97 ページ ２００９年８月２０日　木曜日　午前１０時４５分

7-98 Vehicle care and maintenance
7

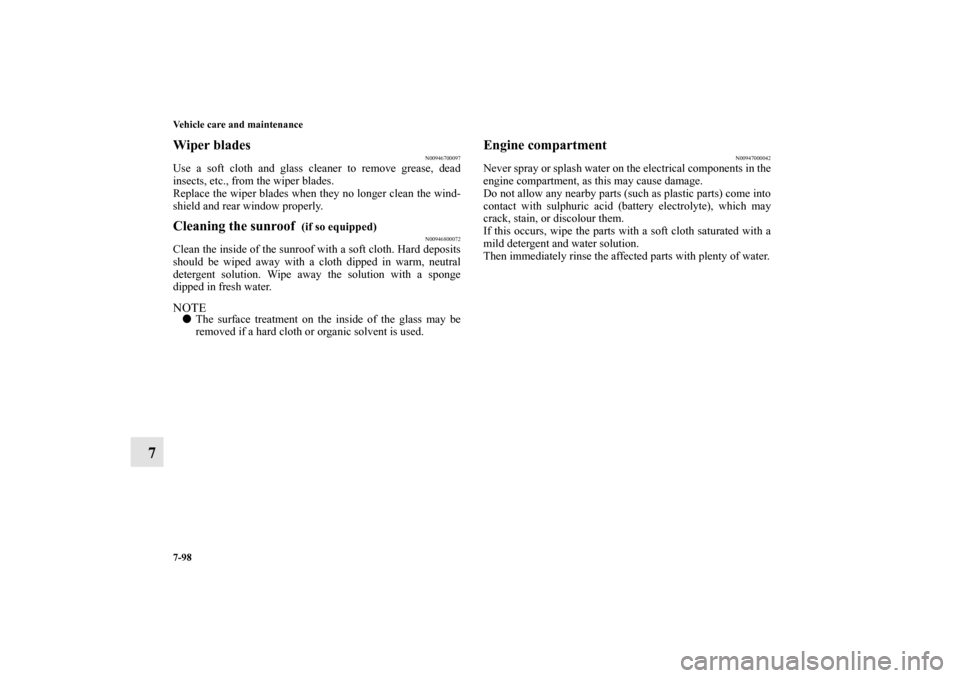

Wiper blades
N00946700097
Use a soft cloth and glass cleaner to remove grease, dead
insects, etc., from the wiper blades.
Replace the wiper blades when they no longer clean the wind-
shield and rear window properly.Cleaning the sunroof
(if so equipped)
N00946800072
Clean the inside of the sunroof with a soft cloth. Hard deposits
should be wiped away with a cloth dipped in warm, neutral
detergent solution. Wipe away the solution with a sponge
dipped in fresh water.NOTE

The surface treatment on the inside of the glass may be
removed if a hard cloth or organic solvent is used.
Engine compartment
N00947000042
Never spray or splash water on the electrical components in the
engine compartment, as this may cause damage.
Do not allow any nearby parts (such as plastic parts) come into
contact with sulphuric acid (battery electrolyte), which may
crack, stain, or discolour them.
If this occurs, wipe the parts with a soft cloth saturated with a
mild detergent and water solution.
Then immediately rinse the affected parts with plenty of water.
BK0103001US.book 98 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Alphabetical index
2Card holder 3-274
Cargo floor boxes 3-288
Cargo loads 4-12
Cargo room light
Bulb capacity 7-61
Replacement 7-91
Switch 3-283
Catalytic converter 7-3
Certification label 9-5
Charging system warning light 3-216
Chassis number 9-3
Child restraint 2-25
Child safety locks for rear door 3-58
Cigarette lighter 3-276
Cleaning
Inside of your vehicle 7-93
Outside of your vehicle 7-94
Clutch
Fluid 7-21
,9-10
Pedal free play 7-39
Coat hooks 3-293
Combination headlights and dimmer switch 3-220
Consumer information 8-2
Continuously variable transmission (CVT) 3-93
Fluid 7-17,9-10
Selector lever operation 3-94
Sports mode 3-100
Coolant (engine) 7-11
,9-10
Cruise control 3-144Cup holder 3-288
D
Daytime running lights
Bulb capacity 7-58
Replacement 7-66
Defogger (rear window) 3-240
Defrosting or defogging (windshield, door windows) 5-14
,5-
24
Digital clock 5-99
Dimensions 9-6
Dimmer (high/low beam change) 3-224
Disc brake pads 7-44
Dome light (rear)
Bulb capacity 7-61
Replacement 7-90
Switch 3-281
Dome light/Reading lights
Bulb capacity 7-61
Replacement 7-88
Switch 3-279
Doors
Lock 3-53
Power door locks 3-56
Drive belt 7-45
Driving during cold weather 4-5
Driving, alcohol and drugs 4-2
Dual height adjustable cargo floor board 3-291
BK0103001US.book 2 ページ ２００９年８月２０日　木曜日　午前１０時４５分
