Overview
Center panel
N00100700112
Audio (if so equipped) P.5-27, 5-55
Digital clock (if so equipped) P.5-99
Mitsubishi Multi-Communication System (if so equipped)
Refer to the separate “Mitsubishi Multi-Communication System owner’s manual”
Hazard warning flasher
switch P.3-229Front passenger seat belt
warning light P.2-21
Cigarette lighter (if so equipped) P.3-276
12 V power outlet (if so equipped) P.3-277Electric rear window defogger
switch P.3-240
Air conditioning
P.5-6, 5-16 Passenger’s airbag off
indicator P.2-45
Auxiliary Audio connector (RCA)
(if so equipped) P.5-85
Auxiliary Video connector (RCA)
(if so equipped) P.5-85
Ashtray P.3-275
BK0103001US.book 5 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Overview
Audio (if so equipped) P.5-27, 5-55
Digital clock (if so equipped) P.5-99
Mitsubishi Multi-Communication System (if so equipped)
Refer to the separate “Mitsubishi Multi-Communication System owner’s manual”
Hazard warning flasher
switch P.3-229Front passenger seat belt
warning light P.2-21
12 V power outlet
P. 3 - 2 7 7Electric rear window defogger switch
P. 3 - 2 4 0
Air conditioning
P.5-6, 5-16 Passenger’s airbag off
indicator P.2-45
Front console box (Upper box)
P. 3 - 2 8 6
Front console box (Lower box)
P.3-286Auxiliary Audio connector (RCA)
(if so equipped) P.5-85
Auxiliary Video connector (RCA)
(if so equipped) P.5-85
BK0103001US.book 6 ページ ２００９年８月２０日　木曜日　午前１０時４５分

General information
1-5
1
Fuel tank capacity2WD: 15.5 gal (59 liters)
4WD: 14.5 gal (55 liters)Refueling1. Before filling with fuel, stop the engine.
2. The fuel tank filler is located on the rear driver side of
your vehicle.
The fuel tank filler door can be opened from inside the
vehicle with the fuel tank filler door release lever located
at the left side of the driver’s seat.3. Open the fuel tank filler pipe by slowly turning the cap
counterclockwise.
A- Remove
B- Close
WA R N I N G
!

Since the fuel system may be under pressure,
remove the fuel tank filler cap slowly. This relieves
any pressure or vacuum that might have built up in
the fuel tank. If the cap is venting vapor or if you
hear a hissing sound, wait until it stops before
removing the cap. Otherwise, fuel may spray out,
injuring you or others.
BK0103001US.book 5 ページ ２００９年８月２０日　木曜日　午前１０時４５分

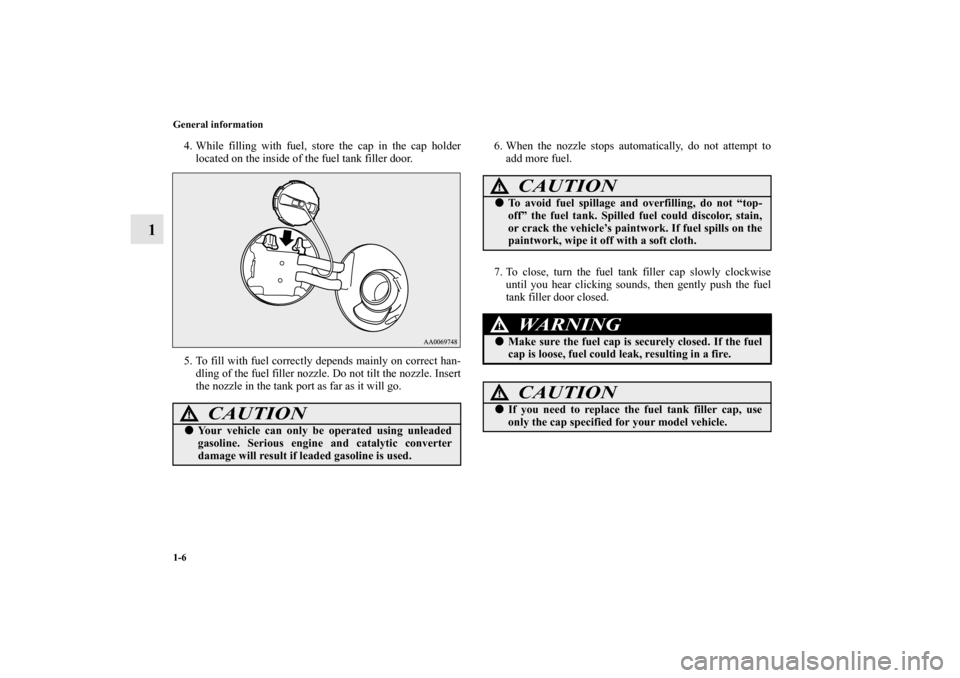

1-6 General information
1
4. While filling with fuel, store the cap in the cap holder
located on the inside of the fuel tank filler door.
5. To fill with fuel correctly depends mainly on correct han-
dling of the fuel filler nozzle. Do not tilt the nozzle. Insert
the nozzle in the tank port as far as it will go.6. When the nozzle stops automatically, do not attempt to
add more fuel.
7. To close, turn the fuel tank filler cap slowly clockwise
until you hear clicking sounds, then gently push the fuel
tank filler door closed.
CAUTION
!

Your vehicle can only be operated using unleaded
gasoline. Serious engine and catalytic converter
damage will result if leaded gasoline is used.
CAUTION
!

To avoid fuel spillage and overfilling, do not “top-
off” the fuel tank. Spilled fuel could discolor, stain,
or crack the vehicle’s paintwork. If fuel spills on the
paintwork, wipe it off with a soft cloth.WA R N I N G
!

Make sure the fuel cap is securely closed. If the fuel
cap is loose, fuel could leak, resulting in a fire.CAUTION
!

If you need to replace the fuel tank filler cap, use
only the cap specified for your model vehicle.
BK0103001US.book 6 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-215
3
Engine malfunction indicator (“SERVICE
ENGINE SOON” or “Check engine light”)
N00520500703
This indicator is a part of the onboard diagnostic (OBD) sys-
tem which monitors the emissions, engine control system or
continuously variable transmission (CVT) control system/Twin
Clutch SST control system. If a problem is detected in one of
these systems, this indicator comes on. When the ignition
switch is turned to the “ON” position, this indicator normally
comes on and goes off a few seconds later.
This indicator will come on if the fuel tank filler cap is not
properly tightened. If this indicator comes on and stays on after
refueling, stop the engine and check that the cap is properly
tightened. (Turn the cap clockwise until you hear clicking
sounds.)
If this indicator does not go off after several seconds or lights
up while driving, have the system checked as soon as possible
at an authorized Mitsubishi Motors dealer or a repair facility of
your choice.


The vehicle should be brought to a halt in the follow-
ing manner when brake performance is deterio-
rated. Confirm that the vehicle slows down when you
press down on the brake pedal harder than usual.
In some cases, the brake pedal may go all the way
to the floor.
 Should the brakes fail, use engine braking to
reduce your speed and slowly apply the parking
brake.
Depress the brake pedal to illuminate the stop
lights to alert the vehicles behind you.


Do not suddenly apply the parking brake while driv-
ing. This may cause the rear wheels to lock and
cause an accident.CAUTION
!
CAUTION
!

Driving for a long time with the engine malfunction
indicator on may cause more damage to the emission
control system. This could also affect fuel economy
and drivability.


If this indicator does not come on when the ignition
switch is turned to the “ON” position, have the sys-
tem checked at an authorized Mitsubishi Motors
dealer or a repair facility of your choice.
BK0103001US.book 215 ページ ２００９年８月２０日　木曜日　午前１０時４５分

5
Comfort controls
Vents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5- 2
Automatic air conditioning with Fahrenheit scale
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .5- 6
Automatic air conditioning with Celsius scale
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .5- 16
Important air conditioning operating tips . . . . . . .5- 26
Air purifier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5- 27
AM/FM electronically tuned radio with CD player
(RBDS and MP3 compatible) (if so equipped) .5- 27
AM/FM electronically tuned radio with 6 CD
autochanger (RBDS and MP3 compatible)
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .5- 55
To use the external audio input function
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .5- 85
Steering wheel audio remote control switch . . . . .5- 87
Error codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5- 90
Error codes (SIRIUS Satellite Radio)
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .5- 92
Handling of compact discs (CD) . . . . . . . . . . . . . .5- 94
Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5- 97
Digital clock (if so equipped) . . . . . . . . . . . . . . . .5- 99
General information about your radio . . . . . . . . . .5-100
BK0103001US.book 1 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Comfort controls
5-7
5
Blower speed selection dial
N00736900094
When the ignition switch is in the “ON” position, select the
blower speed by turning the blower speed selection dial.
Turning the dial clockwise will increase the blower speed;
turning the dial counterclockwise will decrease it. When the
dial is set to the “OFF” position, all fan-driven airflow will
stop.
Temperature control dial
N00737000265
Use this dial to adjust the temperature in the passenger com-
partment. Turn the temperature control dial clockwise to make
the air warmer. Turn it counterclockwise to make the air cooler.
BK0103001US.book 7 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Comfort controls
5-17
5
Blower speed selection dial
N00736900111
When the ignition switch is in the “ON” position, select the
blower speed by turning the blower speed selection dial.
Turning the dial clockwise will increase the blower speed;
turning the dial counterclockwise will decrease it. When the
dial is set to the “OFF” position, all fan-driven airflow will
stop.
Temperature control dial
N00737000278
Use this dial to adjust the temperature in the passenger com-
partment. Turn the temperature control dial clockwise to make
the air warmer. Turn it counterclockwise to make the air cooler.
BK0103001US.book 17 ページ ２００９年８月２０日　木曜日　午前１０時４５分
