Overview

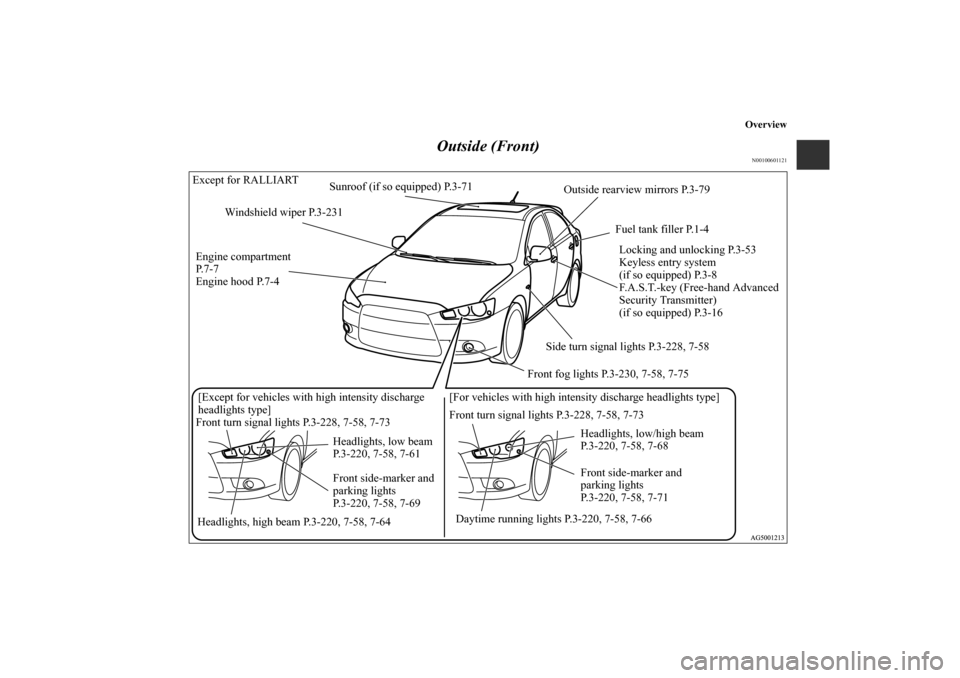

Outside (Front)
N00100601121
Sunroof (if so equipped) P.3-71
Windshield wiper P.3-231
Engine compartment
P. 7 - 7
Engine hood P.7-4
Headlights, high beam P.3-220, 7-58, 7-64 Daytime running lights P.3-220, 7-58, 7-66 [For vehicles with high intensity discharge headlights type]
Front side-marker and
parking lights
P.3-220, 7-58, 7-71 Outside rearview mirrors P.3-79
Fuel tank filler P.1-4
Side turn signal lights P.3-228, 7-58 Except for RALLIART
Locking and unlocking P.3-53
Keyless entry system
(if so equipped) P.3-8
F.A.S.T.-key (Free-hand Advanced
Security Transmitter)
(if so equipped) P.3-16
Front fog lights P.3-230, 7-58, 7-75
[Except for vehicles with high intensity discharge
headlights type]
Front turn signal lights P.3-228, 7-58, 7-73
Front turn signal lights P.3-228, 7-58, 7-73
Headlights, low/high beam
P.3-220, 7-58, 7-68
Front side-marker and
parking lights
P.3-220, 7-58, 7-69 Headlights, low beam
P.3-220, 7-58, 7-61
BK0103001US.book 10 ページ 2009年8月20日 木曜日 午前10時45分
Overview
Sunroof (if so equipped) P.3-71
Windshield wiper P.3-231
Engine compartment
P. 7 - 7
Engine hood P.7-4
Headlights, high beam P.3-220, 7-58, 7-64Daytime running lights P.3-220, 7-58, 7-66 [For vehicles with high intensity discharge headlights type]
Front side-marker and parking
lights P.3-220, 7-58, 7-71 Outside rearview mirrors P.3-79
Fuel tank filler P.1-4
Side turn signal lights P.3-228, 7-58 RALLIART
Locking and unlocking P.3-53
Keyless entry system
(if so equipped) P.3-8
F.A.S.T.-key (Free-hand Advanced
Security Transmitter)
(if so equipped) P.3-16
Front fog lights P.3-230, 7-58, 7-78
Front side-marker and
parking lights
P.3-220, 7-58, 7-69 [Except for vehicles with high intensity discharge
headlights type]
Front turn signal lights
P.3-228, 7-58, 7-73
Front turn signal lights P.3-228, 7-58, 7-73
Headlights, low beam
P.3-220, 7-58, 7-61Headlights, low/high beam
P.3-220, 7-58, 7-68
BK0103001US.book 11 ページ 2009年8月20日 木曜日 午前10時45分
3
Features and controls
Break-in recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 2
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 2
Electronic immobilizer (Anti-theft starting system) . . . . . . . . . . . . .3- 4

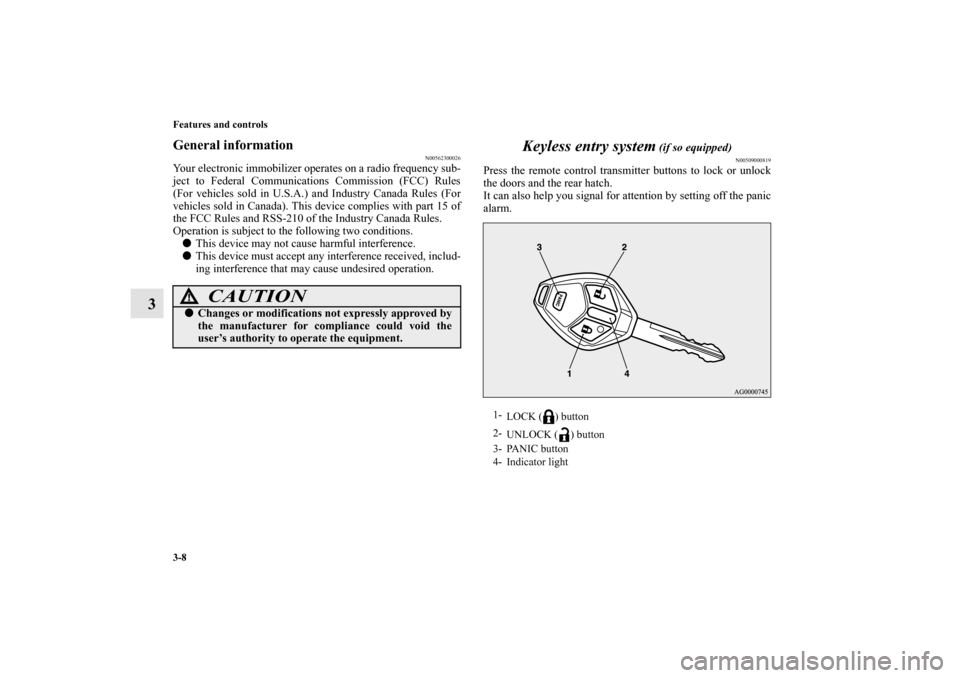

Keyless entry system (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . .3- 8
Free-hand Advanced Security Transmitter (F.A.S.T.-key)
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 16
Door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 53
Power door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 56
“Child safety locks” for rear door . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 58
Rear hatch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 59
Inside rear hatch release . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 61
Theft-alarm system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 63
Power windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 66
Sunroof (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 71
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 74
Steering wheel tilt lock lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 76
Inside day/night rearview mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 77
Outside rearview mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 79
Ignition switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 81
Steering wheel lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 84
Starting and stopping the engine . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 85
Turbocharger operation (if so equipped) . . . . . . . . . . . . . . . . . . . . . .3- 89
Manual transaxle (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 90
Continuously variable transmission (CVT) (if so equipped). . . . . . . 3- 93
Twin Clutch SST (Sportronic Shift Transmission)
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 104
All-wheel drive system (if so equipped) . . . . . . . . . . . . . . . . . . . . . .3- 125
Cautions on handling of all-wheel drive vehicles . . . . . . . . . . . . . . . 3- 125
ACD (Active center differential system) (if so equipped). . . . . . . . .3- 127
Limited-slip differential (if so equipped) . . . . . . . . . . . . . . . . . . . . .3- 130
Service brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 131
Hill start assist (for vehicles equipped with Twin Clutch SST) . . . .3- 132
Anti-lock braking system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 135Power steering system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 139
Active stability control (ASC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 139
Cruise control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 144
Tire pressure monitoring system . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 153
Instrument cluster. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 160
Multi-information display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 164
Indicator light, warning light,
and information screen display list . . . . . . . . . . . . . . . . . . . . . . . 3- 201
Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 214
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 214
Information screen display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 217
Combination headlights and dimmer switch . . . . . . . . . . . . . . . . . . 3- 220
Headlight leveling switch (if so equipped) . . . . . . . . . . . . . . . . . . . 3- 227
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 228
Hazard warning flasher switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 229
Front fog light switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 230
Wiper and washer switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 231
Electric rear window defogger switch . . . . . . . . . . . . . . . . . . . . . . . 3- 240
Horn switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 241
Hands-free Bluetooth® cellular phone interface system
with voice recognition (if so equipped). . . . . . . . . . . . . . . . . . . . 3- 242
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 273
Ashtray (if so equipped). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 275
Cigarette lighter (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 276
12 V power outlet (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . 3- 277
Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 279
Storage spaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 284
Cup holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 288
Bottle holder. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 289
Rear shelf panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 290
Dual height adjustable cargo floor board (if so equipped). . . . . . . . 3- 291
Assist grip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 292
Coat hook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 293
BK0103001US.book 1 ページ 2009年8月20日 木曜日 午前10時45分
3-2 Features and controls
3Break-in recommendations
N00508700314
Advanced automobile manufacturing techniques permit you to
operate your new vehicle without requiring a long break-in
period of low-speed driving.
However, you can add to the future performance and economy
of your vehicle by observing the following precautions during
the first 300 miles (500 km).
Drive your vehicle at moderate speeds during the break-in
period.
Avoid revving the engine. For vehicles equipped with tur-
bocharger, do not exceed 5,000 rpm for the first 600 miles
(1,000 km).
Avoid rough driving such as fast starts, sudden accelera-
tion, prolonged high-speed driving and sudden braking.
These would have a detrimental effect on the engine and
also cause increased fuel and oil consumption, which
could result in malfunction of the engine components. Be
particularly careful to avoid full acceleration while in low
gear.
Do not overload the vehicle. Observe the seating capacity
(See “Cargo load precautions” on page 4-12).
Do not use this vehicle for trailer towing.
Keys
N00508800504
Ty p e 1Two keys are provided. The keys fit all locks.
Keep one in a safe place as a spare key.1- Key for the electronic immobilizer and keyless entry system
2- Key number plate
BK0103001US.book 2 ページ 2009年8月20日 木曜日 午前10時45分
Features and controls
3-3
3
Ty p e 2Two Free-hand Advanced Security Transmitter (F.A.S.T.-key)
and two emergency keys are provided.
Keep one F.A.S.T.-key and one emergency key in a safe place
together as a set of spare keys.
NOTE
The key is a precision electronic device with a built-in sig-
nal transmitter. Please observe the following in order to
prevent damage.
Do not leave where it may be exposed to heat caused by
direct sunlight, such as on top of the dashboard.
Do not take the remote control transmitter apart.
Do not excessively bend the key or subject it to strong
impacts.
Keep the remote control transmitter dry.
Keep away from magnetic objects such as key rings.
Keep away from devices that produce magnetism, such
as audio systems, computers and televisions.
Keep away from devices that emit strong electromag-
netic waves, such as cellular phones and wireless
devices.
Do not clean with ultrasonic cleaners.
Do not leave the key where it may be exposed to high
temperature or high humidity.
If you lose your key, to prevent the theft of the vehicle
immediately contact an authorized Mitsubishi Motors
dealer.
If you notify an authorized Mitsubishi Motors dealer of
the key number, they can make a new key. The key num-
ber is stamped on the key number plate. Keep the key
number plate in a safe place separate from the key itself.
1- Free-hand Advanced Security Transmitter (F.A.S.T.-key)
(with electronic immobilizer and keyless entry system func-
tion)
2- Emergency key
3- Key number plate
BK0103001US.book 3 ページ 2009年8月20日 木曜日 午前10時45分
3-4 Features and controls
3
No keys other than those registered in advance can be
used to start the engine.
Refer to “Electronic immobilizer (Anti-theft starting sys-
tem)” on page 3-4.
Refer to “Free-hand Advanced Security Transmitter
(F.A.S.T.-key): Electronic immobilizer (Anti-theft starting
system)” on page 3-42.
Be careful of the following if the theft-alarm is set to
“Activate”.
Refer to “Theft-alarm system” on page 3-63.
When the theft-alarm is in the system operational status,
the alarm operates if a door or rear hatch is opened after
using the key or the door lock knob to unlock the vehi-
cle.
Even if the theft-alarm is set to “Activate”, the system
does not enter the preparation status if the keyless entry
system or the F.A.S.T.-key was not used to lock the
vehicle.
Electronic immobilizer (Anti-theft starting
system)
N00509100692
[For vehicles equipped with the Free-hand Advanced Security
Transmitter (F.A.S.T.-key)]
For information on operations for vehicles equipped with the
Free-hand Advanced Security Transmitter (F.A.S.T.-key), refer
to “Free-hand Advanced Security Transmitter (F.A.S.T.-key):
Electronic immobilizer (Anti-theft starting system)” on page 3-
42.
[Except for vehicles equipped with the Free-hand Advanced
Security Transmitter (F.A.S.T.-key)]
The electronic immobilizer is designed to significantly reduce
the possibility of vehicle theft. The purpose of the system is to
immobilize the vehicle if an invalid start is attempted. A valid
start attempt can only be achieved (subject to certain condi-
tions) using a key “registered” to the immobilizer system.
All of the keys provided with your new vehicle have been pro-
grammed to the vehicle’s electronics.
BK0103001US.book 4 ページ 2009年8月20日 木曜日 午前10時45分
Features and controls
3-7
3

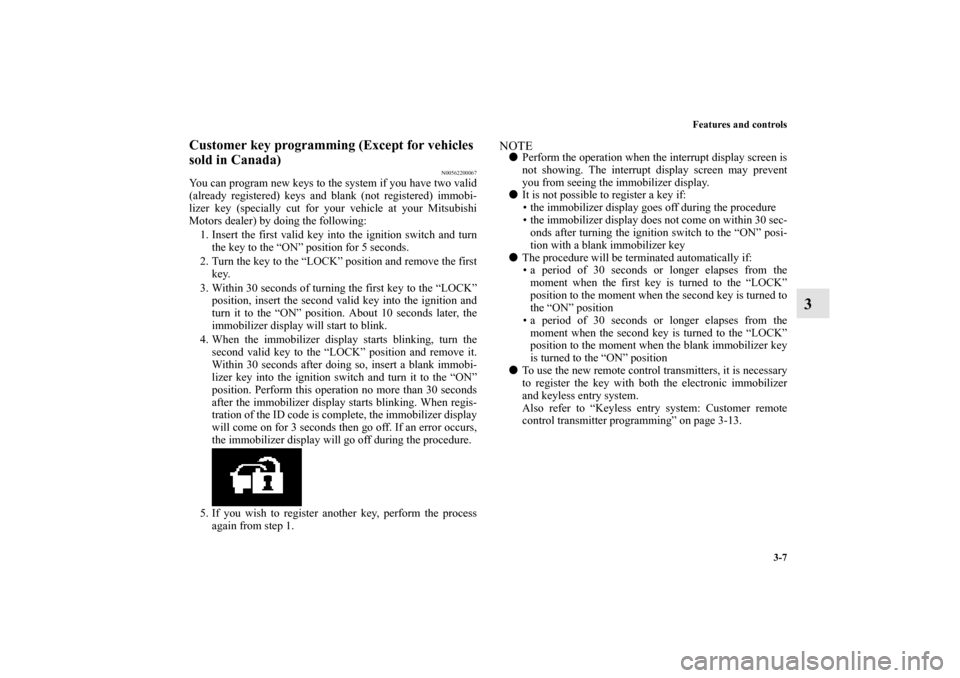

Customer key programming (Except for vehicles
sold in Canada)
N00562200067
You can program new keys to the system if you have two valid
(already registered) keys and blank (not registered) immobi-
lizer key (specially cut for your vehicle at your Mitsubishi
Motors dealer) by doing the following:
1. Insert the first valid key into the ignition switch and turn
the key to the “ON” position for 5 seconds.
2. Turn the key to the “LOCK” position and remove the first
key.
3. Within 30 seconds of turning the first key to the “LOCK”
position, insert the second valid key into the ignition and
turn it to the “ON” position. About 10 seconds later, the
immobilizer display will start to blink.
4. When the immobilizer display starts blinking, turn the
second valid key to the “LOCK” position and remove it.
Within 30 seconds after doing so, insert a blank immobi-
lizer key into the ignition switch and turn it to the “ON”
position. Perform this operation no more than 30 seconds
after the immobilizer display starts blinking. When regis-
tration of the ID code is complete, the immobilizer display
will come on for 3 seconds then go off. If an error occurs,
the immobilizer display will go off during the procedure.
5. If you wish to register another key, perform the process
again from step 1.
NOTE
Perform the operation when the interrupt display screen is
not showing. The interrupt display screen may prevent
you from seeing the immobilizer display.
It is not possible to register a key if:
the immobilizer display goes off during the procedure
the immobilizer display does not come on within 30 sec-
onds after turning the ignition switch to the “ON” posi-
tion with a blank immobilizer key
The procedure will be terminated automatically if:
a period of 30 seconds or longer elapses from the
moment when the first key is turned to the “LOCK”
position to the moment when the second key is turned to
the “ON” position
a period of 30 seconds or longer elapses from the
moment when the second key is turned to the “LOCK”
position to the moment when the blank immobilizer key
is turned to the “ON” position
To use the new remote control transmitters, it is necessary
to register the key with both the electronic immobilizer
and keyless entry system.
Also refer to “Keyless entry system: Customer remote
control transmitter programming” on page 3-13.
BK0103001US.book 7 ページ 2009年8月20日 木曜日 午前10時45分
3-8 Features and controls
3
General information
N00562300026
Your electronic immobilizer operates on a radio frequency sub-
ject to Federal Communications Commission (FCC) Rules
(For vehicles sold in U.S.A.) and Industry Canada Rules (For
vehicles sold in Canada). This device complies with part 15 of
the FCC Rules and RSS-210 of the Industry Canada Rules.
Operation is subject to the following two conditions.
This device may not cause harmful interference.
This device must accept any interference received, includ-
ing interference that may cause undesired operation.
Keyless entry system
(if so equipped)
N00509000819
Press the remote control transmitter buttons to lock or unlock
the doors and the rear hatch.
It can also help you signal for attention by setting off the panic
alarm.
CAUTION
!
Changes or modifications not expressly approved by
the manufacturer for compliance could void the
user’s authority to operate the equipment.
1-
LOCK ( ) button
2-
UNLOCK ( ) button
3- PANIC button
4- Indicator light
BK0103001US.book 8 ページ 2009年8月20日 木曜日 午前10時45分
