2010 MITSUBISHI LANCER SPORTBACK park assist

Quick index
1

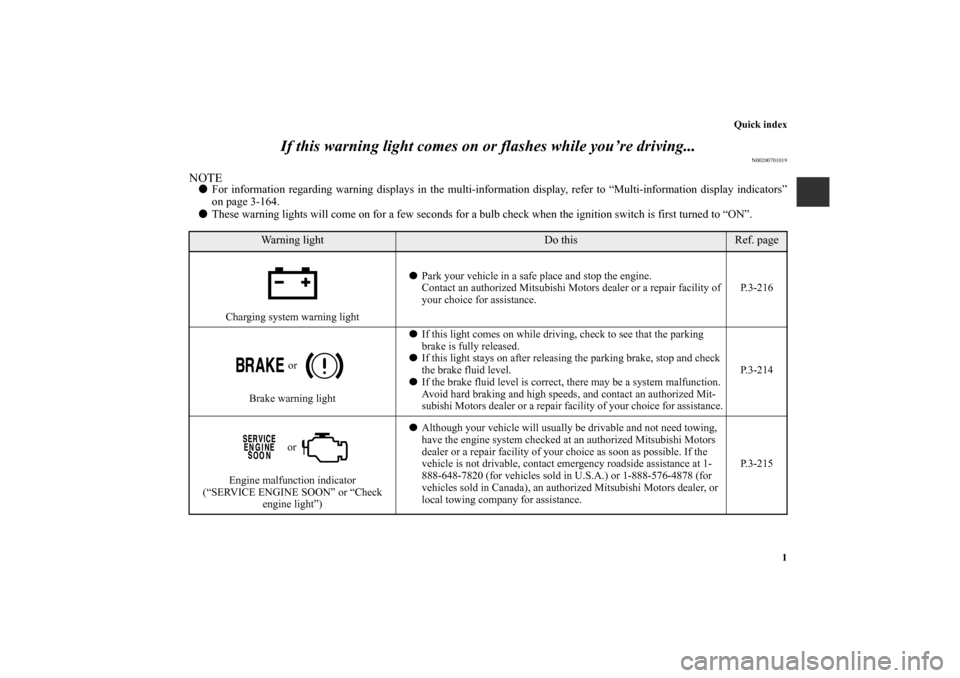

If this warning light comes on or flashes while you’re driving...
N00200701019
NOTE

For information regarding warning displays in the multi-information display, refer to “Multi-information display indicators”
on page 3-164.


These warning lights will come on for a few seconds for a bulb check when the ignition switch is first turned to “ON”.
Warning light
Do this
Ref. page
Charging system warning light
Park your vehicle in a safe place and stop the engine.
Contact an authorized Mitsubishi Motors dealer or a repair facility of
your choice for assistance.P.3-216
or
Brake warning light
If this light comes on while driving, check to see that the parking
brake is fully released.

If this light stays on after releasing the parking brake, stop and check
the brake fluid level.

If the brake fluid level is correct, there may be a system malfunction.
Avoid hard braking and high speeds, and contact an authorized Mit-
subishi Motors dealer or a repair facility of your choice for assistance.P.3-214
or
Engine malfunction indicator
(“SERVICE ENGINE SOON” or “Check
engine light”)
Although your vehicle will usually be drivable and not need towing,
have the engine system checked at an authorized Mitsubishi Motors
dealer or a repair facility of your choice as soon as possible. If the
vehicle is not drivable, contact emergency roadside assistance at 1-
888-648-7820 (for vehicles sold in U.S.A.) or 1-888-576-4878 (for
vehicles sold in Canada), an authorized Mitsubishi Motors dealer, or
local towing company for assistance.P.3-215
BK0103001US.book 1 ページ ２００９年８月２０日　木曜日　午前１０時４５分

3
Features and controls
Break-in recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 2
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 2
Electronic immobilizer (Anti-theft starting system) . . . . . . . . . . . . .3- 4
Keyless entry system (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . .3- 8
Free-hand Advanced Security Transmitter (F.A.S.T.-key)
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 16
Door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 53
Power door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 56
“Child safety locks” for rear door . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 58
Rear hatch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 59
Inside rear hatch release . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 61
Theft-alarm system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 63
Power windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 66
Sunroof (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 71
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 74
Steering wheel tilt lock lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 76
Inside day/night rearview mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 77
Outside rearview mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 79
Ignition switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 81
Steering wheel lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 84
Starting and stopping the engine . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 85
Turbocharger operation (if so equipped) . . . . . . . . . . . . . . . . . . . . . .3- 89
Manual transaxle (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 90
Continuously variable transmission (CVT) (if so equipped). . . . . . . 3- 93
Twin Clutch SST (Sportronic Shift Transmission)
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 104
All-wheel drive system (if so equipped) . . . . . . . . . . . . . . . . . . . . . .3- 125
Cautions on handling of all-wheel drive vehicles . . . . . . . . . . . . . . . 3- 125
ACD (Active center differential system) (if so equipped). . . . . . . . .3- 127
Limited-slip differential (if so equipped) . . . . . . . . . . . . . . . . . . . . .3- 130
Service brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 131
Hill start assist (for vehicles equipped with Twin Clutch SST) . . . .3- 132
Anti-lock braking system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 135Power steering system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 139
Active stability control (ASC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 139
Cruise control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 144
Tire pressure monitoring system . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 153
Instrument cluster. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 160
Multi-information display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 164
Indicator light, warning light,
and information screen display list . . . . . . . . . . . . . . . . . . . . . . . 3- 201
Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 214
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 214
Information screen display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 217
Combination headlights and dimmer switch . . . . . . . . . . . . . . . . . . 3- 220
Headlight leveling switch (if so equipped) . . . . . . . . . . . . . . . . . . . 3- 227
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 228
Hazard warning flasher switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 229
Front fog light switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 230
Wiper and washer switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 231
Electric rear window defogger switch . . . . . . . . . . . . . . . . . . . . . . . 3- 240
Horn switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 241
Hands-free Bluetooth® cellular phone interface system
with voice recognition (if so equipped). . . . . . . . . . . . . . . . . . . . 3- 242
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 273
Ashtray (if so equipped). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 275
Cigarette lighter (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 276
12 V power outlet (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . 3- 277
Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 279
Storage spaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 284
Cup holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 288
Bottle holder. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 289
Rear shelf panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 290
Dual height adjustable cargo floor board (if so equipped). . . . . . . . 3- 291
Assist grip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 292
Coat hook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 293
BK0103001US.book 1 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-33
3

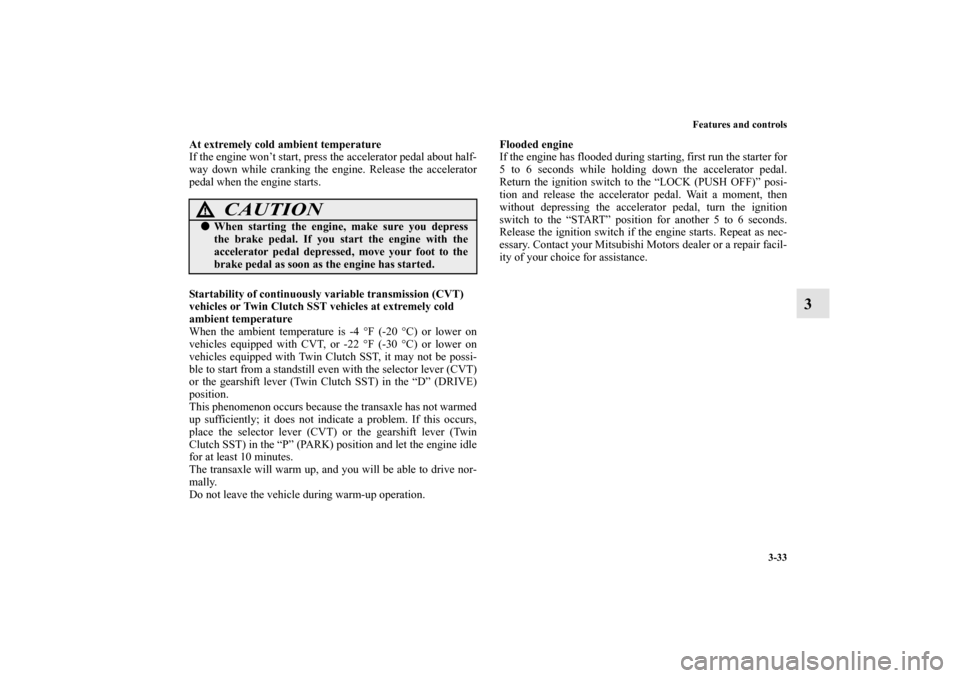

At extremely cold ambient temperature
If the engine won’t start, press the accelerator pedal about half-
way down while cranking the engine. Release the accelerator
pedal when the engine starts.
Startability of continuously variable transmission (CVT)
vehicles or Twin Clutch SST vehicles at extremely cold
ambient temperature
When the ambient temperature is -4 °F (-20 °C) or lower on
vehicles equipped with CVT, or -22 °F (-30 °C) or lower on
vehicles equipped with Twin Clutch SST, it may not be possi-
ble to start from a standstill even with the selector lever (CVT)
or the gearshift lever (Twin Clutch SST) in the “D” (DRIVE)
position.
This phenomenon occurs because the transaxle has not warmed
up sufficiently; it does not indicate a problem. If this occurs,
place the selector lever (CVT) or the gearshift lever (Twin
Clutch SST) in the “P” (PARK) position and let the engine idle
for at least 10 minutes.
The transaxle will warm up, and you will be able to drive nor-
mally.
Do not leave the vehicle during warm-up operation.Flooded engine
If the engine has flooded during starting, first run the starter for
5 to 6 seconds while holding down the accelerator pedal.
Return the ignition switch to the “LOCK (PUSH OFF)” posi-
tion and release the accelerator pedal. Wait a moment, then
without depressing the accelerator pedal, turn the ignition
switch to the “START” position for another 5 to 6 seconds.
Release the ignition switch if the engine starts. Repeat as nec-
essary. Contact your Mitsubishi Motors dealer or a repair facil-
ity of your choice for assistance.
CAUTION
!

When starting the engine, make sure you depress
the brake pedal. If you start the engine with the
accelerator pedal depressed, move your foot to the
brake pedal as soon as the engine has started.
BK0103001US.book 33 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-87
3

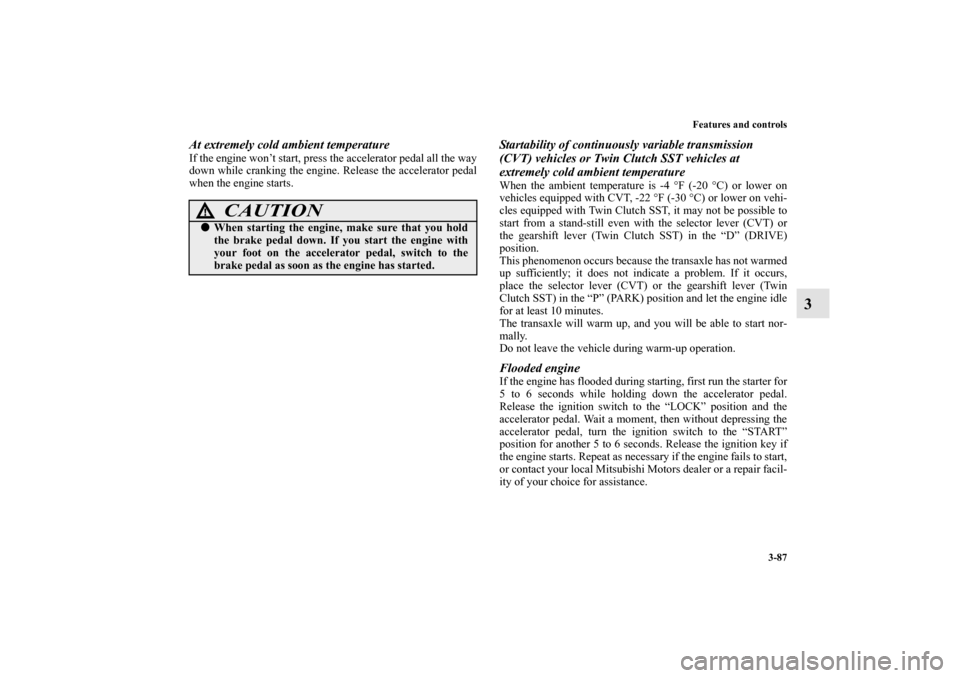

At extremely cold ambient temperatureIf the engine won’t start, press the accelerator pedal all the way
down while cranking the engine. Release the accelerator pedal
when the engine starts.
Startability of continuously variable transmission
(CVT) vehicles or Twin Clutch SST vehicles at
extremely cold ambient temperatureWhen the ambient temperature is -4 °F (-20 °C) or lower on
vehicles equipped with CVT, -22 °F (-30 °C) or lower on vehi-
cles equipped with Twin Clutch SST, it may not be possible to
start from a stand-still even with the selector lever (CVT) or
the gearshift lever (Twin Clutch SST) in the “D” (DRIVE)
position.
This phenomenon occurs because the transaxle has not warmed
up sufficiently; it does not indicate a problem. If it occurs,
place the selector lever (CVT) or the gearshift lever (Twin
Clutch SST) in the “P” (PARK) position and let the engine idle
for at least 10 minutes.
The transaxle will warm up, and you will be able to start nor-
mally.
Do not leave the vehicle during warm-up operation.Flooded engineIf the engine has flooded during starting, first run the starter for
5 to 6 seconds while holding down the accelerator pedal.
Release the ignition switch to the “LOCK” position and the
accelerator pedal. Wait a moment, then without depressing the
accelerator pedal, turn the ignition switch to the “START”
position for another 5 to 6 seconds. Release the ignition key if
the engine starts. Repeat as necessary if the engine fails to start,
or contact your local Mitsubishi Motors dealer or a repair facil-
ity of your choice for assistance.
CAUTION
!

When starting the engine, make sure that you hold
the brake pedal down. If you start the engine with
your foot on the accelerator pedal, switch to the
brake pedal as soon as the engine has started.
BK0103001US.book 87 ページ ２００９年８月２０日　木曜日　午前１０時４５分

3-122 Features and controls
3

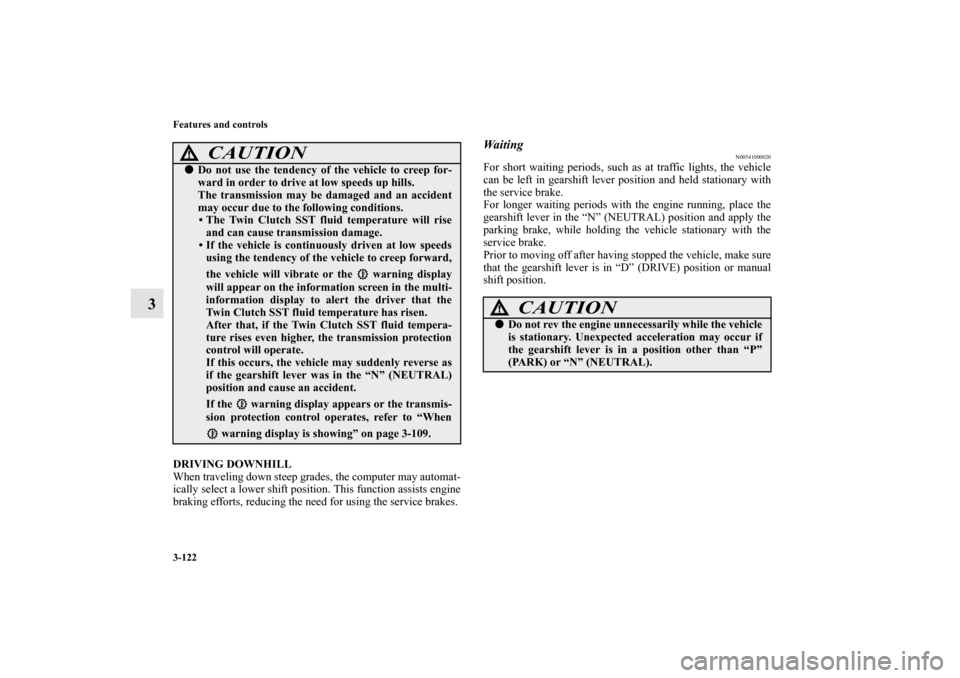

DRIVING DOWNHILL
When traveling down steep grades, the computer may automat-
ically select a lower shift position. This function assists engine
braking efforts, reducing the need for using the service brakes.
Waiting
N00541000020
For short waiting periods, such as at traffic lights, the vehicle
can be left in gearshift lever position and held stationary with
the service brake.
For longer waiting periods with the engine running, place the
gearshift lever in the “N” (NEUTRAL) position and apply the
parking brake, while holding the vehicle stationary with the
service brake.
Prior to moving off after having stopped the vehicle, make sure
that the gearshift lever is in “D” (DRIVE) position or manual
shift position.
CAUTION
!

Do not use the tendency of the vehicle to creep for-
ward in order to drive at low speeds up hills.
The transmission may be damaged and an accident
may occur due to the following conditions. The Twin Clutch SST fluid temperature will rise
and can cause transmission damage.
 If the vehicle is continuously driven at low speeds
using the tendency of the vehicle to creep forward,
the vehicle will vibrate or the warning display
will appear on the information screen in the multi-
information display to alert the driver that the
Twin Clutch SST fluid temperature has risen.
After that, if the Twin Clutch SST fluid tempera-
ture rises even higher, the transmission protection
control will operate.
If this occurs, the vehicle may suddenly reverse as
if the gearshift lever was in the “N” (NEUTRAL)
position and cause an accident.
If the warning display appears or the transmis-
sion protection control operates, refer to “When
warning display is showing” on page 3-109.
CAUTION
!

Do not rev the engine unnecessarily while the vehicle
is stationary. Unexpected acceleration may occur if
the gearshift lever is in a position other than “P”
(PARK) or “N” (NEUTRAL).
BK0103001US.book 122 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls

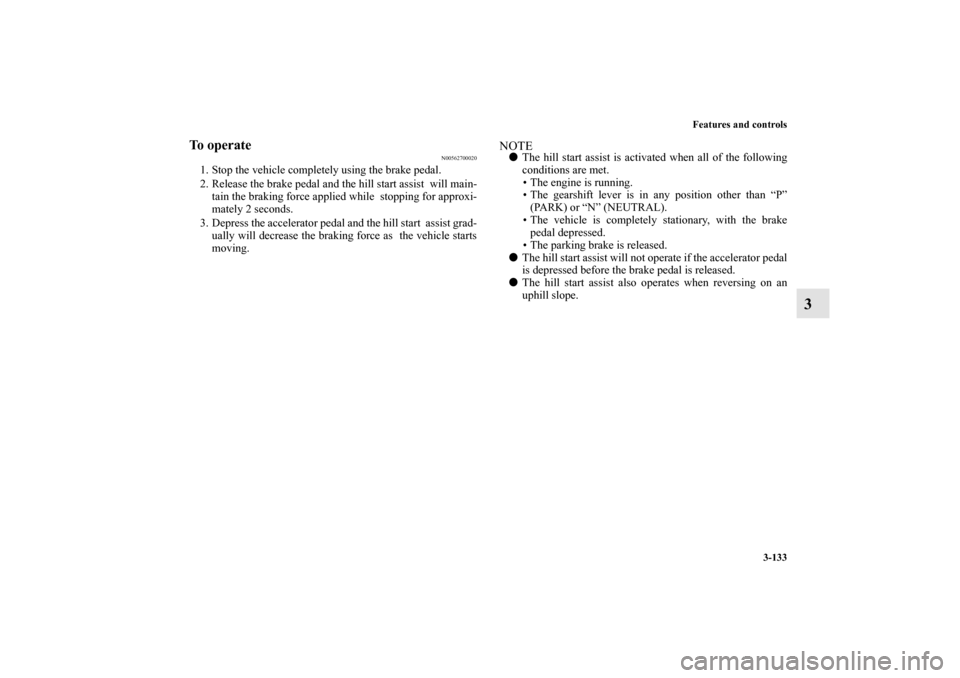

3-133
3
To operate
N00562700020
1. Stop the vehicle completely using the brake pedal.
2. Release the brake pedal and the hill start assist will main-
tain the braking force applied while stopping for approxi-
mately 2 seconds.
3. Depress the accelerator pedal and the hill start assist grad-
ually will decrease the braking force as the vehicle starts
moving.
NOTE

The hill start assist is activated when all of the following
conditions are met.
 The engine is running.
 The gearshift lever is in any position other than “P”
(PARK) or “N” (NEUTRAL).
 The vehicle is completely stationary, with the brake
pedal depressed.
 The parking brake is released.


The hill start assist will not operate if the accelerator pedal
is depressed before the brake pedal is released.


The hill start assist also operates when reversing on an
uphill slope.
BK0103001US.book 133 ページ ２００９年８月２０日　木曜日　午前１０時４５分

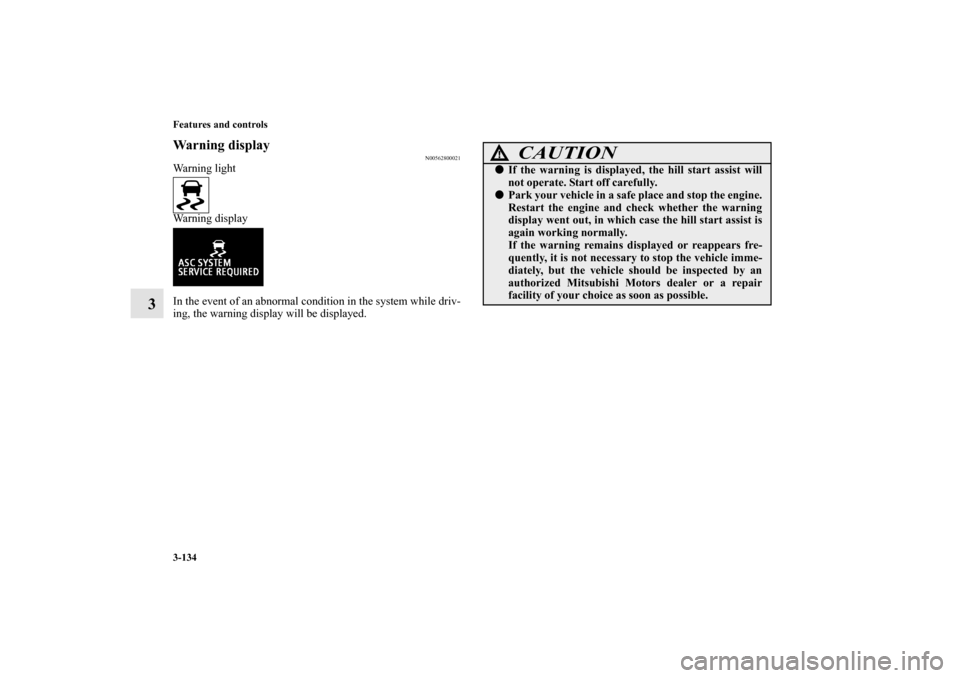

3-134 Features and controls
3
Warning display
N00562800021
Warning light
Warning display
In the event of an abnormal condition in the system while driv-
ing, the warning display will be displayed.
CAUTION
!

If the warning is displayed, the hill start assist will
not operate. Start off carefully.


Park your vehicle in a safe place and stop the engine.
Restart the engine and check whether the warning
display went out, in which case the hill start assist is
again working normally.
If the warning remains displayed or reappears fre-
quently, it is not necessary to stop the vehicle imme-
diately, but the vehicle should be inspected by an
authorized Mitsubishi Motors dealer or a repair
facility of your choice as soon as possible.
BK0103001US.book 134 ページ ２００９年８月２０日　木曜日　午前１０時４５分

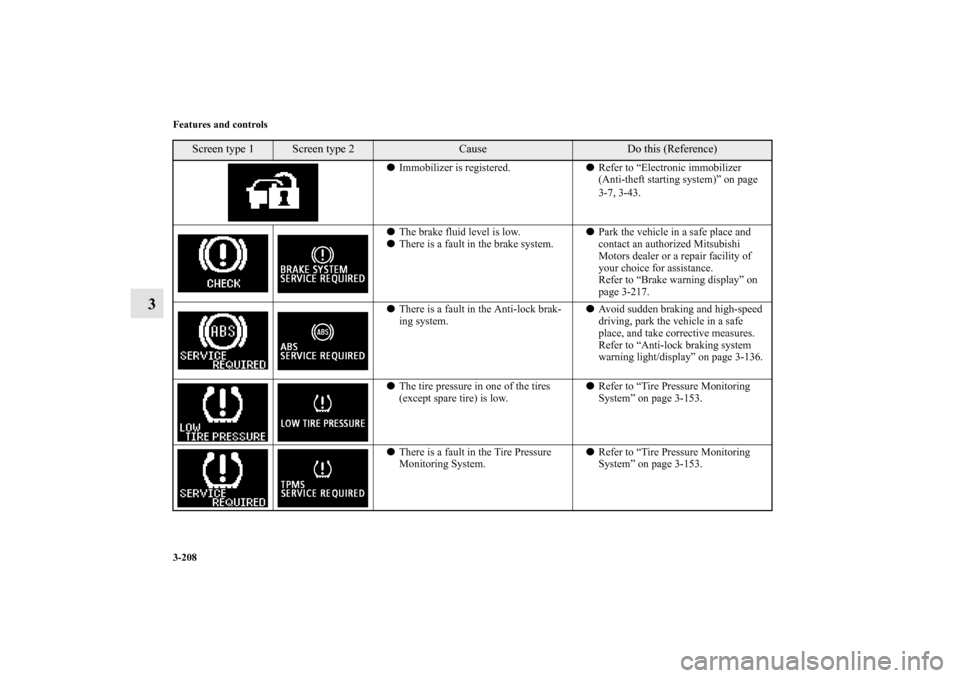

3-208 Features and controls
3

Immobilizer is registered.
Refer to “Electronic immobilizer
(Anti-theft starting system)” on page
3-7, 3-43.

The brake fluid level is low.

There is a fault in the brake system.
Park the vehicle in a safe place and
contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice for assistance.
Refer to “Brake warning display” on
page 3-217.

There is a fault in the Anti-lock brak-
ing system.
Avoid sudden braking and high-speed
driving, park the vehicle in a safe
place, and take corrective measures.
Refer to “Anti-lock braking system
warning light/display” on page 3-136.

The tire pressure in one of the tires
(except spare tire) is low.
Refer to “Tire Pressure Monitoring
System” on page 3-153.

There is a fault in the Tire Pressure
Monitoring System.
Refer to “Tire Pressure Monitoring
System” on page 3-153.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0103001US.book 208 ページ ２００９年８月２０日　木曜日　午前１０時４５分
