Page 188 of 658
Features and controls
3-93
3
Driving precautions
N00513100185
Do not use the gearshift lever as a handrest. This can
result in premature wear of the transaxle shift forks.
Maximum possible driving speed
The table above shows the maximum recommended driv-
ing speed for in each gear. Do not drive near or at these
speeds for prolonged periods of time.
Continuously variable transmission (CVT)
(if so equipped)
N00513200199
The continuously variable transmission (CVT) is capable of
changing the engine speed to vehicle speed ratio automatically
and steplessly to suit driving conditions in all phases of vehicle
operation. It therefore realizes smooth, shock-free operation
and excellent fuel efficiency.DRIVING UPHILLThe transmission may not shift to a higher ratio if the computer
determines your current speed would be affected.
For smoother operation, the transmission may not shift if you
release the throttle while climbing a steep hill. This is normal
because the computer controls the shifting. After reaching the
top of the hill, your normal shift function will resume.DRIVING DOWNHILLWhen traveling down steep grades and using the brakes, the
computer may automatically shift to a lower ratio. This helps
engine braking efforts, reducing your need to use the brakes.
Shift
points
Maximum possible driving speed
1st gear 31 mph (50 km/h)2nd gear 59 mph (95 km/h)3rd gear 84 mph (135 km/h)4th gear 115 mph (185 km/h)
CAUTION
!
Automatic downshifts may not take place if the con-
tinuously variable transmission (CVT) fluid is still
cool immediately after you start driving. To cause a
downshift, depress the brake pedal or shift down
manually.
Always drive safely in accordance with road condi-
tions.
BK0103001US.book 93 ページ ２００９年８月２０日 木曜日 午前１０時４５分
Page 208 of 658
Features and controls
3-113
3
NOTE
When continuously driving on closed circuit tracks or at
other locations where the engine is operated at high
speeds and under a heavy load, the Twin Clutch SST fluid
temperature will have a tendency to rise.
In this case, if the temperature rises too high, the warn-
ing display will appear on the information screen in the
multi-information display to alert the driver.
If the warning display appears, be sure to refer to
“Warning display” on page 3-108 and follow the appropri-
ate measures.
The Twin Clutch SST control mode can be selected both
when “D” range operation is selected and when manual
shifting is selected.
If you select “SPORT” mode while the engine is cold, the
transmission may shift up at different speeds compared to
that when the engine is warm.
This is simply the operation of the control system to warm
the engine quickly. It does not indicate a malfunction.
For slippery road surfaces, such as roads with accumu-
lated snow, “NORMAL” mode is recommended for
smooth shifting at low engine speeds.
Twin Clutch SST control mode switch
N00540300055
When the ignition switch is set to the “ON” position, operate
the Twin Clutch SST control mode switch (A) to change the
control mode.
When the engine is started, the control mode is automatically
set to the “NORMAL” mode. Use the following procedures to
change the control mode.
BK0103001US.book 113 ページ ２００９年８月２０日 木曜日 午前１０時４５分
Page 211 of 658
3-116 Features and controls
3
NOTE
Only the forward gears 1 to 6 can be selected.
To reverse or park, place the gearshift lever in the “R”
(REVERSE) or “P” (PARK) position.
During manual shifting, downshifting will be performed
automatically when the vehicle slows down and the trans-
mission will downshift to 1st gear before the vehicle
stops.
If the gearshift lever or sportronic steering wheel shifters
are operated repeatedly, the transmission will also shift
repeatedly.
In order to ensure driving performance, upshifting may
not occur depending on the vehicle speed even if the gear-
shift lever or sportronic steering wheel shifters are oper-
ated. In addition, in order to prevent excessive engine
speed, the buzzer sounds and downshifting may not occur
depending on the vehicle speed even if the gearshift lever
or sportronic steering wheel shifters are operated.
When driving in an aggressive manner involving high
engine rpm, sudden acceleration and/or deceleration, the
Twin Clutch SST could take longer to shift due to higher
fluid temperatures.

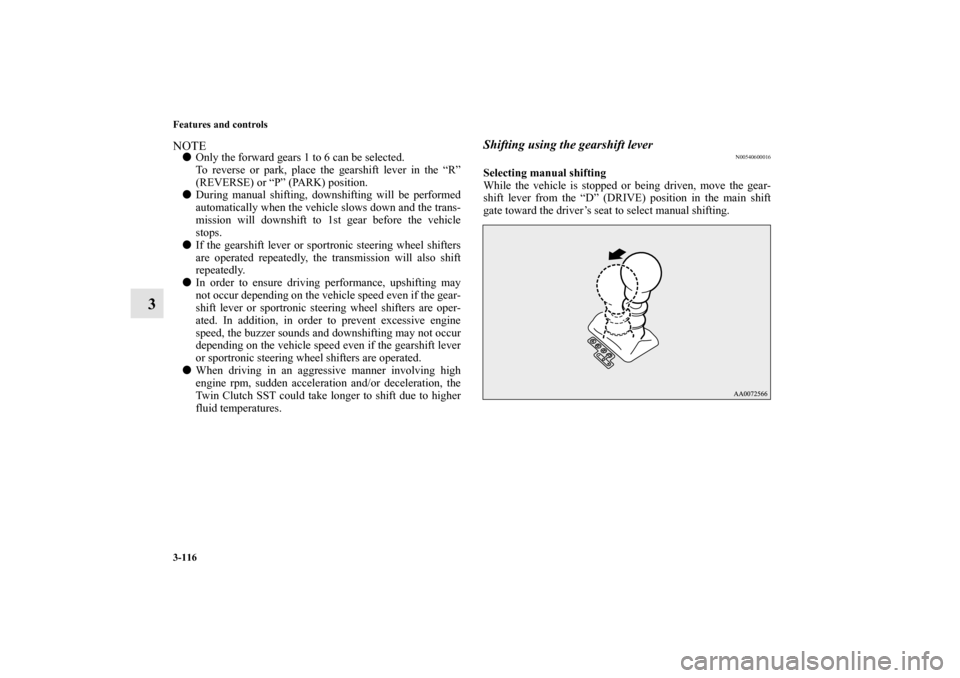

Shifting using the gearshift lever
N00540600016
Selecting manual shifting
While the vehicle is stopped or being driven, move the gear-
shift lever from the “D” (DRIVE) position in the main shift
gate toward the driver’s seat to select manual shifting.
BK0103001US.book 116 ページ ２００９年８月２０日 木曜日 午前１０時４５分
