2007 FORD FIESTA Workshop Manual

Automatic Transmission/Transaxle -
Vehicles With: 4-Speed Automatic
Transmission (AW81-40)
REMOVAL AND INSTALLATION

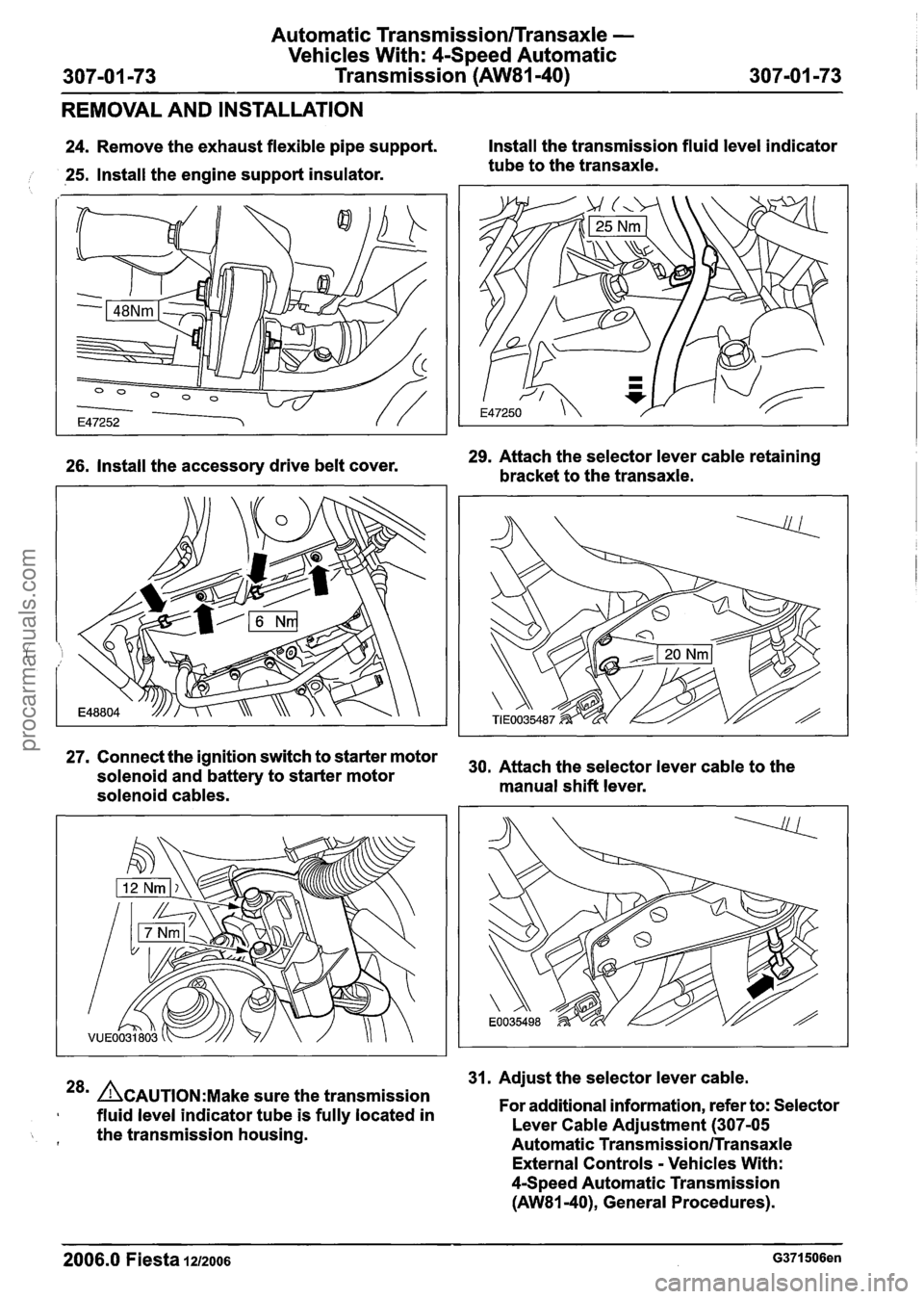

24. Remove the exhaust flexible pipe support. Install
the transmission fluid level indicator
, 25. Install the engine support insulator. tube
to the transaxle.
26. Install the accessory drive belt cover. 29.
Attach the selector lever cable retaining
bracket to the transaxle.
27. Connect the ignition switch to starter motor
30, Attach the selector lever cable to the solenoid and battery to starter motor
solenoid cables. manual
shift lever.
31. Adjust the selector lever cable.
28m ACAUTION:M~~~ sure the transmission
fluid level indicator tube is fully located in For
additional information, refer to: Selector
the transmission housing. Lever Cable
Adjustment (307-05 f Automatic Transmission/Transaxle
External Controls - Vehicles With:
4Speed Automatic Transmission
(AW81-40), General Procedures).
2006.0 Fiesta 1212006 G371506en
procarmanuals.com

Automatic Transmission/Transaxle -
Vehicles With: 4-Speed Automatic
Transmission (AW81-40)
REMOVAL AND INSTALLATION
32. Lower the vehicle.
36. Connect the transaxle breather hose.
33. Connect the vehicle speed sensor (VSS)
electrical connector.
34. Connect the transmission range (TR)
sensor electrical connector.
35. Connect the transaxle wiring harness
electrical connector. 37. Connect
the turbine shaft speed (TSS)
sensor electrical connector.
I I
38. Attach the ground cable to the transaxle.
2006.0 Fiesta 1212006 G371506en
procarmanuals.com

Automatic Transmission/Transaxle -
Vehicles With: 4-Speed Automatic
Transmission (AW81-40)
REMOVAL AND INSTALLATION

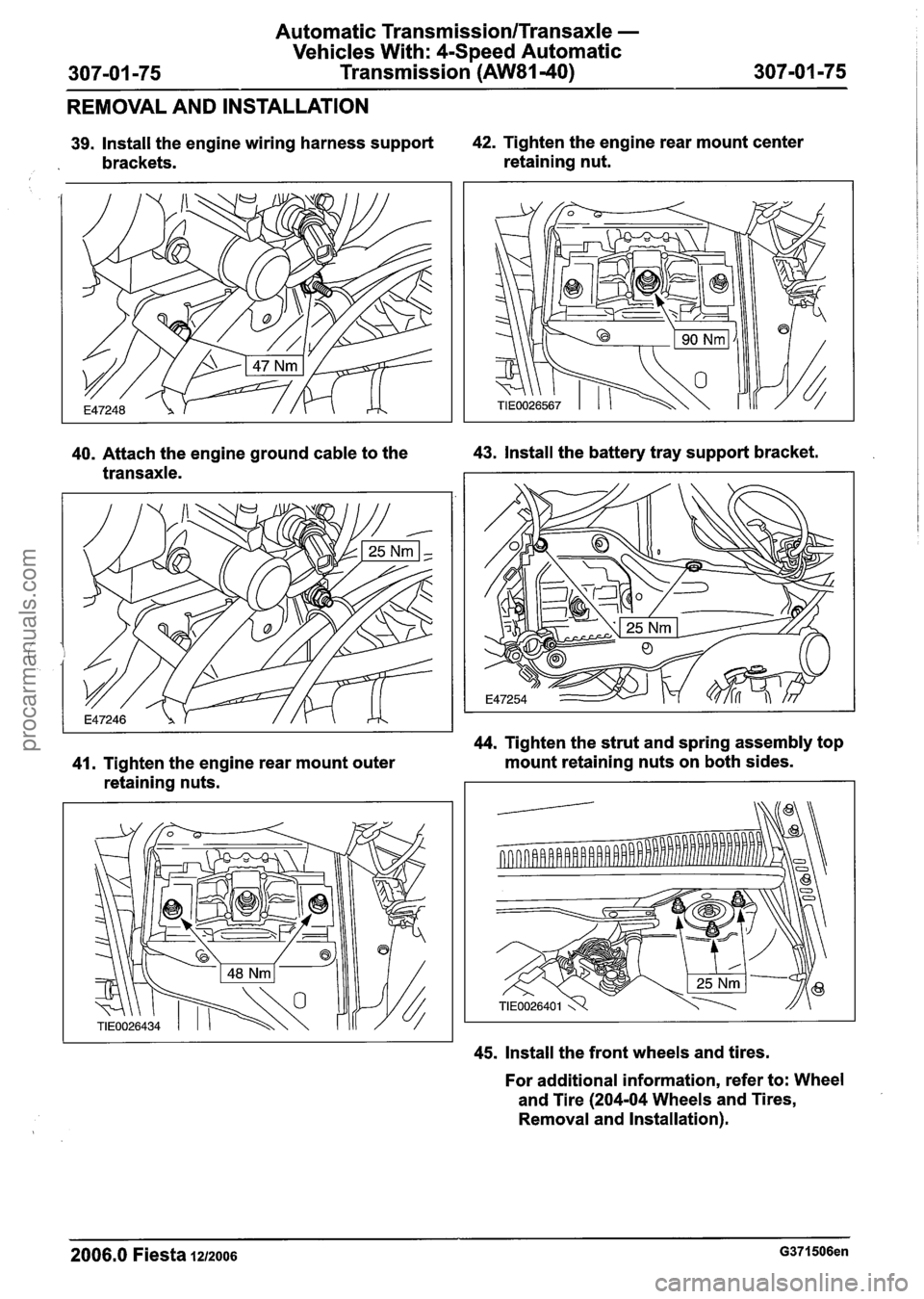

39. Install the engine wiring harness support 42. Tighten the engine rear mount center
brackets. retaining nut.
40. Attach the engine ground cable to the 43. Install the battery tray support bracket.
transaxle.
44. Tighten the strut and spring assembly top
41. Tighten the engine rear mount outer mount
retaining nuts on both sides.
retaining nuts.
45. Install the front wheels and tires.
For additional information, refer to: Wheel
and Tire
(204-04 Wheels and Tires,
Removal and Installation).
2006.0 Fiesta 1212006 G371506en
procarmanuals.com

Automatic Transmission/Transaxle -
Vehicles With: 4-Speed Automatic
307-01 -76 Transmission
(AW81-40) 307-01 -76
REMOVAL AND INSTALLATION
46. Install the battery tray.
For
additional information, refer to: Battery
Tray (414-01 Battery, Mounting and
Cables, Removal and Installation).
47. Connect the powertrain control module
(PCM) electrical connector to the PCM.
For
additional information, refer to:
Powertrain
Control Module (PCM) - 1.25L
Duratec-1 6V (Sigma)ll.4L Duratec-1 6V
(Sigma)ll .6L Duratec-1 6V (Sigma) (303-1 4
Electronic Engine Controls, Removal and
Installation).
48. Install the air cleaner.
For additional information, refer to: Air
Cleaner - 1.25L Duratec-1 6V (Sigma)ll.4L
Duratec-1 6V (Sigma)ll.GL Duratec-1 6V
(Sigma) (303-1 2 Intake Air Distribution
and
Filtering, Removal and Installation).
49. Check the transmission fluid level and top
up with
clean automatic transmission fluid
if necessary.
For
additional information, refer to:
Transmission
Fluid Level Check (307-01
Automatic
Transmission/Transaxle -
Vehicles With: 4-Speed Automatic
Transmission
(AW81-40), General
Procedures).
50.
N0TE:Only carry out the following step
when a new
transaxle has been installed.
Using worldwide diagnostic system (WDS),
reset the transmission control module (TCM).
2006.0 Fiesta 1212006 G371506en
procarmanuals.com

TransmissionITransaxle Cooling - Vehicles
With: 4-Speed Automatic Transmission
307-02-1
(AW81-40) 307-02-1

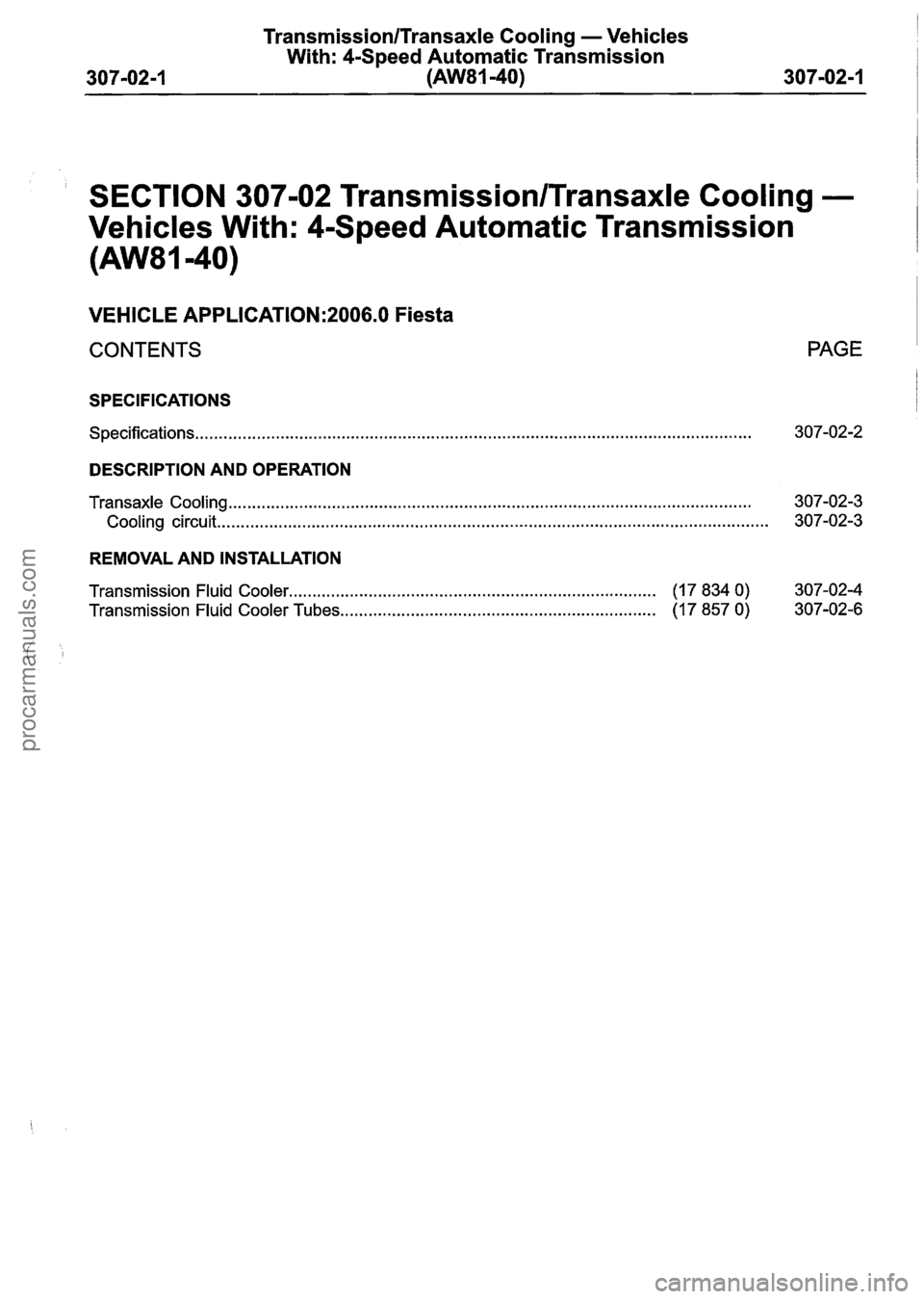

SECTION 307-02 Transmission/Transaxle Cooling -
Vehicles With: 4-Speed Automatic Transmission
(AW81-40)
VEHICLE APPLICATION:2006.0 Fiesta
CONTENTS PAGE
SPECIFICATIONS
Specifications
........................................................................\
.............................................. 307-02-2
DESCRIPTION AND OPERATION
........................................................................\
..................................... Transaxle Cooling.. 307-02-3
........................................................................\
........................................... Cooling circuit.. 307-02-3
REMOVAL AND INSTALLATION
Transmission Fluid Cooler
........................................................................\
...... (1 7 834 0) 307-02-4
Transmission Fluid Cooler Tubes ............................................................. (1 7 857 0) 307-02-6
procarmanuals.com

TransmissionlTransaxle Cooling - Vehicles
With:
4S~eed Automatic Transmission

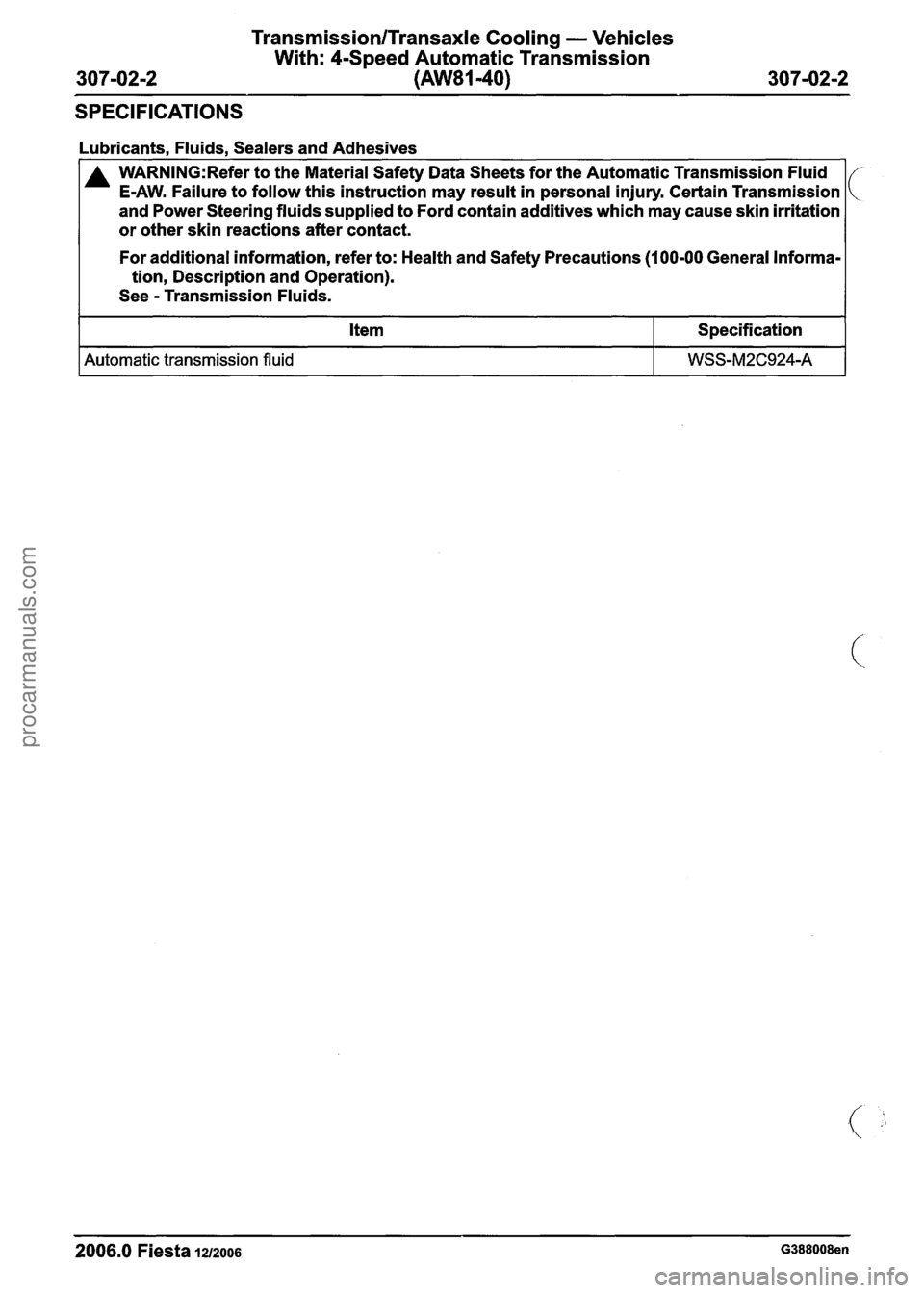

SPECIFICATIONS
Lubricants. Fluids. Sealers and Adhesives
For additional information, refer to: Health and Safety Precautions
(100-00 General Informa-
tion, Description and Operation).
See
- Transmission Fluids.
A WARN1NG:Refer to the Material Safety Data Sheets for the Automatic Transmission Fluid
E-AW. Failure to follow this instruction may result in personal injury. Certain Transmission
and Power Steering fluids supplied to Ford contain additives which may cause skin irritation
or other skin reactions after contact.
I Item I Specification I
(.
I Automatic transmission fluid I WSS-M2C924-A (
2006.0 Fiesta 1212006 G388008en
procarmanuals.com

Transmission/Transaxle Cooling - Vehicles
With: 4-Speed Automatic Transmission
307-0213 (AW81-40) 307-02-3

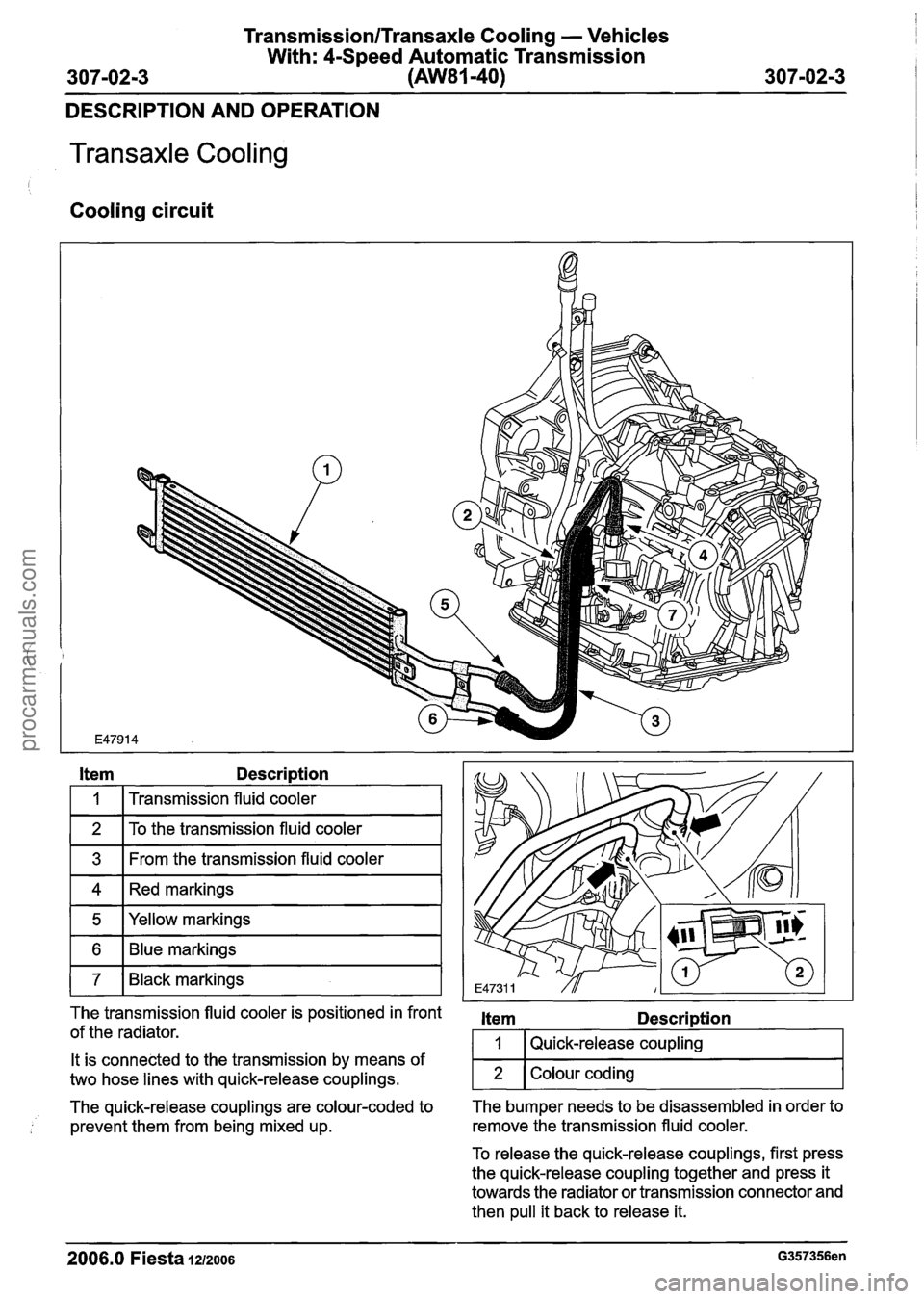

DESCRIPTION AND OPERATION
Transaxle Cooling
Cooling circuit
I I
Item Description
I 1 I Transmission fluid cooler I
11 To the transmission fluid cooler I
1 3 1 From the transmission fluid cooler I
ml~ed markings I
1 5 I Yellow markings I
1 7 1 Black markings I
The transmission fluid cooler is positioned in front item Description
of the radiator. I 1 I Quick-release coupling
The quick-release couplings are colour-coded to The
bumper needs to be disassembled in order to
prevent them from being mixed up. remove
the transmission fluid cooler.
It is
connected to the transmission by means of
two hose lines with quick-release couplings.
To release the quick-release couplings, first press
the quick-release coupling together and press it
towards the radiator or transmission connector and
then pull it back to release it.
2006.0 Fiesta IZIZOO~ G357356en
2
. -
Colour coding
procarmanuals.com

TransmissionlTransaxle Cooling - Vehicles
With: 4-Speed Automatic Transmission
307-0214 (AW81-40) 307-02-4

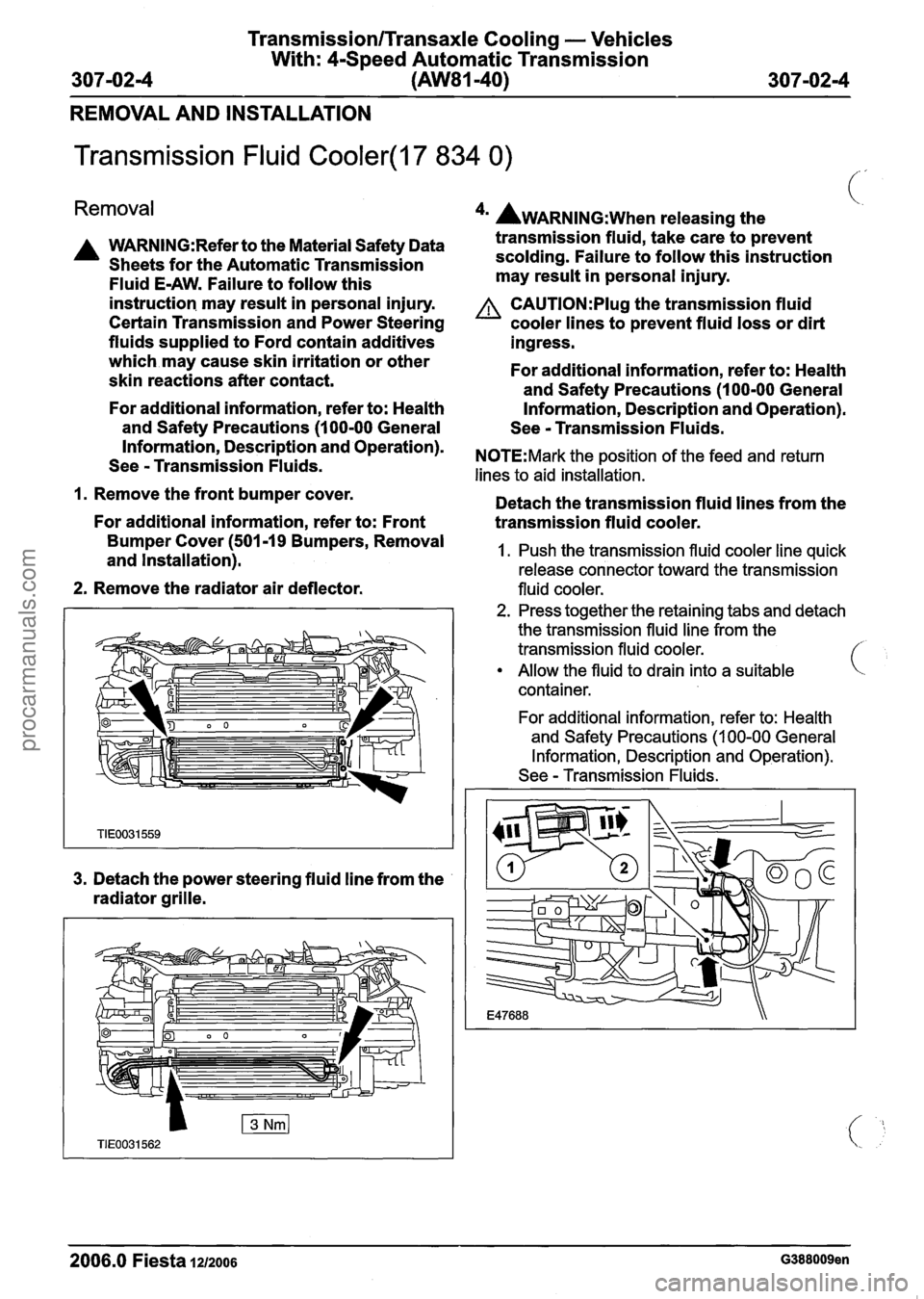

REMOVAL AND INSTALLATION
Transmission Fluid Cooler(l7 834 0)
Removal
A WARN1NG:Refer to the Material Safety Data
Sheets for the Automatic Transmission
Fluid E-AW. Failure to follow this
instruction. may result in personal injury.
Certain Transmission and Power Steering
fluids supplied to Ford contain additives
which may cause skin irritation or other
skin reactions after contact.
For additional information, refer to: Health
and Safety Precautions (1 00-00 General
4m AWARNING:~~~~ releasing the
transmission fluid, take care to prevent
scolding. Failure to follow this instruction
may result in personal injury.
A CAUTI0N:PIug the transmission fluid
cooler lines to prevent fluid loss or dirt
ingress.
For additional information, refer to: Health
and Safety Precautions (1 00-00 General
Information, Description and Operation).
See
- Transmission Fluids.
Information, and Operation)' NOTE:Mark the position of the feed and return See - Transmission Fluids. lines to aid installation.
1. Remove the front bumper cover.
Detach the transmission fluid lines from the
For additional information, refer to: Front
transmission fluid cooler.
Bumper Cover (501-19 Removal 1. Push the transmission fluid cooler line quick and Installation). release connector toward the transmission
2. Remove the radiator air deflector. fluid cooler.
3. Detach the power steering fluid line from the
radiator grille.
2. Press together the retaining tabs and detach
the transmission fluid line from the
transmission fluid cooler.
Allow the fluid to drain into a suitable
container.
For additional information, refer to: Health
and Safety Precautions
(1 00-00 General
Information, Description and Operation).
See
- Transmission Fluids.
2006.0 Fiesta 1~12006 G388009en
