2007 FORD FIESTA Workshop Manual

308-03-71 Manual Transmission/Transaxle 308-03-71
INSTALLATION
Attach the exhaust flexible pipe to the 15.
Remove the support wrap or suitable splint
catalytic converter. from
the exhaust flexible pipe.
i
3m ACAUTION:~~ brake fluid is spilt on the 16. lnstall the right-hand halfshaft.
paintwork, the affected area must be For additional information,
refer to: Front
immediately washed down with cold water. Halfshaft
RH (205-04 Front Drive
N0TE:Make sure the spring clip is correctly seated. Halfshafts, Removal and Installation).
Connect the clutch slave cylinder supply
17. lnstall the left-hand halfshaft.
line. For additional information,
refer to: Front
lnstall the spring clip. Halfshaft LH (205-04 Front Drive
Halfshafts, Removal and Installation).
18. lnstall the engine support insulator.
14. Raise and support the vehicle. For
additional information, refer to: (I
00-02
Jacking and Lifting)
19. Install the accessory drive belt cover.
Jacking (Description and Operation),
Lifting (Description and Operation).
2006.0 Fiesta 1212006 G453417en
procarmanuals.com

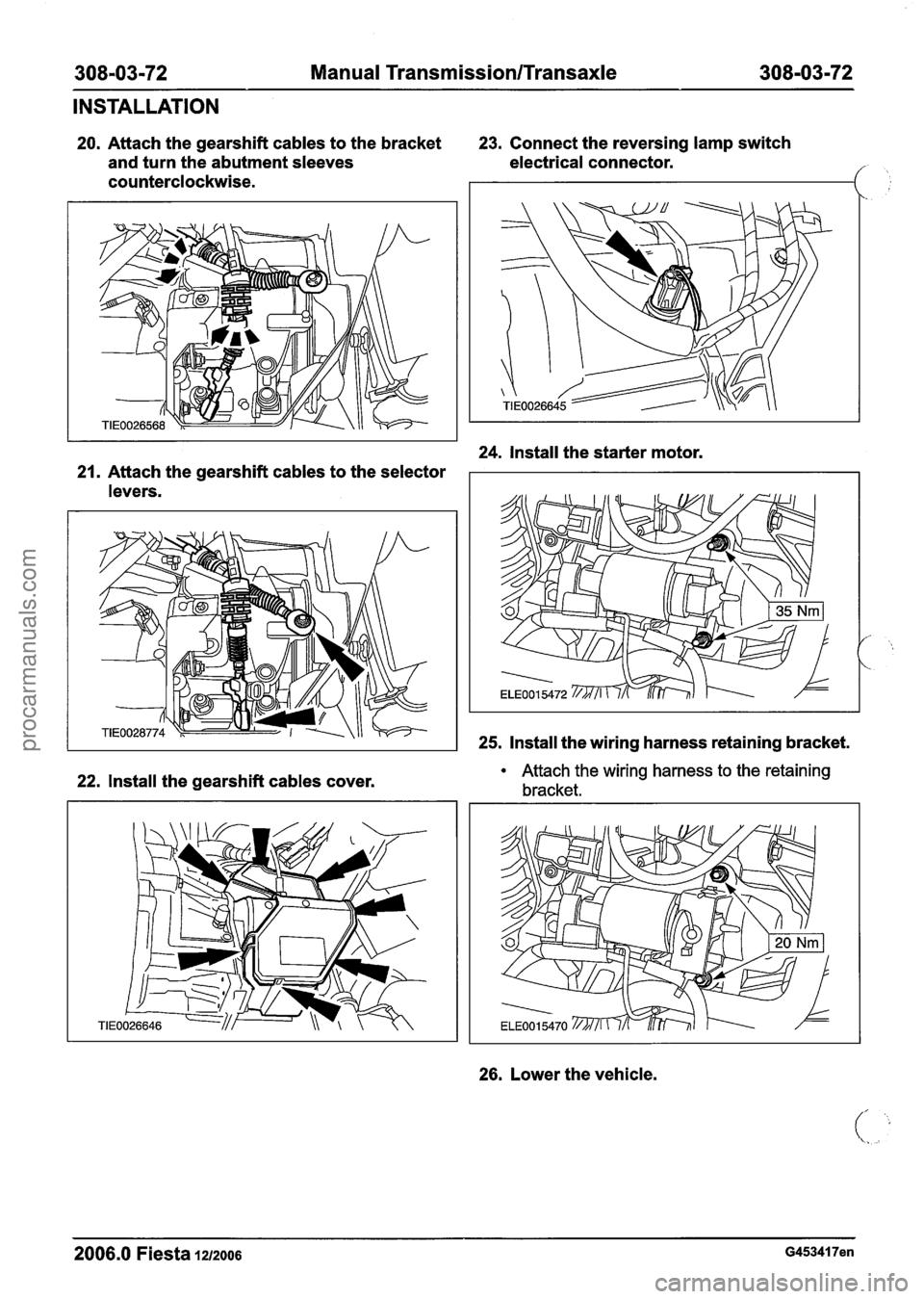

308-03-72 Manual Transmission/Transaxle 308-03-72
INSTALLATION
20. Attach the gearshift cables to the bracket 23. Connect the reversing lamp switch
and turn the abutment sleeves electrical connector.
counterclockwise.
I I
24. Install the starter motor.
21. Attach the gearshift cables to the selector
levers.
22. Install the gearshift cables cover. 25.
Install the wiring harness retaining bracket. Attach the wiring harness to the retaining
bracket.
26. Lower the vehicle.
2006.0 Fiesta 1212006 G453417en
procarmanuals.com

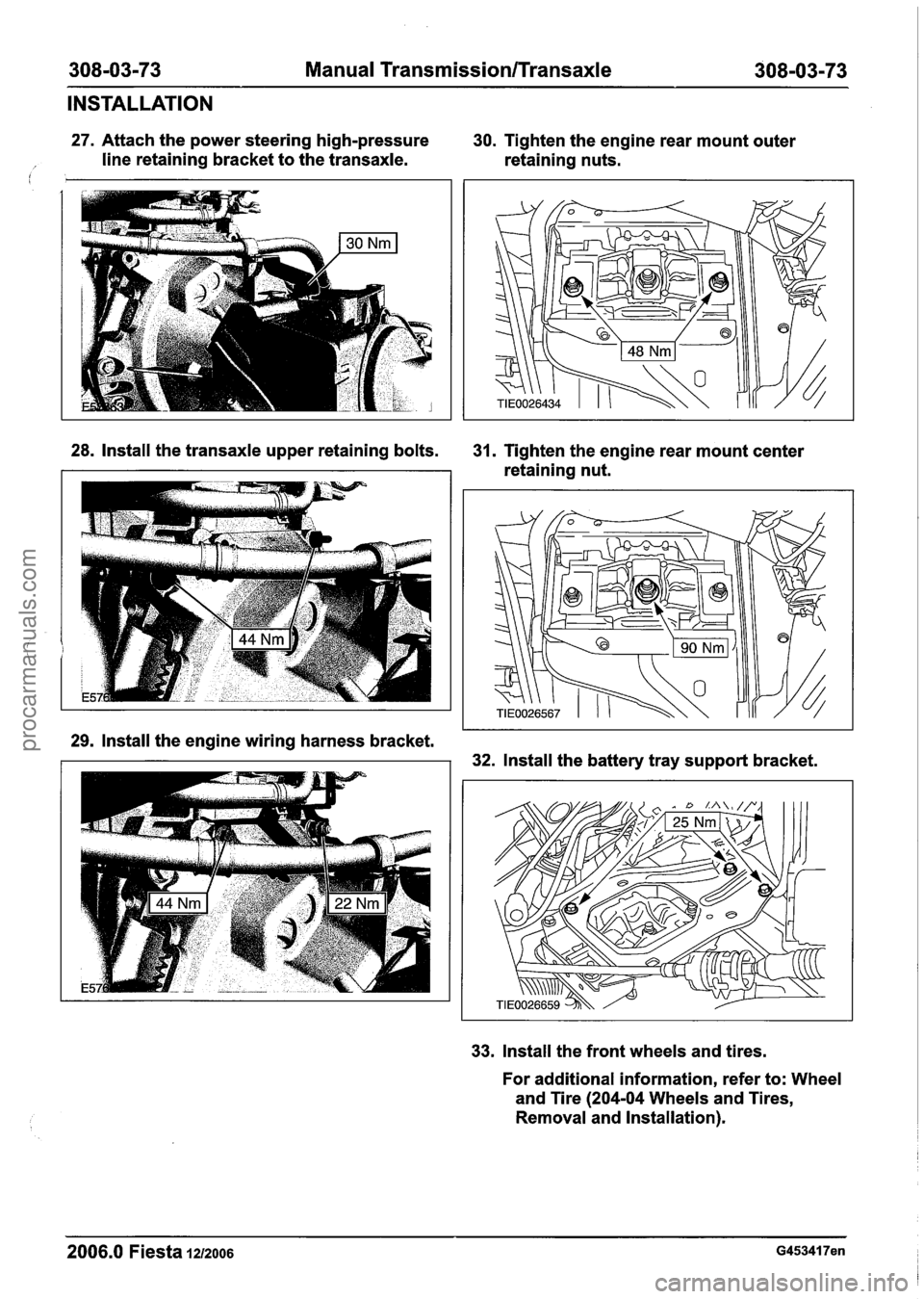

308-03-73 Manual Transmission/Transaxle 308-03-73
INSTALLATION
27. Attach the power steering high-pressure 30. Tighten the engine rear mount outer
/ line retaining bracket to the transaxle. retaining nuts. I
28. Install the transaxle upper retaining bolts. 31. Tighten the engine rear mount center
retaining nut.
29. Install the engine wiring harness bracket.
32. Install the battery tray support bracket.
33. Install the front wheels and tires.
For additional information, refer to: Wheel
and Tire
(204-04 Wheels and Tires,
Removal and Installation).
- -- -- --
2006.0 Fiesta 1212006 G453417en
procarmanuals.com

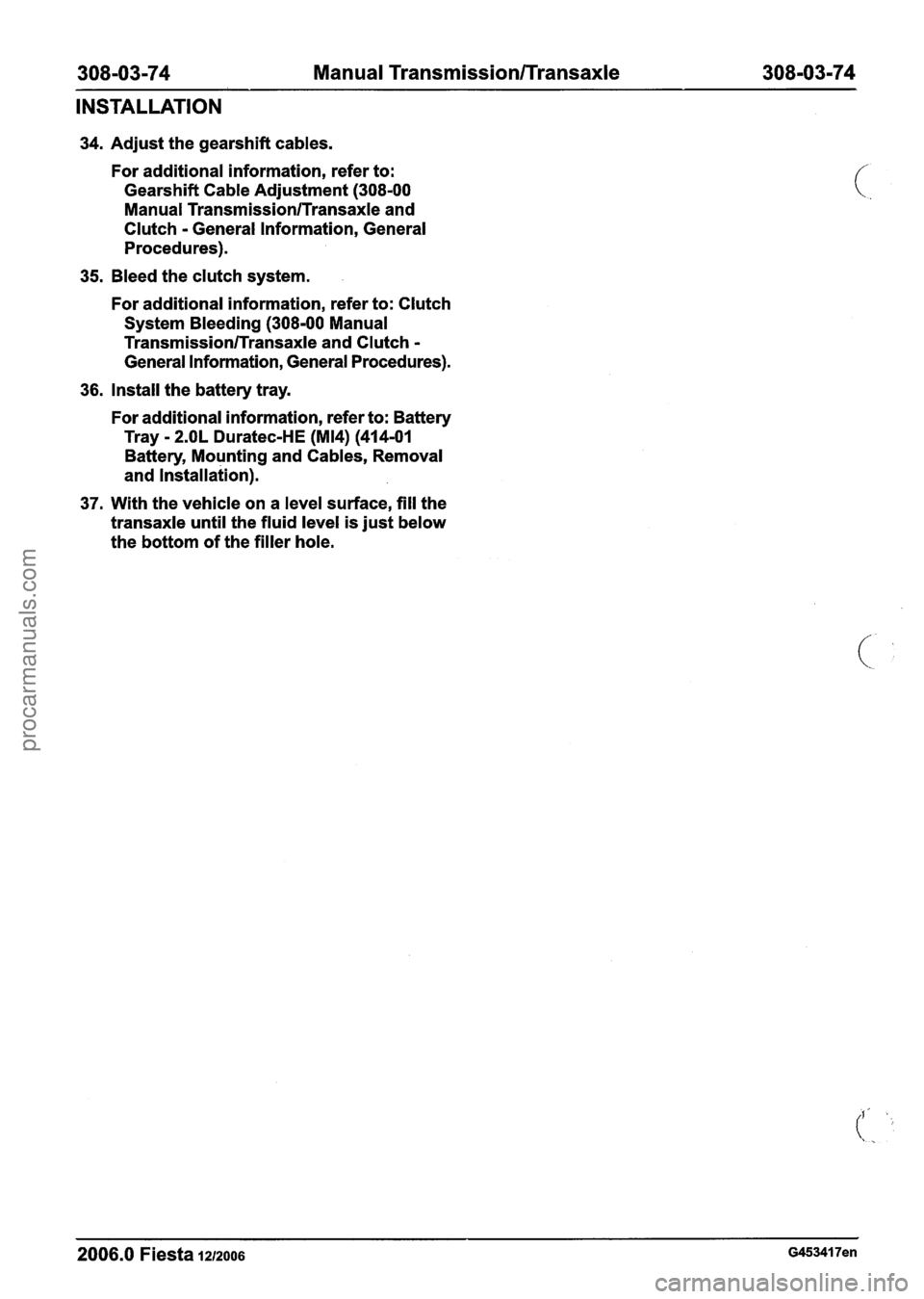

308-03-74 Manual Transmission/Transaxle 308-03-74
INSTALLATION
34. Adjust the gearshift cables.
For additional information, refer to:
Gearshift Cable Adjustment
(308-00
Manual Transmission/Transaxle and
Clutch
- General Information, General
Procedures).
35. Bleed the clutch system.
For additional information, refer to: Clutch
System Bleeding (308-00 Manual
Transmission/Transaxle and Clutch -
General Information, General Procedures).
36, Install the battery tray.
For additional information, refer to: Battery
Tray
- 2.OL Duratec-HE (M14) (414-01
Battery, Mounting and Cables, Removal
and
Installation).
37. With the vehicle on a level surface, fill the
transaxle until the fluid level is just below
the bottom of the filler hole.
2006.0 Fiesta 1212006 G453417en
procarmanuals.com

Manual Transmission/Transaxle External
Controls
if

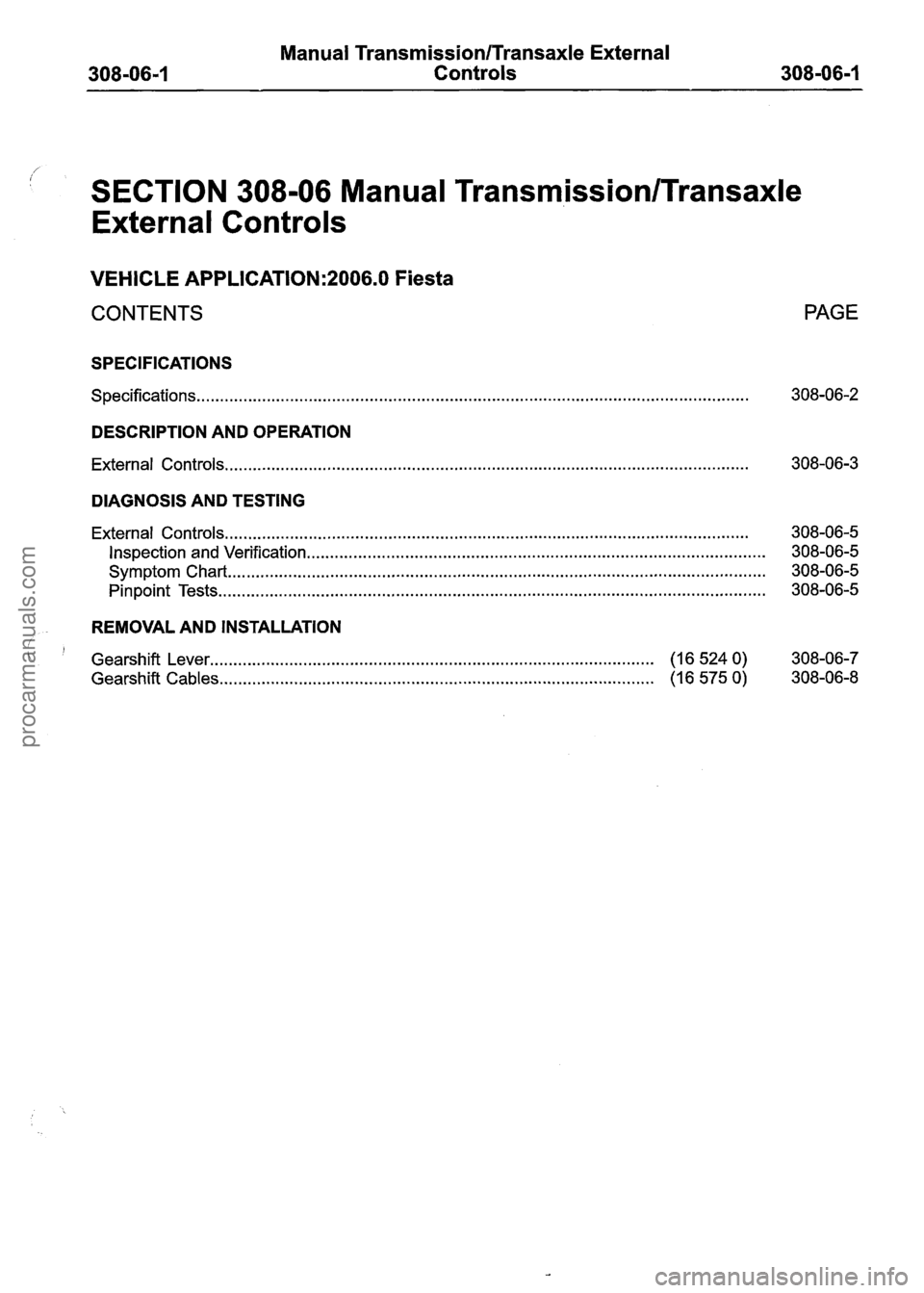

SECTION 308-06 Manual Transmission/Transaxle
External Controls
VEHICLE APPLICATION:2006.0 Fiesta
CONTENTS PAGE
SPECIFICATIONS
Specifications
........................................................................\
.............................................. 308-06-2
DESCRIPTION AND OPERATION
External Controls
........................................................................\
........................................ 308-06-3
DIAGNOSIS AND TESTING
External Controls
........................................................................\
........................................ 308-06-5
Inspection and Verification
........................................................................\
.......................... 308-06-5
Symptom Chart
........................................................................\
........................................... 308-06-5
........................................................................\
........................................... Pinpoint Tests.. 308-06-5
REMOVAL AND INSTALLATION
Gearshift Lever
........................................................................\
................. (1 6 524 0)
Gearshift Cables
........................................................................\
.................... (16 575 0)
procarmanuals.com

Manual Transmission/Transaxle External
Controls

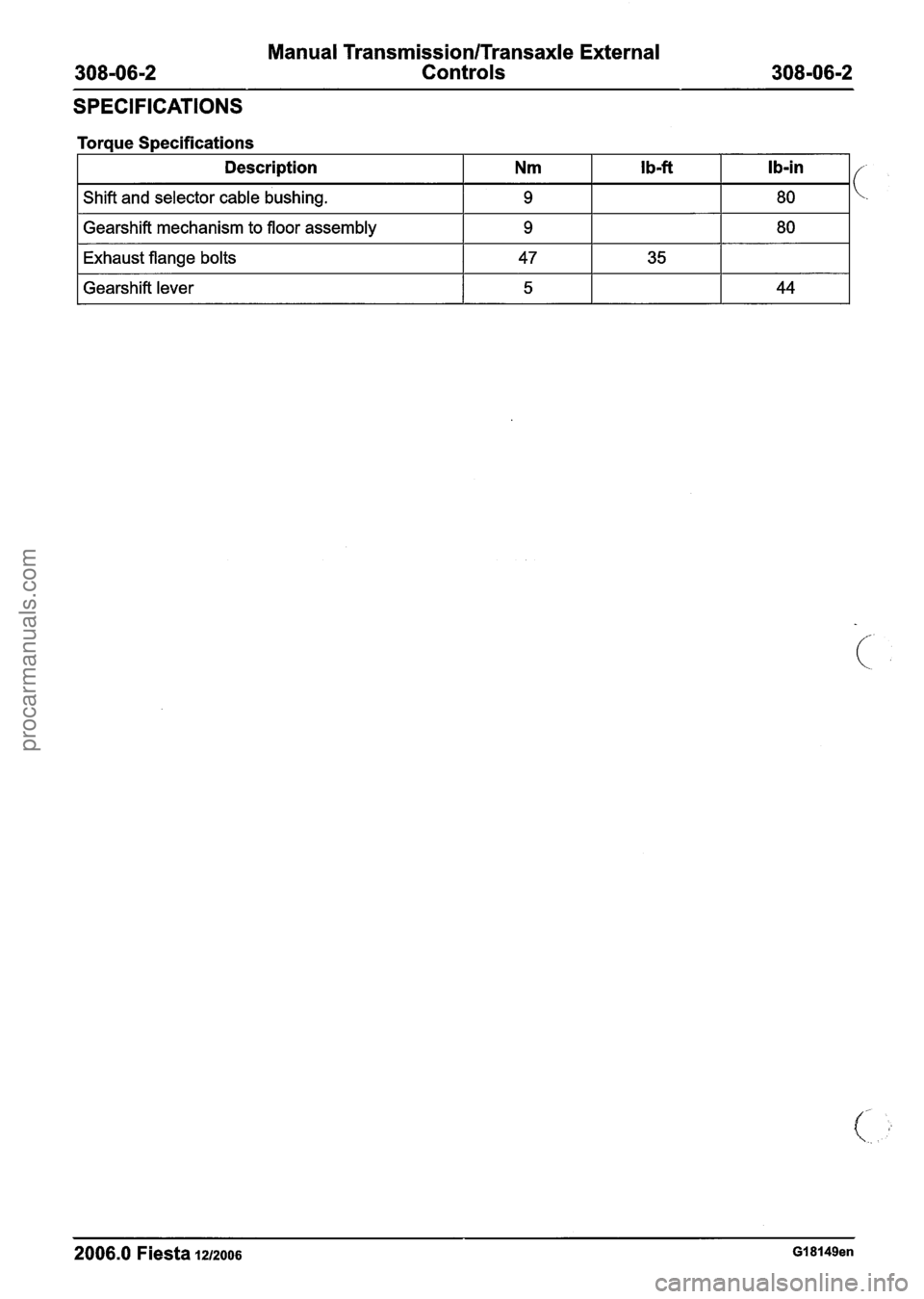

SPECIFICATIONS
Torque Specifications
I Gearshift mechanism to floor assembly I 9 I I 80 I
Description
Shift and selector cable bushing.
2006.0 Fiesta 1212006 GI 8149en
Nm
9
Exhaust flange bolts
Gearshift lever
I b-ft
47
5
Ib-in 80
35
44
procarmanuals.com

Manual Transmission/Transaxle External
Controls
DESCRIPTION AND OPERATION

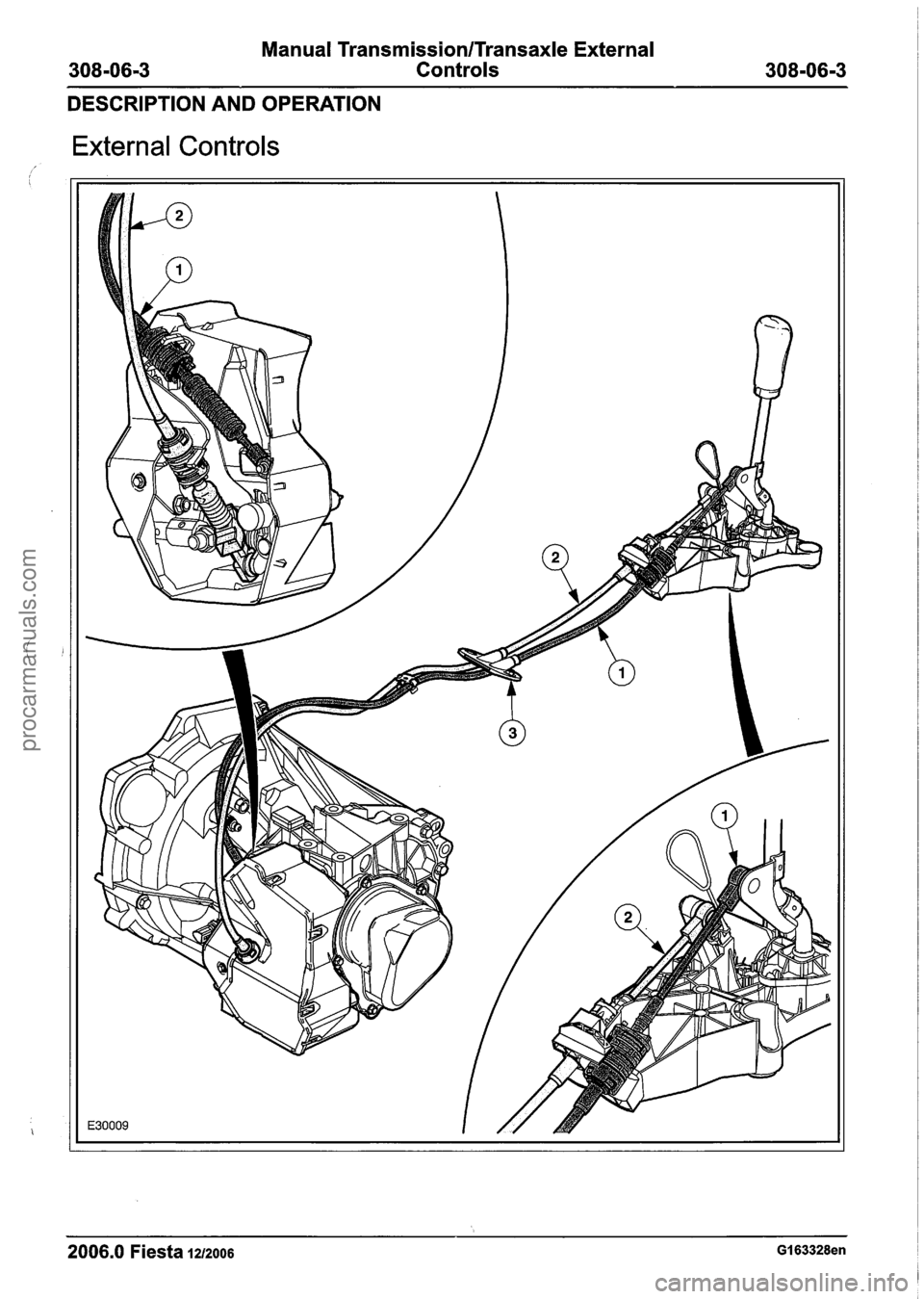

External Controls
2006.0 Fiesta 1212006 GI 63328en
procarmanuals.com

Manual Transmission/Transaxle External
308-0614 Controls 308-06-4

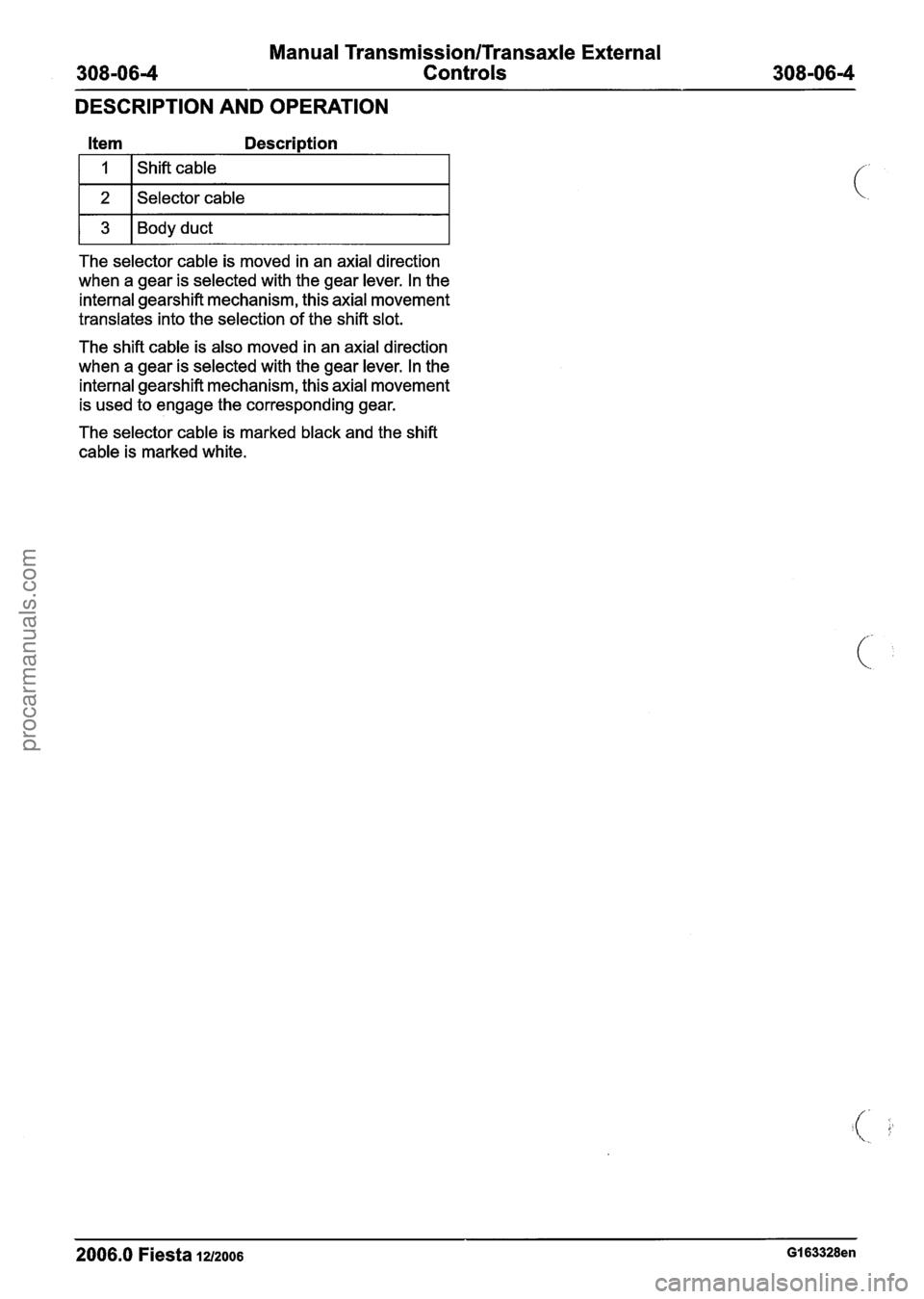

DESCRIPTION AND OPERATION
Item Description
1 2 1 Selector cable I
1 3 1 Body duct I
The selector cable is moved in an axial direction
when a gear is selected with the gear lever. In the
internal gearshift mechanism, this axial movement
translates into the selection of the shift slot.
The shift cable is also moved in an axial direction
when a gear is selected with the gear lever. In the
internal gearshift mechanism, this axial movement
is used to engage the corresponding gear.
The selector cable is marked black and the shift
cable is marked white.
2006.0 Fiesta 1212006 GI 63328en
