2007 FORD FIESTA Workshop Manual

Fuel Charging and Controls - 2.OL
303-04B-25 Duratec-HE (M14) 303-04B-25
REMOVAL AND INSTALLATION
Item 5 Air cleaner outlet pipe and resonator from
the air cleaner and remove the air
1. Detach the air cleaner outlet pipe resonator cleaner
outlet pipe.
Installation Details
Ifem 7 Throttle body
N0TE:Do not fully tighten the throttle body
retaining bolts at this stage.
I. Install each throttle body retaining bolt three
full turns by hand.
Item 7 Throttle body
1. Tighten the throttle body retaining bolts in
the sequence shown.
2006.0 Fiesta 1212006 G421320en
procarmanuals.com

Fuel Charging and Controls - 2.OL
Duratec-HE (M14)
REMOVAL AND INSTALLATION
Fuel Injectors(23 455 0)
1. Remove the fuel injection supply manifold.
For additional information, refer to Fuel
Injection Supply Manifold
- in this section.
procarmanuals.com

Fuel Charging and Controls - 2.OL
303-04B-27 Duratec-HE (M14) 303-04B-27
REMOVAL AND INSTALLATION
Fuel Rail
Materials Name Specification
I Engine Oil - 5W-30 I WSS-~2~91 3-B I
WARNINGS:
A Do not smoke or carry lighted tobacco or
open flame of any type when working on
or near any fuel related components.
Highly flammable vapors are always
present and may ignite. Failure to follow
these instructions may result in personal
injury.
A This procedure involves fuel handling. Be
prepared for fuel spillage at all times and
always observe fuel handling precautions.
Failure to follow these instructions may
result in personal injury.
1. Release the fuel system pressure.
For additional information, refer to: Fuel
System Pressure Release (31 0-00 Fuel
System
- General Information, General
Procedures).
2. Disconnect the battery ground cable.
For additional information, refer to: Battery
Disconnect
(414-01 Battery, Mounting and
Cables, General Procedures).
3. Remove the air cleaner assembly.
For additional information, refer to: Air
Cleaner
- 2.OL Duratec-HE (M14) (303-1 2
intake Air Distribution and Filtering,
Removal and Installation).
4. Remove the components in the order
indicated in the following
illustration(s) and
table(s).
Item Description Item Description
Fuel charging wiring harness retaining clip
See Removal Detail
Fuel charging wiring harness electrical
connector
2006.0 Fiesta 1212006 G421322en
procarmanuals.com

Fuel Charging and Controls - 2.OL
Duratec-HE (M14)
REMOVAL AND INSTALLATION
Description Item Description
See Removal Detail
See Removal Detail
Fuel charging wiring harness retaining clip
Item Description I . WARNINGS:
or near any fuel related components.
Highly flammable vapors are always
present and may ignite. Failure to follow
these instructions may result in personal
7
8
I I iniurv.
Fuel rail retaining bolts
Fuel rail A Do not smoke or carry lighted tobacco or
open flame of any type when working on
11
Removal Details
1 12 1 Fuel injectors
Item 1 Fuel charging wiring harness retaining
clip
Fuel injector O-ring seals
See Installation Detail
always observe fuel handling precautions.
1. Detach the fuel charging wiring harness
retaining clip from the intake manifold.
I w
A This procedure involves fuel handling. Be
prepared for fuel spillage at all times and
Failure to follow these instructions may
5. To install, reverse the removal procedure.
result in personal injury.
2006.0 Fiesta 1212006 G421322en
procarmanuals.com

Fuel Charging and Controls - 2.OL

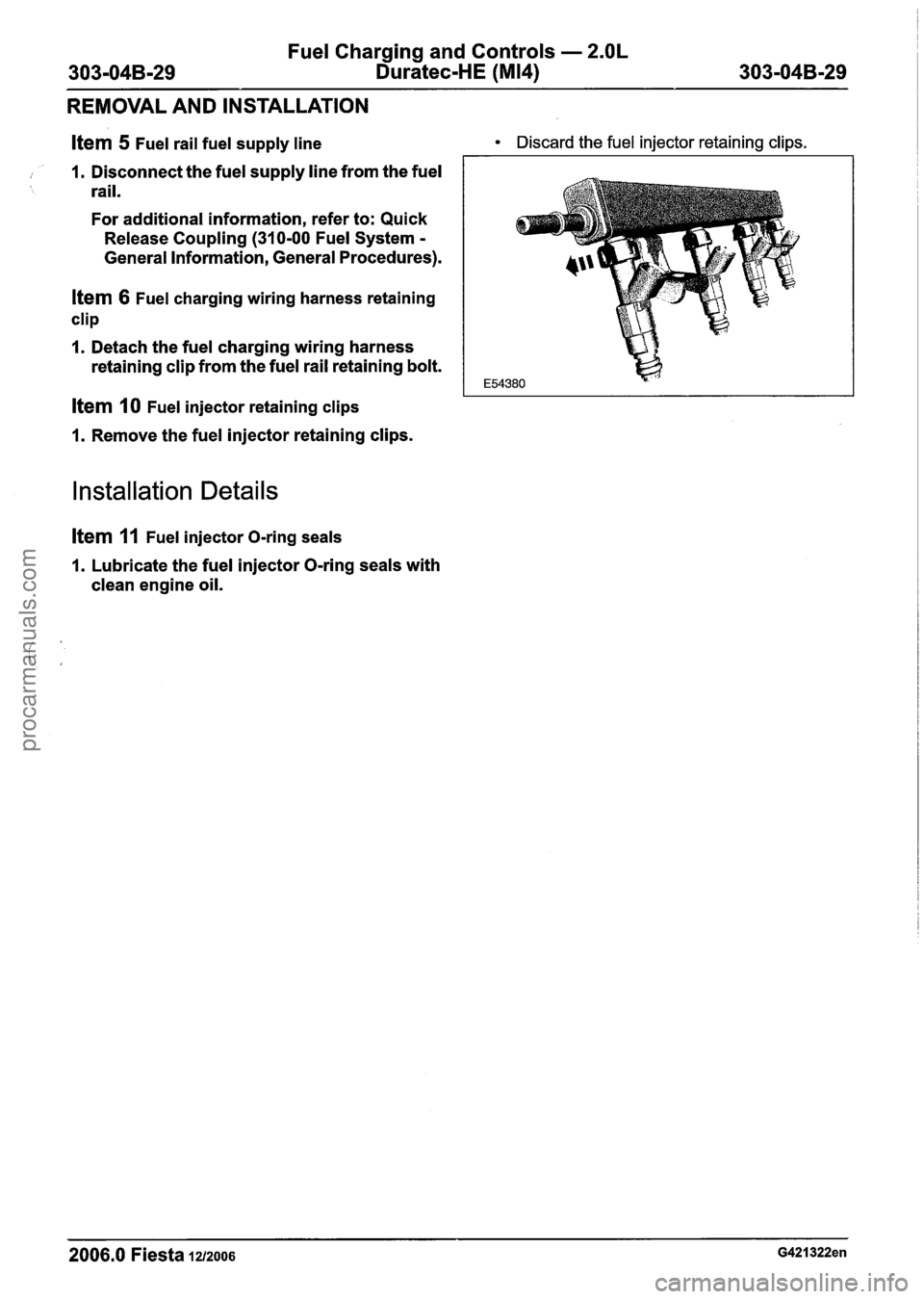

303-04B-29 Duratec-HE (M14) 303-04B-29
REMOVAL AND INSTALLATION
Item 5 Fuel rail fuel supply line
, 1. Disconnect the fuel supply line from the fuel rail.
For additional information, refer to: Quick
Release Coupling (310-00 Fuel System
-
General Information, General Procedures).
Item 6 Fuel charging wiring harness retaining
clip
1. Detach the fuel charging wiring harness
retaining clip from the fuel rail retaining bolt.
Item 10 Fuel injector retaining clips
1. Remove the fuel injector retaining clips.
Installation Details
item 11 Fuel injector O-ring seals
1. Lubricate the fuel injector O-ring seals with
clean engine oil.
Discard the fuel injector retaining clips.
- --
2006.0 Fiesta 1212006 G421322en
procarmanuals.com

procarmanuals.com

303-05-1 Accessory Drive 303-05-1
SECTION 303-05 Accessory Drive
VEHICLE APPLICATION:2006.0 Fiesta
CONTENTS
PAGE
SPECIFICATIONS
Specifications.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 303-05-2
DESCRIPTION AND OPERATION
Accessory Drive - 1.4L Duratec-1 6V (Sigma)/l .6L Duratec-1 6V (Sigma) ....................... 303-05-3
Accessory Drive
- 2.OL Duratec-HE (M14) ........................................................................\
303-05-4
2.OL Duratec HE (M14) engine ........................................................................\
................... 303-05-4
DIAGNOSIS AND TESTING
Accessory Drive.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 303-05-5
Inspection and Verification
........................................................................\
.......................... 303-05-5
Accessory Drive Belt Concerns
........................................................................\
............ 303-05-5
Symptom Chart
.... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 303-05-1 0
Component Tests..
.. .. .. .. .... .. ....... . . . . . . . .. .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 303-05-1 6
REMOVAL AND INSTALLATION
Accessory Drive Belt - 1.4L Duratec-16V (Sigma)/l.GL Duratec-1 6V (Sigma),
Vehicles With: Air Conditioning
..... . .. . . . . .. . . .. ........ .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (21 567 0) 303-05-1 8
Accessory Drive Belt - 1.4L Duratec-16V (Sigma)/l .6L Duratec-1 6V (Sigma),
Vehicles Without: Air Conditioning..
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (21 567 0) 303-05-2
1
Power Steering Pump Belt
- 1.4L Duratec-1 6V (Sigma)/l .6L Duratec-16V
(Sigma), Vehicles With: Air Conditioning
...... .. .. . . . . . . .. .. .. ...... . . . . . . . . . . . . . . . . . . . (21 567 0) 303-05-24
Accessory Drive Belt
- 2.OL Duratec-HE (M14) ...... . . . . . . . . . . . . .. .... .. ...... . .. . . . . . . (21 567 0) 303-05-26
procarmanuals.com

303-05-2 Accessory Drive 303-0512
SPECIFICATIONS
Torque Specifications - vehicles with 1.3L Duratec-8V (Rocam) engine
I retaining bolt I I I I
Description
Accessory drive belt tensioner
I Description I Nm I I b-ft I Ib-in I
Nm
25
Accessory drive belt idler pulley retaining bolt
Accessory drive bracket assembly
retaining bolts
Accessory drive belt tensioner retaining bolts l b-ft
18
Torque Specifications - vehicles with I .4L Duratorq-TDCi (DV)/I .6L Duratorq-TDCi (DV) Diesel
engine 25
30
Accessory drive belt tensioner
retaining bolts
Torque
Specifications
- vehicles with 2.OL Duratec-HE (M14) engine
2006.0 Fiesta 1212006 GI 46273en
I b-in
-
18
22
Description
-
-
Nm I b-ft Ib-in
