2007 FORD FIESTA Workshop Manual

Automatic Transmission/Transaxle External
Controls -Vehicles With: 4-Speed Automatic
307-05-5 Transmission (AW81-40) 307-05-5
GENERAL PROCEDURES
Selector Lever Cable Adjustment
Adjustment Move the transaxle selector lever to the "D"
1. Shift the selector lever to the "D" (DRIVE) (DRIVE) position.
position.
2. Raise and support the vehicle.
5. N0TE:Ensure that the selector lever cable
adjustment mechanism is locked.
- -
For additional information, refer to: Lifting Press
in the selector lever cable adjustment
(1 00-02 Jacking and Lifting, Description mechanism
locking clip fully.
and Operation).
3. Release the selector lever cable adjustment
1, ' mechanism locking clip.
6. Lower the vehicle.
7. Start the engine and move the selector lever
through all the gear positions. Wait until each
4. N0TE:ln the "D" (DRIVE) position the gear engages
when moving through the gear
transmission range (TR) sensor locking positions.
washer pointer will be aligned with the line
8. Check that the selector lever position
scribed on the TR sensor body. indicator corresponds to the position of the
selector lever, repeat the adjustment
procedure if necessary.
9. Move the selector lever into the "P" (PARK)
position and switch off the engine.
2006.0 Fiesta 1212006 G388012en
procarmanuals.com

Automatic Transmission/Transaxle External
Controls -Vehicles With:
4Speed Automatic
307-05-6 Transmission (AW81-40) 307-05-6
REMOVAL AND INSTALLATION
Brake Shift Interlock Actuator
Removal
1. Remove the floor console. 3. Install the bolt.
2. Disconnect the overdrive (OID) switch
electrical connector (selector lever assembly
shown removed for clarity).
3. Remove the brake shift interlock actuator.
1. Remove the bolt.
2. Remove the knob.
3. Remove the brake shift interlock actuator.
Installation
1. Install the brake shift interlock actuator.
1. Install the brake shift interlock actuator.
2. Position the knob.
2. Connect the OID switch electrical connector
(selector lever assembly shown removed for
clarity).
3. Install the floor console.
2006.0 Fiesta 1212006 G294547en
procarmanuals.com

Automatic Transmission/Transaxle External
Controls -Vehicles With: 4-Speed Automatic
Transmission
(AW81-40)
REMOVAL AND INSTALLATION
Selector Lever Cable
', General Equipment Slide the heat shield backwards.
1 Draw cord
Removal
1. Detach the selector cable from the retaining
clip.
2. Raise and support the vehicle.
For additional information, refer to: Lifting ( (100-02 Jacking and Lifting, Description
and Operation).
3. Remove the exhaust front hanger insulator.
4. Detach the exhaust heat shield from the floor
panel.
5. Unclip the selector lever cable from the
right-hand side of the bracket.
6. Detach the selector lever cable from the
manual shift lever.
I. Detach the selector lever cable from the
manual shift lever.
2. Detach the selector lever cable from the
selector lever cable bracket.
2006.0 Fiesta 121zoo6 G388013en
procarmanuals.com

- -
Automatic Transmission/Transaxle External
Controls -Vehicles With:
4Speed Automatic
307-05-8 Transmission
(AW81-40) 307-05-8
REMOVAL AND INSTALLATION
7. Attach a suitable length of draw cord to the 2. Using the draw cord, pull the selector lever
transaxle end of the selector lever cable and
cable through the floor panel.
secure
it to the transaxle. 3. Install the selector lever cable grommet.
8. Lower the vehicle.
9. Remove the floor console.
For additional information, refer to: Floor
Console
(501 -1 2 Instrument Panel and
Console, Removal and lnstallation).
10. Detach the selector lever cable from the
transmission selector lever.
1. Shift the selector lever to the "P" (PARK)
position.
2. Detach the selector lever cable.
3. Pull the selector lever cable locking pin and
detach the selector lever cable outer sleeve.
4. Attach the selector lever cable to the selector
lever.
11. Remove the selector lever cable grommet.
12. Remove the selector lever cable.
1. Shift the selector lever to the "P" (PARK)
position.
2. Attach the selector lever cable outer sleeve.
3. Attach the selector lever cable.
5. Install the floor console.
For additional information, refer to: Floor
Console
(501-12 lnstrument Panel and
Console, Removal and lnstallation).
6. Raise and support the vehicle.
For additional information, refer to: Lifting
(100-02 Jacking and Lifting, Description
and Operation).
Pull the cable and draw cord through the floor 7. Remove the draw cord.
panel. 8. Attach the selector lever cable to the manual
Installation
shift lever. f
1. Attach the selector lever cable to the selector''-
1. Attach the draw cord to the transaxle end of lever cable bracket.
the selector lever cable.
2006.0 Fiesta 1212006 G388013en
procarmanuals.com

Automatic Transmission~~ransaxle External
Controls -Vehicles With: 4-Speed Automatic
307-05-9 Transmission
(AW81-40) 307-05-9

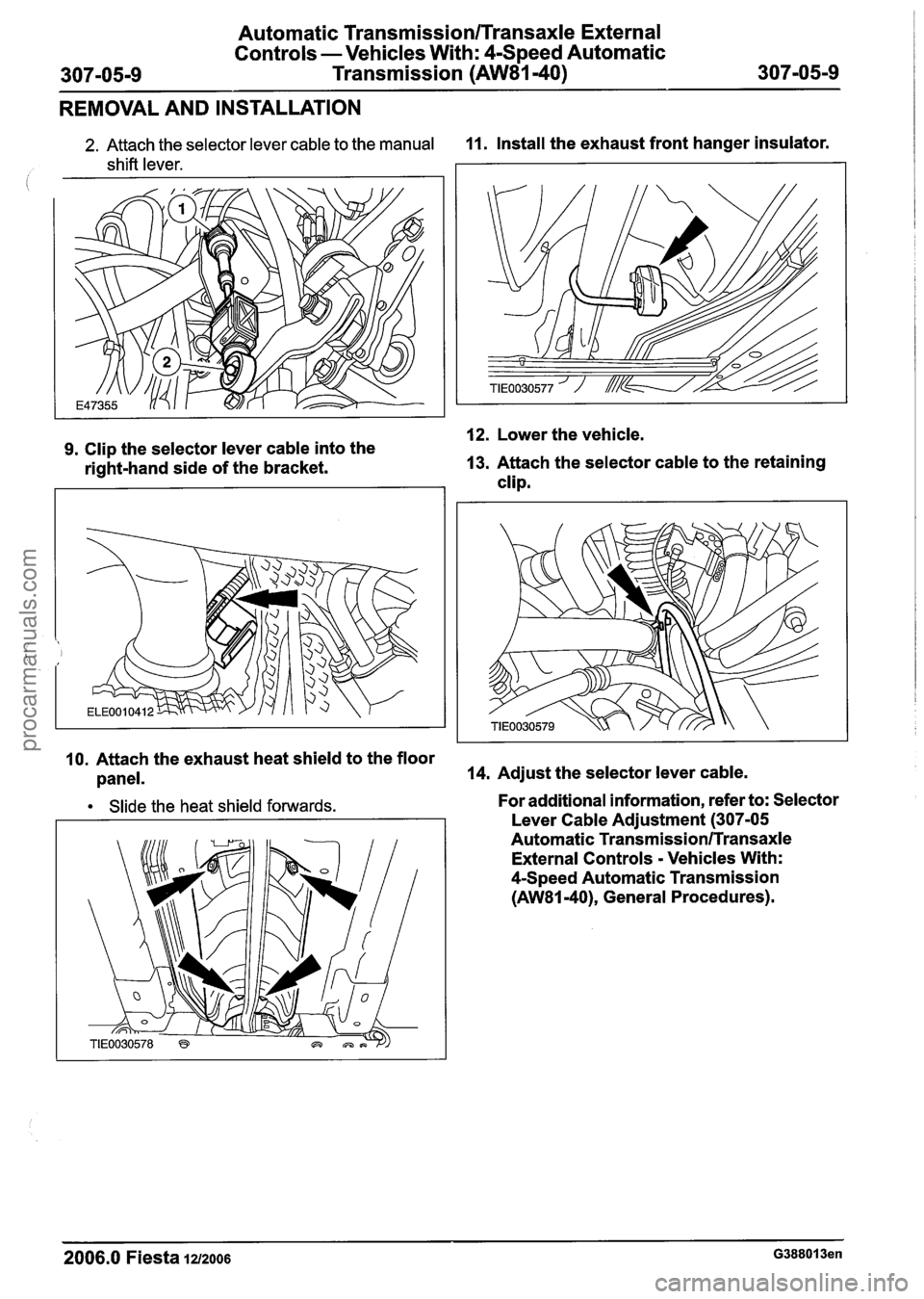

REMOVAL AND INSTALLATION
2. Attach the selector lever cable to the manual 11. Install the exhaust front hanger insulator.
shift lever.
12. Lower the vehicle. 9. Clip the selector lever cable into the
right-hand side of the bracket. 13.
Attach the selector cable to the retaining
clip.
10. Attach the exhaust heat shield to the floor
panel. 14.
Adjust the selector lever cable.
Slide the heat shield forwards. For additional information, refer to: Selector
Lever Cable Adjustment
(307-05
Automatic Transmission/Transaxle
External Controls - Vehicles With:
4-Speed Automatic Transmission
(AW81-40), General Procedures).
2006.0 Fiesta 1212006 G388013en
procarmanuals.com

Automatic Transmission/Transaxle External
Controls -Vehicles With:
4Speed Automatic
Transmission
(AW81-40)
REMOVAL AND INSTALLATION

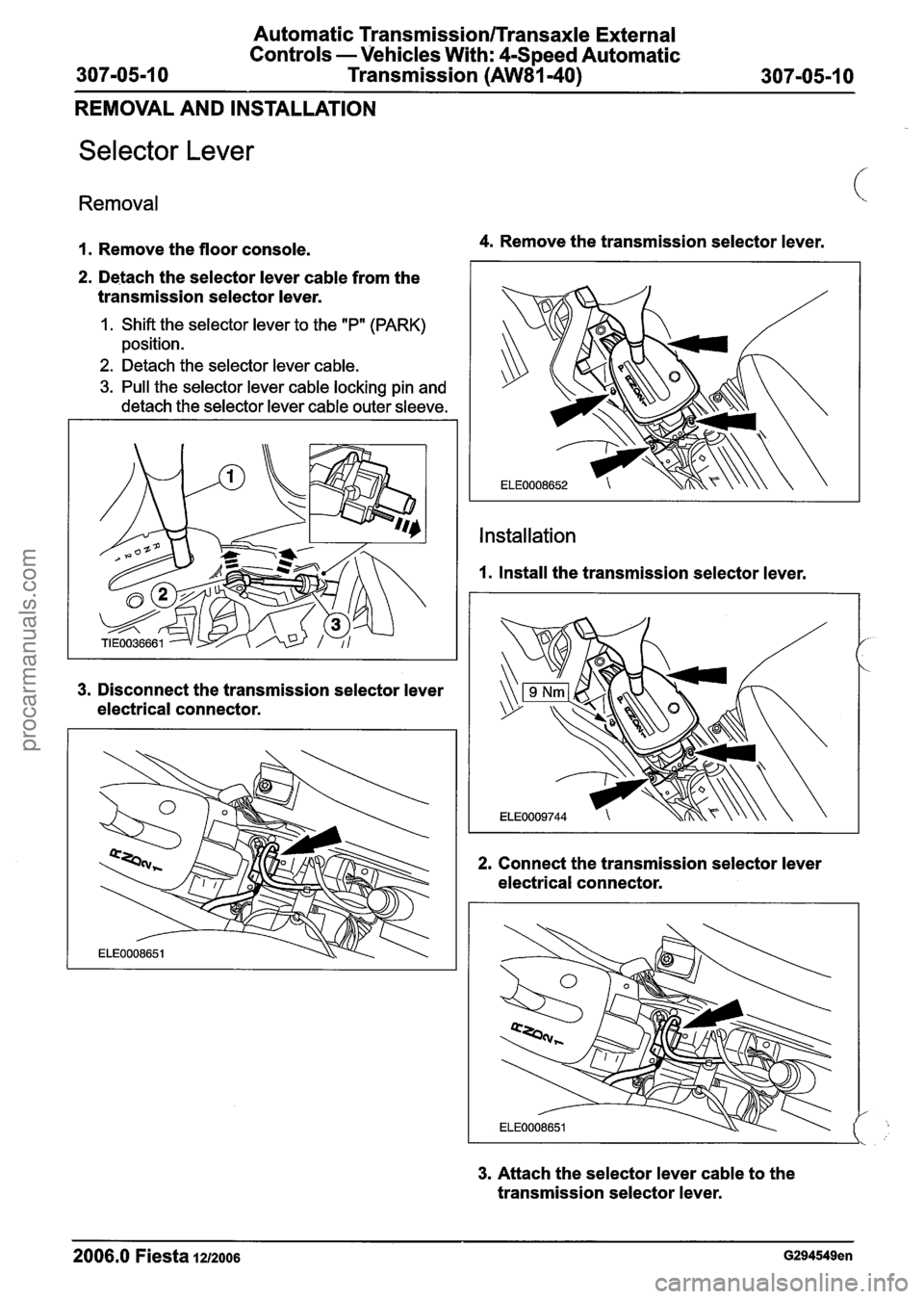

Selector Lever
Removal
1. Remove the floor console. 4. Remove the transmission selector lever.
2. Detach the selector lever cable from the
transmission selector lever.
1. Shift the selector lever to the "P" (PARK)
position.
2. Detach the selector lever cable.
3. Pull the selector lever cable locking pin and
detach the selector lever cable outer sleeve.
3.
Disconnect the transmission selector lever
electrical connector.
Installation
1. Install the transmission selector lever.
2. Connect the transmission selector lever
electrical connector.
3. Attach the selector lever cable to the
transmission selector lever.
2006.0 Fiesta 1212006 G294549en
procarmanuals.com

Automatic Transmission/Transaxle External
Controls -Vehicles With:
4Speed Automatic
307-05-1
1 Transmission (AW81-40) 307-05-1 1

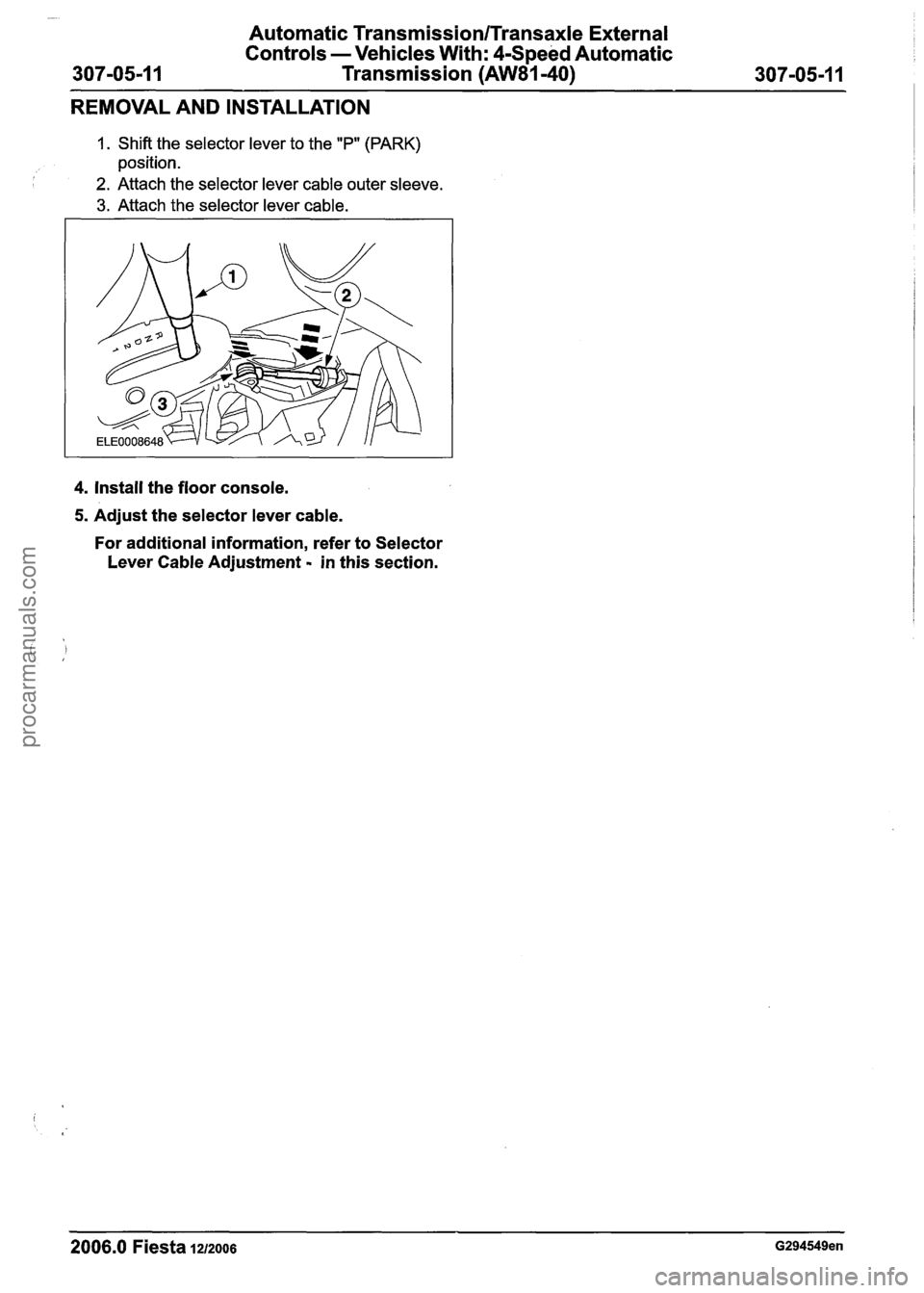

REMOVAL AND INSTALLATION
1. Shift the selector lever to the "P" (PARK)
position.
2. Attach the selector lever cable outer sleeve.
3. Attach the selector lever cable.
4. Install the floor console.
5. Adjust the selector lever cable.
For additional information, refer to Selector
Lever Cable Adjustment
- in this section.
2006.0 Fiesta 1212006 G294549en
procarmanuals.com

Automatic Transmission/Transaxle External
Controls
- Vehicles With: 4-Speed Automatic
307-05-1
2 Transmission (AW81-40) 307-05-1 2
REMOVAL AND INSTALLATION
Selector Lever Bezel
Removal
1. Remove the transmission selector lever
knob.
For additional information, refer to
Transmission Selector Lever Knob
- in this
section.
2. Remove the selector lever bezel (selector
lever assembly shown removed for clarity).
Unclip the bezel.
Unclip the lamp.
Installation
1. Install the selector lever bezel (selector lever
assembly shown removed for clarity).
Clip the bezel.
Clip the lamp.
ELEOOl
2. Install the transmission selector lever knob.
For additional information, refer to
Transmission Selector Lever Knob
- in this
section.
2006.0 Fiesta 1212006 G294550en
