2007 FORD FIESTA Workshop Manual

100-04-1 7 Noise, Vibration and Harshness 100-04-17
DIAGNOSIS AND TESTING
TEST CONDITIONS DETAILSIRESULTSIACTIONS
A2: CHECK THE POWERTRAINIDRIVETRAIN MOUNTS
Carry out the
powertrainldrivetrain mount neut-
ralizing procedure
Are the mounts OK?
-+ Yes
Vehicle condition corrected. ROAD TEST as
necessary.
+ No
INSTALL new
powertrainldrivetrain mounts
as necessary. ROAD TEST as necessary.
PINPOINT TEST B
: TIP-IN MOAN
TEST CONDITIONS
DETAILSIRESU LTSIACTIONS
B1: CHECK THE AIR CLEANER
Check the condition of the air cleaner mounts,
inlet tube, outlet tube, resonators and all other
components associated with the air induction
system for correct installation and tightness of
all connections.
Are the components OK?
+ Yes
GO to
B2.
-+ No
REPAIR or INSTALL new components as
necessary. ROAD TEST as necessary.
82: CHECK THE EXHAUST SYSTEM
Carry out the exhaust system neutralizing
procedure.
REFER to: Exhaust System Neutralizing
(1 00-
04, General Procedures).
Is the exhaust system
OK?
-+ Yes GO to
B3.
+ No
REPAIR as necessary. ROAD TEST as
necessary.
- -
2006.0 Fiesta 1212006 + G37349en
procarmanuals.com

100=04=18 Noise, Vibration and Harshness 100-04-18
DIAGNOSIS AND TESTING
TEST CONDITIONS DETAILSIRESU LTSIACTIONS
--
2006.0 Fiesta 1212006 G37349en
B3: CHECK THE POWER STEERING
B4: CHECK THE POWERTRAINIDRIVETRAIN
rn Remove the accessory drive belt and test for
tip-in moan. REFER to: (303-05 Accessory
Drive)
Accessory Drive Belt
- 1.8L Duratec-HE
(M14)/1.8L Duratec-SCi (M14)/2.OL Duratec-HE
(M14) (Removal and Installation),
Accessory Drive Belt
- 3.OL Duratec-SE
(VE6)/2.5L Duratec-VE (VE6)/3.OL Duratec-ST
(VE6) (Removal and Installation),
Accessory Drive Belt
- 2.OL Duratorq-DilTDDi
(Puma) Diesell2.0L Duratorq-TDCi (Puma)
Diesel12.2L Duratorq-TDCi (Puma) Diesel
(Removal and lnstallation).
Is the tip-in moan OK?
-+ Yes
REPAIR the power steering as necessary.
REFER to: Steering System (21 1-00 Steering
System
- General Information, Diagnosis
and Testing).
-+ No
GO to B4.
MOUNTS
rn Carry out the powertrainldrivetrain mount neut-
ralizing procedure
Are the
powertrainldrivetrain mounts OK?
-+ Yes
Vehicle condition corrected. ROAD TEST as
necessary.
-+ No
l NSTALL new powertrainldrivetrain mounts
as necessary. ROAD TEST as necessary.
procarmanuals.com

I 00-04-1 9 Noise, Vibration and Harshness 100-04-19
DIAGNOSIS AND TESTING
PINPOINT TEST C : IDLE BOOMISHAKENIBRATIONISHUDDER
1 TEST CONDITIONS DETAILSIRESU LTSIACTIONS
C1: CHECK THE CABLEIHOSES
rn Check the engine compartment for any
component that may have a touch condition
between the engine and body or chassis. For
example: control cable, air conditioning
(AIC)
hoses, acceleration cable.
Are the components OK?
-+ Yes
GO to C2.
+ No
REPAIR or INSTALL new components as
necessary. ROAD TEST as necessary.
C2: CHECK THE ENGINE COOLING RADIATOR
rn Check the engine cooling radiator mountings
and bushings for security and condition. Check
the radiator installation for any component that
may have a touch condition.
Is the installation and bushings OK?
+ Yes
GO to C3.
-+ No
REPAIR or INSTALL new components as
necessary. ROAD TEST as necessary.
C3: CHECK THE EXHAUST SYSTEM
rn Carry out the exhaust system neutralizing
procedure.
REFER to: Exhaust System Neutralizing
(1 00-
04, General Procedures).
Is the exhaust system OK?
+ Yes
GO to C4.
+ No
REPAIR as necessary. ROAD TEST as
necessary.
2006.0 Fiesta 1212006 G37349en
procarmanuals.com

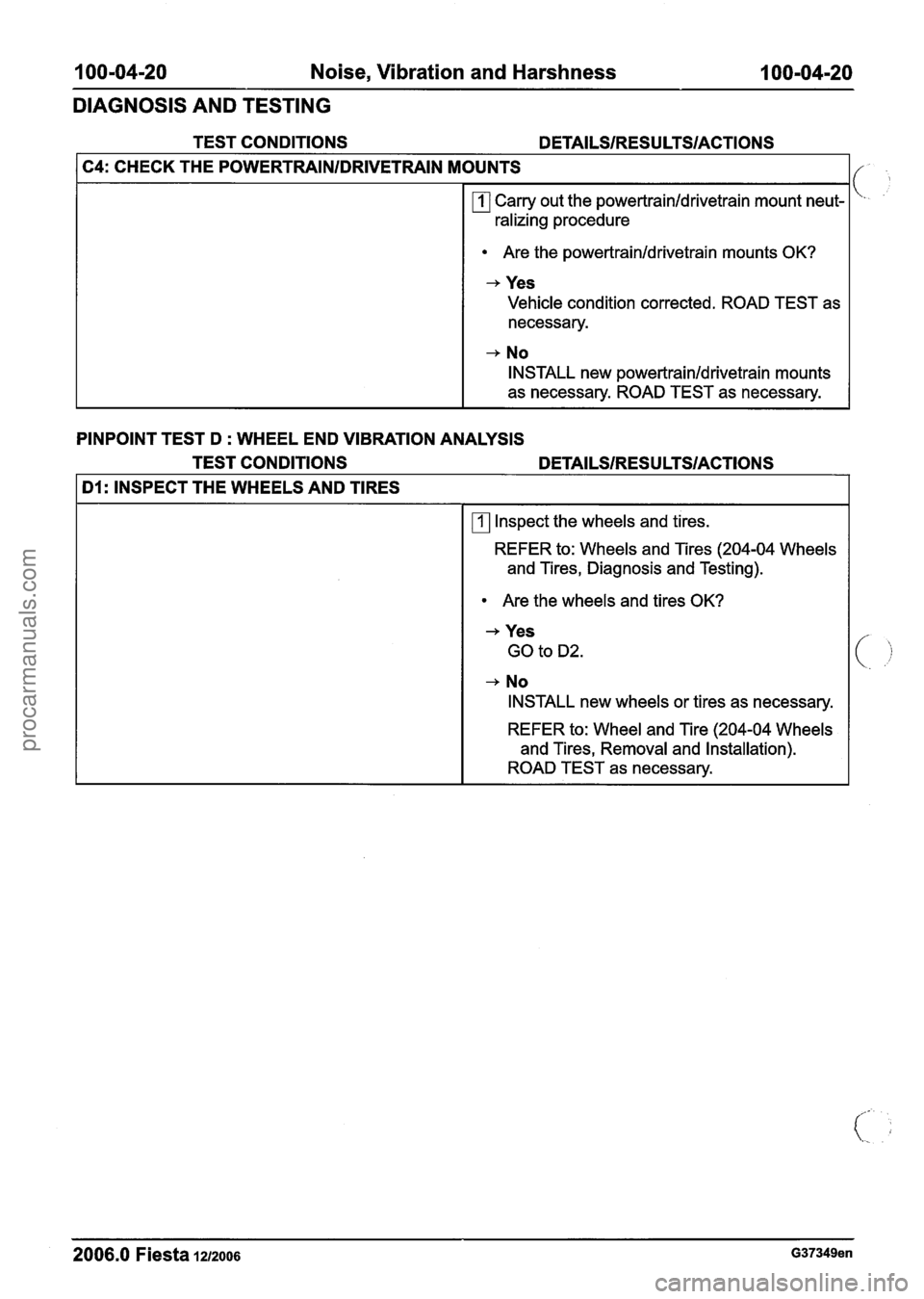

100-04-20 Noise, Vibration and Harshness 100-04-20
DIAGNOSIS AND TESTING
TEST CONDITIONS DETAILSIRESULTSIACTIONS
C4: CHECK THE POWERTRAINIDRIVETRAIN MOUNTS
Carry out the powertrainldrivetrain mount neut-
ralizing procedure
Are the powertrainldrivetrain mounts OK?
+ Yes
Vehicle condition corrected. ROAD TEST as
necessary.
+ No
INSTALL new powertrainldrivetrain mounts
as necessary. ROAD TEST as necessary.
PINPOINT TEST D
: WHEEL END VIBRATION ANALYSIS
TEST CONDITIONS
DETAILSIRESU LTSIACTIONS
Dl: INSPECT THE WHEELS AND TIRES
Inspect the wheels and tires.
REFER to: Wheels and Tires (204-04 Wheels
and Tires, Diagnosis and Testing).
Are the wheels and tires OK?
+ Yes
GO to D2.
+ No
INSTALL new wheels or tires as necessary.
REFER to: Wheel and Tire (204-04 Wheels
and Tires, Removal and Installation).
ROAD TEST as necessary.
2006.0 Fiesta 1212006 G37349en
procarmanuals.com

100-04-21 Noise, Vibration and Harshness 100-04-21
DIAGNOSIS AND TESTING
TEST CONDITIONS DETAILSIRESULTSIACTIONS
I D2: INSPECT THE WHEEL BEARINGS
lnspect the wheel bearings.
REFER to: Wheel Bearing Inspection (204-00
Suspension System
- General Information,
General Procedures).
Are the wheel bearings OK?
+ Yes
GO to D3.
+ No
INSTALL new wheel bearings as necessary.
REFER to:
Wheel Bearing (204-01 Front Suspension,
Removal and lnstallation),
Wheel Bearing
- 2.OL Duratorq-DiITDDi (Puma)
Diesel12.0L Duratorq-TDCi (Puma) Diesel,
Vehicles With: 5-Speed Automatic Transaxle
(5F31 J) (204-01 Front Suspension, Removal
and lnstallation),
Wheel Hub (204-02 Rear Suspension, Removal
and lnstallation). ROAD TEST as necessary.
I D3: INSPECT THE WHEEL AND TIRE RUNOUT I
lnspect the wheel and tire runout.
Is the wheel and tire runout OK?
+ Yes
Balance the wheels and tires. Refer to the
wheel balance equipment manufacturer's
instructions. ROAD TEST as necessary.
+ No
INSTALL new wheels or tires as necessary.
REFER to: Wheel and Tire (204-04 Wheels
and Tires, Removal and Installation).
ROAD TEST as necessary.
2006.0 Fiesta 1212006 G37349en
procarmanuals.com

100-04-22 Noise, Vibration and Harshness I 00-04-22
DIAGNOSIS AND TESTING
PINPOINT TEST E : NON-AXLE NOISE
TEST CONDITIONS
DETAILSIRESULTSIACTIONS
I El : INSPECT THE VEHICLE TRIM I
Check the radiator grille and trim panels to see
if they are the source of the noise.
Are the vehicle trim components causing the
noise?
+ Yes INSTALL new trim components or REPAIR
as necessary. ROAD TEST as necessary.
I E2: CHECK THE AIR CONDITIONING (AIC) SYSTEM FOR NOISE I
I Ignition switch in position Ill. I
I lgnition switch in position II.
Check the NC system components for noise by
turning the
NC system on and off.
Is the
NC system causing the noise?
+ Yes
INSPECT the
NC system. REFER to: (412-
00 Climate Control System - General Informa-
tion)
Climate Control System (Diagnosis and Testing),
Climate Control System (Diagnosis and Testing).
ROAD TEST as necessary.
I E3: CHECK NO~FACTORY FITTED ACCESSORIES I
rn Check any non-factory installed accessories for
being the source of the noise. For example:
touch condition body-to-frame, antennas, deflectors and fog lights.
Are the accessories the cause of the noise?
+ Yes
ADJUST, REPAIR, or INSTALL new
accessories or fasteners as required. ROAD
TEST as necessary.
+ No
VERIFY the customer concern.
2006.0 Fiesta iuzoos G37349en
procarmanuals.com

100-04-23 Noise, Vibration and Harshness 100-04-23
GENERAL PROCEDURES
PowertrainIDrivetrain Mount Neutralizing(l4 001 0)
N0TE:There is no procedure for neutralizing the
powertrainldrivetrain mounts. To check the
alignment of the powertrain mounts visually,
proceed as follows.
I. Loosen the rear support insulator retaining
bolts (if equipped).
2. Loosen the powertrainldrivetrain mount
retaining bolts.
3. N0TE:Support the powertrainldrivetrain in
an approximate position and height.
N0TE:Make sure that the right-hand mount and
left-hand insulator align over the studs on the
powertrain and drivetrain to allow the fixings to be
assembled through the large holes in the support
insulator bracket without overstraining.
Check the powertrainldrivetrain mount
alignment.
4. Tighten the powertrainldrivetrain mount to
powertrainldrivetrain mount bracket retaining
bolts.
5. Tighten the powertrainldrivetrain mount to
body retaining bolts.
6. Tighten the rear support insulator retaining
bolts (if equipped).
2006.0 Fiesta 1212006 GI 7382en 1
