2007 FORD FIESTA Workshop Manual

303-1 4-21 Electronic Engine Controls 303-1 4-21
DIAGNOSIS AND TESTING
lnspection and Verification
MIL Code
U0121
U0122
U0155
B1213
B1600
B1601
B1602
B1681
B2103
B2139
B2141
B2431
U2510
1. Verify the customer concern by operating the
( I system.
2. Visually inspect for obvious signs of mechanical
or electrical damage. Description
CAN missing frame from ABS
CAN missing frame from ESP
CAN missing frame from HEC
Number of Passive Anti-Theft System (PATS) programmed keys is below minimum
PATS ignition key transponder signal is not received
PATS received incorrect key-code from ignition key transponder
PATS received invalid format of key-code from ignition key transponder
PATS transceiver module signal is not received
PATS immobilizer antenna not connected
PATS immobilizer challenge response doesn't match
PATS immobilizer no PCM-ID transferred
PATS immobilizer transponder programming failure
PATS immobilizer problem with messages on data link
Visual Inspection Chart
Mechanical
I Electrical
- Sensors
- Actuators - Wiring harness
- Electrical
connector(s)
- Powertrain control
module (PCM)
3. If an obvious cause for an observed or reported
concern is found, correct the cause (if possible)
before proceeding to the next step.
4. If the cause is not visually evident, verify the
symptom and refer to WDS or equivalent scan
tool for further diagnostics.
- -
2006.0 Fiesta 1212006 G384566en
procarmanuals.com

303-1 4-22 Electronic Engine Controls
REMOVAL AND INSTALLATION
Powertrain Control Module (PCM) - I .25L Duratec-1 6V
(Sigma)/l.4L Duratec-1 6V (Sigma)/l .6L Duratec-1 6V
(Sigma)(29 200 0)
c
Removal
Special Tool(s) 3. Insert the special tool into the PCM electrical
N0TE:lf a new PCM is being installed connect
WDS. Upload the PCM configuration information
using the programmable modules installation
routine prior to commencing the removal of the
PCM. Drill
Bush, Powertrain Control
Module
4 1 8-537 (29-0 1 6)
1. Remove the battery tray. connector.
For additional information, refer to: Battery
Tray (414-01, Removal and Installation).
2. Position the PCM on the battery tray support
panel.
4m ACAUTION:M~~~ sure the special tool is
used to guide the drill bit. Failure to follow
this instruction may result in damage to the
electrical connector.
f
Using the special tool as a guide, drill into (
the shear bolt using a 6mm drill bit, until the
head is removed.
5. Remove the special tool from the PCM
electrical connector and clean all foreign
material from the electrical connector.
6. Disconnect the PCM electrical connector and
remove the PCM.
2006.0 Fiesta 1212006 GI 00753en
procarmanuals.com

303-1 4-23 Electronic Engine Controls 303-1 4-23
REMOVAL AND INSTALLATION
7. Remove the remains of the shear bolt from 4.
If a new PCM is being installed connect WDS.
/ the PCM using grips. Download the PCM configuration information
using the programmable modules installation
routine.
5. N0TE:Do not press the accelerator pedal
during the initialization period as this will
prevent the complete initialization of the
throttle body.
Turn the ignition key to position
I1 and wait
for one minute to initialize the throttle body.
6. Turn the ignition key to the OFF position.
Installation
I. Install a new shear bolt and securing clip,
using the special tool to push the clip onto
the shank of the bolt.
2. Install the PCM electrical connector to the
PCM.
Tighten the bolt until the head shears off.
3. Install the battery tray.
For additional information, refer to: Battery
Tray
(414-01, Removal and Installation).
procarmanuals.com

303-1 4-24 Electronic Engine Controls 303-1 4-24
Powertrain Control Module (PCM) - 2.OL Duratec-HE (M14),
Vehicles With: PCM Security Shield c
N0TE:lf a new PCM is being installed connect the 4. Remove the PCM mounting bracket lower
Worldwide Diagnostic System (WDS). Upload the retaining bolt.
PCM configuration information using the
programmable modules installation routine prior to
commencing the removal of the PCM.
1. Remove the battery tray.
For additional information, refer to: Battery
Tray
(414-01, Removal and Installation).
2. Raise and support the vehicle.
For additional information, refer to: Lifting
(1 00-02 Jacking and Lifting, Description
and Operation).
3. Disconnect the ambient air temperature
sensor electrical connector and detach the
wiring harness from the retaining clip.
5. Lower the vehicle.
6. Remove the PCM mounting bracket upper
retaining bolt.
7. Position the PCM, PCM retaining bracket and
PCM mounting bracket on the battery tray
support panel.
8. Remove the components in the order
indicated in the following
illustration(s) and
table(s).
2006.0 Fiesta 1212006 G422234en
procarmanuals.com

303-1 4-25 Electronic Engine Controls 30311 4-25
REMOVAL AND INSTALLATION
Item Description
2 PCM security shield
I I See Removal Detail
1
11FEKGPCMitrica1 connectors I
PCM security shield shear bolts
See Removal Detail
See Installation Detail
PCM retaining bolts
See Removal Detail
-- -
1 5 1 PCM retaining bracket I
Item Descri~tion
1 6 1 PCM mounting bracket I
1 I removal Detail
9. To install, reverse the removal procedure.
N0TE:lf a new PCM is being installed connect
WDS. Download the PCM configuration information
using the programmable modules installation
routine after the installation of the PCM.
2006.0 Fiesta 121~0o6 G422234en
procarmanuals.com

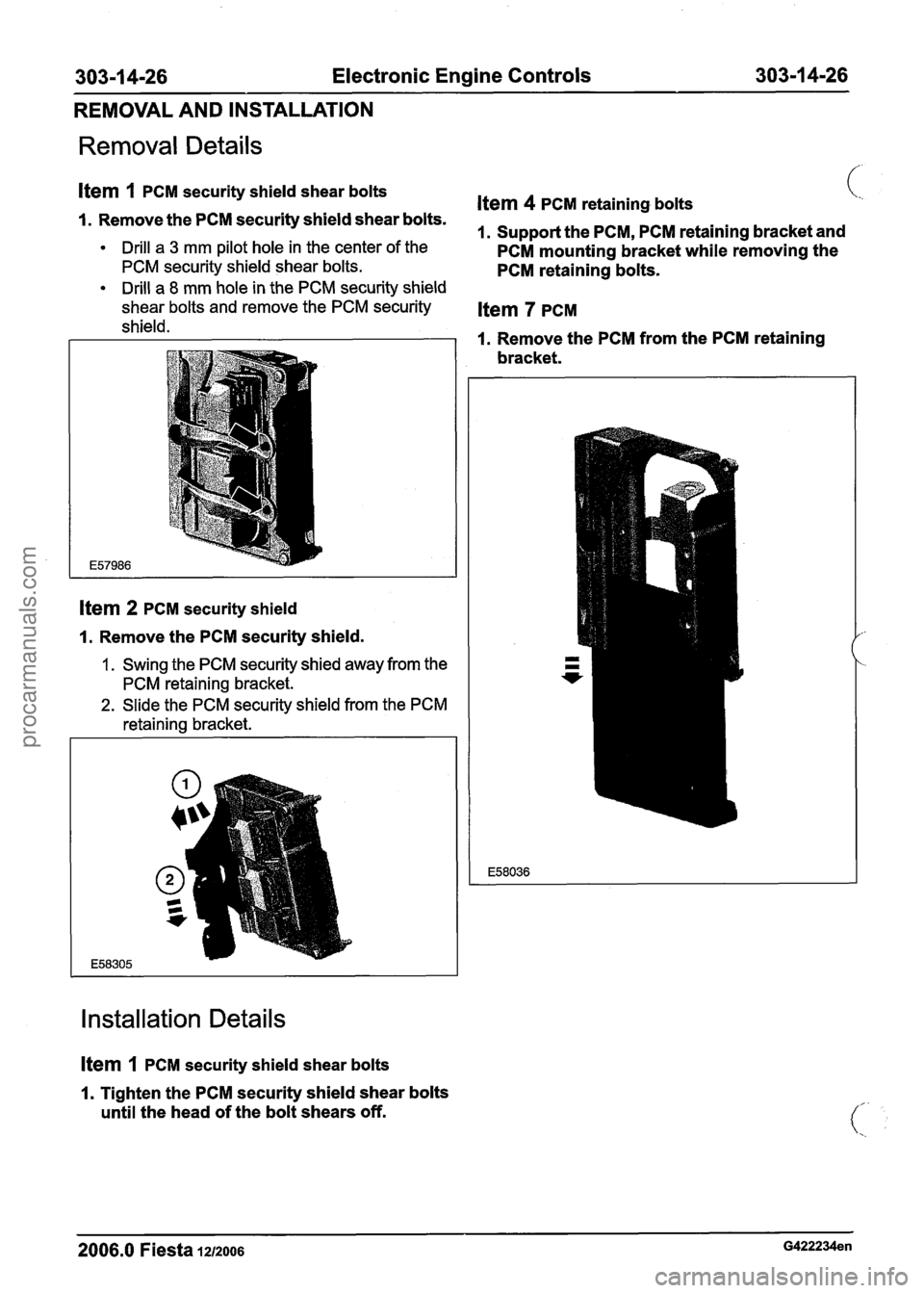

30311 4-26 Electronic Engine Controls 303-1 4-26
REMOVAL AND INSTALLATION
Removal Details
Item 1 PCM security shield shear bolts Item 4 PCM retaining bolts 1. Remove the PCM security shield shear bolts. 1. Support the PCM, PCM retaining bracket and Drill a 3 mm pilot hole in the center of the PCM mounting bracket while removing the PCM security shield shear bolts. PCM retaining bolts. Drill a 8 mm hole in the PCM security shield
shear bolts and remove the PCM security
Item 7 PCM
shield. I. Remove the PCM from the PCM retaining
bracket.
Item 2 PCM security shield
I. Remove the PCM security shield.
1. Swing the PCM security shied away from the
PCM retaining bracket.
2. Slide the PCM security shield from the PCM
retaining bracket.
Installation Details
Item 1 PCM security shield shear bolts
1. Tighten the PCM security shield shear bolts
until the head of the bolt shears off.
2006.0 Fiesta 1212006 G422234en
procarmanuals.com

303-1 4-27 Electronic Engine Controls 303-1 4-27
REMOVAL AND INSTALLATION
Powertrain Control Module (PCM) - 2.OL Duratec-HE (M14),
Vehicles Without: PCM Security Shield
N0TE:lf a new PCM is being installed connect 2. Disconnect the ambient air temperature
WDS. Upload the PCM configuration information sensor electrical connector and detach the
using the programmable modules installation wiring harness from the retaining clip.
routine prior to commencing the removal of the
PCM.
1. Disconnect the battery ground cable.
For additional information, refer to: Battery
Disconnect
(414-01 Battery, Mounting and
Cables, General Procedures).
3. Remove the components in the order
indicated in the following
illustration(s) and
table(s).
2006.0 Fiesta 1212006 G422233en
procarmanuals.com

303-1 4-28 Electronic Engine Controls 303-1 4-28
REMOVAL AND INSTALLATION
Item Description
I 1 I PCM electrical connectors I
121
PCM retaining bolts
See Removal Detail
1 3 1 PCM retaining bracket I
1 4 1 PCM mounting bracket I
Removal Details
Item Description - - -
I I See Removal Detail I
4. To install, reverse the removal procedure.
N0TE:lf a new PCM is being installed connect
WDS. Download the PCM configuration information
using the programmable modules installation
routine after the installation of the PCM.
2006.0 Fiesta 1212006 G422233en
