2007 FORD FIESTA Workshop Manual

21 1-02-21 Power Steering 21 1-02-21
REMOVAL AND INSTALLATION
Centralize the steering and lock it in position. Remove and discard the steering column
shaft to steering gear pinion retaining bolt.
6. Detach the steering column shaft from the
steering gear pinion. 7. Remove the accessory drive belt.
For additional information, refer to:
Accessory Drive Belt
- 2.OL Duratec-HE
(M14) (303-05 Accessory Drive, Removal
and Installation).
8. Lower the vehicle.
9. Remove the components in the order
indicated in the following
illustration(s) and
table(s).
2006.0 Fiesta 1212006 G458165en
procarmanuals.com

21 1-02-22 Power Steering 211 -02-22
REMOVAL AND INSTALLATION
Item Description
2 Power steering pump to steering gear
I I pressure line retaining clips
1
Item Description
Power steering pump pulley
See Removal Detail
See Installation Detail I I~ee Removal Detail I
5 Power steering pump to steering gear
pressure line
See Removal Detail
See lnstallation Detail
3 10. To install, reverse the removal procedure.
(
Power steering pump to steering gear
pressure line bracket to transaxle retaining
bolt
4
2006.0 Fiesta 1212006 G458165en
Power steering pump to steering gear
pressure line bracket to intake manifold
retaining bolt
procarmanuals.com

21 1 -02123 Power Steering 21 I -02-23
REMOVAL AND INSTALLATION
11. Fill and bleed the power steering system. Procedures),
For additional information, refer to: (211 -00 Power Steering System
Bleeding (General
Steering System - General Information) Procedures).
Power Steering System Filling (General
Removal Details
ltem 1 Power steering pump pulley
1. Using the special tool, remove the power
steering pump pulley.
I ' 2. CAUTIONS: /,
Acap the power steering pump outlet port
to prevent fluid loss or dirt ingress.
hap the power steering pump to steering
gear pressure line to prevent fluid loss or
dirt ingress.
Item 4 Power steering pump to steering gear
pressure line bracket to intake manifold retaining
bolt
1. Raise and support the vehicle. For additional
information, refer to: (1 00-02 Jacking and
Lifting)
Jacking (Description and Operation),
Jacking (Description and Operation).
2. Detach the power steering pump to steering
gear pressure line from the intake manifold.
Disconnect the power steering pump to
Item 5 Power steering pump to steering gear
steering gear pressure line from the power
pressure line steering pump. 1. Remove the front wheels and tires. Remove and discard the power steering
pump to steering gear pressure line union
For additional information, refer to: Wheel
O-ring seal. and Tire (204-04 Wheels and Tires, Removal
and Installation).
2006.0 Fiesta 1212006 G458165en
procarmanuals.com

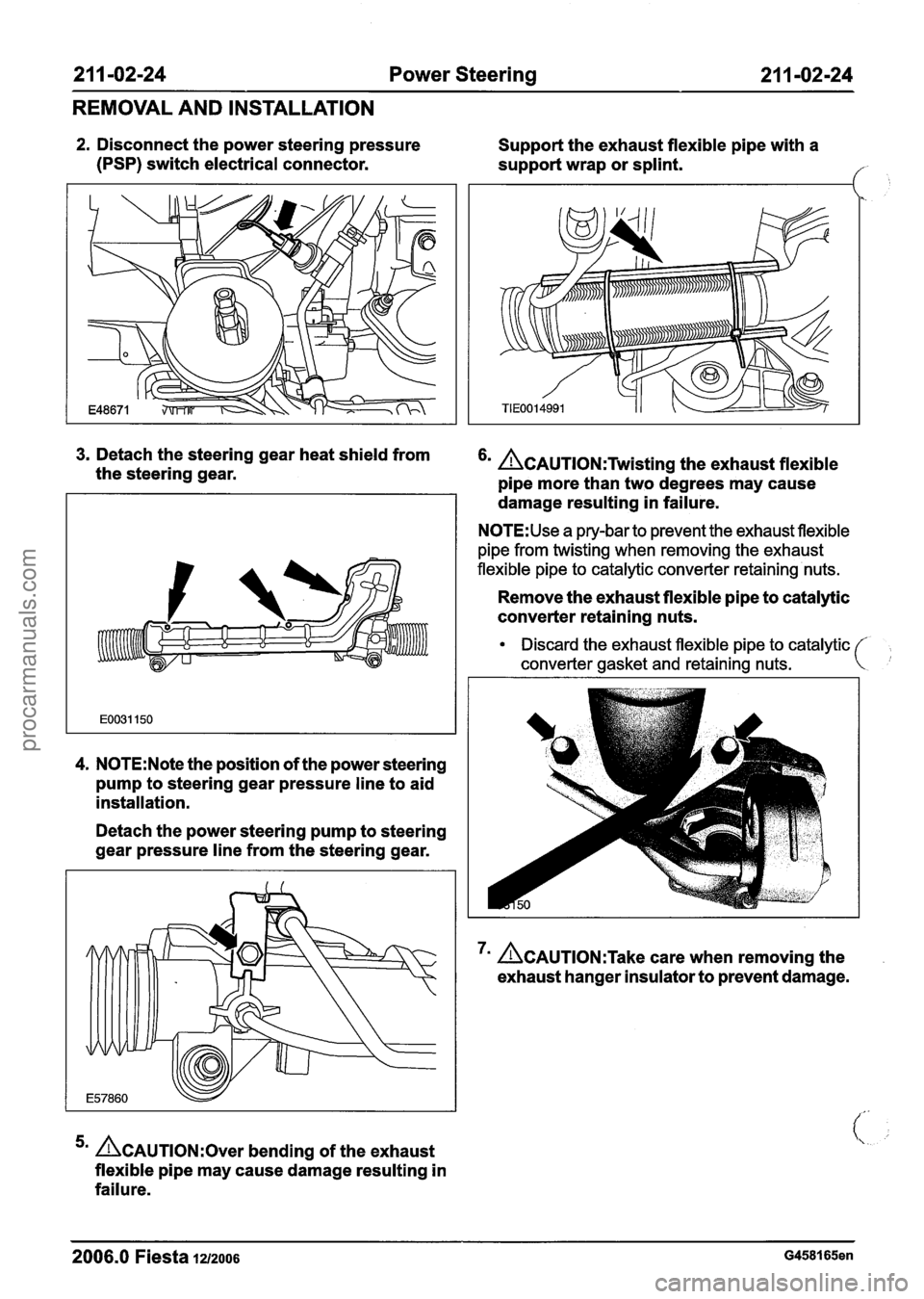

211 -02-24 Power Steering 211 -02-24
