Instruments and controls
The indicator light located on the button will come on
when the outside mirror defogger heater in operation.
To turn it off, push the button again.Tilt steering wheelTilt steering wheel
Do not adjust the steering wheel tilt position
while driving. This may cause loss of vehicle
control and result in personal injury.

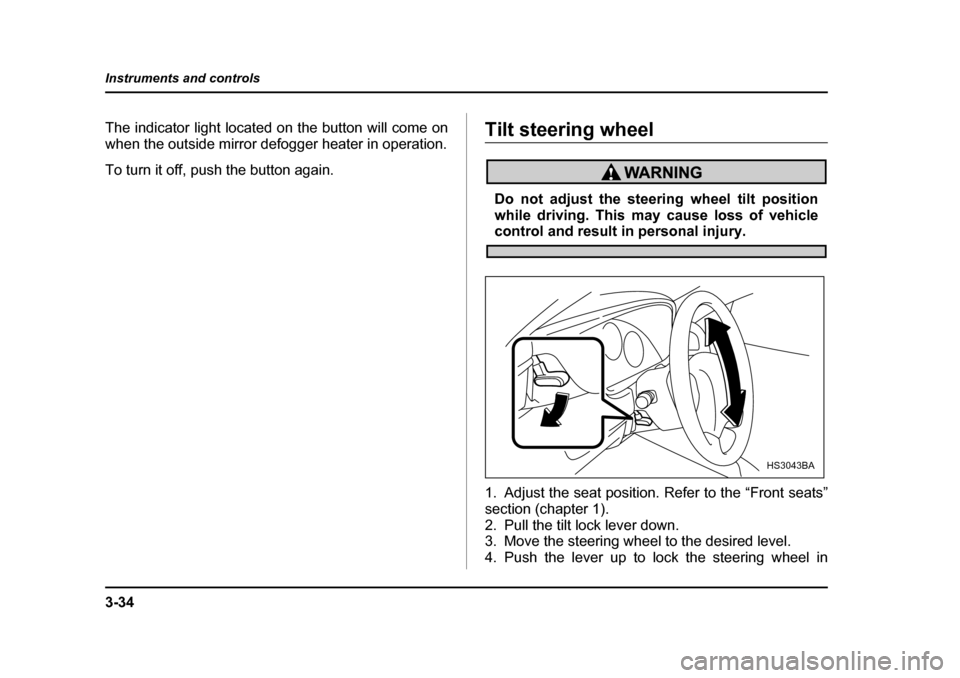

1. Adjust the seat position. Refer to the “Front seats”
section (chapter 1).
2. Pull the tilt lock lever down.
3. Move the steering wheel to the desired level.
4. Push the lever up to lock the steering wheel in
HS3043BA

3-35
Instruments and controls
– CONTINUED –
place.
5. Make sure that the steering wheel is securely
locked by moving it up and down.HornHorn

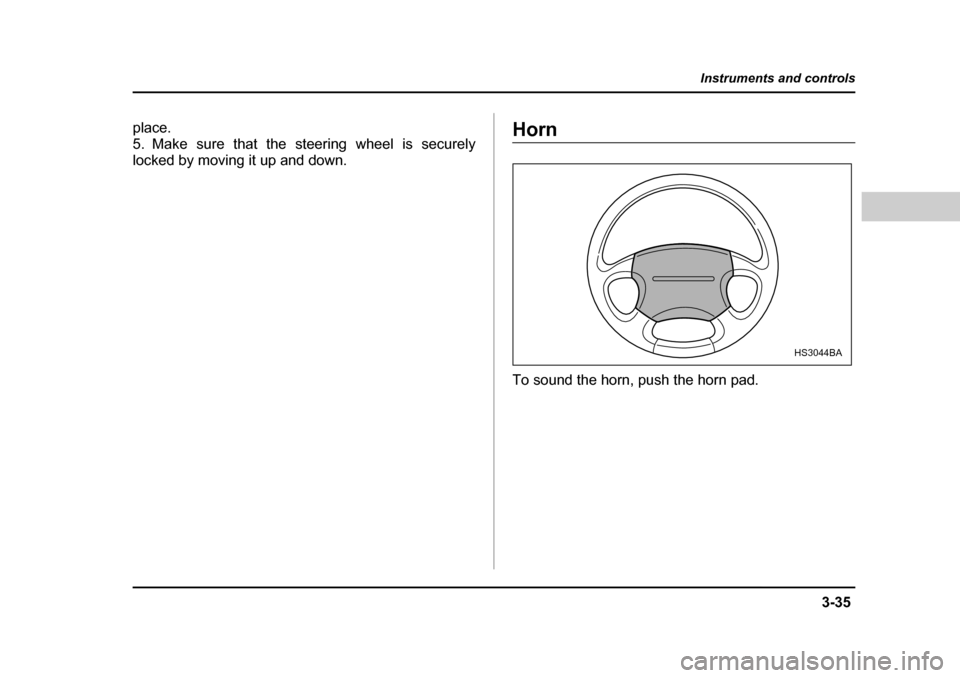

To sound the horn, push the horn pad.
HS3044BA

4-1
4
Climate control
Ventilator ....................................................... 4-2 Driver’s side ventilators ................................... 4-2
Center ventilators ............................................. 4-2
Front passenger’s side ventilators ................. 4-3
Air flow selection .............................................. 4-4
Manual heating and air conditioning system ........................................................ 4-5Control panel ..................................................... 4-5
Heater operation ............................................... 4-7
Air conditioner operation ................................. 4-10
Operating tips for heater and air conditioner ................................................. 4-11
Air filtration system (if equipped) ................ 4-13

4-2
Climate control
Climate controlVentilator „

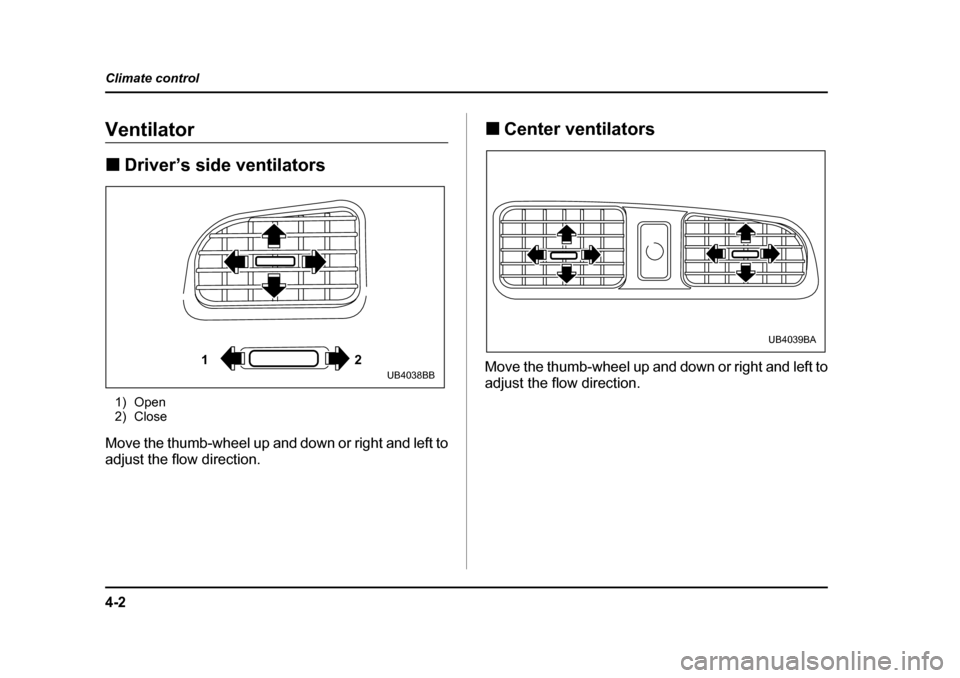

Driver’s side ventilators
1) Open
2) Close
Move the thumb-wheel up and down or right and left to
adjust the flow direction. „
Center ventilators
Move the thumb-wheel up and down or right and left to
adjust the flow direction.
12UB4038BB
UB4039BA

4-3
Climate control
– CONTINUED –

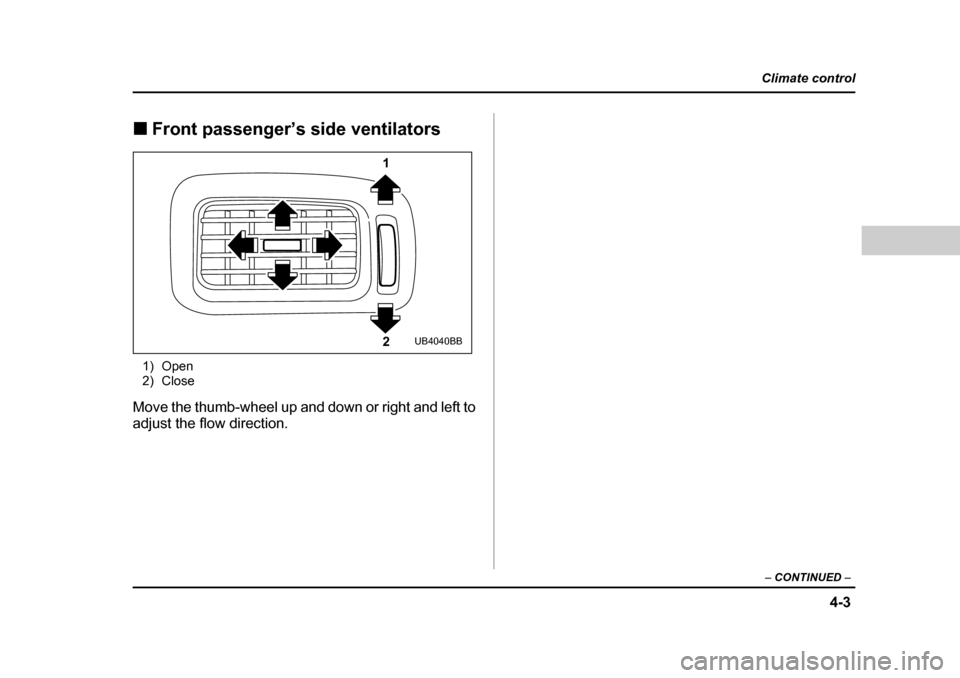

„Front passenger’s side ventilators
1) Open
2) Close
Move the thumb-wheel up and down or right and left to
adjust the flow direction.
1
2
UB4040BB

4-4
Climate control „

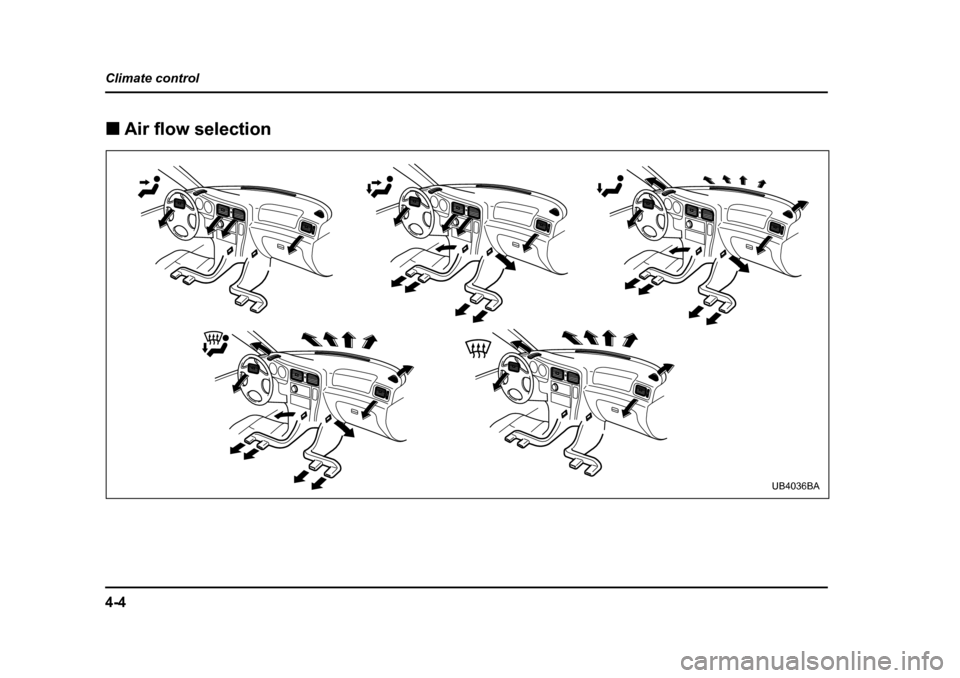

Air flow selection
UB4036BA

4-5
Climate control
– CONTINUED –
Manual heating and air conditioning

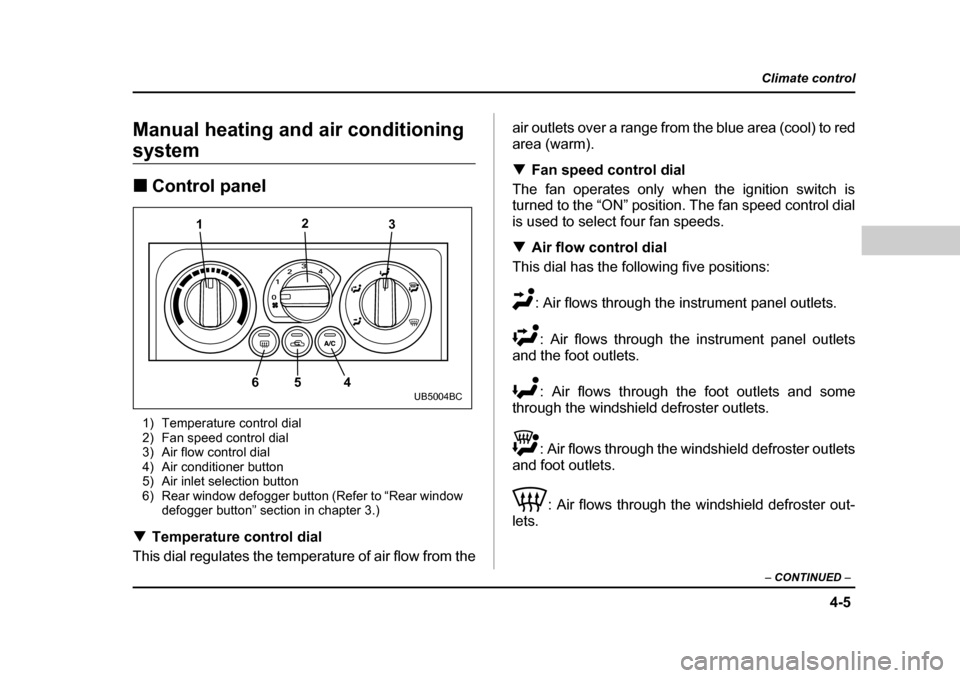

system „Control panel
1) Temperature control dial
2) Fan speed control dial
3) Air flow control dial
4) Air conditioner button
5) Air inlet selection button
6) Rear window defogger button (Refer to “Rear window defogger button” section in chapter 3.)
T Temperature control dial
This dial regulates the temperature of air flow from the air outlets over a range from the blue area (cool) to red
area (warm). T
Fan speed control dial
The fan operates only when the ignition switch is
turned to the “ON” position. The fan speed control dial
is used to select four fan speeds. T Air flow control dial
This dial has the following five positions:
: Air flows through the instrument panel outlets.: Air flows through the instrument panel outlets
and the foot outlets.
: Air flows through the foot outlets and some
through the windshield defroster outlets.
: Air flows through the windshield defroster outlets
and foot outlets.
: Air flows through the windshield defroster out-
lets.
1
65 42
3
UB5004BC
