2006 SUBARU BAJA Owners Manual

8-36
Driving tips
vehicle and trailer wheels.
3. When the wheel blocks are in place, release theregular brakes slowly until
the blocks absorb the load.
4. Apply the regular brakes and then apply the park-
ing brake; slowly release the regular brakes.
5. Shift into 1st or reverse gear (manual transmission)
or “P” (automatic transmission) and shut off the en-
gine.

9-1
9
In case of emergency
If you park your vehicle in an emergency .. 9-2
Jack and tools ............................................... 9-3 Location of jack and tools ............................... 9-3
Removing jack and tool bag ............................ 9-3
Restoring jack and tools .................................. 9-5
Spare tire ....................................................... 9-7 Removing the spare tire ................................... 9-7
Re-storage of spare tire ................................... 9-9
Temporary spare tire .................................... 9-10 Using the temporary spare tire ........................ 9-10
Flat tires ......................................................... 9-12 Changing a flat tire ........................................... 9-12
Jump starting ................................................ 9-18 How to jump start ............................................. 9-19
Engine overheating ....................................... 9-21 If steam is coming from the engine compartment .................................................. 9-21
If no steam is coming from the engine compartment .................................................. 9-21
Towing ........................................................... 9-22 Towing and tie-down hooks ............................ 9-23
Using a flat-bed truck ....................................... 9-27
Towing with all wheels on the ground ............ 9-27

9-2
In case of emergency
In case of emergencyIf you park your vehicle in an emer-
gency
The hazard warning flasher should be used in day or
night to warn other drivers when you have to park your
vehicle under emergency conditions.
Avoid stopping on the road. It is best to safely pull off
the road if a problem occurs.
The hazard warning flasher can be activated regard-
less of the ignition switch position.
Turn on the hazard warning by pushing the hazard
warning flasher switch. Turn it off by pushing the
switch again.
NOTE
When the hazard warning flasher is on, the turn
signals do not work.
UB8002BA

9-3
In case of emergency
– CONTINUED –
Jack and tools
The jack supplied with the vehicle is designed only for
changing a tire.
Before using the jack, see the “Flat tires” section in this
chapter for instructions and precautions. „Location of jack and tools
The jack and tool bag are located in the left side rear
quarter pocket at the back si de of the rear seatback. A wheel nut wrench, jack drive tube, tire holding rod,
tire holding retainer, screwdriver and two belts are in-
cluded in the tool bag. „
Removing jack and tool bag
Before folding down the seatback, check that
there is nothing in the seatback pocket. If there
is something in the pocket, it could be damaged
or cause damage to the seatback and rear cen-
ter console when the seatback is folded.
UB9091BA
900276

9-4
In case of emergency
0
1) Red
A) LOCK
B) UNLOCK

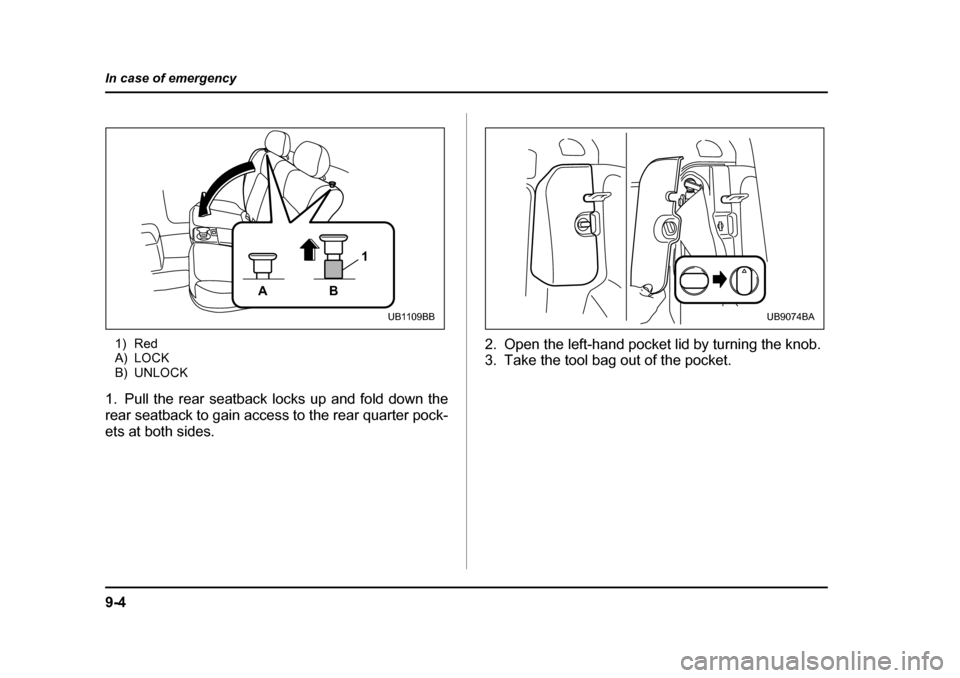

1. Pull the rear seatback locks up and fold down the
rear seatback to gain access to the rear quarter pock-
ets at both sides. 2. Open the left-hand pocket lid by turning the knob.
3. Take the tool bag out of the pocket.
1
AB
UB1109BBUB9074BA

9-5
In case of emergency
– CONTINUED –
4. Loosen the jack holding screw by turning counter-
clockwise and remove the jack from the pocket.
NOTE yBe careful not to lose the jack holding screw af-
ter removing it. y Make sure the jack is well lubricated before us-
ing it. „
Restoring jack and tools
0
1. Strap the wheel nut wrench, jack drive tube, and
tire holding rod together using the two belts, then re-
turn them to the tool bag together with the other tools.
2. Contract the jack by turning the jack screw counter-
clockwise to the end.
UB9075BA
900277

9-6
In case of emergency
3. Place the jack onto the bracket in the pocket.
4. Securely fix the jack with the jack holding screw by
turning it clockwise.
5. Install the left-hand pocket lid and lock it by turning
the knob.
NOTE
Confirm no looseness exists after securing the
jack. Looseness may cause a rattle while the vehi-
cle is moving.
After the jack and the tool bag have been re-
stored in the rear quarter pocket, make sure
that the rear seatback has been securely
locked. When securely locked, the red marks
on the locking knobs are no longer visible.
UB9076BA
UB9075CA

9-7
In case of emergency
– CONTINUED –
Spare tire

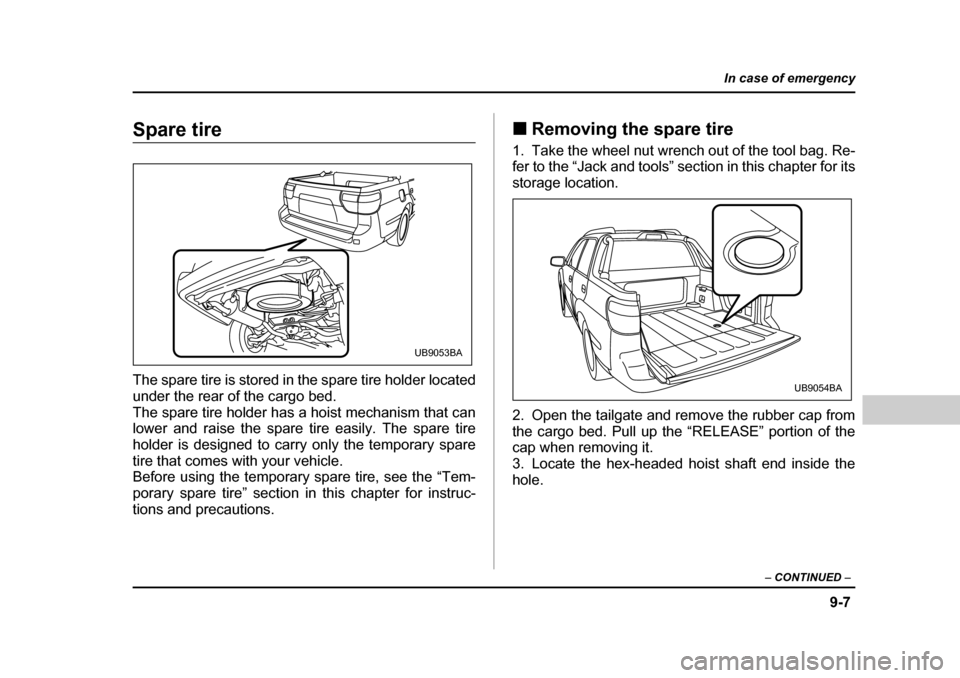

The spare tire is stored in the spare tire holder located
under the rear of the cargo bed.
The spare tire holder has a hoist mechanism that can
lower and raise the spare tire easily. The spare tire
holder is designed to carry only the temporary spare
tire that comes wi th your vehicle.
Before using the temporary spare tire, see the “Tem-
porary spare tire” section in this chapter for instruc-
tions and precautions. „
Removing the spare tire
1. Take the wheel nut wrench out of the tool bag. Re-
fer to the “Jack and tools” se ction in this chapter for its
storage location.
2. Open the tailgate and remove the rubber cap from
the cargo bed. Pull up the “RELEASE” portion of the
cap when removing it.
3. Locate the hex-headed hoist shaft end inside the
hole.
UB9053BA
UB9054BA
