2006 SUBARU BAJA Owners Manual

5-8
Audio
Display Control mode
Turn counterclockwise Turn clockwise
BAS Bass control For less bass sound For more bass sound
TRE Treble control For less treble sound For more treble sound
BAL Balance control To increase left speaker volume and
decrease right speaker volume To increase right speaker volume and
decrease left speaker volume
FAD Fader control To increase rear speaker volume and
decrease front speaker volume To increase front speaker volume and
decrease rear speaker volume
VOL Volume control For less volume For more volume
HS5014BA

5-9
Audio
– CONTINUED –
TWaveband selection
V FM/AM selection
Push the “BAND” button (2) to select FM1, FM2 or AM
reception. The display indicates which one is currently selected. T Stereo indicator
The stereo indicator “ST” will come on when an FM
stereo broadcast is received. T Tuning (TUNE)
V Manual tuning (TUNE)
Press the “ ” side of the tuning button (3) to in-
crease the tuning frequency and press the “ ” side
of the button to decrease it.
Each time the button is pressed, the frequency interval
can be changed between 10 kHz in the AM mode and
0.2 MHz in the FM mode. V Seek tuning (SEEK)
If the tuning button (3) is pressed for longer than half
of a second, the radio will begin to automatically
search for receivable frequencies and will stop at the
first one found. This function may not be available,
however, when radio signals are weak. In such a situ-
ation, perform manual tuning to select the desired sta-
tion. V
Automatic tuning (SCAN)
Press the “SCAN” button (6) to change the radio to the
SCAN mode. In this mode, the radio scans through the
radio band until a station is found. The radio will stop
at the station for five seconds while displaying the fre-
quency, after which scanning will continue until the en-
tire band has been scanned from the low end to the
high end.
Press the “SCAN” button again to cancel the SCAN
mode and to stop on any displayed frequency.
When the “SCAN” button is pressed for automatic tun-
ing, stations are scanned in the direction of low fre-
quencies to high frequencies only.
Automatic tuning may not function properly if the sta-
tion reception is weakened by distance from the sta-
tion or proximity to tall buildings and hills. T Selecting preset stations
Presetting a station with a “Preset” button (4) allows
you to select that station in a single operation. Up to
six AM, FM1 and FM2 stations each may be preset. T How to preset stations
1. Press the “BAND” button (2) to select FM1, FM2 or
AM reception.
2. Press the “SCAN” button or tune the radio manually
until the desired station frequency is displayed.
3. Press one of the “Preset” buttons for more than 2

5-10
Audio
seconds to store the frequency. At this time, there will
momentarily be no sound from the radio. If the button
is pressed for less than 2 seconds, the preceding se-
lection will remain in memory.
NOTE y
If the connection between the radio and battery
is broken for any reason such as vehicle mainte-
nance or radio removal, all stations stored in the
preset buttons are cleared. If this occurs, it is nec-
essary to reset the preset buttons. y If a cell phone is placed near the radio, it may
cause the radio to emit noise when it receives
calls. This noise does not indicate a radio fault.

5-11
Audio
– CONTINUED –

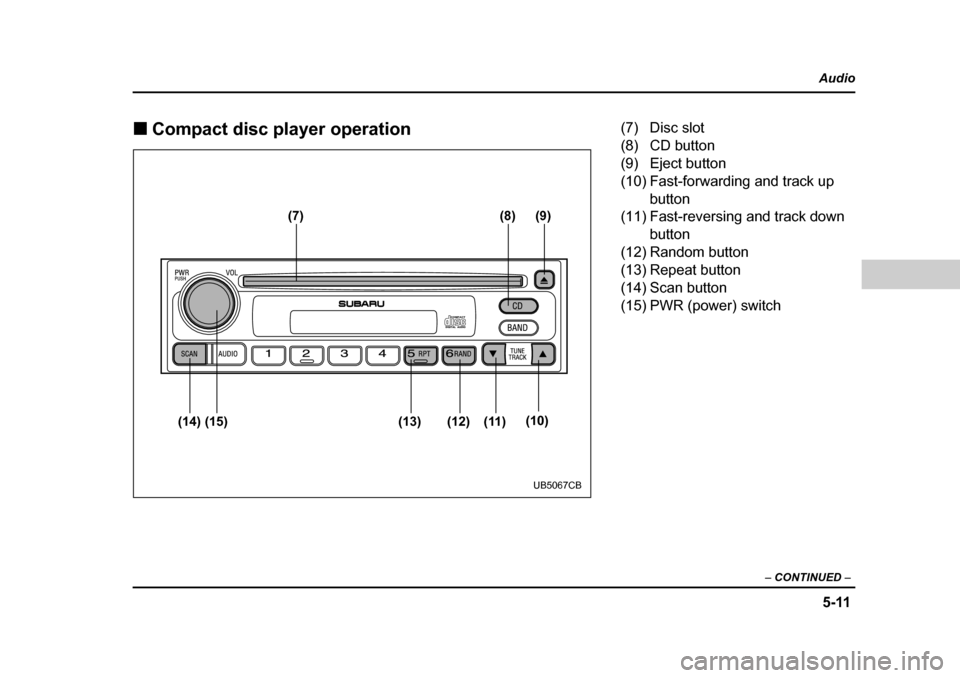

„Compact disc player operation
(8)
(7) (9)
(14) (15) (13) (12) (11) (10)
UB5067CB
(7) Disc slot
(8) CD button
(9) Eject button
(10) Fast-forwarding and track up
button
(11) Fast-reversing and track down button
(12) Random button
(13) Repeat button
(14) Scan button
(15) PWR (power) switch

5-12
Audio
T
To playback a compact disc
V When CD is not in the player
Hold a disc with a finger in the center hole while grip-
ping the edge of the disc, then insert it in to the slot
(with the label side up) and the player will automatical-
ly pull the disc into position.
A 8 cm/3 inch CD may also be used without any adapt- er.
NOTE y DO NOT INSERT TWO DISCS INTO THE DISC IN-
SERTION SLOT AT A TIME. y Make sure to always insert a disc with the label
side up. If a disc is inserted with the label side
down, it might be ejected or the player might shut off.y After the last song finish es, the player will auto-
matically return to track 1 (the first song on the
disc). V When CD is in the player
When the “CD” button (8) is pressed, the player will
start playback.
NOTE
After the last song finishes, the player will auto-
matically return to track 1 (the first song on the disc). T
To stop playback of a CD
When the “PWR” button (15) is pressed during play-
back of a CD, the CD stops pl aying temporarily. To let
the CD resume playing, press the button again. T To select a song from its beginning
V Forward direction
Briefly press the “ ” side of the button (10) to skip
to the beginning of the next track. Each time this side
of the button is pressed, the indicated track number
will increase. V Backward direction
Briefly press the “ ” side of the button (11) to skip
to the beginning of the current track. Each time this
side of the button is pressed, the indicated track num-
ber will decrease. T Fast-forwarding an d fast-reversing
V Fast-forwarding
Press the “ ” side of the button (10) continuously
to fast-forward the disc.
Release the button to stop fast-forwarding.

5-13
Audio
– CONTINUED –
VFast-reversing
Press the “ ” side of the button (11) continuously
to fast-reverse the disc.
Release the button to stop fast-reversing. T Repeat playback
Use this to play a certain track repeatedly. During
playback, press the “RPT” button (13) and release it in
less than 2 seconds. The “R PT” indicator will come on
and the song will be played continuously. To cancel
the repeat mode, press the button again. Then the
“RPT” indicator goes out, and normal playback mode
is restored. T Random playback
Use this to play the tracks on the disc in random order.
During playback, press the “RAND” button (12) and
hold it in for more than 2 seconds. The “RAND” indica-
tor will come on and all songs on the disc will be
played in a random order.
To cancel the random mode, press the button again.
Then the “RAND” indicator goes out, and normal play-
back mode is restored. T Scan
Press the “SCAN” button (14) and release it in less
than 2 seconds, and you can hear the first 10 seconds
of each track to search for the desired program. To continue listening to the program, press the “SCAN”
button again. After all tracks on the disc has been
scanned, normal playback mode is restored. T
To eject a disc from the player
When a disc is being played back or when a disc is in
the player, press the “Eject” button “ ” (9). The disc
will be ejected.
The disc may be removed even when the ignition
switch is in the “LOCK” position.
NOTE y Avoid driving the vehicle with a CD sticking out,
because vibration might make it fall out. y To protect the disc, the disc is automatically
loaded if it is left in the ejected position for more
than approximately 15 seconds (Auto Reload). In
this case, the disc is not played. „ CD changer control (if optional in dash
CD changer is connected)
An optional CD changer can be connected to this au-
dio unit. See your SUBARU dealer for more informa-
tion. For procedures for loading and unloading CDs,
refer to “In-dash 6 CD auto changer (Optional audio
unit – if equipped)” section in this chapter.

5-14
Audio
(16)
(20) (19) (18) (17)
UB5067DB
(16) CD button
(17) Track selection buttons
(18) RAND (Random) button
(19) RPT (Repeat) button
(20) SCAN button

5-15
Audio
– CONTINUED –
TTo start playback
Press the “CD” button (16). The “CD” indicator will
come on and the disc number will appear on the dis-
play and the CD changer will start playback.
NOTE y If the “CD” button is pressed during a radio
broadcast, the CD changer will interrupt the
broadcast. y At the end of the disc, playback automatically
continues with the next disc. y After playback on the last disc finishes, the play-
er will automatically re turn to the first disc.
y If you have loaded fewer than 6 discs, any miss-
ing disc is automatically skipped. T Selection of a desired disc
Discs cannot be selected using the main audio unit. To
select a disc, press one of the “Disc select” buttons
(these are numbered from 1 to 6) on the CD changer
unit. The disc will begin to play. T To select a song from its beginning
Briefly press the “ ” side of the track selection but-
ton (17) to skip to the beginning of the next track and
briefly press the “ ” side of the button to skip to the
beginning of the current track. T
Fast-forwarding and fast-reversing
Press the “ ” side of the track selection button (17)
continuously to fast-forward the disc.
Press the “ ” side of t he button continuously to
fast-reverse the disc.
Release the button to stop fast-forwarding or fast-re-versing. T Repeat playback
Press the “RPT” button (19) while a song is playing to
play the song repeatedly. The “RPT” indicator will
come on and the song will be played continuously. To
cancel the repeat mode, press the button again. Then
the “RPT” indicator goes out, and normal playbackmode is restored. T Random playback
Press the “RAND” button (18) while a disc is being
played back to play all songs on the disc in a random
order. The “RAND” indicator will come on and all
songs on the disc will be played in a random order.
To cancel the random mode, press the button again.
Then the “RAND” indicator goes out, and normal play-
back mode is restored. T Scan (a convenient way to become familiar with
a disc)
1. Press the “SCAN” button (20).
