11 - 6 0
Maintenance and service
1) Fuse puller
2) Spare fuses
The fuse puller and spare fuses are stored in the main
fuse box cover in the engine compartment. 1) Good
2) Blown
If any lights, accessories or other electrical controls do
not operate, inspect the corresponding fuse. If a fuse
has blown, replace it.
1. Turn the ignition switch to the “LOCK” position and
turn off all electrical accessories.
2. Remove the cover.
(For behind the coin tray: open the coin tray and pull it
horizontally to remove it.)
3. Determine which fuse may be blown. The back side
of each fuse box cover and the “Fuses and circuits”
section in chapter 12 in this manual show the circuit for
1
2
HSB066BB
12
B00338

11 -6 1
Maintenance and service
– CONTINUED –
each fuse.
1) Fuse puller
4. Pull out the fuse with the fuse puller.
5. Inspect the fuse. If it has blown, replace it with a
spare fuse of the same rating.
6. If the same fuse blows again , this indicates that its
system has a problem. Contact your SUBARU dealer for repairs.Main fuseMain fuse
Main fuse box
The main fuses are designed to melt during an over-
load to prevent damage to the wiring harness and
electrical equipment. Check the main fuses if any elec-
trical component fails to operate (except the starter
motor) and other fuses are good. A melted main fuse
must be replaced. Use only replacements with the
same specified rating as the melted main fuse. If a
main fuse blows after it is replaced, have the electrical
system checked by your nearest SUBARU dealer.
1
HSB068BB
UB8003CA

11 - 6 2
Maintenance and service
Installation of accessoriesAccessories
Always consult your SUBARU dealer before installing
fog lights or any other electr
ical equipment in your ve-
hicle. Such accessories may cause the electronic sys-
tem to malfunction if they ar e incorrectly installed or if
they are not suited for the vehicle.

11 -6 3
Maintenance and service
– CONTINUED –
Replacing bulbs
76
14
23
5UBF047CB

11 - 6 4
Maintenance and service
Wattage Bulb No.
1) Headlight BAJA-S 12V-65/ 55W9007 (HB5)
BAJA-B Low beam 12V-55W H1
High beam 12V-60W 9005 (HB3)
2) Front turn signal light 12V-27W 1156NA (Amber)
3) Map light 12V-8W –
4) Dome light 12V-8W –
5) Door step light 12V-3.4W –
6) Front turn signal light/ parking and front side marker light 12V-27/8W
1157NA
(Amber)
7) Front fog light 12V-51W 9006 (HB4)

11 -6 5
Maintenance and service
– CONTINUED –
1412
13
89
10 11
UBB100BB

11 - 6 6
Maintenance and service
Replace any bulb only with a new bulb of the
specified wattage. Using a bulb of different
wattage could result in a fire.
„ Headlight
„Headlights
„ Replacing bulbs
„ Headlight
Halogen headlight bulbs become very hot while
in use. If you touch the bulb surface with bare
hands or greasy gloves, finger prints or grease
on the bulb surface will develop into hot spots
and cause the bulb to break. If there are finger
prints or grease on the bulb surface, wipe them
away with a soft cloth moistened with alcohol.
NOTE
If headlight aiming is required, consult your
SUBARU dealer for proper adjustment of the head-
light aim.
Wattage Bulb No.
8) License plate light 12V-5W 168
9) Cargo light 12V-13W 912
10) High mount stop light 12V-13W 912
11) Backup light 12V-21W 7440
12) Brake rear turn signal/ tail light 12V-21/ 5W7443
13) Tail light 12V-5W 168
14) Sports activity lights 12V-55W H3

11 -6 7
Maintenance and service
– CONTINUED –
TBAJA-Sport

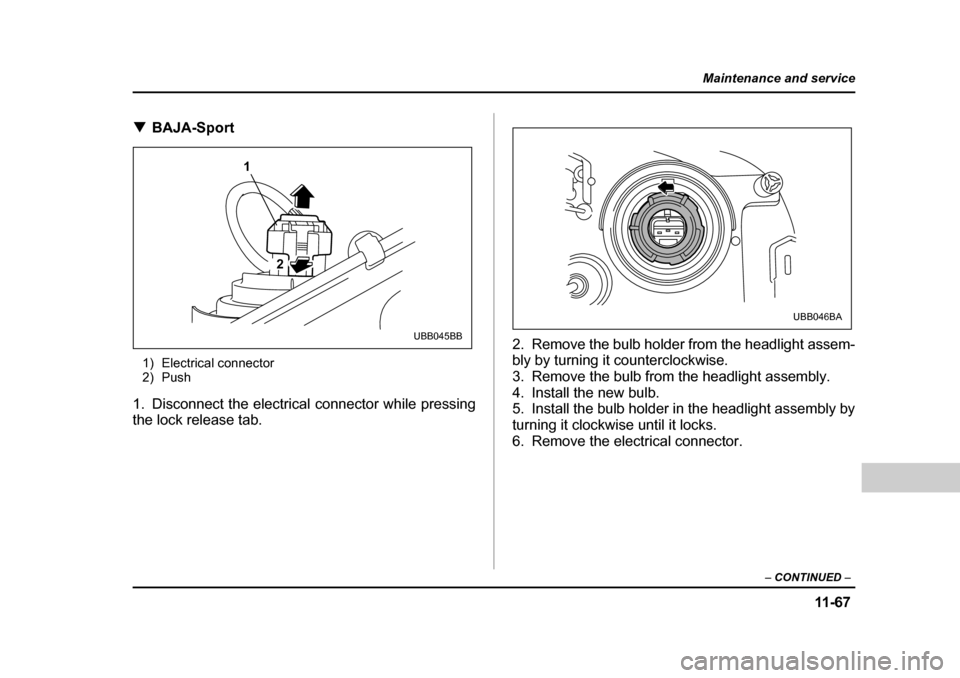

1) Electrical connector
2) Push
1. Disconnect the electrical connector while pressing
the lock release tab. 2. Remove the bulb holder from the headlight assem-
bly by turning it counterclockwise.
3. Remove the bulb from the headlight assembly.
4. Install the new bulb.
5. Install the bulb holder in the headlight assembly by
turning it clockwise until it locks.
6. Remove the electrical connector.
1
2
UBB045BB
UBB046BA
