3-26
Instruments and controls
blades.
NOTE y
The wiper operates only when the ignition
switch is in the “O N” or “ACC” position.
y Clean your wiper blades and window glass peri-
odically with a washer solution to prevent streak-
ing, and to remove accumulations of road salt or
road film. Keep the washer button depressed at
least for 1 second so that washer solution will be
sprinkled all over the windshield or rear window. y Grease, wax, insects or other material on the
windshield or the wiper blades results in jerky wip-
er operation and streaking on the glass. If you can-
not remove those streaks after operating the
washer or if the wiper operation is jerky, clean the
outer surface of the windshield or rear window
and the wiper blades using a sponge or soft cloth
with a neutral detergent or mild-abrasive cleaner.
After cleaning, rinse the window glass and wiper
blades with clean water. The glass is clean if no
beads form on the glass when you rinse with wa-ter. y If you cannot eliminate the streaking even after
following this procedure, replace the wiper blades with new ones. Refer to the “Replacement of wind- shield wiper blades” section (chapter 11) for re-
placement instructions. „
Windshield wiper and washer switches
„Windshield
„ Wiper and washer switches
TWindshield wipers
1) MIST
To turn the wipers on, push the wiper control lever
down. : Intermittent
LO: Low speed
HI: High speed
PULLLMIST
OFF
INT
LO
HI
1
UB3022BB

3-27
Instruments and controls
– CONTINUED –
To turn the wipers off, return the lever to the “OFF” po- sition. TMist (for a single wipe)
For a single wipe of the wipers, pull the lever toward
you. The wipers operate until you release the lever. T Wiper intermitten t time control (if equipped)

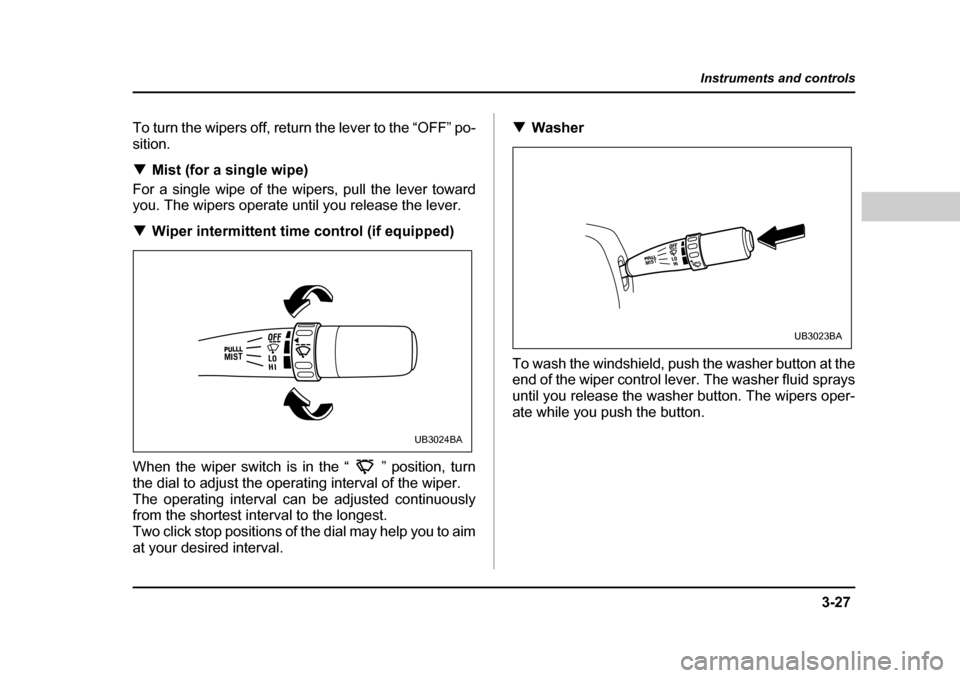

When the wiper switch is in the “ ” position, turn
the dial to adjust the operating interval of the wiper.
The operating interval can be adjusted continuously
from the shortest interval to the longest.
Two click stop positions of the dial may help you to aim
at your desired interval. T
Washer
To wash the windshield, push the washer button at the
end of the wiper control lever. The washer fluid sprays
until you release the washer button. The wipers oper-
ate while you push the button.
PULLLMIST
UB3024BA
PULLLMIST
UB3023BA

3-28
Instruments and controls
Rear window defogger buttonRear window
Defogger button
y Do not use sharp instruments or window
cleaner containing abrasives to clean the inner
surface of the rear window. They may damage
the conductors printed on the window. y To prevent the battery from being dis-
charged, do not operate the defogger continu-
ously for any longer than necessary.
The rear window defogger operates only when the ig- nition switch is in the “ON” position.
The rear window defogger bu
tton is located on the cli-
mate control panel.
To turn on the defogger, push the button. To turn it off,
push the button again.
The indicator light located on the button lights up while
the rear window defogger is operating.
The defogger will automatically shut off after approxi-
mately 15 minutes. If the window clears before that time, push the button to turn it off. It also turns off when
the ignition switch is turned to the “ACC” or “LOCK”
position. If defrosting or defogging is desired when you
restart your vehicle, you have to push the button to
turn it on again.
UB3028BA

3-29
Instruments and controls
– CONTINUED –
Windshield wiper de icer (if equipped)Windshield
Wiper deicer
To prevent the battery from being discharged,
do not operate the windshield wiper deicer con-
tinuously for any longer than necessary.
The windshield wiper deicer operates only when the
ignition switch is in the “ON” position.
Before turning on the windshield wiper deicer, remove
any snow from the windshield. To turn on the wind- shield wiper deicer, push the button. The indicator light
located on the button lights up while the windshield
wiper deicer is operating.
The windshield wiper deicer will automatically shut off
after approximately 15 minutes. If the wiper blades
have been deiced completely before that time, push
the button to turn it off. It also turns off when the igni-
tion switch is turned to the “ACC” or “LOCK” position.
If deicing is not complete when you restart your vehi-
cle, you have to push the
button to turn the deicer on
again.
UB3029BA

3-30
Instruments and controls
MirrorsMirrors
Always check that the inside and outside mirrors are
properly adjusted befor
e you start driving.

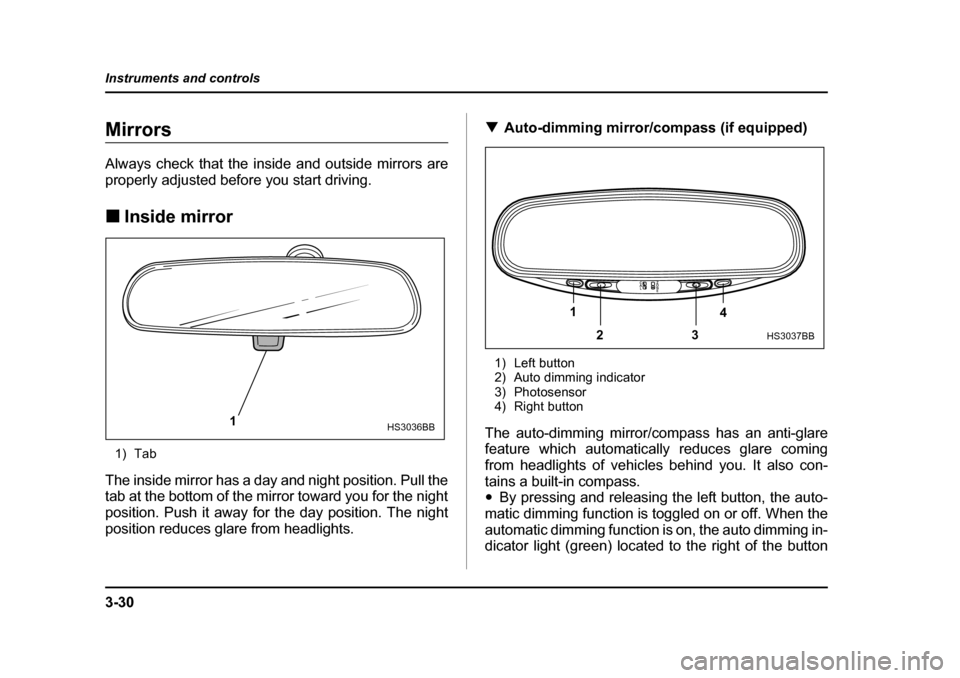

„ Inside mirror
„Inside mirror
1) Tab
The inside mirror has a day and night position. Pull the
tab at the bottom of the mirror toward you for the night
position. Push it away for the day position. The night
position reduces glare from headlights. T
Auto-dimming mirror/c ompass (if equipped)
T
Auto-dimming mirror/compass
1) Left button
2) Auto dimming indicator
3) Photosensor
4) Right button
The auto-dimming mirror/co mpass has an anti-glare
feature which automatically reduces glare coming
from headlights of vehicles behind you. It also con-
tains a built-in compass. y By pressing and releasing the left button, the auto-
matic dimming function is toggled on or off. When the
automatic dimming function is on, the auto dimming in-
dicator light (green) located to the right of the button
1HS3036BB
1
23 4
HS3037BB

3-31
Instruments and controls
– CONTINUED –
will illuminate. yBy pressing and releasing the right button, the com-
pass display is toggled on or off. When the compass is
on, an illuminated compass reading will appear in the
lower part of the mirror.
Even with the mirror in anti-glare mode, the mirror sur-
face turns bright if the trans mission is shifted into re-
verse. This is to ensure good rearward visibility during reversing. V Photosensors
The mirror has a photosensor attached on both the
front and back sides. If the glare from the headlights of
vehicles behind you strikes the mirror, these sensors detect it and make the reflection surface of the mirror
dimmer to help prevent you from being blinded. For
this reason, use care not
to cover the sensors with
stickers, or other similar items. Periodically wipe the
sensors clean using a piece of dry soft cotton cloth or

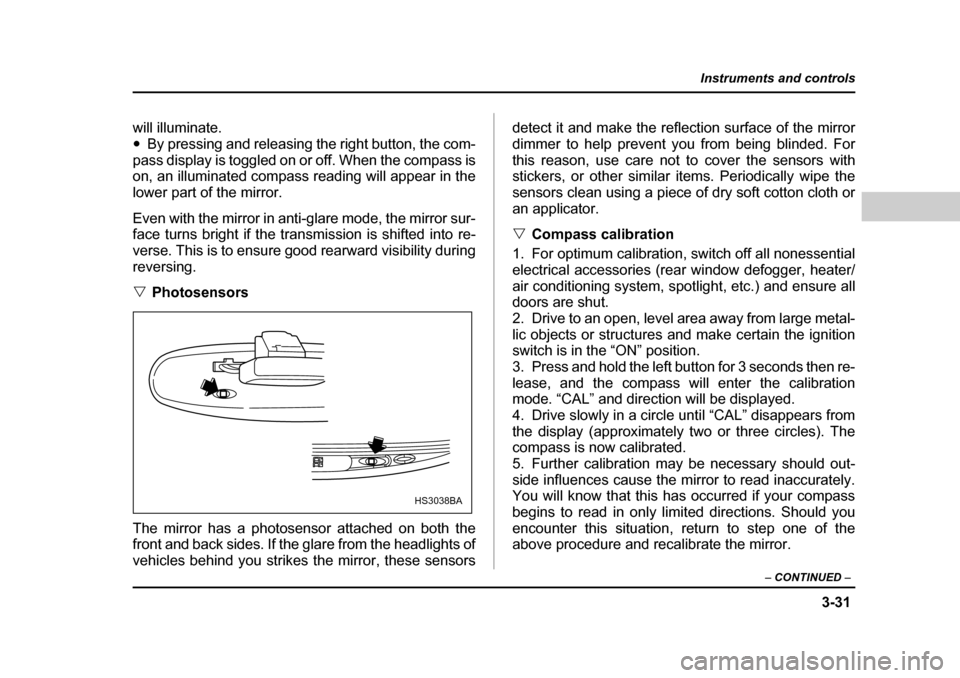

an applicator. V Compass calibration
1. For optimum calibration, switch off all nonessential
electrical accessories (rear window defogger, heater/
air conditioning system, spot light, etc.) and ensure all
doors are shut.
2. Drive to an open, level area away from large metal-
lic objects or structures and make certain the ignition
switch is in the “ON” position.
3. Press and hold the left button for 3 seconds then re-
lease, and the compass will enter the calibration
mode. “CAL” and direction will be displayed.
4. Drive slowly in a circle until “CAL” disappears from
the display (approximately two or three circles). The
compass is now calibrated.
5. Further calibration may be necessary should out-
side influences cause the mirror to read inaccurately.
You will know that this has occurred if your compass
begins to read in only limited directions. Should you
encounter this situation, return to step one of the
above procedure and recalibrate the mirror.
HS3038BA

3-32
Instruments and controls
V
Compass zone adjustment
1. The zone setting is factory preset to Zone 8. Refer
to the “Compass calibration zone” map at the end of
this manual to verify that the compass zone setting is
correct for your geographical location.
2. Press and hold the right button for 3 seconds then
release, and the word “ZONE” will briefly appear and
then the zone number will be displayed.
3. Press the right-hand button repeatedly to cycle the
display through all possible zone settings. Stop cycling
when the correct zone setting for your location is dis-
played.
4. Releasing the button for 3 seconds will exit the
zone setting mode. „ Outside mirrors
„Outside mirrors
TConvex mirror (Passenger side)
Objects look smaller in a convex mirror and far-
ther away than when viewed in a flat mirror. Do
not use the convex mirror to judge the distance
of vehicles behind you when changing lanes.
Use the inside mirror (o r glance backwards) to
determine the actual size and distance of ob-
jects that you view in convex mirror.
T Adjusting mirrors
To adjust the mirrors by hand, push where indicated
by the arrows. T Remote control mirror switch
The remote control mirrors operate only when the ig-
nition switch is in the “ON” or “ACC” position.
OM-U2737

3-33
Instruments and controls
– CONTINUED –
1) Selection switch
2) Direction control switch
1. Press either end of the se lection switch, “L” for the
left, “R” for the right.
2. Move the direction control switch in the direction you want to move the mirror.
3. Return the selection switch to the neutral position
to prevent unintentional operation.
The mirrors can also be adjusted manually. T
Outside mirror defogger (if equipped)
To prevent the battery from being discharged,
do not operate the defogger continuously for
any longer than necessary.
The outside mirror defogger operates only when the
ignition switch is in the “ON” or “ACC” position.
1) Indicator light
To turn on the outside mirror defogger, push the but-
ton while the engine is running.
1
2
UB4004BB
1
UB4004CB
