Specifications
SpecificationsSpecifications
These specifications are subj
ect to change without notice.

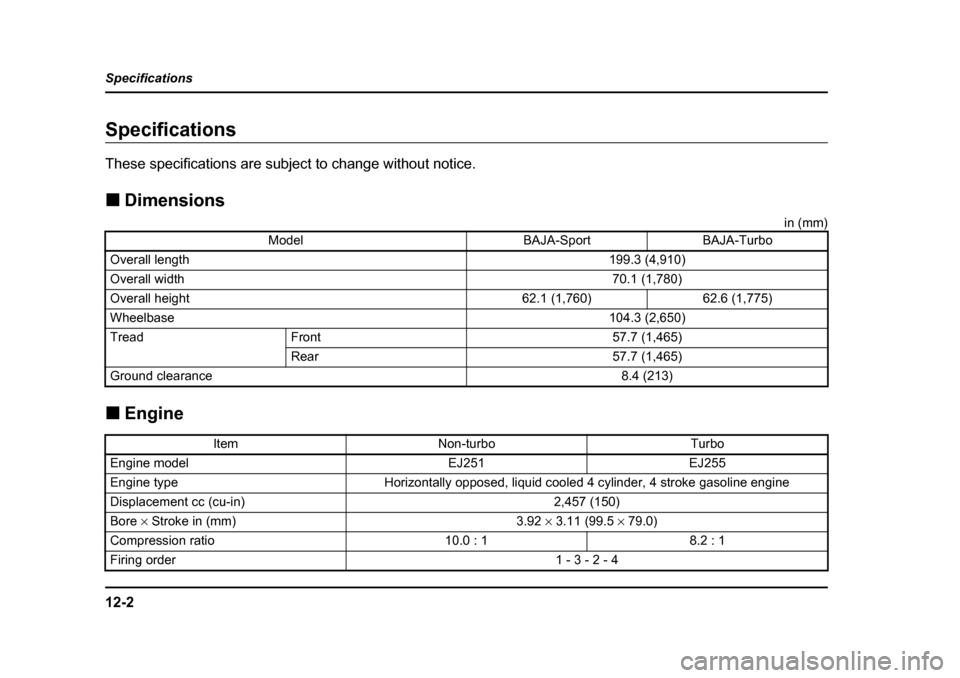

„ Dimensions
in (mm)
„ Engine
ModelBAJA-SportBAJA-Turbo
Overall length199.3 (4,910)
Overall width70.1 (1,780)
Overall height62.1 (1,760)62.6 (1,775)
Wheelbase104.3 (2,650)
TreadFront57.7 (1,465)
Rear57.7 (1,465)
Ground clearance8.4 (213)
ItemNon-turboTurbo
Engine modelEJ251EJ255
Engine typeHorizontally opposed, liquid cooled 4 cylinder, 4 stroke gasoline engine
Displacement cc (cu-in)2,457 (150)
Bore

12-3
Specifications
– CONTINUED –
„Electrical system
„ Capacities
Battery type and capacity (5HR)MT55D23L (12-48AH)
AT75D23L (12-52AH)
Alternator12V-90A
Spark plugsNon-turboRC10YC4 (Champion)
BKR6E-11 (NGK)
BKR5E-11 (NGK)
TurboILFR6B (NGK)
Fuel tank16.9 US gal (64 liters, 14.1 Imp gal)
Engine oil4.2 US qt (4.0 liters, 3.5 Imp qt)
Transmission oil (MT)3.7 US qt (3.5 liters, 3.1 Imp qt)
Transmission fluid (AT)9.8 US qt (9.3 liters, 8.2 Imp qt)
AT differential gear oil1.3 US qt (1.2 liters, 1.1 Imp qt)
Rear differential gear oil0.8 US qt (0.8 liters, 0.7 Imp qt)
Power steering fluid0.7 US qt (0.7 liters, 0.6 Imp qt)
Engine coolantNon-turboMT7.2 US qt (6.8 liters, 6.0 Imp qt)
AT7.1 US qt (6.7 liters, 5.9 Imp qt)
TurboMT8.1 US qt (7.7 liters, 6.8 Imp qt)
AT8.0 US qt (7.6 liters, 6.7 Imp qt)

12-4
Specifications „

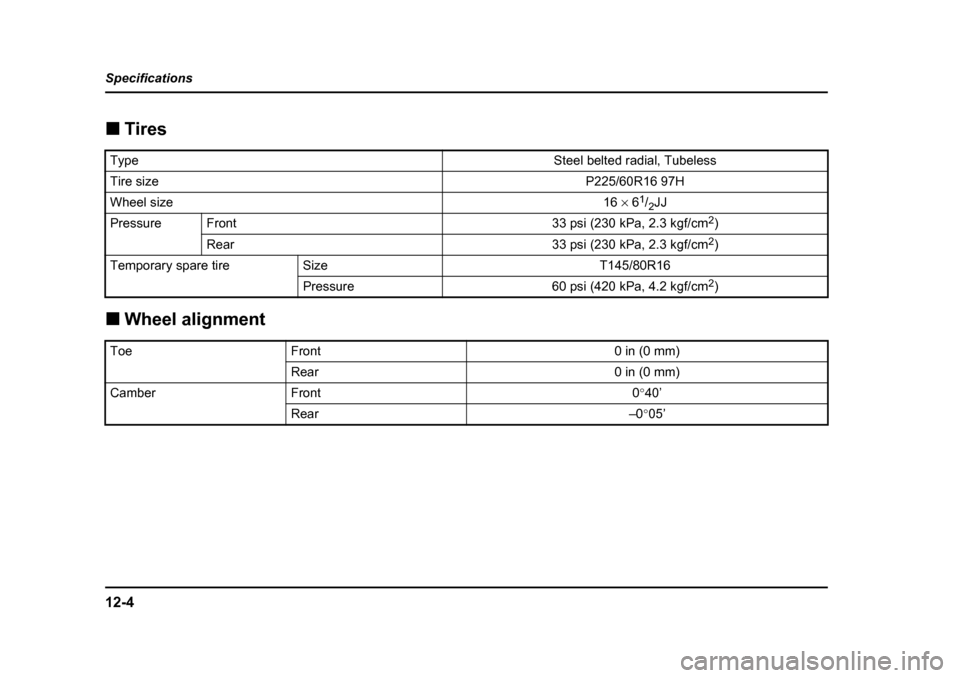

Tires
„ Wheel alignment
TypeSteel belted radial, Tubeless
Tire sizeP225/60R16 97H
Wheel size16

12-5
Specifications
– CONTINUED –

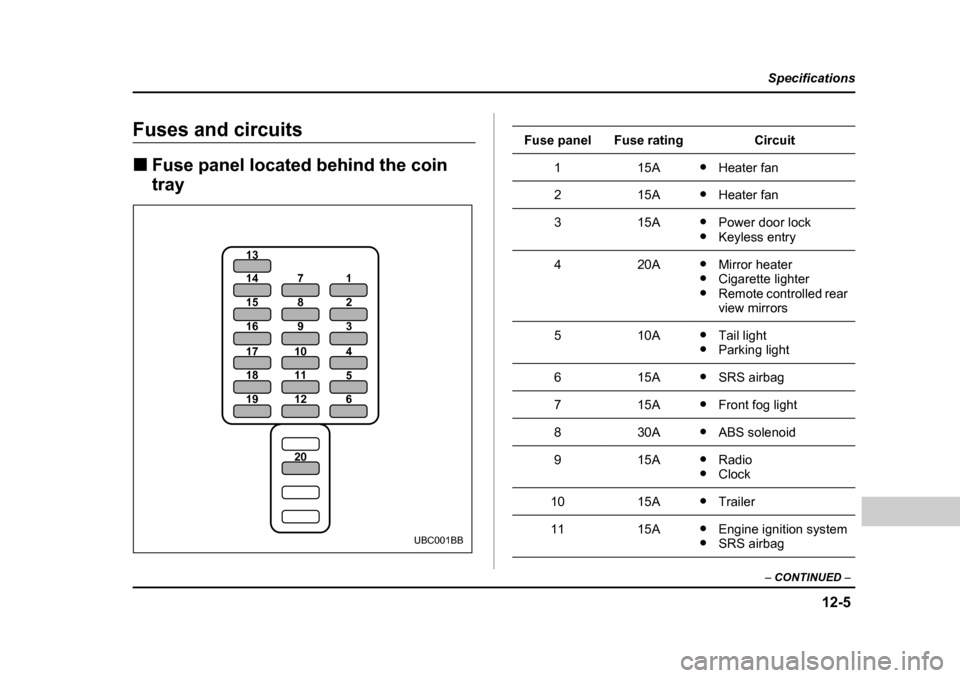

Fuses and circuits „Fuse panel located behind the coin tray
19
18
17
16
20
15
14
12
11
10 9
8
7
6
5
4
3
2
1
13
UBC001BB
Fuse panelFuse ratingCircuit
115Ay
Heater fan
215AyHeater fan
315AyPower door lock
y Keyless entry
420AyMirror heater
y Cigarette lighter
y Remote controlled rear
view mirrors
510AyTail light
y Parking light
615AySRS airbag
715AyFront fog light
830AyABS solenoid
915AyRadio
y Clock
1015AyTrailer
1115AyEngine ignition system
y SRS airbag

12-6
Specifications
„

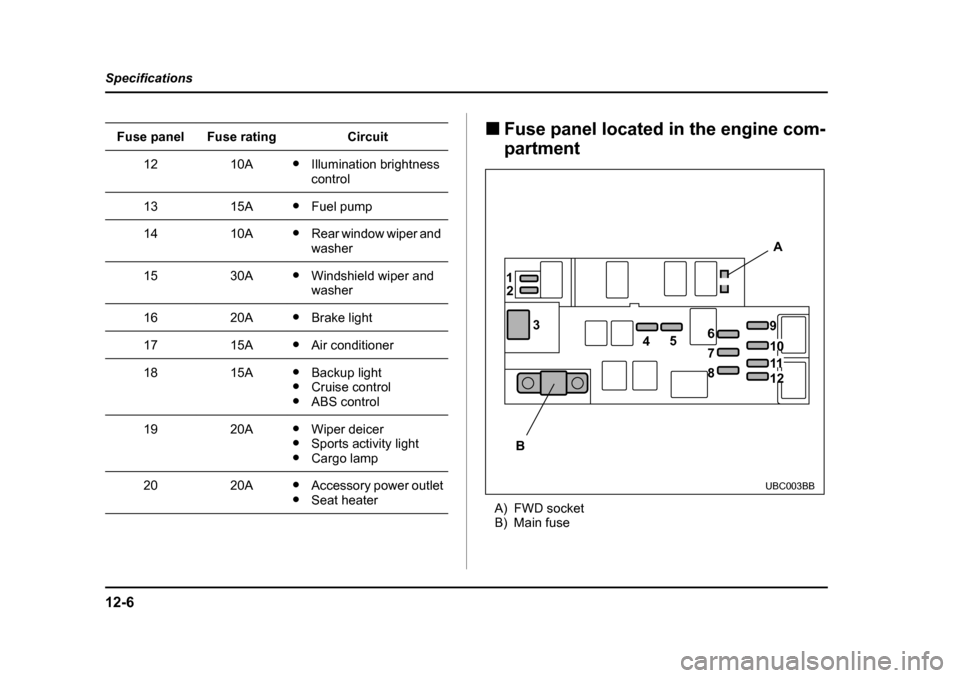

Fuse panel located in the engine com- partment
A) FWD socket
B) Main fuse
1210Ay Illumination brightness control
1315AyFuel pump
1410AyRear window wiper and washer
1530AyWindshield wiper and washer
1620AyBrake light
1715AyAir conditioner
1815AyBackup light
y Cruise control
y ABS control
1920AyWiper deicer
y Sports activity light
y Cargo lamp
2020AyAccessory power outlet
y Seat heater
Fuse panelFuse ratingCircuit
A
B
1
2
3 45 6 7 8 9 10 11 12
UBC003BB

12-7
Specifications
– CONTINUED –

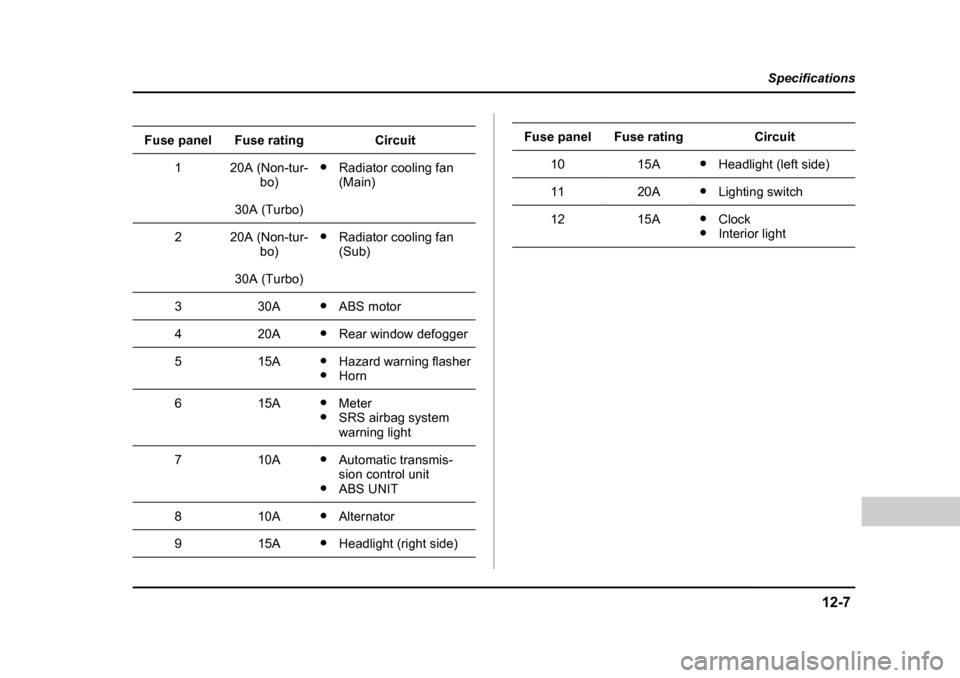

Fuse panelFuse ratingCircuit
120A (Non-tur-
bo)yRadiator cooling fan (Main)
30A (Turbo)
220A (Non-tur-
bo)yRadiator cooling fan (Sub)
30A (Turbo)
330AyABS motor
420AyRear window defogger
515AyHazard warning flasher
y Horn
615AyMeter
y SRS airbag system warning light
710AyAutomatic transmis- sion control unit
y ABS UNIT
810AyAlternator
915AyHeadlight (right side)
1015AyHeadlight (left side)
1120AyLighting switch
1215AyClock
y Interior light
Fuse panelFuse ratingCircuit

12-8
Specifications
Bulb chart
Description Wattage Bulb No.
Headlight
S models 12V-65/55W 9007 (HB5)
Except S modelsLow beam 12V-55W H1
High beam 12V-60W 9005 (HB3)
Front turn signal light 12V-27W 1156NA (Amber)
Spot light 12V-8W –
Dome light 12V-8W –
Door step light 12V-3.4W –
Parking and front
side marker light 12V-27/8W 1157NA
(Amber)
Front fog light 12V-51W 9006 (HB4)
Backup light 12V-21W 7440
High mount stop light 12V-13W 912
Brake·Rear turn sig-
nal light/Tail light 12V-21/5W 7443
Rear finisher light 12V-5W 168
License plate light 12V-5W 168
Cargo light 12V-13W 912
Sports activity light 12V-55W H3

12-9
Specifications
– CONTINUED –

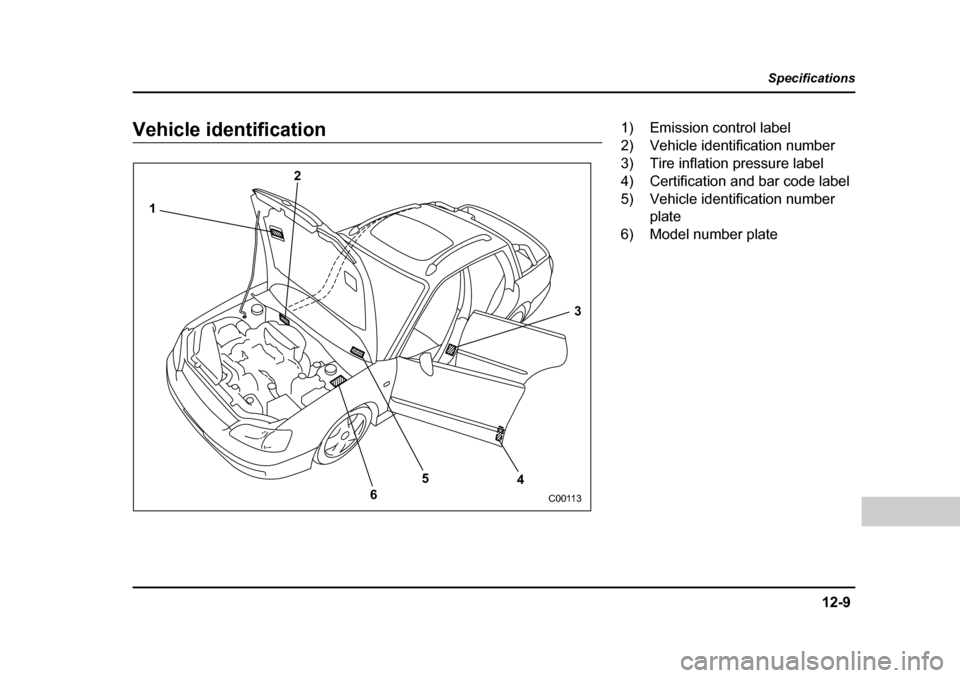

Vehicle identification
2
1
65
43
C00113
1) Emission control label
2) Vehicle identification number
3) Tire inflation pressure label
4) Certification and bar code label
5) Vehicle identification number
plate
6) Model number plate
