2006 SUBARU BAJA Owners Manual

1-48
Seat, seatbelt and SRS airbags
y
To obtain maximum protection in the event of
an accident, the driver and all passengers in the
vehicle should always wear seatbelts when the
vehicle is moving. The SRS airbag is designed
only as a supplement to the primary protection
provided by the seatbelt. It does not do away
with the need to fasten seatbelts. In combina-
tion with the seatbelts, it offers the best com-
bined protection in case of a serious accident.
Not wearing a seatbelt increases the chance of
severe injury or death in a crash even when the
vehicle has the SRS airbag.
For instructions and precautions concerning
the seatbelt system, see the “Seatbelts” sec-
tion in this chapter. y Do not sit or lean unnecessarily close to the
SRS airbag. Because the SRS airbag deploys
with considerable speed – faster than the blink
of an eye – and force to protect in high speed
collisions, the force of an airbag can injure an
occupant whose body is too close to SRS air-
bag.
It is also important to wear your seatbelt to help
avoid injuries that can result when the SRS air-
bag contacts an occupant not in proper posi- tion such as one thrown forward during pre-ac-
cident braking.
Even when properly positioned, there remains
a possibility that an occupant may suffer minor
injury such as abrasions and bruises to the
face or arms because of the SRS airbag deploy-
ment force. y
The SRS airbags deploy with considerable
speed and force. Occupants who are out of
proper position when the SRS airbag deploys
could suffer very serious injuries. Because the
SRS airbag needs enough space for deploy-
ment, the driver should always sit upright and
well back in the seat as far from the steering
wheel as practical while still maintaining full ve-
hicle control and the front passenger should
move the seat as far back as possible and sit
upright and well back in the seat. y Do not place any objects over or near the
SRS airbag cover or between you and the SRS
airbag. If the SRS airbag deploys, those objects
could interfere with its proper operation and
could be propelled inside the vehicle and cause
injury.

1-49
Seat, seatbelt and SRS airbags
– CONTINUED –
Put children aged 12 and under in the rear seat
properly restrained at all times. The SRS airbag
deploys with considerable speed and force and
can injure or even kill children, especially if
they are 12 years of age and under and are not
restrained or improperly restrained. Because
children are lighter and weaker than adults,
their risk of being injured from deployment is
greater.
Consequently, we strongly recommend that
ALL children (including those in child seats and
those that have outgrown child restraint devic- es) sit in the REAR seat properly restrained at
all times in a child restraint device or in a seat-
belt, whichever is appropriate for the child’s
age, height and weight.
Secure ALL types of child restraint devices (in-
cluding forward facing child seats) in the REAR
seats at all times.
According to accident st
atistics, children are
safer when properly restrained in the rear seat-
ing positions than in the front seating posi- tions.
For instructions and precautions concerning
the child restraint system, see the “Child re-
straint systems” section in this chapter.y NEVER INSTALL A REARWARD FACING
CHILD SEAT IN THE FRONT SEAT. DOING SO
RISKS SERIOUS INJURY OR DEATH TO THE
CHILD BY PLACING TH E CHILD’S HEAD TOO
CLOSE TO THE SRS AIRBAG.y Never allow a child to stand up, or to kneel on
the front passenger’s seat, or never hold a child
on your lap or in your arms. The SRS airbag de-
ploys with considerable force and can injure or
even kill the child.
HS1034BA

1-50
Seat, seatbelt and SRS airbags
y
When the SRS airbag deploys, some smoke
will be released. This smoke could cause
breathing problems for people with a history of
asthma or other breathing trouble. If you or
your passengers have breathing problems after
SRS airbag deploys, get fresh air promptly. y A deploying SRS airbag releases hot gas. Oc-
cupants could get burned if they come into di-
rect contact with the hot gas.
NOTE
When you sell your vehicle, we urge you to explain
to the buyer that it is equipped with SRS airbags
by alerting him or her to the applicable section in this owner’s manual.

1-51
Seat, seatbelt and SRS airbags
– CONTINUED –

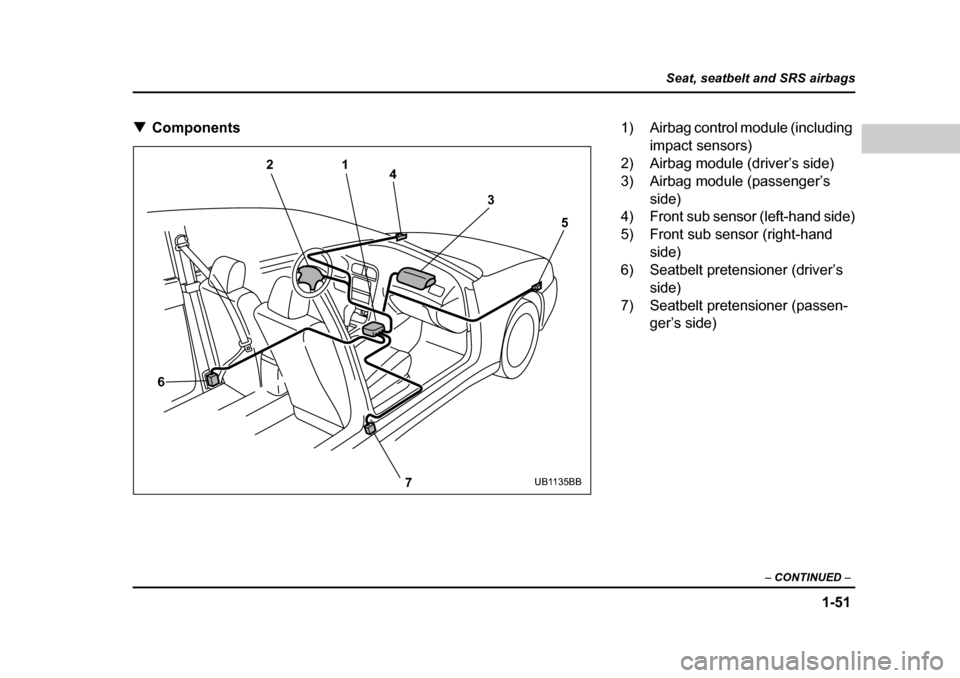

TComponents
21
4
35
7
6
UB1135BB
1) Airbag control module (including
impact sensors)
2) Airbag module (driver’s side)
3) Airbag module (passenger’s
side)
4) Front sub sensor (left-hand side)
5) Front sub sensor (right-hand
side)
6) Seatbelt pretensioner (driver’s side)
7) Seatbelt pretensioner (passen- ger’s side)

1-52
Seat, seatbelt and SRS airbags
„
SRS frontal airbag
The driver’s SRS frontal airbag is stowed in the center
portion of the steering wh eel. The passenger’s SRS
frontal airbag is stowed near the top of the dashboard
under an “SRS AIRBAG” mark.
In a moderate to severe frontal collision, the driver’s
and front passenger’s SRS frontal airbags deploy and
supplement the seatbelts by reducing the impact on
the driver’s and front passenger’s head and chest.
NEVER INSTALL A REARWARD FACING CHILD
SAFETY SEAT IN THE FRONT SEAT. DOING SO RISKS SERIOUS INJURY OR DEATH TO THE
CHILD BY PLACING THE CHILD’S HEAD TOO
CLOSE TO THE SRS AIRBAG.
Never allow a child to stand up, or to kneel on
the front passenger’s seat. The SRS airbag de-
ploys with considerable force and can injure or
even kill the child.
HS1072BA
HS1070BA

1-53
Seat, seatbelt and SRS airbags
– CONTINUED –
Never hold a child on your lap or in your arms.
The SRS airbag deploys with considerable
force and can injure or even kill the child.
The SRS airbag deploys with considerable
speed and force. Occupants who are out of
proper position when the SRS airbag deploys
could suffer very serious injuries. Because the
SRS airbag needs enough space for deploy-
ment, the driver should always sit upright and
well back in the seat as far from the steering
wheel as practical while still maintaining full ve-
hicle control and the front passenger should
move the seat as far back as possible and sit
upright and well back in the seat.
It is also important to wear your seatbelt to help
HS1069BAHS1084BA

1-54
Seat, seatbelt and SRS airbags
avoid injuries that can result when the SRS air-
bag contacts an occupant not in proper posi-
tion such as one thrown
toward the front of the
vehicle during pre-accident braking.
Do not put any objects over the steering wheel
pad and dashboard. If the SRS frontal airbag
deploys, those objects could interfere with its
proper operation and could be propelled inside
the vehicle and cause injury.
Do not attach accessories to the windshield, or
fit an extra-wide mirror over the rear view mir-
ror. If the SRS airbag deploys, those objects
could become projectiles that could seriously
injure vehicle occupants.
HS1085BA
HS1086BA

1-55
Seat, seatbelt and SRS airbags
– CONTINUED –
TOperation
A) Driver’s side
B) Passenger’s side
1) SRS airbags deploy as s oon as a collision occurs.
2) After deployment, SRS airbags start to deflate immediat ely so that the driver’s vision is not obstructed.
A
B
1
2
HS1087BB
