2006 SUBARU BAJA Owners Manual

7-12
Starting and operating
Manual transmission
Do not drive the vehicle with the clutch disen-
gaged (i.e., when the clutch pedal is depressed)or with the shift lever
in the neutral position.
Engine braking has no effect in either of these
conditions and the risk of an accident is conse-
quently increased.
Shift into reverse ONLY when the vehicle has
completely stopped. It may cause damage to
the transmission to try shifting into reverse
when the vehicle is moving.

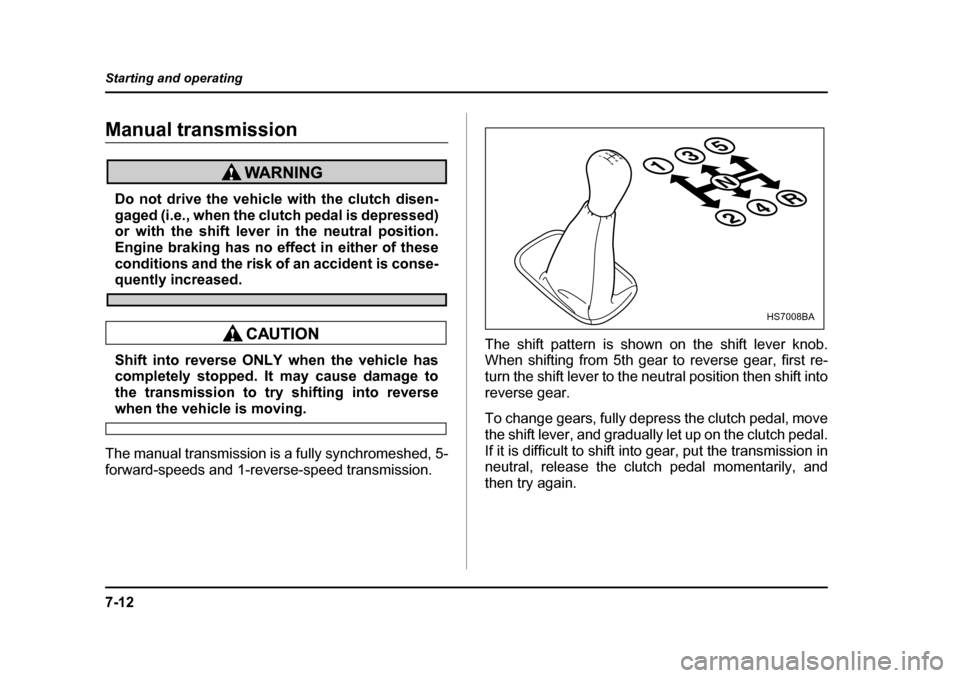

The manual transmission is a fully synchromeshed, 5-
forward-speeds and 1-reverse-speed transmission. The shift pattern is shown on the shift lever knob.
When shifting from 5th gear to reverse gear, first re-
turn the shift lever to the neu
tral position then shift into
reverse gear.
To change gears, fully depress the clutch pedal, move
the shift lever, and gradually let up on the clutch pedal.
If it is difficult to shift in to gear, put the transmission in
neutral, release the clut ch pedal momentarily, and
then try again.
135
24R
N
13524R
HS7008BA

7-13
Starting and operating
– CONTINUED –
„Shifting speeds
T Recommended shifting speeds
The best compromise between fuel economy and ve-
hicle performance during normal driving is ensured by
shifting up at the speeds listed in the following table. T Maximum allowable speeds
When shifting down a gear, ensure that the ve-
hicle is not travelling at a speed exceeding the
Maximum Allowable Speed for the gear which
is about to be selected. Failure to observe this
precaution can lead to engine over-revving and
this in turn can result in engine damage.
In addition, sudden application of engine
brakes when the vehicle is travelling on a slip- pery surface can lead to wheel locking; as a
consequence, control of the vehicle may be lost
and the risk of an accident increased.
The following table shows the maximum speeds that
are possible with each different gear.
Never exceed the speed limit below for each gear po-
sition except for brief acceleration in an emergency.
The tachometer’s needle wi ll enter the red area if
these speeds are exceeded. Failure to observe this
precaution can lead to excessive engine wear and
poor fuel economy.
mph (km/h)
Never exceed posted speed limits.
Shift up mph (km/h)
1st to 2nd 15 (24)
2nd to 3rd 25 (40)
3rd to 4th 40 (65)4th to 5th 45 (73)
Gear Non-turbo models Turbo models 1st 31 (50) 29 (47)
2nd 52 (84) 48 (78)
3rd 74 (119) 71 (114)

7-14
Starting and operating
„
Driving tips
Do not drive with your foot resting on the clutch pedal
and do not use the clutch to hold your vehicle at a
standstill on an upgrade. Either of those actions may
cause clutch damage.
Do not drive with your hand resting on the shift lever.
This may cause wear on the transmission compo-
nents.
When it is necessary to reduce vehicle speed due to
slow traffic, turning corners, or driving up steep hills,
downshift to a lower gear before the engine starts to
labor.
On steep downgrades, downshift the transmission to
4th, 3rd or 2nd gear as necessary; this helps to main-
tain a safe speed and to extend brake pad life.
In this way, the engine provides a braking effect. Re-
member, if you “ride” (over use) the brakes while de-
scending a hill, they may overheat and not work prop- erly.
The engine may, on rare occasions, knock when the
vehicle rapidly accelerates or rapidly pulls away from
a standstill. This phenomenon does not indicate afault. Automatic transmission (Non-turbo
models)
Do not shift from the “P
” or “N” position into
the “D”, “3”, “2”, “1” or “R” position while de-
pressing the accelerator pedal. This may cause
the vehicle to jump forward or backward.
y Shift into the “P” or “R” position only after
the vehicle is completely stopped. Shifting
while the vehicle is moving may cause damage
to the transmission.y Do not race the engine for more than five sec-
onds in any position except the “N” or “P” po-
sition when the brake is set or when chocks are
used in the wheels. This may cause the auto-
matic transmission fluid to overheat.
y Avoid shifting from one of the forward driving
positions into the “R” position or vice versa un-
til the vehicle has completely stopped. Such
shifting may cause damage to the transmis-
sion.

7-15
Starting and operating
– CONTINUED –
yWhen parking the vehicle, first securely apply
the parking brake and then place the selector
lever in the “P” position. Avoid parking for a
long time with the selector lever in any other
position as doing so could result in a dead bat-
tery.
The automatic transmission is electronically controlled
and provides 4 forward speeds and 1 reverse speed.
NOTE y When the engine coolant temperature is still
low, your vehicle’s automatic transmission will
up-shift at higher engine speeds than when the
coolant temperature is suffi ciently high in order to
shorten the warm-up time and improve driveabili-
ty. The gearshift timing wil l automatically shift to
the normal timing after the engine has warmed up.
y Immediately after a disconnected battery is re-
connected or ATF (automatic transmission fluid)
is replaced, you may feel that the automatic trans-
mission operation is somewhat unusual.
This results from invalidation of data the on-board
computer has collected and stored in memory to
allow the transmission to shift at the most appro-
priate times for the current condition of your vehi-
cle. Optimized shifting will be restored as the vehi- cle continues to be driven for a while. „
Selector lever
P
RND321
HS7009AA

7-16
Starting and operating

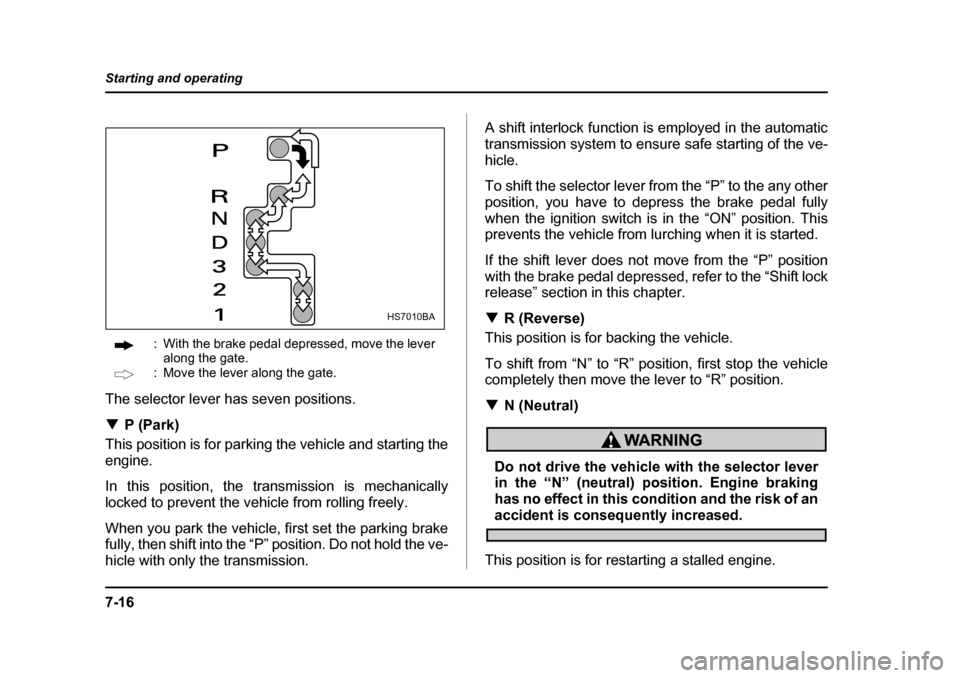

: With the brake pedal depressed, move the lever
along the gate.
: Move the lever along the gate.
The selector lever has seven positions.
T P (Park)
This position is for parking the vehicle and starting the
engine.
In this position, the transmission is mechanically
locked to prevent the vehicle from rolling freely.
When you park the vehicle, first set the parking brake
fully, then shift into the “P” position. Do not hold the ve-
hicle with only the transmission. A shift interlock function is employed in the automatictransmission system to ensure
safe starting of the ve-
hicle.
To shift the selector lever from the “P” to the any other
position, you have to depress the brake pedal fully
when the ignition switch is in the “ON” position. This
prevents the vehicle from lu rching when it is started.
If the shift lever does not move from the “P” position
with the brake pedal depressed, refer to the “Shift lock
release” section in this chapter.
T R (Reverse)
This position is for backing the vehicle.
To shift from “N” to “R” posi tion, first stop the vehicle
completely then move the lever to “R” position.T N (Neutral)
Do not drive the vehicle with the selector lever
in the “N” (neutral) po sition. Engine braking
has no effect in this condition and the risk of an
accident is consequently increased.
This position is for restarting a stalled engine.
HS7010BA

7-17
Starting and operating
– CONTINUED –
In this position the wheels and transmission are not
locked. In this position, the transmission is neutral; the
vehicle will roll freely, even on the slightest incline un-
less the parking brake or foot brake is on.
Avoid coasting with the transmission neutral.
During coasting, the engine braking does not act. T D (Drive)
This position is for normal driving.
The transmission automatically shifts into a suitable
gear from 1st to 4th according to the vehicle speed
and the acceleration you require.
When more acceleration is required in this position,
press the accelerator pedal fully to the floor and hold
that position. The transmission will automatically
downshift to 3rd, 2nd or 1st gear. When you release
the pedal, the transmission will return to the original
gear position. V While climbing a grade
When driving up a hill, undesired upshift to 4th gear is
prevented from taking place when the accelerator is
released. This minimizes the chance of subsequent
downshifting to a lower gear when accelerating again.
This prevents repeated upshifting and downshifting re-
sulting in a smoother operation of the vehicle.NOTE
The transmission may downshift to 2nd or 1st
gear, depending on the way the accelerator pedal
is pressed to accelerate the vehicle again. V While going down a hill
When descending a steep hill, depressing the brake
pedal will cause the transmission to downshift to 3rd
gear, thus applying engine braking. Reacceleration for
a short time will cause the transmission to upshift nor- mally.
NOTE
In some cases, depressing the brake pedal on a
downhill grade does not result in an automatic
downshift to 3rd gear. This can happen when the
automatic transmission fluid temperature is very
low, for example, during driving shortly after the
vehicle has been parked for an extended period of
time. When the ATF temperature has risen to a cer-tain level, automatic downshift normally takes
place. In the meantime, downshift manually for en-
gine braking as required.
Also, downshifting when braking downhill will not
occur at speeds above approximately 50 mph (80 km/h).

7-18
Starting and operating
T
3 (Third)
This position is for using engine braking when going
down a hill or for climbing a grade.
The transmission automatica lly shifts into a suitable
gear from 1st to 3rd according to the vehicle speed
and the acceleration you require.
When more acceleration is required in this position,
press the accelerator pedal fully to the floor and hold
that position. The transmission will automatically
downshift to 2nd or 1st gear. When you release the
pedal, the transmission will return to the original gear
position. T 2 (Second)
This position is for using engine braking when going
down a hill or for climbing a steep grade.
In this position, the transm ission holds in the 2nd gear.
Use this position when starting off from a standstill on
slippery road surfaces such as mud or snow. It will en-
sure greater traction. T 1 (First)
This position is for driving up or down very steep
grades, or driving through mud or sand, or on slippery
surfaces. In this position, the transmission holds in the
1st gear. T
Maximum speeds
When shifting down a gear, ensure that the ve-
hicle is not travelling at a speed exceeding the
Maximum Allowable Speed for the gear which
is about to be selected. Failure to observe this
precaution can lead to engine over-revving and
this in turn can result in engine damage.
In addition, sudden application of engine
brakes when the vehicle is travelling on a slip-
pery surface can lead to wheel locking; as a
consequence, control of the vehicle may be lost
and the risk of an accident increased.
The following tables show the maximum speeds that
are possible with each different gear.
When shifting down a gear, it is important to confirm
that the current vehicle spee d is not in excess of the
Maximum Allowable Speed of the gear which is about
to be selected.

7-19
Starting and operating
– CONTINUED –
mph (km/h)
Never exceed posted speed limits.
NOTE y In order to prevent over-revving during acceler-
ation of the vehicle, the transmission will automat-
ically shift to the next highest gear if the Maximum
Allowable Speed for the current gear is exceeded.y Similarly, in order to prevent over-revving dur-
ing deceleration of the ve hicle, the transmission
will remain in the current gear if the speed of the
vehicle is in excess of the Maximum Allowable
Speed for the gear to which the selector lever has
been moved. „ Driving tips
y Always apply the foot or parking brake when the ve-
hicle is stopped in the “D”, “3 ”, “2”, “1” or “R” position.
y Always set the parking brake when parking your ve- hicle. Do not hold the vehicle with only the transmis- sion.y
Do not keep the vehicle in a stationary position on
an uphill grade by using the “D”, “3”, “2”, or “1” position.
Use the brake instead.
The engine may, on rare occasions, knock when the
vehicle rapidly accelerates or rapidly pulls away from
a standstill. This phenomenon does not indicate a
fault. „ Shift lock release
If the selector lever does not move from the “P” posi-
tion with the brake pedal depressed and the ignition
switch in the “ON” posit ion, perform the following
steps:
To override the shift lock:
1. Set the parking brake and stop the engine.
2. Take out the screwdriver from the tool bag.
3. Remove the cover by prying on the edge with the
flat-head screwdriver.
Position Non-turbo models
1 23 (38)
2 55 (89)
3 91 (147)
