2006 SUBARU BAJA Owners Manual

11 - 5 2
Maintenance and service
shown on the tire placard.
Using tires of a non-specified size detracts from con-
trollability, ride comfort, braking performance, speed-
ometer accuracy and odometer accuracy. It also cre-
ates incorrect body-to-tire
clearances and inappropri-
ately changes the vehicle’s ground clearance.
All four tires must be the same in terms of manufactur-
er, brand (tread pattern), construction, and size. You
are advised to replace the ti res with new ones that are
identical to those fitted as standard equipment.
For safe vehicle operation, SUBARU recommends re-
placing all four tires at the same time.
y All four tires must be the same in terms of
manufacturer, brand (trea d pattern), construc-
tion, degree of wear, speed symbol, load index
and size. Mixing tires of different types, sizes or
degrees of wear can result in damage to the ve-
hicle’s power train. Use of different types or siz-
es of tires can also dangerously reduce control-
lability and braking performance and can lead
to an accident. y Use only radial tires. Do not use radial tires
together with belted bias tires and/or bias-ply tires. Doing so can dangerously reduce control-
lability, resulting in an accident.
„ Wheel replacement
„Wheel
„ ReplacementWhen replacing wheels due, for example, to damage,
make sure the replacement wheels match the specifi-
cations of the wheels that are fitted as standard equip-
ment. Replacement wheels are available from
SUBARU dealers.
Use only those wheels that are specified for
your vehicle. Wheels not meeting specifica-
tions could interfere with brake caliper opera-
tion and may cause the tires to rub against the
wheel well housing during turns. The resulting
loss of vehicle control could lead to an acci-
dent.

11 -5 3
Maintenance and service
– CONTINUED –
Aluminum wheelsAluminum wheels
Aluminum wheels can be scratched and damaged
easily. Handle them carefully to maintain their appear-
ance, performance, and safety. yWhen any of the wheels is removed and replaced
for tire rotation or to c hange a flat, always check the
tightness of the wheel nuts after driving approximately
600 miles (1,000 km). If any nut is loose, tighten it to
the specified torque. y Never apply oil to the threaded parts, wheel nuts, or
tapered surface of the wheel.y Never let the wheel rub against sharp protrusions or
curbs. y Be sure to fit tire chains on uniformly and completely
around the tire, otherwise t he chains may scratch the
wheel. y When wheel nuts, balance weights, or the center
cap is replaced, be sure to replace them with genuine
SUBARU parts designed for aluminum wheels.
Windshield washer fluidWindshield
Washer fluid
Never use engine coolant as washer fluid be-
cause it could cause paint damage.
Check the level of the washer fluid at each fuel stop. If
the level is low, fill the fluid up to the neck of the reser- voir.
Use windshield washer fluid. If windshield washer fluid
is unavailable use clean water.
In areas where water freezes in winter, use an anti-
UBB004IA

11 - 5 4
Maintenance and service
freeze type windshield washer fluid. SUBARU Wind-
shield Washer Fluid contains 58.5% methyl alcohol
and 41.5% surfactant, by volume. Its freezing temper-
ature varies according to how much it is diluted, as in-
dicated in the following table.
In order to prevent freezing of washer fluid, check the
freezing temperatures in the table above when adjust-
ing the fluid concentration
to the outside temperature.
If you fill the reservoir tank with a fluid with a different
concentration from the one used previously, purge the
old fluid from the piping between the reservoir tank
and washer nozzles by operating the washer for a cer-
tain period of time. Otherwis e, if the concentration of
the fluid remaining in the piping is too low for the out-
side temperature, it may freeze and block the nozzles.
Adjust the washer fluid concentration appropri-
ately for the outside temperature. If the concen- tration is inappropriate,
sprayed washer fluid
may freeze on the windshield and obstruct your
view, and the fluid may freeze in the reservoir
tank.
Washer Fluid Concentration Freezing Temperature 30% 10.4 °F (–12 °C)
50% –4 °F (–20 °C)
100% –49 °F (–45 °C)

11 -5 5
Maintenance and service
– CONTINUED –
Replacement of windshield wiper
bladesReplacement
Windshield wiper blades
Grease, wax, insects, or other materials on the wind-
shield or the wiper blade results in jerky wiper opera-
tion and streaking on the glass. If you cannot remove
the streaks after operating the windshield washer or if
the wiper operation is jerky, clean the outer surface of
the windshield (or rear window) and the wiper blades
using a sponge or soft clot h with a neutral detergent or
mild-abrasive cleaner. After cleaning, rinse the wind-
shield and wiper blades with clean water. The wind-
shield is clean if beads do not form when you rinse the
windshield with water.
Do not clean the wiper blades with gasoline or
a solvent, such as paint thinner or benzene.
This will cause deterioration of the wiper
blades.
If you cannot eliminate the streaking even after follow-
ing this method, replace the wiper blades using the fol-
lowing procedures:
1. Raise the wiper arm off the windshield. 1) Stopper
2. Remove the wiper blade assembly by holding its
pivot area and pushing it in the direction shown by the
arrow while depressing the wiper blade stopper.
1
UGB133BB

11 - 5 6
Maintenance and service
1) Metal support
3. Grasp the locked end of the blade rubber assembly
and pull it firmly until the stoppers on the rubber are
free of the metal support. 1) Metal spines
4. If the new blade rubber is not provided with two
metal spines, remove the metal spines from the old
blade rubber and install them in the new blade rubber.
1
HSB059BB
1
HSB060BB

11 -5 7
Maintenance and service
– CONTINUED –

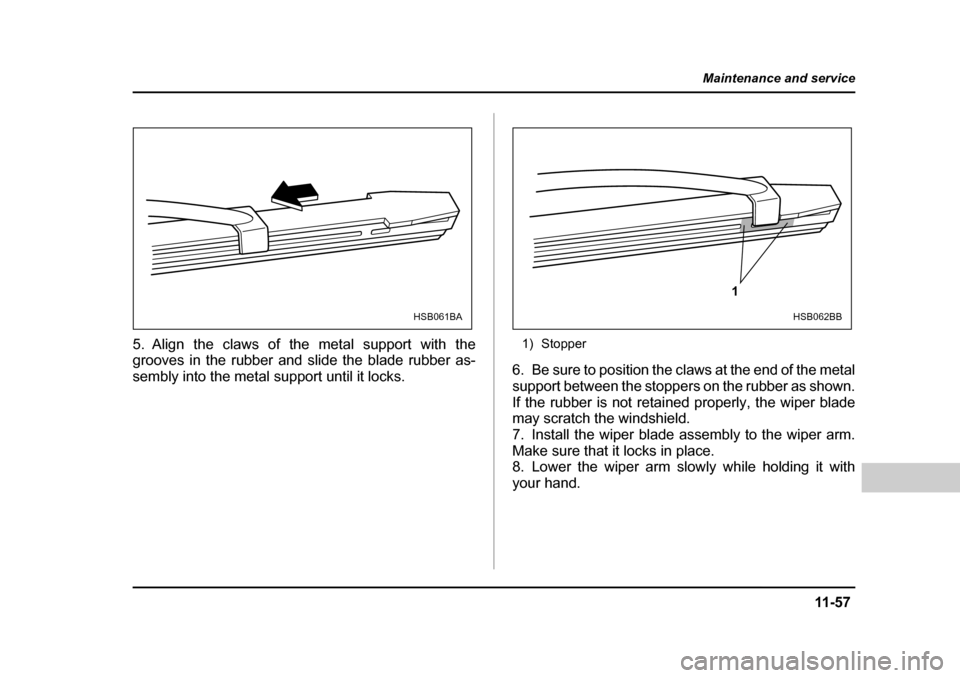

5. Align the claws of the metal support with the
grooves in the rubber and slide the blade rubber as-
sembly into the metal support until it locks. 1) Stopper
6. Be sure to position the claws at the end of the metal
support between the stoppers on the rubber as shown.
If the rubber is not retai ned properly, the wiper blade
may scratch the windshield.
7. Install the wiper blade assembly to the wiper arm.
Make sure that it locks in place.
8. Lower the wiper arm slowly while holding it with
your hand.
HSB061BA
1
HSB062BB

11 - 5 8
Maintenance and service
BatteryBattery
y
Before beginning work on or near any bat-
tery, be sure to extingui sh all cigarettes, match-
es, and lighters. Never expose a battery to an
open flame or electric sp arks. Batteries give off
a gas which is highly flammable and explosive. y For safety, in case an explosion does occur,
wear eye protection or shield your eyes when
working near any battery. Never lean over a bat-tery. y Do not let battery fluid contact eyes, skin,
fabrics, or paint becaus e battery fluid is a cor-
rosive acid. If battery fluid gets on your skin or
in your eyes, immediat ely flush the area with
water thoroughly. Seek medical help immedi-
ately if acid has entered the eyes.
If battery fluid is accid entally swallowed, imme-
diately drink a large amount of milk or water,
and seek medical attention immediately. y To lessen the risk of sparks, remove rings,
metal watchbands, and other metal jewelry.
Never allow metal tools to contact the positive
battery terminal and anything connected to it
WHILE you are at the same time in contact with any other metallic portion of the vehicle be-
cause a short circuit will result.y
Keep everyone including children away from
the battery.y Charge the battery in a well-ventilated area.
y Battery posts terminals and related accesso-
ries contain lead and lead compounds, chemi-
cals known to the State of California to cause
cancer and reproductive harm. Batteries also
contain other chemicals known to the State of
California to cause cancer. Wash hands after
handling.
It is unnecessary to periodically check the battery fluid
level or periodically refill with distilled water.
Never use more than 10 amperes when charg-
ing the battery because it will shorten battery
life.

11 -5 9
Maintenance and service
– CONTINUED –
FusesFuses
Never replace a fuse with one having a higher
rating or with material other than a fuse be-
cause serious damage or a fire could result.
The fuses are designed to melt during an overload to
prevent damage to the wiring harness and electrical
equipment. The fuses are located in two fuse boxes.
One is located under the instrument panel behind the
coin tray on the driver’s seat side. The other one is housed in the engine compartment.
UBB008DA
HSB065BA
