2006 SUBARU BAJA Owners Manual

2-16
Keys and doors
with the second digit (counti
ng from the left) and finish-
ing with the eighth digit.
NOTE y When you finish entering the eighth digit, an
electronic tone will sound for 30 seconds. y If the interval between one push of the switch
and the next exceeds five seconds, an error will
occur. In this event, perform the procedure again
beginning with part 4. If an error occurs six times,
perform the procedure again starting with part 3.
8. Before the electronic tone stops sounding, use the
power door locking switch to again enter the transmit-
ter code beginning with the leftmost digit.
NOTE
If you do not start entering the number using the
locking switch before the electronic tone stops
sounding, an error will occur. In this event, per-
form the procedure again beginning with part 3.
9. When you have finished entering the code a sec-
ond time, an electronic tone will sound for one second
to indicate completion of registration, provided the
code entered the second time is identical to that en-
tered the first time.
NOTE
If the code entered the second time is not identical
to the code entered the first time, an error will oc-
cur. In this event, perform the procedure again be-
ginning with part 5. If an error occurs five times,
perform the procedure again starting with part 3.
10.If you wish to program another transmitter code
into the system (up to four transmitter codes can be
programmed into the system ), perform the procedure
beginning with part 4. When you have finished pro-
gramming all of the necessary transmitter codes into
the system, remove the key from the ignition switch.
11.Test every registered transmitter to confirm correct
operation. T Deleting old transmitter codes
The control unit of the keyless entry system has four
memory locations to store transmitter codes, giving it
the ability to operate with up to four transmitters. When
you lose a transmitter, the lo st transmitter’s code re-
mains in the memory. For security reasons, lost trans-
mitter codes should be deleted from the memory.
To delete old transmitter codes, program four trans-mitter codes into the system. If you have only one cur-
rent transmitter, program it four times. If you have two
current transmitters, program each one twice. If you
have three current transmit ters, program two of them

2-17
Keys and doors
– CONTINUED –
once and the third one twice. This process will leave only current transmitter c odes in the system’s memo-
ry.
NOTE
Make sure no one else is operating their keyless
entry system within range of your vehicle when
programming transmitters. If someone else were
to operate their remote transmitter while you are
programming your transmitte rs, it is possible that
their transmitter code will be programmed into
your system, allowing them unauthorized access
to your vehicle.
Alarm systemAlarm system
The alarm system helps to protect your vehicle and
valuables from theft. The horn sounds and the turn
signal lights flash if someone attempts to break into
your vehicle. The starter motor is also interrupted to
prevent starting the v ehicle without a key.
The system can be armed and disarmed with the re-
mote transmitter.
The system does not operate when the key is inserted
into the ignition switch.
Your vehicle’s alarm system has been set for activa-
tion at the time of shipment from the factory. You can
set the system for deactivation yourself or have it done
by your SUBARU dealer. „ System operation
The alarm system will give the following alarm when
triggered: y The vehicle’s horn will sound and the turn signal
lights will flash for 30 seconds. y If any door remains open after the 30-second peri-
od, the horn will continue to sound for a maximum of 3
minutes. If the door is closed while the horn is sound-
ing, the horn will stop sounding with a delay of up to 30

2-18
Keys and doors
seconds.
The alarm is triggered by: y
Opening a door
y Turning the ignition swit ch to the “ON” position
y Physical impact to the vehicle, such as forced entry
(only vehicles with shock sensors (dealer option)) „ Activating and deactivating the alarm
system
To change the se tting of your vehicle’s alarm system
for activation or deactivation, do the following.
1. Disarm the alarm system (see “Disarming the sys-
tem” in this section).
2. Sit in the driver’s seat and shut all doors.
3. Turn the ignition switch to the “ON” position.
4. Hold down the UNLOCK side of the driver’s power
door locking switch, open the driver’s door within the
following 1 second, and wait 10 seconds without re-
leasing the switch. The setting will then be changed as
follows:
If the system was previously activated:
The horn sounds twice, indicating that the system is
now deactivated.
If the system was previously deactivated:
The horn sounds once, indi cating that the system is now activated.
NOTE
You may have the above setting change done by
your SUBARU dealer. „
If you have accidentally triggered the
alarm system
T To stop the alarm
Do any of the following operations: y Press any button on the remote transmitter.
y Cycle the ignition switch from the “LOCK” to “ON”
position three time s within 5 seconds.
„ Arming the system
„Arming the system
TTo arm the system using remote transmitter
1. Close all windows and the moonroof (if equipped).
2. Remove the key from the ignition switch.
3. Open the doors and get out of the vehicle.
4. Make sure that the engine hood is locked.
5. Close all doors.

2-19
Keys and doors
– CONTINUED –
: Press to Arm the system.
: Press to Disarm the system. 1) Security indicator light
6. Briefly press the “ ” button (for less than two sec-
onds). All doors will lock, an electronic chirp will sound
once, the turn signal lights will flash once, and the in-
dicator lights will start flashing rapidly. After rapid
flashing for 30 seconds (standby time), the indicator
lights will then flash slowly (twice approximately every
two seconds), indicating that the system has been
armed for surveillance.
If any of the doors is not fully closed, an electronic
chirp sounds five times, the turn signal lights flash five
times to alert you that the doors are not properly
closed. When you close the door, the system will au-
UG2042BA
1
UB2033BB

2-20
Keys and doors
tomatically arm and doors will automatically lock. T
To arm the system using power door locking
switches
1. Close all windows.
2. Remove the key from the ignition switch.
3. Open the doors and get out of the vehicle.
4. Make sure that the engine hood is locked.
5. Close the doors but leave only the driver’s door or
the front passenger’s door open.
6. Push the front side (“LOCK” side) of the power door
locking switch to set the door locks.
7. Close the door. An electronic chirp will sound once,
the turn signal lights will flash once, and the indicator lights will start flashing rapidly. After rapid flashing for
30 seconds (standby time), the indicator lights will
then flash slowly (twice approximately every two sec-
onds), indicating that the system has been armed for
surveillance.
NOTE y
The system can be armed even if the engine
hood, the windows and/or moonroofs are opened.
Always make sure that they are fully closed before
arming the system. y The 30-second standby time can be eliminated if
you prefer. Have it performed by your SUBARU
dealer. y The system is in the standby mode for a 30-sec-
ond period after locking the doors with the remote
transmitter. The security indicator light will flash
at short intervals during this period. y If any of the following actions is done during the
standby period, the system will not switch to the
surveillance state.
yDoors are unlocked using the remote trans-
mitter.y Any door is opened.
y Ignition switch is turned to the “ON” position.
y The engine does not start even when the igni-
tion switch is turned to the “START” position once
the alarm system has been triggered.
200889

2-21
Keys and doors
– CONTINUED –
„Disarming the system„
Disarming the systemBriefly press the “ ” button (for less than two sec-
onds) on the remote transmitter. The driver’s door will
unlock, an electronic chirp will sound twice, the turn
signal lights will flash twice and the indicator light will
go off.
NOTE
The system can be disarmed by the following
method. yCycle the ignition switch from the “LOCK” to the
“ON” position three times within 5 seconds. T Emergency disarming
If you cannot disarm the system using the transmitter
(i.e. the transmitter is lost, broken or the transmitter
battery is too weak), yo u can disarm the system with-
out using the transmitter.
1. Unlock the door with the key and then open the
door.
2. Insert the key into the ignition switch and cycle it
from the “LOCK” to the “ON” position three times with-
in 5 seconds .
„ Valet mode
„Valet modeWhen you choose the valet mode, the security system
does not operate. In valet mode, the remote transmit- ter is used only for locking and unlocking the doors
and panic activation.
To enter the valet mode, chang
e the setting of your ve-
hicle’s alarm system for deactivation mode. (Refer to
“Activating and deactivating the alarm system” in thissection.)
To exit valet mode, change the setting of your vehi-
cle’s alarm system for activation mode. (Refer to “Ac- tivating and deactiva ting the alarm system” in this sec-
tion.)
NOTE
The security indicator light does not flash during the valet mode. „ Passive arming
When passive arming mode has been programmed by
the dealer, arming of the syst em is automatically ac-
complished without using the remote transmitter. Note
that in this mode, DOORS MUST BE MANUALLY LOCKED. T To enter the passive mode
If you wish to program the passive arming mode, have
it done by your SUBARU dealer.

2-22
Keys and doors
T

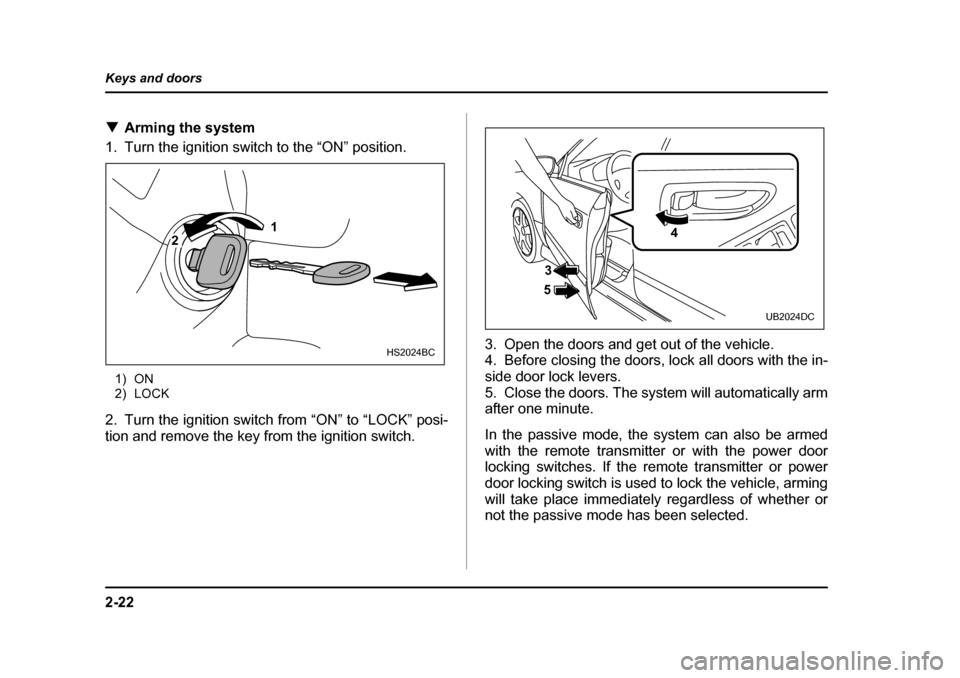

Arming the system
1. Turn the ignition switch to the “ON” position.
1) ON
2) LOCK
2. Turn the ignition switch from “ON” to “LOCK” posi-
tion and remove the key from the ignition switch. 3. Open the doors and get out of the vehicle.
4. Before closing the doors, lock all doors with the in-
side door lock levers.
5. Close the doors. The system will automatically arm
after one minute.
In the passive mode, the system can also be armed
with the remote transmitter or with the power door
locking switches. If the remote transmitter or power
door locking switch is used to lock the vehicle, arming
will take place immediately regardless of whether or
not the passive mode has been selected.
1
2
HS2024BC
4
3
5
UB2024DC

2-23
Keys and doors
– CONTINUED –
In passive mode, the system will automatically
activate the alarm but WILL NOT automatically
lock the doors. In order to lock the doors you
must either lock them as indicated in step 4
above or with the key once they have been
closed. Failure to lock the doors manually will
result in a higher security risk.
T Disarming the system
T
Disarming the systemTo disarm the system, brie fly press the “ ” button
on the transmitter. „ Tripped sensor identification
The security indicator light flashes when the alarm system has been tri ggered. Also, the number of flash-
es indicates the location of unauthorized intrusion or
the severity of impact on the vehicle. y When the ignition switch is turned to the “ON” posi-
tion, the indicator light will light for 1 second and then
flash as follows: When a door was opened: 5 times
When the ignition switch was turned to the “ON” po-
sition: 3 times
When a strong impact or multiple impacts were sensed: twice (only vehicles with shock sensors
(dealer option))
When a light impact was sensed: once (only vehi-
cles with shock sensors (dealer option))
NOTE
Any of the above indicator light flashings will re-
cur each time the ignition
switch is turned to the
“ON” position. Rearming the alarm system can-
cels the flashing. „ Shock sensors (dealer option)
The shock sensors trigger the alarm system when
they sense impacts applied to the vehicle and when
any of their electric wires is cut. The alarm system
causes the horn to sound and the turn signal lights to
flash for a short time when the sensed impact is weak,
but it warns of a strong im pact or multiple impacts by
sounding the horn and flashing the turn signal lights,
both lasting approximately 30 seconds.
If you desire, your SUBARU dealer can connect them
and set them for activation or deactivation.
NOTE y The shock sensors are not always able to sense
impacts caused by breaking in, and cannot sense
an impact that does not cause vibration (such as
