3-2
Instruments and controls
Instruments and controlsIgnition switchIgnition switch
y
Never turn the igniti on switch to “LOCK”
while the vehicle is being driven or towed be-
cause that will lock the steering wheel, prevent-
ing steering control. And when the engine is
turned off, it takes a much greater effort than
usual to steer. y Before leaving the vehicle, always remove
the key from the ignition switch for safety and
never allow an unattended child to remain in
the vehicle. Failure to follow this procedure
could result in injury to a child or others. Chil-
dren could operate the power windows, the
sunroof or other controls or even make the ve-
hicle move.
The ignition switch has four positions: LOCK, ACC,
ON and START.
NOTE y Keep the ignition switch in the “LOCK” position
when the engine is not running. y Using electrical accessories for a long time with
the ignition switch in th e “ON” or “ACC” position
can cause the battery to go dead.
If the ignition switch will not move from the
“LOCK” position to the “ACC” position, turn the
steering wheel slightly to the left and right as you
turn the ignition switch.y If the key is attached to a keyholder or to a large
bunch of other keys, centrifugal force may act on
it as the vehicle moves, resulting in unwanted
turning of the ignition switch. Also, if a large key-
UB4000CA

3-3
Instruments and controls
– CONTINUED –
holder is attached to the key, your knees or hands
may accidentally touch it in a way that turns the ig-
nition switch. „LOCK
The key can only be inserted or removed in this posi-
tion. The ignition switch will lock the steering wheel
when you remove the key.
If turning the key is difficult, turn the steering wheel
slightly to the right and left as you turn the key.
T Automatic transmission vehicles
The key can be turned from “ACC” to “LOCK” only
when the selector lever is in the “P” position.
HS3015BA
HS2020CA

3-4
Instruments and controls
T
Manual transmission vehicles
The key can be turned from “ACC” to “LOCK” only
when the key is pushed in while turning it. „ ACC
In this position the electrical accessories (radio, ciga-
rette lighter socket, etc.) can be used. „ ON
This is the normal operatin g position after the engine
is started. „
START
Do not turn the ignition switch to the “START”
position while the engine is running.
The engine is started in this position. The starter
cranks the engine to start it. When the key is released
(after the engine has star ted), the key automatically
returns to the “ON” position. „ Key reminder chime
„Chime
„ Key
„ Key
„ Reminder chimeThe reminder chime sounds when the driver’s door
opens and the key is in the “LOCK” or “ACC” positions.
The chime stops when the ke y is removed from the ig-
nition switch. „ Ignition switch light (if equipped)
For easy access to the ignition switch in the dark, the
ignition switch light comes on when driver’s door is
opened. The light remains on for 10 seconds and goes
out after driver’s door is cl osed or if the key is turned
to the “ON” position.
HS2020DA

3-5
Instruments and controls
– CONTINUED –
„Key interlock release (AT vehicles)„
Key
„ Interlock releaseIf the key can not be turned to the “LOCK” position
even when the selector lever is in the “P” position:
1. Take out the screwdriver from the tool bag.
2. Remove the cover under th e steering column using
a Phillips screwdriver. 3. Turn the ignition key while pressing the key inter-
lock release lever.
Take your vehicle to the nearest SUBARU dealer im-
mediately to have the ke
y interlock system repaired.
HS3016BA
UG3025BA

3-6
Instruments and controls
Hazard warning flasherHazard warning flasher
The hazard warning flasher is used to warn other driv-
ers when you have to park your vehicle under emer-
gency conditions. The hazard warning flasher works
with the ignition switch in any position.
To turn on the hazard warning flasher, push the haz-
ard warning button on the instrument panel. To turn off
the flasher, push the button again.
NOTE
When the hazard warning flasher is on, the turn
signals do not work.
Meters and gaugesMeters and gauges
NOTE
Liquid-crystal displays are used in some of the
meters and gauges in the combination meter. You
will find their indications hard to see if you wear
polarized glasses. „
Speedometer
„SpeedometerThe speedometer shows the vehicle speed. „Odometer/Trip meter
„Odometer/Trip meter
To ensure safety, do no t attempt to change the
function of the indicator during driving, as an
accident could result.
UB8002BA

3-7
Instruments and controls
– CONTINUED –
1) Trip meter
2) Odometer
T Odometer
The odometer shows the total distance that the vehicle
has been driven. T
Double trip meter
1) A trip meter
2) B trip meter
The trip meter shows the distance that the vehicle has
been driven since you last set it to zero.
To change the mode indication, briefly push the knob.
Each press of the knob changes the function alter-
nately.
To set the trip meter to zero , select either the A trip or
B trip meter and push the knob and keep it pushed for
1
2
UB3026BB
1 2
UB3027BB
A trip meter B trip meter

3-8
Instruments and controls
more than 1 second.
NOTE
If the connection between the combination meter
and battery is broken for any reason such as vehi-
cle maintenance or fuse replacement, the data re-
corded on the trip meter will be lost. „
Tachometer
„Tachometer
Do not operate the engi ne with the pointer of
the tachometer in the red zone. In this range,
fuel injection will be cut by the engine control
module to protect the engine from overrevving.
The engine will resume running normally after
the engine speed is reduced below the red
zone.
The tachometer shows the engine speed in thousands
of revolutions per minute. „ Outside temperature indicator (if
equipped)
The outside temperature indicator shows the outside temperature in a range from –22 to 122
°F (–30 to
50 °C).
The indicator can give a false reading under any of the
following conditions: y When there is too much sun.
y During idling; while running at low speeds in a traffic
jam; when the engine is restarted immediately follow-
ing a shutdown.y When the actual outside temperature falls outside
the specified indicator range. „ Fuel gauge
„Fuel
„ Gauge

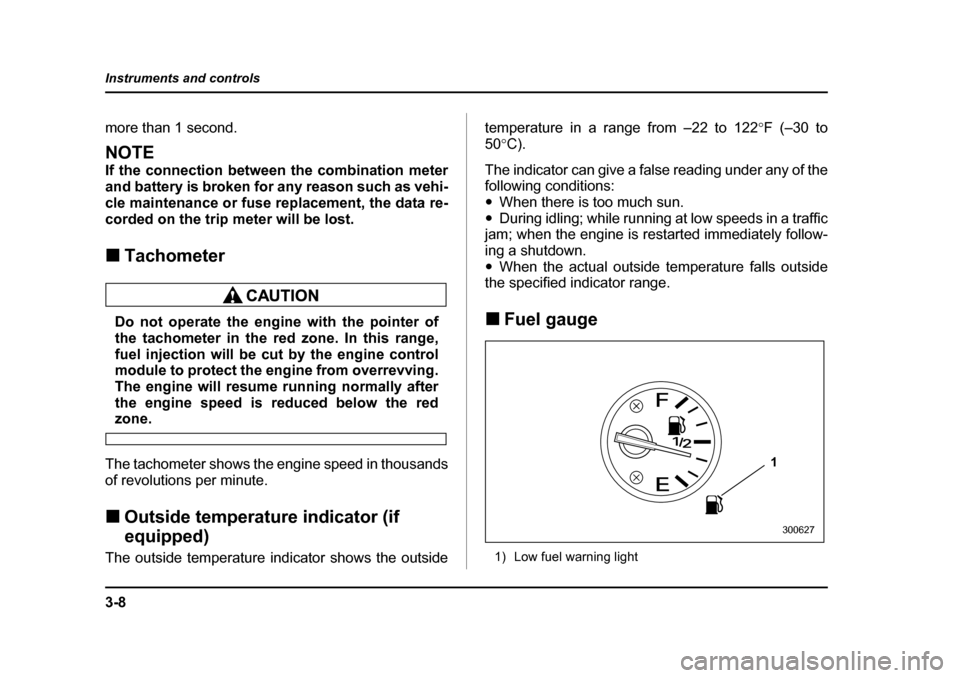

1) Low fuel warning light
1
300627

3-9
Instruments and controls
– CONTINUED –
The fuel gauge shows the approximate amount of fuel
remaining in the tank.
The gauge does not return to “E” even though the ig-
nition switch is in the “ACC” or “LOCK” position.
The gauge may move slightly during braking, turning
or acceleration due to fuel level movement in the tank.
NOTE

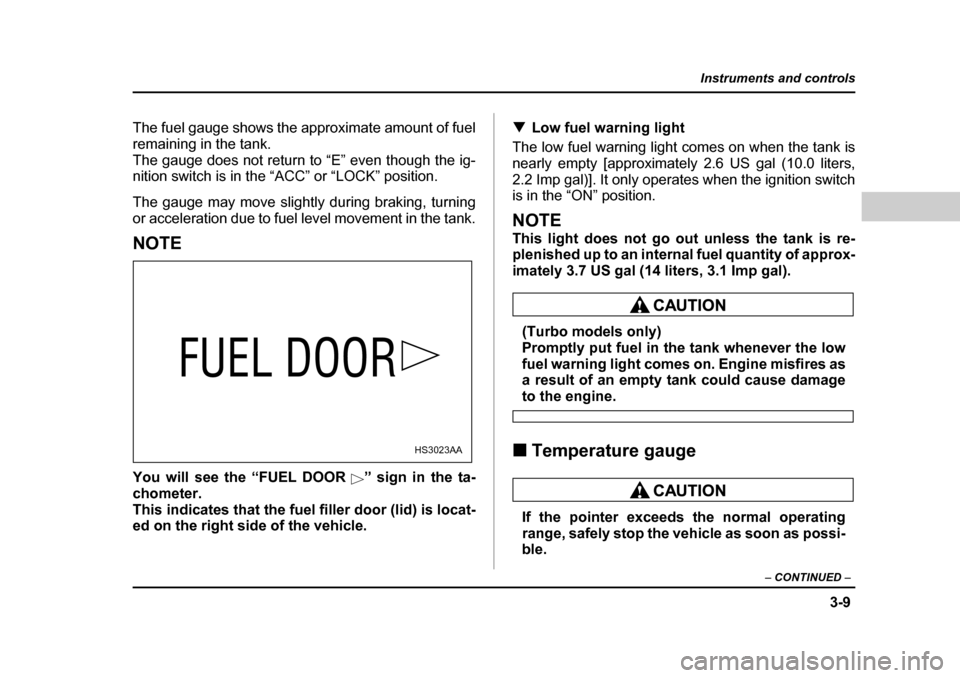

You will see the “FUEL DOOR ” sign in the ta-
chometer.
This indicates that the fuel filler door (lid) is locat-
ed on the right side of the vehicle. T
Low fuel warning light
The low fuel warning light comes on when the tank is
nearly empty [approximately 2.6 US gal (10.0 liters,
2.2 Imp gal)]. It only operates when the ignition switch
is in the “ON” position.
NOTE
This light does not go out unless the tank is re-
plenished up to an internal fuel quantity of approx-
imately 3.7 US gal (14 liters, 3.1 Imp gal).
(Turbo models only)
Promptly put fuel in the tank whenever the low
fuel warning light comes on. Engine misfires as
a result of an empty tank could cause damage
to the engine.
„ Temperature gauge
„Temperature gauge
If the pointer exceeds the normal operating
range, safely stop the vehicle as soon as possi-
ble.
