2006 SUBARU BAJA Owners Manual

11 - 2 8
Maintenance and service
Turbo models
1. Park the vehicle on a level surface and stop the en-
gine.
2. Pull out the dipstick, wipe it clean, and insert it
again. 1) Upper level
2) Lower level
3. Pull out the dipstick again and check the oil level on
it. If it is below the lower level, add oil through the dip-
stick hole to bring the level up to the upper level.
Be careful not to spill manual transmission oil
when adding it. If oil touches the exhaust pipe,
it may cause a bad smell, smoke, and/or a fire.
If oil gets on the exhaust pipe, be sure to wipe
it off.
UGB001JA
L F
F
L1
2 1
2
USB526BB

11 -2 9
Maintenance and service
– CONTINUED –
„Recommended grade and viscosity„
Recommended
„ Oil grade and viscosityEach oil manufacturer has its own base oils and addi-
tives. Never use differ ent brands together.
Oil grade:
API classification GL-5
SAE viscosity No. and applicable temperature
Automatic transmission fluidAutomatic transmission
Fluid
Fluid level
Automatic transmission
„ Checking the fluid level„Checking
„ Fluid levelThe automatic transmission fluid expands largely as
its temperature rises; the fluid level differs according to
fluid temperature. Therefore, there are two different
scales for checking the level of hot fluid and cold fluid
on the dipstick.
Though the fluid level can be checked without warm-
ing up the fluid on the “COLD” range, we recommend
checking the fluid level when the fluid is at operating
temperature. T Checking the fluid level when the fluid is hot
Check the fluid level monthly.
1. Drive the vehicle several miles to raise the temper-
ature of the transmission fluid up to normal operating
temperature; 158 to 176 °F (70 to 80 °C) is normal.
2. Park the vehicle on a level surface and set the park-
ing brake.
3. First shift the selector lever in each position. Then
shift it in the “P” position, and run the engine at idling
speed.
-30 -20 -10 0 10 20 30 40
-20 0 60 20
80W
75W/90 80 100
40
85W 90
HSB036BA

11 - 3 0
Maintenance and service

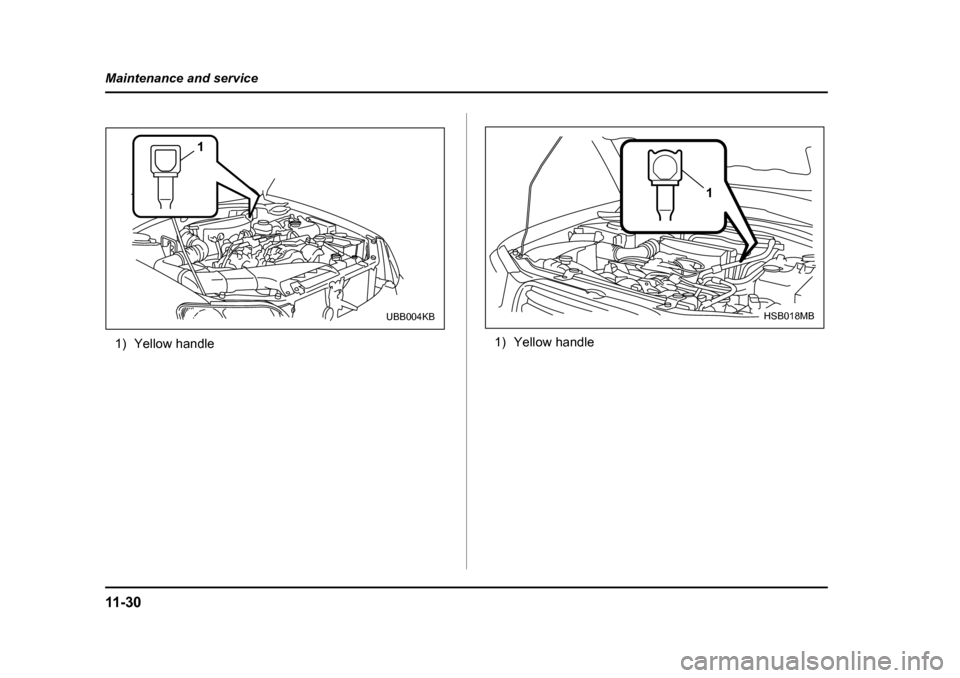

1) Yellow handle
1) Yellow handle
1
UBB004KBHSB018MB
1

11 -3 1
Maintenance and service
– CONTINUED –
A) HOT range
B) COLD range
1) Upper level
2) Lower level
4. Pull out the dipstick and check the fluid level on the
gauge. If it is below the lower level on the “HOT”
range, add the recommended automatic transmission
fluid up to the upper level. T Checking the fluid level when the fluid is cold
When the fluid level has to be checked without time to
warm up the automatic transmission, check to see that
the fluid level is between the lower level and upper lev-
el on the “COLD” range. If it is below that range, add fluid up to the upper level. Be careful not to overfill.
Be careful not to spil
l automatic transmission
fluid when adding it. If automatic transmission
fluid touches the exhaust pipe, it may cause a
bad smell, smoke, and/or a fire. If automatic
transmission fluid gets on the exhaust pipe, be
sure to wipe it off.
„ Recommended fluid
„Recommended
„ Automatic transmission fluid
“Dexron III” Type Automatic Transmission Fluid
LF
LF
1 2
12
B A
HGB061BB

11 - 3 2
Maintenance and service
Front differential
gear oil (AT vehi-
cles)Differential gear oil
FrontFront
Differential gear oil
Oil level
Front differential (AT vehicles)
„ Checking the oil level„Checking
„ Gear oil level
1) Yellow
1. Park the vehicle on a level surface and stop the en-
gine.
2. Pull out the dipstick, wipe it clean, and insert it
again. 1) Upper level
2) Lower level
3. Pull out the dipstick again and check the oil level on
it. If it is below the lower level, add oil to bring the level
up to the upper level.
Be careful not to spill fr ont differential gear oil
when adding it. If oil touches the exhaust pipe,
it may cause a bad smell, smoke, and/or a fire.
If oil gets on the exhaust pipe, be sure to wipe
it off.
1
UBB004EB
L F
1 2
HSB040BB

11 -3 3
Maintenance and service
– CONTINUED –
„Recommended grade and viscosity„
Recommended
„ Oil grade and viscosityEach oil manufacturer has its own base oils and addi-
tives. Never use differ ent brands together.
Oil grade:
API classification GL-5
SAE viscosity No. and applicable temperature
Rear differenti al gear oilRear
Differential gear oil
Differential gear oil
Rear
Oil level
Rear differential
„ Checking the gear oil level„Checking
„ Gear oil level
yBe careful not to spill re ar differential gear oil
when adding it. If rear differential gear oil
touches the exhaust pipe, it may cause a bad
smell, smoke, and/or a fire. If rear differential
gear oil gets on the exhaust pipe, be sure to
wipe it off.y If the vehicle requires frequent refilling, there
may be an oil leak. If you suspect a problem,
have the vehicle checked at your SUBARU deal-
er.
Your vehicle may be equipped with a rear differential
protector. The differential protector provides protec-
tion to the rear differential assembly during off-road
use. Removal of the rear differential protector is not re-
quired when checking the oil level.
-30 -20 -10 0 10 20 30 40
-20 0 60 20
80W
75W/90 80 100
40
85W 90
HSB036BA

11 - 3 4
Maintenance and service

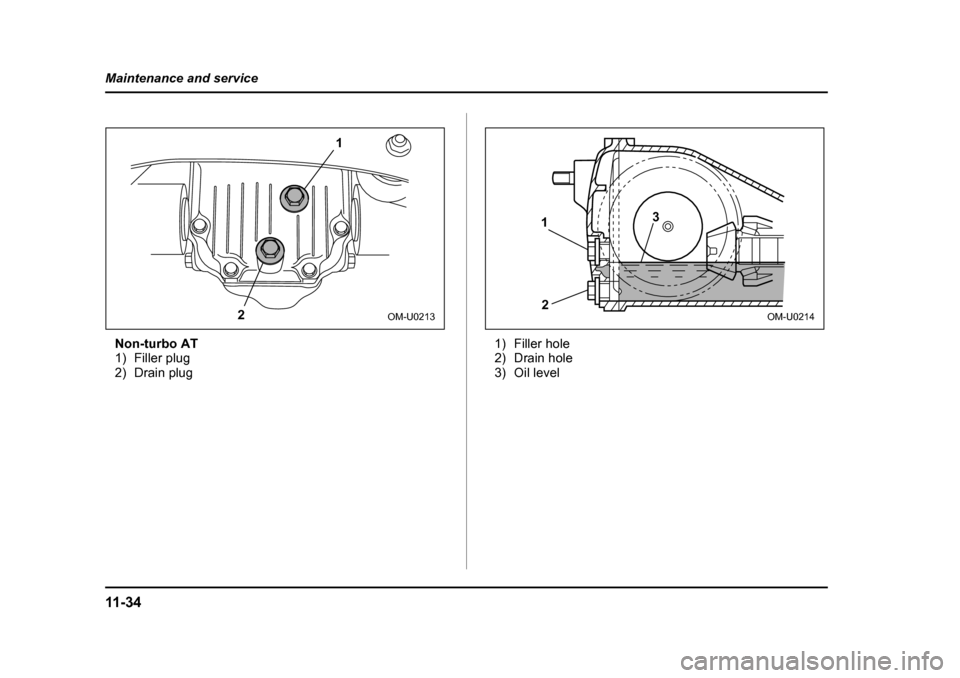

Non-turbo AT
1) Filler plug
2) Drain plug
1) Filler hole
2) Drain hole
3) Oil level
1
2
OM-U0213
1 2 3
OM-U0214

11 -3 5
Maintenance and service
– CONTINUED –
Others
1) Filler plug
2) Drain plug 1) Filler hole
2) Drain hole
3) Oil level
Remove the plug from the filler hole and check the oil
level. The oil level should be kept even with the bottom
of the filler hole. If the oil level is below the bottom
edge of the hole, add oil through the filler hole to raise
the level. „ Recommended grade and viscosity
„Recommended
„ Oil grade and viscosityEach oil manufacturer has its own base oils and addi-
tives. Never use different brands together.
2 1HSB042BB
3
1
2
HSB043BB
