In case of emergency

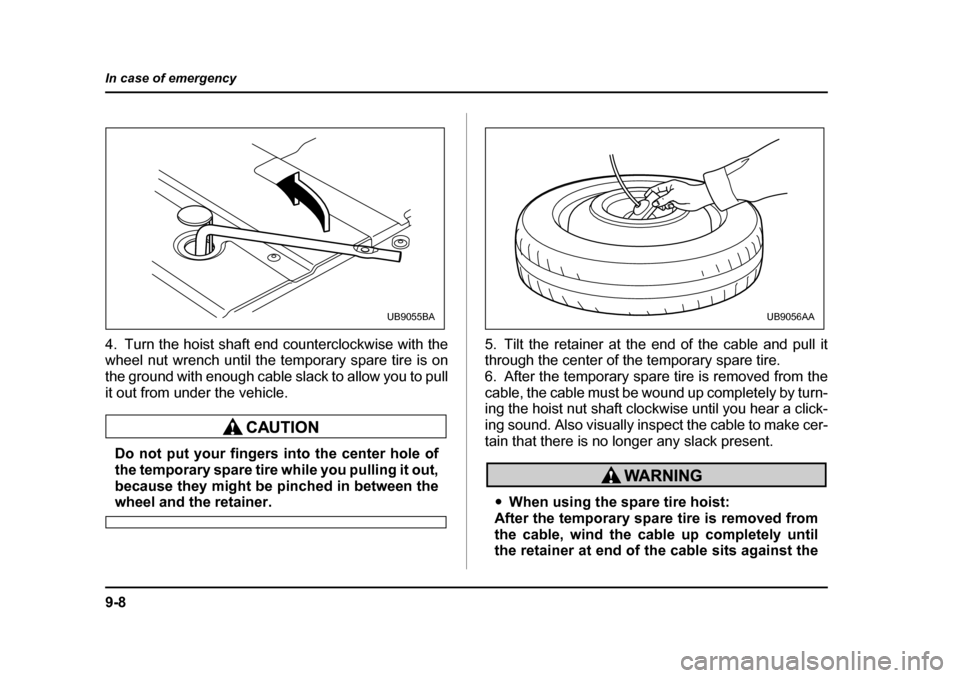

4. Turn the hoist shaft end counterclockwise with the
wheel nut wrench until the temporary spare tire is on
the ground with enough cable slack to allow you to pull
it out from under the vehicle.
Do not put your fingers
into the center hole of
the temporary spare tire while you pulling it out,
because they might be pinched in between the
wheel and the retainer. 5. Tilt the retainer at the end of the cable and pull it
through the center of the temporary spare tire.
6. After the temporary spare tire is removed from the
cable, the cable must be wound up completely by turn-
ing the hoist nut shaft clockwise until you hear a click-
ing sound. Also visually inspect the cable to make cer-
tain that there is no longer any slack present.y
When using the spare tire hoist:
After the temporary spare tire is removed from
the cable, wind the cable up completely until
the retainer at end of the cable sits against the
UB9055BAUB9056AA

9-9
In case of emergency
– CONTINUED –
underside of the vehicle. Driving with the cable
not retracted fully could r esult in damage to the
adjacent under floor parts and lead to a serious
accident. y The spare tire holder is designed to carry
only the smaller temporary spare tire. Never store a full size tire (fl at or otherwise) in the
spare tire holder. Doing so can result in dam-
age to adjacent under floor parts and can lead
to a serious accident.
When using the spare tire hoist:
Do not use air tools or power tools to turn the
spare tire hoist shaft end. If you do, it could re-
sult in severe mechanical damage to the spare
tire hoist.
„ Re-storage of spare tire
1. Turn the spare tire hoist shaft end counterclock-
wise with the wheel nut wrench to loosen the cable
sufficiently enough to allow the cable end retainer go
through center hole of the temporary spare tire.
2. Insert the retainer through the center hole of the temporary tire (with the outside of the tire facing up).
3. Turn the hoist shaft en
d clockwise with the wheel
nut wrench to wind the cable up completely until you
hear a few clicking sounds. Confirm that the temporary
spare tire holding cable has been wound up complete-
ly by shaking the temporary tire.
If the temporary spare tire is not stored secure-
ly, it could damage adjacent areas of the vehi-
cle and make an abnormal noise.
4. Put the rubber cap on the hoist shaft end hole.
5. Place the wheel nut wrench back into the tool bag
and store the jack and tool bag in their storage loca-
tions.

9-10
In case of emergency
Temporary spare tire „
Using the temporary spare tire
Never tow a trailer when the temporary spare
tire is used. The temporary spare tire is not de-
signed to sustain the towing load. Use of the
temporary spare tire when towing can result in
failure of the spare tire and/or less stability of
the vehicle and may lead to an accident.
Never use any temporary spare tire other than
the original. Using other sizes may result in se-
vere mechanical damage to the drive train of
your vehicle.
The temporary spare tire is smaller and lighter than a
conventional tire and is designed for emergency use
only. Remove the temporary spare tire and re-install
the conventional tire as soon as possible because the
spare tire is designed only for temporary use. Check the inflation pressure of the temporary spare
tire periodically to keep the tire ready for use. The cor-
rect pressure is
60 psi (420 kPa, 4.2 kgf/cm 2
).
When using the temporary spare tire, note the follow-
ing.y Do not exceed 50 mph (80 km/h).
y Do not put a tire chain on the temporary spare tire.
Because of the smaller tire size, a tire chain will not fit
properly. y Do not use two or more temporary spare tires at the
same time. y Do not drive over obstacles. This tire has a smaller
diameter, so road clearance is reduced.

9-11
In case of emergency
– CONTINUED –

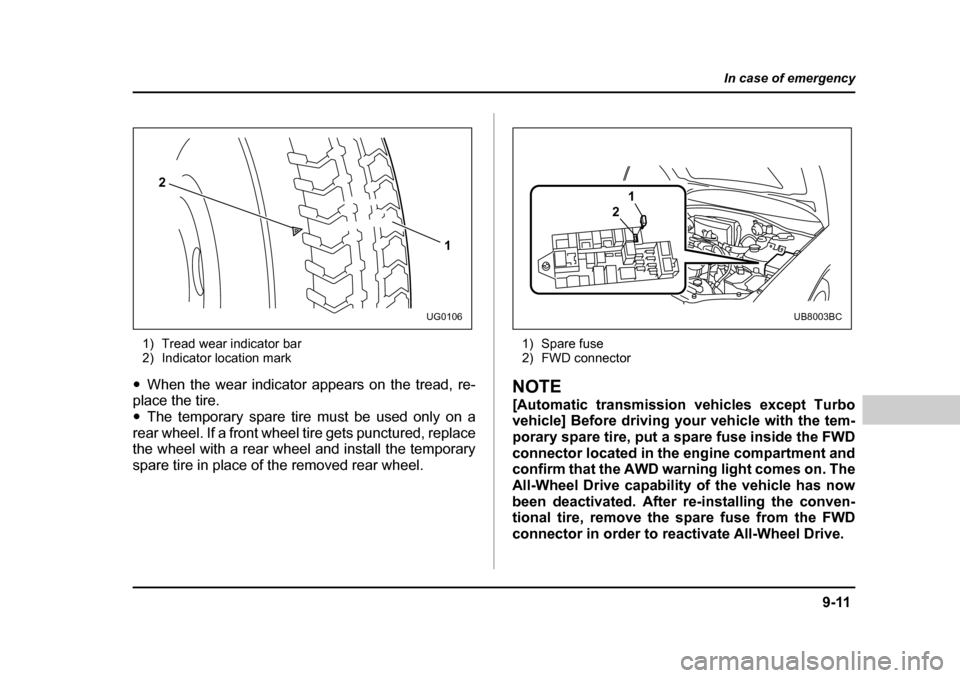

1) Tread wear indicator bar
2) Indicator location mark
y When the wear indicator appears on the tread, re-
place the tire. y The temporary spare tire must be used only on a
rear wheel. If a front wheel tire gets punctured, replace
the wheel with a rear wheel and install the temporary
spare tire in place of the removed rear wheel. 1) Spare fuse
2) FWD connector
NOTE
[Automatic transmission vehicles except Turbo
vehicle] Before driving your vehicle with the tem-
porary spare tire, put a spare fuse inside the FWD
connector located in the engine compartment and
confirm that the AWD warning light comes on. The
All-Wheel Drive capability of the vehicle has now
been deactivated. After
re-installing the conven-
tional tire, remove the spare fuse from the FWD
connector in order to reactivate All-Wheel Drive.
1
2
UG0106
1
2
UB8003BC

9-12
In case of emergency
Flat tires
If you get a flat tire while driving, never brake sudden-
ly; keep driving straight ahead while gradually reduc-
ing speed. Then slowly pull off the road to a safe place. „
Changing a flat tire
yDo not jack up the vehicle on an incline or a
loose road surface. The jack can come out of
the jacking point or sink into the ground and
this can result in a serious accident. y Use only the jack provided with your vehicle.
The jack supplied with the vehicle is designed
only for changing a tire. Never get under the ve-
hicle while supporting the vehicle with thisjack. y Always turn off the engi ne before raising the
flat tire off the grou nd using the jack. Never
swing or push the vehicle supported with the
jack. The jack can come out of the jacking point
due to a jolt and this can result in a serious ac-
cident. y Never place a tire or tire changing tools in the
passenger compartment after changing wheels. In a sudden stop or collision, loose
equipment could strike occupants and cause
injury. Store the tire and all tools in the proper
place.
1. Park on a hard, level surface, whenever possible,
then stop the engine.
2. Set the parking brake securely and shift a manual
transmission vehicle into reverse or an automatic
transmission vehicle into the “P” (Park) position.
3. Turn on the hazard warning flasher and have ev-
eryone get out of the vehicle.
4. Put wheel blocks at the fron t and rear of the tire di-
HS9003BA

9-13
In case of emergency
– CONTINUED –
agonally opposite the flat tire.
5. Take out the spare tire, jack, and wheel nut wrench.
Refer to the sections “Spare tire” and “Jack and tools”
in this chapter for their location, instructions and pre-
cautions.
After the spare tire is removed from the spare tire hold-
er, the cable must be wound up completely by turning
the hoist nut shaft clockwise until you hear a clicking
sound. Also visually inspect the cable to make certain
that there is no longer any slack present. TRemoving the flat tire and installing the spare tire
0
1. Loosen the wheel nuts us ing the wheel nut wrench but do not remove the nuts.

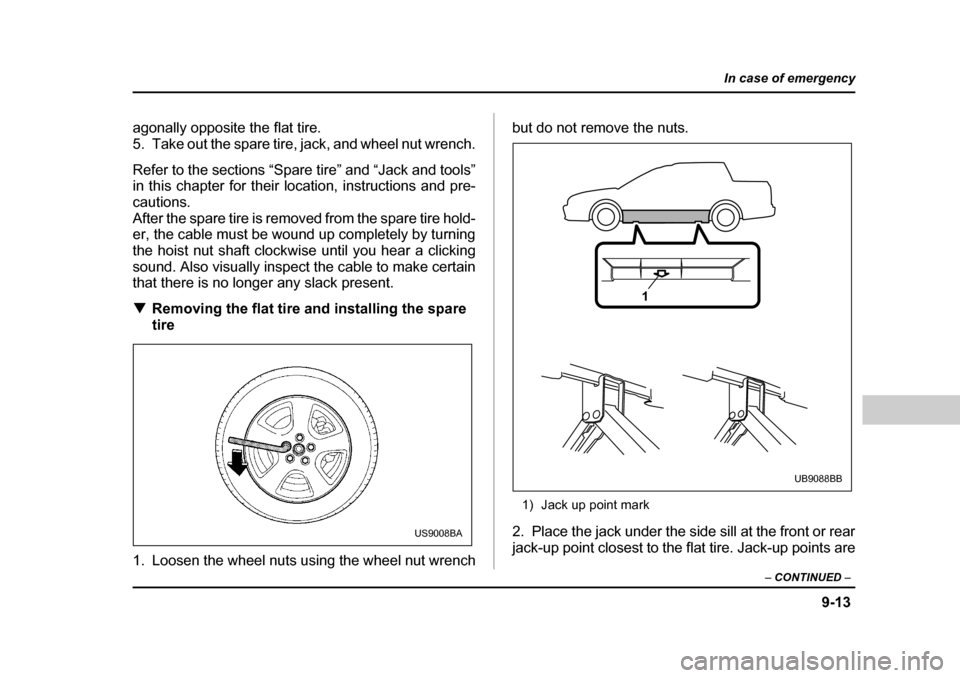

1) Jack up point mark
2. Place the jack under the side sill at the front or rear
jack-up point closest to the flat tire. Jack-up points are
US9008BA
1
UB9088BB

9-14
In case of emergency
indicated by arrow marks on the side of the side sill skirt.

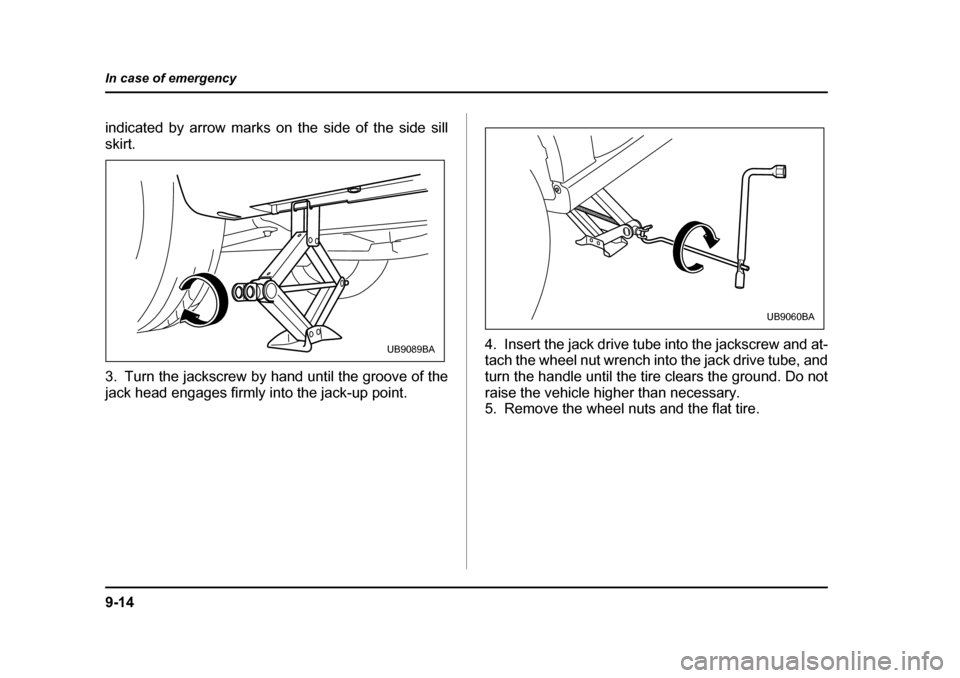

3. Turn the jackscrew by hand until the groove of the
jack head engages firmly into the jack-up point.
4. Insert the jack drive tube
into the jackscrew and at-
tach the wheel nut wrench into the jack drive tube, and
turn the handle until the tire clears the ground. Do not
raise the vehicle higher than necessary.
5. Remove the wheel nuts and the flat tire.
UB9089BA
UB9060BA

9-15
In case of emergency
– CONTINUED –

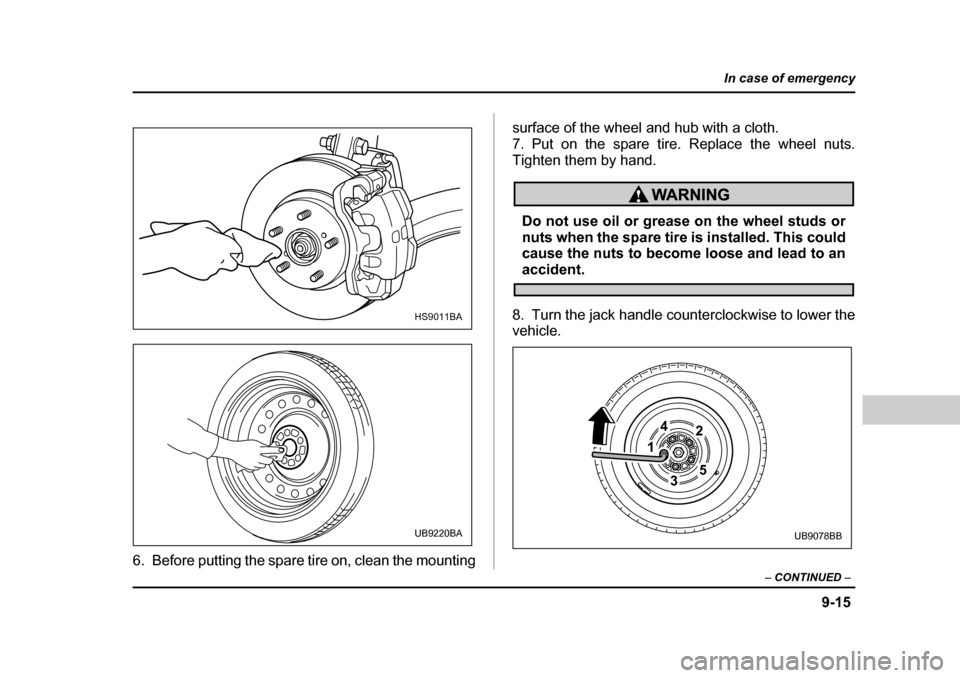

6. Before putting the spare ti re on, clean the mounting surface of the wheel
and hub with a cloth.
7. Put on the spare tire. Replace the wheel nuts.
Tighten them by hand.
Do not use oil or grease on the wheel studs or
nuts when the spare tire is installed. This could
cause the nuts to become loose and lead to an
accident.
8. Turn the jack handle counterclockwise to lower the
vehicle.
HS9011BA
UB9220BA
1
42
53
UB9078BB
