2006 SUBARU BAJA Owners Manual

11 - 2 0
Maintenance and service
Turbo models

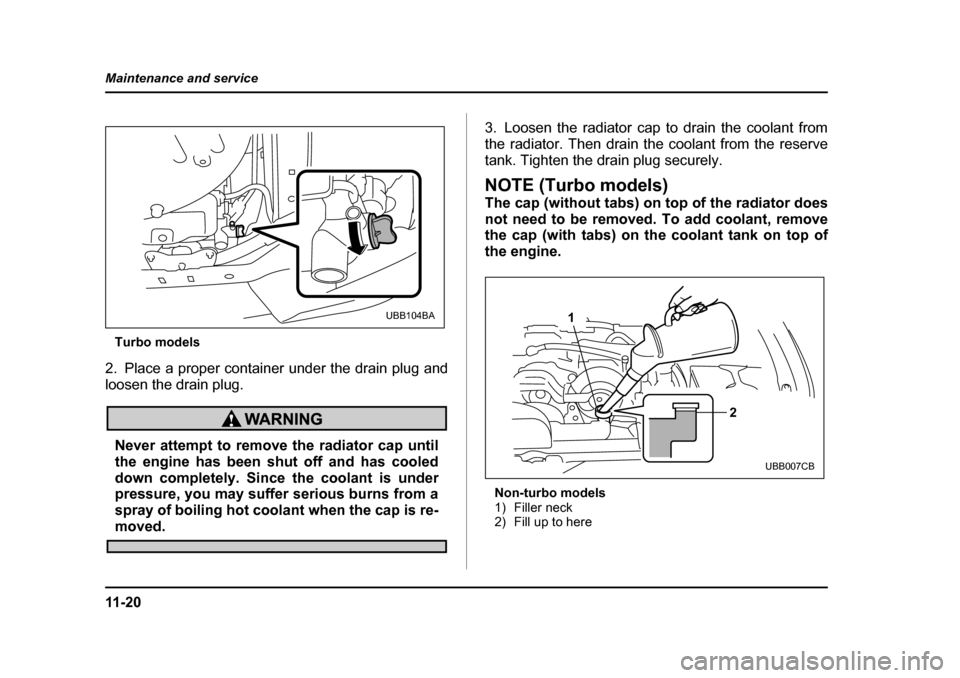

2. Place a proper container under the drain plug and
loosen the drain plug.
Never attempt to remove the radiator cap until
the engine has been shut off and has cooled
down completely. Since the coolant is under
pressure, you may suffer serious burns from a
spray of boiling hot coolant when the cap is re-
moved. 3. Loosen the radiator cap to drain the coolant from
the radiator. Then drain the coolant from the reserve
tank. Tighten the drain plug securely.
NOTE (Turbo models)
The cap (without tabs) on top of the radiator does
not need to be removed. To add coolant, remove
the cap (with tabs) on th
e coolant tank on top of
the engine.
Non-turbo models
1) Filler neck
2) Fill up to here
UBB104BA1 2
UBB007CB

11 -2 1
Maintenance and service
– CONTINUED –

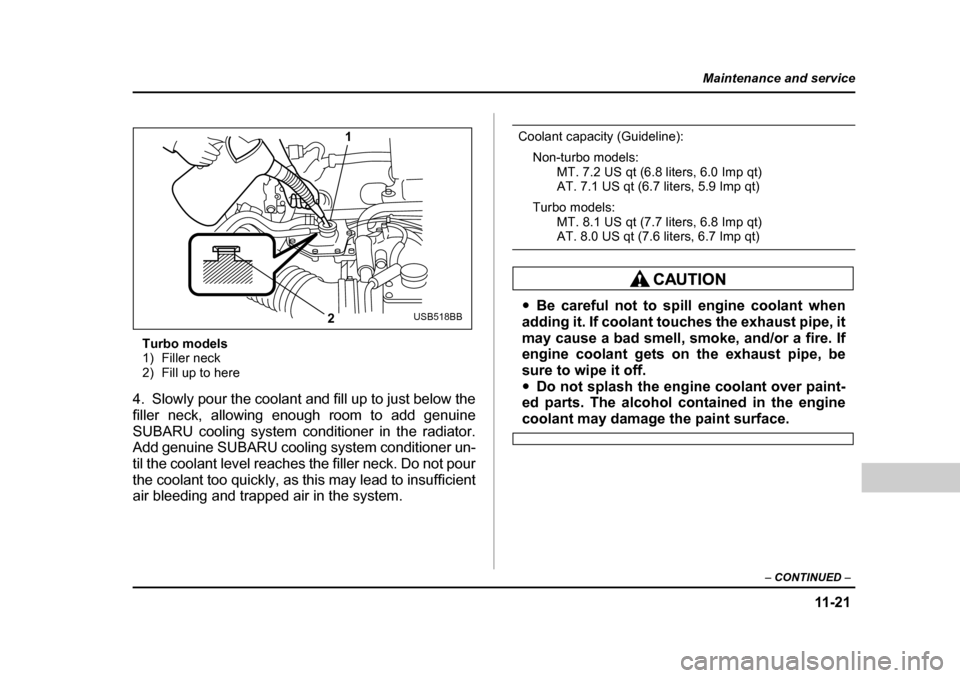

Turbo models
1) Filler neck
2) Fill up to here
4. Slowly pour the coolant and fill up to just below the
filler neck, allowing enough room to add genuine
SUBARU cooling system cond itioner in the radiator.
Add genuine SUBARU coolin g system conditioner un-
til the coolant level reaches the filler neck. Do not pour
the coolant too quickly, as this may lead to insufficient
air bleeding and trapped air in the system.
Coolant capacity (Guideline):
Non-turbo models: MT. 7.2 US qt (6.8 liters, 6.0 Imp qt)
AT. 7.1 US qt (6.7 liters, 5.9 Imp qt)
Turbo models: MT. 8.1 US qt (7.7 liters, 6.8 Imp qt)
AT. 8.0 US qt (7.6 liters, 6.7 Imp qt)
yBe careful not to spill engine coolant when
adding it. If coolant touches the exhaust pipe, it
may cause a bad smell, smoke, and/or a fire. If
engine coolant gets on the exhaust pipe, be sure to wipe it off.y Do not splash the engine coolant over paint-
ed parts. The alcohol contained in the engine
coolant may damage the paint surface.
1
2
USB518BB

11 - 2 2
Maintenance and service

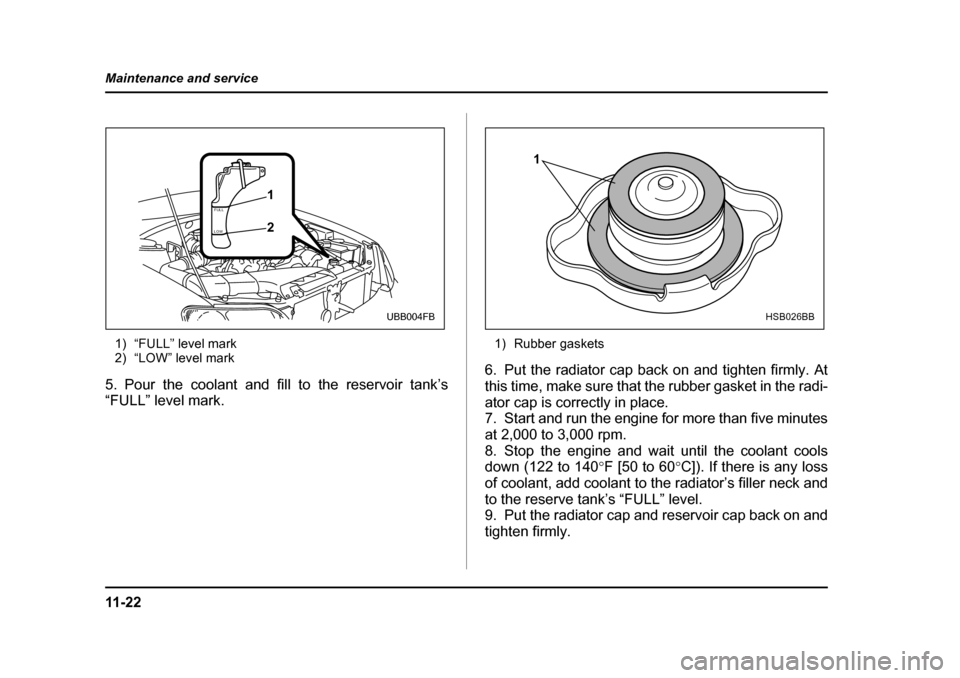

1) “FULL” level mark
2) “LOW” level mark
5. Pour the coolant and fill to the reservoir tank’s
“FULL” level mark. 1) Rubber gaskets
6. Put the radiator cap back on and tighten firmly. At
this time, make sure that the rubber gasket in the radi-
ator cap is correctly in place.
7. Start and run the engine for more than five minutes
at 2,000 to 3,000 rpm.
8. Stop the engine and wait until the coolant cools
down (122 to 140 °F [50 to 60 °C]). If there is any loss
of coolant, add coolant to the radiator’s filler neck and
to the reserve tank’s “FULL” level.
9. Put the radiator cap and reservoir cap back on and
tighten firmly.
FULL
LOW1 2
UBB004FB
1
HSB026BB

11 -2 3
Maintenance and service
– CONTINUED –
Air cleaner elementAir cleaner element
Do not operate the engine with the air cleaner
element removed. The air cleaner element not
only filters intake air but also stops flames if the
engine backfires. If the air cleaner element is
not installed when the engine backfires, you
could be burned.
The air cleaner element func tions as a filter screen.
When the element is perforated or removed, engine
wear will be excessive and engine life shortened.
The air cleaner element is a viscous type. It is unnec-
essary to clean or wash the element. „ Replacing the air cleaner element
„Replacing
„ Air cleaner element
TNon-turbo models
Replace the air cleaner element according to the
maintenance schedule in the “Warranty and Mainte-
nance Booklet”. Under extremely dusty conditions, re-
place it more frequently. It is recommended that you
always use genuine SUBARU parts.
0

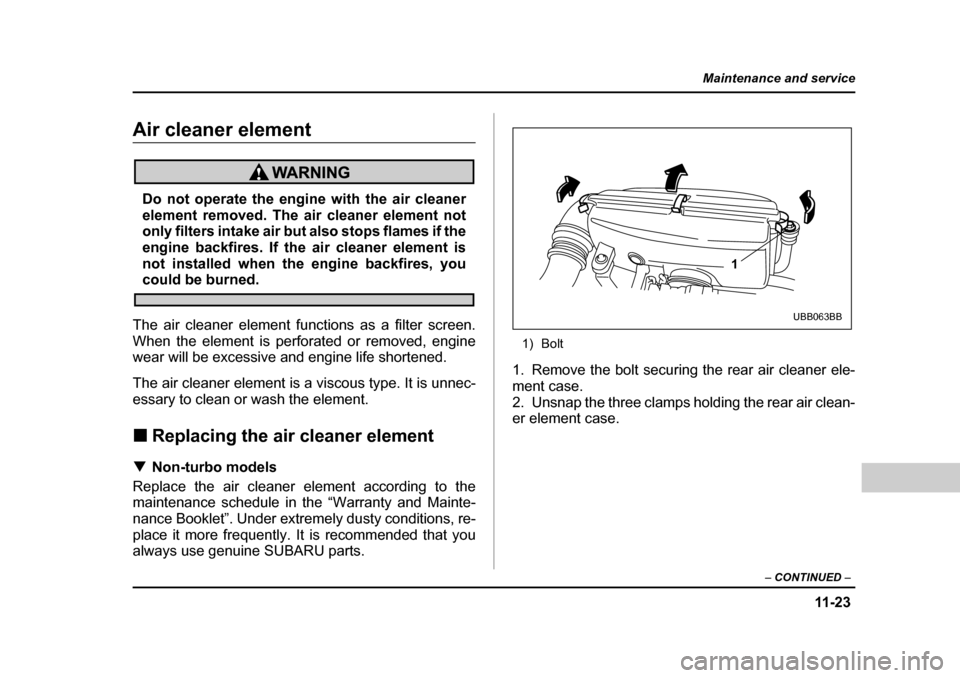

1) Bolt
1. Remove the bolt securing the rear air cleaner ele- ment case.
2. Unsnap the three clamps holding the rear air clean-
er element case.
1
UBB063BB

11 - 2 4
Maintenance and service

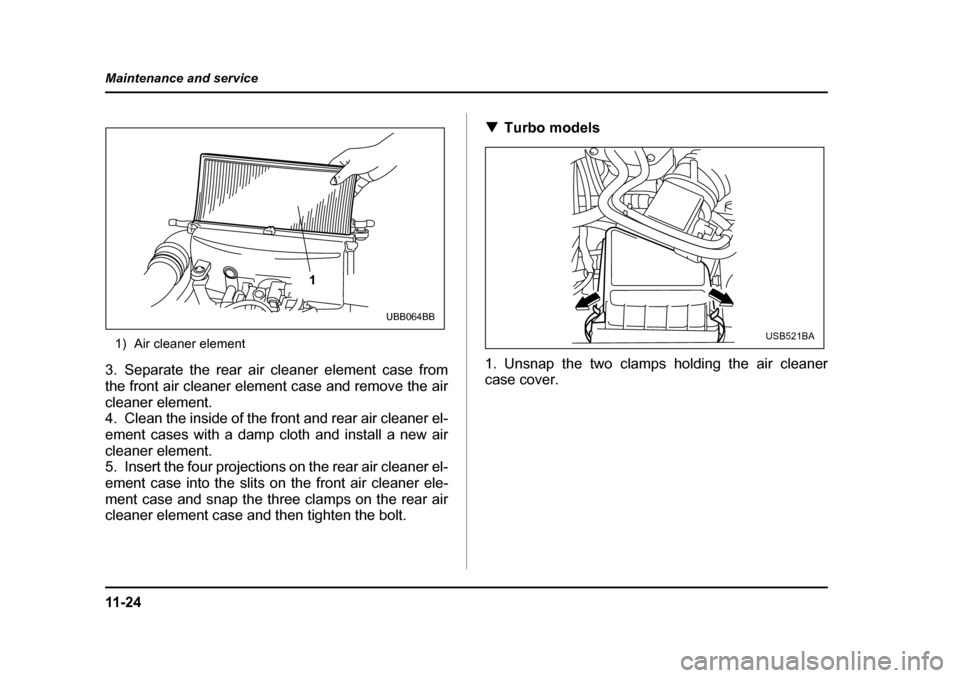

1) Air cleaner element
3. Separate the rear air cleaner element case from
the front air cleaner element case and remove the air
cleaner element.
4. Clean the inside of the front and rear air cleaner el-
ement cases with a damp cloth and install a new air
cleaner element.
5. Insert the four projections on the rear air cleaner el-
ement case into the slits on the front air cleaner ele-
ment case and snap the three clamps on the rear air
cleaner element case and then tighten the bolt. T
Turbo models
1. Unsnap the two clamps holding the air cleaner
case cover.
1
UBB064BB
USB521BA

11 -2 5
Maintenance and service
– CONTINUED –

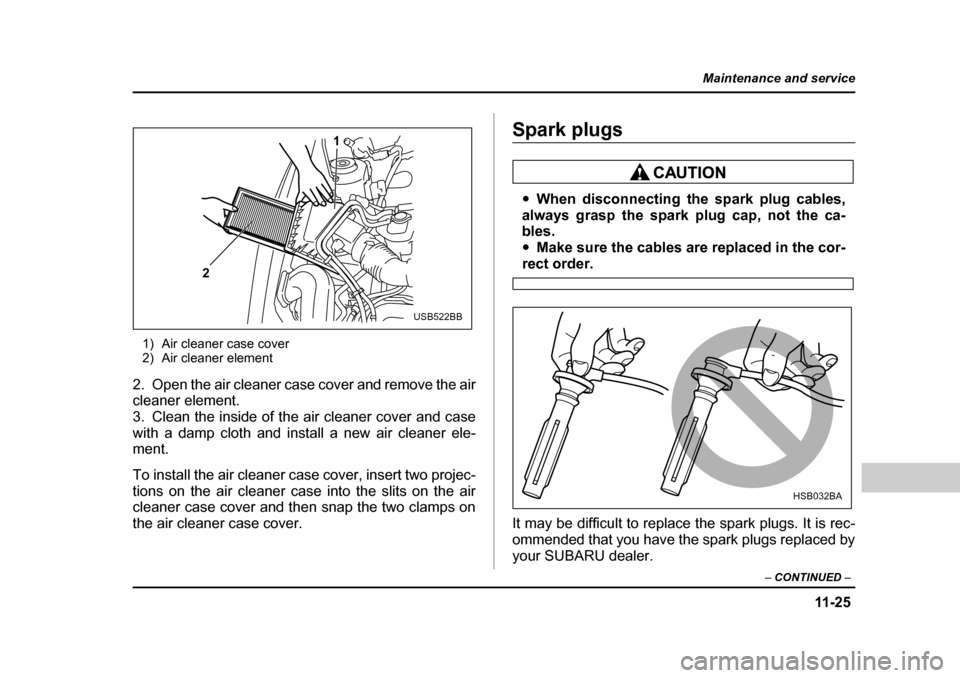

1) Air cleaner case cover
2) Air cleaner element
2. Open the air cleaner case cover and remove the air
cleaner element.
3. Clean the inside of the air cleaner cover and case
with a damp cloth and install a new air cleaner ele- ment.
To install the air cleaner case cover, insert two projec-
tions on the air cleaner case into the slits on the air
cleaner case cover and then snap the two clamps on
the air cleaner case cover.
Spark plugsSpark plugs
y When disconnecting the spark plug cables,
always grasp the spark plug cap, not the ca-
bles. y Make sure the cables are replaced in the cor-
rect order.
It may be difficult to replace the spark plugs. It is rec-
ommended that you have the spark plugs replaced by
your SUBARU dealer.2 1
USB522BB
HSB032BA

11 - 2 6
Maintenance and service
The spark plugs should be replaced according to the
maintenance schedule in the “Warranty and Mainte-
nance Booklet”. „
Recommended spark plugs
„Recommended
„ Spark plugs
Non-turbo models:
RC10YC4 (Champion)
BKR6E-11 (NGK)
BKR5E-11 (NGK)
Turbo models:
ILFR6B (NGK)
Drive beltsDrive belts
The alternator, power steering pump, and air condi-
tioner compressor depend on drive belts. Satisfactory
performance requires that belt tension be correct.

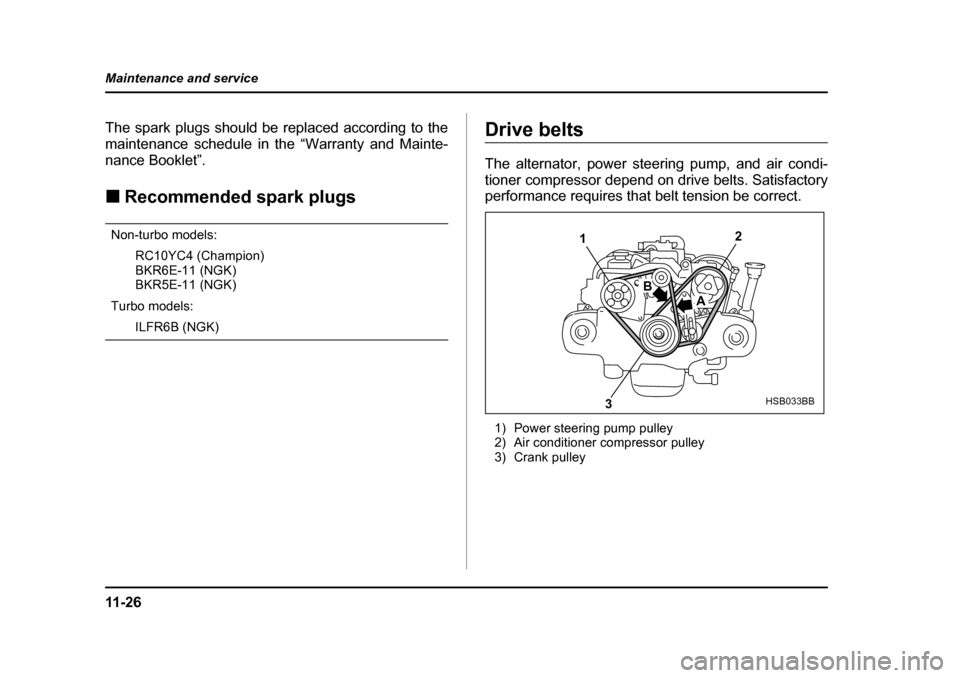

1) Power steering pump pulley
2) Air conditioner compressor pulley
3) Crank pulley
2
3 A
B
1
HSB033BB

11 -2 7
Maintenance and service
– CONTINUED –
in (mm)
To check belt tension, place a straightedge (ruler)
across two adjacent pulleys and apply a force of 22 lbs
(98 N, 10 kg) midway between the pulleys by using a
spring scale. Belt deflection should be the amount
specified.Manual transmission oilManual transmission oil
Oil level
Manual transmission
„ Checking the oil level0
Non-turbo models
1) Yellow handle
Deflection
New belt Used belt
A 0.28 – 0.35 (7.0 – 9.0) 0.35 – 0.43 (9.0 – 11.0)
B 0.30 – 0.33 (7.5 – 8.5) 0.35 – 0.40 (9.0 – 10.0)
1
UBB004DB
