2006 SUBARU BAJA Owners Manual

5-16
Audio
– The display shows “SCAN” and the track number
being scanned.
– You hear the first 10 seconds of each track.
– The operation is automatically cleared after play-
ing all programs. Then, normal playback starts.
2. Press the “SCAN” button again when you hear a
track you like.
– Normal playback resumes.
T To stop playback
To stop playback and switch over to the radio mode,
press the “BAND” button.

5-17
Audio
– CONTINUED –
Type B audio set (if equipped)
The radio will operate only when the igni tion switch is in the “ACC” or “ON”
position. „ Radio operation
(1) (2)(3)(4) (5)
(6)
(7)
(8)
UB5072BB
(1) Power switch, Volume control,
Bass/Midrange/Treble control
and Fader/Balance control dial
(2) AUDIO (audio mode) button
(3) Fader/Balance selection button
(4) FM button
(5) AM button
(6) Preset buttons
(7) Tuning buttons
(8) SCAN button

5-18
Audio
T
Power switch and volume/bass/treble/fader/
balance control (PWR/VOL)
The dial (1) is used for both power (ON/OFF) and vol-
ume control. The radio is turned ON and OFF by push-
ing the dial and the volume is controlled by turning the
dial.
This dial is used for ba ss/midrange/treble controls
when the “AUDIO” button (2) is in the depressed posi-
tion. It is also used for fader/balance controls when the
“BAL” button (3) is in the depressed position.

5-19
Audio
– CONTINUED –

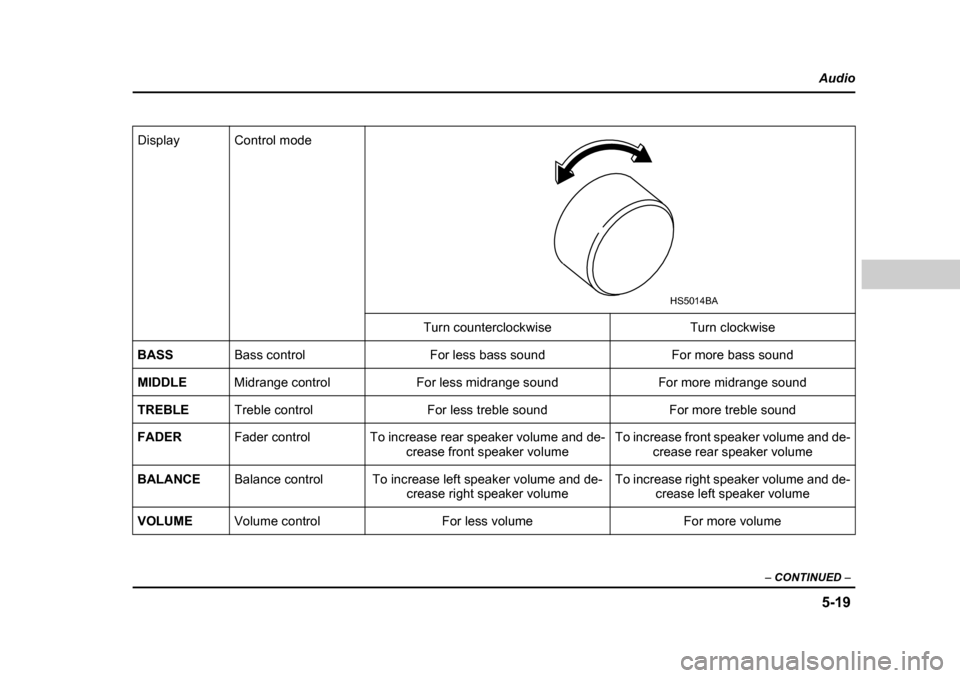

Display Control mode
Turn counterclockwise Turn clockwise
BASS Bass control For less bass sound For more bass sound
MIDDLE Midrange control For less midrange sound For more midrange sound
TREBLE Treble control For less treble sound For more treble sound
FADER Fader control To increase rear speaker volume and de-
crease front speaker volume To increase front speaker volume and de-
crease rear speaker volume
BALANCE Balance control To increase left speaker volume and de-
crease right speaker volume To increase right speaker volume and de-
crease left speaker volume
VOLUME Volume control For less volume For more volume
HS5014BA

5-20
Audio
V
Tone control
The volume control dial (1) normally function as vol-
ume control. The dial become a control for Bass,
Midrange or Treble when you select the appropriate
tone control mode. Choose desired volume level for each mode by turning
the volume control dial. The control function returns to
volume control mode after approximately 5 seconds.

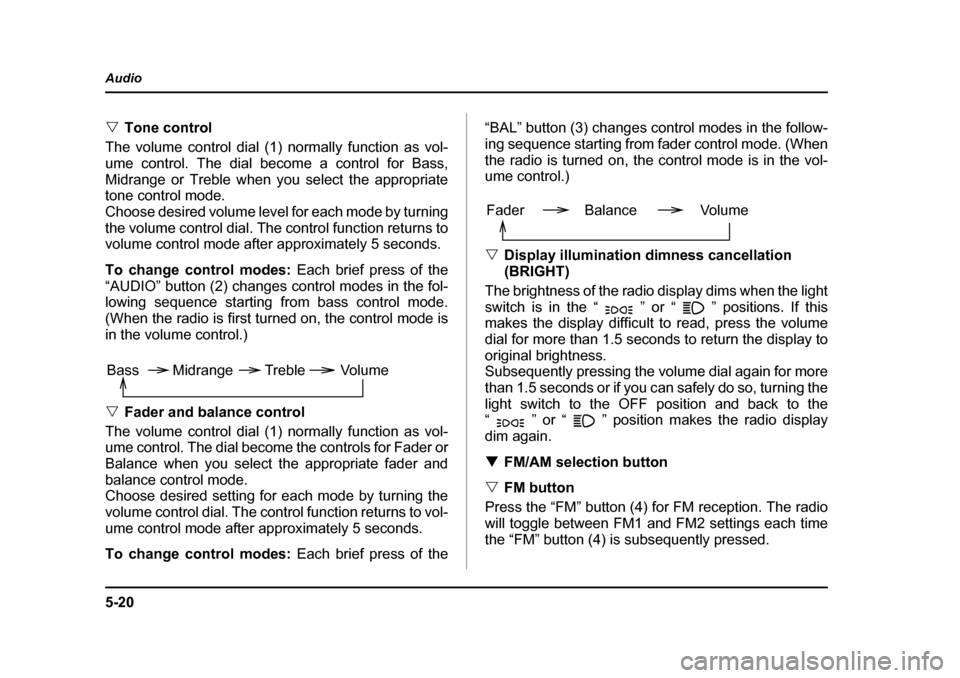

To change control modes: Each brief press of the
“AUDIO” button (2) changes control modes in the fol-
lowing sequence starting from bass control mode.
(When the radio is first turned on, the control mode is
in the volume control.) V Fader and balance control
The volume control dial (1) normally function as vol-
ume control. The dial become the controls for Fader or
Balance when you select the appropriate fader and
balance control mode.
Choose desired setting for each mode by turning the
volume control dial. The control function returns to vol-
ume control mode after approximately 5 seconds.
To change control modes: Each brief press of the “BAL” button (3) changes control modes in the follow-
ing sequence starting from
fader control mode. (When
the radio is turned on, the control mode is in the vol-
ume control.) V Display illumination dimness cancellation (BRIGHT)
The brightness of the radio display dims when the light
switch is in the “ ” or “ ” positions. If this
makes the display difficult to read, press the volume
dial for more than 1.5 seconds to return the display to
original brightness.
Subsequently pressing the volume dial again for more
than 1.5 seconds or if you c an safely do so, turning the
light switch to the OFF position and back to the
“ ” or “ ” position makes the radio display
dim again. T FM/AM selection button
V FM button
Press the “FM” button (4) for FM reception. The radio
will toggle between FM1 and FM2 settings each time
the “FM” button (4) is subsequently pressed.
Volume
Bass Midrange Treble
Volume
Fader Balance

5-21
Audio
– CONTINUED –
VAM button
Press the “AM” button (5) for AM reception. T Stereo indicator
The stereo indicator “ST” will come on when an FM
stereo broadcast is received. T Manual tuning (TUNE)
V Manual tuning for AM and FM
Push the “ ” side of the tuning button (7) to in-
crease the tuning frequency and press the “ ” side
of the button to decrease it.
Each time the button is pr essed, the frequency chang-
es 10 KHz in the AM waveband and 0.2 MHz in the FM
waveband. V Seek tuning (SEEK)
If the tuning button (7) is pressed for longer than half
of a second, the radio will begin to automatically
search for receivable frequencies and will stop at the
first one found. This function may not be available,
however, when radio signals are weak. In such a situ-
ation, perform manual tuning to select the desired sta-
tion. T Automatic tuning (SCAN)
Press the “SCAN” button (8) to change the radio to the SCAN mode. In this mode, the radio scans through the
radio band until a station is
found. The radio will stop
at the station for five seconds while displaying the fre-
quency, after which scanning will continue until the en-
tire band has been scanned from the low end to the
high end.
Press the “SCAN” button again to cancel the SCAN
mode and to stop on any displayed frequency.
When the “SCAN” button is pressed for automatic tun-
ing, stations are scanned in the direction of low fre-
quencies to high frequencies only.
Automatic tuning may not function properly if the sta-
tion reception is weakened by distance from the sta-
tion or proximity to tall buildings and hills. T Selecting preset stations
Presetting a station with a “Preset” button (6) allows
you to select that station in a single operation. Up to
six AM, FM1 and FM2 stations each may be preset. T How to preset stations
1. Press the “FM/AM” selection button to select AM,
FM1 or FM2 reception.
2. Press the “SCAN” button (8) or tune the radio man-
ually until the desired stat ion frequency is displayed.
3. Press one of the “Preset” buttons (6) for at least 1.5
seconds to store the frequency. The frequency of the
station will flash once on the display at this time. If the

5-22
Audio
button is pressed for less than 1.5 seconds, the pre-
ceding selection will remain in memory.
NOTE y
If the connection between the radio and battery
is broken for any reason such as vehicle mainte-
nance or radio removal, all stations stored in the
preset buttons are cleared. If this occurs, it is nec-
essary to reset the preset buttons. y If a cell phone is placed near the radio, it may
cause the radio to emit noise when it receives
calls. This noise does not indicate a radio fault.

5-23
Audio
– CONTINUED –
„Built-in CD changer operation

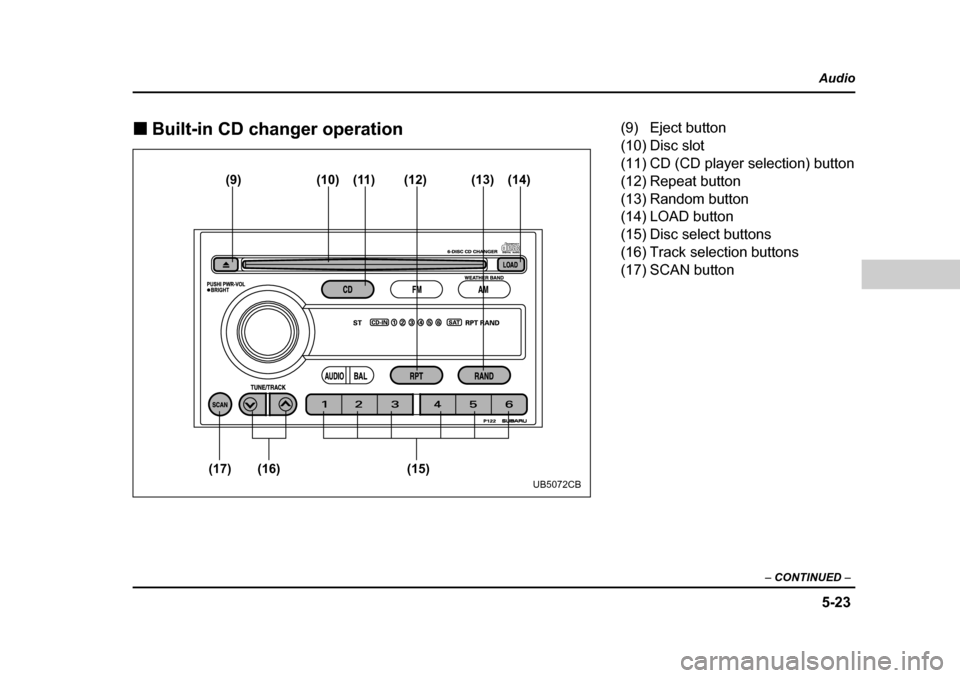

(9) (10) (11) (12)
(15)
(16)
(17) (13) (14)
UB5072CB
(9) Eject button
(10) Disc slot
(11) CD (CD player selection) button
(12) Repeat button
(13) Random button
(14) LOAD button
(15) Disc select buttons
(16) Track selection buttons
(17) SCAN button
