Instruments and controls
See “In case of emergency” in chapter 9.

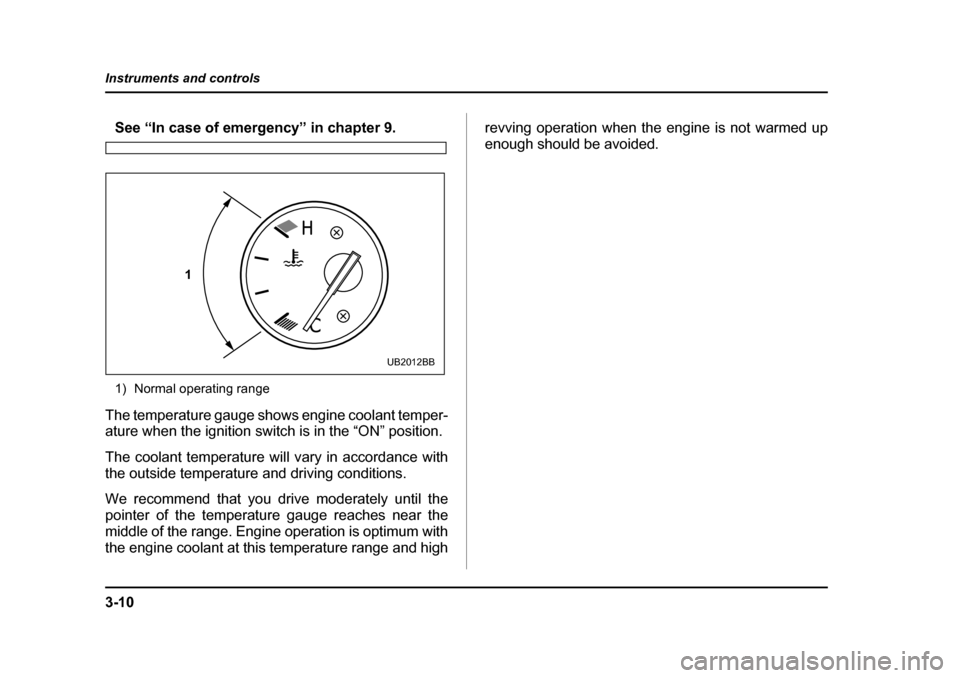

1) Normal operating range
The temperature gauge shows engine coolant temper-
ature when the ignition switch is in the “ON” position.
The coolant temperature will vary in accordance with
the outside temperature and driving conditions.
We recommend that you dr ive moderately until the
pointer of the temperature gauge reaches near the
middle of the range. Engine operation is optimum with
the engine coolant at this temperature range and high revving operation when the engine is not warmed up
enough should be avoided.
1
UB2012BB

3-11
Instruments and controls
– CONTINUED –
Warning and indicator lightsWarning and indicator lights
Several of the warning and indicator lights come on
momentarily and then go out when the ignition switch
is initially turned to the “ON” position. This permits
checking the operation of the bulbs.
Apply the parking brake and turn the ignition switch to
the “ON” position. The following lights come on:
Seatbelt warning light
SRS airbag system warning light
CHECK ENGINE warning light / Malfunction indica- tor lamp
Charge warning light
Oil pressure warning light
AT OIL temperature warn ing light (AT vehicles)
ABS warning light
Brake system warning light
All-Wheel Drive warning light (AT vehicles)
If any lights fail to come on, it indicates a burned-out
bulb or a malfunction of the corresponding system.
Consult your authorized SUBARU dealer for repair. „ Seatbelt warning light and chime
„Chime
„ Seatbelt
„ Warning lights
„ SeatbeltWhen the ignition switch is turned to the “ON” position,
the seatbelt warning light will come on and the remind- er chime will sound for approximately six seconds to
remind the driver to fasten the seatbelt.
The seatbelt warning light remains on for approxmi-
ately six seconds and turns of
f automatically after six
seconds.
The seatbelt reminder chime will turn off when the
driver’s side seatbelt is bu ckled or it will turn off auto-
matically after six seconds. „ SRS airbag system warning
light
„SRS airbag system warning light
„ Warning lights
„ SRS airbag system
If the warning light exhi bits any of the following
conditions, there may be a malfunction in the
seatbelt pretensioners and/or SRS airbag sys-
tem. Immediately take your vehicle to your
nearest SUBARU dealer to have the system
checked. Unless checked and properly re-
paired, the seatbelt pretensioners and/or SRS
airbag will not operate properly in the event of
a collision, which may increase the risk of inju- ry.y Flashing or flickering of the warning light.
y No illumination of the warning light when the
ignition switch is first turned to the “ON” posi-

3-12
Instruments and controls
tion. y
Continuous illumination of the warning light.
y Illumination of the warning light while driv-
ing.
When the ignition switch is turned to the “ON” position,
the SRS airbag system warnin g light will come on for
approximately six seconds and go out. This shows the
SRS frontal airbag and seatbelt pretensioners are in
normal operation. „ CHECK ENGINE warning light/
Malfunction indicator lamp
„CHECK ENGINE warning light/Malfunction indicator lamp
„ Malfunction indicator lamp (Check Engine light)
„ Warning lights
„ CHECK ENGINE
If the CHECK ENGINE light comes on while you
are driving, have your vehicle checked/repaired
by your SUBARU dealer as soon as possible.
Continued vehicle operation without having the
emission control system checked and repaired
as necessary could cause serious damage,
which may not be covered by your vehicle’s
warranty. If this light comes on steadily or blinks while the engine
is running, it may indicate that there is a problem or po-
tential problem somewhere in the emission control system. T
If the light comes on steadily:
If the light comes on steadily while driving or does not
go out after the engine st arts, an emission control sys-
tem malfunction has been detected.
You should have your vehicle checked by an autho-
rized SUBARU dealer immediately.
NOTE
This light also comes on when the fuel filler cap is
not tightened un til it clicks.
If you have recently refueled your vehicle, the cause of
the CHECK ENGINE warning lig ht/malfunction indica-
tor lamp coming on could be a loose or missing fuel fill-
er cap. Remove the cap and retighten it until it clicks.
Make sure nothing is interfering with the sealing of the
cap. Tightening the cap will not make the CHECK EN-
GINE warning light turn off immediately. It may take
several driving trips. If the light does not go out, take
your vehicle to your authorized SUBARU dealer im-
mediately. T If the light is blinking:
If the light is blinking while driving, an engine misfire

3-13
Instruments and controls
– CONTINUED –
condition has been detected which may damage the
emission control system.
To prevent serious damage to the emission control
system, you should do the following.
y Reduce vehicle speed.
y Avoid hard acceleration.
y Avoid steep uphill grades.
y Reduce the amount of cargo, if possible.
y Stop towing a trailer as soon as possible.
The CHECK ENGINE warning light may stop blinking
and come on steadily after several driving trips. You
should have your vehicle checked by an authorized
SUBARU dealer immediately. „ Charge warning light
„Charge warning light
„ Warning lights
„ ChargeIf this light comes on when the engine is running, it
may indicate that the char ging system is not working
properly.
If the light comes on while driving or does not go out
after the engine starts, stop the engine at the first safe
opportunity and check the alternator belt. If the belt is
loose, broken or if the belt is in good condition but the
light remains on, contact your nearest SUBARU deal-
er immediately. „
Oil pressure warning light
„
Oil pressure warning light
„ Warning lights
„ Oil pressure
Do not operate the engine with the oil pressure
warning light on. This may cause serious en-
gine damage.
If this light comes on when the engine is running, it
may indicate that the engine oil pressure is low and the
lubricating system is not working properly.
If the light comes on while driving or does not go out
after the engine starts, stop t he engine at the first safe
opportunity and check the engine oil level. If the oil lev-
el is low, add oil immediately. If the engine oil is at the
proper level but the light remains on, contact your
nearest SUBARU dealer immediately. „ AT OIL TEMPerature warning
light (AT vehicles)
„AT OIL TEMPerature warning light
„ Automatic transmission
„ Temperature warning light
„ warning light s
„ AT OIL TEMPeratureThe AT oil temperature warning light comes on when
the ignition switch is tur ned to the “ON” position and
goes out after approximately two seconds.
If this light comes on when the engine is running, it
may indicate that the automatic transmission fluid tem-
perature is too hot.

3-14
Instruments and controls
If the light comes on while driving, it is unnecessary to
stop the vehicle, but avoi
d driving up steep grades or
in stop and go traffic. T Automatic transmission control system warn-
ing
If the light flashes after the engine starts, it may indi-cate that the au tomatic transmission control system is
not working properly. Contact your nearest SUBARU
dealer for service immediately. „ ABS warning light
„ABS (Anti-lock Brake System)
„ Warning light
„ Warning lights
„ ABS
„ Warning lights
„ Anti-lock Brake SystemThe ABS warning light comes on when the ignition
switch is turned to the “ON” position and goes out after
approximatley two seconds.This is an indication that the ABS system is working
properly.
If the warning light behaves as follows, the ABS
system may not work properly.
When the warning light is on, the ABS function
shuts down; however, the conventional brake
system continues to operate normally.y The warning light does not come on when the
ignition switch is turned to the “ON” position. y
The warning light comes on when the ignition
switch is turned to th e “ON” position, but it
does not go out even when the vehicle speed
exceeds approximately 8 mph (12 km/h). y The warning light comes on during driving.
If any of these conditions occur, have the ABS
system repaired at the first available opportuni-
ty by your SUBARU dealer.
NOTE
If the warning light behavior is as described in the
following, the ABS system may be considered nor-
mal. y The warning light comes on right after the en-
gine is started but goes out immediately, remain-
ing off. y The warning light remains on after the engine
has been started, but it goes out when the vehicle
speed reaches approximately 8 mph (12 km/h). y The warning light comes on during driving, but
it goes out immediately and remains off.
When driving with an insufficient battery voltage such
as when the engine is jump started, the ABS warning
light may come on. This is due to the low battery volt-
age and does not indicate a malfunction. When the(U.S.) (Canada)

3-15
Instruments and controls
– CONTINUED –
battery becomes fully charged, the light will go out. „Brake system warning light
„Brake system
„ Warning light
„ Warning lights
„ Brake system
yDriving with the brake system warning light
on is dangerous. This indicates your brake sys-
tem may not be working properly. If the light re-
mains on, have the brakes inspected by a
SUBARU dealer immediately. y If at all in doubt about whether the brakes are
operating properly, do not drive the vehicle.
Have your vehicle towed to the nearest
SUBARU dealer for repair.
This light has the following two functions: T Parking brake warning
The light comes on with the parking brake applied
while the ignition switch is in the “ON” position. It goes
out when the parking brake is fully released. T Brake fluid level warning
This light comes on when the brake fluid level has
dropped to near the “MIN” level of the brake fluid res-
ervoir with the ignition switch in the “ON” position and with the parking brake fully released. If the brake system warning li
ght should come on while
driving (with the parking brake fully released and with
the ignition switch positioned in “ON”), it could be an
indication of leaking of brake fluid or worn brake pads.
If this occurs, immediately stop the vehicle at the near-
est safe place and check the brake fluid level. If the flu-
id level is below the “MIN” mark in the reservoir, do not
drive the vehicle. Have the vehicle towed to the near-
est SUBARU dealer for repair. „ Door ajar warning lights
„Door ajar warning lights
„ Warning lights
„ Door ajarThe specific door ajar warning light comes on if any
door is not fully closed.
Always make sure this light is out before you start to drive. „Switchback door indicator light
„Switchback door indicator lightWhile the ignition switch is in the “ON” position, the
switchback door indicator light comes on when the
switchback door is open.
While the ignition switch is in the “LOCK” or “ACC” po-
sition, the switchback door indicator light flashes for
approximately 20 seconds and goes off when the
switchback door is open.
(U.S.) (Canada)

3-16
Instruments and controls
„
Low fuel warning light
The low fuel warning light comes on when the tank is
nearly empty approximately 2.6 US gal (10.0 liters, or
2.2 Imp gal). It only operates when the ignition switch
is in the “ON” position.
NOTE
This light does not go out unless the tank is re-
plenished up to an internal fuel quantity of approx-
imately 3.7 US gal (14 liters, 3.1 Imp gal).
(Turbo models only)
Promptly put fuel in the tank whenever the low
fuel warning light comes on. Engine misfires as
a result of an empty tank could cause damage
to the engine.
„ All-Wheel Drive warning light
(AT vehicles)
„All-Wheel Drive warning light
„ AWD warning light
„ Warning light s
„ All-Wheel DriveThe All-Wheel Drive warning light comes on when the
ignition switch is turned to the “ON” position and goes
out after approximately two seconds. T
Turbo models
This light flashes if the vehicle is driven with tires of dif-
ferent diameters or with the air pressure excessively
low in any of its tires. T Non-turbo models
This light comes on when All-Wheel Drive is disen-
gaged and the drive mechanism is switched to Front
Wheel Drive for maintenance or similar purposes.
This light flashes if the vehicle is driven with tires of dif-
ferent diameters or with the air pressure excessively
low in any of its tires.
Continued driving with the AWD warning light
flashing can lead to powertrain damage. If the
AWD warning light flashes, promptly park in a
safe place then check whether all four tires are
the same diameter and whether any of the tires
has a puncture or has lost air pressure for
some other reason.

3-17
Instruments and controls
– CONTINUED –
„Security system status indicator
light (if equipped)
This light is found at the bo ttom center of the combina-
tion meter panel.
On vehicles equipped with a security system, it blinks
to show the driver the operational status of the security
system. For detailed informati on, refer to the “Alarm
system” section in chapter 2. „ Selector lever position indicator (AT
vehicles)
„Indicator light
„ Selector lever position
„ Selector leve
„ Position indicator
This indicator shows the position of the selector lever. „
Gear position indicator (Turbo-AT ve-
hicles)
When the selector lever is in the manual gate, this in-
dicator shows the currently selected gear. „ Turn signal indicator lights
„Indicator light
„ Turn signal
„ Turn signal
„ Indicator lightsThese lights show the operation of the turn signal or
lane change signal.
If the indicator lights do not blink or blink rapidly, the
turn signal bulb may be burned out. Replace the bulb
as soon as possible. Refer to the “Replacing bulbs”
section in chapter 11.
UB3025AA
UBS094AA
