1999 NISSAN PICK-UP Repair Manual

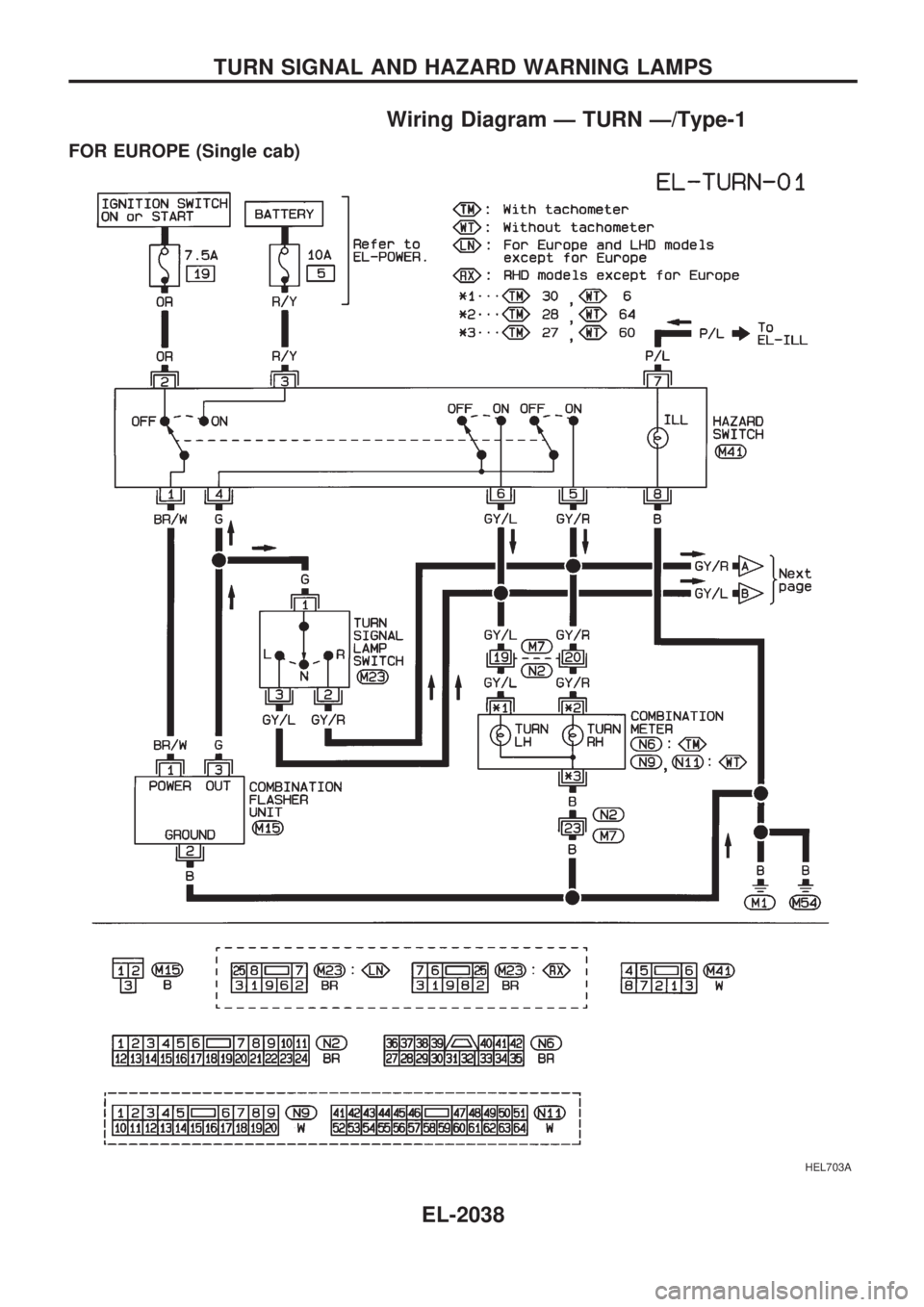

Wiring Diagram Ð TURN Ð/Type-1
FOR EUROPE (Single cab)
HEL703A
TURN SIGNAL AND HAZARD WARNING LAMPS
EL-2038

HEL704A
TURN SIGNAL AND HAZARD WARNING LAMPS

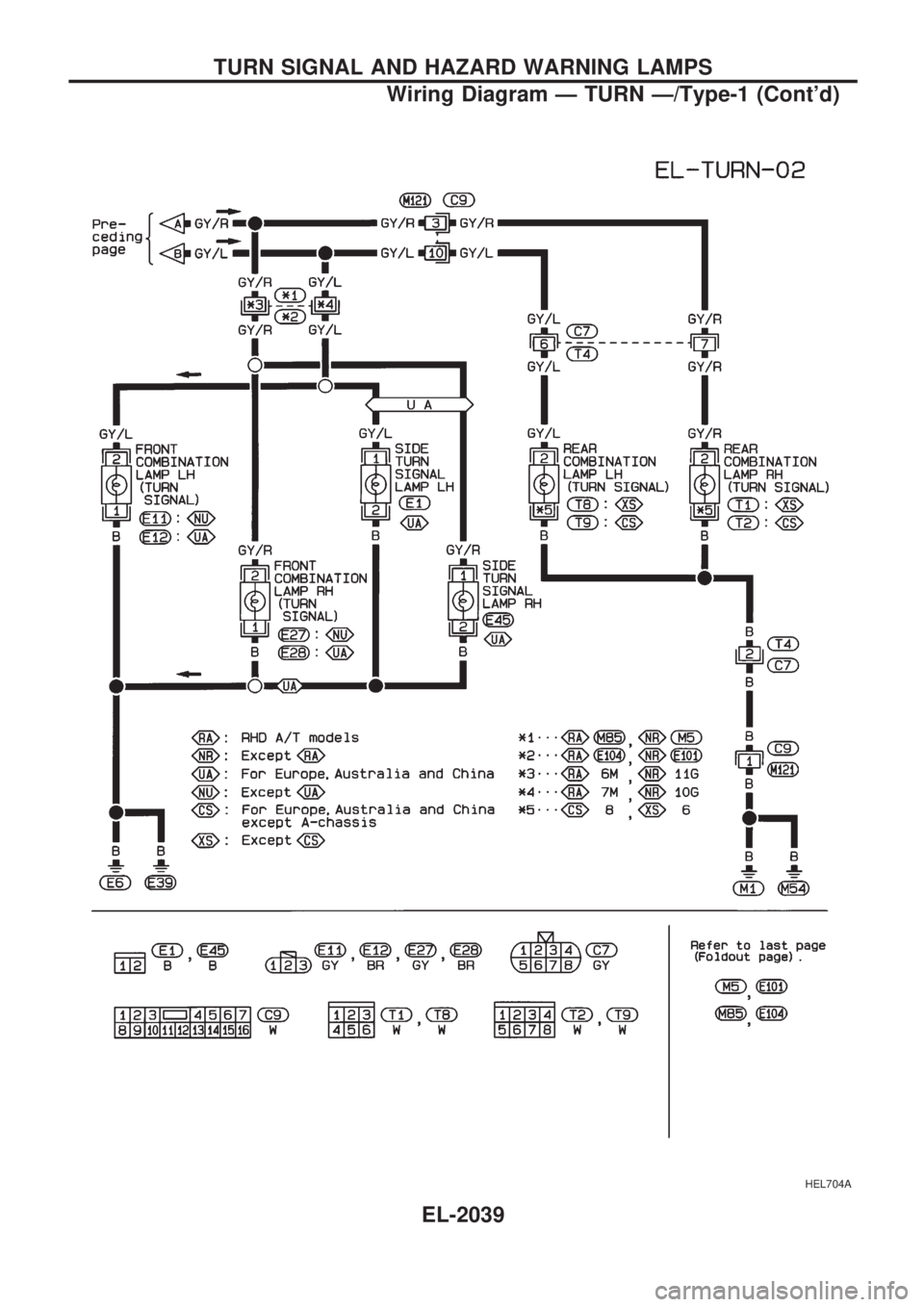

Wiring Diagram Ð TURN Ð/Type-1 (Cont'd)
EL-2039

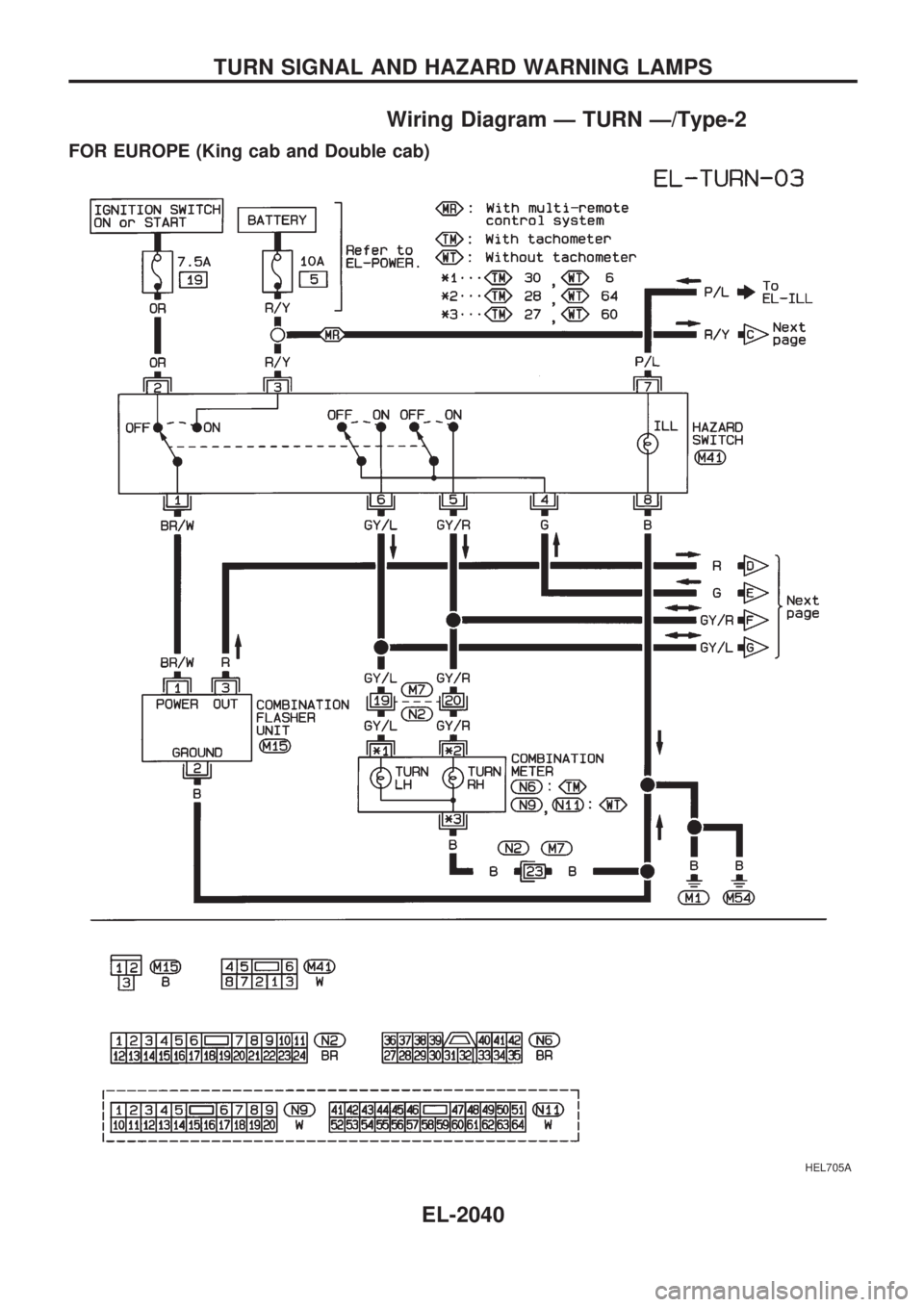

Wiring Diagram Ð TURN Ð/Type-2
FOR EUROPE (King cab and Double cab)
HEL705A
TURN SIGNAL AND HAZARD WARNING LAMPS
EL-2040

HEL706A
TURN SIGNAL AND HAZARD WARNING LAMPS

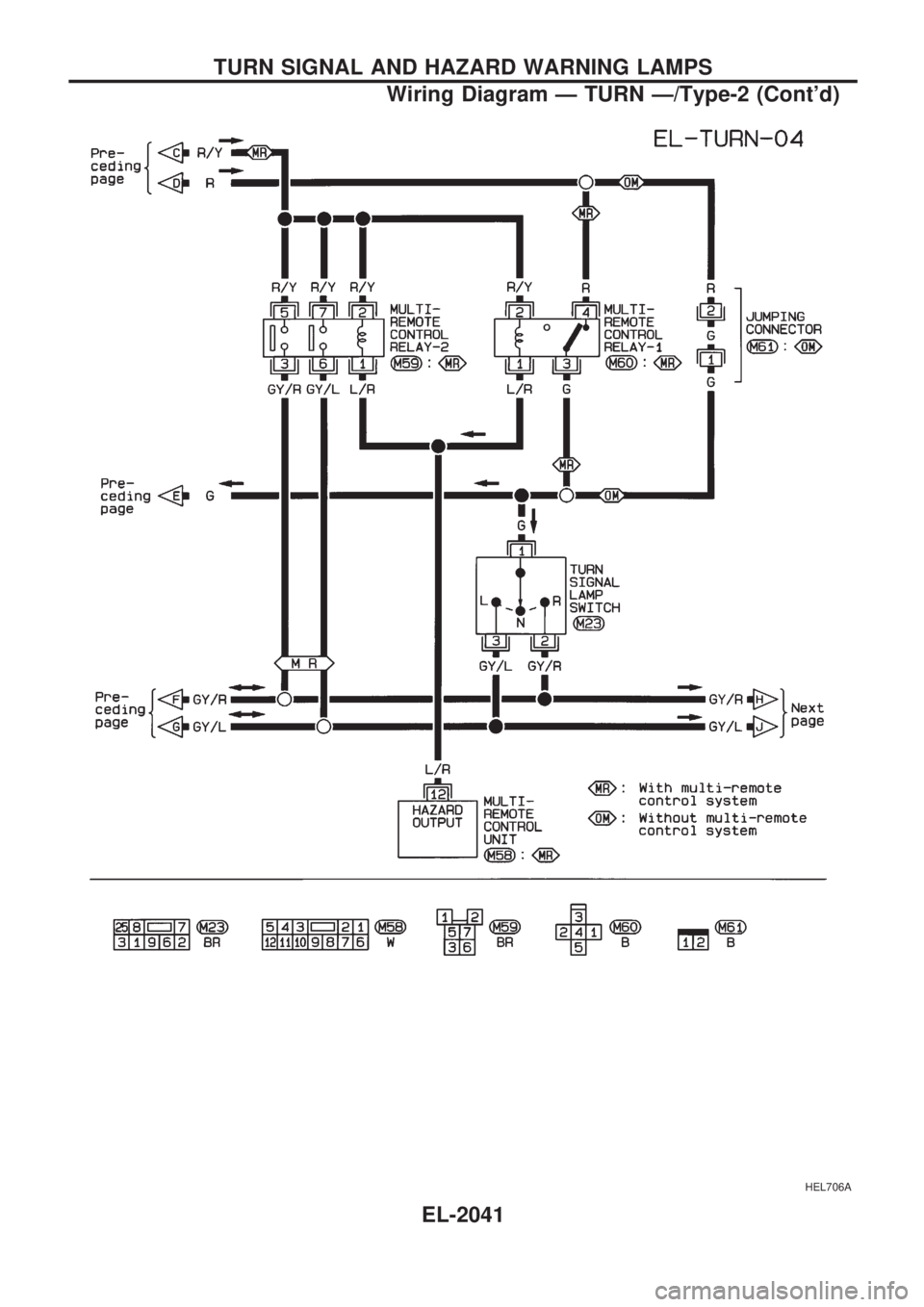

Wiring Diagram Ð TURN Ð/Type-2 (Cont'd)
EL-2041

HEL707A
TURN SIGNAL AND HAZARD WARNING LAMPS

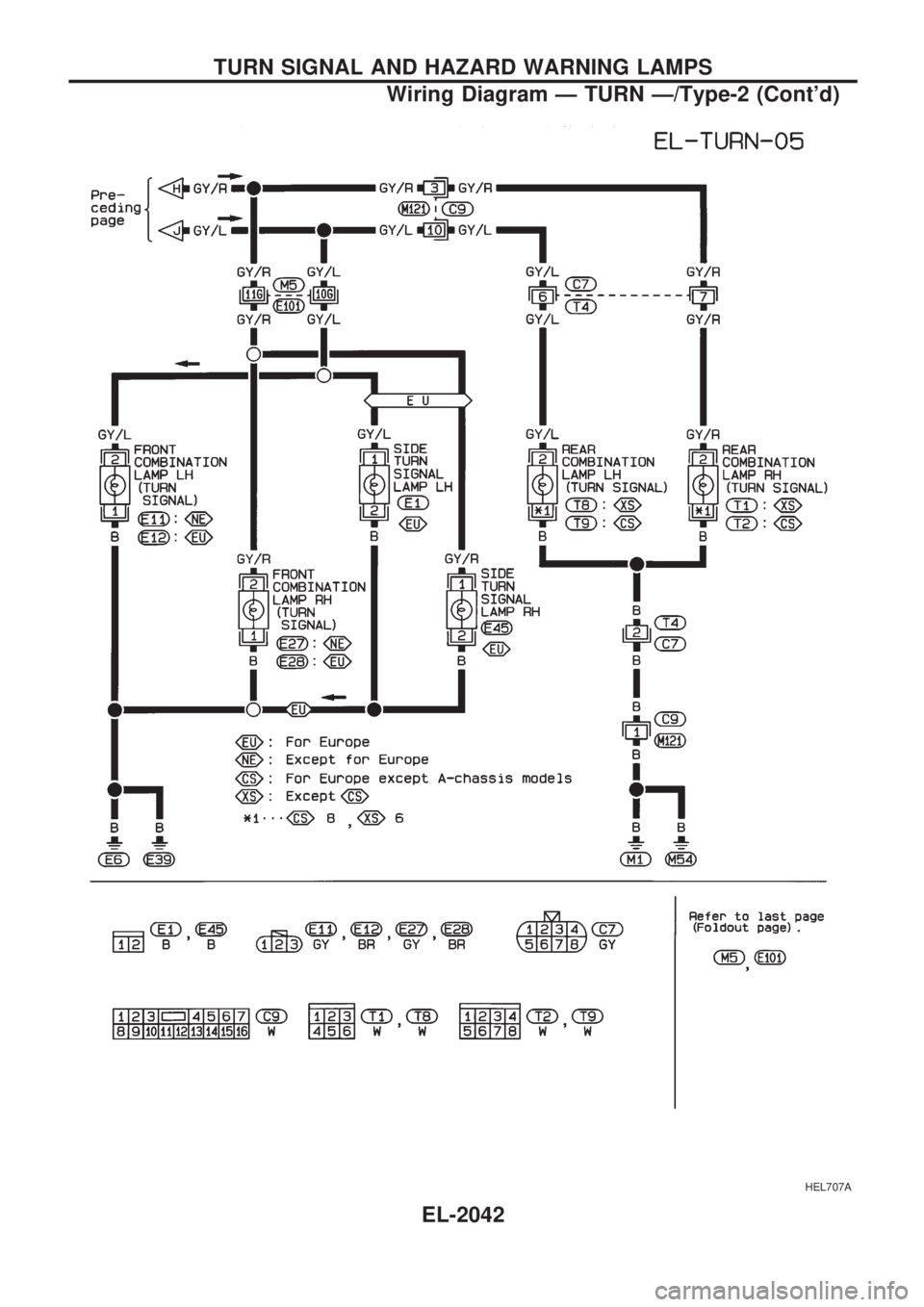

Wiring Diagram Ð TURN Ð/Type-2 (Cont'd)
EL-2042

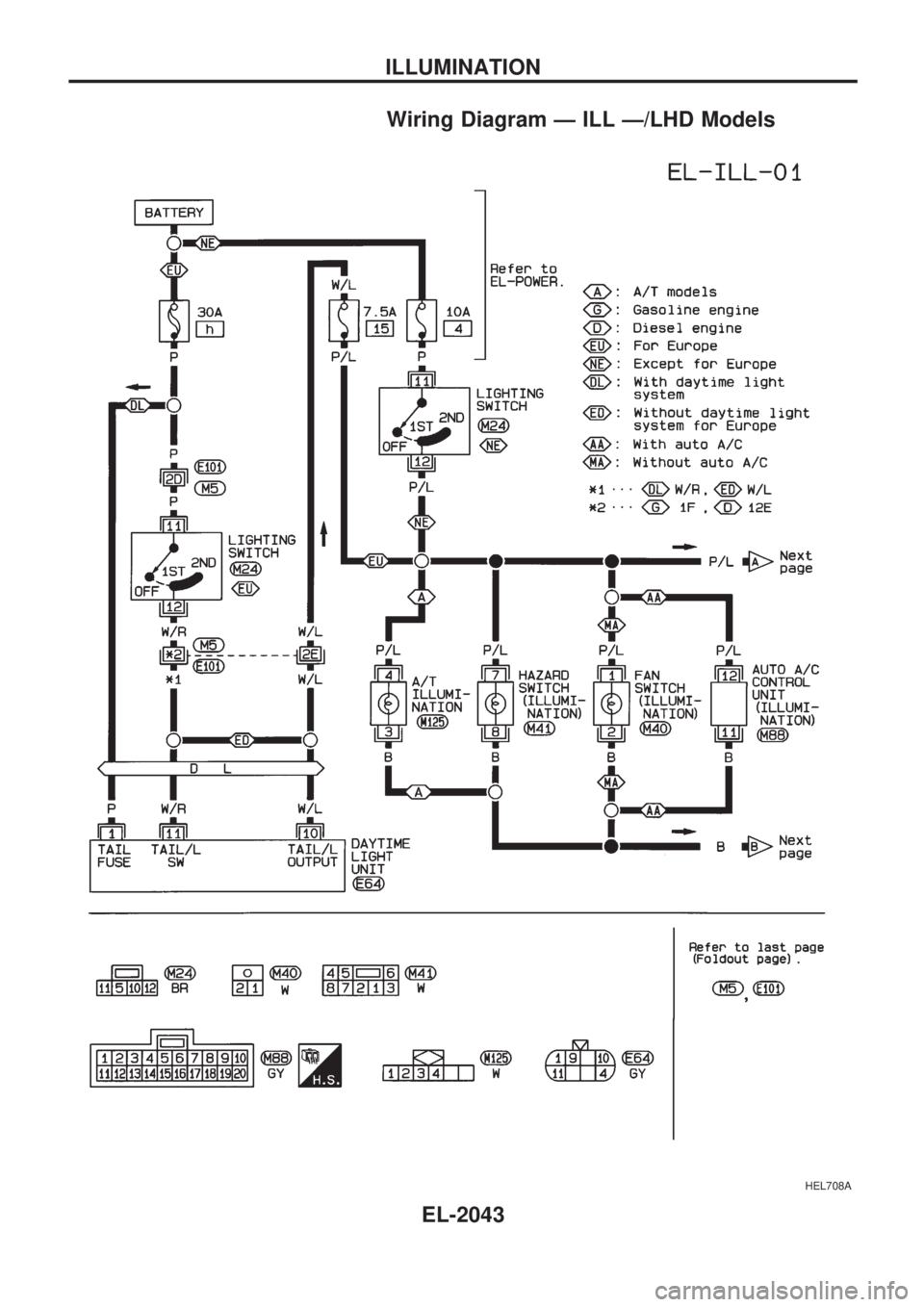

Wiring Diagram Ð ILL Ð/LHD Models
HEL708A
ILLUMINATION
EL-2043

HEL709A
ILLUMINATION

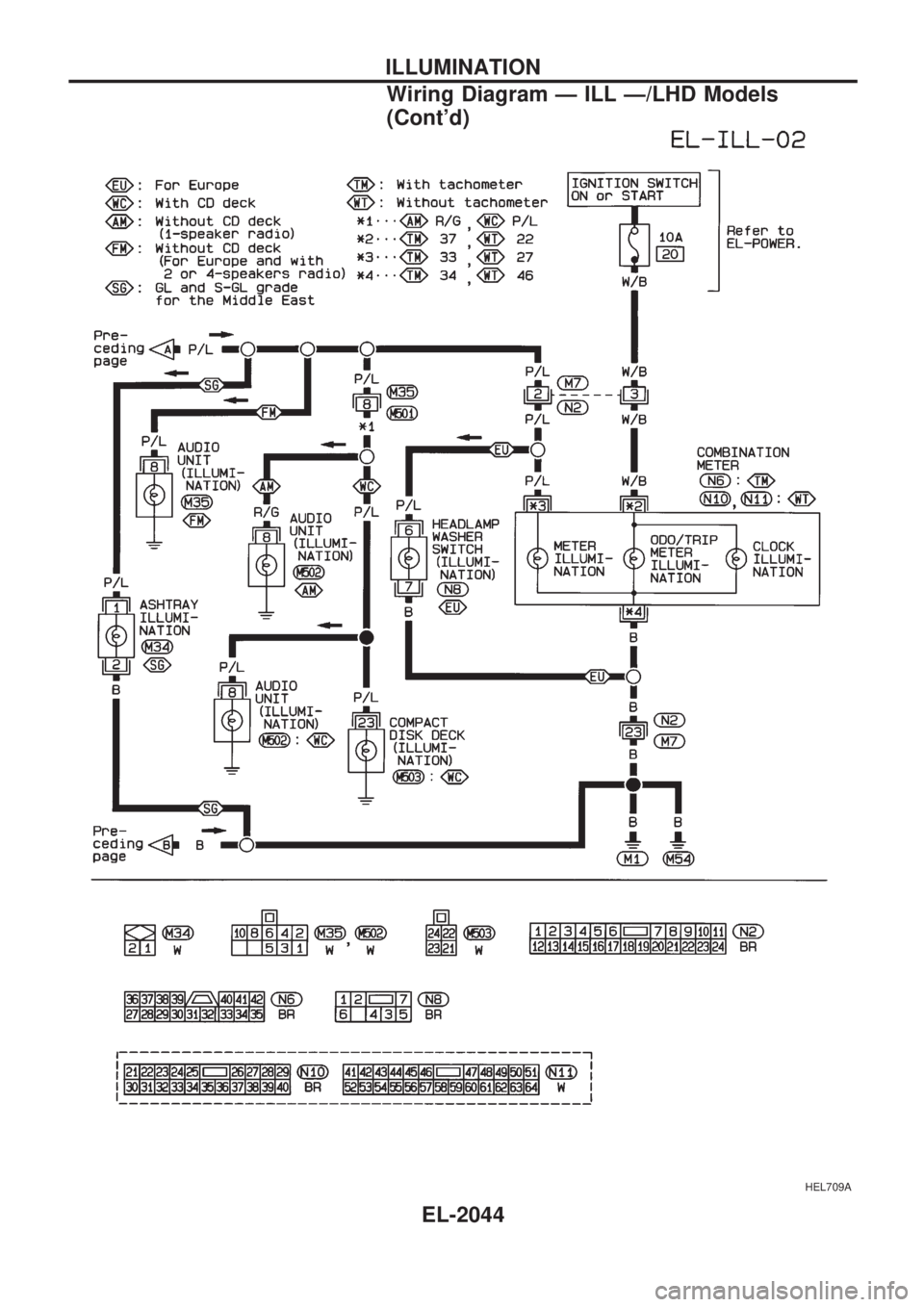

Wiring Diagram Ð ILL Ð/LHD Models
(Cont'd)
EL-2044

Wiring Diagram Ð ILL Ð/RHD Models
HEL710A
ILLUMINATION
EL-2045
