DOOR LOCK RELAY CHECK
ConditionContinuity between terminals
123456
Battery voltage not
applied between each
terminal
V3andV5jj
V3andV6jj
Battery voltage
applied between each
terminal
V3andV5jj
V3andV6jj
Alwaysjjj
CAUTION:
While applying battery voltage to relay terminals, insert fuse
into the circuit.
SEL411W
MULTI-REMOTE CONTROL SYSTEM
Trouble Diagnoses (Cont'd)
EL-2138

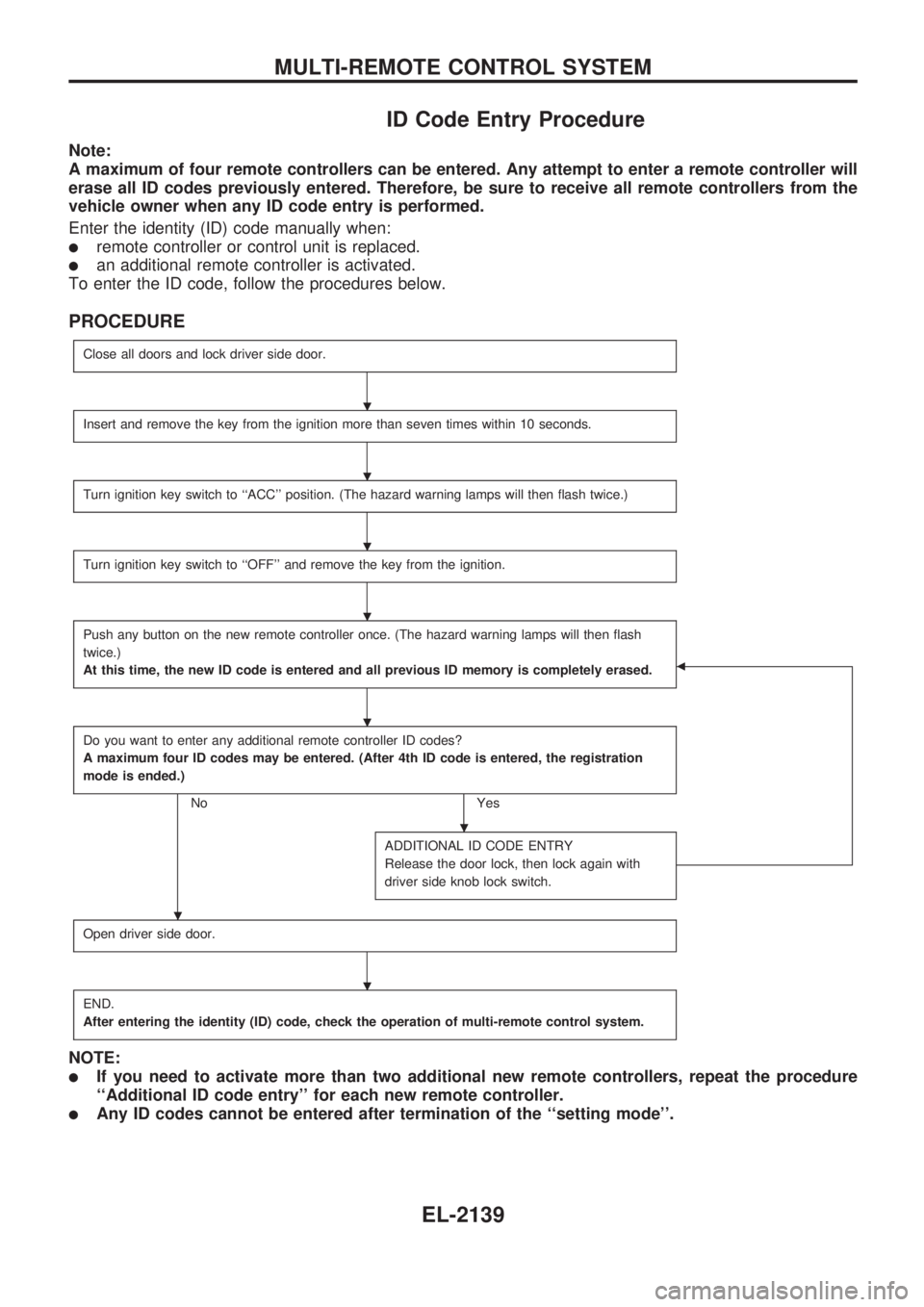

ID Code Entry Procedure
Note:
A maximum of four remote controllers can be entered. Any attempt to enter a remote controller will
erase all ID codes previously entered. Therefore, be sure to receive all remote controllers from the
vehicle owner when any ID code entry is performed.
Enter the identity (ID) code manually when:
lremote controller or control unit is replaced.
lan additional remote controller is activated.
To enter the ID code, follow the procedures below.
PROCEDURE
Close all doors and lock driver side door.
Insert and remove the key from the ignition more than seven times within 10 seconds.
Turn ignition key switch to ``ACC'' position. (The hazard warning lamps will then flash twice.)
Turn ignition key switch to ``OFF'' and remove the key from the ignition.
Push any button on the new remote controller once. (The hazard warning lamps will then flash
twice.)
At this time, the new ID code is entered and all previous ID memory is completely erased.
b
Do you want to enter any additional remote controller ID codes?
A maximum four ID codes may be entered. (After 4th ID code is entered, the registration
mode is ended.)
No Yes
ADDITIONAL ID CODE ENTRY
Release the door lock, then lock again with
driver side knob lock switch.
Open driver side door.
END.
After entering the identity (ID) code, check the operation of multi-remote control system.
NOTE:
lIf you need to activate more than two additional new remote controllers, repeat the procedure
``Additional ID code entry'' for each new remote controller.
lAny ID codes cannot be entered after termination of the ``setting mode''.
.
.
.
.
.
.
.
.
MULTI-REMOTE CONTROL SYSTEM
EL-2139

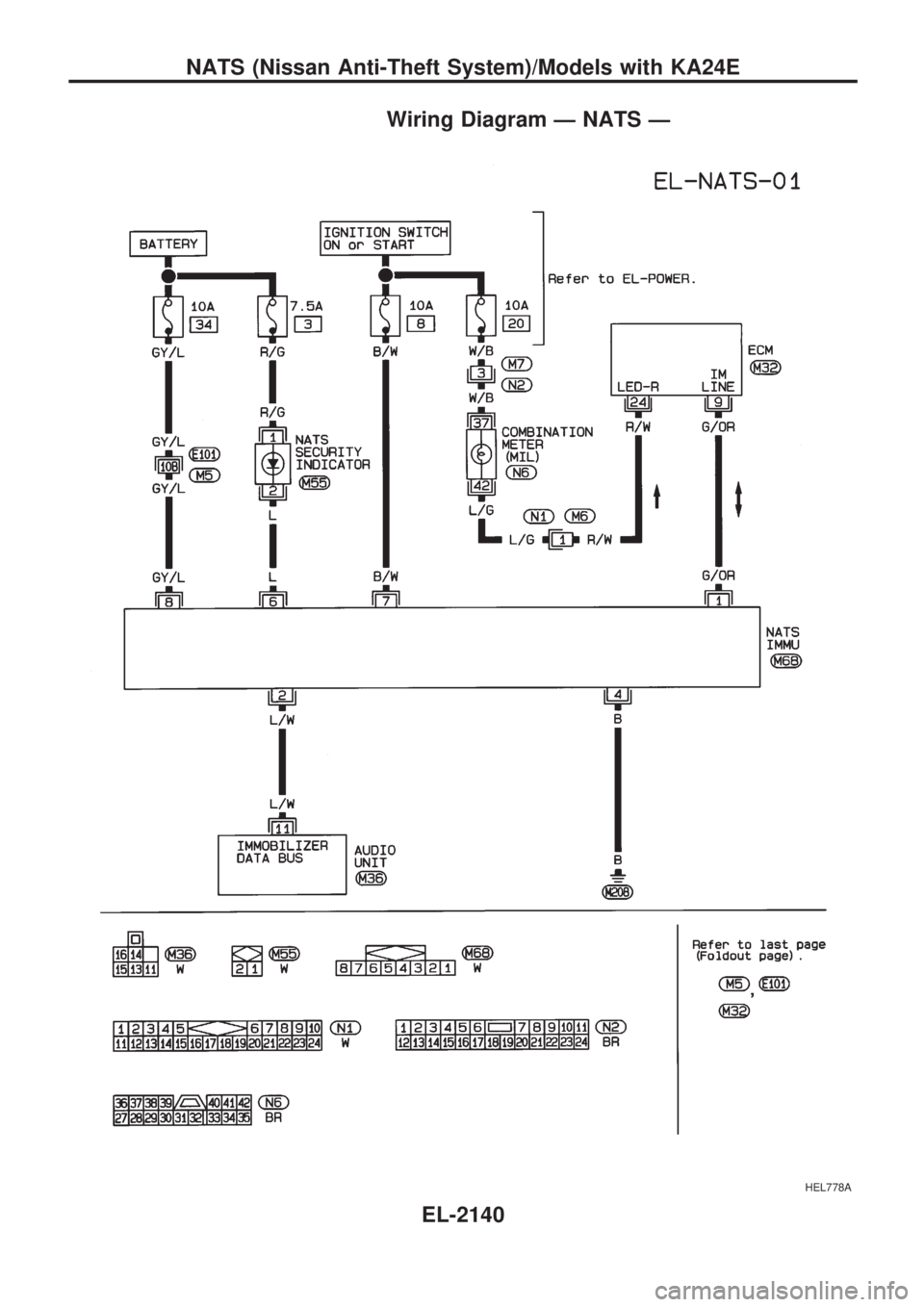

Wiring Diagram Ð NATS Ð
HEL778A
NATS (Nissan Anti-Theft System)/Models with KA24E
EL-2140

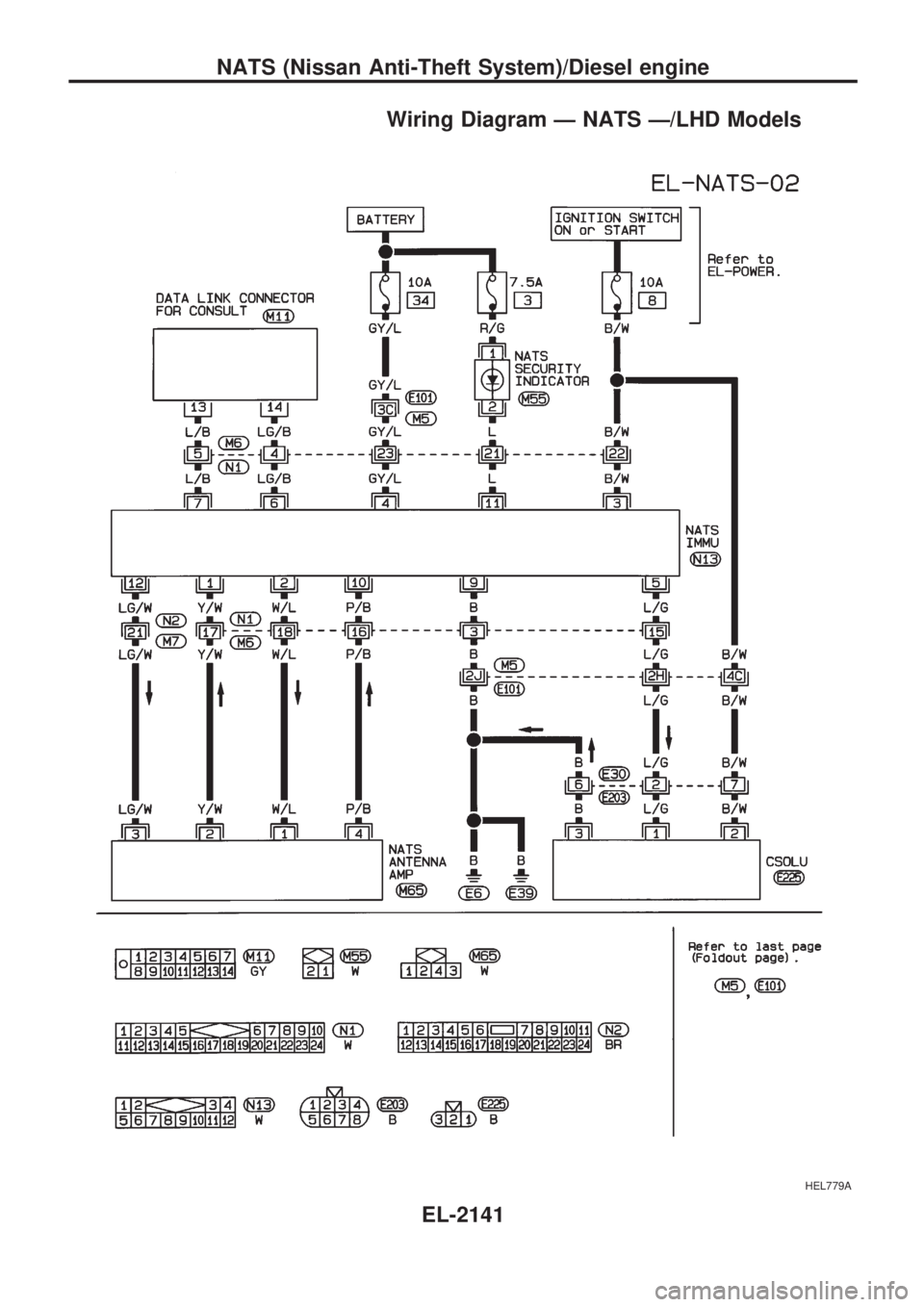

Wiring Diagram Ð NATS Ð/LHD Models
HEL779A
NATS (Nissan Anti-Theft System)/Diesel engine
EL-2141

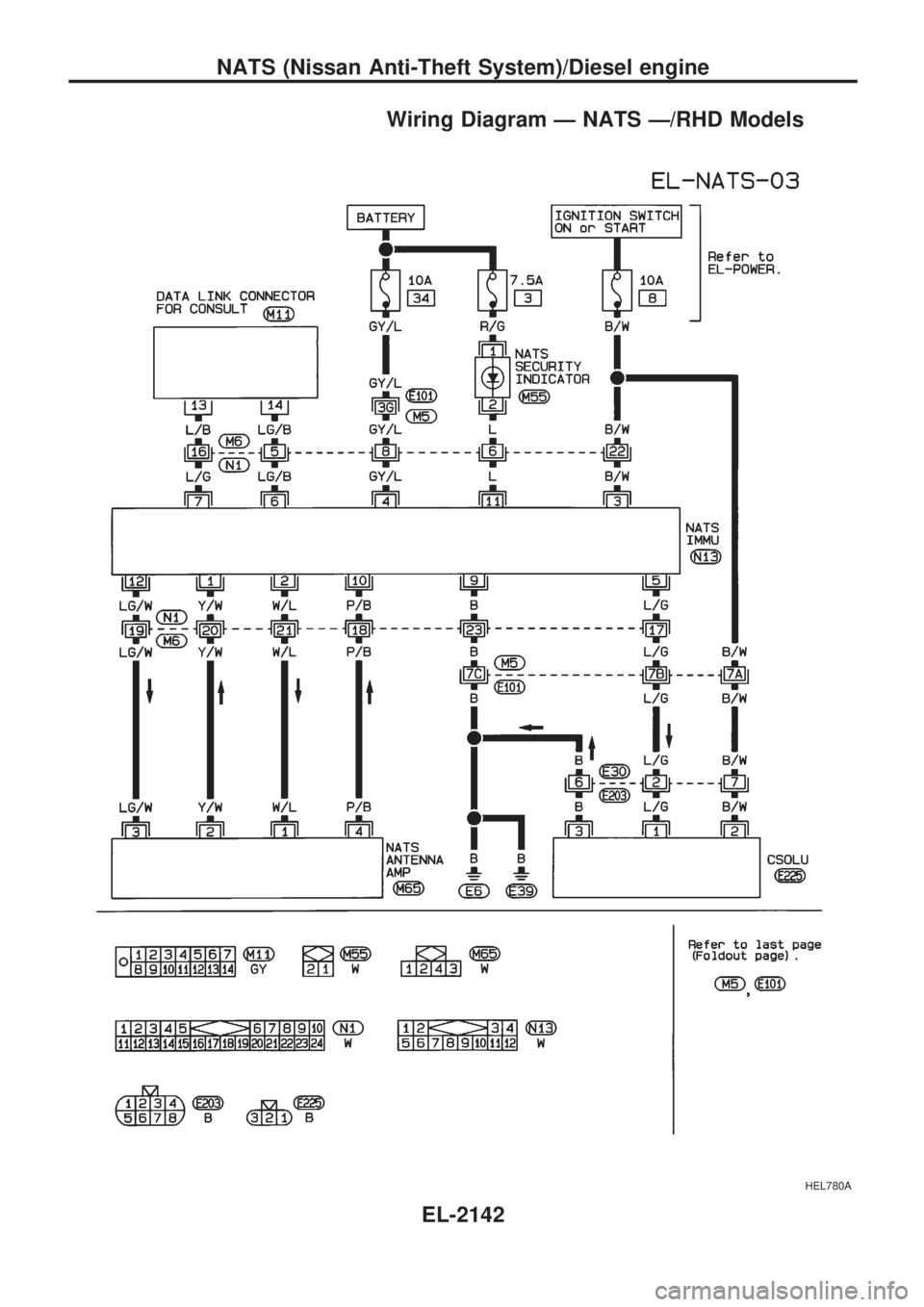

Wiring Diagram Ð NATS Ð/RHD Models
HEL780A
NATS (Nissan Anti-Theft System)/Diesel engine
EL-2142

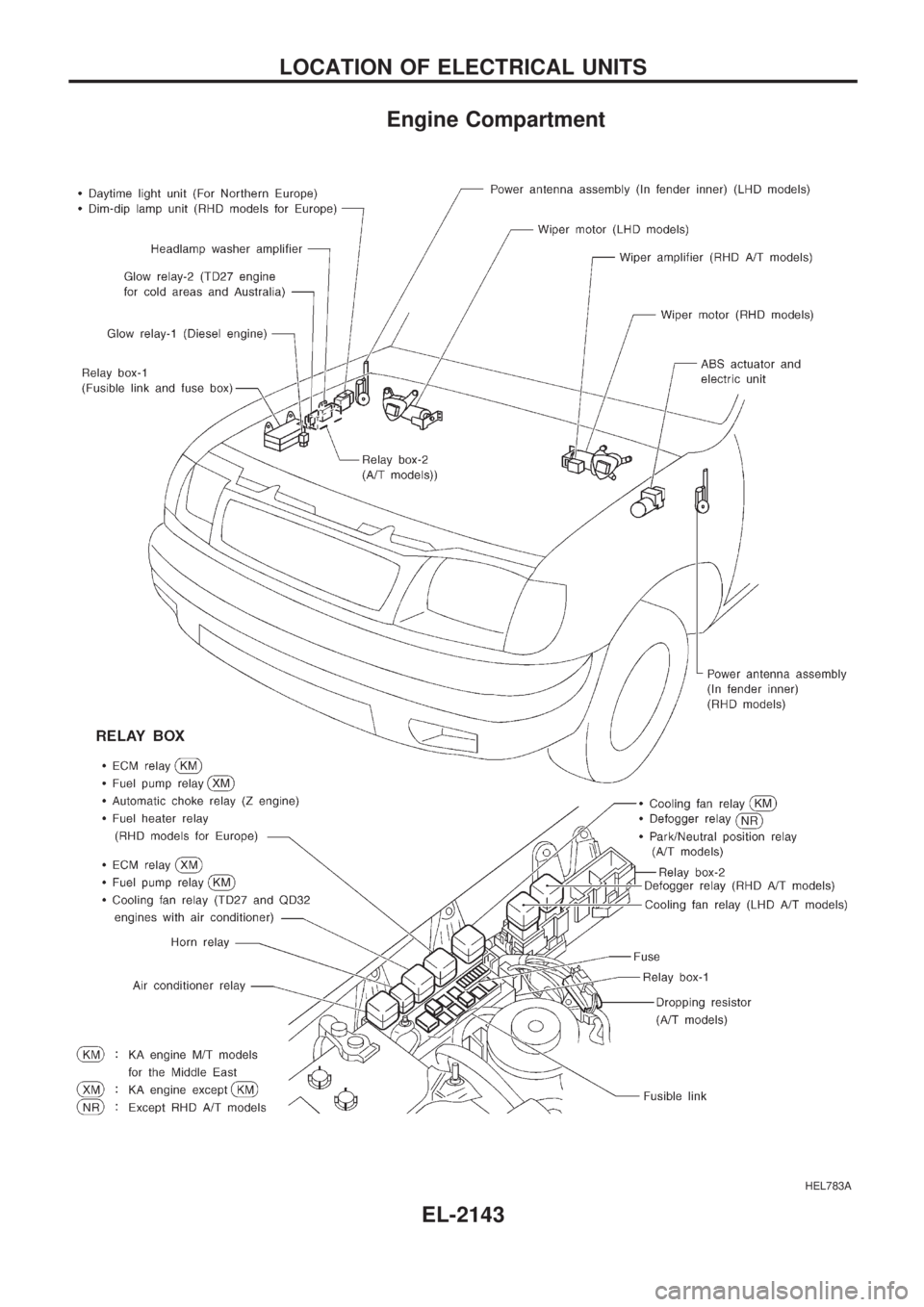

Engine Compartment
HEL783A
LOCATION OF ELECTRICAL UNITS
EL-2143

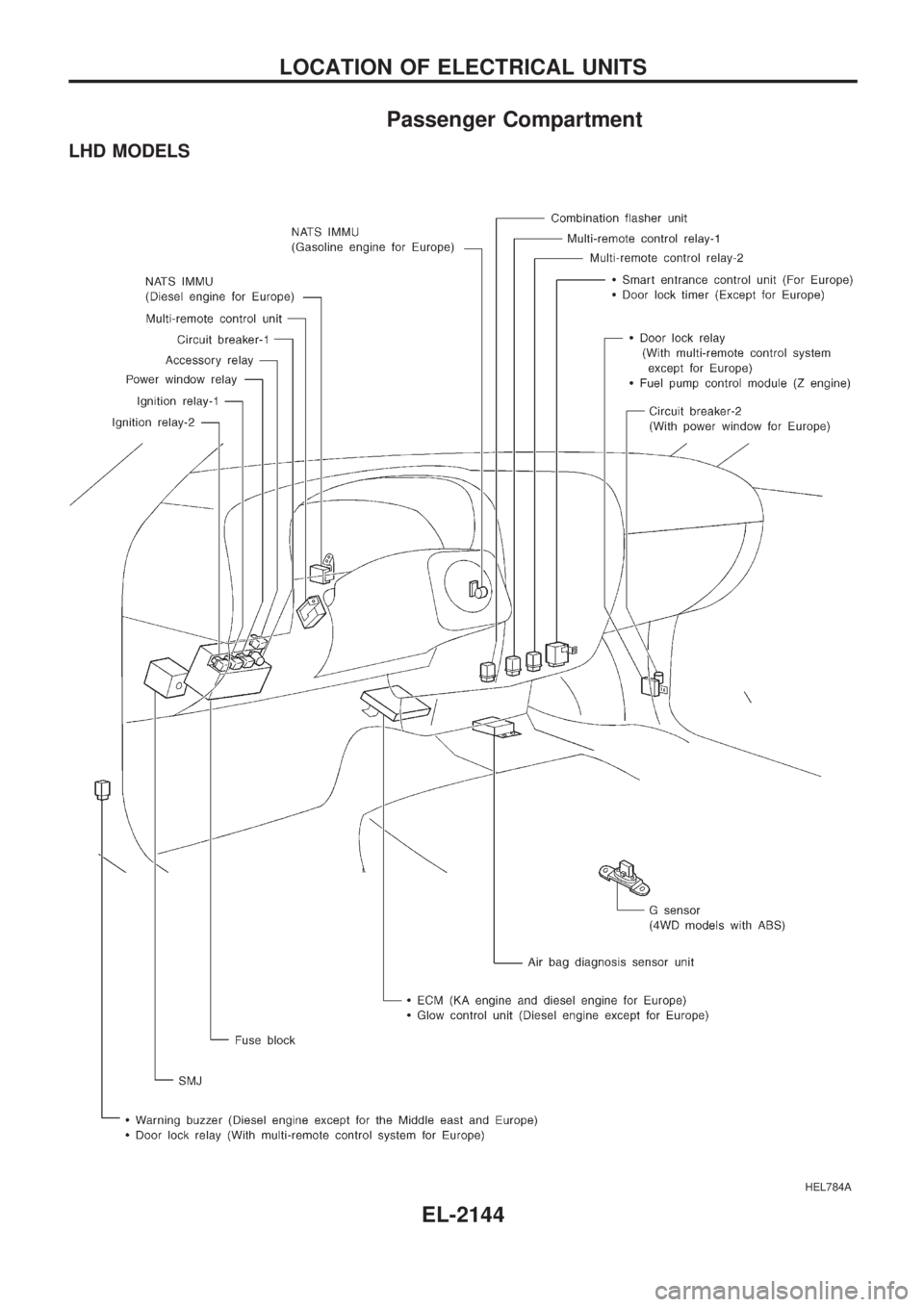

Passenger Compartment
LHD MODELS
HEL784A
LOCATION OF ELECTRICAL UNITS
EL-2144

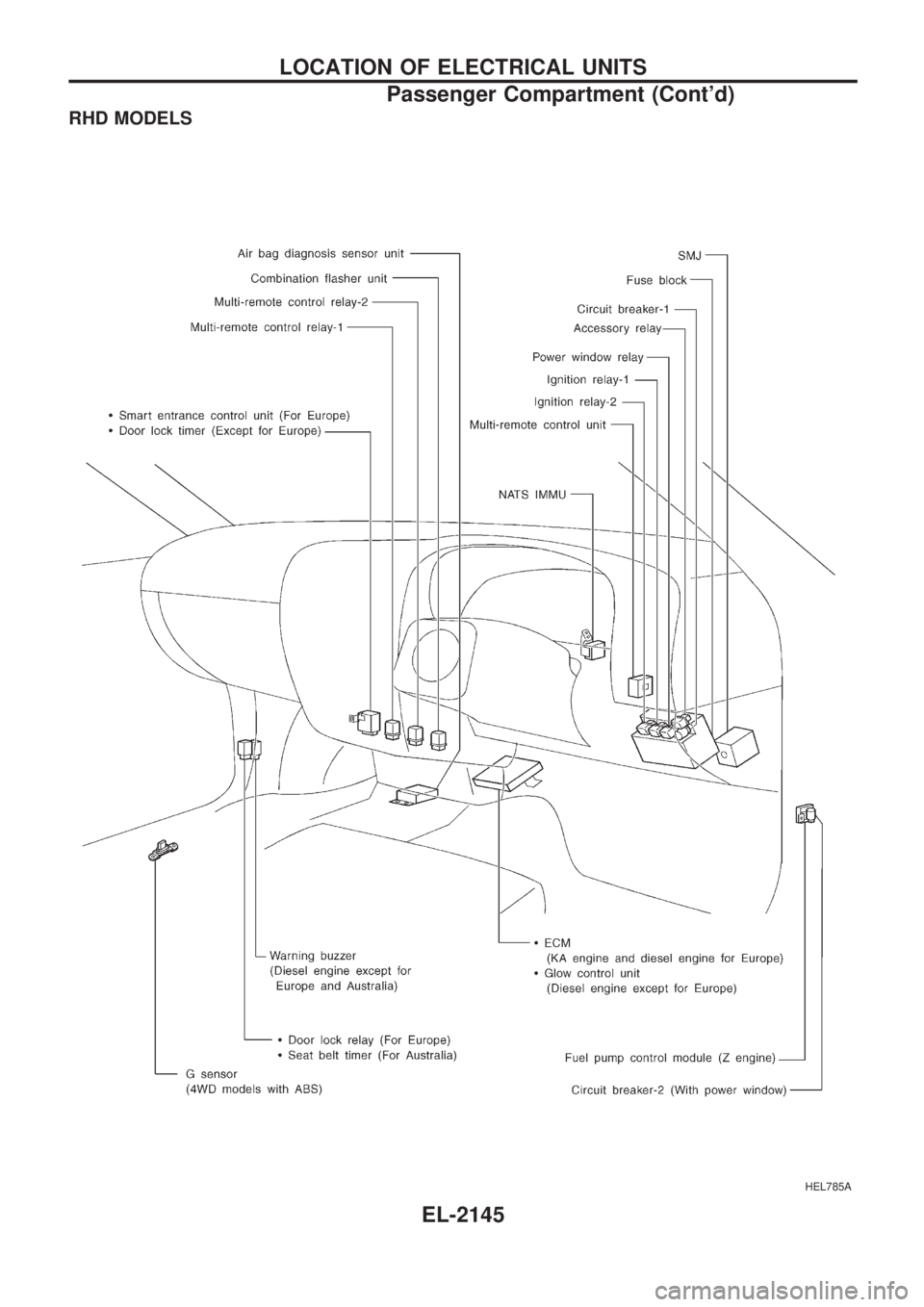

RHD MODELS
HEL785A
LOCATION OF ELECTRICAL UNITS
Passenger Compartment (Cont'd)
EL-2145
