1999 NISSAN PICK-UP Repair Manual

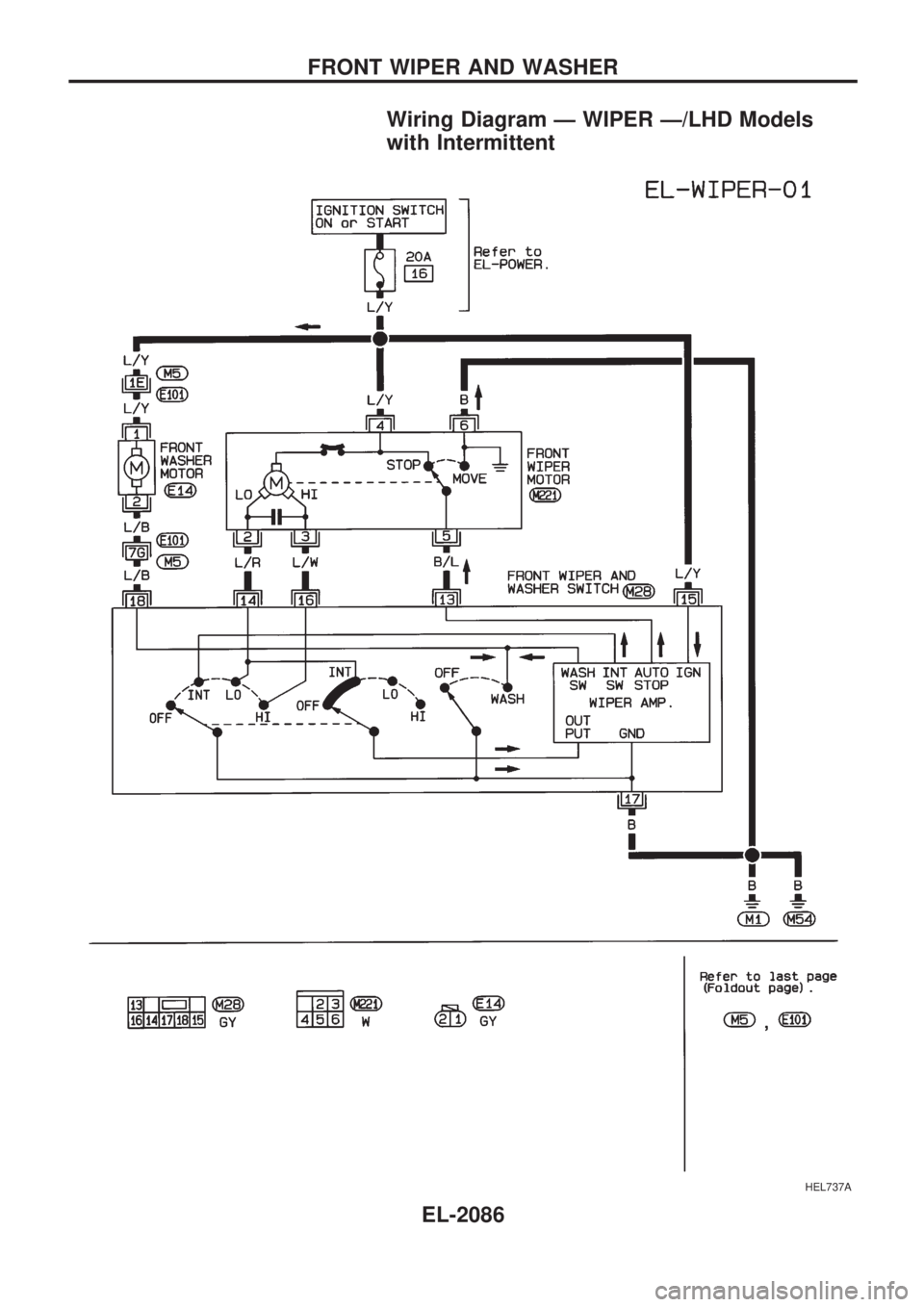

Wiring Diagram Ð WIPER Ð/LHD Models
with Intermittent
HEL737A
FRONT WIPER AND WASHER
EL-2086

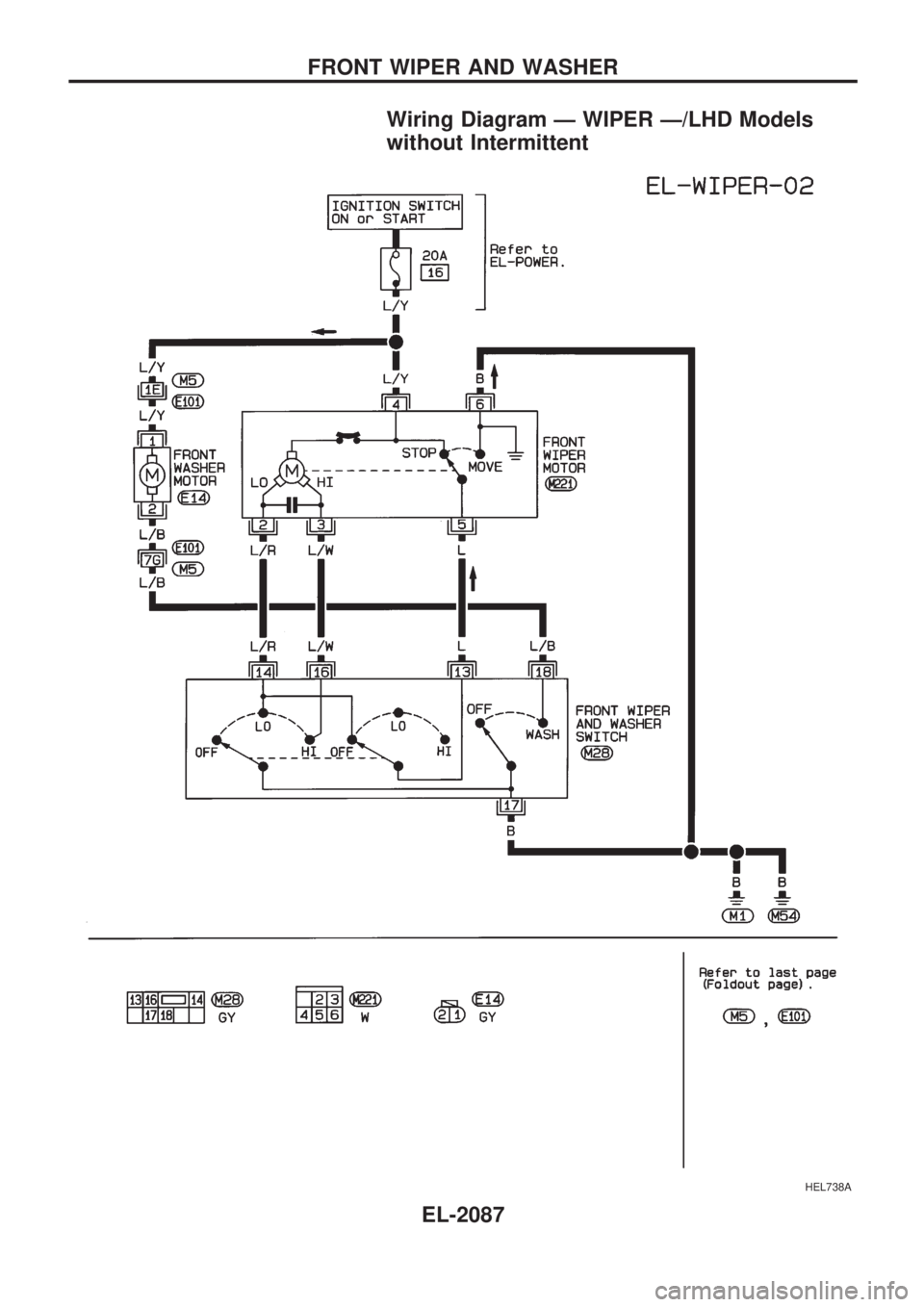

Wiring Diagram Ð WIPER Ð/LHD Models
without Intermittent
HEL738A
FRONT WIPER AND WASHER
EL-2087

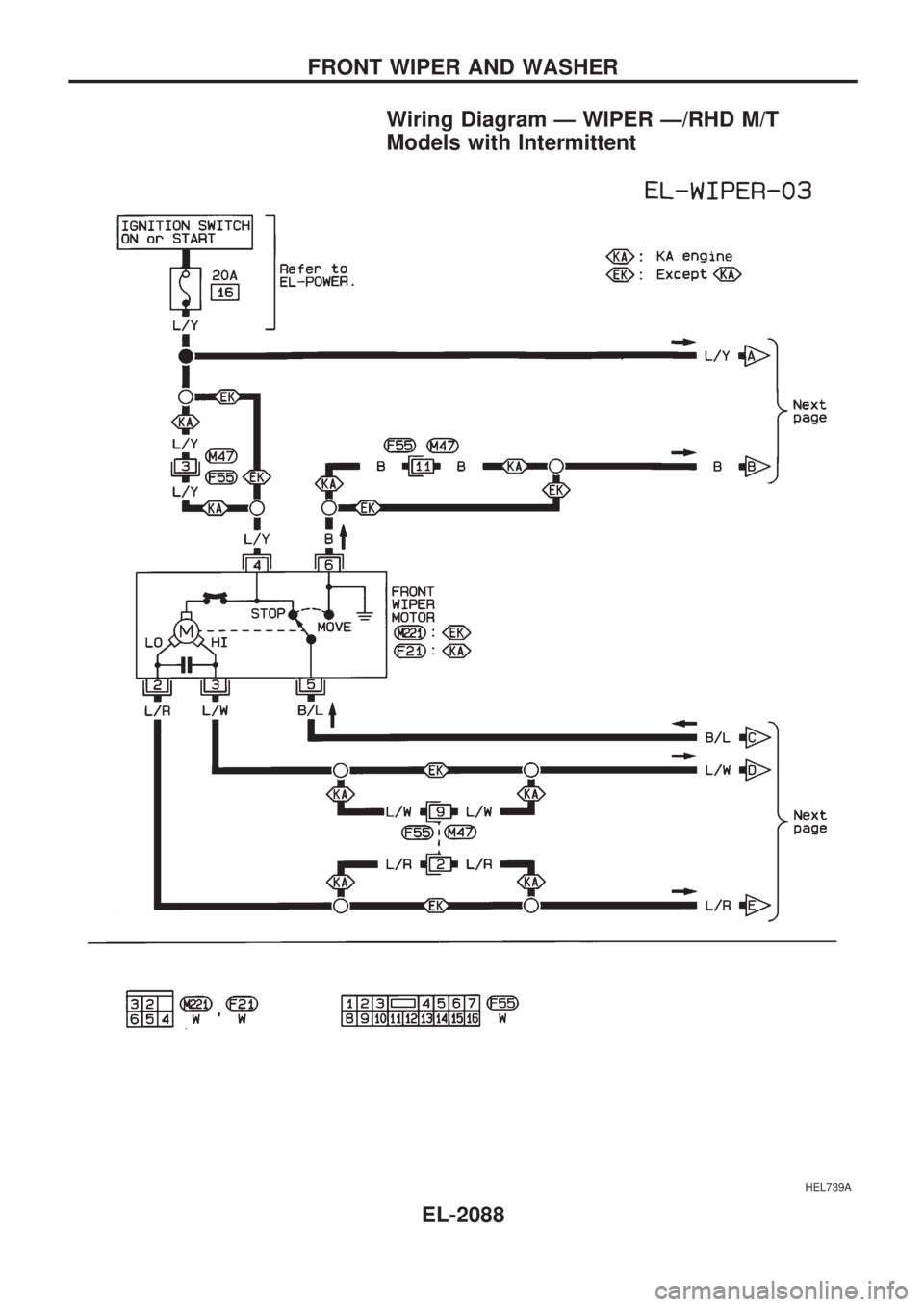

Wiring Diagram Ð WIPER Ð/RHD M/T
Models with Intermittent
HEL739A
FRONT WIPER AND WASHER
EL-2088

HEL740A
FRONT WIPER AND WASHER

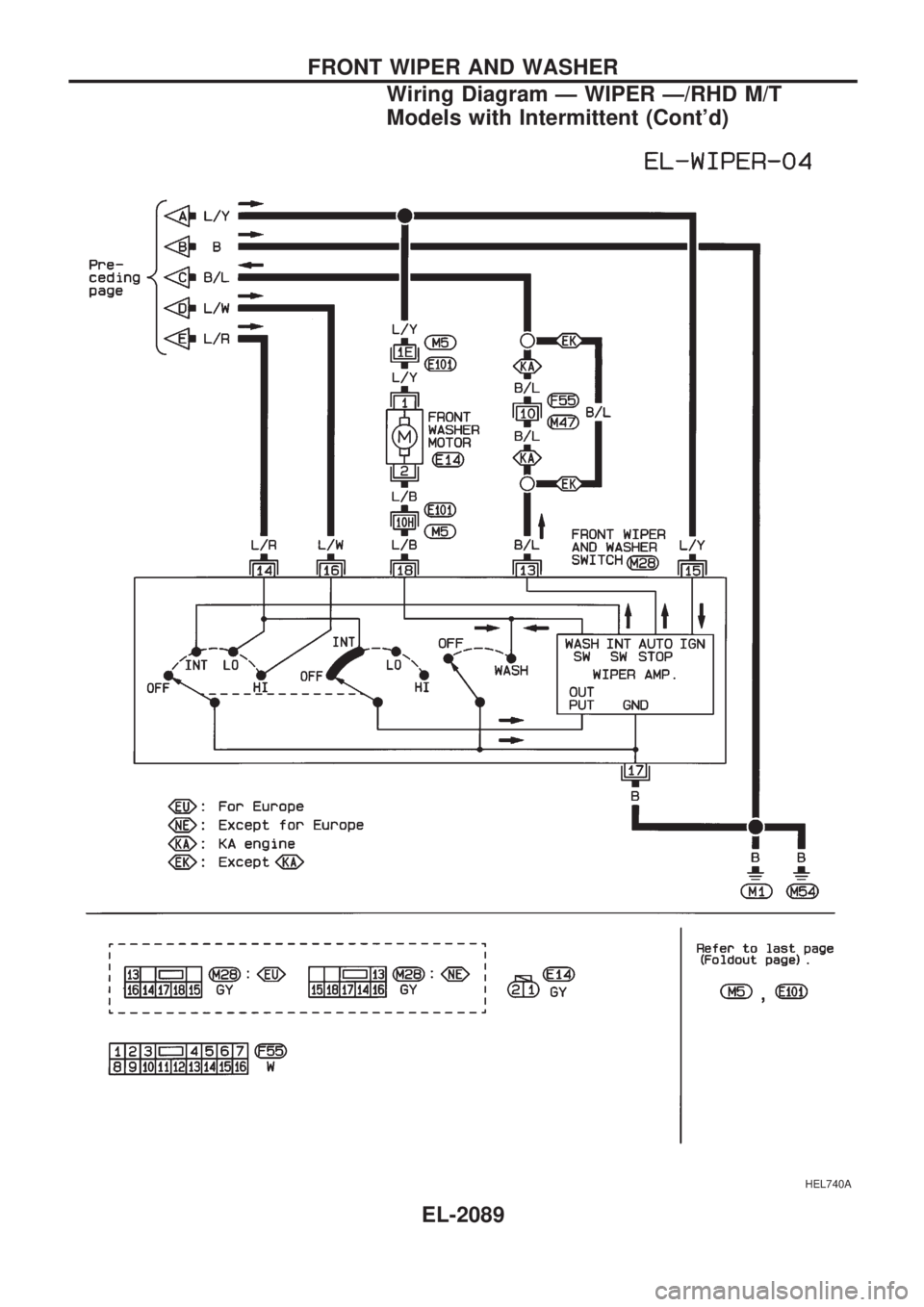

Wiring Diagram Ð WIPER Ð/RHD M/T
Models with Intermittent (Cont'd)
EL-2089

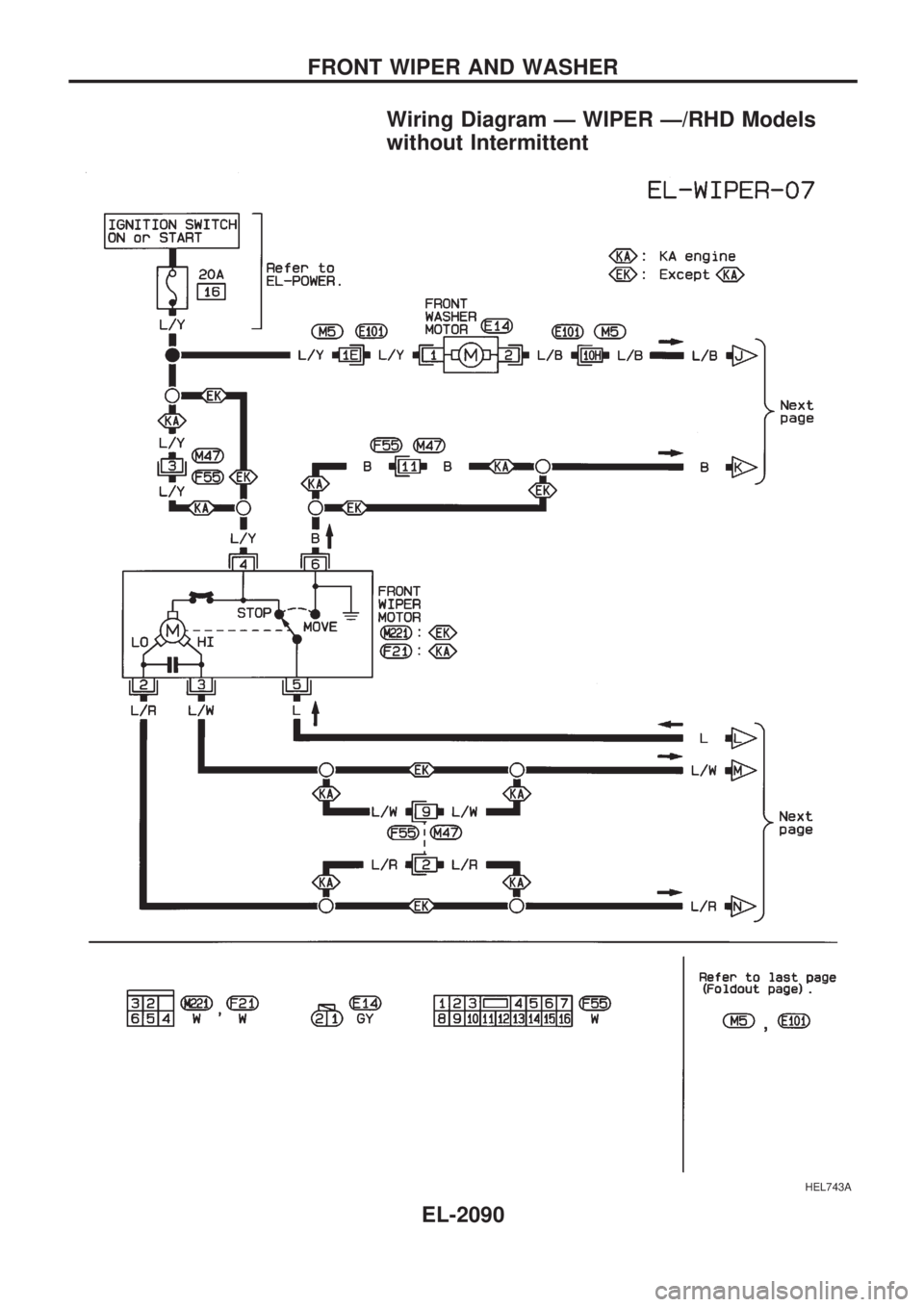

Wiring Diagram Ð WIPER Ð/RHD Models
without Intermittent
HEL743A
FRONT WIPER AND WASHER
EL-2090

HEL744A
FRONT WIPER AND WASHER

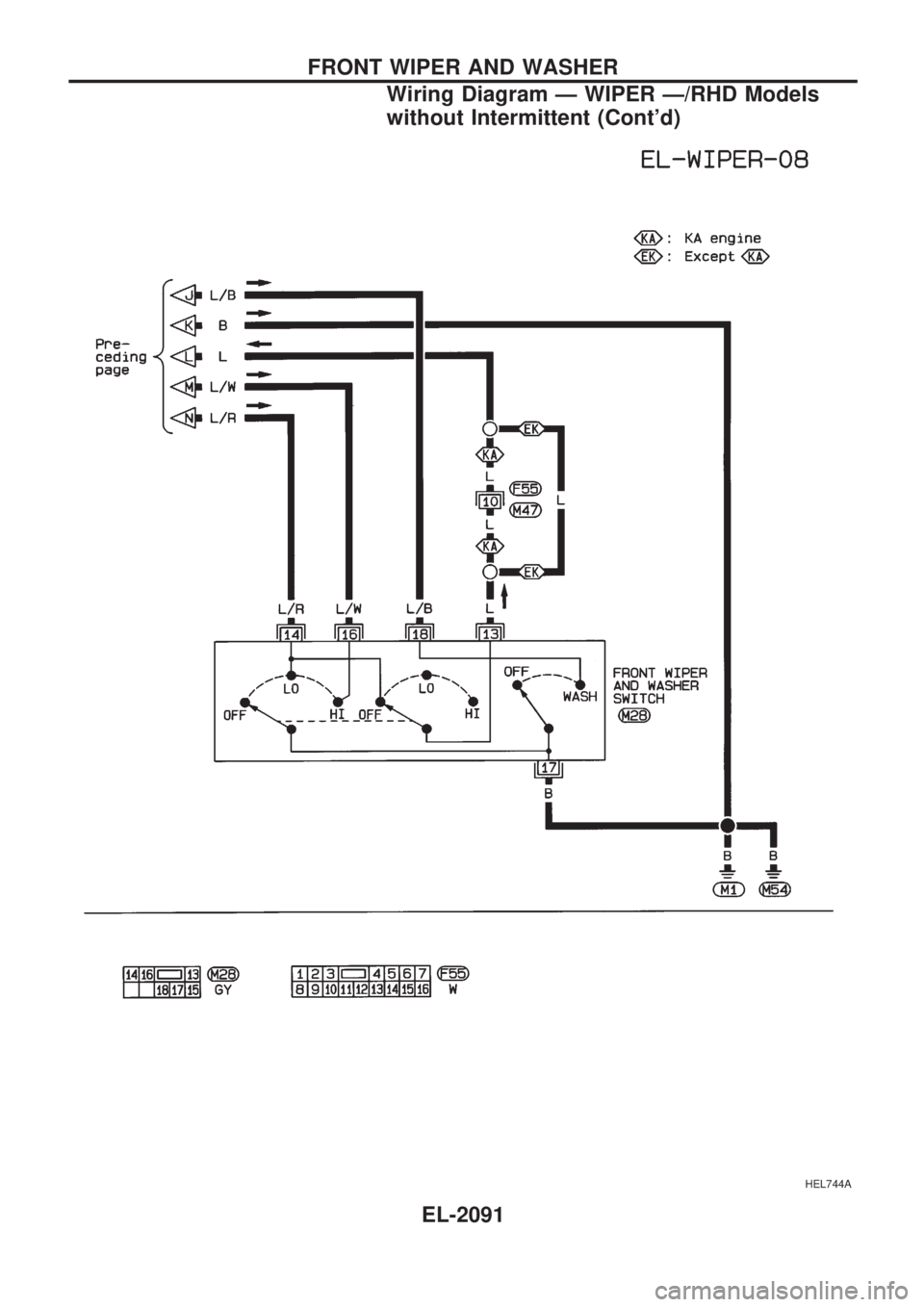

Wiring Diagram Ð WIPER Ð/RHD Models
without Intermittent (Cont'd)
EL-2091

Wiring Diagram Ð HLC Ð
HEL745A
HEADLAMP WASHER
EL-2092

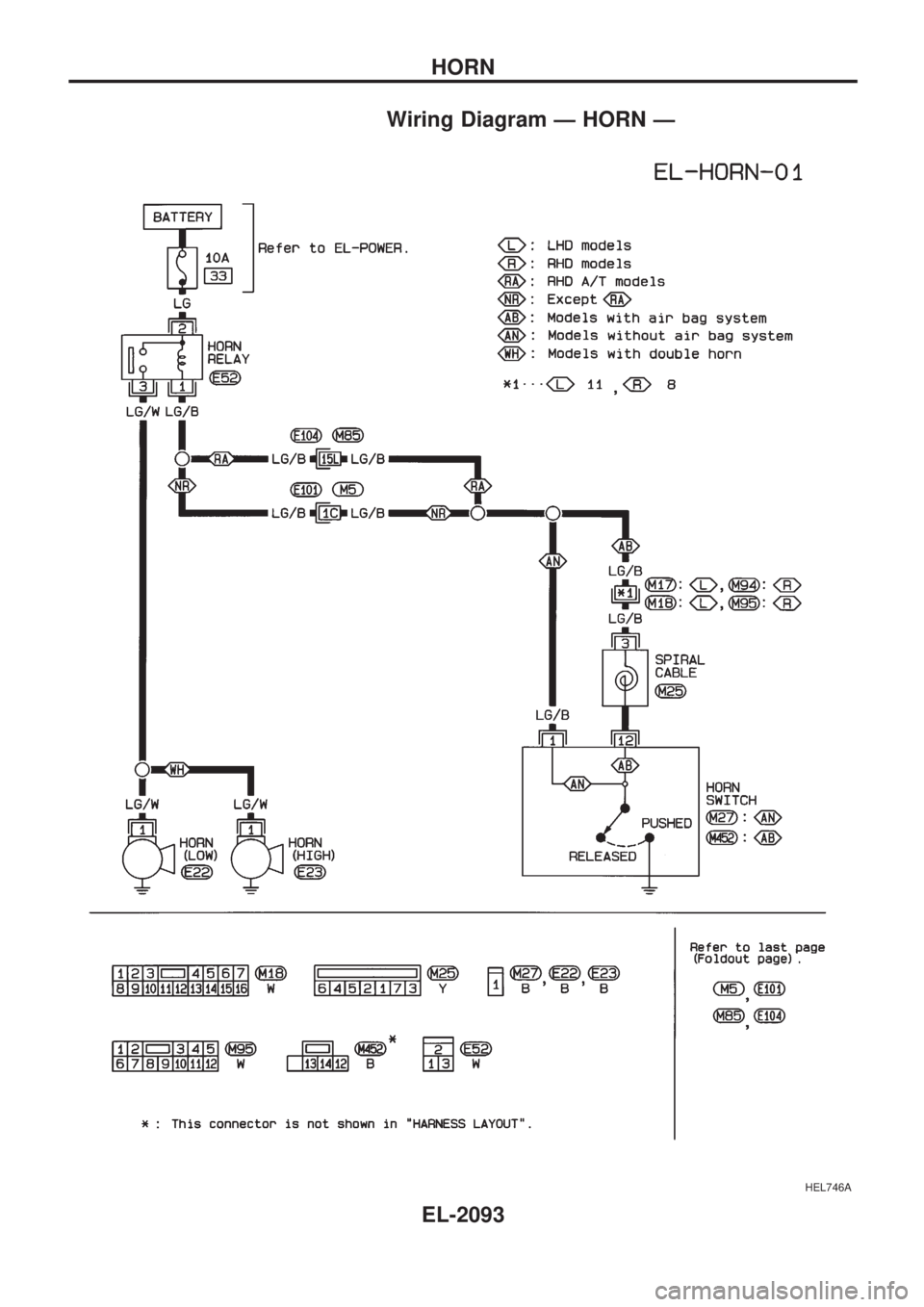

Wiring Diagram Ð HORN Ð
HEL746A
HORN
EL-2093
