1999 NISSAN PICK-UP Repair Manual

HEL711A

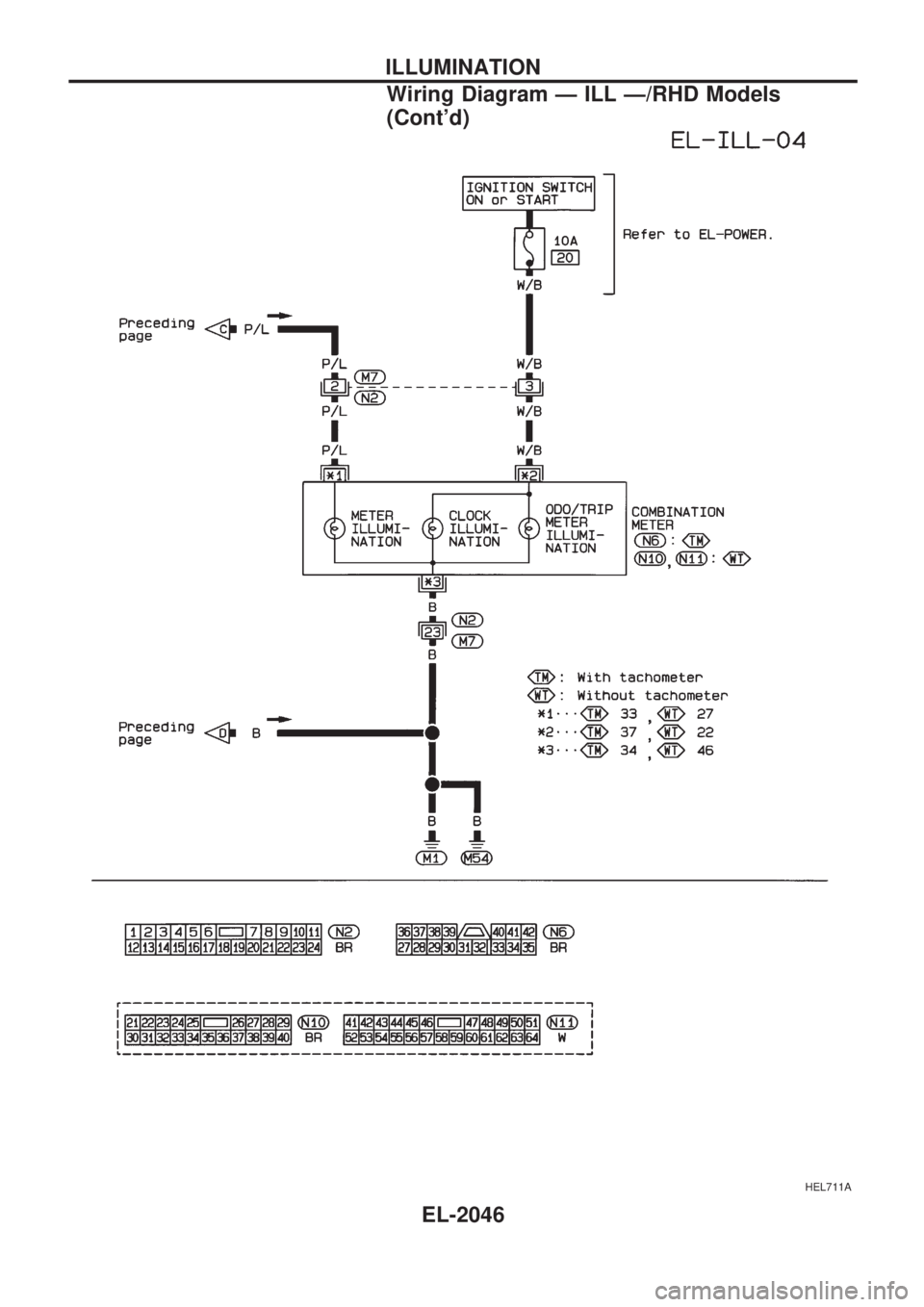

ILLUMINATION
Wiring Diagram Ð ILL Ð/RHD Models
(Cont'd)
EL-2046

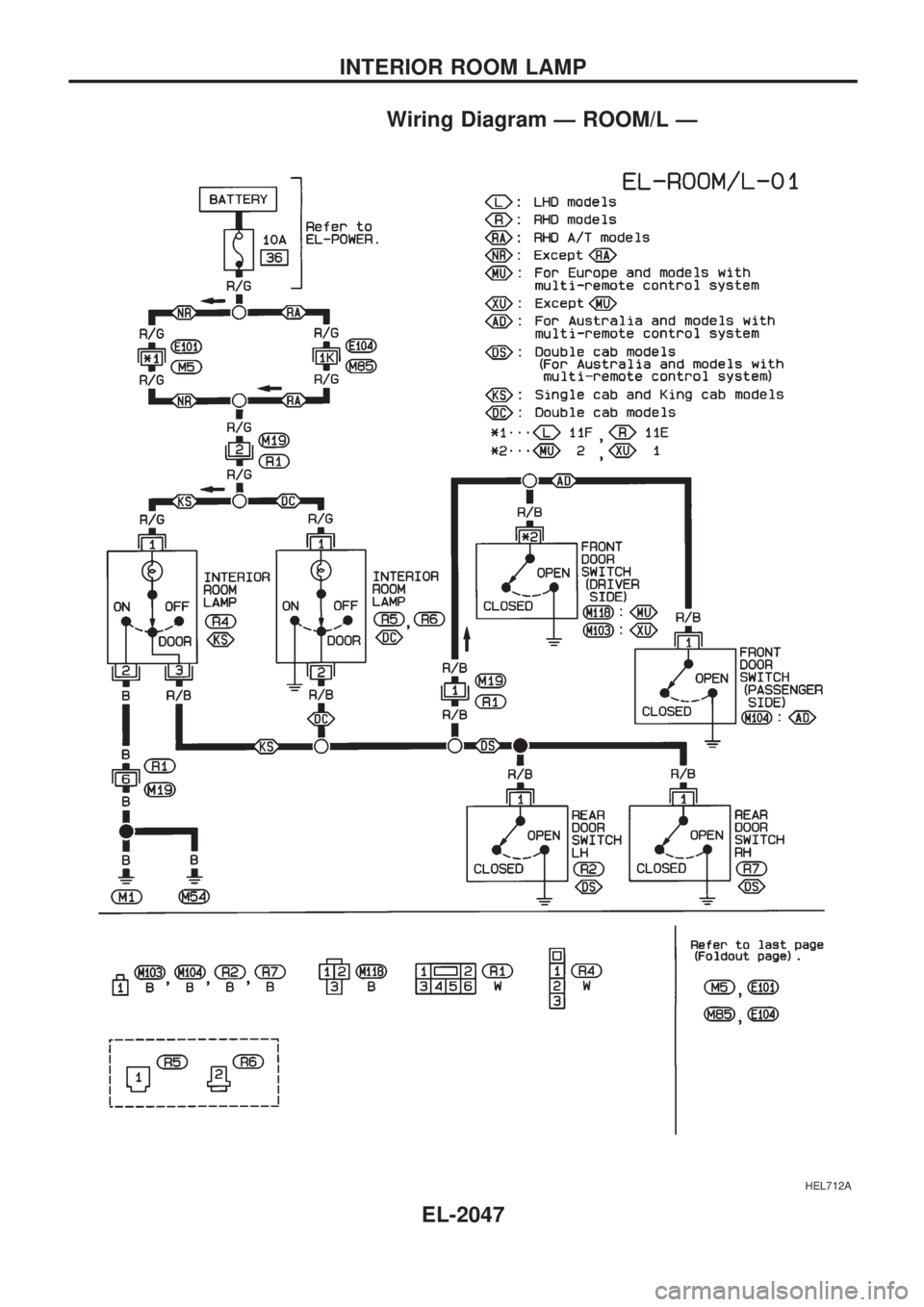

Wiring Diagram Ð ROOM/L Ð
HEL712A
INTERIOR ROOM LAMP
EL-2047

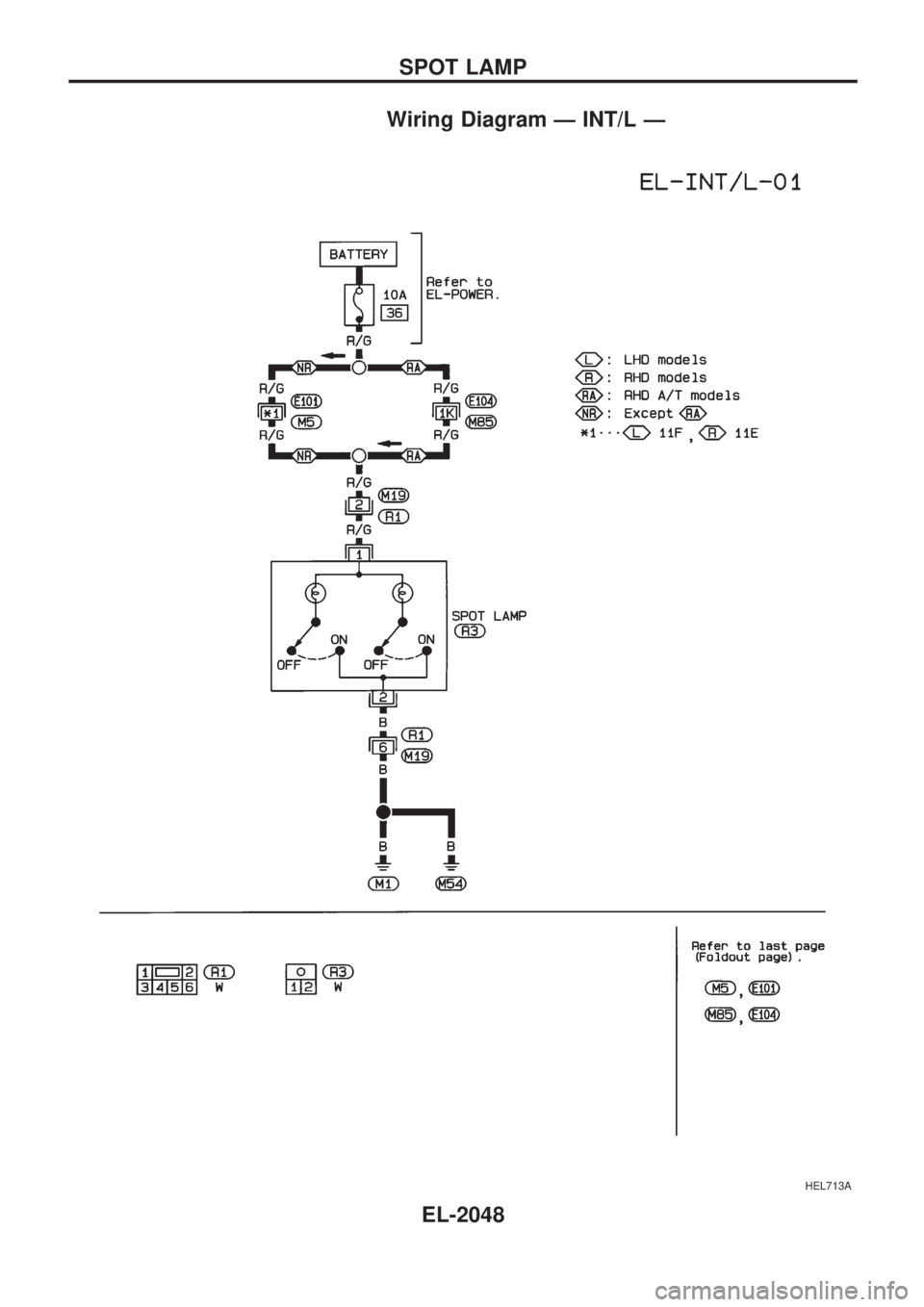

Wiring Diagram Ð INT/L Ð
HEL713A
SPOT LAMP
EL-2048

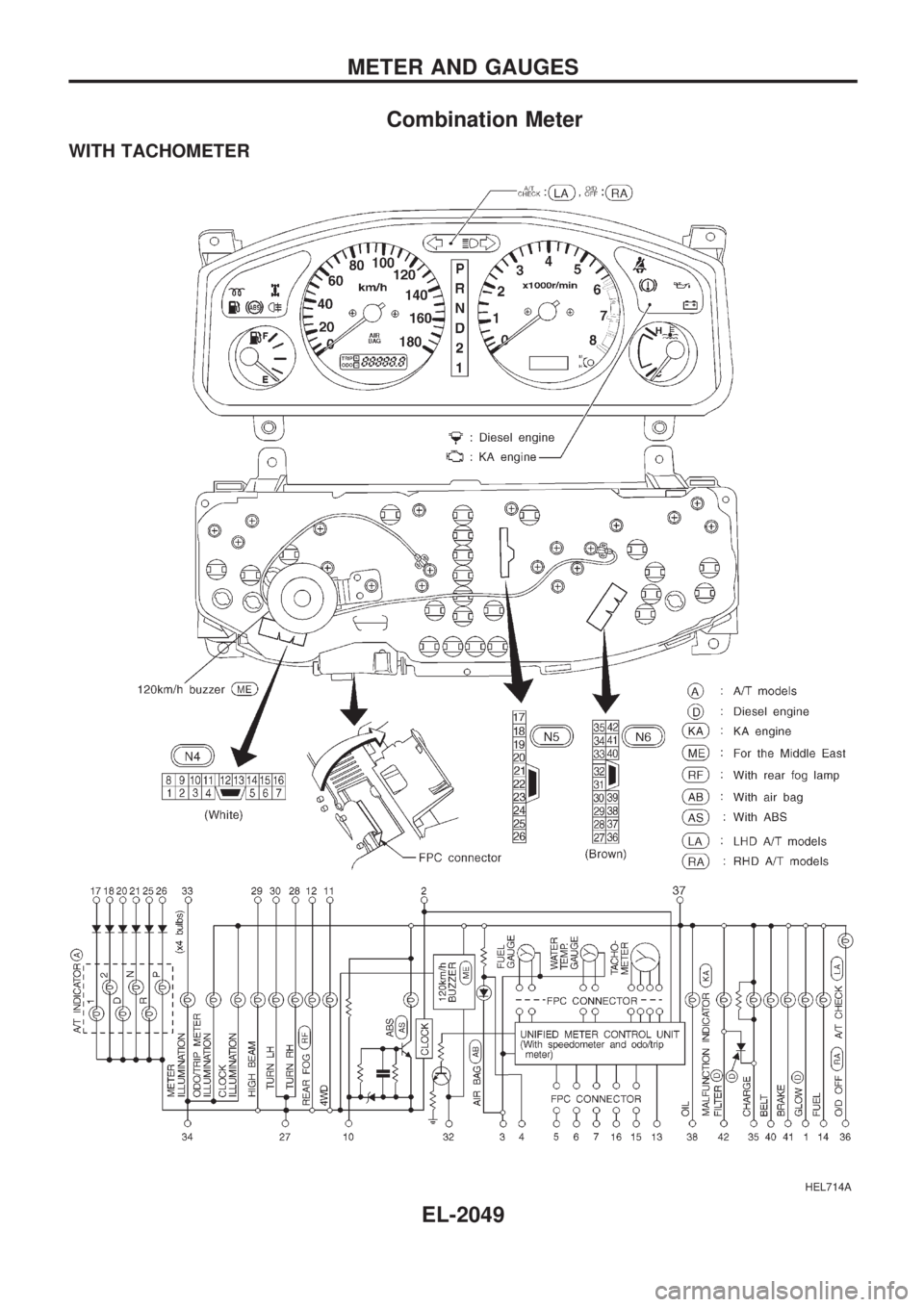

Combination Meter
WITH TACHOMETER
HEL714A
METER AND GAUGES
EL-2049

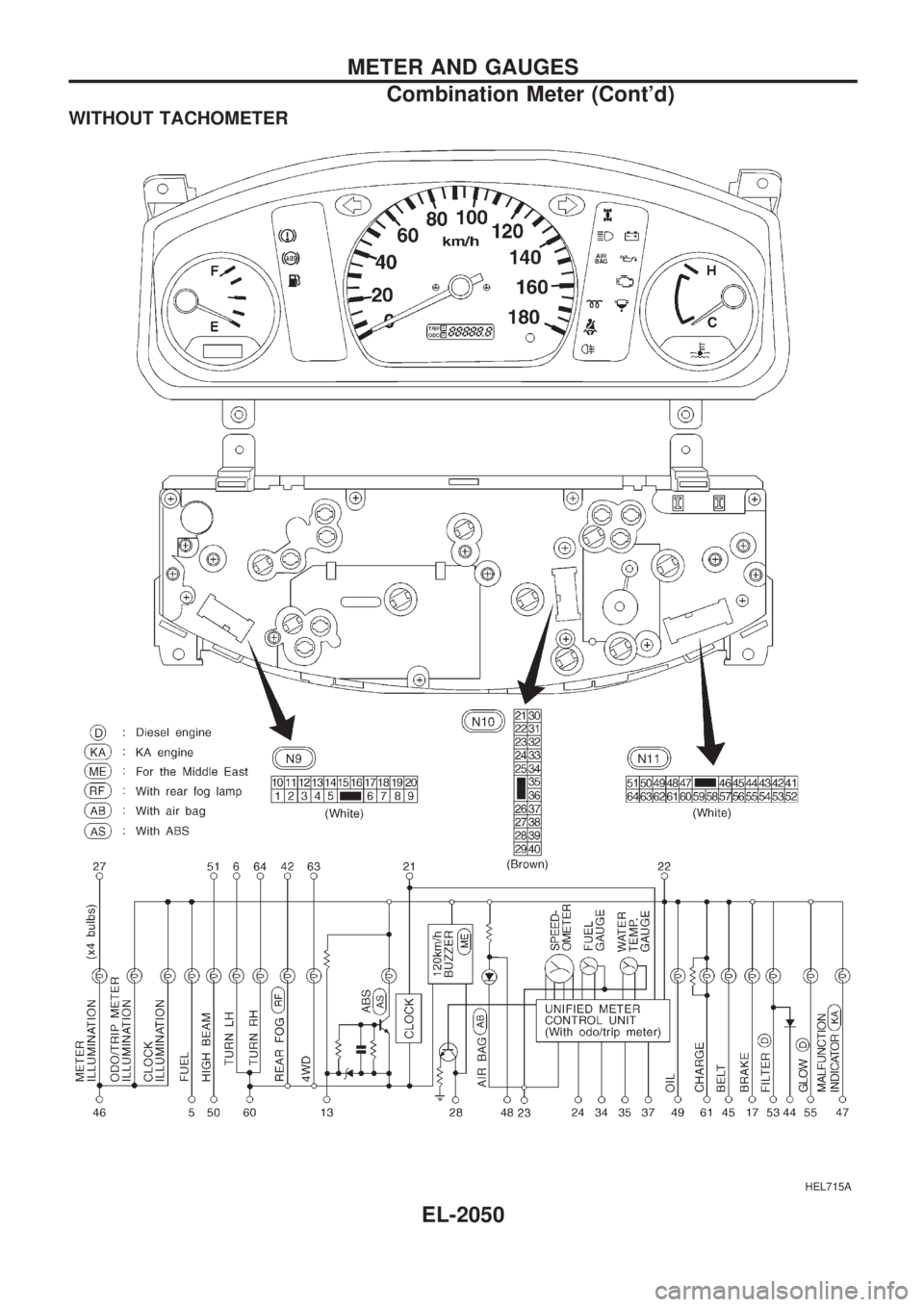

WITHOUT TACHOMETER
HEL715A
METER AND GAUGES
Combination Meter (Cont'd)
EL-2050

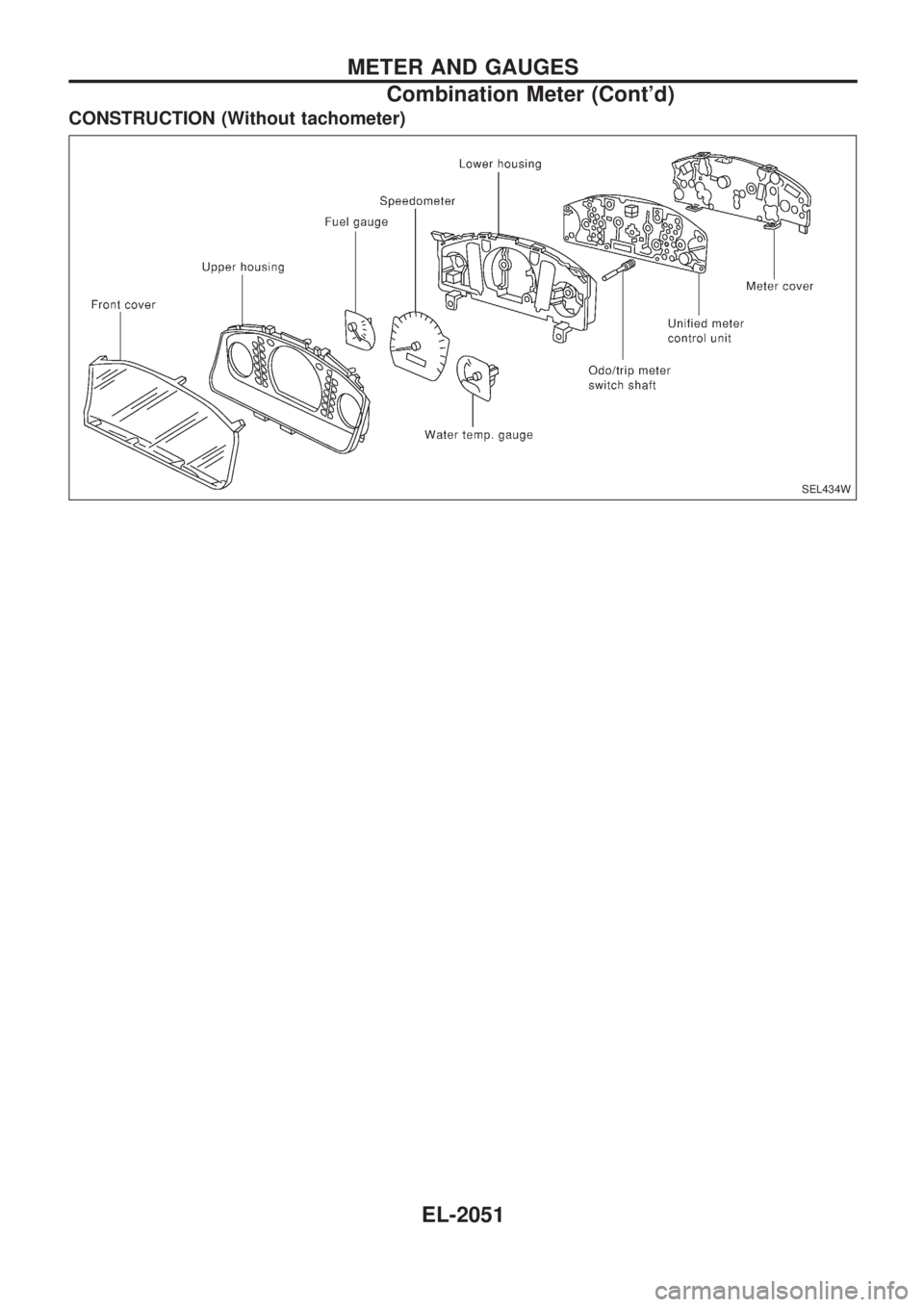

CONSTRUCTION (Without tachometer)
SEL434W
METER AND GAUGES
Combination Meter (Cont'd)
EL-2051

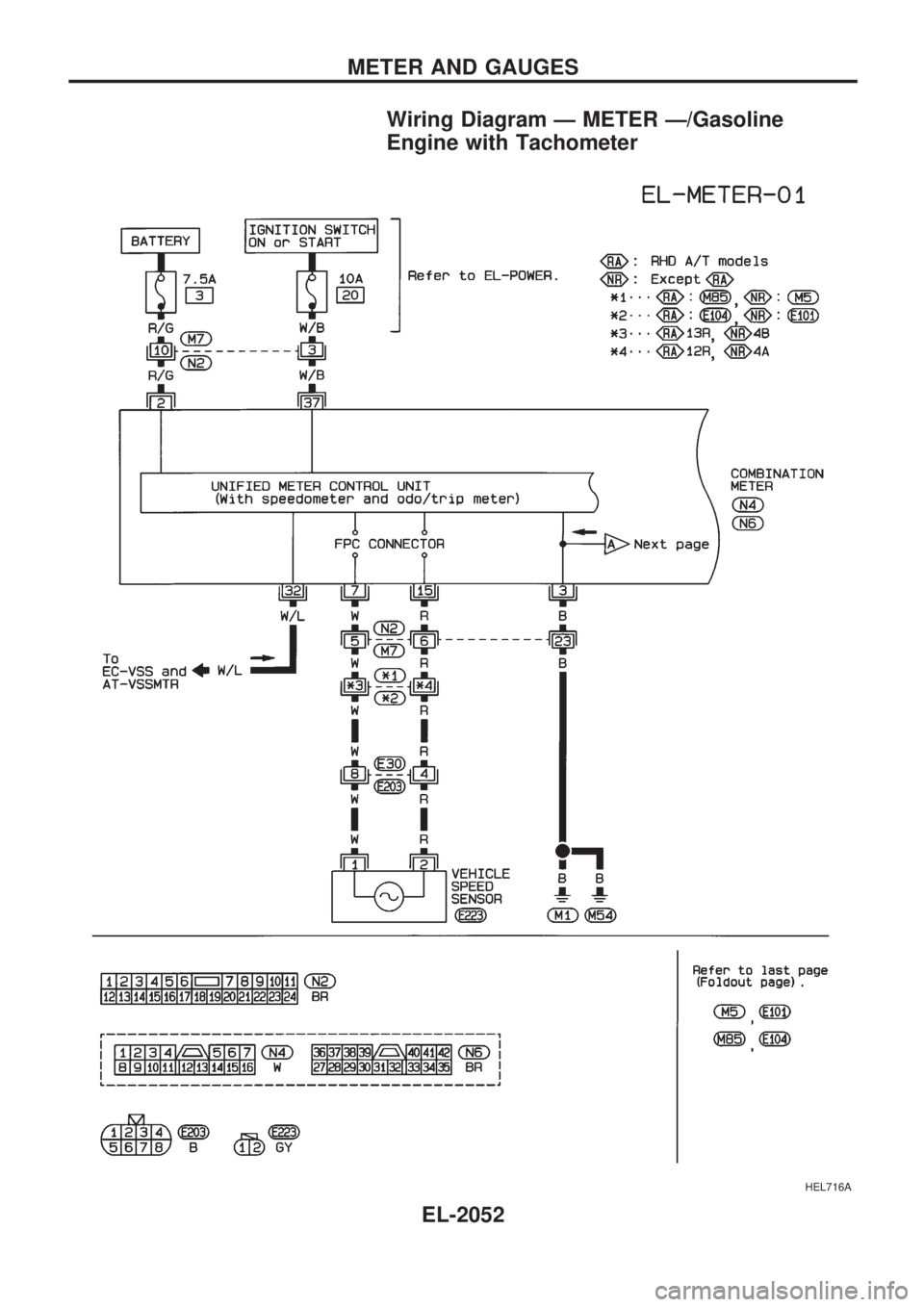

Wiring Diagram Ð METER Ð/Gasoline
Engine with Tachometer
HEL716A
METER AND GAUGES
EL-2052

HEL717A
METER AND GAUGES

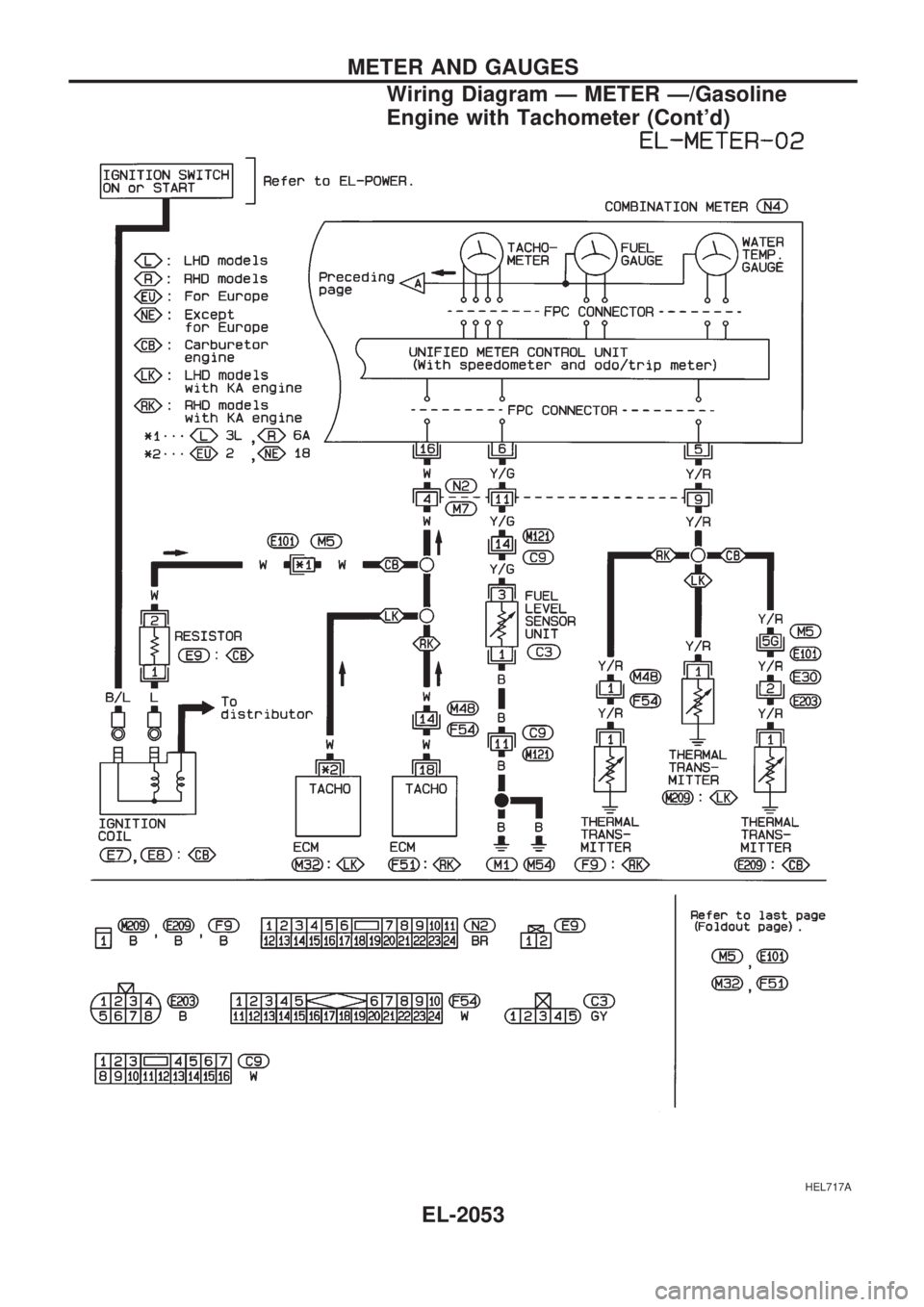

Wiring Diagram Ð METER Ð/Gasoline
Engine with Tachometer (Cont'd)
EL-2053
