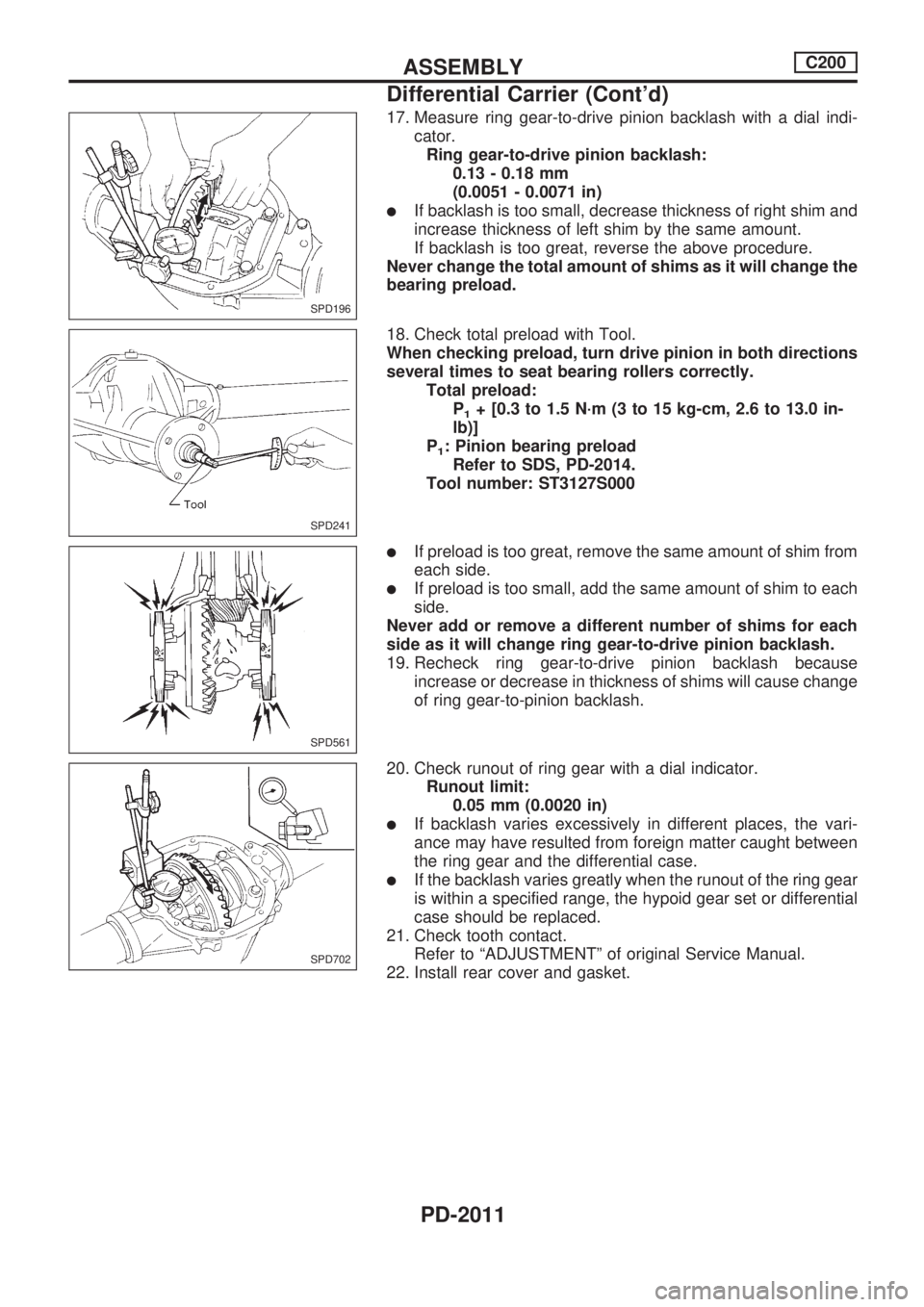

17. Measure ring gear-to-drive pinion backlash with a dial indi-
cator.
Ring gear-to-drive pinion backlash:
0.13 - 0.18 mm
(0.0051 - 0.0071 in)
lIf backlash is too small, decrease thickness of right shim and
increase thickness of left shim by the same amount.
If backlash is too great, reverse the above procedure.
Never change the total amount of shims as it will change the
bearing preload.
18. Check total preload with Tool.
When checking preload, turn drive pinion in both directions
several times to seat bearing rollers correctly.
Total preload:
P
1+ [0.3 to 1.5 N´m (3 to 15 kg-cm, 2.6 to 13.0 in-
lb)]
P
1: Pinion bearing preload
Refer to SDS, PD-2014.
Tool number: ST3127S000
lIf preload is too great, remove the same amount of shim from
each side.
lIf preload is too small, add the same amount of shim to each
side.
Never add or remove a different number of shims for each
side as it will change ring gear-to-drive pinion backlash.
19. Recheck ring gear-to-drive pinion backlash because
increase or decrease in thickness of shims will cause change
of ring gear-to-pinion backlash.
20. Check runout of ring gear with a dial indicator.
Runout limit:
0.05 mm (0.0020 in)
lIf backlash varies excessively in different places, the vari-
ance may have resulted from foreign matter caught between
the ring gear and the differential case.
lIf the backlash varies greatly when the runout of the ring gear
is within a specified range, the hypoid gear set or differential
case should be replaced.
21. Check tooth contact.
Refer to ªADJUSTMENTº of original Service Manual.
22. Install rear cover and gasket.
SPD196
SPD241
SPD561
SPD702
ASSEMBLYC200
Differential Carrier (Cont'd)
PD-2011

Propeller Shaft

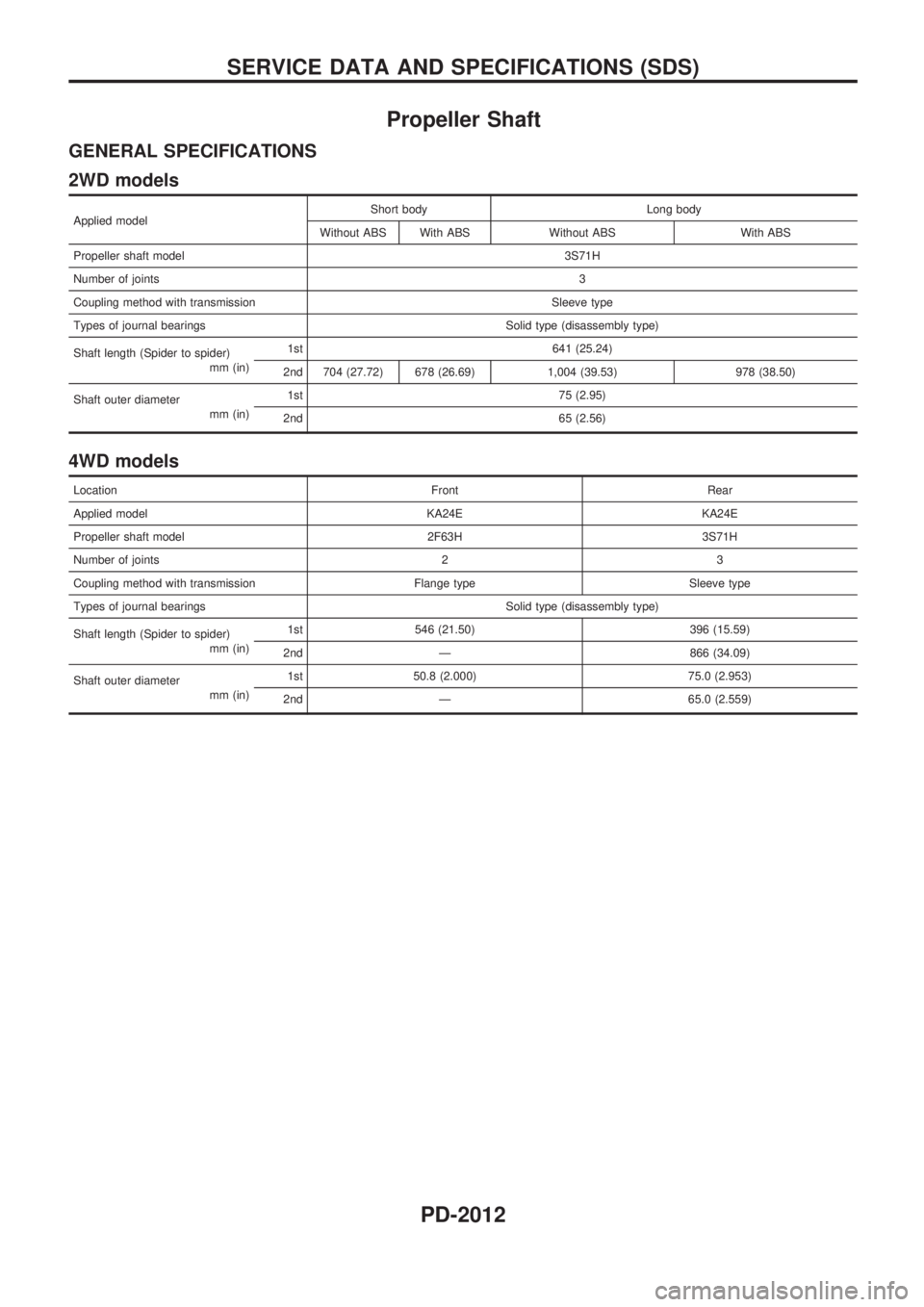

GENERAL SPECIFICATIONS
2WD models
Applied modelShort body Long body
Without ABS With ABS Without ABS With ABS
Propeller shaft model3S71H
Number of joints3
Coupling method with transmission Sleeve type
Types of journal bearings Solid type (disassembly type)
Shaft length (Spider to spider)
mm (in)1st 641 (25.24)
2nd 704 (27.72) 678 (26.69) 1,004 (39.53) 978 (38.50)
Shaft outer diameter
mm (in)1st 75 (2.95)
2nd 65 (2.56)
4WD models
Location Front Rear
Applied model KA24E KA24E
Propeller shaft model 2F63H 3S71H
Number of joints 2 3
Coupling method with transmission Flange type Sleeve type
Types of journal bearings Solid type (disassembly type)
Shaft length (Spider to spider)
mm (in)1st 546 (21.50) 396 (15.59)
2nd Ð 866 (34.09)
Shaft outer diameter
mm (in)1st 50.8 (2.000) 75.0 (2.953)
2nd Ð 65.0 (2.559)
SERVICE DATA AND SPECIFICATIONS (SDS)
PD-2012

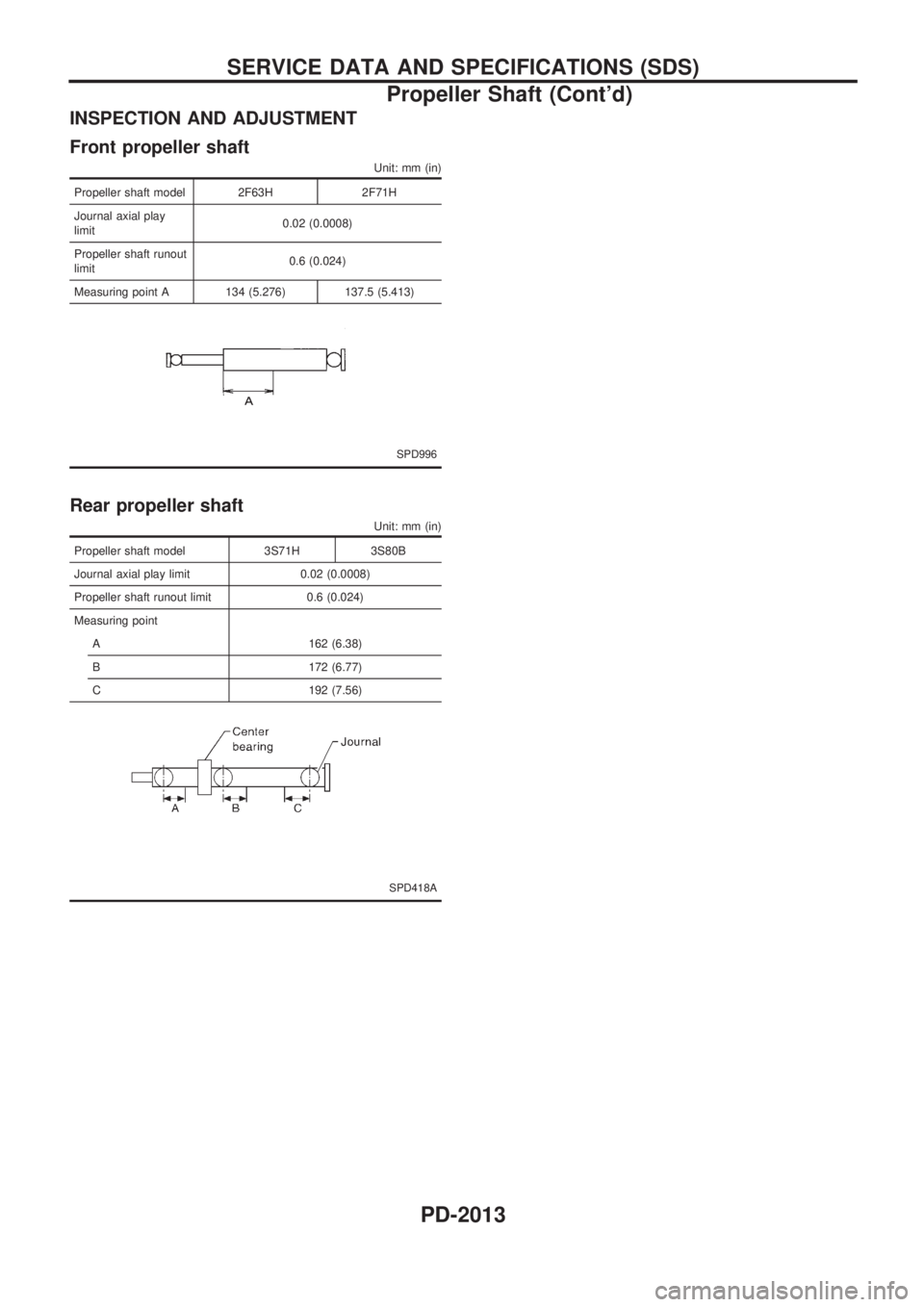

INSPECTION AND ADJUSTMENT
Front propeller shaft
Unit: mm (in)
Propeller shaft model 2F63H 2F71H
Journal axial play
limit0.02 (0.0008)
Propeller shaft runout
limit0.6 (0.024)
Measuring point A 134 (5.276) 137.5 (5.413)
SPD996
Rear propeller shaft
Unit: mm (in)
Propeller shaft model 3S71H 3S80B
Journal axial play limit 0.02 (0.0008)
Propeller shaft runout limit 0.6 (0.024)
Measuring point
A 162 (6.38)
B 172 (6.77)
C 192 (7.56)
SPD418A
SERVICE DATA AND SPECIFICATIONS (SDS)
Propeller Shaft (Cont'd)
PD-2013

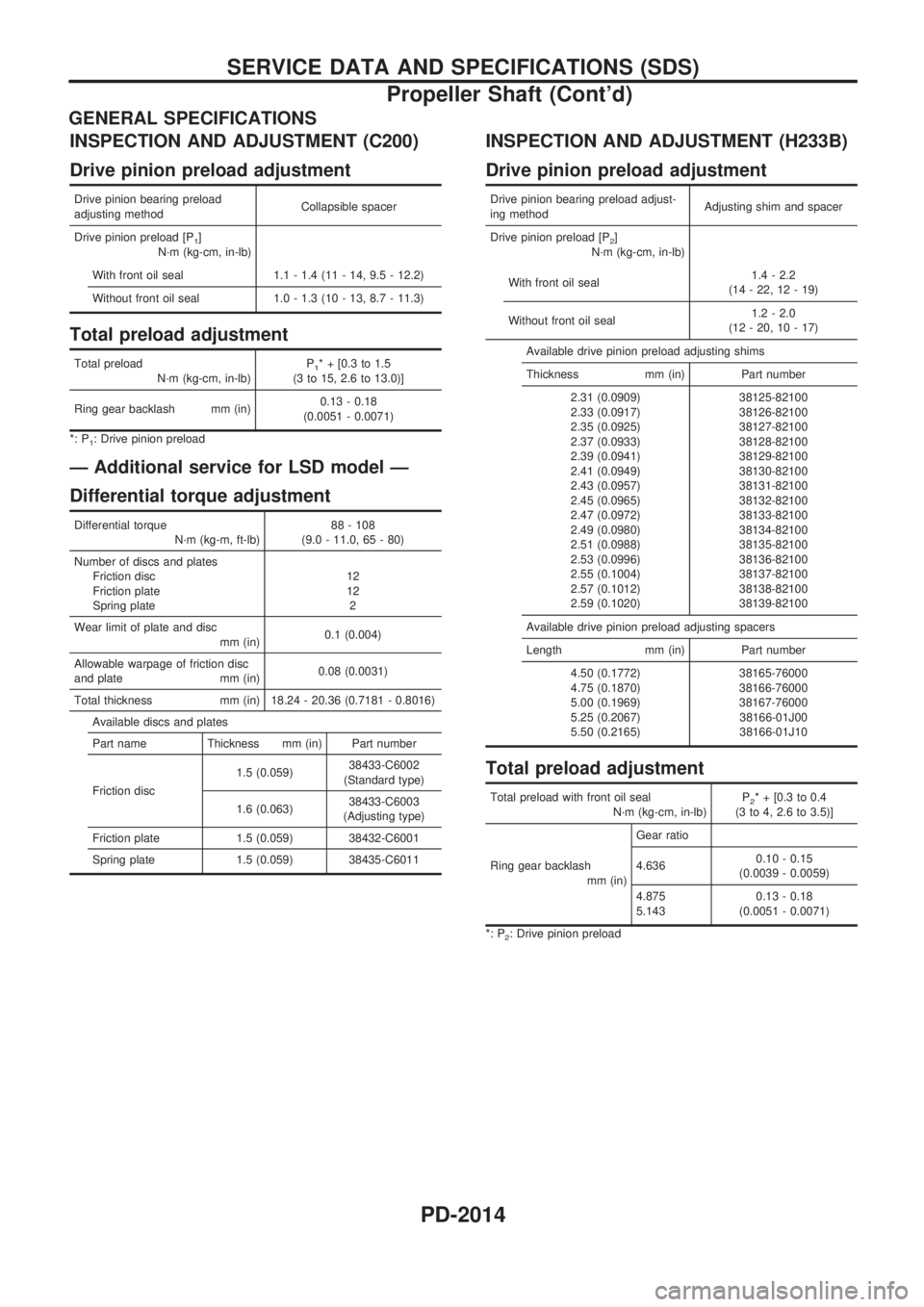

GENERAL SPECIFICATIONS
INSPECTION AND ADJUSTMENT (C200)
Drive pinion preload adjustment
Drive pinion bearing preload
adjusting methodCollapsible spacer
Drive pinion preload [P
1]
N´m (kg-cm, in-lb)
With front oil seal 1.1 - 1.4 (11 - 14, 9.5 - 12.2)
Without front oil seal 1.0 - 1.3 (10 - 13, 8.7 - 11.3)
Total preload adjustment
Total preload
N´m (kg-cm, in-lb)P1* + [0.3 to 1.5
(3 to 15, 2.6 to 13.0)]
Ring gear backlash mm (in)0.13 - 0.18
(0.0051 - 0.0071)
*: P1: Drive pinion preload
Ð Additional service for LSD model Ð
Differential torque adjustment
Differential torque
N´m (kg-m, ft-lb)88 - 108
(9.0 - 11.0, 65 - 80)
Number of discs and plates
Friction disc
Friction plate
Spring plate12
12
2
Wear limit of plate and disc
mm (in)0.1 (0.004)
Allowable warpage of friction disc
and plate mm (in)0.08 (0.0031)
Total thickness mm (in) 18.24 - 20.36 (0.7181 - 0.8016)
Available discs and plates
Part name Thickness mm (in) Part number
Friction disc1.5 (0.059)38433-C6002
(Standard type)
1.6 (0.063)38433-C6003
(Adjusting type)
Friction plate 1.5 (0.059) 38432-C6001
Spring plate 1.5 (0.059) 38435-C6011
INSPECTION AND ADJUSTMENT (H233B)
Drive pinion preload adjustment
Drive pinion bearing preload adjust-
ing methodAdjusting shim and spacer
Drive pinion preload [P
2]
N´m (kg-cm, in-lb)
With front oil seal1.4 - 2.2
(14 - 22, 12 - 19)
Without front oil seal1.2 - 2.0
(12 - 20, 10 - 17)
Available drive pinion preload adjusting shims
Thickness mm (in) Part number
2.31 (0.0909)
2.33 (0.0917)
2.35 (0.0925)
2.37 (0.0933)
2.39 (0.0941)
2.41 (0.0949)
2.43 (0.0957)
2.45 (0.0965)
2.47 (0.0972)
2.49 (0.0980)
2.51 (0.0988)
2.53 (0.0996)
2.55 (0.1004)
2.57 (0.1012)
2.59 (0.1020)38125-82100
38126-82100
38127-82100
38128-82100
38129-82100
38130-82100
38131-82100
38132-82100
38133-82100
38134-82100
38135-82100
38136-82100
38137-82100
38138-82100
38139-82100
Available drive pinion preload adjusting spacers
Length mm (in) Part number
4.50 (0.1772)
4.75 (0.1870)
5.00 (0.1969)
5.25 (0.2067)
5.50 (0.2165)38165-76000
38166-76000
38167-76000
38166-01J00
38166-01J10
Total preload adjustment
Total preload with front oil seal
N´m (kg-cm, in-lb)P2* + [0.3 to 0.4
(3 to 4, 2.6 to 3.5)]
Ring gear backlash
mm (in)Gear ratio
4.6360.10 - 0.15
(0.0039 - 0.0059)
4.875
5.1430.13 - 0.18
(0.0051 - 0.0071)
*: P2: Drive pinion preload
SERVICE DATA AND SPECIFICATIONS (SDS)
Propeller Shaft (Cont'd)
PD-2014

\
REARAXLE&
REAR SUSPENSION
SECTION
RA

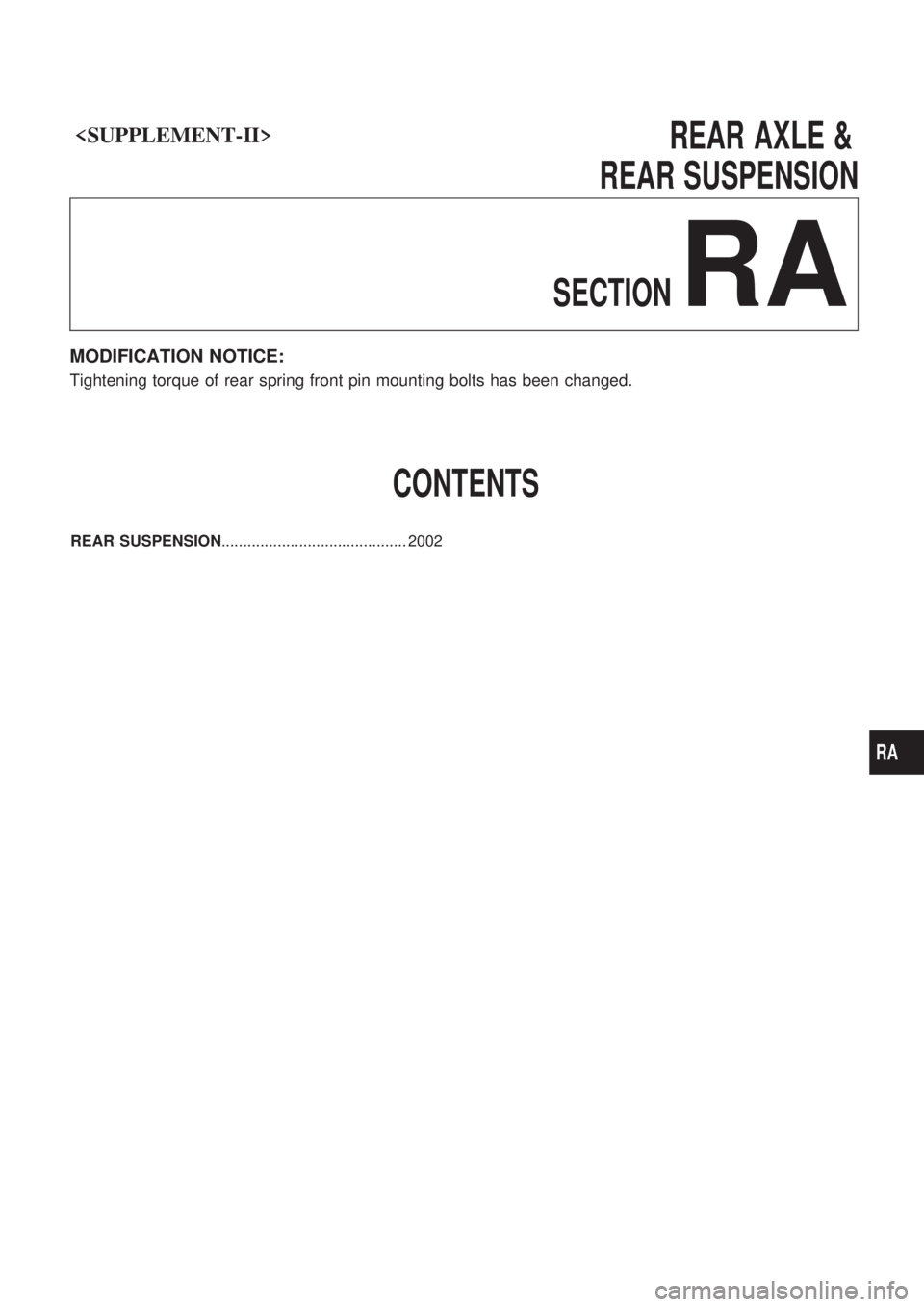

MODIFICATION NOTICE:
Tightening torque of rear spring front pin mounting bolts has been changed.
CONTENTS
REAR SUSPENSION ........................................... 2002
RA

2WD

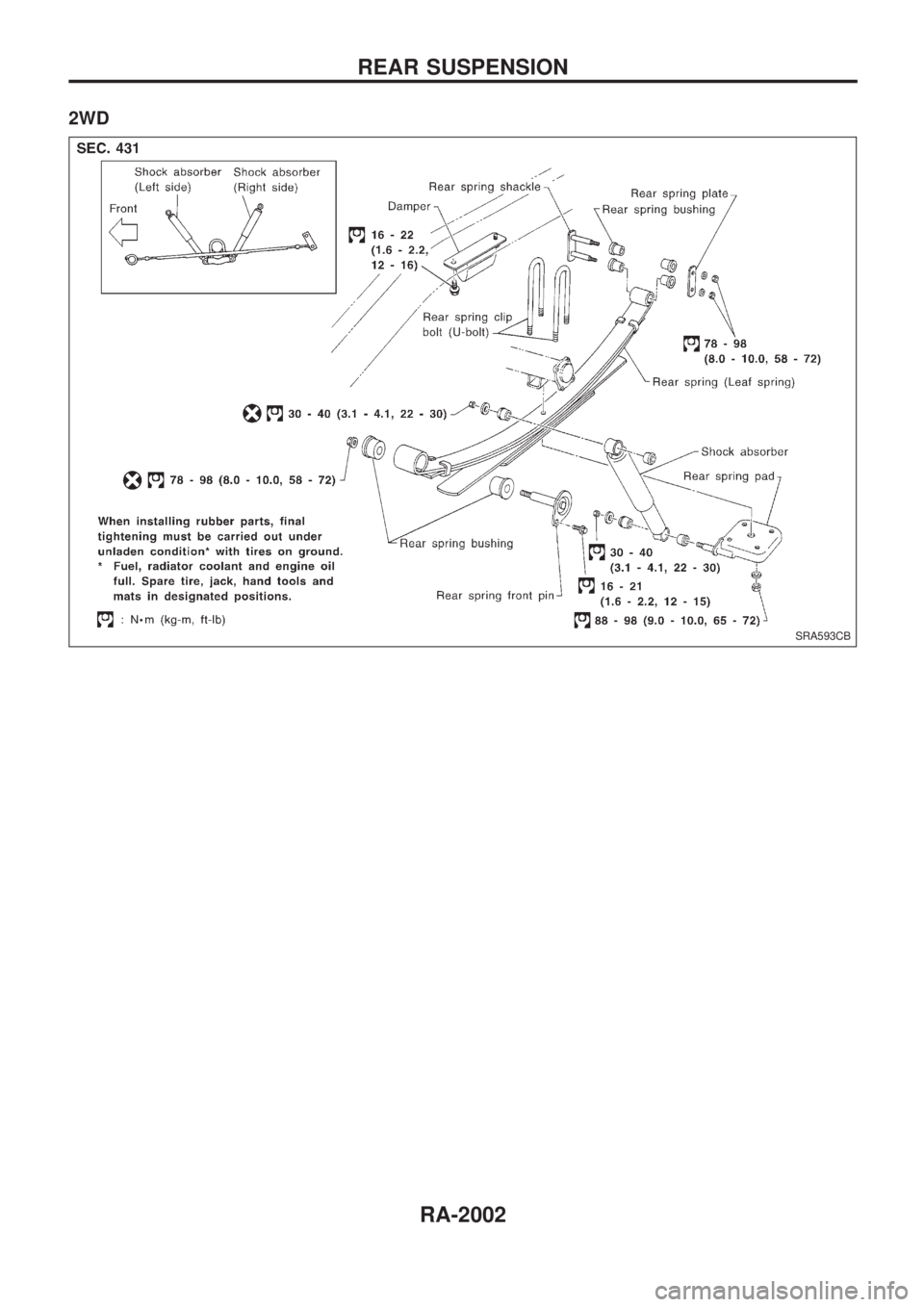

SRA593CB
REAR SUSPENSION
RA-2002

RESTRAINTSYSTEM
SECTION
RS

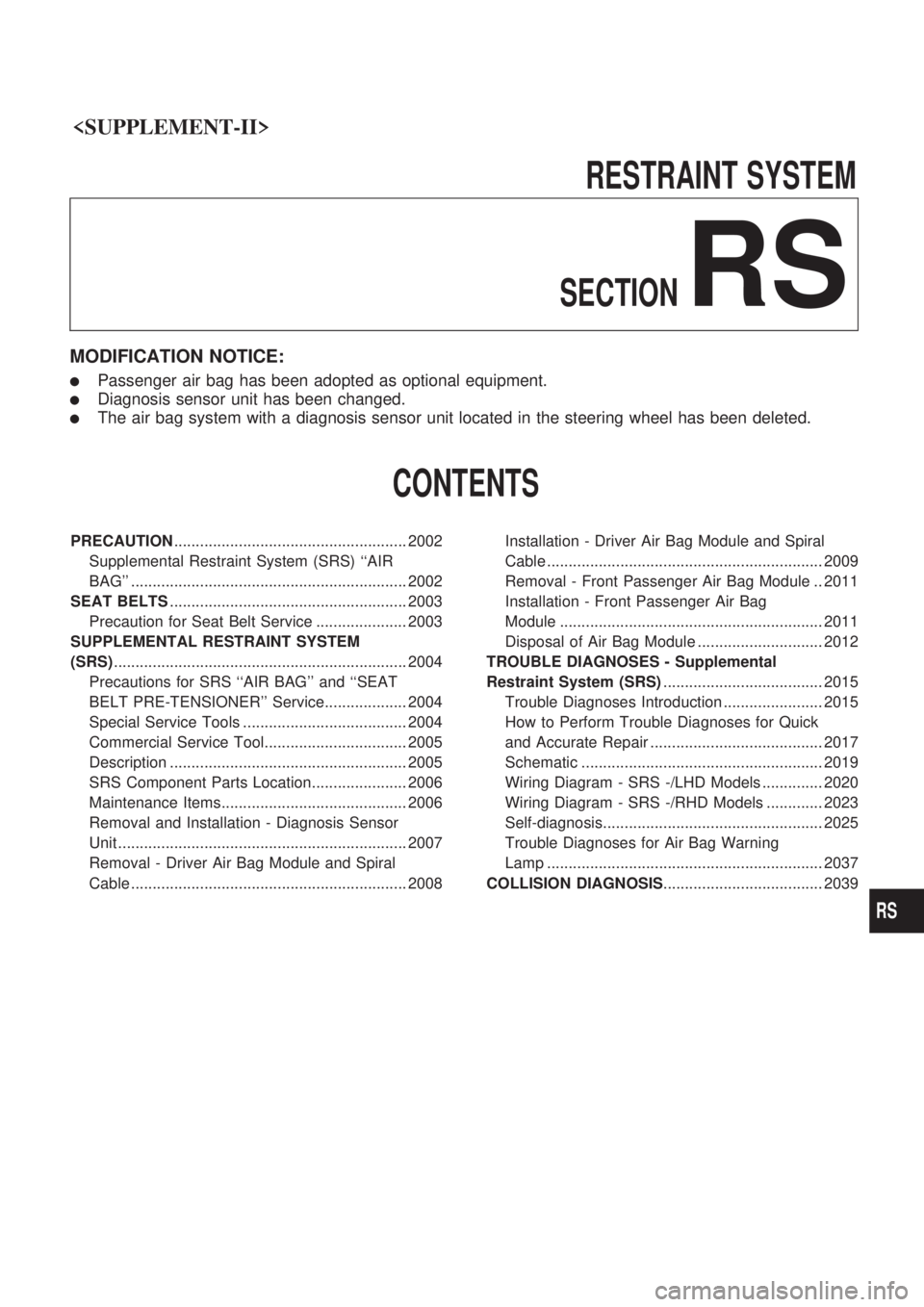

MODIFICATION NOTICE:
lPassenger air bag has been adopted as optional equipment.
lDiagnosis sensor unit has been changed.
lThe air bag system with a diagnosis sensor unit located in the steering wheel has been deleted.
CONTENTS
PRECAUTION ...................................................... 2002
Supplemental Restraint System (SRS) ``AIR
BAG'' ................................................................ 2002
SEAT BELTS ....................................................... 2003
Precaution for Seat Belt Service ..................... 2003
SUPPLEMENTAL RESTRAINT SYSTEM
(SRS) .................................................................... 2004
Precautions for SRS ``AIR BAG'' and ``SEAT
BELT PRE-TENSIONER'' Service................... 2004
Special Service Tools ...................................... 2004
Commercial Service Tool................................. 2005
Description ....................................................... 2005
SRS Component Parts Location...................... 2006
Maintenance Items........................................... 2006
Removal and Installation - Diagnosis Sensor
Unit ................................................................... 2007
Removal - Driver Air Bag Module and Spiral
Cable ................................................................ 2008 Installation - Driver Air Bag Module and Spiral
Cable ................................................................ 2009
Removal - Front Passenger Air Bag Module .. 2011
Installation - Front Passenger Air Bag
Module ............................................................. 2011
Disposal of Air Bag Module ............................. 2012
TROUBLE DIAGNOSES - Supplemental
Restraint System (SRS) ..................................... 2015
Trouble Diagnoses Introduction ....................... 2015
How to Perform Trouble Diagnoses for Quick
and Accurate Repair ........................................ 2017
Schematic ........................................................ 2019
Wiring Diagram - SRS -/LHD Models .............. 2020
Wiring Diagram - SRS -/RHD Models ............. 2023
Self-diagnosis................................................... 2025
Trouble Diagnoses for Air Bag Warning
Lamp ................................................................ 2037
COLLISION DIAGNOSIS ..................................... 2039
RS

Supplemental Restraint System (SRS) ``AIR
BAG''

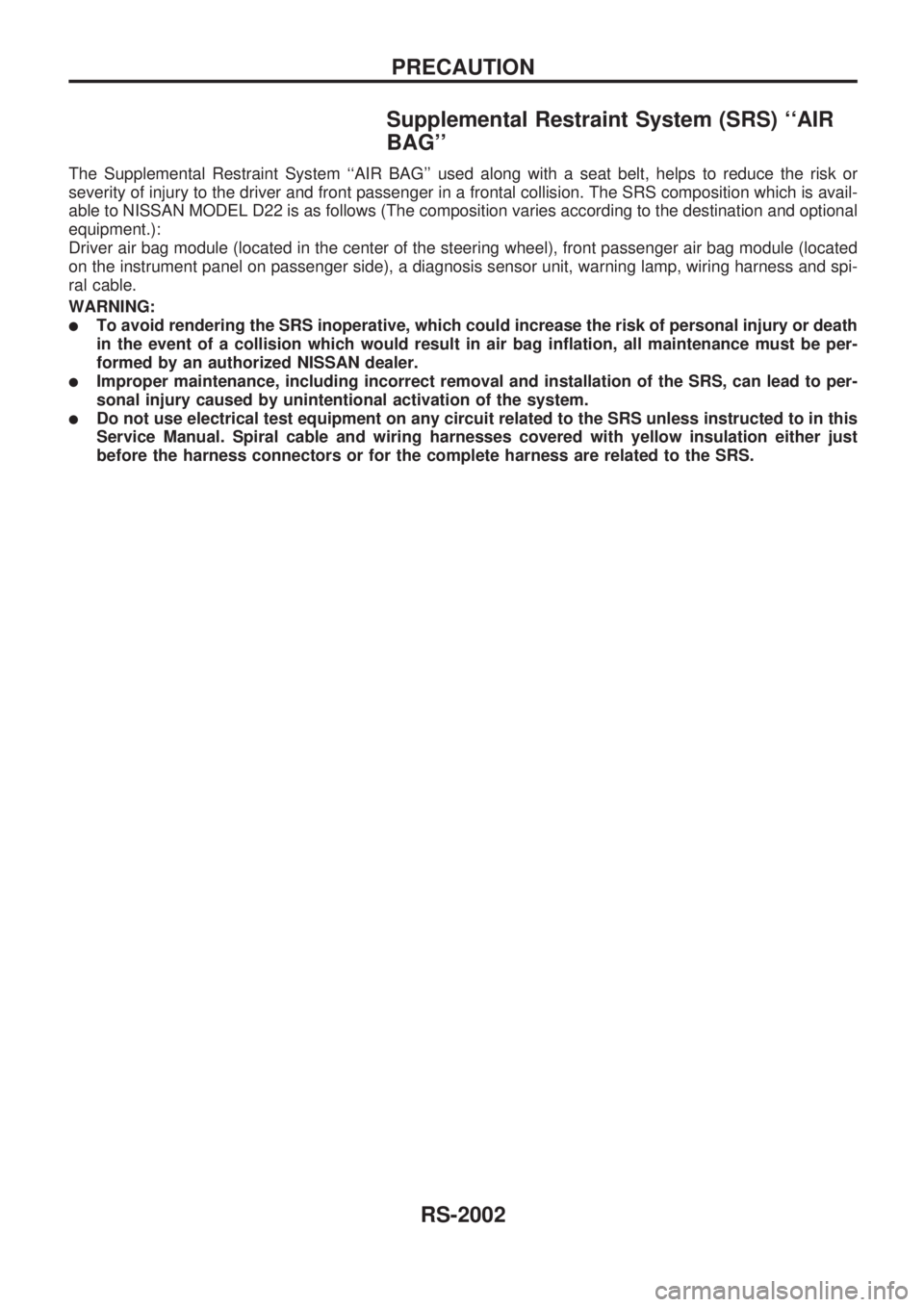

The Supplemental Restraint System ``AIR BAG'' used along with a seat belt, helps to reduce the risk or
severity of injury to the driver and front passenger in a frontal collision. The SRS composition which is avail-
able to NISSAN MODEL D22 is as follows (The composition varies according to the destination and optional
equipment.):
Driver air bag module (located in the center of the steering wheel), front passenger air bag module (located
on the instrument panel on passenger side), a diagnosis sensor unit, warning lamp, wiring harness and spi-
ral cable.
WARNING:
lTo avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN dealer.
lImproper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system.
lDo not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. Spiral cable and wiring harnesses covered with yellow insulation either just
before the harness connectors or for the complete harness are related to the SRS.
PRECAUTION
RS-2002
