1999 NISSAN PICK-UP Repair Manual

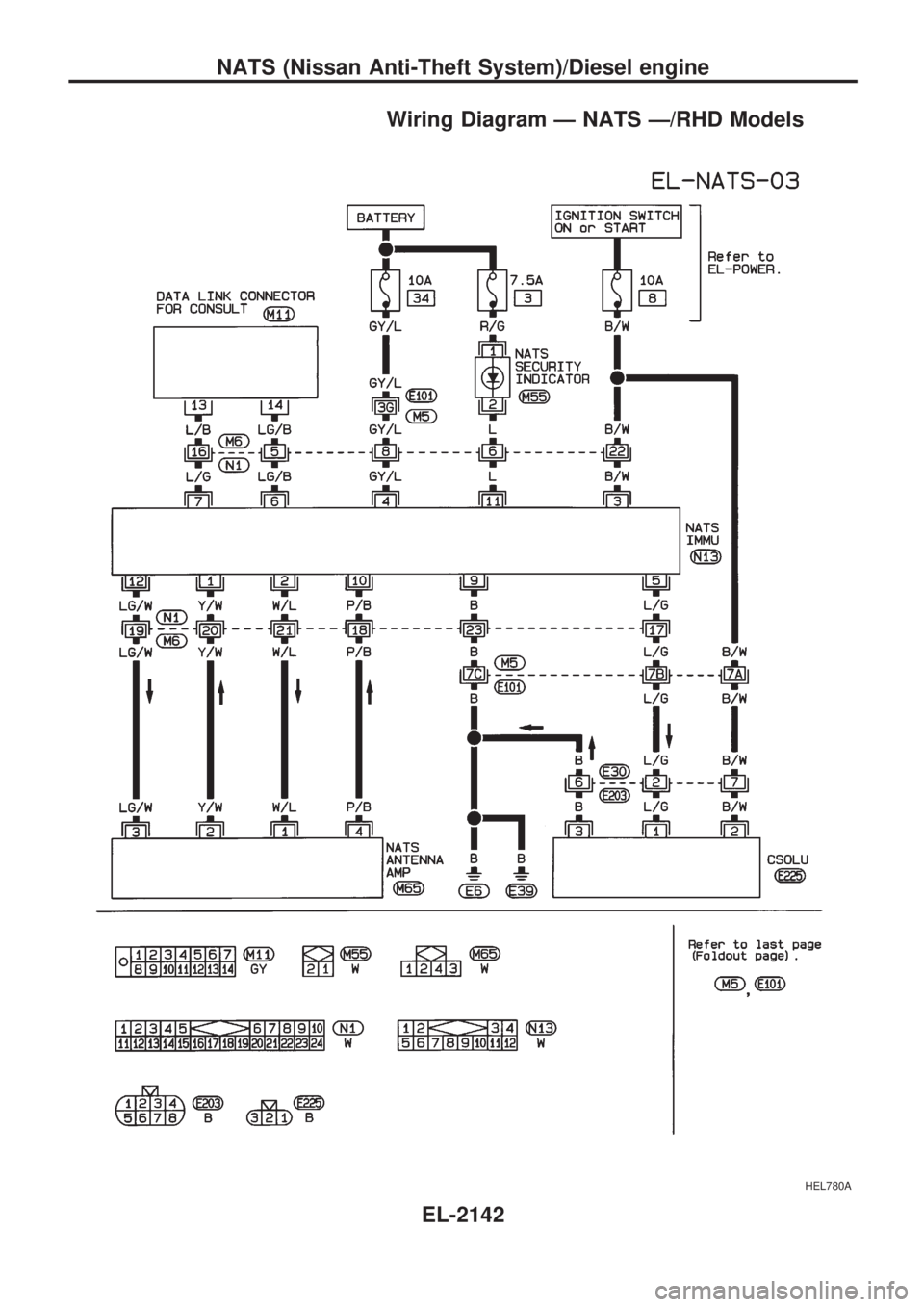

Wiring Diagram Ð NATS Ð/RHD Models
HEL780A
NATS (Nissan Anti-Theft System)/Diesel engine
EL-2142

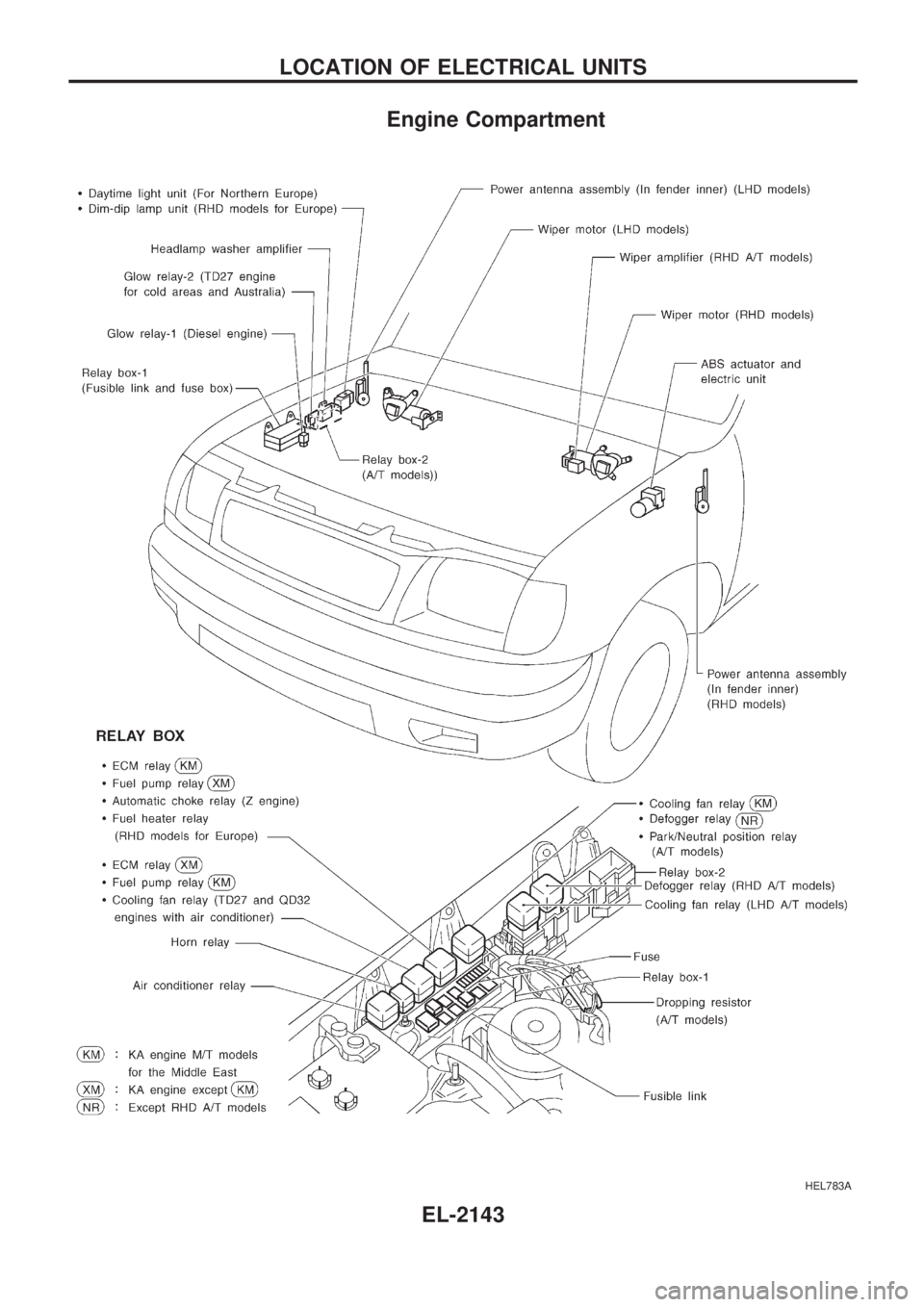

Engine Compartment
HEL783A
LOCATION OF ELECTRICAL UNITS
EL-2143

Passenger Compartment

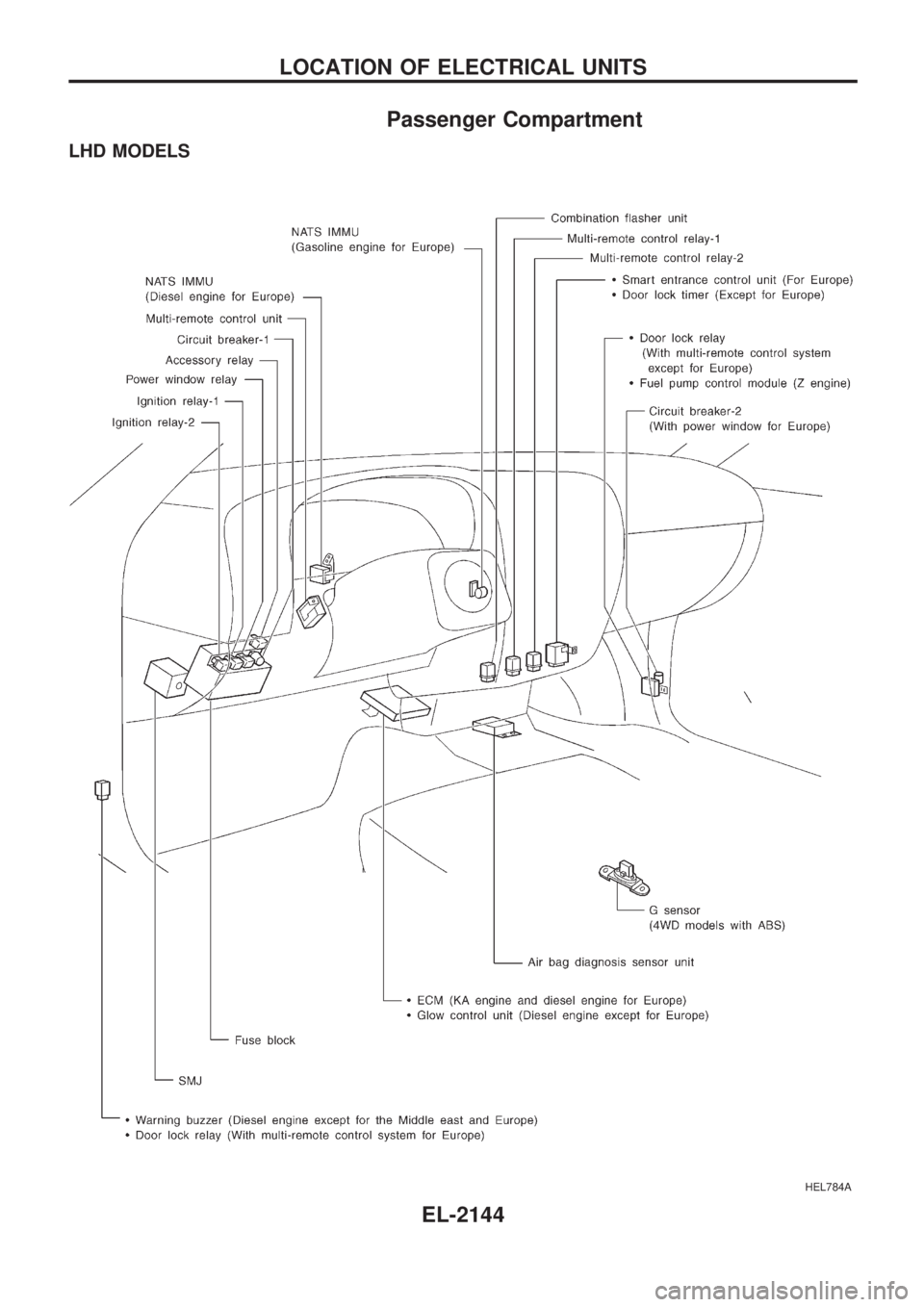

LHD MODELS
HEL784A
LOCATION OF ELECTRICAL UNITS
EL-2144

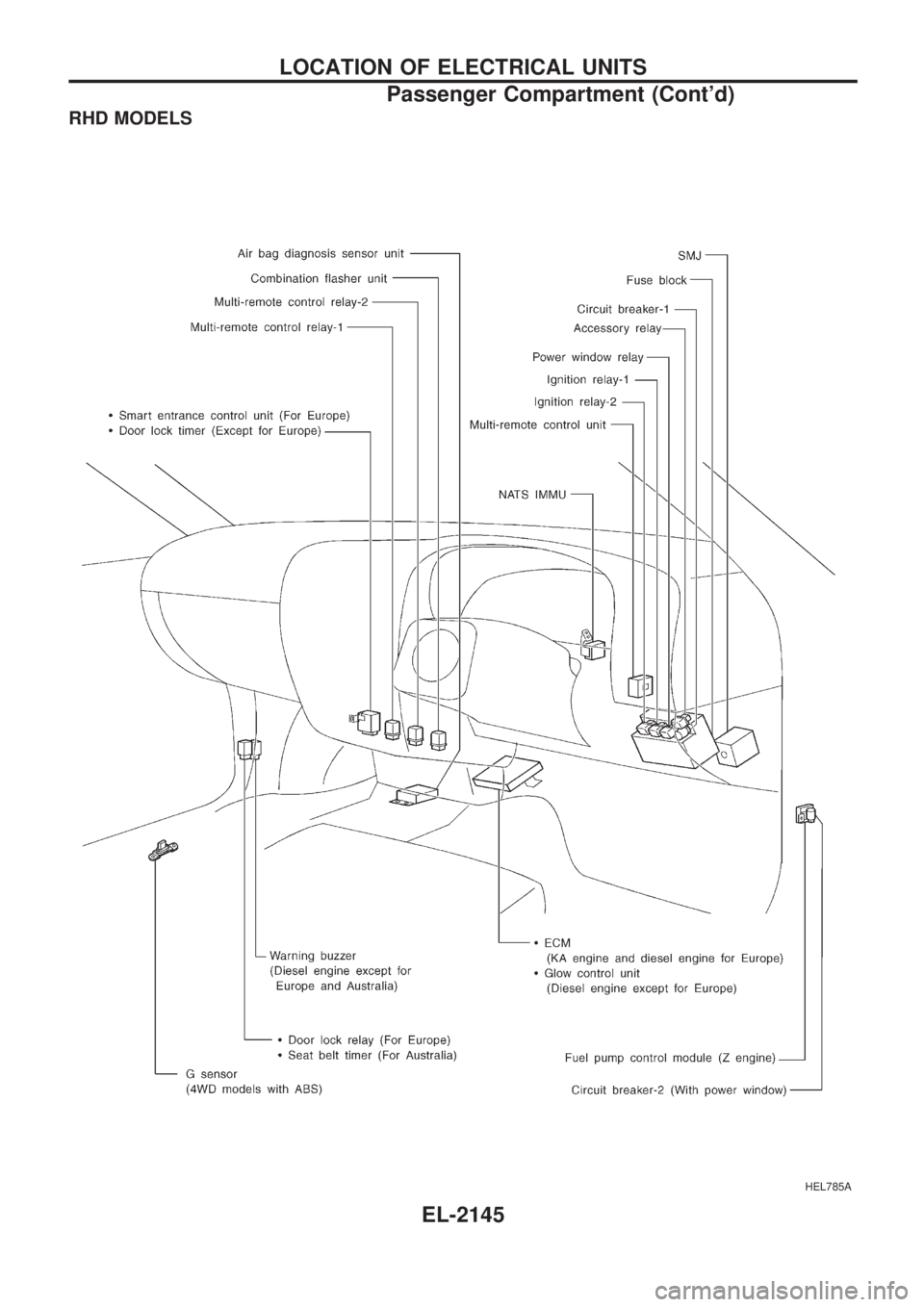

RHD MODELS
HEL785A
LOCATION OF ELECTRICAL UNITS
Passenger Compartment (Cont'd)
EL-2145

Main Harness

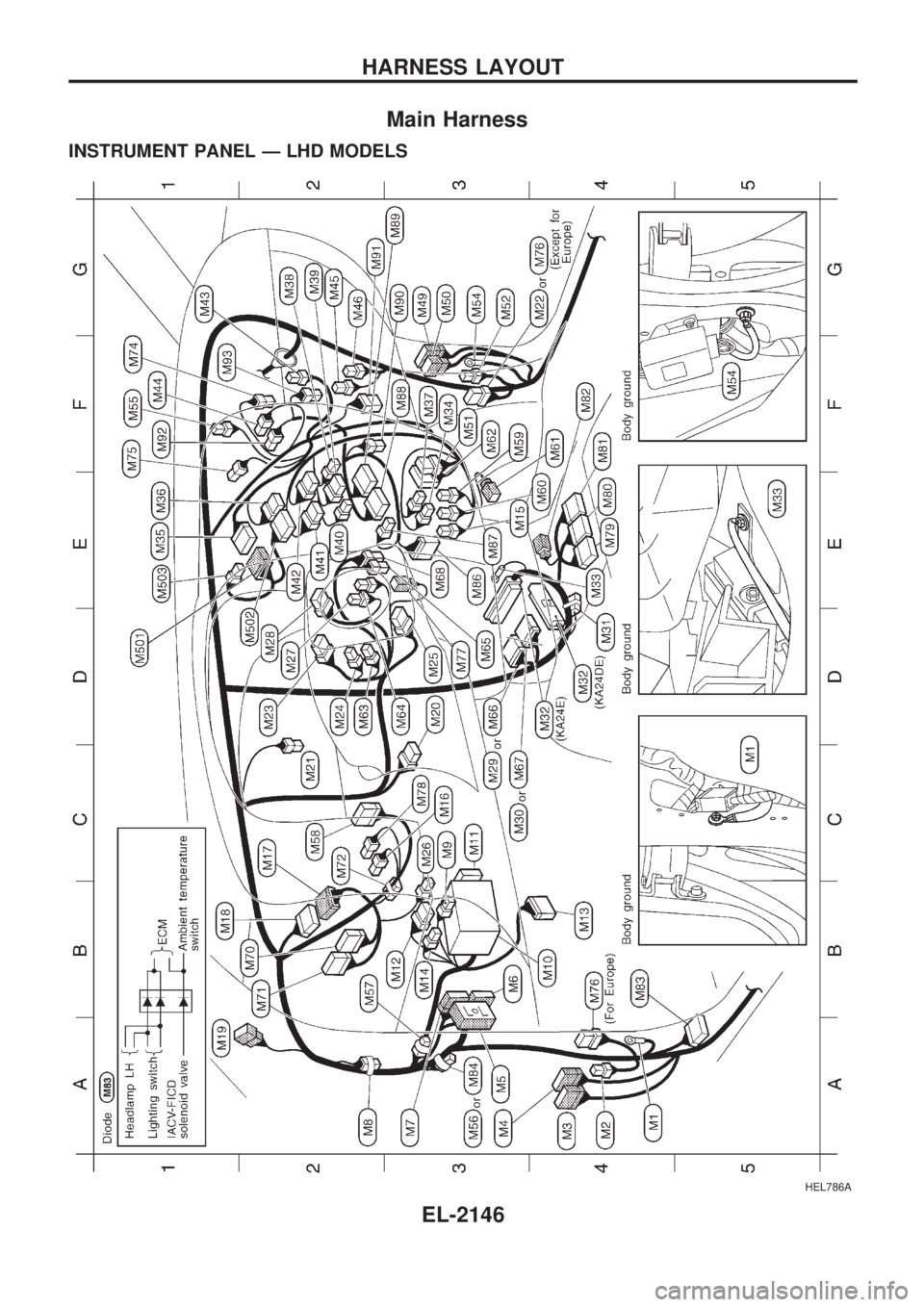

INSTRUMENT PANEL Ð LHD MODELS
HEL786A
HARNESS LAYOUT
EL-2146

HEL787A
HARNESS LAYOUT
Main Harness (Cont'd)
EL-2147

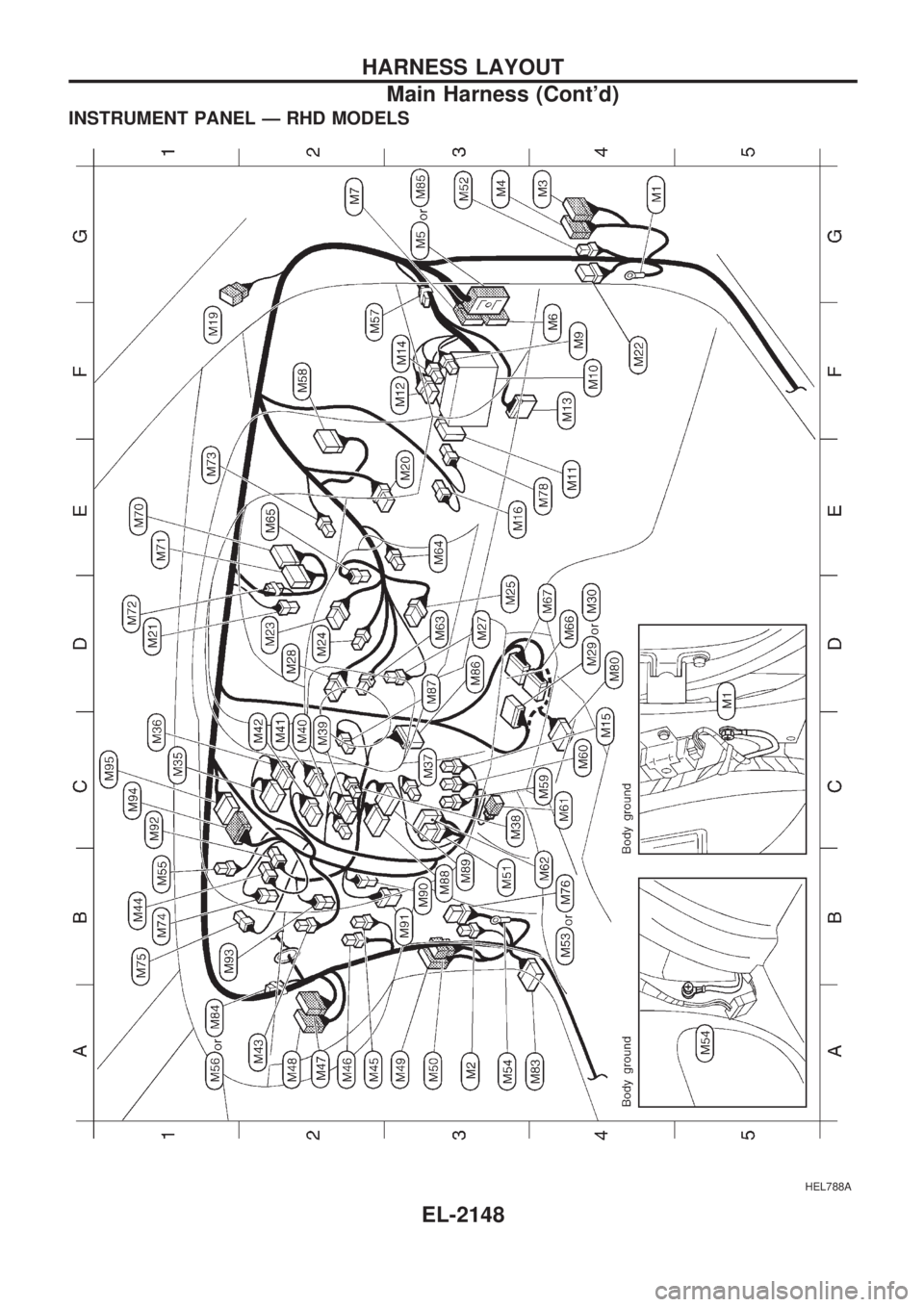

INSTRUMENT PANEL Ð RHD MODELS
HEL788A
HARNESS LAYOUT
Main Harness (Cont'd)
EL-2148

HEL789A
HARNESS LAYOUT
Main Harness (Cont'd)
EL-2149
