1999 NISSAN PICK-UP Repair Manual

Model Variation
PICKUP (2WD)
DestinationClass Model
Engine Transmission Differential carrier
Wheelbase Cab Grade LH drive RH drive
Europe LongSingle CabSTD AVNGLCF-NQL AVNGRCF-NQL
TD25
FS5W71C C200
DXAVNGLDF-NQL AVNGRDF-NQL
King CabBVNGLDF-NQN BVNGRDF-NQN
BBFGLDF-EQN Ð KA24E
Double Cab CVNGLDF-NQN Ð TD25
PICKUP (4WD)DestinationClass Model
Engine TransmissionDifferential carrier
Transfer
Wheelbase Cab Grade LH drive RH drive Front Rear
Europe LongSingle CabSTD AVNULCF-UQL AVNURCF-UQL
TD25Ti FS5R30A
R180AH233B
TX10A DX AVNULDF-UQL AVNURDF-UQL
King CabST BVNULEF-UQL Ð
DXBVNULDF-UQL BVNURDF-UQN
BBFULDF-EQN Ð KA24E FS5W71C C200
Double CabST CVNULEF-UQN Ð
TD25Ti FS5R30A H233B
DXCVNULDF-UQN CVNURDF-UQN
CBFULDF-EQN Ð KA24E FS5W71C C200
IDENTIFICATION INFORMATION
GI-2004

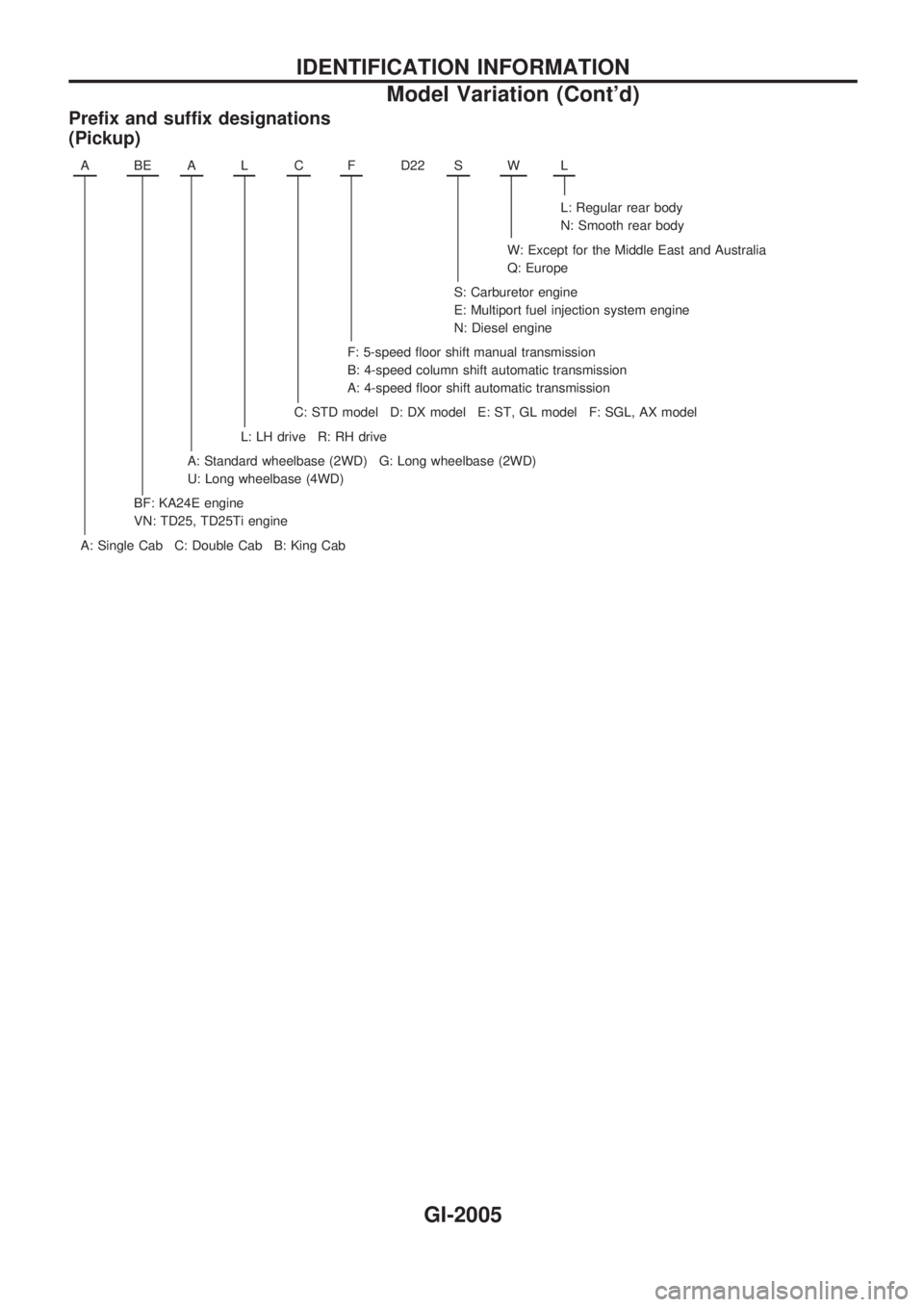

Prefix and suffix designations
(Pickup)
ABEALCFD22 SWL
L: Regular rear body
N: Smooth rear body
W: Except for the Middle East and Australia
Q: Europe
S: Carburetor engine
E: Multiport fuel injection system engine
N: Diesel engine
F: 5-speed floor shift manual transmission
B: 4-speed column shift automatic transmission
A: 4-speed floor shift automatic transmission
C: STD model D: DX model E: ST, GL model F: SGL, AX model
L: LH drive R: RH drive
A: Standard wheelbase (2WD) G: Long wheelbase (2WD)
U: Long wheelbase (4WD)
BF: KA24E engine
VN: TD25, TD25Ti engine
A: Single Cab C: Double Cab B: King Cab
IDENTIFICATION INFORMATION
Model Variation (Cont'd)
GI-2005

Identification Number

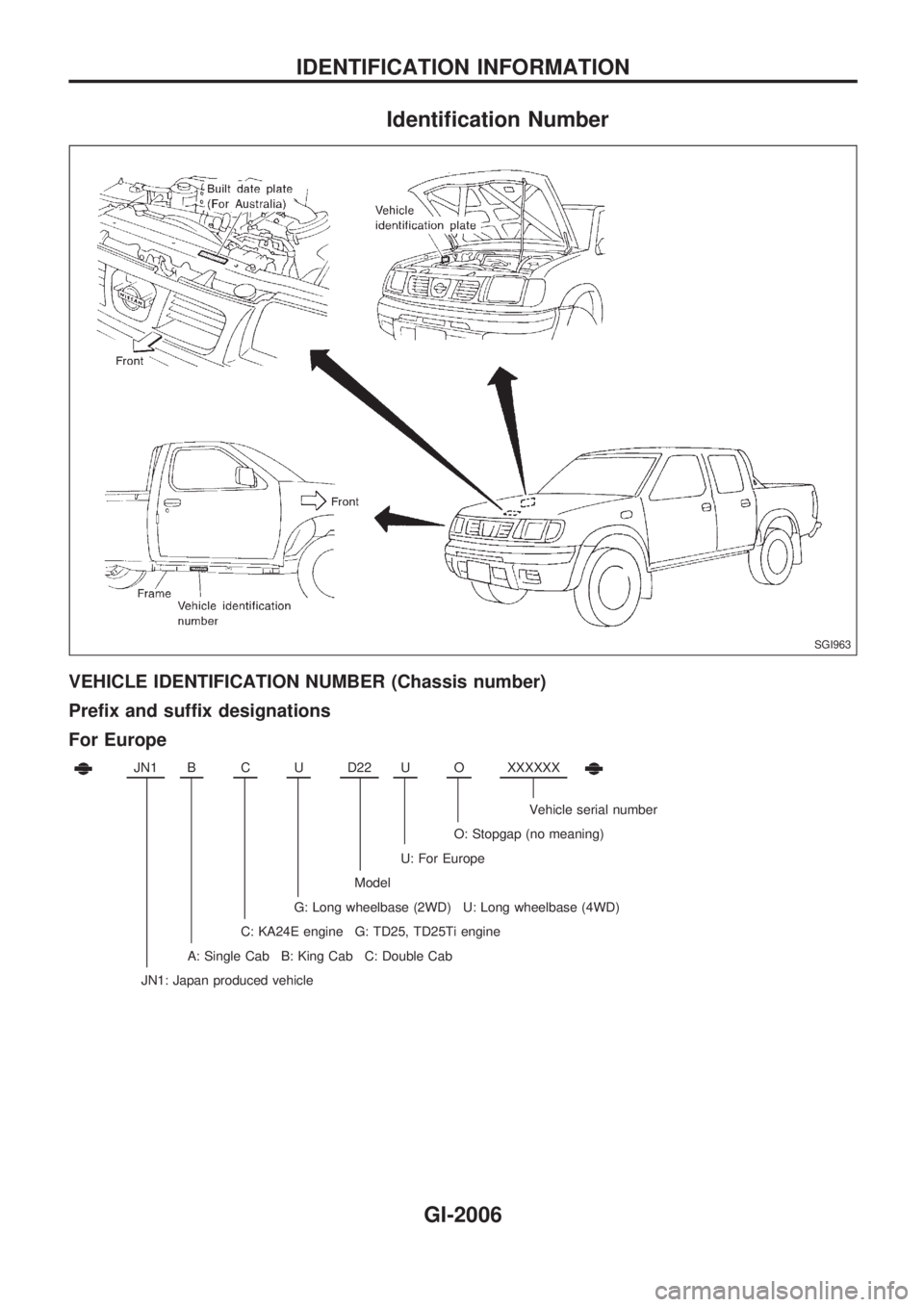

VEHICLE IDENTIFICATION NUMBER (Chassis number)
Prefix and suffix designations
For Europe
JN1BCUD22UOXXXXXX
Vehicle serial number
O: Stopgap (no meaning)
U: For Europe
Model
G: Long wheelbase (2WD) U: Long wheelbase (4WD)
C: KA24E engine G: TD25, TD25Ti engine
A: Single Cab B: King Cab C: Double Cab
JN1: Japan produced vehicle
SGI963
IDENTIFICATION INFORMATION
GI-2006

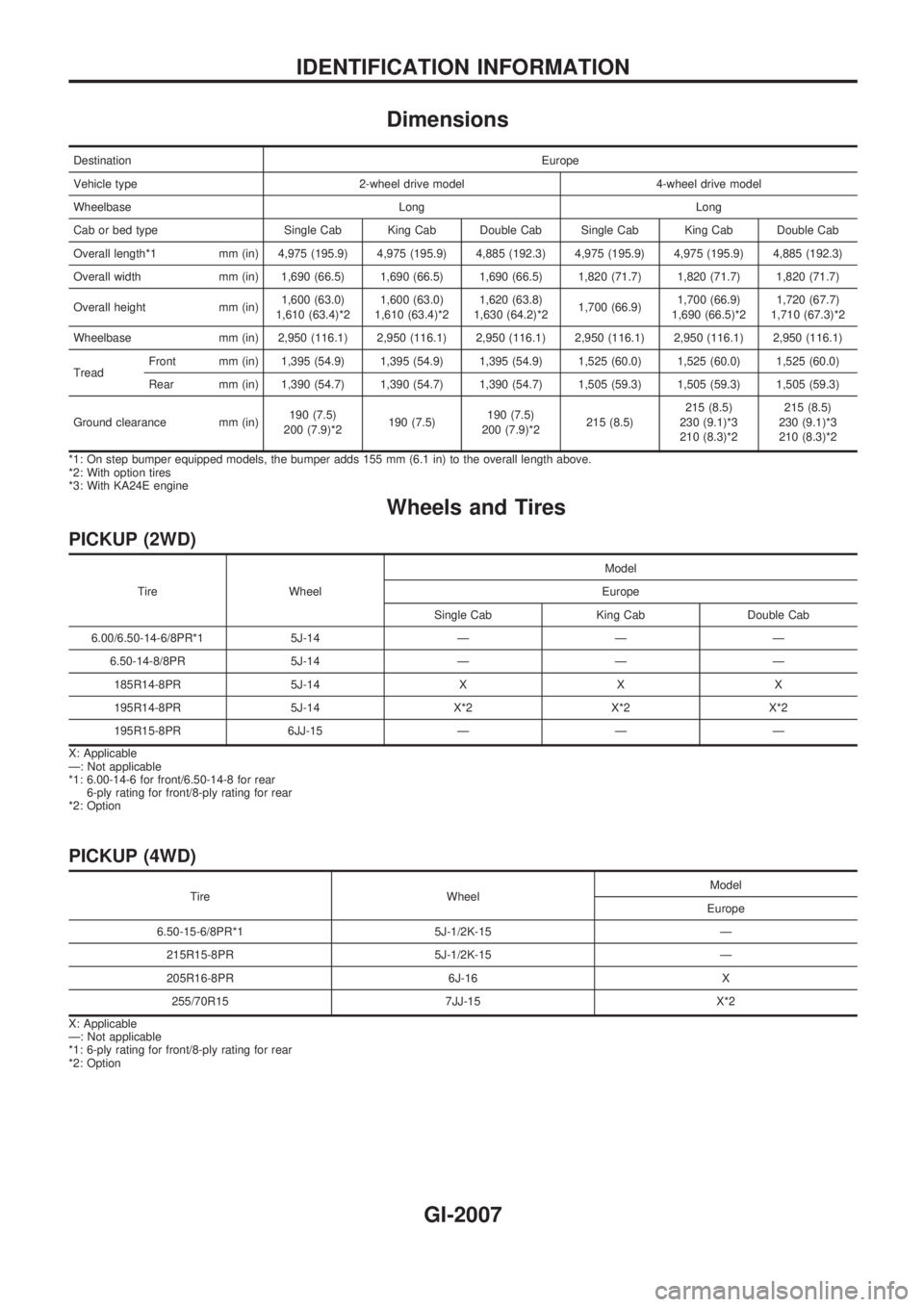

Dimensions
DestinationEurope
Vehicle type 2-wheel drive model 4-wheel drive model
Wheelbase Long Long
Cab or bed type Single Cab King Cab Double Cab Single Cab King Cab Double Cab
Overall length*1 mm (in) 4,975 (195.9) 4,975 (195.9) 4,885 (192.3) 4,975 (195.9) 4,975 (195.9) 4,885 (192.3)
Overall width mm (in) 1,690 (66.5) 1,690 (66.5) 1,690 (66.5) 1,820 (71.7) 1,820 (71.7) 1,820 (71.7)
Overall height mm (in)1,600 (63.0)
1,610 (63.4)*21,600 (63.0)
1,610 (63.4)*21,620 (63.8)
1,630 (64.2)*21,700 (66.9)1,700 (66.9)
1,690 (66.5)*21,720 (67.7)
1,710 (67.3)*2
Wheelbase mm (in) 2,950 (116.1) 2,950 (116.1) 2,950 (116.1) 2,950 (116.1) 2,950 (116.1) 2,950 (116.1)
TreadFront mm (in) 1,395 (54.9) 1,395 (54.9) 1,395 (54.9) 1,525 (60.0) 1,525 (60.0) 1,525 (60.0)
Rear mm (in) 1,390 (54.7) 1,390 (54.7) 1,390 (54.7) 1,505 (59.3) 1,505 (59.3) 1,505 (59.3)
Ground clearance mm (in)190 (7.5)
200 (7.9)*2190 (7.5)190 (7.5)
200 (7.9)*2215 (8.5)215 (8.5)
230 (9.1)*3
210 (8.3)*2215 (8.5)
230 (9.1)*3
210 (8.3)*2
*1: On step bumper equipped models, the bumper adds 155 mm (6.1 in) to the overall length above.
*2: With option tires
*3: With KA24E engine
Wheels and Tires
PICKUP (2WD)
Tire WheelModel
Europe
Single Cab King Cab Double Cab
6.00/6.50-14-6/8PR*1 5J-14 Ð Ð Ð
6.50-14-8/8PR 5J-14 Ð Ð Ð
185R14-8PR 5J-14 X X X
195R14-8PR 5J-14 X*2 X*2 X*2
195R15-8PR 6JJ-15 Ð Ð Ð
X: Applicable
Ð: Not applicable
*1: 6.00-14-6 for front/6.50-14-8 for rear
6-ply rating for front/8-ply rating for rear
*2: Option
PICKUP (4WD)
Tire WheelModel
Europe
6.50-15-6/8PR*1 5J-1/2K-15 Ð
215R15-8PR 5J-1/2K-15 Ð
205R16-8PR 6J-16 X
255/70R15 7JJ-15 X*2
X: Applicable
Ð: Not applicable
*1: 6-ply rating for front/8-ply rating for rear
*2: Option
IDENTIFICATION INFORMATION
GI-2007

\

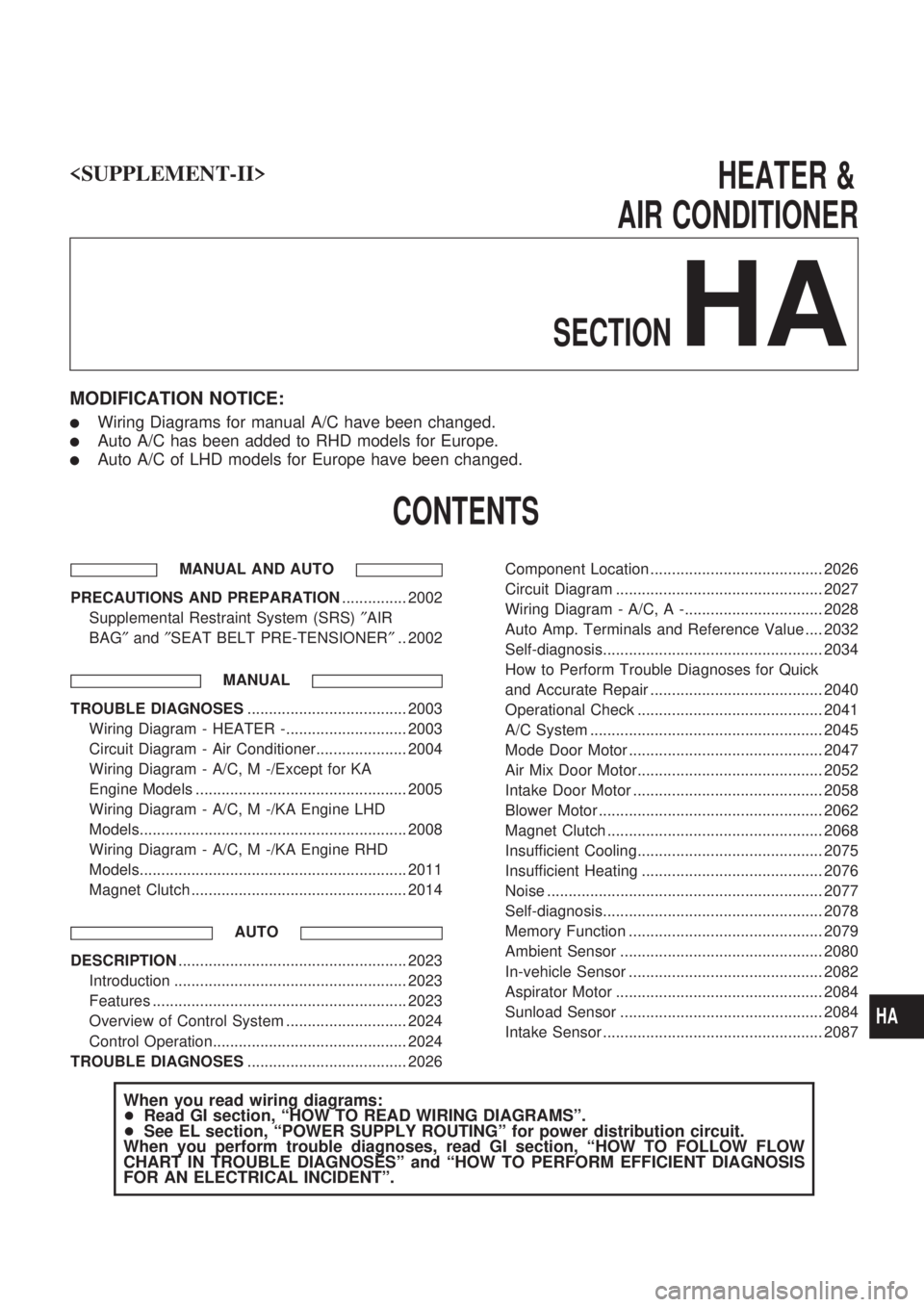

HEATER&
AIR CONDITIONER
SECTION
HA
MODIFICATION NOTICE:
lWiring Diagrams for manual A/C have been changed.
lAuto A/C has been added to RHD models for Europe.
lAuto A/C of LHD models for Europe have been changed.
CONTENTS
MANUAL AND AUTO
PRECAUTIONS AND PREPARATION ............... 2002
Supplemental Restraint System (SRS) ²AIR
BAG ²and ²SEAT BELT PRE-TENSIONER ².. 2002
MANUAL
TROUBLE DIAGNOSES ..................................... 2003
Wiring Diagram - HEATER -............................ 2003
Circuit Diagram - Air Conditioner..................... 2004
Wiring Diagram - A/C, M -/Except for KA
Engine Models ................................................. 2005
Wiring Diagram - A/C, M -/KA Engine LHD
Models.............................................................. 2008
Wiring Diagram - A/C, M -/KA Engine RHD
Models.............................................................. 2011
Magnet Clutch .................................................. 2014
AUTO
DESCRIPTION..................................................... 2023
Introduction ...................................................... 2023
Features ........................................................... 2023
Overview of Control System ............................ 2024
Control Operation............................................. 2024
TROUBLE DIAGNOSES ..................................... 2026 Component Location ........................................ 2026
Circuit Diagram ................................................ 2027
Wiring Diagram - A/C, A -................................ 2028
Auto Amp. Terminals and Reference Value .... 2032
Self-diagnosis................................................... 2034
How to Perform Trouble Diagnoses for Quick
and Accurate Repair ........................................ 2040
Operational Check ........................................... 2041
A/C System ...................................................... 2045
Mode Door Motor ............................................. 2047
Air Mix Door Motor........................................... 2052
Intake Door Motor ............................................ 2058
Blower Motor .................................................... 2062
Magnet Clutch .................................................. 2068
Insufficient Cooling........................................... 2075
Insufficient Heating .......................................... 2076
Noise ................................................................ 2077
Self-diagnosis................................................... 2078
Memory Function ............................................. 2079
Ambient Sensor ............................................... 2080
In-vehicle Sensor ............................................. 2082
Aspirator Motor ................................................ 2084
Sunload Sensor ............................................... 2084
Intake Sensor ................................................... 2087
When you read wiring diagrams:
+
Read GI section, ªHOW TO READ WIRING DIAGRAMSº.
+ See EL section, ªPOWER SUPPLY ROUTINGº for power distribution circuit.
When you perform trouble diagnoses, read GI section, ªHOW TO FOLLOW FLOW
CHART IN TROUBLE DIAGNOSESº and ªHOW TO PERFORM EFFICIENT DIAGNOSIS
FOR AN ELECTRICAL INCIDENTº.
HA

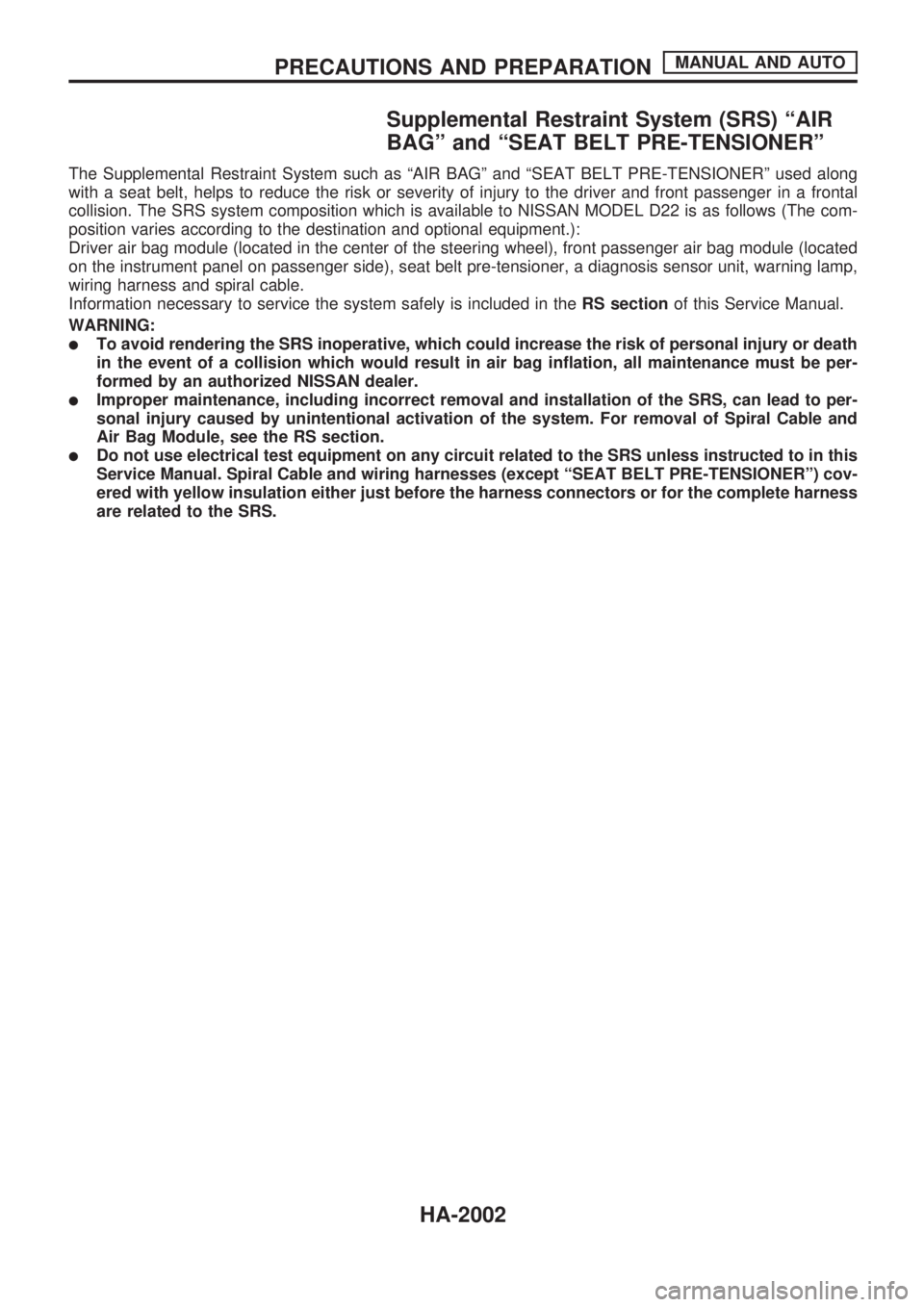

Supplemental Restraint System (SRS) ªAIR
BAGº and ªSEAT BELT PRE-TENSIONERº
The Supplemental Restraint System such as ªAIR BAGº and ªSEAT BELT PRE-TENSIONERº used along
with a seat belt, helps to reduce the risk or severity of injury to the driver and front passenger in a frontal
collision. The SRS system composition which is available to NISSAN MODEL D22 is as follows (The com-
position varies according to the destination and optional equipment.):
Driver air bag module (located in the center of the steering wheel), front passenger air bag module (located
on the instrument panel on passenger side), seat belt pre-tensioner, a diagnosis sensor unit, warning lamp,
wiring harness and spiral cable.
Information necessary to service the system safely is included in theRS sectionof this Service Manual.
WARNING:
lTo avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN dealer.
lImproper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and
Air Bag Module, see the RS section.
lDo not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. Spiral Cable and wiring harnesses (except ªSEAT BELT PRE-TENSIONERº) cov-
ered with yellow insulation either just before the harness connectors or for the complete harness
are related to the SRS.
PRECAUTIONS AND PREPARATIONMANUAL AND AUTO
HA-2002

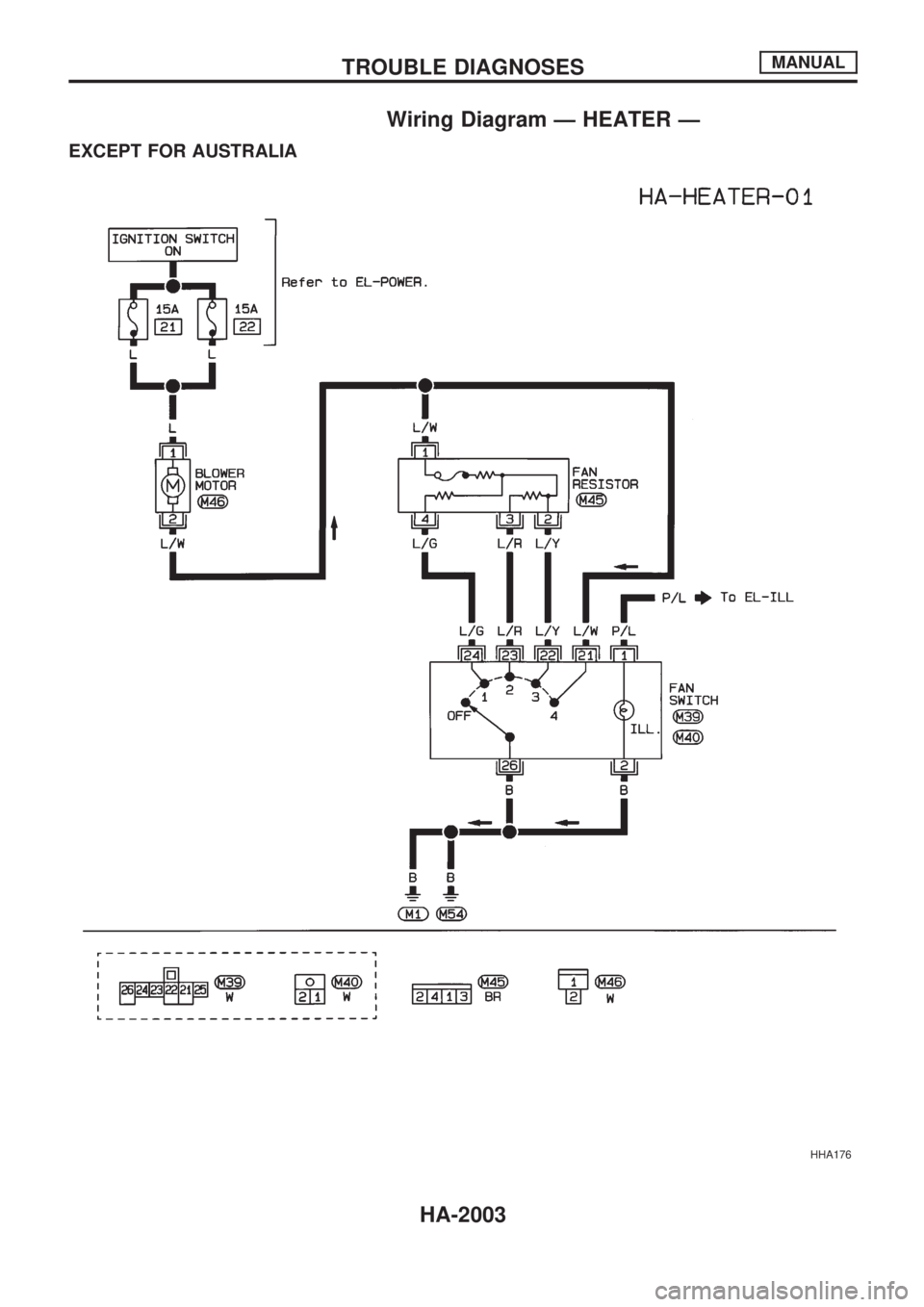

Wiring Diagram Ð HEATER Ð
EXCEPT FOR AUSTRALIA
HHA176
TROUBLE DIAGNOSESMANUAL
HA-2003

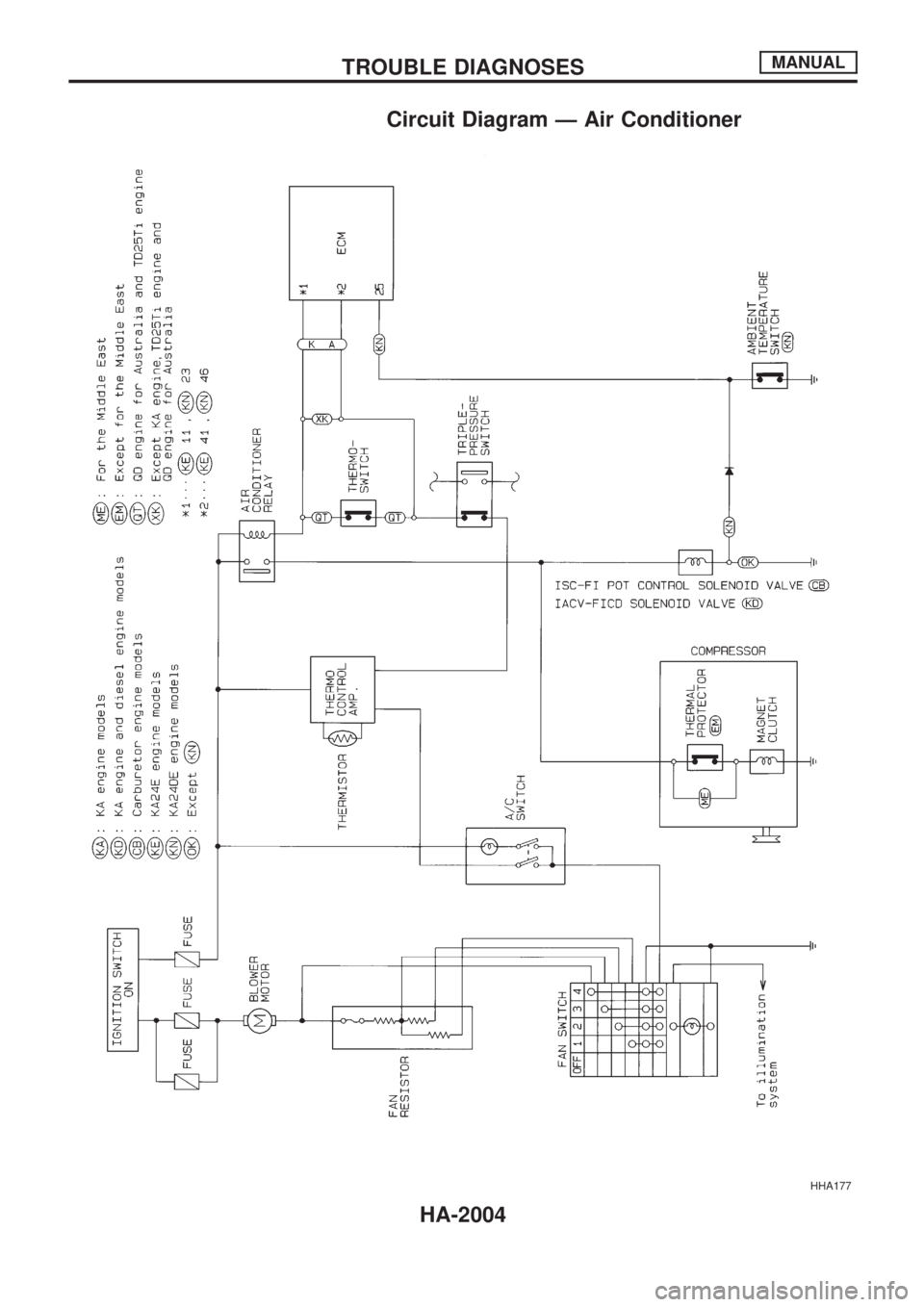

Circuit Diagram Ð Air Conditioner
HHA177
TROUBLE DIAGNOSESMANUAL
HA-2004
