1999 NISSAN PICK-UP Repair Manual

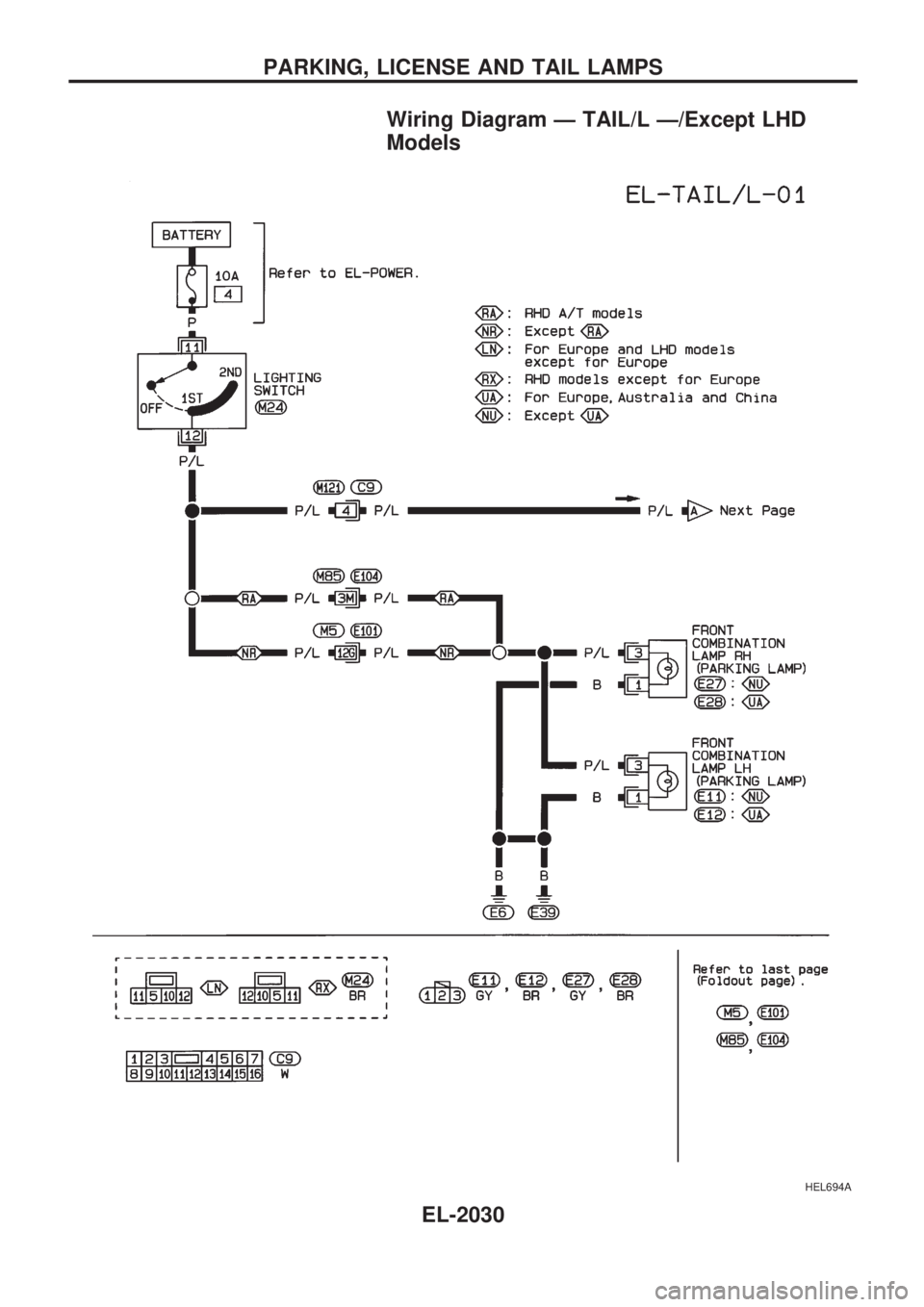

Wiring Diagram Ð TAIL/L Ð/Except LHD
Models
HEL694A
PARKING, LICENSE AND TAIL LAMPS
EL-2030

HEL695A
PARKING, LICENSE AND TAIL LAMPS

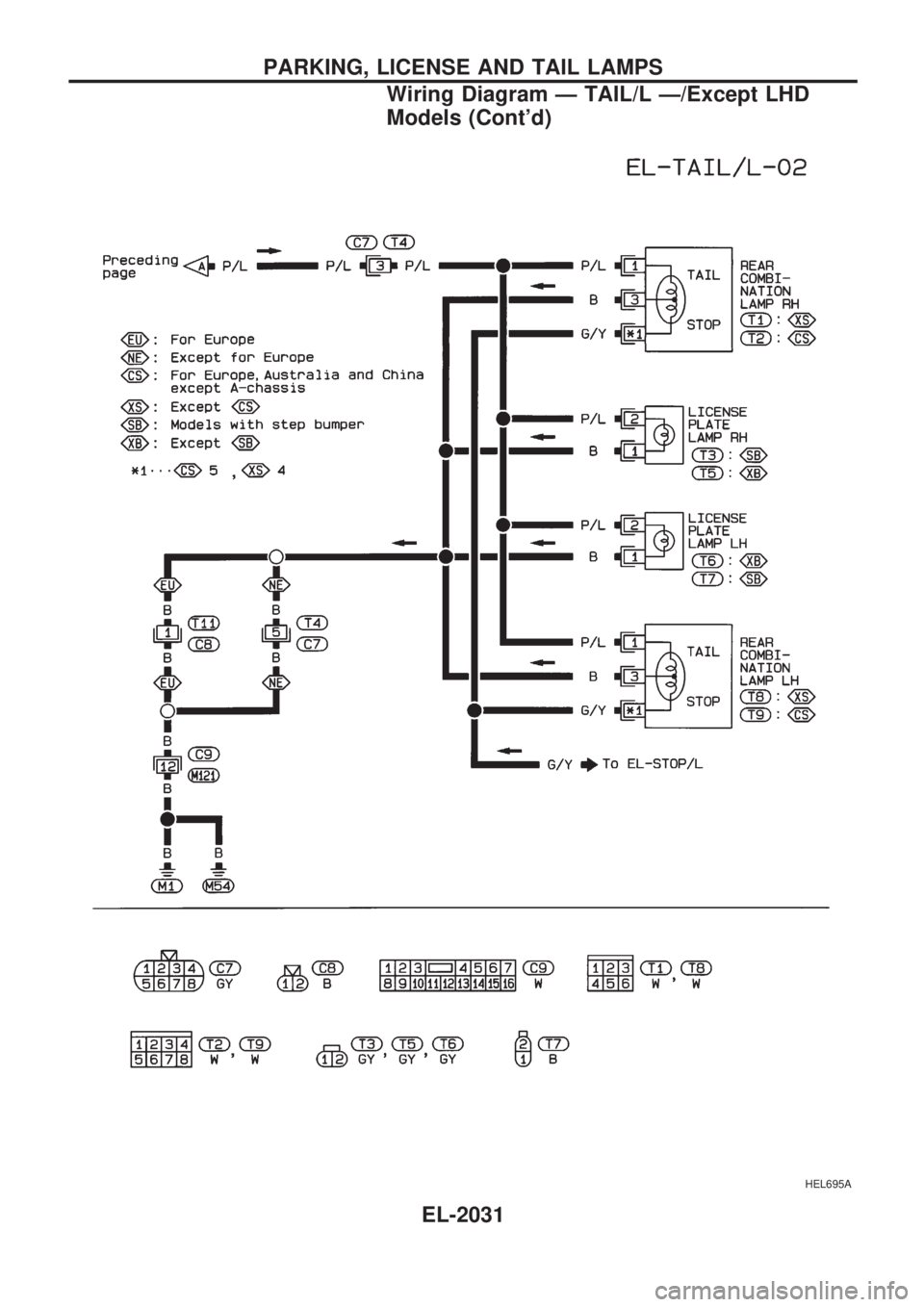

Wiring Diagram Ð TAIL/L Ð/Except LHD
Models (Cont'd)
EL-2031

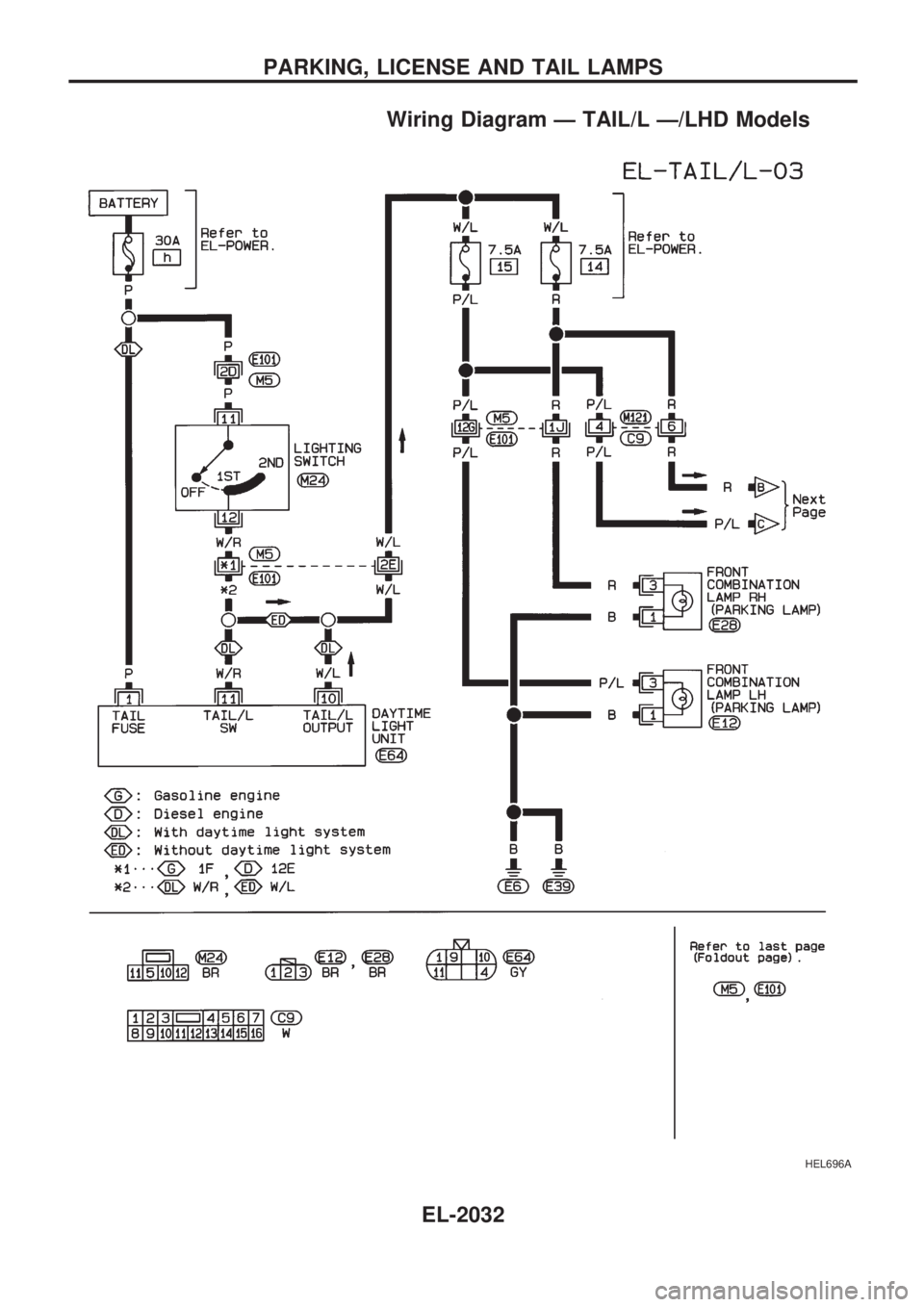

Wiring Diagram Ð TAIL/L Ð/LHD Models
HEL696A
PARKING, LICENSE AND TAIL LAMPS
EL-2032

HEL697A
PARKING, LICENSE AND TAIL LAMPS

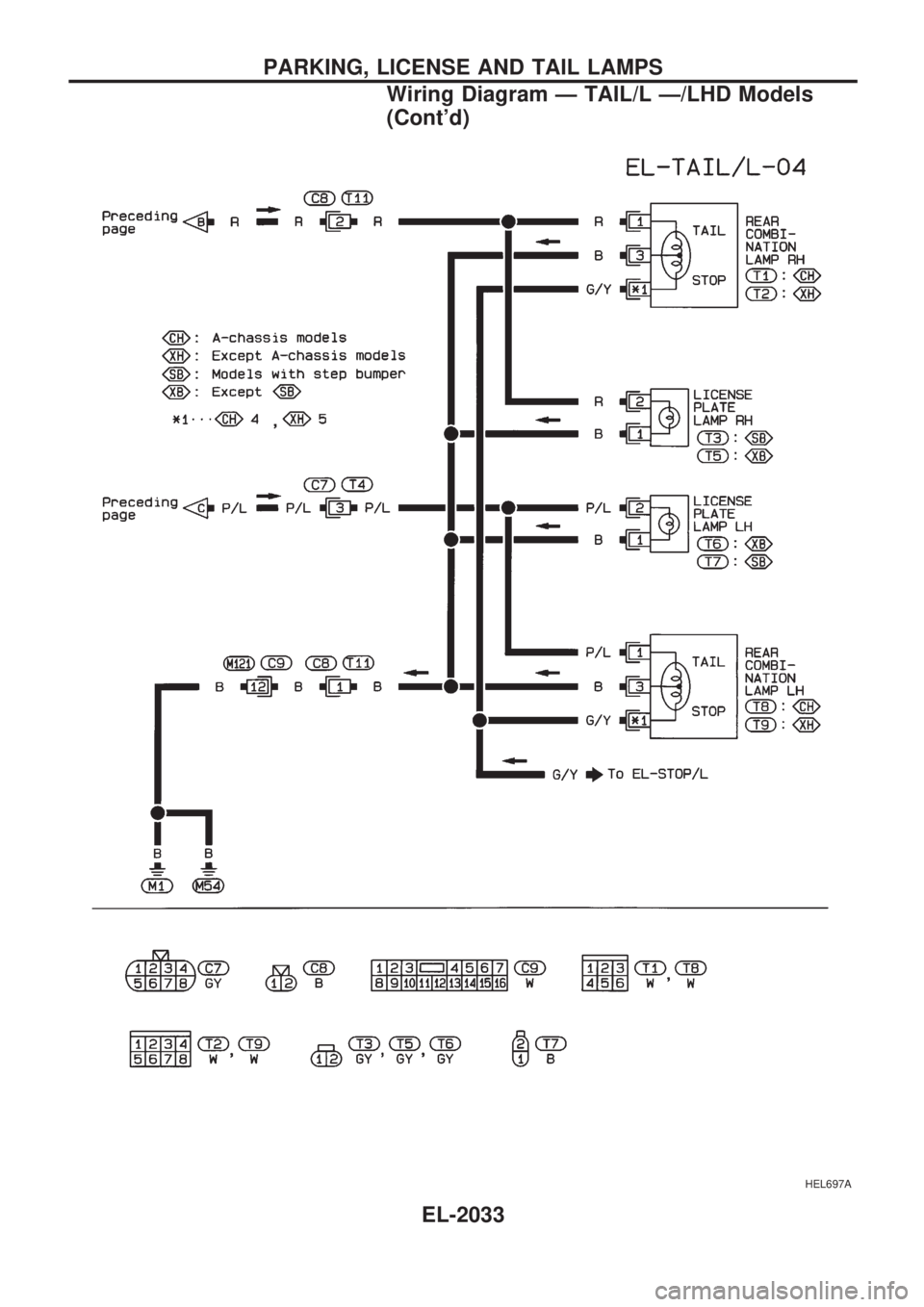

Wiring Diagram Ð TAIL/L Ð/LHD Models
(Cont'd)
EL-2033

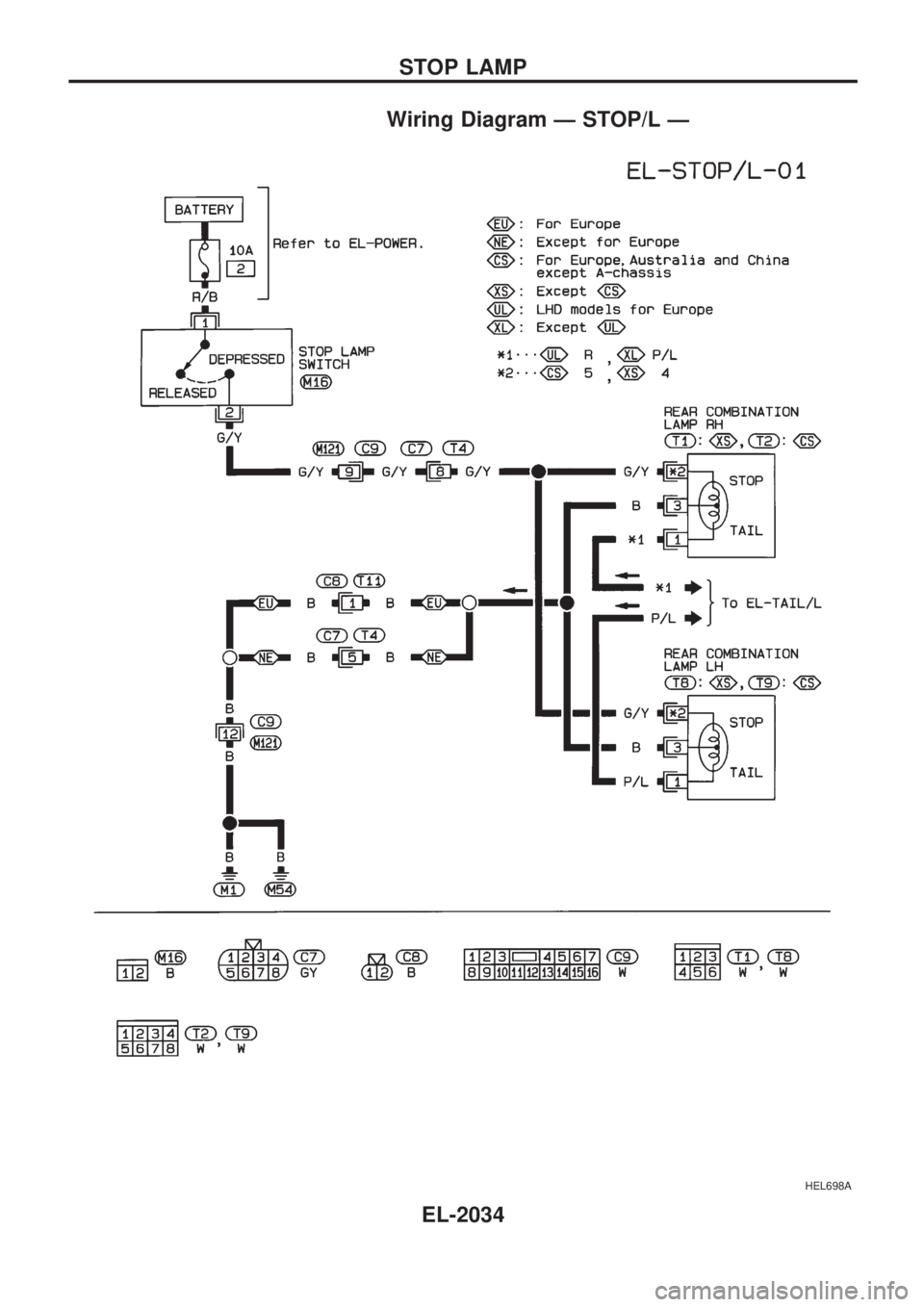

Wiring Diagram Ð STOP/L Ð
HEL698A
STOP LAMP
EL-2034

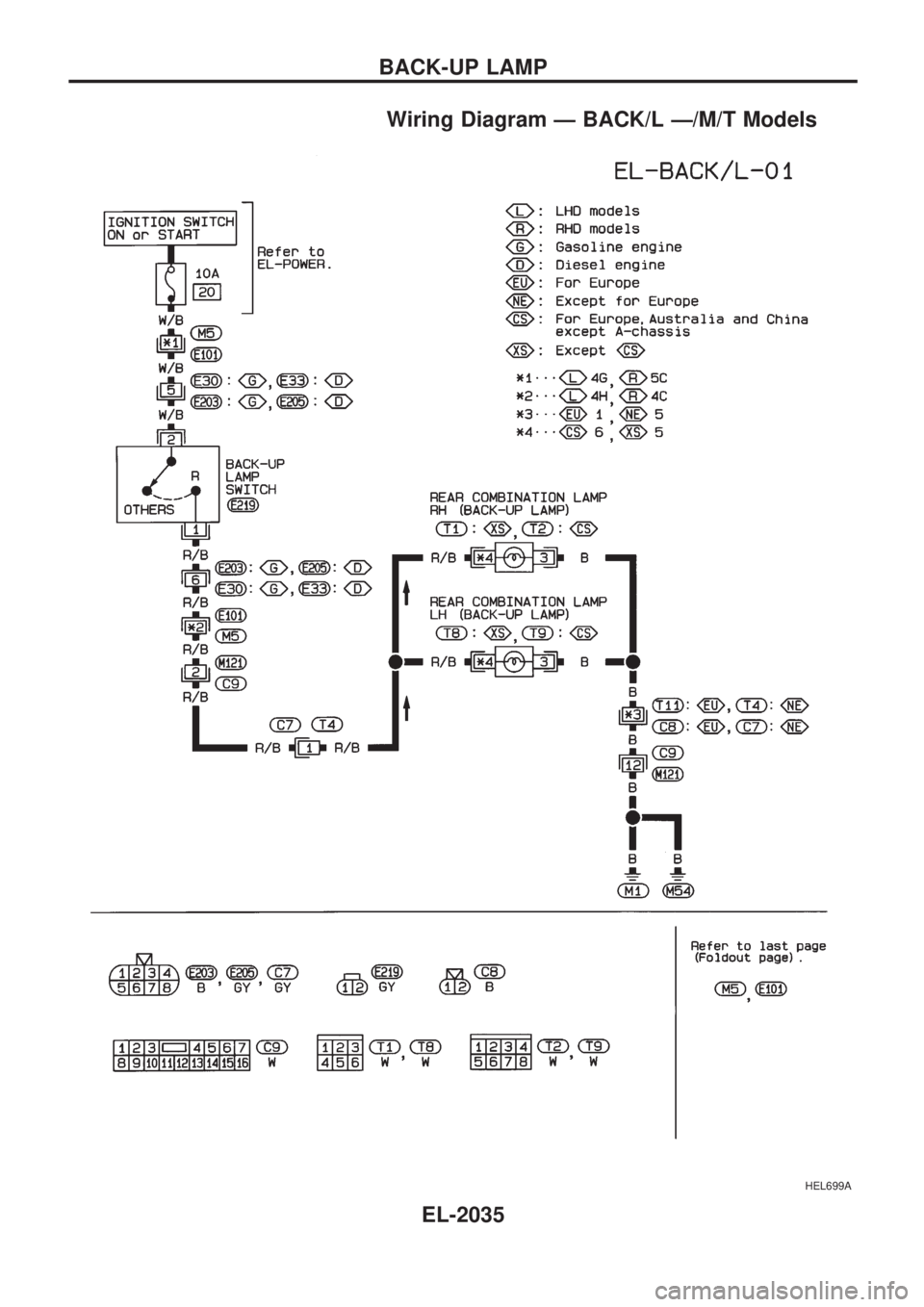

Wiring Diagram Ð BACK/L Ð/M/T Models
HEL699A
BACK-UP LAMP
EL-2035

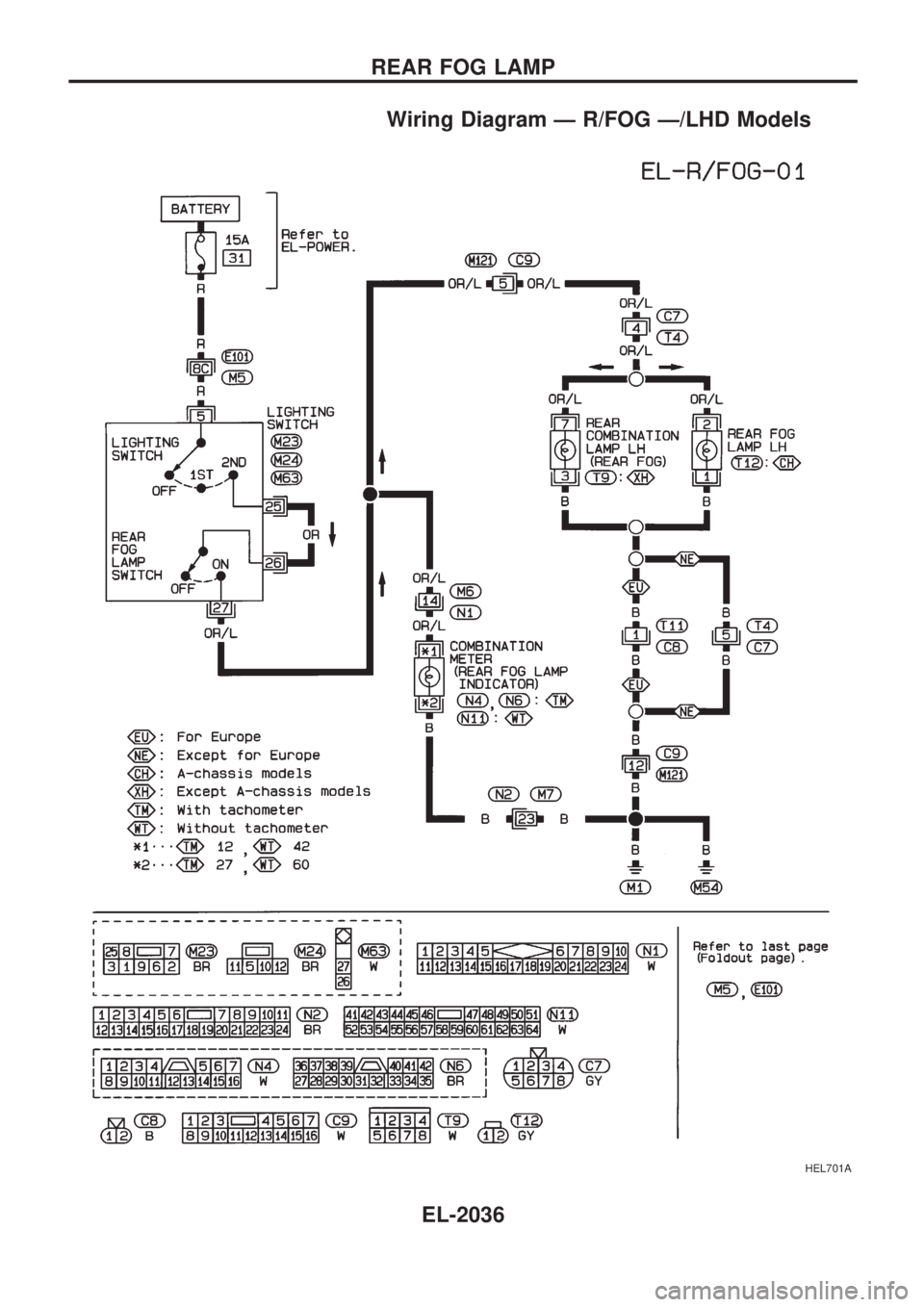

Wiring Diagram Ð R/FOG Ð/LHD Models
HEL701A
REAR FOG LAMP
EL-2036

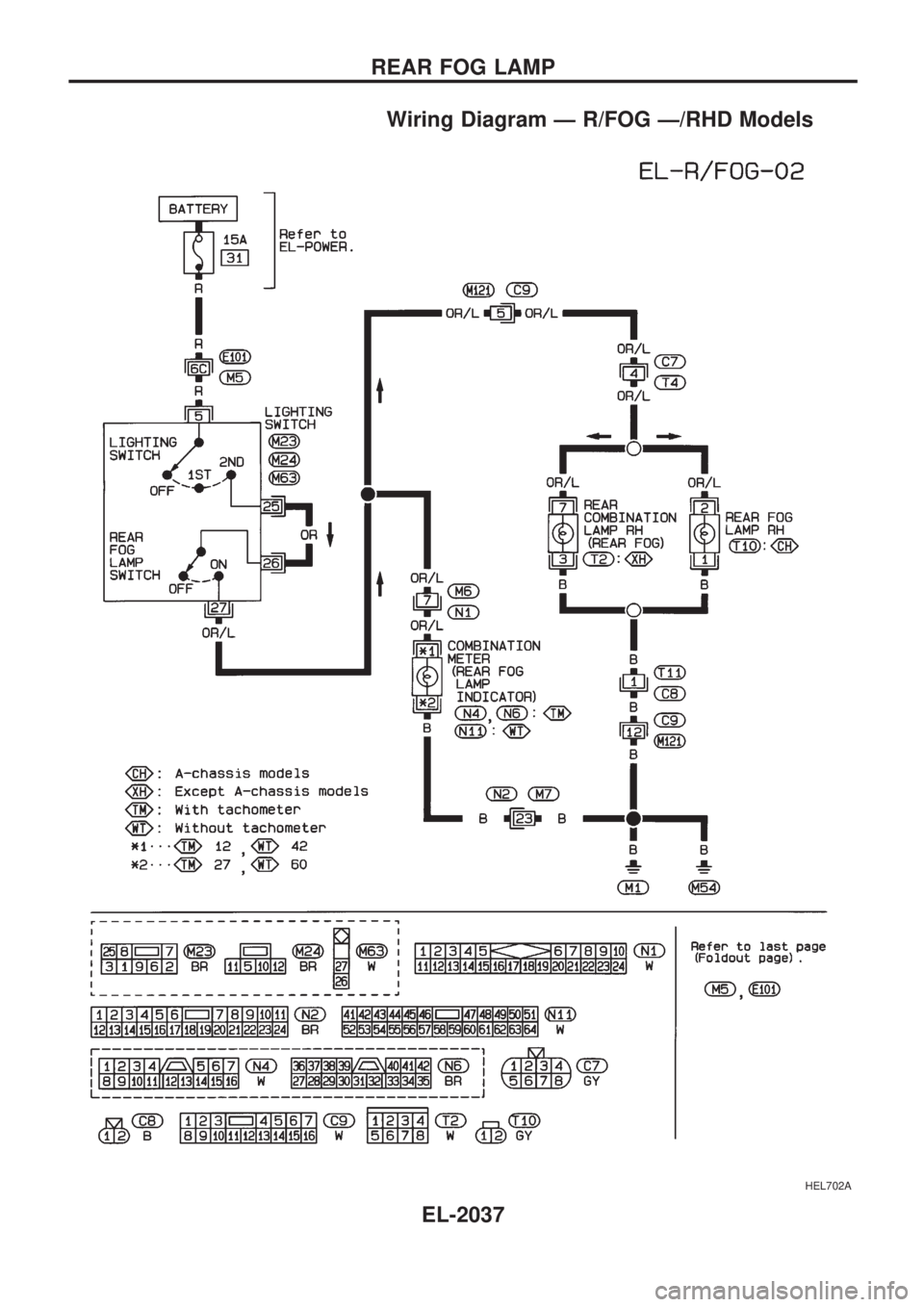

Wiring Diagram Ð R/FOG Ð/RHD Models
HEL702A
REAR FOG LAMP
EL-2037
